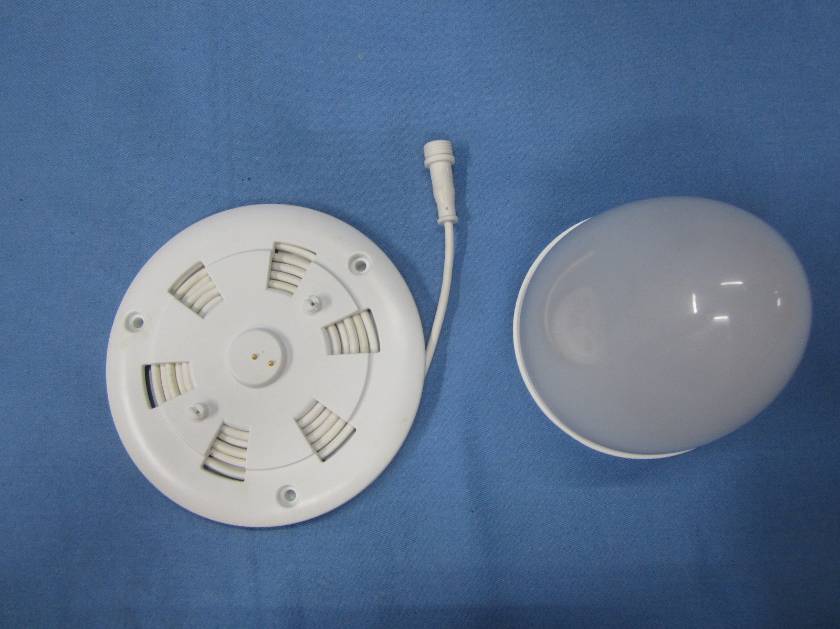

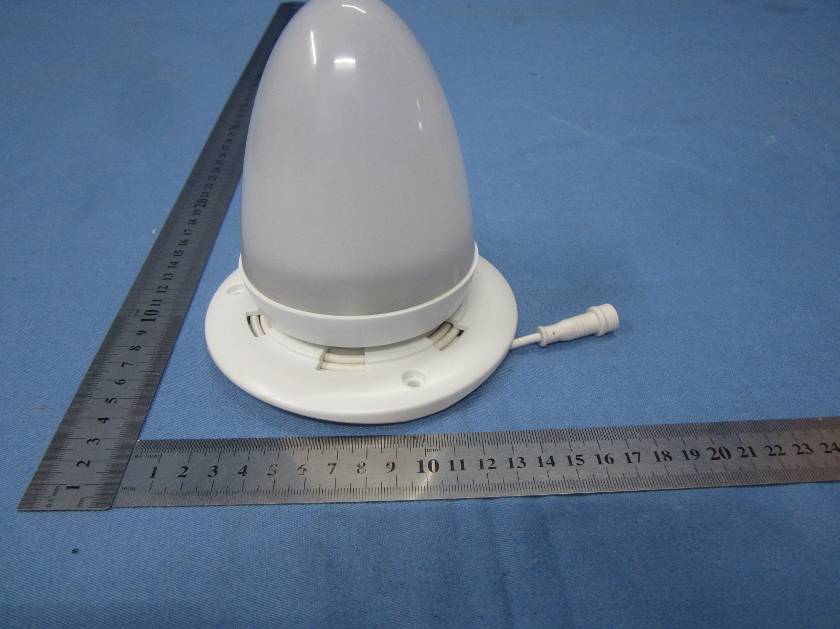

Y9P-BULB-ICLED Lamp

English You have just purchased a BULB-ICproduct. This bulb uses Mesh technology, enabling you to adapt the intensity, color and schedule of your smart bulbusing a number of personalized scenarios. Combine your Smart and Green lights using the application and create a Mesh network: Your products will communicate with each other. Precautions of use Please read this user manual carefully before using your product, and conserve it for future reference. Only use this product in accordance with the precautions of use. Misuse of the product will void your guarantee. -Do not connect the light to another device -Do not expose to fire or other heat sources -Do not attempt to recharge it with a different charger -Do not attempt to dismantle the bulb -Take care when handling, or the product may become scratched Usage instructions ! Download the Smart Light application onto your Smartphone 1 The bulb must be charged before its first use, and regularly afterwards (otherwise the battery may deteriorate). It will glow blue when charging. 2 Set up your BULB-IC using the Smart Light application. Refer to the “How to Use” page for further instructions: www.smartandgreen.eu 3 In the event of a connection problem, press and hold both buttons under the bulb for 10 seconds to reset the BULB-IC. Technical data -SmartMesh Technology -Designed in France, manufactured in China -Manufacturer guarantee: 1 year -Lithium-ion battery: 3.7V 2200mAh -Bulb power supply: 5Vdc 1.2A -Water-resistance: IP 68 / to a depth of 1m -Radio frequency: 2.4GHz -LED power: 1.2W -Battery life: 8 hours (white light, maximum intensity) -Temperature: 0-40°C -Transmission/Control: Bluetooth controlled version 4.0 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation.

IPW China Limited 2/F, Block 5, Xujingchang Industrial Park, Fuyong, Shenzhen, GuangDong, China 2015-11-12 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: Y9P-BULB-IC Product Name: LED Lamp Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 11/12/2015

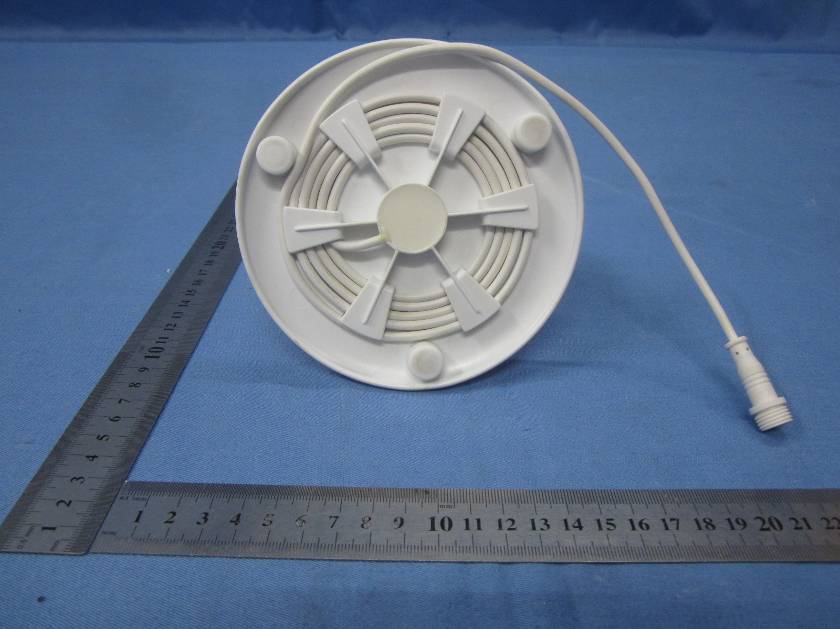

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Bottom of the device

FCC ID: Y9P-BULB-IC According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation          [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,     !-" #$%  &  ! -g extremity SAR, where --f(GHz) is the RF channel transmit frequency in GHz --Power and distance are rounded to the nearest mW and mm before calculation --The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, ---10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m) ---3m So pt = (EXd) 2 /30 x gt Field strength = 89.66dBuV/m @3m Ant gain =-2dBi, so Ant numeric gain= 0.63 So pt={ [10 (89.66/20) /10 6 x 3] 2 /30x1.00 }x1000 mW = 0.440mW So (0.440mW /5mm)x 2.480 = 0.139<3 Then SAR evaluation is not required 0.63

Global United Technology Services Co., Ltd. Report No.: GTSE15090183901 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS or testing done by GTS in connection with, distribution or use of the product described in this report must be approved by GTS in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. Robinson Lo FCC REPORT Applicant: IPW China Limited Address of Applicant: 2/F, Block 5, Xujingchang Industrial Park, Fuyong, Shenzhen, GuangDong, China Equipment Under Test (EUT) Product Name:LED Lamp Model No.:BULB-IC Trade Mark:Smart&Grenn FCC ID: Y9P-BULB-IC Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249:2014 Date of sample receipt: November 03, 2015 Date of Test: November 04-11, 2015 Date of report issued: November 12, 2015 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSE15090183901 Global United Technology Services Co., Ltd.Project No.: GTSE150901839RF Room 301-309, 3th Floor, Block A, Huafeng Jinyuan Business Building, No. 300 Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960Page 2 of 35 2Version Version No.DateDescription 00November 12, 2015Original Prepared By: Date: November 12, 2015 Project Engineer Check By:Date: November 12, 2015 Reviewer Report No.: GTSE15090183901 Global United Technology Services Co., Ltd.Project No.: GTSE150901839RF Room 301-309, 3th Floor, Block A, Huafeng Jinyuan Business Building, No. 300 Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960Page 3 of 35 3Contents Page 1 COVER PAGE............................................................................................................................................ 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 4.1 MEASUREMENT UNCERTAINTY............................................................................................................ 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 CLIENT INFORMATION......................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3 TEST MODE........................................................................................................................................ 7 5.4 TEST FACILITY.................................................................................................................................... 7 5.5 TEST LOCATION................................................................................................................................. 7 5.6 DESCRIPTION OF SUPPORT UNITS....................................................................................................... 7 5.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER......................................................................... 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA...................................................................................... 9 7.1 ANTENNA REQUIREMENT..................................................................................................................... 9 7.2 CONDUCTED EMISSIONS................................................................................................................... 10 7.3 RADIATED EMISSION METHOD........................................................................................................... 13 7.3.1 Field Strength of The Fundamental Signal ................................................................................ 15 7.3.2 Spurious emissions.................................................................................................................... 16 7.3.3 Bandedge emissions.................................................................................................................. 20 7.4 20DBOCCUPY BANDWIDTH.............................................................................................................. 21 8 TEST SETUP PHOTO ............................................................................................................................ 23 9 EUT CONS…

Text truncated - open the document above for the full version.

Radiated Emission Conducted Emission
