YA7-ATPT1436Car Tracker

ATrack Technology Inc.
Car Tracker - FCC ID YA7-ATPT1436 - ATrack Technology Inc.
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Jan 06, 2015
Application Purpose
Original Equipment
Date of Application
Jan 06, 2015
Equipment Note
Car Tracker
Frequency Range
1852.40000000 - 1907.60000000
Company
ATrack Technology Inc.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

AS1/AS1(E) User Manual Revision: 01 Revision Date: 2014/09/05 ATrack Technology Inc. 3F., No. 88, Sec. 1, Neihu Rd., Neihu Dist., Taipei City 11493 Taiwan (R.O.C.) Tel: +886-2-27975852 Fax: +886-2-27974030 http://www.atrack.com.tw Confidential Document Page 2 of 26 Table of Contents 1. Notification .............................................................................................................................. 3 1.1. Disclaimer .................................................................................................................................... 3 1.2. Copyright ...................................................................................................................................... 3 1.3. Warning ........................................................................................................................................ 3 2. Overview .................................................................................................................................. 4 3. Installation ............................................................................................................................... 5 3.1. Package Content ......................................................................................................................... 5 3.2. USB Connector and LED indicators ............................................................................................ 6 3.3. Mounting Methods ....................................................................................................................... 8 3.3.1. Surface Screw Mount ...................................................................................................... 8 3.3.2. Magnet Mount ................................................................................................................. 8 4. Configuration .......................................................................................................................... 9 4.1. USB Driver Installation ................................................................................................................. 9 4.2. Firmware Upgrade ..................................................................................................................... 13 4.3. Connect a Device to a Remote Server ...................................................................................... 23 5. Appendix ................................................................................................................................ 24 5.1. Hardware Specification .............................................................................................................. 24 5.1.1. NdFeB Magnet 3000 Gauss±10% x 2pcs, stainless steel screws x 4pcs ....................... 25 5.2. FCC Regulations: ....................................................................................................................... 26 Confidential Document Page 3 of 26 1 1 . . N N o o t t i i f f i i c c a a t t i i o o n n 1 1 . . 1 1 . . D D i i s s c c l l a a i i m m e e r r This document, and all other related products, such as device, firmware, and software, is developed by ATrack Technology Inc. thoroughly. At the time of release, it is most compatible with specified firmware version. Due to the functionalities of the devices are being developed and improved from time to time, the change in the protocol, specification, and firmware functions are subjects to change without notice. ATrack Technology Inc. is obligated to modify all the documentation without the limitation of time frame. A change notice shall be released to ATrack Technology Inc. customers upon the completion of document modification. ATrack Technology Inc. products are not intended to be used as life support or rescue equipments. ATrack Technology Inc. is not liable for any loss or injury caused by using or referencing to any products. Any possible means of using or integrating ATrack Technology Inc. products shall be avoided. 1 1 . . 2 2 . . C C o o p p y y r r i i g g h h t t ATrack Technology Inc. holds all parts of intellectual rights applicable in the copyright laws in all the countries. Any or all parts of this document shall not be exposed to non-authorized party without any form of approval from ATrack Technology Inc. Any forms, including but not limited to oral, copy, or internet sharing, of releasing or exposing information to an unauthorized party shall be prohibited. ATrack Technology Inc. reserves the rights of litigation in the violation of such copyright laws. 1 1 . . 3 3 . . W W a a r r n n i i n n g g Connecting the wire inputs can be hazardous to both the installer and your vehicle’s electrical system if not done by an experienced installer. This document assumes you are aware of the inherent dangers of working in and around a vehicle and have a working understanding of electricity. Confidential Document Page 4 of 26 2 2 . . O O v v e e r r v v i i e e w w From the following diagram, the AS1 (E) GPS receiver receives incoming signals from each orbiting satellite. These signals consist of information such as satellite’s position and the time that the signal was transmitted by each satellite. The receiver analyzes these data in order to determine how far away each satellite is and it uses the triangulation method to calculate the vehicle’s exact position. Once the positioning data along with other event data are gathered, they will be transmitted to the service center across a Mobile network (e.g. GSM/GPRS) or via SMS. The communication is bidirectional, which means you can control the AS1 (E) remotely across a Mobile network or via SMS. System Architecture Confidential Document Page 5 of 26 3 3 . . I I n n s s t t a a l l l l a a t t i i o o n n 3 3 . . 1 1 . . P P a a c c k k a a g g e e C C o o n n t t e e n n t t When you open the package, please verify that you received the following device and accessories:  AS1 (E) Device * 1…

Text truncated - open the document above for the full version.

Cover Letter(s)

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 January 5, 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, ATrack Technology Inc., hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Car Tracker, AS1, AS1E) FCC ID: YA7-ATPT1436 Sincerely, _____________________ Daniel Lee / Vice President Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Tel: +886 3 318 3232 #1857

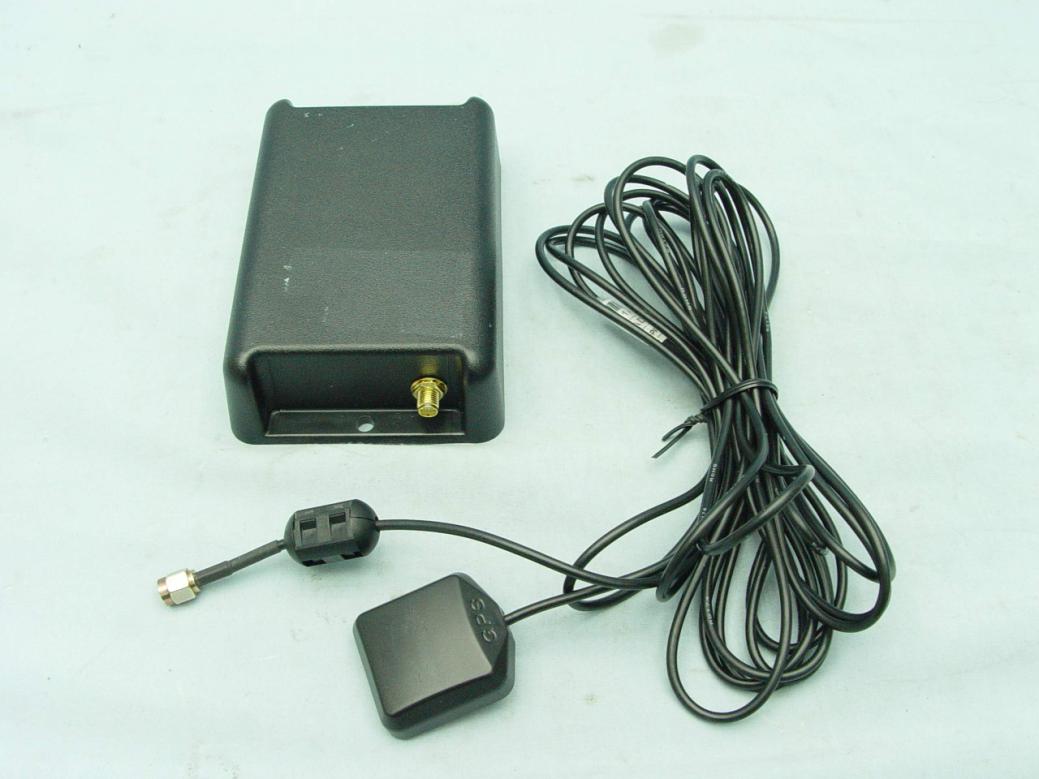

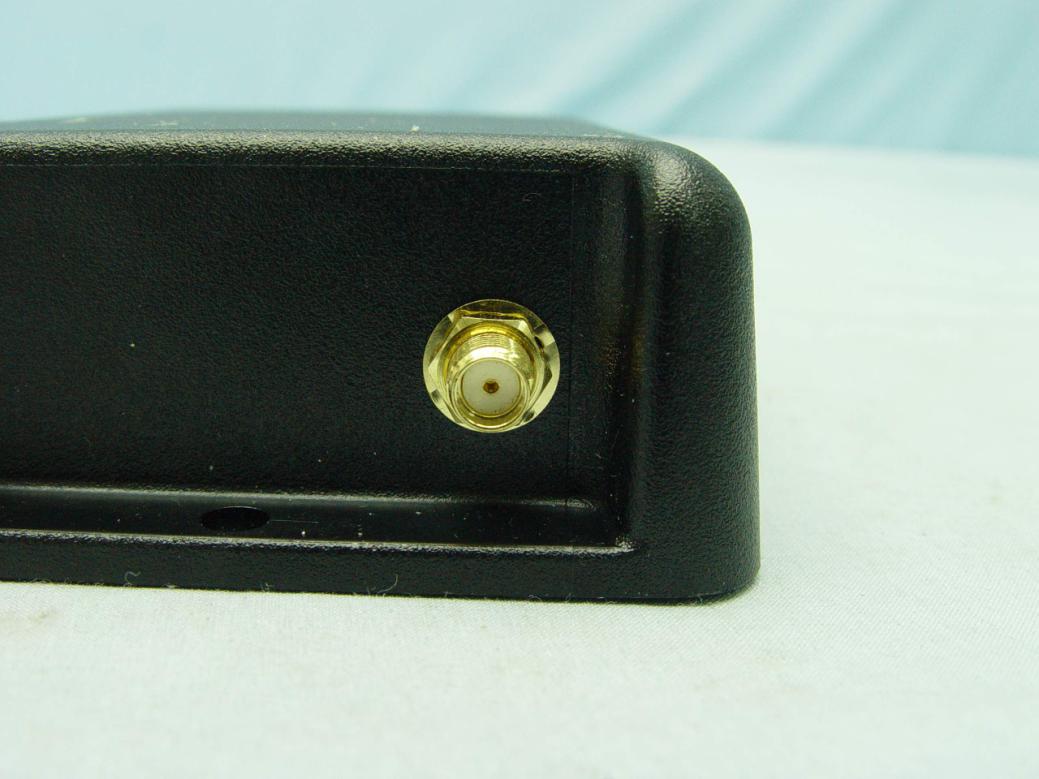

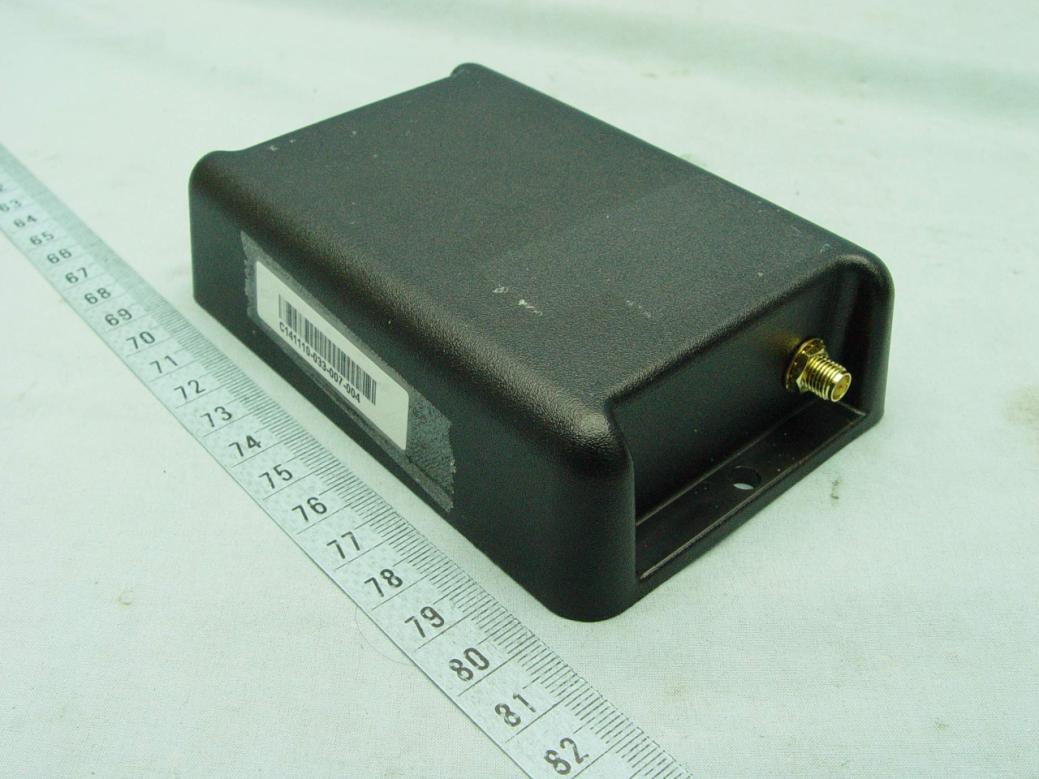

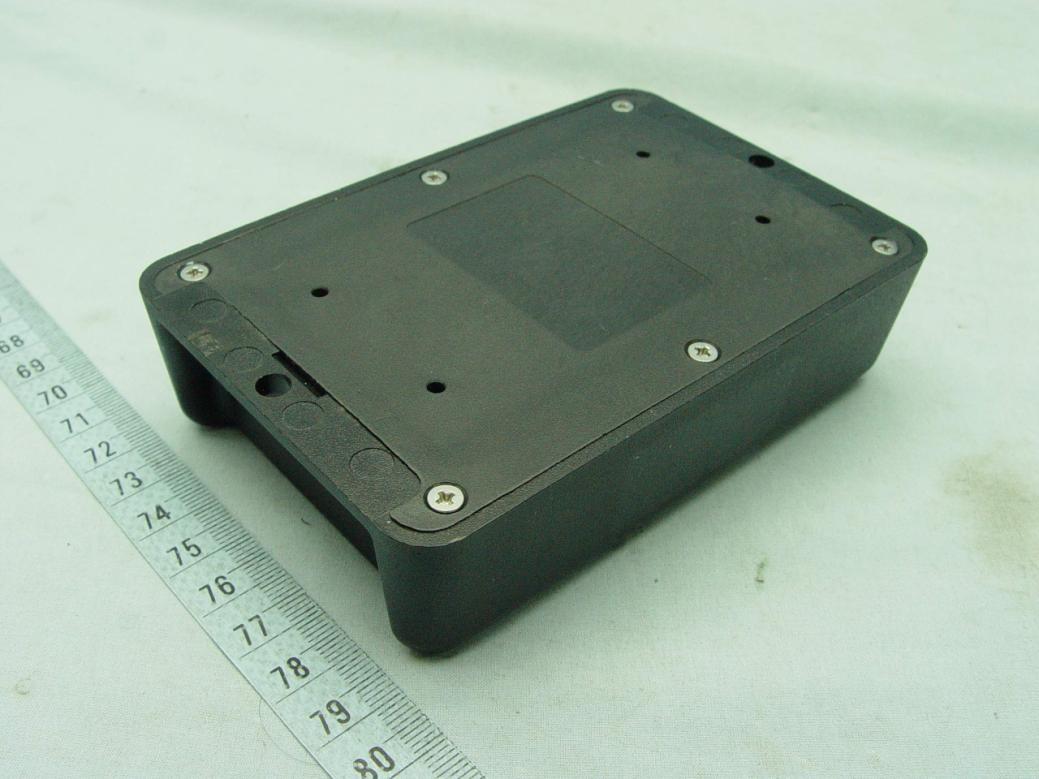

External Photos

Page 1 of 12 Report No.: 141111C09 CONSTRUCTION PHOTOS OF EUT Brand Name: Atrack / Model Name: AS1/AS1E Page 2 of 12 Report No.: 141111C09 Page 3 of 12 Report No.: 141111C09

ID Label/Location Info

AS1/AS1E Label

ID Label/Location Info

FCC ID: YA7-ATPT1436 Bottom of EUT Label Location

Internal Photos

Page 4 of 12 Report No.: 141111C09 Page 5 of 12 Report No.: 141111C09 Page 6 of 12 Report No.: 141111C09 Page 7 of 12 Report No.: 141111C09 Page 8 of 12 Report No.: 141111C09 Page 9 of 12 Report No.: 141111C09 Page 10 of 12 Report No.: 141111C09 Page 11 of 12 Report No.: 141111C09 Page 12 of 12 Report No.: 141111C09

RF Exposure Info

FCC MPE Evaluation Report Report Format Version 5.0.0 Page No. : 1 of 7 Report No. : SA141111C09 Issued Date : Dec. 25, 2014 FCC MPE Evaluation Report Report No. : SA141111C09 Applicant : ATrack Technology Inc. Address : 3F., No. 88, Sec. 1, Neihu Rd., Neihu Dist., Taipei City 11493 Taiwan (R.O.C.) Product : Car Tracker Brand : ATrack Model No. : AS1/AS1E Standards : FCC Part 2 (Section 2.1091) KDB 447498 D01 Sample Received Date : Nov. 11, 2014 Date of Evaluation : Dec. 18, 2014 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch – Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Rona Chen / Specialist Approved By : Gordon Lin / Assistant Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC MPE Evaluation Report Report Format Version 5.0.0 Page No. : 2 of 7 Report No. : SA141111C09 Issued Date : Dec. 25, 2014 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Description of Equipment Under Test ................................................................................................................................. 4 2. MPE (Maximum Permissible Exposure) Assessment ......................................................................................................... 5 2.1 Introduction .................................................................................................................................................................. 5 2.2 RF Radiation Exposure Limits ...................................................................................................................................... 5 2.3 MPE Assessment Method ............................................................................................................................................ 6 2.4 MPE Calculation for Standalone Operations ................................................................................................................ 6 3. Information on the Testing Laboratories ............................................................................................................................. 7 FCC MPE Evaluation Report Report Format Version 5.0.0 Page No. : 3 of 7 Report No. : SA141111C09 Issued Date : Dec. 25, 2014 Release Control Record Report No. Reason for Change Date Issued SA141111C09 Initial release Dec. 25, 2014 FCC MPE Evaluation Report Report Format Version 5.0.0 Page No. : 4 of 7 Report No. : SA141111C09 Issued Date : Dec. 25, 2014 1. Description of Equipment Under Test EUT Type Car Tracker Brand Name ATrack Model Name AS1/AS1E Tx Frequency Bands (Unit: MHz) WCDMA Band II : 1852.4 ~ 1907.6 WCDMA Band V : 826.4 ~ 846.6 Uplink Modulations WCDMA : QPSK Antenna Type Fixed Internal Antenna EUT Stage Identical Prototype Note: 1. The above EUT information is declared by manufacturer and for more detailed features description please refers to the manufacturer's specifications or User's Manual. List of Accessory: Battery Brand Name East Trans Model Name ER14505M-4 Power Rating 3.2Vdc FCC MPE Evaluation Report Report Format Version 5.0.0 Page No. : 5 of 7 Report No. : SA141111C09 Issued Date : Dec. 25, 2014 2. MPE (Maximum Permissible Exposure) Assessment 2.1 Introduction According to 47 CFR §2.1091, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transmitting antenna and the body of the user or nearby persons. In this context, the term “fixed location” means that the device is physically secured at one location and is not able to be easily moved to another location. Transmitting devices designed to be used by consumers or workers that can be easily re-located, such as wireless devices associated with a personal computer, are considered to be mobile devices if they meet the 20 cm separation requirement. The limits to be used for MPE evaluation are specified in §1.1310. All unlicensed personal communications service (PCS) devices and unlicensed NII devices shall be subject to the limi…

Text truncated - open the document above for the full version.

Test Report

Report No.: RF141111C09 1 of 31 Report Format Version 5.0.0 FCC TEST REPORT (PART 22) REPORT NO.: RF141111C09 MODEL NO.: AS1/AS1E FCC ID: YA7-ATPT1436 RECEIVED: Nov. 11, 2014 TESTED: Nov. 24, 2014 ~ Dec. 08, 2014 ISSUED: Dec. 25, 2014 APPLICANT: ATrack Technology Inc. ADDRESS: 3F., No. 88, Sec. 1, Neihu Rd., Neihu Dist., Taipei City 11493 Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF141111C09 2 of 31 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................................ 3 1 CERTIFICATION ................................................................................................................................... 4 2 SUMMARY OF TEST RESULTS ........................................................................................................... 5 2.1 MEASUREMENT UNCERTAINTY ................................................................................................ 5 2.2 TEST SITE AND INSTRUMENTS ................................................................................................. 6 3 GENERAL INFORMATION ................................................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT .............................................................................................. 7 3.2 CONFIGURATION OF SYSTEM UNDER TEST ........................................................................... 8 3.3 DESCRIPTION OF SUPPORT UNITS .......................................................................................... 9 3.4 TEST ITEM AND TEST CONFIGURATION ................................................................................ 10 3.5 EUT OPERATING CONDITIONS ................................................................................................ 11 3.6 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................. 11 4 TEST TYPES AND RESULTS ............................................................................................................. 12 4.1 OUTPUT POWER MEASUREMENT .......................................................................................... 12 4.1.1 LIMITS OF OUTPUT POWER MEASUREMENT ............................................................. 12 4.1.2 TEST PROCEDURES ....................................................................................................... 12 4.1.3 TEST SETUP .................................................................................................................... 13 4.1.4 TEST RESULTS ................................................................................................................ 14 4.2 FREQUENCY STABILITY MEASUREMENT .............................................................................. 15 4.2.1 LIMITS OF FREQUENCY STABILITY MEASUREMENT ................................................. 15 4.2.2 TEST PROCEDURE ......................................................................................................... 15 4.2.3 TEST SETUP .................................................................................................................... 15 4.2.4 TEST RESULTS ................................................................................................................ 16 4.3 OCCUPIED BANDWIDTH MEASUREMENT .............................................................................. 17 4.3.1 TEST PROCEDURES ....................................................................................................... 17 4.3.2 TEST SETUP .................................................................................................................... 17 4.3.3 TEST RESULTS ................................................................................................................ 18 4.4 BAND EDGE MEASUREMENT .................................................................................................. 19 4.4.1 LIMITS OF BAND EDGE MEASUREMENT ..................................................................... 19 4.4.2 TEST SETUP .................................................................................................................... 19 4.4.3 TEST PROCEDURES ....................…

Text truncated - open the document above for the full version.

Test Report

Report No.: RF141111C09-1 1 of 33 Report Format Version 5.0.0 FCC TEST REPORT (PART 24) REPORT NO.: RF141111C09-1 MODEL NO.: AS1/AS1E FCC ID: YA7-ATPT1436 RECEIVED: Nov. 11, 2014 TESTED: Nov. 24, 2014 ~ Dec. 08, 2014 ISSUED: Dec. 25, 2014 APPLICANT: ATrack Technology Inc. ADDRESS: 3F., No. 88, Sec. 1, Neihu Rd., Neihu Dist., Taipei City 11493 Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF141111C09-1 2 of 33 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................................ 3 1 CERTIFICATION ................................................................................................................................... 4 2 SUMMARY OF TEST RESULTS ........................................................................................................... 5 2.1 MEASUREMENT UNCERTAINTY ................................................................................................ 5 2.2 TEST SITE AND INSTRUMENTS ................................................................................................. 6 3 GENERAL INFORMATION ................................................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT .............................................................................................. 7 3.2 CONFIGURATION OF SYSTEM UNDER TEST ........................................................................... 8 3.3 DESCRIPTION OF SUPPORT UNITS .......................................................................................... 9 3.4 TEST ITEM AND TEST CONFIGURATION ................................................................................ 10 3.5 EUT OPERATING CONDITIONS ................................................................................................ 11 3.6 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................. 11 4 TEST TYPES AND RESULTS ............................................................................................................. 12 4.1 OUTPUT POWER MEASUREMENT .......................................................................................... 12 4.1.1 LIMITS OF OUTPUT POWER MEASUREMENT ............................................................. 12 4.1.2 TEST PROCEDURES ....................................................................................................... 12 4.1.3 TEST SETUP .................................................................................................................... 13 4.1.4 TEST RESULTS ................................................................................................................ 14 4.2 FREQUENCY STABILITY MEASUREMENT .............................................................................. 15 4.2.1 LIMITS OF FREQUENCY STABILITY MEASUREMENT ................................................. 15 4.2.2 TEST PROCEDURE ......................................................................................................... 15 4.2.3 TEST SETUP .................................................................................................................... 15 4.2.4 TEST RESULTS ................................................................................................................ 16 4.3 OCCUPIED BANDWIDTH MEASUREMENT .............................................................................. 17 4.3.1 TEST PROCEDURES ....................................................................................................... 17 4.3.2 TEST SETUP .................................................................................................................... 17 4.3.3 TEST RESULTS ................................................................................................................ 18 4.4 PEAK TO AVERAGE RATIO ........................................................................................................ 19 4.4.1 LIMITS OF PEAK TO AVERAGE RATIO MEASUREMENT ............................................. 19 4.4.2 TEST SETUP .................................................................................................................... 19 4.4.3 TEST PROCEDURES ....................…

Text truncated - open the document above for the full version.

Test Setup Photos

1 PHOTOGRAPHS OF THE TEST CONFIGURATION (PART 22) MODE A RADIATED EMISSION TEST 2 ERP POWER TEST 3 (PART 22) MODE B RADIATED EMISSION TEST 4 ERP POWER TEST 5 (PART 24) MODE A RADIATED EMISSION TEST 6 EIRP POWER TEST 7 MODE B RADIATED EMISSION TEST 8 EIRP POWER TEST

Contact Information

Applicant

Terry Wu(CTO)
[email protected]886-2-2797-5852Fax: 886-2797-4030

Test Firm

Bureau Veritas CPS (H.K.) Ltd., Taoyuan BranchRichard Chen
[email protected]+886-3-260-0884Fax: +886-3-211-5834

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
224E1.85 GHz - 1.91 GHz242.00 mW4M09F9W0.004 ppm
Confidentiality
Long Term
Grant Notes
Output power listed is ERP for Part 22 and EIRP for Part 24. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance.
