YA7-BL1Rugged Bluetooth Sensor

BL1 Series / Rugged Bluetooth Sensor User Manual V00 (DVT) Aug. 21th, 2024 1 1 User Manual ATrack Technology BL1 Table of Contents 1. Notification ............................................................................................... 2 1.1. Disclaimer ............................................................................................................... 2 1.2. Copyright ................................................................................................................ 2 1.3. Warning .................................................................................................................. 2 1.4. Product name and Model name ............................................................................. 2 1.5. Contact Manufacturer ............................................................................................ 2 1.6. CE Representatives (CE Cert. have been processing) ............................................. 3 1.7. Regulatory statement and RF exposure statement. .............................................. 3 1.8. Document Amendments ........................................................................................ 4 2. Product Specification ................................................................................ 5 3. Installation ................................................................................................ 6 3.1. Package Content ..................................................................................................... 6 3.2. Optional Accessories .............................................................................................. 6 3.3. Activating the sensor ...................................................... 7 3.4. LED Indicator .......................................................................................................... 8 3.5. Battery replacement (BL1/BL1-TH) ........................................................................ 8 3.6. Mounting recommendations ............................................................................... 12 2 2 User Manual ATrack Technology BL1 1. Notification 1.1. Disclaimer This document, and all other related products, including device, firmware, and software, are exclusively developed by ATrack Technology Inc. Due to the continuous developments and improvements of device functionalities, changes in the protocol, specification, and firmware functions are subjects to change without notice. ATrack Technology Inc. reserves the right to modify all documentations based on its own timelines. Document modification notices will be released to ATrack Technology Inc.’s customers upon completion. ATrack Technology Inc. products are not intended to be used as life support or rescue equipment. ATrack Technology Inc. is not liable for any loss or injury caused by using or referencing to any of its products. Any possible means of using or integrating ATrack Technology Inc. products shall be avoided in such applications. 1.2. Copyright © ATrack Technology Inc. All Rights Reserved ATrack Technology Inc. holds all parts of intellectual rights applicable in the copyright laws in all the countries. Any and all contents of this document shall not be exposed, delivered, and/or disclosed to non-authorized 3 rd party without any form of approval and consent from ATrack Technology Inc. Any form of, including but not limited to, verbal, duplicate, or internet sharing, of releasing or exposing information to an unauthorized party shall be prohibited. ATrack Technology Inc. reserves the rights of litigation in the violation of copyright laws. 1.3. Warning 1. While doing any operation without cover, please wear anti-static gloves/rings to avoid the damage of Electrical Static Discharge. 2. Do not mix with other battery. This battery cannot mix with deposal or twice- recycled batteries in use. Otherwise, for its abnormal charge and discharge, it will cause over-heated, distort, smoke or burning. 3. Keep the battery out of children’s reach and prevent them biting or swallowing the battery. 4. Do not insert the battery onto the charger for a long time. If charging beyond the normal time, the battery is still in the charger, please stop charging. The abnormal charging will cause battery over-heated, distort, smoke or burning. 5. Do not put into microwave stove or any other pressure apparatus. Take the battery away from the cellular phone or the charger if it is instant heated or leak-out (or odors) and depose it. The bad battery will causes over-heated, smoke or burning. 1.4. Product name and Model name Product name Model name Rugged Bluetooth Sensor BL1/BL1-T 1.5. Contact Manufacturer Company name: ATrack Technology Inc. Address: 8F., No. 13, Ln. 120, Sec. 1, Neihu Rd., Neihu Dist., Taipei City 11493, Taiwan (R.O.C.) Sales Phone: +886-2-27975852 ext. 286 E-Mail: [email protected] Technical support Phone: +886-2-27975852 E-Mail: [email protected] 3 3 User Manual ATrack Technology BL1 1.6. CE Representatives (CE Cert. have been processing) The followings are authorized to represent ATrack Technology, in compliant to CE regulation. Company: APEX CE SPECIALISTS GMBH Address: Habichtweg 1 41468 Neuss Germany E-Mail: [email protected] Company: APEX CE SPECIALISTS LIMITED Address: 89 Princess Street, Manchester, M1 4HT, UK E-Mail: [email protected] 1.7. Regulatory statement and RF exposure statement. Federal Communications Commission (FCC) Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital dev…

Text truncated - open the document above for the full version.

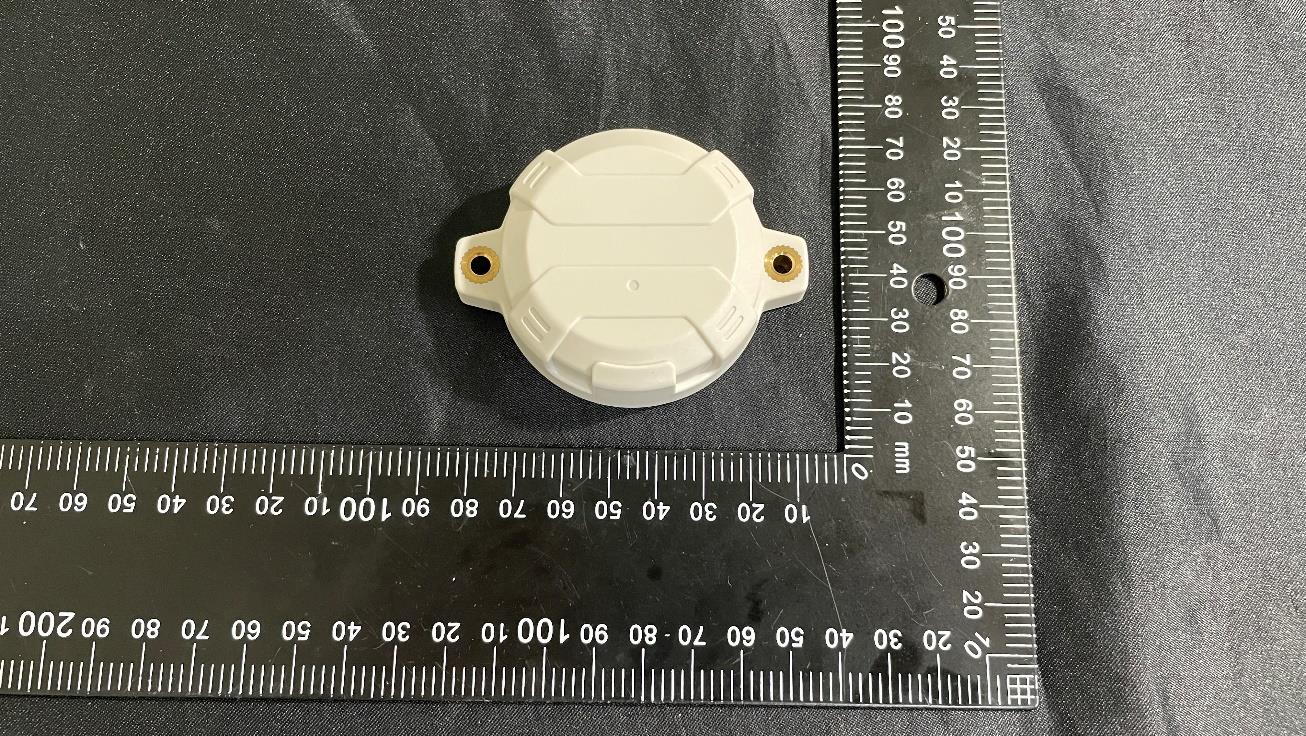

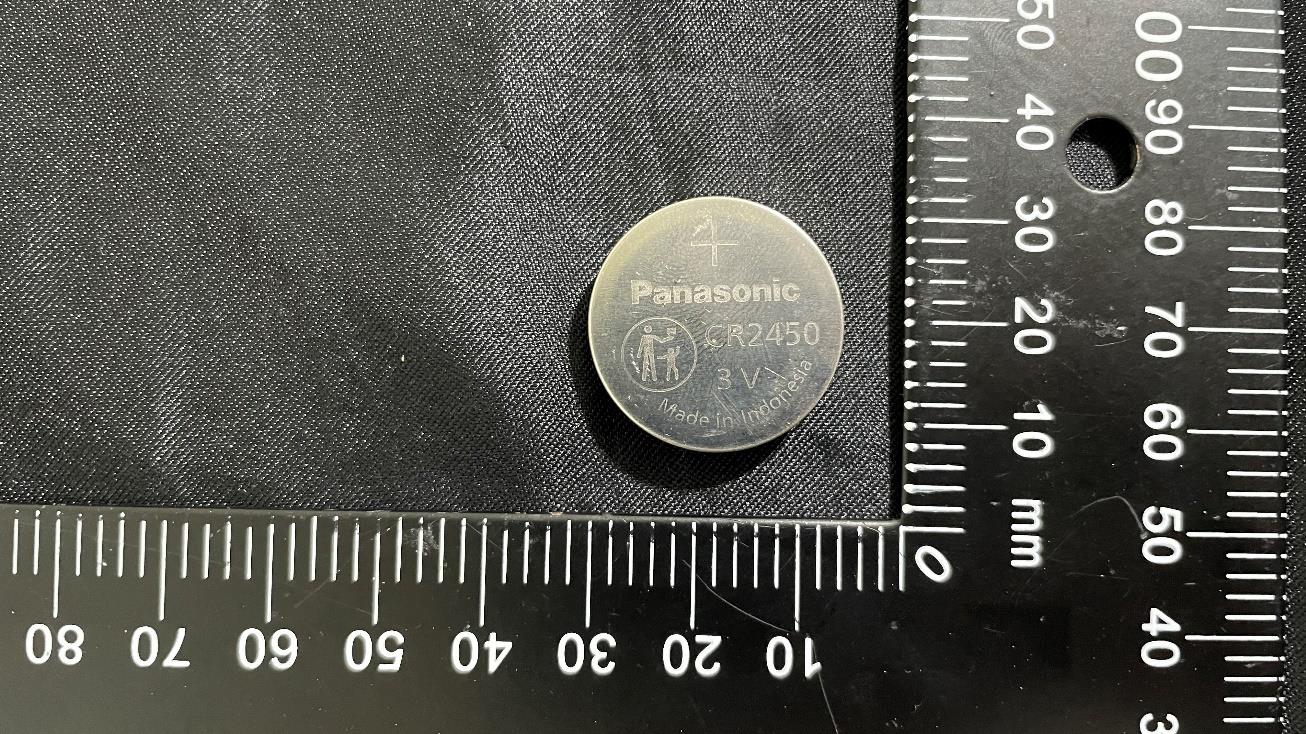

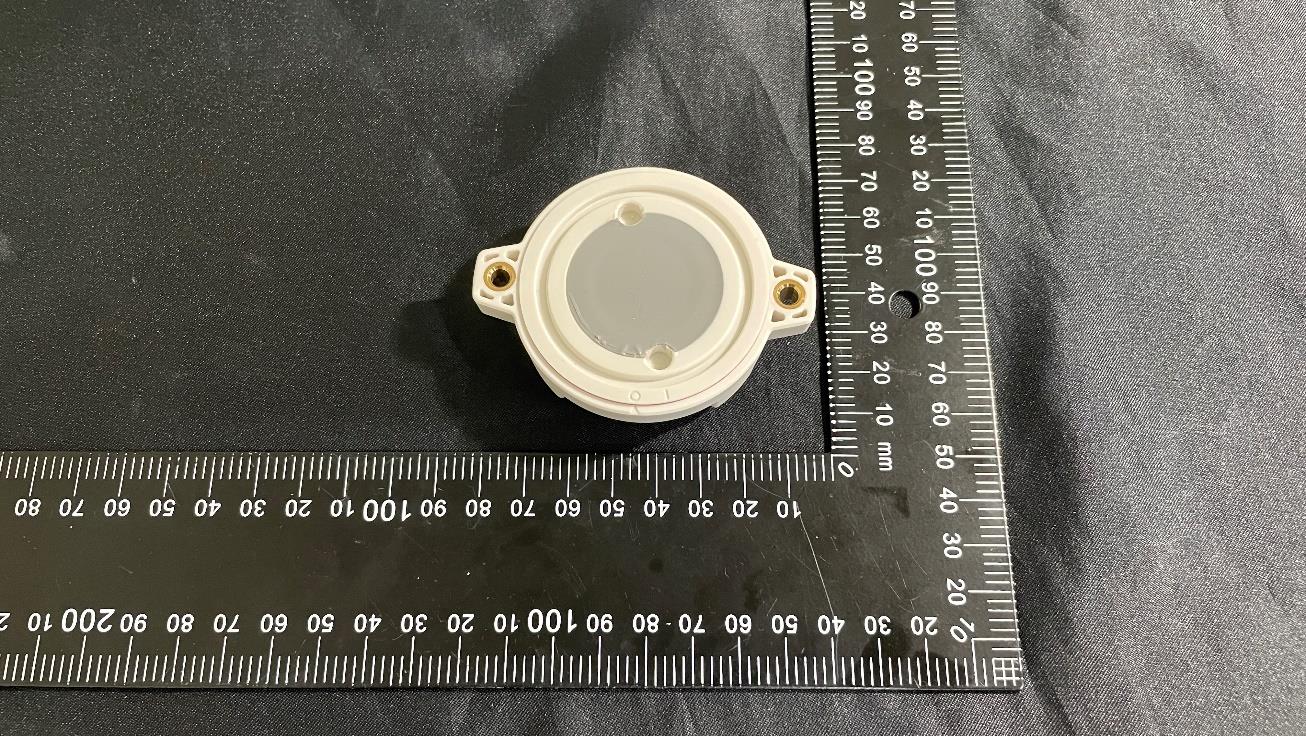

Appendix No.: EP-2407T009-1 APPENDIX-EUT PHOTOS Project No.: 2407T009 Page 1 of 17 BL1 (Without Temperature Sensor) Appendix No.: EP-2407T009-1 APPENDIX-EUT PHOTOS Project No.: 2407T009 Page 2 of 17 Appendix No.: EP-2407T009-1 APPENDIX-EUT PHOTOS Project No.: 2407T009 Page 3 of 17 Appendix No.: EP-2407T009-1 APPENDIX-EUT PHOTOS Project No.: 2407T009 Page 4 of 17 BL1-T (With Temperature Sensor) Appendix No.: EP-2407T009-1 APPENDIX-EUT PHOTOS Project No.: 2407T009 Page 5 of 17 Appendix No.: EP-2407T009-1 APPENDIX-EUT PHOTOS Project No.: 2407T009 Page 6 of 17 Appendix No.: EP-2407T009-1 APPENDIX-EUT PHOTOS Project No.: 2407T009 Page 7 of 17 Battery

Appendix No.: EP-2407T009-1 APPENDIX-EUT PHOTOS Project No.: 2407T009 Page 8 of 17 BL1 (Without Temperature Sensor) Appendix No.: EP-2407T009-1 APPENDIX-EUT PHOTOS Project No.: 2407T009 Page 9 of 17 Antenna Appendix No.: EP-2407T009-1 APPENDIX-EUT PHOTOS Project No.: 2407T009 Page 10 of 17 Appendix No.: EP-2407T009-1 APPENDIX-EUT PHOTOS Project No.: 2407T009 Page 11 of 17 Appendix No.: EP-2407T009-1 APPENDIX-EUT PHOTOS Project No.: 2407T009 Page 12 of 17 Appendix No.: EP-2407T009-1 APPENDIX-EUT PHOTOS Project No.: 2407T009 Page 13 of 17 BL1-T (With Temperature Sensor) Appendix No.: EP-2407T009-1 APPENDIX-EUT PHOTOS Project No.: 2407T009 Page 14 of 17 Antenna Appendix No.: EP-2407T009-1 APPENDIX-EUT PHOTOS Project No.: 2407T009 Page 15 of 17 Appendix No.: EP-2407T009-1 APPENDIX-EUT PHOTOS Project No.: 2407T009 Page 16 of 17 Appendix No.: EP-2407T009-1 APPENDIX-EUT PHOTOS Project No.: 2407T009 Page 17 of 17

Report No.: BTL-FCCP-2-2407T009 Project No.: 2407T009 Page 1 of 8 Report Version: R00 FCC RF Exposure Report FCC ID: YA7-BL1 Report No. : BTL-FCCP-2-2407T009 Equipment : Rugged Bluetooth Sensor Model Name : BL1, BL1-T Brand Name : ATrack Applicant : ATrack Technology Inc. Address : 8F., No. 13 Ln. 120, Sec. 1, Neihu Rd., Neihu Dist., Taipei City 11493, Taiwan Standard(s) : 47 CFR § 2.1091 IEEE C95.1 Date of Receipt : 2024/7/18 Date of Test : 2024/8/23 ~ 2024/8/26 Issued Date : 2024/9/16 The above equipment has been tested and found in compliance with the requirement of the above standards by BTL Inc. Prepared by : Brett Shen, Engineer Approved by : Jerry Chuang, Supervisor BTL Inc. No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist., Taipei City 114, Taiwan Tel: +886-2-2657-3299 Fax: +886-2-2657-3331 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-2-2407T009 Project No.: 2407T009 Page 2 of 8 Report Version: R00 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL assumes no responsibility for the data provided by the Customer, any statements, inferences or generalizations drawn by the customer or others from the reports issued by BTL. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-2-2407T009 Project No.: 2407T009 Page 3 of 8 Report Version: R00 REVISION HISTORY Report No. Version Description Issued Date Note BTL-FCCP-2-2407T009 R00 Original Report. 2024/9/16 Valid Report No.: BTL-FCCP-2-2407T009 Project No.: 2407T009 Page 4 of 8 Report Version: R00 1. LIMITS According to § 1.1310 Radiofrequency radiation exposure limits. (a) Specific absorption rate (SAR) shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in § 1.1307(b) of this part within the frequency range of 100 kHz to 6 GHz (inclusive). (b) The SAR limits for occupational/controlled exposure are 0.4 W/kg, as averaged over the whole body, and a peak spatial-average SAR of 8 W/kg, averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube). Exceptions are the parts of the human body treated as extremities, such as hands, wrists, feet, ankles, and pinnae, where the peak spatial-average SAR limit for occupational/controlled exposure is 20 W/kg, averaged over any 10 grams of tissue (defined as a tissue volume in the shape of a cube). Exposure may be averaged over a time period not to exceed 6 minutes to determine compliance with occupational/controlled SAR limits. (c) The SAR limits for general population/uncontrolled exposure are 0.08 W/kg, as averaged over the whole body, and a peak spatial-average SAR of 1.6 W/kg, averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube). Exceptions are the parts of the human body treated as extremities, such as hands, wrists, feet, ankles, and pinnae, where the peak spatial-average SAR limit is 4 W/kg, averaged over any 10 grams of tissue (defined as a tissue volume in the shape of a cube). Exposure may be averaged over a time period not to exceed 30 minutes to determine compliance with general population/uncontrolled SAR limits. (e) Limits for Maximum Permissible Exposure (MPE) to radiofrequency electromagnetic fields (Table 1). Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (i) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *(100) ≤6 3.0-30 1842/f 4.89/f *(900/f 2 ) <6 30-300 61.4 0.163 1.0 <6 300-1.500 f/300 <6 1.500-100.000 5 <6 (ii) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) <30 1.34-30 824/f 2.19/f *(180/f 2 ) <30 30-300 27.5 0.073 0.2 <30 300-1.500 f/1500 <30 1.500-100.000 1.0 <30 f = frequency in MHz. * = Plane-wave equivalent power density. Report No.: BTL-FCCP-2-2407T009 Project No.: 2407T009 Page 5 of 8 Report Version: R00 2. APPLIED EXEMPTION CRITERIA Refer to KDB 447498 D04, ticked item is applied: For RF Exposure Test Exemptions for Single Source: ☐ 1-mW Test Exemption Per § 1.1307(b)(3)(i)(A), a single RF source is exempt RF device (from the requirement to show data demonstrating compliance to RF exposure limits, as previously mentioned) if the available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption applies to all operating configurations and exposure conditions, for the frequency range 100 kHz to 100 GHz, regardless of fi…

Text truncated - open the document above for the full version.

威潤BLE ARY196-3092-006-00 Engineer : Ben Report date : 2024/08/01 REV.1 2 www.wieson.com •Revision History •Antenna Specification •Antenna Photo •Antenna MeasurementVector Network Analyzer –S-Parameter Result •The Antenna Anechoic Chamber Measurement –Antenna Measurement Photo –Antenna Measurement •Peak Gain、Efficiency Result •2DAntenna Radiation Pattern Result Executive Summary 3 www.wieson.com Revision History RevisionDateEngineerDescription 012024/08/01BenNew Release. 4 www.wieson.com Antenna Specification ItemARY196-3092-006-00 Operating Frequency 2400-2500 Return Loss 10 dB Peak Gain1.04 dBi(Max.) Antenna TypePCB V.S.W.R2 : 1 Efficiency 61 %(Max.) 5 www.wieson.com AntennaPhoto Z X Y Ant 6 www.wieson.com S-Parameter Result 7 www.wieson.com Z X Y Z Y Chamber Measurement Photo 8 www.wieson.com Peak Gain & Efficiency Frequency (GHz) Peak Gain (dBi) 3D Radiation Efficiency (%) 2.4-0.0451 2.410.4155 2.420.7559 2.430.5255 2.440.7357 2.450.857 2.460.8658 2.471.0260 2.480.7757 2.491.0260 2.51.0461 9 www.wieson.com Far-field amplitude limits: Max: 5dB min: -50dB Frequency：2450 MHz XZ-planeYZ-planeXY-plane X Z Y Z Y X X Z Y Z Y X 2D Antenna Pattern Z X Y

Report No.: BTL-FCCP-1-2407T009 Project No.: 2407T009 Page 1 of 49 Report Version: R00 FCC Radio Test Report FCC ID: YA7-BL1 Report No. : BTL-FCCP-1-2407T009 Equipment : Rugged Bluetooth Sensor Model Name : BL1, BL1-T Brand Name : ATrack Applicant : ATrack Technology Inc. Address : 8F., No. 13 Ln. 120, Sec. 1, Neihu Rd., Neihu Dist., Taipei City 11493, Taiwan Radio Function : Bluetooth Low Energy FCC Rule Part(s) : FCC CFR Title 47, Part 15, Subpart C (15.247) Measurement Procedure(s) : ANSI C63.10-2013 Date of Receipt : 2024/7/18 Date of Test : 2024/8/23 ~ 2024/8/26 Issued Date : 2024/9/16 The above equipment has been tested and found in compliance with the requirement of the above standards by BTL Inc. Prepared by : Brett Shen, Engineer Approved by : Jerry Chuang, Supervisor BTL Inc. No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist., Taipei City 114, Taiwan Tel: +886-2-2657-3299 Fax: +886-2-2657-3331 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-1-2407T009 Project No.: 2407T009 Page 2 of 49 Report Version: R00 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL assumes no responsibility for the data provided by the Customer, any statements, inferences or generalizations drawn by the customer or others from the reports issued by BTL. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2407T009 Project No.: 2407T009 Page 3 of 49 Report Version: R00 CONTENTS REVISION HISTORY 5 1 SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 1.3 TEST ENVIRONMENT CONDITIONS 7 1.4 DUTY CYCLE 8 2 GENERAL INFORMATION 9 2.1 DESCRIPTION OF EUT 9 2.2 TEST MODES 11 2.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 2.4 SUPPORT UNITS 12 3 RADIATED EMISSIONS TEST 13 3.1 LIMIT 13 3.2 TEST PROCEDURE 14 3.3 DEVIATION FROM TEST STANDARD 14 3.4 TEST SETUP 15 3.5 EUT OPERATING CONDITIONS 16 3.6 TEST RESULT – 9KHZ TO 30 MHZ 16 3.7 TEST RESULT – 30 MHZ TO 1 GHZ 16 3.8 TEST RESULT – ABOVE 1 GHZ 16 4 BANDWIDTH TEST 17 4.1 APPLIED PROCEDURES / LIMIT 17 4.2 TEST PROCEDURE 17 4.3 DEVIATION FROM STANDARD 17 4.4 TEST SETUP 17 4.5 EUT OPERATION CONDITIONS 17 4.6 TEST RESULTS 17 5 OUTPUT POWER TEST 18 5.1 APPLIED PROCEDURES / LIMIT 18 5.2 TEST PROCEDURE 18 5.3 DEVIATION FROM STANDARD 18 5.4 TEST SETUP 18 5.5 EUT OPERATION CONDITIONS 18 5.6 TEST RESULTS 18 6 POWER SPECTRAL DENSITY TEST 19 6.1 APPLIED PROCEDURES / LIMIT 19 6.2 TEST PROCEDURE 19 6.3 DEVIATION FROM STANDARD 19 6.4 TEST SETUP 19 6.5 EUT OPERATION CONDITIONS 19 6.6 TEST RESULTS 19 7 ANTENNA CONDUCTED SPURIOUS EMISSION 20 7.1 APPLIED PROCEDURES / LIMIT 20 7.2 TEST PROCEDURE 20 7.3 DEVIATION FROM STANDARD 20 7.4 TEST SETUP 20 7.5 EUT OPERATION CONDITIONS 20 Report No.: BTL-FCCP-1-2407T009 Project No.: 2407T009 Page 4 of 49 Report Version: R00 7.6 TEST RESULTS 20 8 LIST OF MEASURING EQUIPMENTS 21 9 EUT TEST PHOTO 22 10 EUT PHOTOS 22 APPENDIX A RADIATED EMISSIONS - 9 KHZ TO 30 MHZ 23 APPENDIX B RADIATED EMISSIONS - 30 MHZ TO 1 GHZ 28 APPENDIX C RADIATED EMISSIONS - ABOVE 1 GHZ 31 APPENDIX D BANDWIDTH 42 APPENDIX E OUTPUT POWER 44 APPENDIX F POWER SPECTRAL DENSITY TEST 46 APPENDIX G ANTENNA CONDUCTED SPURIOUS EMISSION 48 Report No.: BTL-FCCP-1-2407T009 Project No.: 2407T009 Page 5 of 49 Report Version: R00 REVISION HISTORY Report No. Version Description Issued Date Note BTL-FCCP-1-2407T009 R00 Original Report. 2024/9/16 Valid Report No.: BTL-FCCP-1-2407T009 Project No.: 2407T009 Page 6 of 49 Report Version: R00 1 SUMMARY OF TEST RESULTS Test procedures according to the technical standards. Standard(s) Section Description Test Result Judgement Remark 15.207 AC Power Line Conducted Emissions ------ N/A NOTE (3) 15.205 15.209 15.247(d) Radiated Emissions APPENDIX A APPENDIX B APPENDIX C Pass ------ 15.247(a)(2) Bandwidth APPENDIX D Pass ------ 15.247(b)(3) Output Power APPENDIX E Pass ------ 15.247(e) Power Spectral Density APPENDIX F Pass ------ 15.247(d) Antenna conducted Spurious Emission APPENDIX G Pass ------ 15.203 Antenna Requirement ------ Pass ------ Statement of Conformity The statement of conformity is based on the binary decision rule according to IEC Guide 115 and ILAC G8 "simple acceptance" principle. Without considering measurement uncertainty, its specific risk is less than 50% PFA. (PFA: Probability of False Accept) NOTE: (1) ”N/A” denotes test is not applicable in this Test Report. (2) The report format version is TP.1.1.1. (3) This is a DC input device. R…

Text truncated - open the document above for the full version.

Appendix No.: TP-2407T009-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2407T009 Page 1 of 4 Radiated emissions test photos 9kHz to 30 MHz Appendix No.: TP-2407T009-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2407T009 Page 2 of 4 Radiated emissions test photos 30 MHz to 1 GHz Appendix No.: TP-2407T009-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2407T009 Page 3 of 4 Radiated emissions test photos Above 1 GHz Appendix No.: TP-2407T009-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2407T009 Page 4 of 4 Radiated emissions test photos Above 18 GHz
