YAE-K2418Ergo Motion Keyboard

1 DynaPoint (Dong Guang )INC. Keyboard Specification 1. Product features: This is the first robotic keyboard which is the healthiest and most comfortable keyboard ever with intelligent motion ergonomics in the world. Periodically and automatically repositions hands to prevent repetitive stress wrist injury. 14 degree gable reduces wrist pronation. Alternating forward and reverse slopes for a nature shift in wrist position to relax your tired wrist. ■ Automatic motion keyboard with ergomotion comfort technology Features. ■ Patented 3D axis movement ,automatically moves based on your use pattern. ■ Compatible with Windows98/ME/2000/XP/Vista /Win7 or higher version. 2. Manual: 1. Turn on the computer. 2. Plug the USB cable into your computer. 3. The blue LED could be lighten as click “em” key. 4. The keyboard would be automatical motion after pressing 2500 times. FCC Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by 2 DynaPoint (Dong Guang )INC. Keyboard Specification turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. NOTE 2: The manufacturer is not responsible for and radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

Block Diagram U1 CY8C24994 USB Port LED Indicator Motor Driver LTC3458+MPC17529 Keyboard Step Motor XTAL 24MHz

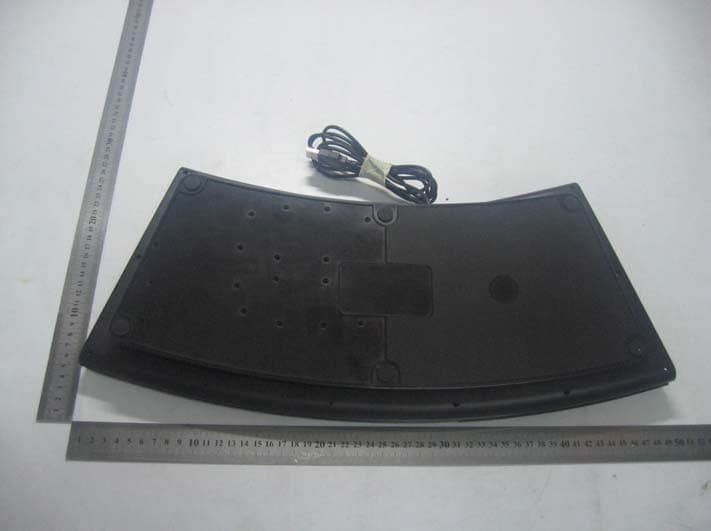

Ergowerx International LLC Model: K2418 REPORT NO.: STR10088043I FCC PART 15B EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

Ergowerx International LLC Model: K2418 REPORT NO.: STR10088043I FCC PART 15B EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: YAE-K2418 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Ergowerx International LLC Model: K2418 REPORT NO.: STR10088043I FCC PART 15B EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: YAE-K2418 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Ergowerx International LLC Model: K2418 REPORT NO.: STR10088043I FCC PART 15B EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 Ergowerx International LLC Model: K2418 REPORT NO.: STR10088043I FCC PART 15B Solder Board-Component View 2 Solder Board-Component View 3 Ergowerx International LLC Model: K2418 REPORT NO.: STR10088043I FCC PART 15B Solder Board-Component View 4

Circuit Desciption a. The function of MCU CY8C24994 is used for gathering signal produced by key operation and ouput to computer via USB port. b. The U2-LTC3458 and U3-MPC17529 are the drive circuit for step motor, the step motor shall cycle run on the program and to adjust the keyboard postion, while the “em” key is pressed. c. The work voltage is DC 5V by USB port. Description for circuit: Key circuit: a. The function of MCU Ev656K61H is used for processing signal produced by optical key operation and transmitting the signal to RF circuit formed by Q1, Q2, Q3, Q4, L1 and other electronic components to modulate, amplify and send out. b. The RF signal of 27.045MHz is generated by a oscillator of 13.5225MHz circuit, and the modulated 27.045MHz wireless signal is transmitting via antenna. 3. Rx receiving circuit: a. RF circuit Ev2186 transmits the radio modulation signal which has received to MCU Ev656T72H to process and import pc computer.

Switch order, left to right is END, STOP2, STOP1, HOME . NOTE: HOME switch is nearest motor. 54321 H G F E D C B A END STOP1 SDATA STOP2 HOME SCLK COL12 XRES COL11COL10COL9COL8COL7COL6COL5 EM RCTRL MOTIONLED RSHIFT NUMLOCKLED RWIN CAPLOCKLED RALT EM ROW8 FN ROW7 HOME ROW6 STOP1 ROW5 STOP2 XRES ROW4 END ROW3ROW2 PHASEBMINUS ROW1 PHASEBPLUSSTEPDISABLE MPSENABLE MPSENABLE STEPDISABLEPHASEBMINUS MOTIONLED PHASEBPLUS ROW8 LCTRL SDATA ROW7 LSHIFT SCLK ROW6 LALT DBG_XMT ROW5 LWIN ROW4 RCTRL COL9 ROW3 RSHIFT COL10 ROW2 RALT COL11 ROW1 RWIN COL12 COL1COL2 ROW1 COL1 COL3 ROW2 COL2 COL4 ROW3 COL3 LSHIFT ROW4 COL4 LCTRL ROW5 COL5 FN ROW6 COL6 LWIN ROW7 COL7 LALT ROW8 COL8 USB_D+ USB_D- VBUS VBUS VBUS VBUS VBUS CY8C24994U1 59 VCC2 23 VCC1 60 GND3 20 GND2 7 GND1 46 XRES 30 P7(1) 29 P7(2) 28 P7(3) 27 P7(4) 26 P7(5) 25 P7(6) 22 USB_D- 21 USB_D+ 31 P7(0) 24 P7(7) 39 P5(6) 38 P5(4) 37 P5(2) 36 P5(0) 15 P5(1) 14 P5(3) 13 P5(5) 12 P5(7) 50 P4(6) 49 P4(4) 48 P4(2) 47 P4(0) 4 P4(1) 3 P4(3) 2 P4(5) 1 P4(7) 54 P2(6) 53 P2(4) 52 P2(2) 51 P2(0) 68 P2(1) 67 P2(3) 66 P2(5) 65 P2(7) 32 P1(0)/SDA/SDATA 33 P1(2) 34 P1(4) 35 P1(6) 19 P1(1)/SCL/SCLK 18 P1(3) 17 P1(5)/SDA 16 P1(7)/SCL 10 P3(3) 8 P3(7) 43 P3(6) 9 P3(5) 42 P3(4) 40 P3(0) 41 P3(2) 11 P3(1) 55 P0(0) 64 P0(1) 56 P0(2) 63 P0(3) 57 P0(4) 62 P0(5) 58 P0(6) 61 P0(7) NCx4 www.bankercote.com Banker Coté 0 Revision: Document: Title: Smartfish Keyboard Controller BC45001 Legal Size: 1 of 1 Sheet: May 1, 2010 Date: END S4 13 2 STOP2 S3 13 2 STOP1 S2 13 2 HOME S1 13 2 22 R3 22 R2 RIGHT_PADJ4 22212019181716151413121110987654321 LEFT_PADJ3 181716151413121110987654321 TP1 J6 1 ISSPJ5 54321 LED J2 4321 CONTROLJ1 654321 USBJ10 4 4 3 3 2 2 1 1 GND GND GND GND GND GND GND GND GND GND GND GND GND 0.1uFC3 21 0.1uFC2 21 4.7uFC1 21 NOTE: MOTOR_PLUS is marked on motor with a dot. 54321 B H G F E D C A MPSENABLESTEPDISABLEPHASEBMINUSPHASEBPLUS MOTOR_MINUS MOTOR_PLUS PHASEBMINUSPHASEBPLUSSTEPDISABLE VMOTOR MPSENABLE GND VBUS VBUS VBUS MPC17529U3 17 VM2 15 PGND2 6 PGND1 8 VM1 16 OUT2B 5 OUT2A 14 OUT1B 7 OUT1A 20 LGND 13 C2L 10 C2H 12 C1L 11 C1H 9 CRES 18 IN2B 19 IN2A 4 OE 3 IN1B 2 IN1A 1 VDD ltc3458U2 13 GND2 9 GND1 1 SW 2 VIN 5 ILIM 6 RT 10 SS 7 FB 12 VOUT 8 COMP 3 SYNC 11 BURST 4 SHDN www.bankercote.com Banker Coté 0 Revision: Document: Title: Smartfish Motor Control BC45002 Legal Size: 1 of 1 Sheet: May 1, 2010 Date: 2M R9 432K R10 620K R11 200K R12 33K R13 0R15 47KR14 47KR1 4.7uHL1 2 1 CONTROL J2 654321 MOTOR J1 21 GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND 0.1uFC7 21 0.1uFC10 2 1 0.1uFC9 2 1 0.1uFC8 21 1.5F/2.5VC2 + 21 1.5F/2.5VC1 + 21 1.5F/2.5VC6 + 21 22uFC5 21 27pFC4 21 0.01uF C11 21 470pF C12 21 10pF C13 21 4.7uF C14 21 654321 H G F E D C B A MOTIONCAPLOCKVBUS www.bankercote.com Banker Coté - Revision: Document: Title: Smartfish LED BC45003 A Size: 1 of 1 Sheet: May 7, 2010 Date: 100R3100R2100R1 LED J1 4321 MOTIOND3 2 1 NUM_LOCKD2 2 1 CAP_LOCKD1 2 1

Ergowerx International LLC Model: K2418 REPORT NO.: STR10088043I PAGE 1 OF 13 FCC PART 15B FCC PART 15B MEASUREMENT AND TEST REPORT FOR Ergowerx International LLC 39 Park Place Suite 201, Englewood, New Jersey, United, United States FCC ID: YAE-K2418 Report Concerns: Original Report Equipment Type: Ergo Motion Keyboard Model: K2418 Report No.: STR10088043I Test Date: 2010-08-08 to 2010-08-11 Issue Date: 2010-09-02 Tested By: Galy He / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . Ergowerx International LLC Model: K2418 REPORT NO.: STR10088043I PAGE 2 OF 13 FCC PART 15B TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................3 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.107(A)- CONDUCTED EMISSION ..................................................................................................................6 3.1 MEASUREMENT UNCERTAINTY..............................................................................................................................6 3.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................6 3.3 TEST PROCEDURE...................................................................................................................................................6 3.4 BASIC TEST SETUP BLOCK DIAGRAM.....................................................................................................................6 3.5 ENVIRONMENTAL CONDITIONS..............................................................................................................................7 3.6 TEST RECEIVER SETUP...........................................................................................................................................7 3.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................7 3.8 CONDUCTED EMISSIONS TEST DATA......................................................................................................................7 4. §15.109(A)- RADIATED EMISSION ....................................................................................................................10 4.1 MEASUREMENT UNCERTAINTY............................................................................................................................10 4.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................10 4.3 TEST PROCEDURE.................................................................................................................................................10 4.4 TEST RECEIVER SETUP.........................................................................................................................................11 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................11 4.6 ENVIRONMENTAL CONDITIONS............................................................................................................................11 4.7 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................11 Ergowerx International LLC Model: K2418 REPORT NO.: STR10088043I PAGE 3 OF 13 FCC PART 15B 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: Ergowerx International LLC Address of applicant: 39 Park Place Suite 201, Englewood, New Jersey, United States Manufacturer: DynaPoint (Dong Guan) INC. Address of manufacturer: No.51, Xinju Road, Precinct Shangjiao, ChangAn, DongGuan Guangdong, China General Description of E.U.T Items Description EUT Description: Ergo Motion Keyboard Trade Name: / Model No.: K2418 Add Models: K2418X, 191047, KH558, XXXXXX Rated Voltage: DC 5V USB Rated Current: / Size: 50.0X20.0X6.5 cm For more information refer to the circuit diagram form and the user’s manual. The tes…

Text truncated - open the document above for the full version.

Ergowerx International LLC Model: K2418 REPORT NO.: STR10088043I FCC PART 15B EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conduction Emission Test Setup (150KHz to 30MHz) Radiation Emission Test Setup (30MHz to 1GHz)
