  3. YAE-L3200

YAE-L3200Mouse

Ergowerx International LLC
Mouse - FCC ID YAE-L3200 - Ergowerx International LLC
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Nov 30, 2010
Application Purpose
Original Equipment
Date of Application
Nov 29, 2010
Equipment Note
Mouse
Frequency Range
2405.20000000 - 2476.20000000
Company
Ergowerx International LLC
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

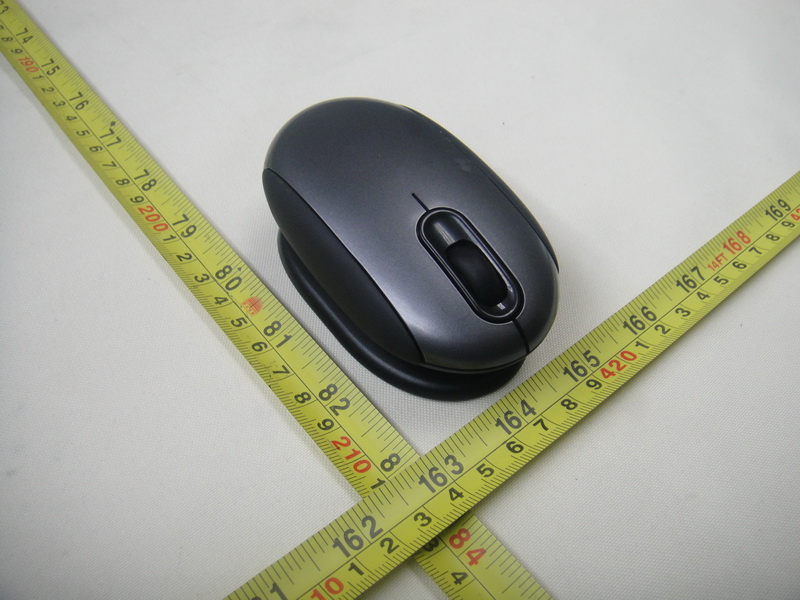

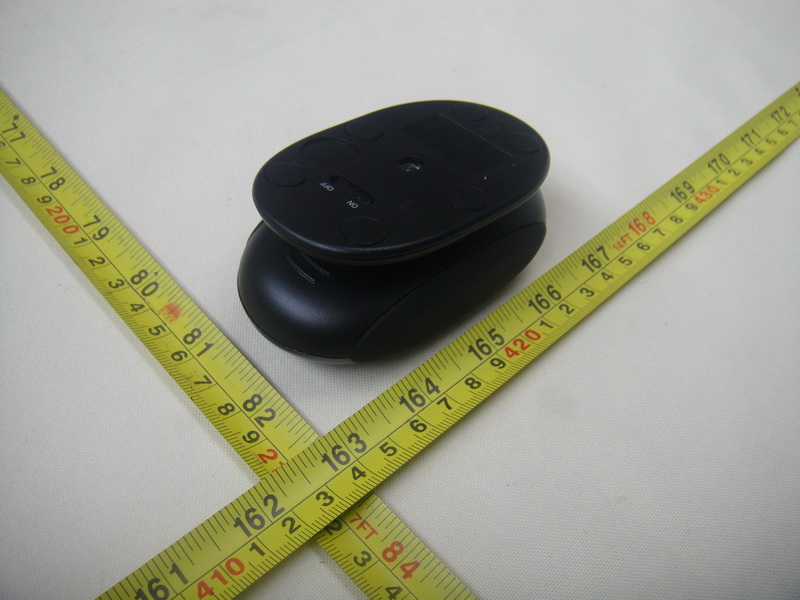

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

L3200 Insert receiver into USB port of PC, the computer system will automatically detect it and prepare it for full operation. The mouse may use then. If the user wrongly operates, please redo the above operating procedures. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices).

External Photos

Neutron Engineering Inc. Project No.: 1011C086 Page 2 of 9 1011C086 1011C086 Neutron Engineering Inc. Project No.: 1011C086 Page 2 of 9 1011C086 1011C086

Internal Photos

Neutron Engineering Inc. Project No.: 1011C086 Page 3 of 9 1011C086 1011C086 Neutron Engineering Inc. Project No.: 1011C086 Page 3 of 9 1011C086 1011C086 Neutron Engineering Inc. Project No.: 1011C086 Page 4 of 9 1011C086 1011C086 Neutron Engineering Inc. Project No.: 1011C086 Page 4 of 9 1011C086 1011C086 Neutron Engineering Inc. Project No.: 1011C086 Page 5 of 9 1011C086 1011C086 Neutron Engineering Inc. Project No.: 1011C086 Page 5 of 9 1011C086 1011C086 Neutron Engineering Inc. Project No.: 1011C086 Page 6 of 9 1011C086 Neutron Engineering Inc. Project No.: 1011C086 Page 7 of 9 1011C086 1011C086 Neutron Engineering Inc. Project No.: 1011C086 Page 7 of 9 1011C086 1011C086 Neutron Engineering Inc. Project No.: 1011C086 Page 8 of 9 Neutron Engineering Inc. Project No.: 1011C086 Page 8 of 9 Neutron Engineering Inc. Project No.: 1011C086 Page 9 of 9 1011C086 1011C086 Neutron Engineering Inc. Project No.: 1011C086 Page 9 of 9 1011C086 1011C086

Test Report

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1011C086 Page 2 of 58 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutronshall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1011C086 Page 3 of 58 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 12 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 15 4.1.3 TEST PROCEDURE 16 4.1.4 DEVIATION FROM TEST STANDARD 16 4.1.5 TEST SETUP 16 4.1.6 EUT OPERATING CONDITIONS 16 4.1.7 TEST RESULTS 17 4.2 RADIATED EMISSION MEASUREMENT 18 4.2.1 RADIATED EMISSION LIMITS 18 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 19 4.2.3 TEST PROCEDURE 21 4.2.4 DEVIATION FROM TEST STANDARD 21 4.2.5 TEST SETUP 22 4.2.6 EUT OPERATING CONDITIONS 22 4.2.7 TEST RESULTS (BETWEEN30 – 1000 MHZ) 23 4.2.8 TEST RESULTS (ABOVE 1000 MHZ) 25 5 . NUMBER OF HOPPING CHANNEL 37 5.1 APPLIED PROCEDURES / LIMIT 37 5.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 37 5.1.2 TEST PROCEDURE 37 5.1.3 DEVIATION FROM STANDARD 37 5.1.4 TEST SETUP 37 5.1.5 EUT OPERATION CONDITIONS 37 5.1.6 TEST RESULTS 38 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1011C086 Page 4 of 58 Table of Contents Page 6 . AVERAGE TIME OF OCCUPANCY 39 6.1 APPLIED PROCEDURES / LIMIT 39 6.1.1 MEASUREMENT INSTRUMENTS LIST 39 6.1.2. TEST PROCEDURES 39 6.1.3. TEST SETUP LAYOUT 39 6.1.4. TEST DEVIATION 39 6.1.5. EUT OPERATION DURING TEST 39 6.1.6. TEST RESULTS 40 7 . HOPPING CHANNEL SEPARATION MEASUREMENT 42 7.1 APPLIED PROCEDURES / LIMIT 42 7.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 42 7.1.2 TEST PROCEDURE 42 7.1.3 DEVIATION FROM STANDARD 42 7.1.4 TEST SETUP 42 7.1.5 EUT OPERATION CONDITIONS 42 7.1.6 TEST RESULTS 43 8 . BANDWIDTH TEST 45 8.1 APPLIED PROCEDURES / LIMIT 45 8.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 45 8.1.2 TEST PROCEDURE 45 8.1.3 DEVIATION FROM STANDARD 45 8.1.4 TEST SETUP 45 8.1.5 EUT OPERATION CONDITIONS 45 8.1.6 TEST RESULTS 46 9 . PEAK OUTPUT POWER TEST 48 9.1 APPLIED PROCEDURES / LIMIT 48 9.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 48 9.1.2 TEST PROCEDURE 48 9.1.3 DEVIATION FROM STANDARD 48 9.1.4 TEST SETUP 48 9.1.5 EUT OPERATION CONDITIONS 48 9.1.6 TEST RESULTS 49 10 . ANTENNA CONDUCTED SPURIOUS EMISSION 51 10.1 APPLIED PROCEDURES / LIMIT 51 10.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 51 10.1.2 TEST PROCEDURE 51 10.1.3 DEVIATION FROM STANDARD 51 10.1.4 TEST SETUP 51 10.1.5 EUT OPERATION CONDITIONS 51 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1011C086 Page 5 of 58 Table of Contents Page 10.1.6 TEST RESULTS 52 11 . EUT TEST PHOTO 58 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1011C086 Page 6 of 58 1. CERTIFICATION E q u i p m e n t : Mouse Brand Name : Smartfish Model Name : L3200 A p p l i c a n t : Ergowerx International LLC F a c t o r y : Shenzhen Fuyeda Industry Development Corp.,Ltd. A d d r e s s : NO.1,NEWMEN ROAD,TONGSHENG VILLAGE,DALANG STREET,BAO’AN, SHENZHEN, CHINA Date of Test : Nov. 10, 2010 ~ Nov. 17, 2010 T e s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1011C086) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1011C086 Page 7 of 58 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A Note(1) 15.247(d) Antenna conducted Spurious EmissionPASS 15.247 (a)(1) Hopping Channel Separation PASS 15.247 (b)(1) Peak Output Power PASS 15.247(d) 15.209 Radiated Spurious Emission PASS 15.247 (a)(1)(iii) Number of Hopping Frequency PASS 15.247 (a)(1)(iii) Dwell Time PASS 15.205 Restricted Bands PASS 15.203 Antenna Requirement PASS 1.1307 1.1310 2.1091 2.1093 RF Exposure Compliance PASS NOTE: (1)” N/A” denotes test is not applicable i…

Text truncated - open the document above for the full version.

Test Setup Photos

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1011C086 Page 58 of 58 11. EUT TEST PHOTO Radiated Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1011C086 Page 58 of 58 11. EUT TEST PHOTO Radiated Measurement Photos

Contact Information

Applicant

Jack Atzmon
[email protected]8885677627Fax: 8885677624

Technical Contact

Neutron Engineering, Inc.Steven Lu
[email protected]

No.3 Jinshagang 1st Rd, Shixia, Dalang · Dongguan City · China

Test Firm

BTL Inc.Daisy Dai
[email protected]008676983183000Fax: 0086 769 83196000

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.48 GHz530.00 µW
Confidentiality
Long Term
Grant Notes
Power output listed is conducted. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with specific operating instructions for satisfying RF exposure compliance.
