YAMECENTEROn-site Command and Dispatch Center

E-center User Manual Preface Thank you for purchasing our product. This user manual is a quick guide on how to use it. This manual is applicable to the following product: E- center Portable Command Center Icon Conventions The following icons are available through this manual: Caution: Indicates situations that could cause data loss or equipment damage. Note: Indicates references that can further describe the related topics. Copyright Information Hytera is the trademark or registered trademark of Hytera Communications Corporation Limited (the Company) in People's Republic of China (PRC) and/or other countries or areas. The Company retains the ownership of its trademarks and product names. All other trademarks and/or product names that may be used in this manual are properties of their respective owners. The product described in this manual may include the Company's computer programs stored in memory or other media. Laws in PRC and/or other countries or areas protect the exclusive rights of the Company with respect to its computer programs. The purchase of this product shall not be deemed to grant, either directly or by implication, any rights to the purchaser regarding the Company's computer programs. The Company's computer programs may not be copied, modified, distributed, decompiled, or reverse-engineered in any manner without the prior written consent of the Company. Disclaimer The Company endeavors to achieve the accuracy and completeness of this manual, but no warranty of accuracy or reliability is given. All the specifications and designs are subject to change without notice due to continuous technological development. No part of this manual may be copied, modified, translated, or distributed in any manner without the prior written consent of the Company. We do not guarantee, for any particular purpose, the accuracy, validity, timeliness, legitimacy or completeness of the third-party products and contents involved in this manual. If you have any suggestions or would like to receive more information, please visit our website at: http://www.hytera.com. FCC Regulations Federal Communication Commission (F CC) requires that all radio communication products should meet the requirements set fort h by FCC in the standards for saf e exposure to Radio Frequency (RF) radiation before they can be marketed in the U.S, and the manufacturer shall post an RF label on the product to inform users of operational instructions. Operational Instructions and Training Guidelines To ensure optimal performance and compliance with the uncontrolled environment RF energy exposure limits in the above standards and guidelines. i Contents 1. Packing List ........................................................................................................................................ 1 1.1 Main Unit ......................................................................................................................................... 1 1.2 Mandatory Accessories ................................................................................................................... 1 2. Product Overview ............................................................................................................................... 2 2.1 Main Unit ......................................................................................................................................... 2 2.2 Power Adapter ................................................................................................................................ 6 3. Preparation ......................................................................................................................................... 7 3.1 Attaching the Battery ....................................................................................................................... 7 3.2 Charging ......................................................................................................................................... 8 3.3 (Optional) Attaching the SIM Card .................................................................................................. 8 3.4 Connecting the Cables .................................................................................................................... 8 4. Basic Operations .............................................................................................................................. 10 4.1 Unfolding E-center ........................................................................................................................ 10 4.2 Turning On the E-center ............................................................................................................... 10 4.3 Turning Off the E-center ............................................................................................................... 10 5. Basic Services .................................................................................................................................. 11 5.1 Call Services ................................................................................................................................. 11 5.2 Topology Manager ........................................................................................................................ 11 6. Troubleshooting ............................................................................................................................... 13 7. Care and Cleaning ............................................................................................................................ 14 8. Optional Accessories ....................................................................................................................... 15 9. Warranty ............................................................................................................................................ 16 1 1. Packing List Please unpack carefully and check that all…

Text truncated - open the document above for the full version.

Hytera Communications Corporation Limited Add: Hytera Tower, Hi-Tech Industrial Park North, 9108# B eihuan Road, Nanshan District, Shenzhen, 518057 China Tel: +86-755-26972999 Fax: +86-755-86139 020 Email: [email protected] Date: 2020/12/16 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, Hytera Communications Corporation Limited , hereby authorize Bay Area Compliance Laboratories Corp. to act as a laboratory for testing and test report generation for the following project(s): (Product name: On-site Command and Dispatch Center, Model name:E-center, FCC ID:YAMECENTER) The chipset EC25 supports GSM and LTE Band, But only LTE Band2/4/5/12/13 were active, the other were disable by software. Sincerely Yours, signature Name: Tiantian Chen Title: Certification Engineer

QA-FR-170-B Hytera Communications Corporation Limited Add: Hytera Tower, Hi-Tech Industrial Park North, 9108# Beihuan Road, Nanshan District, Shenzhen, 518057 China Tel: +86-755-26972999 Fax: +86-755-86139020 Email: [email protected] FCC Authorization Date: 2020/12/16 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Hytera Communications Corporation Limited, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Printed Name: Tiantian Chen Title: Certification Engineer

QA-FR-171- A Hytera Communications Corporation Limited Add: Hytera Tower, Hi-Tech Industrial Park North, 9108# Beihuan Road, Nanshan District, Shenzhen, 518057 China Tel: +86-755-26972999 Fax: +86-755-86139020 Email: [email protected] FCC Confidential Authorization Date: 2020/12/16 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: YAMECENTER In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Hytera Communications Corporation Limited, hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed name : Tiantian Chen Title: Certification Engineer Parts List/Tune-up Procedure (for licensed devices)

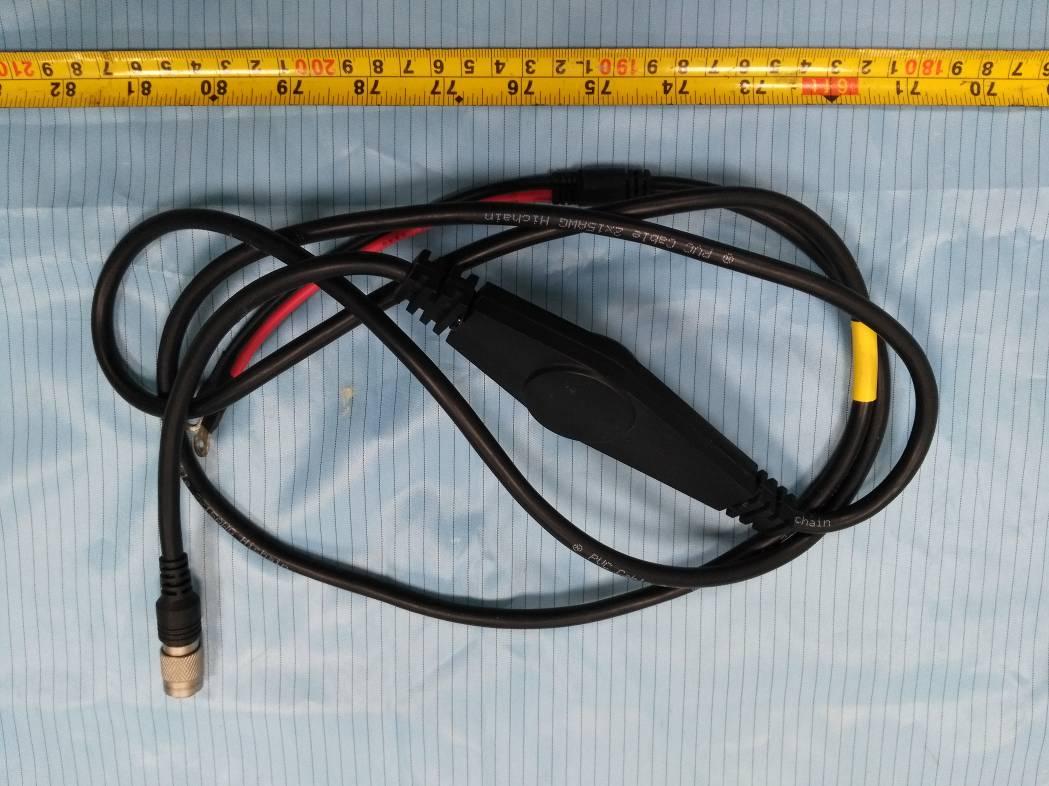

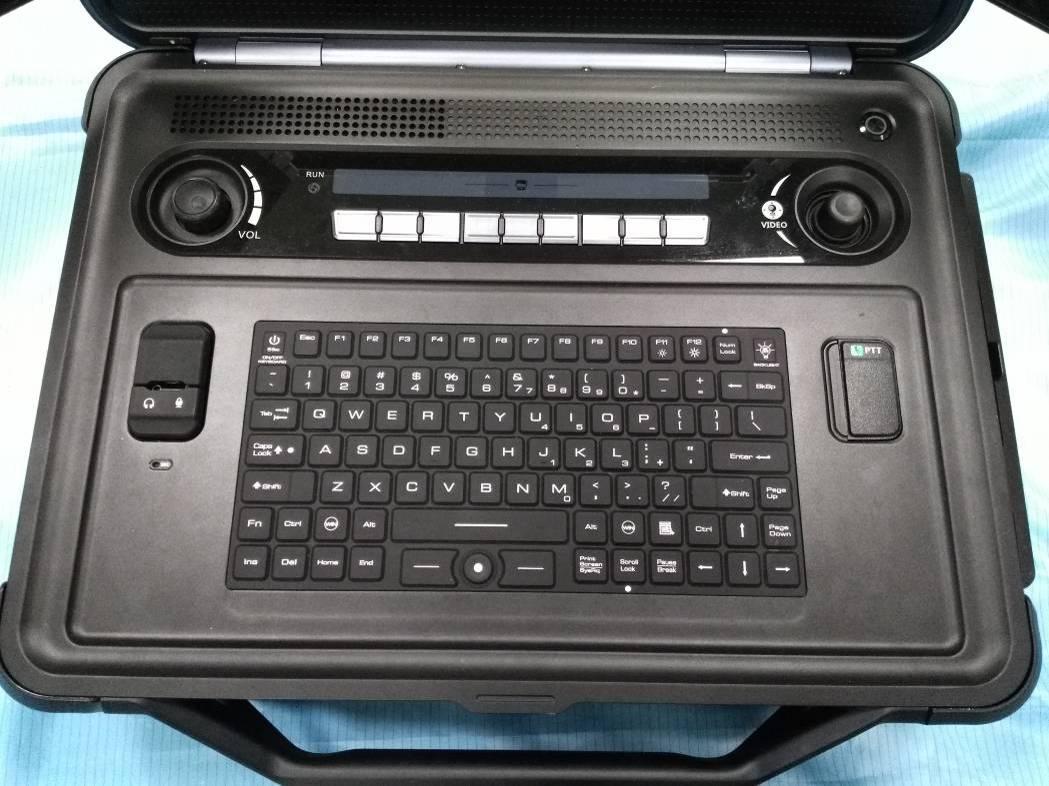

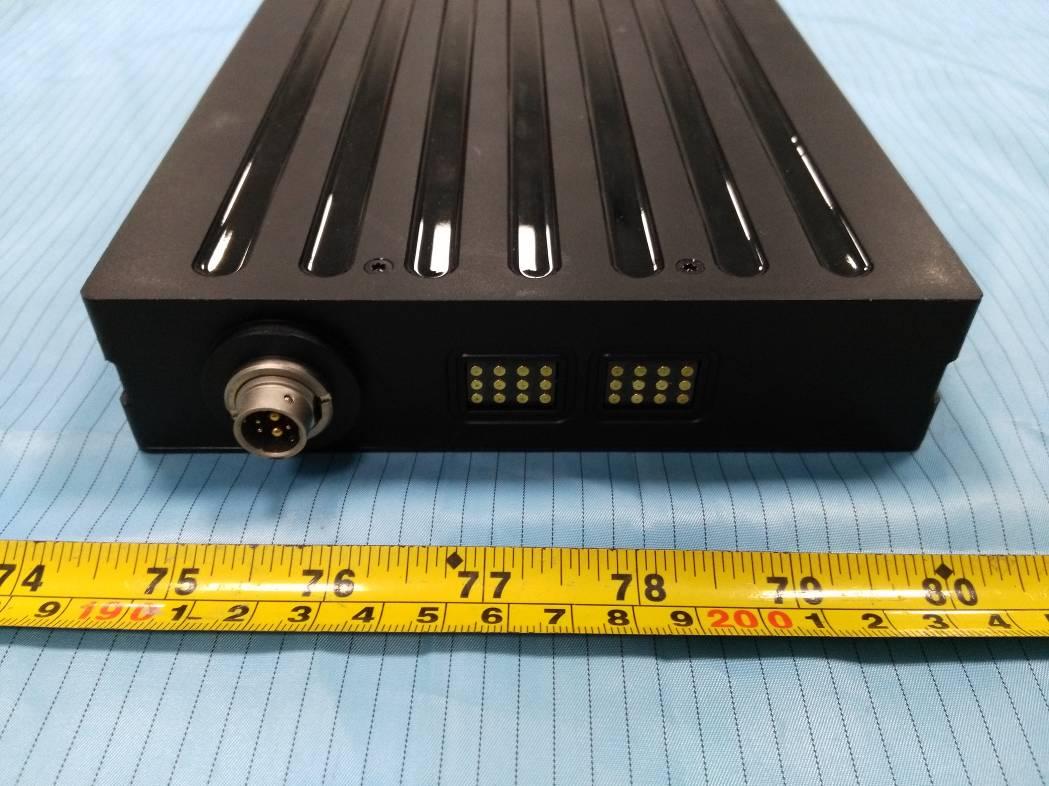

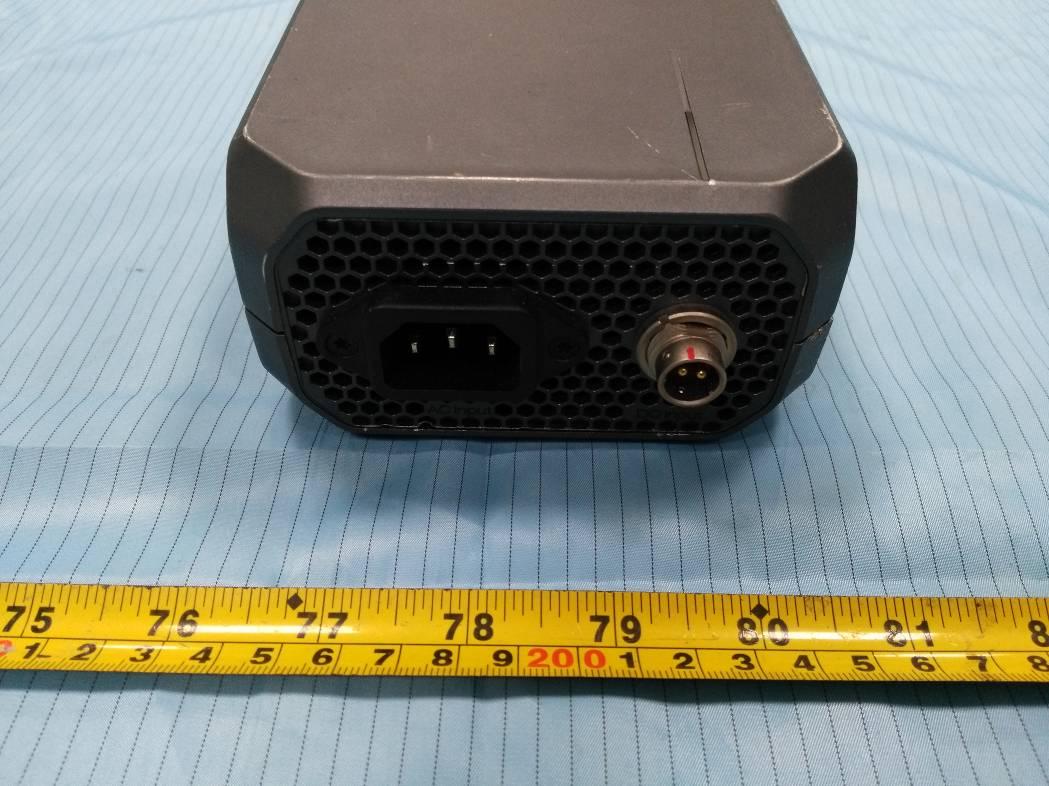

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 1 of 11 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 2 of 11 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 3 of 11 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 4 of 11 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 5 of 11 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 6 of 11 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 7 of 11 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 8 of 11 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 9 of 11 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 10 of 11 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 11 of 11

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 1 of 21 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 2 of 21 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 3 of 21 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 4 of 21 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 5 of 21 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 6 of 21 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 7 of 21 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 8 of 21 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 9 of 21 LTE Data Module Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 10 of 21 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 11 of 21 LTE Voice Module Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 12 of 21 Wi-Fi Module Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 13 of 21 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 14 of 21 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 15 of 21 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 16 of 21 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 17 of 21 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 18 of 21 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 19 of 21 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 20 of 21 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RDG191210020-RF Page 21 of 21 Wi-Fi Antenna LTE Antenna of LTE Data Module LTE Antenna of LTE Voice Module

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG191210020-00B FCC Part 27, FCC Part 22H/24E Page 9 of 275 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247 (i) and subpart 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Result Calculated Formulary: Predication of MPE limit at a given distance S = 2 4R PG  S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG191210020-00B FCC Part 27, FCC Part 22H/24E Page 10 of 275 Mode Frequency (MHz) Antenna Gain Max Tune Up Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm) (mW) Wi-Fi 2412-2472 2.0 1.58 18.0 63.1 20 0.020 1.0 LTE Data Module WCDMA Band 2 1850-1910 2.0 1.58 24.0 251.2 20 0.079 1.0 WCDMA Band 4 1710-1755 2.0 1.58 23.0 199.5 20 0.063 1.0 WCDMA Band 5 824-849 2.0 1.58 24.0 251.2 20 0.079 0.55 LTE Band 2 1850-1910 2.0 1.58 24.0 251.2 20 0.079 1.0 LTE Band 4 1710-1755 2.0 1.58 23.0 199.5 20 0.063 1.0 LTE Band 5 824-849 2.0 1.58 23.0 199.5 20 0.063 0.55 LTE Band 12 699-716 2.0 1.58 23.0 199.5 20 0.063 0.466 LTE Band 13 777-787 2.0 1.58 23.0 199.5 20 0.063 0.518 LTE Voice Module (FCC ID: XMR201808EC25AF) WCDMA Band 2 1850-1910 2.0 1.58 25.0 316.23 20 0.099 1.0 WCDMA Band 4 1710-1755 2.0 1.58 25.0 316.23 20 0.099 1.0 WCDMA Band 5 824-849 2.0 1.58 25.0 316.23 20 0.099 0.55 LTE Band 2 1850-1910 2.0 1.58 25.0 316.23 20 0.099 1.0 LTE Band 4 1710-1755 2.0 1.58 25.0 316.23 20 0.099 1.0 LTE Band 5 824-849 2.0 1.58 25.0 316.23 20 0.099 0.55 LTE Band 12 699-716 2.0 1.58 25.0 316.23 20 0.099 0.466 LTE Band 13 777-787 2.0 1.58 25.0 316.23 20 0.099 0.518 LTE Band 14 788-798 2.0 1.58 25.0 316.23 20 0.099 0.525 LTE Band 66 1710-1780 2.0 1.58 25.0 316.23 20 0.099 1.0 LTE Band 71 663-698 2.0 1.58 25.0 316.23 20 0.099 0.442 Note: 1. the tune up conducted power was declared by the applicant 2. the Wi-Fi, LTE Voice module and LTE Data module can transmit at the same time. 3. Please refer to the MPE report of the FCC ID: XMR201808EC25AF for the LTE voice module output power. So the worst simultaneous transmitting consideration: The ratio=MPE Wi-Fi /limit + MPE LTE Voice Module /limit + MPE LTE Data Module /limit =0.02/1.0+0.079/0.55+0.099/0.442 =0.39＜1.0 To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliance

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 27 FCC PART 22H, PART 24E TEST REPORT For Hytera Communications Corporation Limited Hytera Tower, Hi-Tech Industrial Park North, 9108# Beihuan Road, Nanshan District, Shenzhen, People's Republic of China FCC ID:YAMECENTER Report Type: Original Report Product Type: On-site Command and Dispatch Center Report Number: RDG191210020-00B Report Date: 2020-12-15 Reviewed By: Jimmy Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG191210020-00B FCC Part 27, FCC Part 22H/24E Page 2 of 275 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 5 SUMMARY OF TEST RESULTS ............................................................................................................................... 6 TEST EQUIPMENT LIST ........................................................................................................................................... 7 FCC §15.247 (I) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE).......................................................... 9 APPLICABLE STANDARD .............................................................................................................................................. 9 RESULT ........................................................................................................................................................................ 9 FCC §2.1047 - MODULATION CHARACTERISTIC ............................................................................................ 11 FCC § 2.1046, § 22.913 (A) & § 24.232 (C); §27.50 (B) (C) (D) (H) - RF OUTPUT POWER............................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 TEST PROCEDURE ...................................................................................................................................................... 12 TEST DATA ................................................................................................................................................................ 12 FCC §2.1049, §22.917, §22.905 & §24.238 & §27.53 - OCCUPIED BANDWIDTH .............................................. 38 APPLICABLE STANDARD ............................................................................................................................................ 38 TEST PROCEDURE ...................................................................................................................................................... 38 TEST DATA ................................................................................................................................................................ 38 FCC §2.1051, §22.917(A) & §24.238(A); §27.53 - SPURIOUS EMISSIONS AT ANTENNA TERMINALS ... 123 APPLICABLE STANDARD .......................................................................................................................................... 123 TEST PROCEDURE .................................................................................................................................................... 123 TEST DATA ..............................................................................................................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG191210020-00B FCC Part 27, FCC Part 22H/24E Page 201 of 275 1559 MHz - 1610 MHz (5.0 MHz, Low channel, Narrow) A Att 20 dB* Offset 7.5 dB LVL Ref-10 dBm * 3DB RBW 10 kHz SWT 520 ms VBW 30 kHz 1 PK MAXH Start1.559 GHzStop1.61 GHz5.1 MHz/ -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 1 Marker 1 [T1 ] -69.96 dBm 1.559408654 GHz D1 -50 dBm Date: 5.NOV.2020 13:25:08 1559 MHz - 1610 MHz (5.0 MHz, Low channel, Wide) A Att 20 dB* Offset 7.5 dB LVL Ref-10 dBm Start1.559 GHzStop1.61 GHz5.1 MHz/ * 3DB RBW 1 MHz VBW 3 MHz SWT 2.5 ms 1 PK MAXH -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 1 Marker 1 [T1 ] -50.05 dBm 1.559735577 GHz D1 -40 dBm Date: 5.NOV.2020 13:25:29 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG191210020-00B FCC Part 27, FCC Part 22H/24E Page 202 of 275 763 MHz - 775 MHz (5.0 MHz, Middle channel) A Att 20 dB* Offset 7.5 dB LVL * 3DB RBW 10 kHz VBW 30 kHz SWT 120 msRef-10 dBm Start763 MHzStop775 MHz1.2 MHz/ 1 PK MAXH -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 1 Marker 1 [T1 ] -48.49 dBm 774.653846154 MHz D1 -35 dBm Date: 5.NOV.2020 13:19:57 793MHz – 805 MHz (5.0 MHz, Middle channel) A Att 20 dB* Offset 7.5 dB LVL Ref-10 dBm 1.2 MHz/Start793 MHzStop805 MHz * 3DB RBW 10 kHz VBW 30 kHz SWT 120 ms 1 PK MAXH -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 1 Marker 1 [T1 ] -59.32 dBm 793.000000000 MHz D1 -35 dBm Date: 5.NOV.2020 13:21:31 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG191210020-00B FCC Part 27, FCC Part 22H/24E Page 203 of 275 1559 MHz - 1610 MHz (5.0 MHz, Middle channel, Narrow) A Att 20 dB* Offset 7.5 dB LVL Ref-10 dBm Start1.559 GHzStop1.61 GHz5.1 MHz/ 1 PK MAXH * 3DB RBW 10 kHz SWT 520 ms VBW 30 kHz -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 1 Marker 1 [T1 ] -69.26 dBm 1.563740385 GHz D1 -50 dBm Date: 5.NOV.2020 13:24:49 1559 MHz - 1610 MHz (5.0 MHz, Middle channel, Wide) A Att 20 dB* Offset 7.5 dB LVL * 3DB RBW 1 MHz VBW 3 MHz SWT 2.5 msRef-10 dBm Start1.559 GHzStop1.61 GHz5.1 MHz/ 1 PK MAXH -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 1 Marker 1 [T1 ] -48.64 dBm 1.562923077 GHz D1 -40 dBm Date: 5.NOV.2020 13:24:27 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG191210020-00B FCC Part 27, FCC Part 22H/24E Page 204 of 275 763 MHz - 775 MHz (5.0 MHz, High channel) A Att 20 dB* Offset 7.5 dB LVL * 3DB RBW 10 kHz VBW 30 kHz SWT 120 msRef-10 dBm Start763 MHzStop775 MHz1.2 MHz/ 1 PK MAXH -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 1 Marker 1 [T1 ] -53.29 dBm 774.788461538 MHz D1 -35 dBm Date: 5.NOV.2020 13:20:21 793MHz – 805MHz (5.0 MHz, High channel) A Att 20 dB* Offset 7.5 dB LVL Ref-10 dBm 1 PK MAXH 1.2 MHz/Start793 MHzStop805 MHz * 3DB RBW 10 kHz VBW 30 kHz SWT 120 ms -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 1 Marker 1 [T1 ] -54.62 dBm 793.192307692 MHz D1 -35 dBm Date: 5.NOV.2020 13:20:45 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG191210020-00B FCC Part 27, FCC Part 22H/24E Page 205 of 275 1559 MHz - 1610 MHz (5.0 MHz, High channel, Narrow) A Att 20 dB* Offset 7.5 dB LVL Ref-10 dBm Start1.559 GHzStop1.61 GHz5.1 MHz/ * 3DB RBW 10 kHz VBW 30 kHz SWT 520 ms 1 PK MAXH -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 1 Marker 1 [T1 ] -70.89 dBm 1.570278846 GHz D1 -50 dBm Date: 5.NOV.2020 13:26:11 1559 MHz - 1610 MHz (5.0 MHz, High channel, Wide) A Att 20 dB* Offset 7.5 dB LVL Ref-10 dBm Start1.559 GHzStop1.61 GHz5.1 MHz/ * 3DB RBW 1 MHz VBW 3 MHz SWT 2.5 ms 1 PK MAXH -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 1 Marker 1 [T1 ] -49.05 dBm 1.571341346 GHz D1 -40 dBm Date: 5.NOV.2020 13:25:52 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG191210020-00B FCC Part 27, FCC Part 22H/24E Page 206 of 275 763 MHz - 775 MHz (10.0 MHz, Middle channel) A Att 20 dB* Offset 7.5 dB LVL Ref-10 dBm 1.2 MHz/Start763 MHzStop775 MHz * 3DB RBW 10 kHz VBW 30 kHz SWT 120 ms 1 PK MAXH -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 1 Marker 1 [T1 ] -41.45 dBm 774.730769231 MHz D1 -35 dBm Date: 5.NOV.2020 13:22:11 793MHz – 805 MHz (10.0 MHz, Middle channel) A Att 20 dB* Offset 7.5 dB LVL Ref-10 dBm * 3DB RBW 10 kHz VBW 30 kHz SWT 120 ms Start793 MHzStop805 MHz1.2 MHz/ 1 PK MAXH -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 1 Marker 1 [T1 ] -48.09 dBm 793.557692308 MHz D1 -35 dBm Date: 5.NOV.2020 13:21:54 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG191210020-00B FCC Part 27, FCC Part 22H/24E Page 207 of 275 1559 MHz - 1610 MHz (10.0 MHz, Middle channel, Narrow) A Att 20 dB* Offset 7.5 dB LVL Ref-21 dBm Start1.559 GHzStop1.61 GHz5.1 MHz/ * 3DB RBW 10 kHz VBW 30 kHz SWT 520 ms 1 PK MAXH -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 1 Marker 1 [T1 ] -71.73 dBm 1.569625000 GHz D1 -50 dBm Date: 5.NOV.2020 13:23:27 1559 MHz - 1610 MHz (10.0 MHz, Middle channel, Wide) A Att 20 dB* Offset 7.5 dB LVL * 3DB RBW 1 MHz VBW 3 MHz SWT 2.5 msRef-10 dBm Start1.559 GHzStop1.61 GHz5.1 MHz/ 1 PK MAXH -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 1 Marker 1 [T1 ] -50.94 dBm 1.560798077 GHz D1 -40 dBm Date: 5.NOV.2020 13:23:58 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG191210020-00B FCC Part 27, FCC Part 22H/24E Page 208 of 275 FCC § 2.1053; § 22.917 (a);§ 24.238 (a); §27.53 SPURIOUS RADIATED EMISSIONS Applicable Standard FCC § 2.1053, §22.917(a) and § 24.238(a) and § 27.53 Test Procedure The transmitter was placed on a wooden turntable, and it was transmitting into a non-radiating load which was also placed on the turntable. The measurement antenna was placed at a distance of 3 meters from the EUT. During the tests, the receiving antenna height and polarization as well as EUT azimuth were varied in order to identify the maximum level of emissions from the EUT. The test was performed by placing the EUT on 3-orthogonal axis. The frequency range up to tenth harmonic of the fundamental frequency was investigated. Test Data Environmental Conditions Temperature: 29~30.5 °C Relative Humidity: 54~65 % ATM Pressure: 100.8~101…

Text truncated - open the document above for the full version.
