YAMHP70XUVDigital Portable Radio

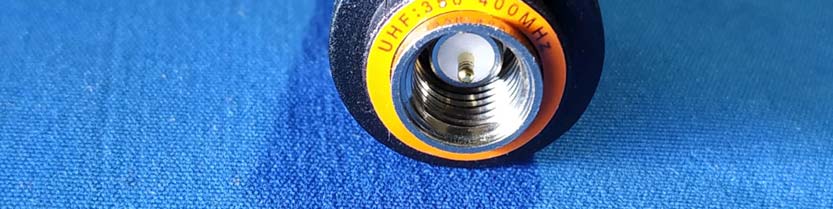

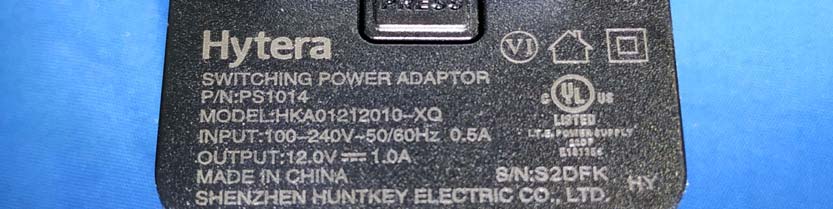

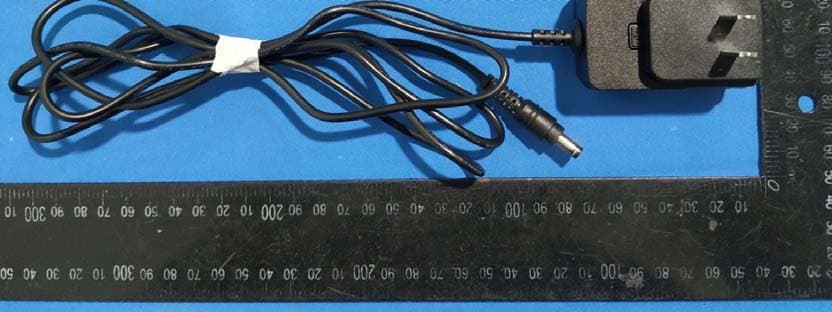

1 1. Product Overview 1.1 Product Layout No. Part Name No. Part Name 1 Side Key 1 (SK1) 10 Microphone 2 Push-to-Talk (PTT) Key 11 On-Off Key 3 Side Key 2 (SK2) 12 Battery Latch 4 Top Key (TK) 13 Strap Hole 1 5 Smart Knob 14 Strap Hole 2 6 OLED Display 15 Accessory Interface 7 Speaker 16 Belt Clip 8 LED Indicator 17 Battery 9 Antenna 18 Charging Piece 1.2 Programmable Keys For enhanced convenience, you can request your dealer to program TK, SK1, and SK2 as shortcuts to radio features. For details, consult your dealer. 2 2. Basic Operations 2.1 Charging the Battery  Use the approved charger to charge the battery.  Read the Safety Information Booklet before charging.  The remaining lithium-ion battery power is limited to 30% pursuant to the new lithium battery shipment regulation approved by International Air Transport Association (IATA). Before initial use, charge the battery. You can charge either the standalone battery or the radio with battery attached. It is recommended that the radio remain powered off during charging. The LED indicator on the charger shows the charging status. For details, see the following table. LED Indicator Charging Status Glows red The battery is being charged. Glows orange The battery is charged to 90% or above. Glows green The battery is fully charged. Flashes red slowly No battery is placed on the charger. Flashes red rapidly The battery fails to be charged. 2.2 Turning the Radio On or Off To turn the radio on or off, press and hold . 2.3 Adjusting the Volume To increase or decrease the volume, rotate the Smart knob clockwise or counter-clockwise. 2.4 Selecting the Contact or Channel To select the contact or channel, press and rotate the Smart knob. If you do not rotate the knob within 5s or if you press it again within 5s, you can rotate it to adjust the volume. 2.5 Switching the Operation Mode The radio can operate in conventional mode, or trunking mode if enabled by your dealer.  Manual Switch 3  Press the preprogrammed Operation Mode Switch key.  If the Zone/Subgroup Switch Mode feature is enabled, you can switch the operation mode by switching the contact through the menu or the Smart knob.  Auto Switch  The Mode Automatic Switch feature allows the radio to automatically switch the operation mode, so as to guarantee the normal communication of the radios in no-signal coverage areas or when the system fails. Press the preprogrammed Mode Auto Switch key to enable this feature. 2.5.1 Conventional Mode In conventional mode, a zone is a group of channels within the same operational area. The radio receives and transmits data and voice on the selected channel. 2.5.1.1 Selecting a Zone To select a zone, press the preprogrammed Zone Up or Zone Down key. 2.5.1.2 Selecting a Channel Before selecting a channel, make sure that the current zone contains the channel. To select a channel, do one of the following:  Press and rotate the Smart knob.  Press the preprogrammed Channel Up or Channel Down key.  Press the preprogrammed Preset Channel key. If the Voice Notify feature is enabled, the radio automatically announces the current channel upon power-on and channel change. 2.5.2 Trunking Mode In trunking mode, the radio automatically hunts for available base stations (BS). During scanning, the LED indicator flashes orange. After registration, the radio can receive and transmit voice and data. 2.5.2.1 Selecting a Group or Private Contact To select a group or private contact, do either of the following:  Press and rotate the Smart knob.  Press the preprogrammed Group/Private Up or Group/Private Down key. 4 2.5.2.2 Selecting a Subgroup A subgroup consists of multiple groups or private contacts. To select a subgroup, press the preprogrammed Subgroup Up or Subgroup Down key. 6 3. Status Indications 3.1 LCD Icons 3.2 LED Indications LED Indicator Radio Status Flashes green The radio is being turned on. Flashes green slowly The radio is standby in trunking mode. Glows green The radio is receiving. Glows red The radio is transmitting. Flashes red The radio is establishing a call in trunking mode. (This indication is applicable only to the calling radio.) Flashes orange slowly  Conventional mode: The radio is scanning or roaming.  Trunking mode: The radio is hunting. Flashes orange rapidly  Conventional mode: The radio is operating in Emergency mode.  Trunking mode: The radio is establishing a Full Off Air Call Set-up (FOACSU) private call. (This indication is applicable only to the called radio.) Glows orange Call hang time: No voice is being transmitted or received during a call. Within such a period, you can press and hold the PTT key and speak. Flashes blue every 3s The BT feature is enabled, but no BT device is connected. Flashes blue every 1.5s A BT device is connected. Flashes blue every 0.1s The BT feature is being disabled. 8 4. Call Services When you are speaking during a call, keep the microphone about 2.5 cm to 5 cm away from your mouth. This ensures optimal voice quality on the receiving radio. In trunking mode, if the radio is not registered or attached, or an empty group is selected, you cannot initiate a call. 4.1 Call on Digital Channel You can initiate or receive the following types of calls on a digital channel:  Group call: a call from an individual user in a group to all the other members in the group.  Private call: a call from an individual user to another individual user. 4.1.1 Initiating a Group Call 4.1.1.1 Through Preset Contact Press and rotate the Smart knob to select the digital channel or group contact, and then press and hold the PTT key to initiate a group call. Through One Touch Call With the One Touch Call feature enabled, press the preprogrammed One Touch Call key to initiate a group call. In conventional mode, you must press the PTT key after pressing the preprogrammed One Touch Call key. 4.1.2 Receiving a Group Call 4.1.2.1 Conventional Mode You can receive a group call without any operation. 4.1.2.2 Trunking Mode You can …
