YAMHP78XVHFDigital Portable Radio

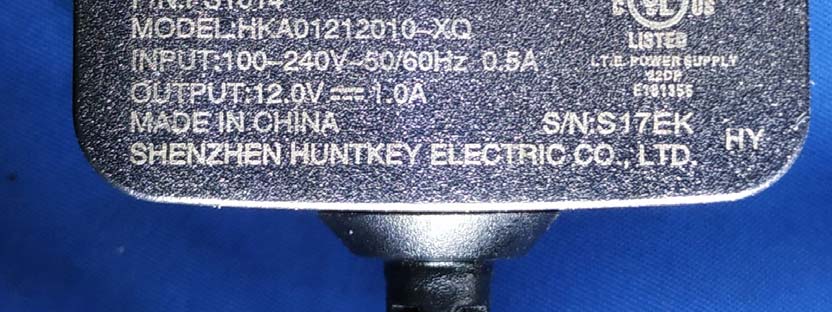

1 Product Overview Product Layout No. Part Name No. Part Name 1 Side Key 1 (SK1) 13 Microphone 2 Push-to-Talk (PTT) Key 14 Back/Subgroup Key 3 Side Key 2 (SK2) 15 On-Off/P2/End Key 4 Top Key (TK) 16 Navigation Keys 5 Smart Knob 17 Battery Latch 6 LCD Display 18 Strap Hole 1 7 OK/Menu Key 19 Strap Hole 2 8 P1/Answer Key 20 Accessory Connector 9 Numeric Keypad 21 Belt Clip 10 Speaker 22 Battery 11 LED Indicator 23 Charging Piece 12 Antenna / / Programmable Keys For enhanced convenience, you can request your dealer to program the following keys as shortcuts to radio features: TK , SK1 , SK2 , P1/Answer key, P2/End key, Up key, and Down key. Consult your dealer for assignable radio features. 2 Basic Operations Charging the Battery  Read the Safety Information Booklet before charging.  Use the approved charger to charge the battery.  The remaining lithium-ion battery power is limited to 30% pursuant to the new lithium battery shipment regulation approved by International Air Transport Association (IATA). Before initial use, charge the battery. You can charge either the standalone battery or the radio with battery attached. It is recommended that the radio remain powered off during charging. The LED indicator on the charger shows the charging status. For details, see the following table. LED Indicator Charging Status or above. Glows green The battery is fully charged. Flashes red slowly No battery is placed on the charger. Flashes red rapidly The battery fails to be charged. Turning the Radio On or Off To turn the radio on or off, press and hold . Adjusting the Volume To increase or decrease the volume, rotate the Smart knob clockwise or counter-clockwise. Selecting the Contact or Channel To select the contact or channel, press the Smart knob, and then rotate the knob. Locking or Unlocking the Keypad When the keypad is not in use, it is recommended that you lock it to avoid unintended operations. To allow the keypad to be locked automatically, do as follows: 1. Go to Menu > Settings > Basic Settings > Keypad Lock . 2. Enable AutoLock , and then go to Timed to set the auto lock time. If you do not operate the radio or if the radio receives no call or message within the auto lock time, the keypad is locked automatically. To manually lock or unlock the keypad, do one of the following:  Press the preprogrammed Keypad Lock key.  On the home screen, press the OK/Menu key, and then press . If you do not rotate the knob within 5s or if you press it again within 5s, you can rotate it to adjust the volume. LED Indicator Charging Status Glows red The battery is being charged. Glows orange The battery is charged to 90% 3 Using the Keypad You can use the keypad to enter contact aliases and IDs, or edit messages.  To switch the input method between alphabetic mode and numeric mode, press .  To enter special characters, press in alphabetic mode.  To enter a space, press in alphabetic mode. Switching the Operation Mode The radio can operate in conventional mode, or trunking mode if enabled by your dealer. To switch the operation mode, do one of the following:  Press the preprogrammed Operation Mode Switch key.  Go to Menu > Mode , and then select the mode. To allow the radio to automatically switch to a mode based on signal strength, do one of the following:  Press the preprogrammed Mode Auto Switch key.  Go to Menu > Mode , and then enable Auto Switch . Conventional Mode In conventional mode, a zone is a group of channels within the same operational area. The radio receives and transmits data and voice on the selected channel. Selecting a Zone To select a zone, do one of the following:  Go to Menu > Zone , select the zone, and then select Set Default .  Press the preprogrammed Zone Up or Zone Down key. Selecting a Channel Before selecting a channel, make sure that the current zone contains the channel. To select a channel, do one of the following:  Press and rotate the Smart knob.  Go to Menu > Zone , select the zone, and then select the channel.  Press the preprogrammed Channel Up or Channel Down key.  Press the preprogrammed Preset Channel key. Trunking Mode In trunking mode, the radio hunts for available base stations (BS) automatically. After registration, the radio can receive and transmit data and voice. Selecting a Group or Private Contact To select a group contact or a private contact, do one of the following: If the Voice Notify feature is enabled, the radio automatically announces the current channel upon power-on and channel change. If the Zone/Subgroup Switch Mode feature is enabled, you can switch the operation mode by switching the contact through the menu or the Smart knob.  If the Keypad Lock Backup feature is enabled by your dealer, the radio automatically saves the last settings of keypad lock upon power-off.  You can go to Menu > Settings > Basic Settings > Keypad Lock > Optional Key to set whether the corresponding keys and knobs still work when the keypad is locked. 4  Press and rotate the Smart knob.  On the home screen, press the Back/Subgroup key or go to Menu > Subgroup , select the subgroup, and then select the group or private contact.  Press the preprogrammed Group/Private Up or Group/Private Down key. Selecting a Subgroup A subgroup consists of multiple groups or private contacts. To select a subgroup, do one of the following:  On the home screen, press the Back/Subgroup key or go to Menu > Subgroup , select the subgroup, and then select Set Default .  Press the preprogrammed Subgroup Up or Subgroup Down key. Status Indications LCD Icons Icon Radio Status There is/are missed call(s). There is/are unread short message(s). The Inbox is full. For details on other LCD icons, refer to the User Manual . LED Indications Icon Radio Status The fuller the battery bar is, the stronger the battery power remains. Icon Radio Status The battery power is low. The battery power runs out. Recharge or replace the battery. The radio detects no signal. The number of bars indi…
