YAMHR106XU1DIGITAL REPEATER

1 1. Product Overview 1.1 Front Panel No. Part Name No. Part Name 1 Air Inlet for PA 8 Timeslot A RX Indicator 2 Channel Up Key 9 Timeslot A TX Indicator 3 Channel Down Key 10 Analog Mode Indicator 4 Seven-segment Display 11 Digital Mode Indicator 5 Alarm Indicator 12 Audio/Programming Connector 6 Timeslot B RX Indicator 13 Air Inlet for Power Supply 7 Timeslot B TX Indicator / / 1.2 Rear Panel 1.2.1 General Version No. Part Name No. Part Name 1 TX Antenna Connector 6 DC Power Inlet 2 Monitor/Tuning Interface 7 AC Power Inlet 3 Accessory Connector 8 AC Power Switch 4 RX Antenna Connector 9 Ground Screw 5 LAN Interface / / 2 1.2.2 Enhanced Version No. Part Name No. Part Name 1 TX Antenna Connector 7 USB Connector 2 Monitor/Tuning Interface 8 DC Power Inlet 3 Accessory connector 9 AC Power Inlet 4 RX Antenna Connector 10 AC Power Switch 5 LAN Interface 11 Ground Screw 6 WAN Interface / / 1.3 Internal Parts 1.3.1 General Version 3 No. Part Name No. Part Name 1 PA Module 5 Wind Scooper 2 Baseband Module 6 Fan 3 Network Board 7 Control Panel 4 Power Supply Module 8 Floating Charge Board 1.3.2 Enhanced Version No. Part Name No. Part Name 1 PA Module 5 Wind Scooper 2 Baseband Module 6 Fan 3 Coprocessor 7 Control Panel 4 Power Supply Module 8 Floating Charge Board 4 2. Installation To ensure optimum performance and reliability of the repeater, read the following instructions carefully. 2.1 Installation Requirements Installation Environment The repeater must be installed in a dry and well-ventilated place. The ambient temperature ranges from –30°C to +60°C, and the relative humidity is 95%. Installation Location The repeater can be installed in a rack, bracket, and cabinet, or on a desk. For more information, refer to the Safety Information Booklet. 2.2 Pre-installation Tasks Preparing the tools  Phillips screwdriver  T-10 torx screwdriver  Spanner  Anti-static gloves  Multimeter Checking the power supply Before you install the repeater, make sure that the power supply meets the following requirements:  DC power voltage: 13.6±15% V  AC power voltage: 100–240 V 2.3 Installation Procedure To install the repeater, do as follows: 5 1. Wear the anti-static gloves. 2. Place the repeater to a proper location. 3. Connect accessories including the antenna, feed lines, and power cords to the repeater. You must purchase the antenna and feed lines separately. 4. Ground the repeater through the ground screw located on the rear panel. 2.4 Post-installation Check To check whether the repeater works properly, do as follows: 1. Turn the repeater on. 2. Observe the LED indicators and the display in the front panel. For details, refer to 3.3 Checking Status Indications. 6 3. Basic Operations 3.1 Turning the Repeater On or Off If the repeater is connected to a DC power supply, press the power switch on the DC power supply to turn the repeater on or off. If the repeater is connected to an AC power supply, press the AC Power Switch located in the rear panel to turn the repeater on or off. 3.2 Switching the Channel You can use the Channel Up or Channel Down key in the front panel to switch the channel. After you switch the channel, the current channel number appears on the display of the repeater. To go back to the previous channel, press the Channel Up key. To go to the next channel, press the Channel Down key. 3.3 Checking Status Indications 3.3.1 Repeater Status Indicator Description Repeater Status Digital Mode Blue The repeater is operating in digital mode. Analog Mode Yellow The repeater is operating in analog mode. Alarm Red The repeater is not working properly. Timeslot A TX Red Analog mode: The repeater is transmitting. Digital mode: The repeater is transmitting in timeslot A. Timeslot A RX Green Analog mode: The repeater is receiving. Digital mode: The repeater is receiving in timeslot A. Timeslot B TX Red Digital mode: The repeater is transmitting in 7 Indicator Description Repeater Status timeslot B. Timeslot B RX Green Digital mode: The repeater is receiving in timeslot B. 3.3.2 Network Interface Indicator Description Repeater Status LAN interface/WAN interface LED 1 Flashing The network card is transmitting data. LED 2 Glowing The data transmission rate is 1000 M/100 M. Off The Data transmission rate is 10 M. 20 0 cm away from human body. Operational Instructions and Training Guidelines To ensure optimal performance and compliance with the occupational/controlled environment RF energy exposure limits in the above standards and guidelines, users should transmit not more than 50% of the time and always adhere to the following procedures:  Antenna gain must not exceed 10dBi. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Verification of harmful interference by this equipment to radio or television reception can be determined by turning it off and then on. The user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a different circuit to that of the receiver's outlet.  Consult the dealer or an experienced radio/TV technician for help. Operation is subject to the following two conditions:  This device may not cause harmful interference.  This device must accept any interference received, including interference that may cause undesired operation. Note: Any changes or modifications to this unit not expressly approved by …

Text truncated - open the document above for the full version.

Hyte ra Communications Corporation Limited Add: Hytera Tower, Hi-Tech Industrial Park North, 9108# Beihuan Road, Nanshan District, Shenzhen, 518057 China Tel: +86-755-26972999 Fax: +86-755-86139020 Email: [email protected] Justification Letter Date: 2020-05-13 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:YAMHR106XU1 Model n umber: HR1062 U(1), HR1060 U(1), HR1065 U(1), HR1066 U(1), HR1068 U(1) Dear Sir/Madam, We, Hytera Communications Corporation Limited, acknowledge that this de vice will not be marketed to USA users with the frequency band which is not allowed by rule part 90.and it is a violation of FCC rules if this device is operated on unauthorized frequencies inside the U.S.A. This equipment meets the requirements of the FCC Rules, Parts 90.203(e) and (g), as applicable. Programming of this products transmit frequencies can be performed ONLY by the manufacturer or by service or by maintenance personal. The operator can’t program transmit frequencies using the equipment’s external operation controls. This is to certify that the requirements of 47 CFR Part 90.203(j)(4) and (5) spectrum efficiency are met by the Hytera Communications Corporation Limited as demonstrated by the te sts conducted on the sample radio provided. The tests show that the 4FSK data rate is in accordance with ETSI TS 102 361-1, that is 9600 bits per second in a 12.5 kHz bandwidth to satisfy the data rate requirement of 4800 bits per second per 6.25 kHz of channel bandwidth (7K60F1D emissions). Additionally the Digital Mobile Radio uses the AMBE+2 half-rate vocoder to compress 60 ms of normal bursts are sent in alternate 30 ms TDMA slots and so comply with the equivalence of one voice channel per 6.25 kHz bandwidth (7K60F1E emission). Additionally the radio also meets the requirement of one voice channel pe r 12.5kHz of channel bandwidth for analogue speech (11k0F3E emission). Sincerely Yours, Signature: Tiantian Chen Certification Engineer

QA -FR-170-B Hytera Communications Corporation Limited Add: Hytera Tower, Hi-Tech Industrial Park North, 9108# Beihuan Road, Nanshan District, Shenzhen, 518057 China Tel: +86-755-26972999 Fax: +86-755-86139020 Email: [email protected] FCC Authorization Date: 2020-05-13 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Hytera Communications Corporation Limited, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Printed Name: Tiantian Chen Title: Certification Engineer

QA-FR-171- A Hytera Communications Corporation Limited Add: Hytera Tower, Hi-Tech Industrial Park North, 9108# Beihuan Road, Nanshan District, Shenzhen, 518057 China Tel: +86-755-26972999 Fax: +86-755-86139020 Email: [email protected] FCC Confidential Authorization Date:2020-05-13 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID:YAMHR106XU1 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Hytera Communications Corporation Limited . hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operation Description Parts List/Tune up procedure The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Tiantian Chen Certification Engineer

Hytera Communications Corporation Limited Add: Hytera Tower, Hi-Tech Industrial Park North, 9108# Beihuan Road,Nanshan District, Shenzhen, 518057 China Tel: +86-755-26972999 Fax: +86-755-86139020 Email: [email protected] DECLARATION OF SIMILARITY Date: 2020-05-13 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: We, Hytera Communications Corporation Limited, hereby declare that the product: Digit al REPEATER, FCC ID: YAMHR106XU1 models:HR1060 U(1), HR1065 U(1), HR1066 U(1), HR1068 U(1) are electrically identical with the model: HR1062 U(1) which was tested by BACL with the same electromagnetic emissions and electromagnetic compatibility characteristics. A description of the differences between those models and that are declared similar are as follows: They are the same product, and just the different model name, the rest are the same. Please contact me should there be need for any additional clarification or information. Best Regards, Signature: Printed Name: Tiantian Chen Title: Certification Engineer

Hytera Communications Corporation Limited Add: Hytera Tower, Hi-Tech Industrial Park North, 9 108# Beihuan Road, Nanshan District, Shenzhen, 518057 China Tel: +86-755-26972999 Fax: +86-755-86139020 Email: [email protected] Date: 2020-05-13 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7 43 5 Oakland Mills Road Columbia, MD 21046 Subject: Extended Frequencies Justification for Certification of Transmitter with FCC ID: YAMHR106XU1 Dear Sir/Madam, This transmitter was designed to operate in following frequency ranges: 400-470MHz To aid equipment authorization in other countries which accept the United States FCC Grant for Certification, Hytera Communications Corporation Limited is requesting that the FCC lists the frequencies 400-470MHz, under FCC Rule Parts 22, 74, 80and 90 on the FCC Grant. Hytera Communications Corporation Limited attests that the DIGITAL REPEATER will not be marketed to USA users with the frequency band which is not allowed by the rule Parts 22, 74, 80 and 90. Per the FCC’s KDB634817 guidance, as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. Also, equipment programming is the responsibility of Authorized Service Personnel, the DIGITAL REPEATER complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Please contact me if you require any additional information. Sincerely Yours, Signature: Tiantian Chen Certification Engineer Frequency Range(MHz) FCC Rule Part 400-406For Federal 406.1-450FCC Part 90 450-454FCC Part 74/ FCC Part 90 454-455FCC Part 22/ FCC Part 80 455-456FCC Part 74 456-460FCC Part 22/ FCC Part 80/ FCC Part 90 460 -462.537 5FCC Part 90 462.7375-467.5375 FCC Part 80/FCC Part 90 467.5375-467.7375PartFCC 80 467.7375-470 FCC Part 80/ FCC Part 90

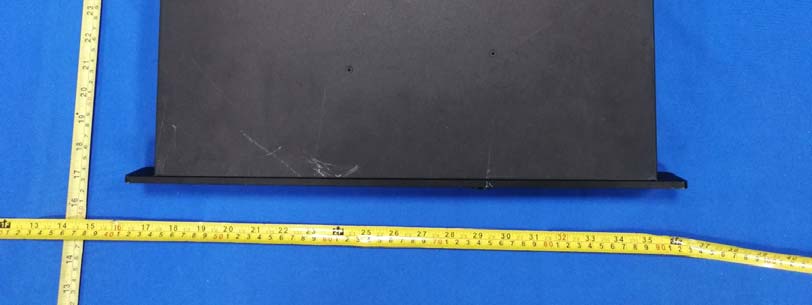

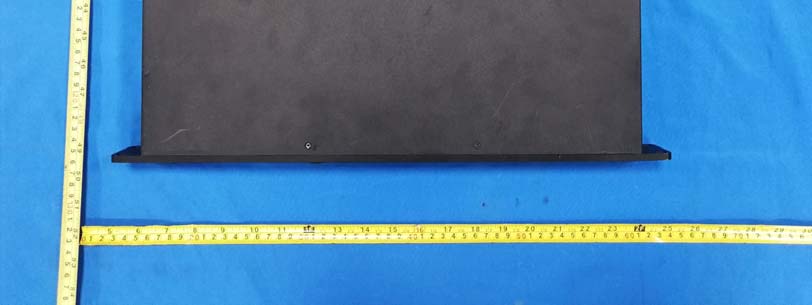

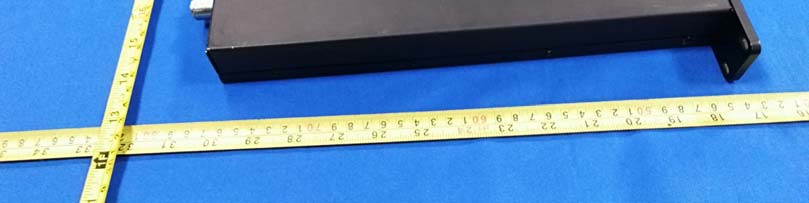

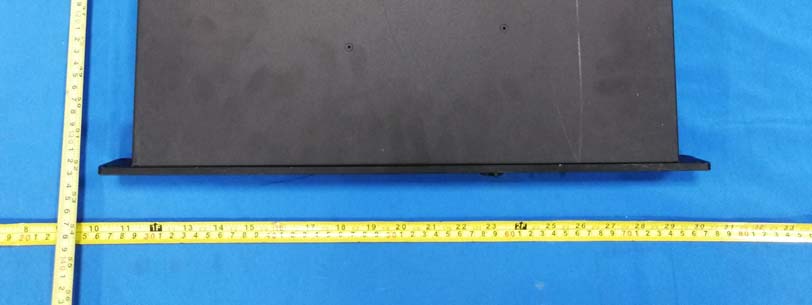

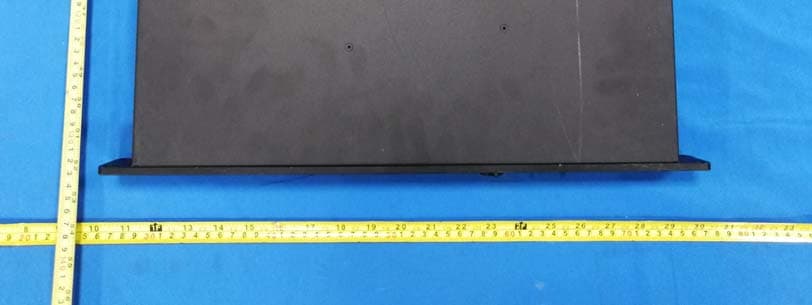

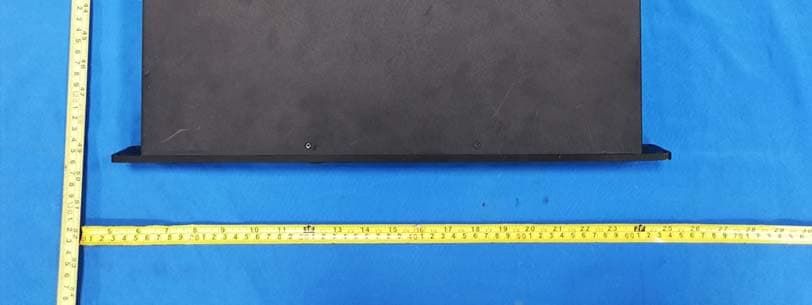

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT1 EUT 2

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT1 EUT 2

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG191225002-00A Page 10 of 61 FCC §1.1310 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to 1.1310, 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for Maximum Permissible Exposure (MPE) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E|, |H| or S (minutes) 0.3- 3.0 614 1.63 (100)* 6 3.0 - 30 1842/f 4.89/f (900/f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1500 / / f/300 6 1500-100,000 / / 5 6 f = frequency in MHz; * = Plane-wave equivalent power density; MPE Calculation Prediction of power density at the distance of the applicable MPE limit S = PG/4R 2 Where: S = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); MPE Results Frequency (MHz) Antenna Gain Maximum Average output power including Tune-up Tolerance (mW) Evaluation Distance (cm) Power Density (mW/cm 2 ) Power Density Limit (mW/cm 2 ) (dBi) (numeric) 400-470 10 10 60000 200 1.19 1.33 Note: the maximum power including Tune-up Tolerance is 60 W. Result: The device meet FCC MPE of the Occupational/Controlled use at 200 cm distance.

FCC PART 22, 74, 80 and 90 TEST REPORT For Hytera Communications Corporation Limited Hytera Tower, Hi-Tech Industrial Park North, 9108# Beihuan Road, Nanshan District, Shenzhen, 518057 China FCC ID: YAMHR106XU1 Report Type: Original Report Product Type: DIGITAL REPEATER Re port Number: RDG191225002-00A Re port Date: 2020-03-30 Reviewed B y: Ivan Cao Assistant Manager Prepared By: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG191225002-00A Page 2 of 61 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 DECLARATIONS ............................................................................................................................................................ 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC §1.1310 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ....................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 FCC §2.1046 & § 22.727 & §74.461 & §80.215& §90.205 - RF OUTPUT POWER ............................................. 11 APPLICABLE STANDARD ............................................................................................................................................ 11 TEST PROCEDURE ...................................................................................................................................................... 11 TEST DATA ................................................................................................................................................................ 11 FCC §2.1047 - MODULATION CHARACTERISTIC ........................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 TEST PROCEDURE ...................................................................................................................................................... 13 TEST DATA ................................................................................................................................................................ 13 FCC §2.1049 & §22.357 & § 22.731 & §74.462 & 80.205& §80.207& §90.209 & §90.210 – OCCUPIED BANDWIDTH & EMISSION MASK ........................................................................................................................ 20 APPLICABLE STANDARD ............................................................................................................................................ 20 TEST PROCEDURE ...................................................................................................................................................... 20 TEST DATA ................................................................................................................................................................ 20 FCC §2.1051 & §22.861 & §74.462 & § 80.211 & §90.210 - SPURIOUS EMISSIONS AT ANTENNA TERMINALS ............................................................................................................................................................... 40 APPLICABLE STANDARD ............…
