YAMMD78XG-U2

Hytera Communications Corporation Limited

Digital Mobile Radio

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Dec 26, 2011
Application Purpose: Original Equipment
Date of Application: Dec 26, 2011
Equipment Note: Digital Mobile Radio
Frequency Range: 450.00000000 - 520.00000000
Company: Hytera Communications Corporation Limited
Country: China

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

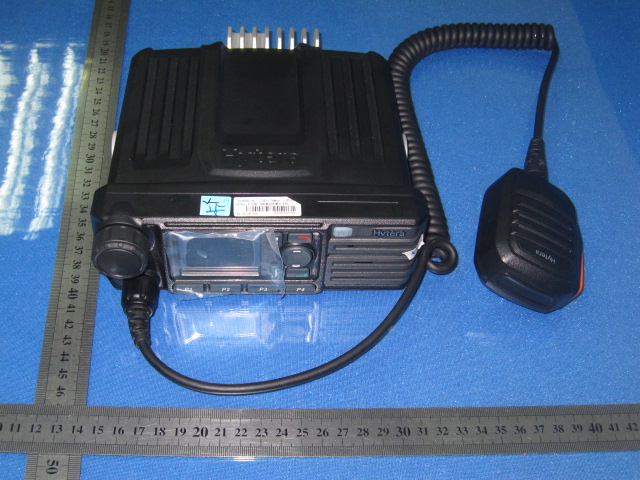

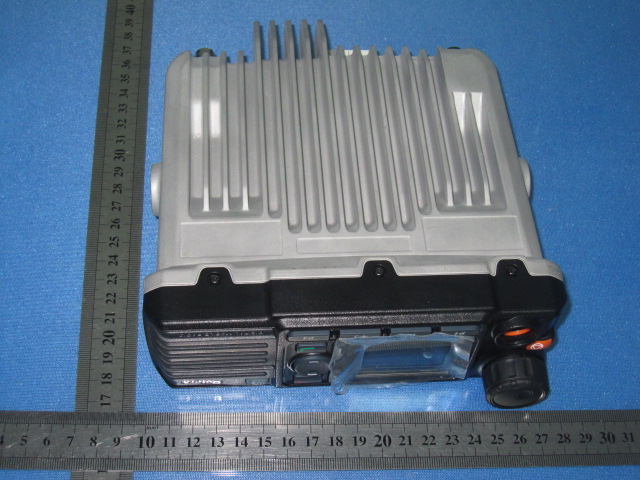

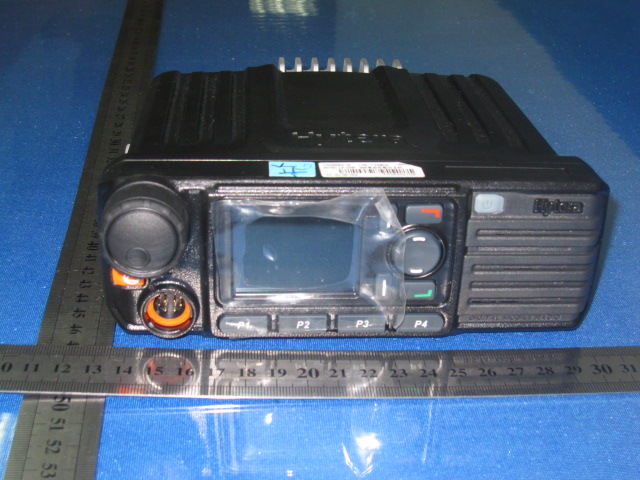

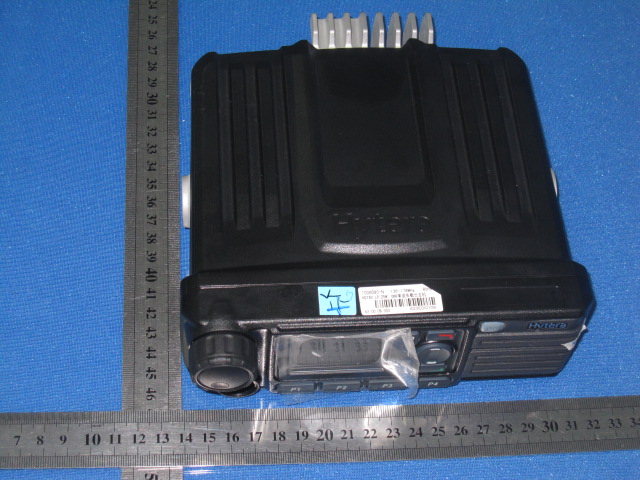

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
3	9	450 MHz - 520 MHz	45 W	7K60FXW	1.41 ppm

Confidentiality

Long Term

Grant Notes

Output power listed is rated conducted; measured maximum conducted output power as allowed by 47 CFR 90.205(s) is 48 W. This transmitter must be restricted to work related operations in an Occupational/Controlled RF exposure environment, not exceeding a maximum transmitting duty factor of 50%. All qualified end-users of this device must have the knowledge to control their exposure conditions and/or duration to comply with Occupational/Controlled exposure limit and must also have control of the exposure conditions of passengers and bystanders for complying with General Population/Uncontrolled exposure limit. The antennas used for this transmitter must be vehicle-mounted and must be installed to provide the configurations and separation distances as described in this filing. The maximum antenna gain must not exceed 5.5 dBi. A label, as described in this filing, must be displayed on the device to direct users to specific training information for meeting Occupational Exposure Requirements. Users must be provided with training information, antenna installation and transmitter operating conditions for satisfying RF exposure compliance.
