YAMMD78XVHFDigital Mobile Radio

Preface Thank you for purchasing Hytera MD78X/78XG Series DMR Digital Mobile Radio. As a product built to the DMR standard, MD78X/78XG is endowed with ergonomic design, all-round digital functions and remarkable quality to increase your management efficiency and enable you to be responsive to emergent situations. To derive optimum performance from your product, please read this manual and the supplied Safety Information Booklet carefully before use. 1 Instructional Icons The following icons are available through this manual: Alert Icons Caution: indicates situations that could cause damage to your product. Note: indicates tips that can help you make better use of your product. Function Icons : indicates functions that are available on digital channel only. : indicates functions that are available on analog channel only. Functions marked with no function icons are available on both analog and digital channels. Term Explanation Key Operation Short press: to press a key and release it quickly. Long press: to press a key and remain holding it down for a predefined period (2 seconds by default). Hold down: to press a key and remain holding it down. Private Call Private Cal is a call initiated by a single user to another user. Group Call Group Call is a call initiated by a single user to a group. All Call All Call is a call initiated by a single user to all the other users on a channel. Squelch This technology can remove excessive background noises, improving your communication quality. PTT ID PTT ID, namely radio identity, allows a radio with display or the control center to identify the calling party. 2 Copyright Information Hytera and HYT are trademarks or registered trademarks of Hytera Communications Co., Ltd. (“Hytera”) in PRC and/or other countries or areas. Hytera retains the ownership of its trademarks and product names. All other trademarks and/or product names that may be used in this manual are properties of their respective owners. The Hytera product described in this manual may include Hytera computer programs stored in memory or other media. Laws in PRC and/or other countries or areas protect the exclusive rights of Hytera with respect to its computer programs. The purchase of this product shall not be deemed to grant, either directly or by implication, any rights to the purchaser with respect to Hytera computer programs. Any Hytera computer programs may not be copied, modified, distributed, decompiled, or reverse-engineered in any manner without the prior written consent of Hytera. The AMBE+2 TM voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding technology is licensed solely for use within this product. The user of this technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code or in any other way convert the Object Code into a human readable form. U.S. Patent Nos. #6,912,495 B2, #6,199,037 B1, #5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365, #5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772, #5,247,579, #5,226,084 and #5,195,166. Disclaimer Hytera endeavors to achieve the accuracy and completeness of this manual, but no warranty of accuracy or reliability is given. All the specifications and designs are subject to change without prior notice due to continuous technology development. No part of this manual may be copied, modified, translated, or distributed in any manner without the express written permission of Hytera. If you have any suggestions or would like to learn more details, please visit our website at: http://www.hytera.cn . 3 RF Energy Exposure Compliance ● Your radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE and ICNIRP exposure limits for occupational/controlled RF exposure environment at operating duty factors of up to 50% transmitting and is authorized by the FCC for occupational use only. In terms of measuring RF energy for compliance with the FCC exposure guidelines, your radio radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. ● The device complies with SAR and/or RF field strength limits of RSS-102 requirement and contact information where the user can obtain Canadian information on RF exposure and compliance. Your radio complies with the following of RF energy exposure standards and guidelines ● United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J ● American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 ● Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1999 Edition ● International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998  Operational Instructions and Training Guidelines ● To ensure optimal performance and compliance with the occupational/controlled environment RF energy exposure limits in the above standards and guidelines, users should transmit no more than 50% of the time and always adhere to the following procedures: ● Gain of antenna must not exceed 3.5dBi for VHF and 5.0dBi for UHF. ● Antenna Installation: Install the mobile antenna at least 100 cm away from your body, in accordance with the requirements of the antenna manufacturer/supplier. Transmit and Receive To transmit (talk), push the Push-To-Talk (PTT) key; to receive, release the PTT key. 4 EU Regulatory Conformance The equipment is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/EC. Note: The above information is applicable to EU countries only. FCC Licensing Information Part 15 Compliance This equipment has been tested and foun…

Text truncated - open the document above for the full version.

Hytera Communications Corporation Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Hytera Communications Corporation Ltd. would like the following documents regarding this submission for FCC ID: YAMMD78XVHF to be kept confidential. 1. Block Diagram 2. Schematic 3. Theory of Operation The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely yours, Hytera Communications Corporation Ltd. Xiong Lei/ Director of management dept Fax: +86 755 8613 7130 Tel: +86 755 2697 2999 E-mail:[email protected]

Justification Letter DATE: September 29, 2010 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Colombia, Maryland 21046 FCC ID: YAMMD78XVHF Model: MD782 VHF, MD785 VHF, MD786 VHF, MD788 VHF Dear Sir/Madam, We , Hytera Communications Corporation Ltd. acknowledge that this device will not be marketed to USA users with the frequency band which is not allowed by rule part 90.and it is a violation of FCC rules if this device is operated on unauthorised frequencies inside the U.S.A. We , Hytera Communications Corporation Ltd. acknowledge this equipment meets the requirements of FCC Rules, Parts 90.203 (e) and (g) as applicable. Programming of this product's transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personnel. The operator cannot program transmit frequencies using the equipment's external operation. Sincerely yours, Hytera Communications Corporation Ltd. Xiong Lei/ Director of management dept Fax: +86 755 8613 7130 Tel: +86 755 2697 2999 E-mail:[email protected]

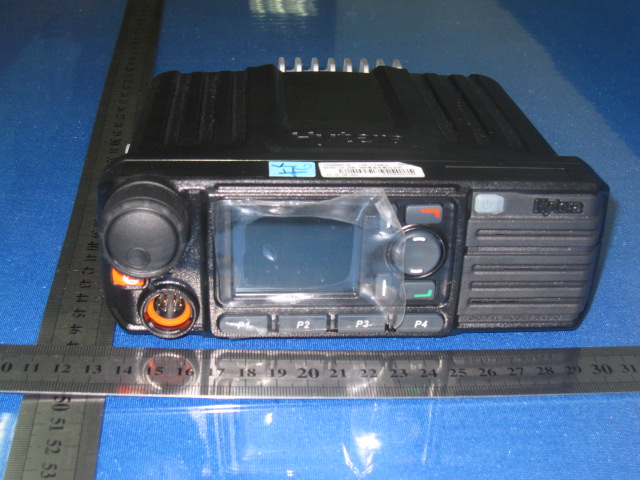

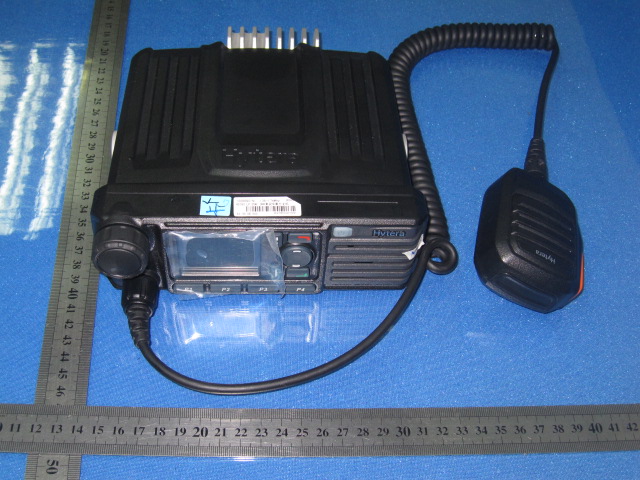

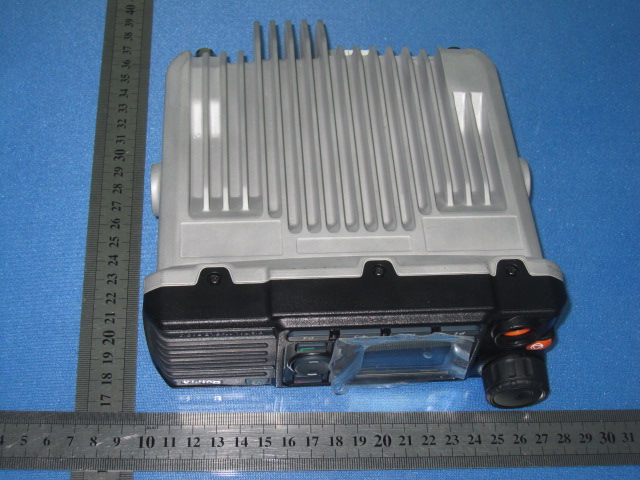

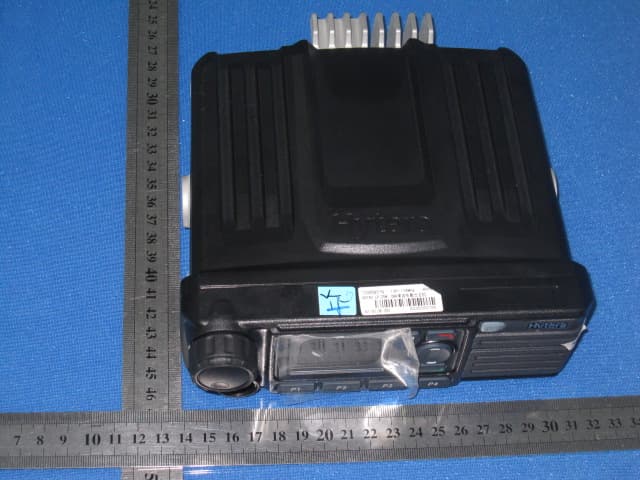

External photos of the EUT

FCC Label FCC RF Warning Label

Internal photos of the EUT

序号位号物料编码 描述 1 C18131010501000301PF 2 C2731010501000301PF 3 C86231010602000102PF 4 C621831010502000102PF 5 C622131010502000102PF 6 C607531010524900102.4PF 7 C607731010524900102.4PF 8 C607631010527900602.7PF 9 C5531010603000103PF 10 C605631010503000003PF 11 C10131010536900103.6PF 12 C605531010536900003.6PF 13 C605731010536900003.6PF 14 C615331010504000104PF 15 C82131010804000104pF 16 C85831010604000104PF 17 C2631010645900104.5PF 18 C615231010505000105PF 19 C10231010605000105PF 20 C1331010506000106PF 21 C615431010506000106PF 22 C621131010506000106PF 23 C931010506000106PF 24 C616331010507000107PF 25 C19631010607000207PF 26 C231010607000207PF 27 C83831010807000107pF 28 C19831010508000008PF 29 C618331010508000008PF 30 C621031010508000008PF 31 C73131010508000008PF 32 C81631010808000108pF 33 C15231010509000009PF 34 C621531010509000009PF 35 C177310106100000010PF 36 C49310106100000010PF 37 C159310105100002010PF 38 C54310105100002010PF 39 C165310105100003010PF 40 C6223310105100003010PF 41 C6225310105100003010PF 42 C6226310105100003010PF 43 C714310105100003010PF 44 C751310105100003010PF 45 C151310106110001011PF 46 C31310106110001011PF 47 C12310105110001011PF 48 C164310105110001011PF 49 C18310105110001011PF 50 C322310105120002012PF 51 C324310105120002012PF 52 C375310105120002012PF 53 C376310105120002012PF 54 C836310108120001012pF 55 C10 3101061300000 13PF 56 C166310105150008015PF 57 C168310105150008015PF 58 C22310105150008015PF 59 C25310105150008015PF 60 C32310105150008015PF 61 C33310105150008015PF 62 C53310105150008015PF 63 C61310105150008015PF 64 C6162310105150008015PF 65 C6230310105150008015PF 66 C20310106150001015PF 67 C155310106160000016PF 68 C15310105180007018PF 69 C6170310105180007018PF 70 C851310108180001018pF 71 C4310105200002020PF 72 C59310105200002020PF 73 C6161310105200002020PF 74 C6164310105200002020PF 75 C6245310105200004020PF 76 C6246310105200004020PF 77 C830310137200000020pF 78 C747310105220001022PF 79 C918310105220001022PF 80 C34310106220001022PF 81 C867310106220001022PF 82 C837310137240000024pF 83 C16310105240001024PF 84 C5310105240001024PF 85 C6083310105240001024PF 86 C6085310105240001024PF 87 C6177310106270001027PF 88 C819310108270001027PF 89 C732310105270000027PF 90 C841310108270001027PF 91 C856310108270001027PF 92 C162310105300001030PF 93 C730310105300001030PF 94 C154310105330000033PF 95 C158310105330000033PF 96 C879310108330001033pF 97 C191310105330000033PF 98 C500310105330000033PF 99 C6062310105330000033PF 100 C6065310105330000033PF 101 C6068310105330000033PF 102 C1004310106330000033PF 103 C857310106330000033PF 104 C864310106330000033PF 105 C6069310105330000033PF 106 C153310105390000039PF 107 C193310105390000039PF 108 C364310105390000039PF 109 C6244310105390000039PF 110 C749310105390000039PF 111 C6066310105470001047PF 112 C6067310105470001047PF 113 C6160310105470001047PF 114 C6212310105470001047PF 115 C724310105470001047PF 116 C734310105470001047PF 117 C743310105470001047PF 118 C802310106470000047PF 119 C986310106470000047PF 120 C6209310105560000056PF 121 C6224310105560000056PF 122 C745310105560000056PF 123 C922310105560000056PF 124 C960310106560000056PF 125 C6231310105680000068PF 126 C6232310105680000068PF 127 C6233310105680000068PF 128 C6235310105680000068PF 129 C6236310105680000068PF 130 C6237310105680000068PF 131 C6238310105680000068PF 132 C8330310137680000068PF 133 C6239310105680000068PF 134 C723310105680000068PF 135 C842310137680000068pF 136 C362310105820000082PF 137 C363310105820000082PF 138 C365310105820000082PF 139 C6240310105820000082PF 140 C859310106820000082PF 141 C888310106820000082PF 142 C1213101051010030100PF 143 C13203101051010030100PF 144 C2883101051010030100PF 145 C4093101051010030100PF 146 C410 3101051010030100PF 147 C2563101051010030100PF 148 C4793101051010030100PF 149 C2953101051010030100PF 150 C4803101051010030100PF 151 C4813101051010030100PF 152 C4823101051010030100PF 153 C411 3101051010030100PF 154 C412 3101051010030100PF 155 C413 3101051010030100PF 156 C414 3101051010030100PF 157 C415 3101051010030100PF 158 C416 3101051010030100PF 159 C417 3101051010030100PF 160 C418 3101051010030100PF 161 C4773101051010030100PF 162 C4783101051010030100PF 163 C3073101051010030100PF 164 C3093101051010030100PF 165 C3263101051010030100PF 166 C3353101051010030100PF 167 C3393101051010030100PF 168 C3413101051010030100PF 169 C3423101051010030100PF 170 C3433101051010030100PF 171 C3443101051010030100PF 172 C3453101051010030100PF 173 C3463101051010030100PF 174 C3473101051010030100PF 175 C3483101051010030100PF 176 C3493101051010030100PF 177 C3503101051010030100PF 178 C3513101051010030100PF 179 C3523101051010030100PF 180 C3533101051010030100PF 181 C3543101051010030100PF 182 C3553101051010030100PF 183 C3573101051010030100PF 184 C3583101051010030100PF 185 C3593101051010030100PF 186 C3603101051010030100PF 187 C3613101051010030100PF 188 C3783101051010030100PF 189 C3853101051010030100PF 190 C3903101051010030100PF 191 C4193101051010030100PF 192 C4203101051010030100PF 193 C4263101051010030100PF 194 C4273101051010030100PF 195 C4283101051010030100PF 196 C4293101051010030100PF 197 C4303101051010030100PF 198 C4313101051010030100PF 199 C4353101051010030100PF 200 C4403101051010030100PF 201 C4413101051010030100PF 202 C4423101051010030100PF 203 C4433101051010030100PF 204 C4443101051010030100PF 205 C4453101051010030100PF 206 C4463101051010030100PF 207 C4473101051010030100PF 208 C4483101051010030100PF 209 C4493101051010030100PF 210 C4503101051010030100PF 211 C4513101051010030100PF 212 C4523101051010030100PF 213 C4533101051010030100PF 214 C4543101051010030100PF 215 C4553101051010030100PF 216 C4563101051010030100PF 217 C4633101051010030100PF 218 C4653101051010030100PF 219 C4663101051010030100PF 220 C4673101051010030100PF 221 C4683101051010030100PF 222 C4693101051010030100PF 223 C5103101051010030100PF 224 C5163101051010030100PF 225 C5173101051010030100PF 226 C5183101051010030100PF 227 C7213101051010030100PF 228 C7223101051010030100PF 229 C7383101051010030100PF 230 C7393101051010030100PF 231 C76310105…

Text truncated - open the document above for the full version.

MPE TEST REPORT FCC Per 47 CFR 2.1091(b) FCC ID .............................................: YAMMD78XVHF Compiled by ( position+printed name+signature)..: File administrators Xiankun Ding Supervised by ( position+printed name+signature)..: Test Engineer Wenliang Li Approved by ( position+printed name+signature)..: Manager Jimmy Li Date of issue.....................................: Oct 10, 2010 Testing Laboratory Name..............: Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................: Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name............................: Hytera Communications Corporation Ltd. Address ............................................: HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Test specification: Standard ...........................................: FCC Per 47 CFR 2.1091(b) TRF Originator..................................: Shenzhen Huatongwei International Inspection CO., Ltd Master TRF.......................................: Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Digital Mobile Radio Trade Mark .......................................: Manufacturer ....................................: Hytera Communications Corporation Ltd. Model/Type reference.......................: MD782 VHF/ MD785 VHF/ MD786 VHF/ MD788 VHF Listed Models ..................................: / Ratings .............................................: DC 13.60V Modulation ......................................... FM&4FSK Rated Power ....................................: 50 Watts(46.99 dBm)/5 Watts(36.99 dBm) Channel Separation........................... 12.5KHz/25KHz Frequency Range From 136 MHz to 174 MHz Result................................................: Positive V1.0 Page 2 of 22 FCC ID: YAMMD78XVHF MPE T E S T R E P O R T FCC ID : YAMMD78XVHF Oct 10, 2010 ______________________________________________________________________________________________ Date of issue Equipment under Test : Digital Mobile Radio Model /Type : MD782 VHF/ MD785 VHF/ MD786 VHF/ MD788 VHF Listed Models : / Applicant : Hytera Communications Corporation Ltd. Address : HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Manufacturer : Hytera Communications Corporation Ltd. Address : HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 22 FCC ID: YAMMD78XVHF Contents 1. MEASUREMENT UNCERTAINTY ................................................. 4 2. METHOD OF MEASUREMENT .................................................... 4 2.1. EME measurements made on trunk mounted antennas 4 2.1.1. External vehicle EME measurement ..............................................................................4 2.1.2. Internal vehicle EME measurement ...............................................................................4 2.2. EME measurements made on center roof mounted antennas 4 2.2.1. External vehicle EME measurement ..............................................................................4 2.2.2. Internal vehicle EME measurement ...............................................................................4 3. APPROVED ACCESSORIES....................................................... 5 4. TEST RESULT ........................................................................ 5 5. CONCLUSION ........................................................................ 7 6. ANTENNA LOCATION DRAWING ................................................ 8 7. PROBE CALIBRATION CERTIFICATES........................................ 9 V1.0 Page 4 of 22 FCC ID: YAMMD78XVHF 1. Measurement Uncertainty The information below presents an estimate of the possible errors that are associated with the measurement system. Description Error NARDA Survey Meter ± 3% Repeatability Accuracy ± 7% 2. Method of measurement 2.1. EME measurements made on trunk mounted antennas 2.1.1. External vehicle EME measurement (Antenna mounted in trunk center) With the survey meter and probe, take ten (10) measurements, at the standard test distance of 60 cm to the antenna, from the back of the vehicle in a vertical line and then average the results. These measurements are taken and recorded at every twenty (20) centimeters over a range starting at twenty (20) centimeters above ground and ending at 2.0 meters. 2.1.2. Internal vehicle EME measurement (Antenna mounted in trunk center) While rotating survey meter probe through 180 degrees to ensure that the highest level is found, scan the inside of the vehicle, both front and back seating areas, for the highest level in each location. After the highest level is found, scan vertically making two (2) additional measurements within an area approximately 40 cm wide (representing the width of a person) so as to have a total of three (3) measured points as indicated below that will be averaged . a) Head area b) Chest area c) Lower Trunk area 2.2. EME measurements made on center roof mounted antennas 2.2.1. External vehicle EME measurement With the survey meter and probe, take ten (10) measurements, at the standard test distance of 110 cm from the vehicle-mounted antenna, in a vertical line and then average the results. These measurements are taken and recorded at eve…

Text truncated - open the document above for the full version.

FCC PART 90 TEST REPORT FCC Part 90 Report Reference No......................: FCC ID..............................................: WE10090019 YAMMD78XVHF Compiled by ( position+printed name+signature)..: File administrators Xiankun Ding Supervised by ( position+printed name+signature)..: Test Engineer Wenliang Li Approved by ( position+printed name+signature)..: Manager Jimmy Li Date of issue.....................................: Oct 10, 2010 Testing Laboratory Name..............: Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................: Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name............................: Hytera Communications Corporation Ltd. Address ............................................: HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Test specification: Standard ...........................................: FCC Part 90: PRIVATE LAND MOBILE RADIO SERVICES TRF Originator..................................: Shenzhen Huatongwei International Inspection CO., Ltd Master TRF.......................................: Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Digital Mobile Radio Trade Mark .......................................: Manufacturer ....................................: Hytera Communications Corporation Ltd. Model/Type reference.......................: MD782 VHF/ MD785 VHF/ MD786 VHF/ MD788 VHF Listed Models ..................................: / Modulation .......................................: FM&4FSK Channel Separation........................... 12.5KHz&25KHz Rated Power ....................................: 50 Watts(46.99 dBm)/5 Watts(36.99 dBm) Operation Frequency......................... From 136 MHz to 174 MHz Ratings .............................................: DC 13.60 V Result................................................: Positive V1.0 Page 2 of 134 Report No.: WE10090019 FCC ID: YAMMD78XVHF T E S T R E P O R T Test Report No. : WE10090019 Oct 10, 2010 ______________________________________________________________________________________________ Date of issue Equipment under Test : Digital Mobile Radio Model /Type : MD782 VHF/ MD785 VHF/ MD786 VHF/ MD788 VHF Listed Models : / Applicant : Hytera Communications Corporation Ltd. Address : HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Manufacturer : Hytera Communications Corporation Ltd. Address : HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 134 Report No.: WE10090019 FCC ID: YAMMD78XVHF Contents 1. TEST STANDARDS 4 2. SUMMARY 5 2.1. General Remarks 5 2.2. Product Description 5 2.3. Equipment under Test 5 2.4. Short description of the Equipment under Test (EUT) 6 2.5. EUT Configuration 6 2.6. EUT operation mode 6 2.7. EUT configuration 6 2.8. Related Submittal(s) / Grant (s) 6 2.9. Modifications 6 2.10. Note 7 3. TEST ENVIRONMENT 8 3.1. Address of the test laboratory 8 3.2. Test Facility 8 3.3. Environmental conditions 9 3.4. Configuration of Tested System 9 3.5. Discription of Tested Modes 9 3.6. Statement of the measurement uncertainty 9 3.7. Test Description 10 3.8. Equipments Used during the Test 10 4. TEST CONDITIONS AND RESULTS 12 4.1. Conducted Emissions Test 12 4.2. Occupied Bandwidth and Emission Mask Test 19 4.3. Transmitter Radiated Spurious Emssion 35 4.4. Spurious Emssion on Antenna Port 41 4.5. Modulation Charcateristics 79 4.6. Frequency Stability Test 84 4.7. Maximum Transmitter Power 86 4.8. Transmitter Frequency Behavior 96 4.9. Receiver Radiated Spurious Emssion 100 4.10. Receiver Conducted Spurious Emssion 108 4.11. RF Exposure Evaluation 118 5. TEST SETUP PHOTOS OF THE EUT 120 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT 123 V1.0 Page 4 of 134 Report No.: WE10090019 FCC ID: YAMMD78XVHF 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 90: PRIVATE LAND MOBILE RADIO SERVICES. TIA/EIA 603: Land Mobile FM or PM Communications Equipment Measurement and Performance Standards. ANSI C63.4-2009 : American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. V1.0 Page 5 of 134 Report No.: WE10090019 FCC ID: YAMMD78XVHF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Sep 14, 2010 Testing commenced on : Sep 14, 2010 Testing concluded on : Oct 10, 2010 2.2. Product Description The Hytera Communications Corporation Ltd.’s Model: MD782 VHF/ MD785 VHF/ MD786 VHF/ MD788 VHF or the “EUT” as referred to in this report; more general information as follows, for more details, refer to the user’s manual of the EUT. Name of EUT Digital Mobile Radio Model Number MD782 VHF/ MD785 VHF/ MD786 VHF/ MD788 VHF FCC ID YAMMD78XVHF Rated Output Power 50 Watts(46.99 dBm)/5 Watts(36.99 dBm) FM for Analog Voice 4FSK for Digital Voice/Digital Data Modilation Type 4FSK for Digital Data 16K0F3E for 25KHz Channel Separation Analog 11K0F3E for 12.5KHz Channel Separation 7K60FXD for Digital Data only Emission Designator Digital 7K60FXW for Digital Data & Digital Voice Analog Voice 12.5KHz&25KHz Digital Voice/Data 12.5KHz Channel Separation Digit…

Text truncated - open the document above for the full version.

V1.0 Page 100 of 134 Report No.: WE10090019 FCC ID: YAMMD78XVHF 4.9. Receiver Radiated Spurious Emssion TEST APPLICABLE The field strength is calculated by adding the Antenna Factor and Cable Factor and subtracting the Amplifier Gain and Duty Cycle Correction Factor (if any) from the measured reading. The basic equation with a sample calculation is as follows: FS = RA + AF + CL - AG Where FS = Field Strength CL = Cable Attenuation Factor (Cable Loss) RA = Reading Amplitude AG = Amplifier Gain AF = Antenna Factor TEST CONFIGURATION (A) Radiated Emission Test Set-Up, Frequency below 1000MHz (B) Radiated Emission Test Set-Up, Frequency above 1000MHz TEST PROCEDURE 1 The EUT was placed on a turn table which is 0.8m above ground plane. 2 Maximum procedure was performed by raising the receiving antenna from 1m to 4m and rotating the turn table from 0 to 360 to acquire the highest emissions from EUT°C°C 3 And also, each emission was to be maximized by changing the polarization of receiving antenna both horizontal and vertical. 4 Repeat above procedures until all frequency measurements have been completed. 1m to 4m Test Receiver EUT 3m 0.8m Turntable Coaxial Cable Ground Plane V1.0 Page 101 of 134 Report No.: WE10090019 FCC ID: YAMMD78XVHF RECEIVER RADIATED SPOUIOUS LIMIT For unintentional device, according to § 15.109(a) and RSS-Gen, except for Class A digital devices, the field strength of radiated emissions from unintentional radiators at a distance of 3 meters shall not exceed the following values： Frequency (MHz) Distance (Meters) Radiated (dBμV/m) Radiated (μV/m) 30-88 3 40.0 100 88-216 3 43.5 150 216-960 3 46.0 200 Above 960 3 54.0 500 For intentional device, according to § 15.209(a), the general requirement of field strength of radiated emissions from intentional radiators at a distance of 3 meters shall not exceed the above table. TEST RESULTS The Radiated Measurement are performed to the three channels (the top channel, the middle channel and the bottom channel), the datum recorded below is the worst case for each channel separation;and the EUT shall be scanned from 30 MHz to the 5th harmonic of the highest oscillator frequency in the digital devices or 1 GHz whichever is higher. V1.0 Page 102 of 134 Report No.: WE10090019 FCC ID: YAMMD78XVHF Maximum Radiated Emissions Modulation Type Channel Separation Test Frequency (MHz) Polar. Frequency (MHz) Datum (dBuV/m) FCC Limit (dBuV/m) H 947.52 30.50 46 FM 25 KHz 173.9875 V 873.65 29.50 46 Test Results Compliance SWEEP TABLE: "test (30M-1G)" Short Description: Field Strength Start Stop Detector Meas. IF Transducer Frequency Frequency Time Bandw. 30.0 MHz 1.0 GHz MaxPeak Coupled 120 kHz HL562 10 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x x MES HTW1004403_red MES HTW1004403_pre LIM FCC ClassB F QP/AV FCC ClassB, field strength MEASUREMENT RESULT: "HTW1004403_red" 10/4/2010 8:06PM Frequency Level Transd Limit Margin Det. Height Azimuth Polarization MHz dBμV/m dB dBμV/m dB cm deg 30.000000 22.00 -10.1 40.0 18.0 Peak 300.0 156.00 HORIZONTAL 86.372745 10.70 -21.5 40.0 29.3 Peak 100.0 54.00 HORIZONTAL 123.306613 15.00 -18.4 43.5 28.5 Peak 300.0 198.00 HORIZONTAL 307.975952 15.90 -17.7 46.0 30.1 Peak 100.0 67.00 HORIZONTAL 545.130261 20.60 -12.9 46.0 25.4 Peak 300.0 3.00 HORIZONTAL 947.515030 30.50 -4.9 46.0 15.5 Peak 100.0 242.00 HORIZONTAL V1.0 Page 103 of 134 Report No.: WE10090019 FCC ID: YAMMD78XVHF SWEEP TABLE: "test (30M-1G)" Short Description: Field Strength Start Stop Detector Meas. IF Transducer Frequency Frequency Time Bandw. 30.0 MHz 1.0 GHz MaxPeak Coupled 120 kHz HL562 10 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] x x x x x x x MES HTW1004404_red MES HTW1004404_pre LIM FCC ClassB F QP/AV FCC ClassB, field strength MEASUREMENT RESULT: "HTW1004404_red" 10/4/2010 8:08PM Frequency Level Transd Limit Margin Det. Height Azimuth Polarization MHz dBμV/m dB dBμV/m dB cm deg 30.000000 22.40 -10.1 40.0 17.6 Peak 100.0 121.00 VERTICAL 84.428858 11.50 -22.0 40.0 28.5 Peak 100.0 …
