YAMMT680PF5TETRA MOBILE TERMINAL

Hytera Communications Corporation Limited
TETRA MOBILE TERMINAL - FCC ID YAMMT680PF5 - Hytera Communications Corporation Limited
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Aug 30, 2015
Application Purpose
Original Equipment
Date of Application
Aug 30, 2015
Equipment Note
TETRA MOBILE TERMINAL
Frequency Range
854.00000000 - 869.00000000
Company
Hytera Communications Corporation Limited
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Preface Thanks for your favor in our product. To derive optimum performance from the product, please read this manual, the corresponding TETRA Terminal Series Feature Book and the Safety Information Booklet carefully before use. This manual is applicable to the following model: MT680 Plus F5 Copyright Information Hytera is the trademark or registered trademark of Hytera Communications Co., Ltd. (the Company) in PRC and/or other countries or areas. The Company retains the ownership of its trademarks and product names. All other trademarks and/or product names that may be used in this manual are properties of their respective owners. Disclaimer The Company endeavors to achieve the accuracy and completeness of this manual, but no warranty of accuracy or reliability is given. All the specifications and designs are subject to change without notice due to continuous technology development. No part of this manual may be copied, modified, translated, or distributed in any manner without the express written permission of us. We do not guarantee, for any particular purpose, the accuracy, validity, timeliness, legitimacy or completeness of the Third Party products and contents involved in this manual. If you have any suggestions or would like to learn more details, please visit our website at: http://www.hytera.com. respecter les adhere to the following procedures: The device complies with RF field strength limits of RSS-102 requirement only. In terms of measuring and is authorized by the FCC for occupational use or controlled RF exposure environment th the FCC RF exposure limits for occupational FCC & IC Statement Antenna Installation: Install the mobile antenna at least 50 cm away from your body, in RFEnergyExposureCompliance ƽYour radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy. This radio complies wi RF energy for compliance with the FCC exposure guidelines, your radio radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. ƽ  Your radio complies with the following of RF energy exposure standards and guidelines ƽUnited States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J ƽAmerican National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 ƽInstitute of Electrical and Electronic Engineers (IEEE) C95. 1-1999 Edition ƽInternational Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 ƽTo ensure optimal performance and compliance with the occupational/controlled environment RF energy exposure limits in the above standards and guidelines, users should transmit no ƽGain of antenna must not exceed 7.0dBi. ƽ accordance with the requirements of the antenna manufacturer/supplier. Pour assurer une performance optimale et le respect du travail / contrôlée limites d'exposition à l'environnement de l'énergie RF dans les normes et les lignes directrices ci-dessus, les utilisateurs procédures suivantes: Gain de l'antenne ne doit pas dépasser 7,0 dBi. Installation de l'antenne: Installez l'antenne portable au moins 50 cm de votre corps, conformément avec les prescriptions du fabricant de l'antenne / fournisseur.  ƽ ƽ ƽ ƽ FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct. The interference by one or more of the following measures: ƽReorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. ƽConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. ƽConsult the dealer or an experienced radio/TV technician for help Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note:” Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.” This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Industry Canada licence-exempt RSS standard (s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Contents 1. Document Conventions ..................................................................................................................... 1 1.1 Instructional Conventions .........…

Text truncated - open the document above for the full version.

Attestation Statements

Hytera Communications Corporation Ltd. HYT Tower, Hi-Tech Industrial Park North, Nanshan District, Shenzhen, China. 518057 Tel: +86-0755-26972999, Fax: +86-755-86137130 Date: 2015- 8-10 FEDER AL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Frequency Range Certification of Transmitter with FCC ID: YAMMT680PF5 Dear Sir/Madam, For the FCC’s Rule Part 90 applications, this radio is used in systems by Federal and Public Safety agencies including Police, Fire, and Emergency Medical Services, etc. as indicated in the table below. Equipment programming is the responsibility of Authorized Service Personnel. Also, the radio complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Per the FCC’s KDB634817 guidance, as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. Frequ ency Range (MHz) Part 90 Federal 806-809 MHz  809-824 MHz  851-854 MHz  854-869 MHz  Please contact me if you require any additional information. Sincerely Yours, Signature: Lei Xiong General Director

Cover Letter(s)

QA-FR-171-A Hytera Communications Corporation Ltd. Add: HYT Tower, Hi-Tech Industrial Park North, Nanshan District, Shenzhen China. 518057 Tel: +86-0755-26972999 Fax: +86-0755-86137130 FCC Confidential Authorization Date: 2015-8-10 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: YAMMT680PF5 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Hytera Communications Corporation Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram--- (Long term)  Circuit Description--- (Long term)  Schematic--- (Long term)  Parts list--- (Long term)  Tune up procedure--- (Long term) The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Lei Xiong General Director

External Photos

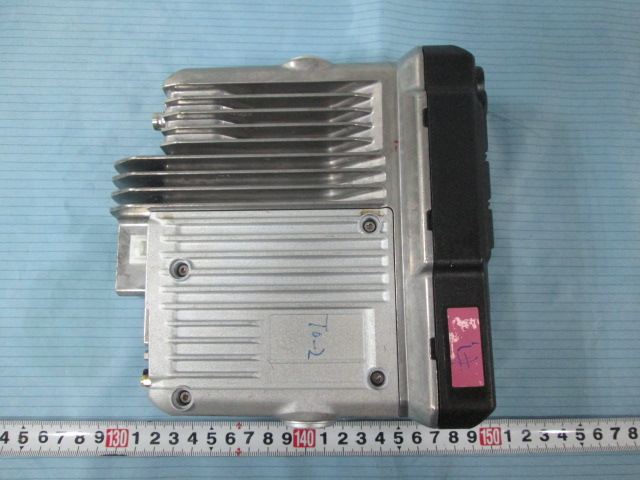

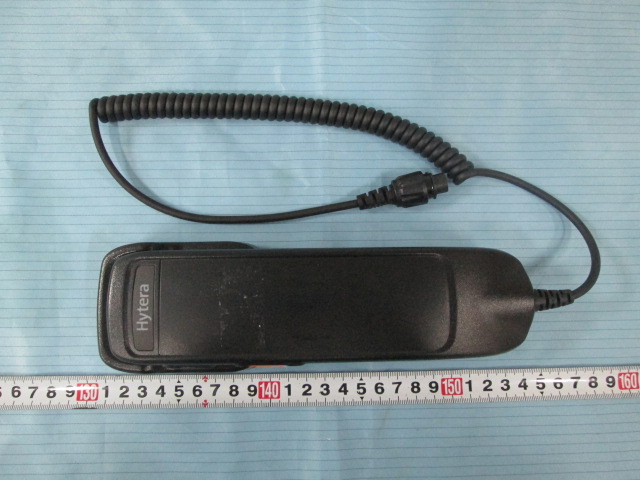

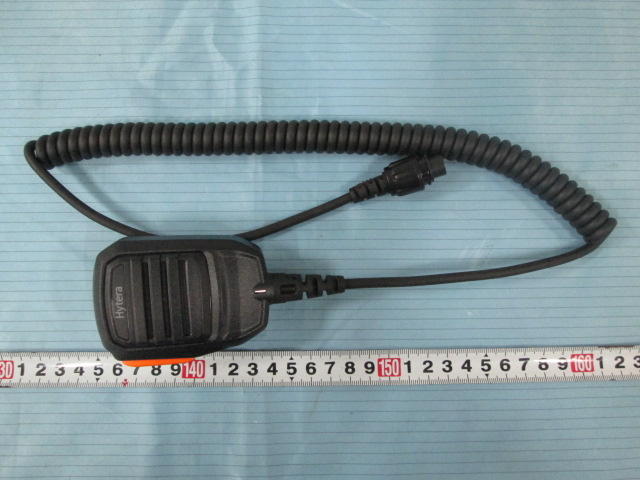

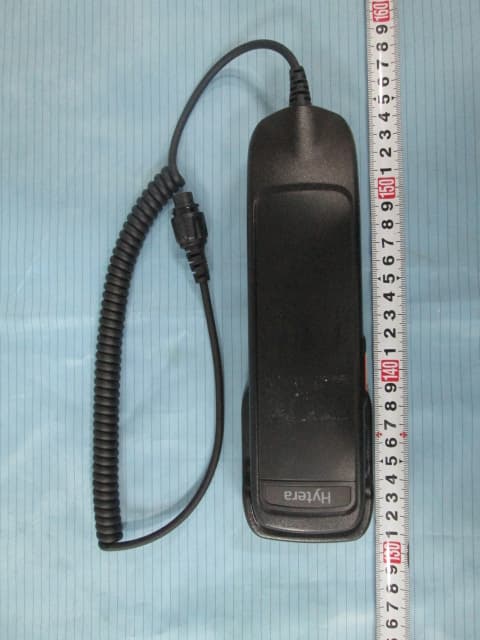

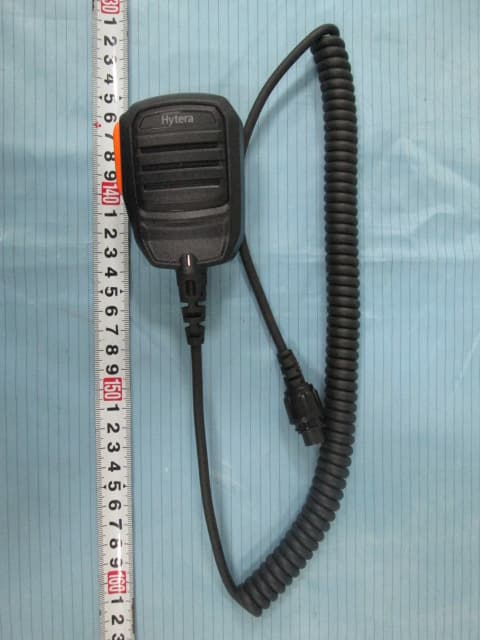

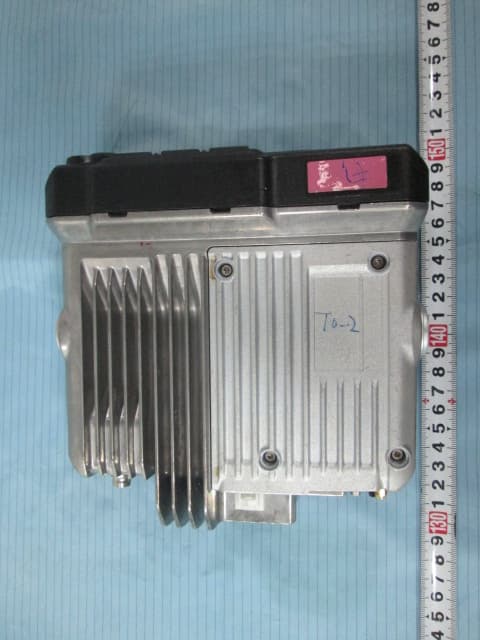

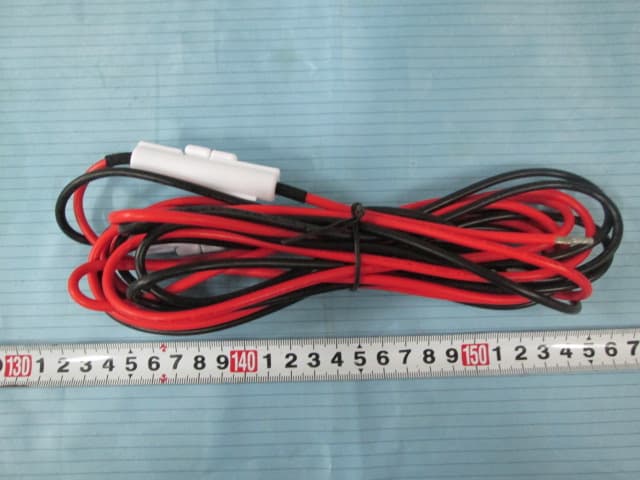

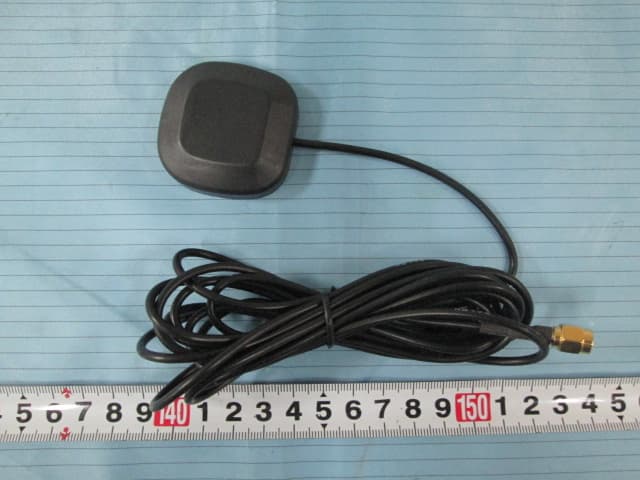

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – All View EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left Side View EUT – Right Side View EUT – Speaker Front View EUT – Speaker Top View EUT – Speaker Bottom View EUT – Speaker Left Side View EUT – Speaker Right Side View EUT – Microphone View 1 EUT – Microphone View 2 EUT – Power Cable View EUT – External Antenna View 1 EUT – External Antenna View 2 (GPS)

ID Label/Location Info

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

Internal Photos

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View 1 EUT – Cover off View 2 EUT –Cover off View 3 EUT –Cover off View 4 EUT –Cover off View 5 EUT –Cover off View 6 EUT –Cover off View 7 EUT –Cover off View 8 EUT – Main Board 1 Top View EUT – Main Board 1 Top Shielding off View EUT – Main Board 1 Bottom View EUT – Main Board 1 Bottom Shielding off View EUT – Main Board 2 Top View EUT – Main Board 2 Bottom View EUT – Main Board 2 Bottom Shielding off View EUT – Main Board 3 Top View EUT – Main Board 3 Top Shielding off View EUT – Main Board 3 Bottom View EUT – Main Board 3 Bottom Shielding off View EUT – Speaker Top View EUT – Speaker Bottom View EUT – BT Antenna View 1 BT Antenna EUT – BT Antenna View 2 EUT – GPS Antenna View GPS Antenna Port

RF Exposure Info

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ150714010-00 FCC Part 90 Page 8 of 25 FCC §1.1307 (b) (1) & §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247(i)and subpart §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (A) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f² 6 30–300 61.4 0.163 1.0 6 300–1500 / / f/300 6 1500–100,000 / / 5.0 6 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = 2 4R PG  S= power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Frequency (MHz) Antenna Gain Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi)(numeric) (dBm)(mW) 868.9875 7.0 5.01 39.939840.1150 1.57 2.90 Note: To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 50 cm from nearby persons. Result: Compliance

Test Report

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 90 TEST REPORT For Hytera Communications Corporation Ltd. HYT Tower, Hi-Tech Industrial Park North, Nanshan District, Shenzhen, China FCC ID: YAMMT680PF5 Report Type: Original Report Product Type: TETRA MOBILE TERMINAL Test En gineer: Sewen Guo Re port Number: RSZ150714010-00 Re port Date: 2015-08-03 Reviewed B y: Jimmy Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ150714010-00 FCC Part 90 Page 2 of 25 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 EXTERNAL I/O CABLE .................................................................................................................................................. 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 FCC §1.1307 (b) (1) & §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) ................................................... 8 APPLICABLE STANDARD .............................................................................................................................................. 8 FCC §2.1046 & §90.205- RF OUTPUT POWER ........................................................................................................... 9 APPLICABLE STANDARD .............................................................................................................................................. 9 TEST PROCEDURE ........................................................................................................................................................ 9 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................................... 9 TEST DATA .................................................................................................................................................................. 9 FCC §2.1046, §90.210& §90.221- ADJACENT CHANNEL POWER .................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 TEST PROCEDURE ...................................................................................................................................................... 11 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 11 TEST DATA ................................................................................................................................................................ 11 FCC §2.1049 & §90.209 – OCCUPIED BANDWIDTH ........................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 TEST PROCEDURE ...................................................................................................................................................... 14 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 14 TEST DATA ................................................................................................................................................................ 14 FCC §2.1051 & §90.210 - SPURIOUS EMISSIONS AT ANTENNA TERMINALS ............................................ 17 APPLICABLE STANDARD ............................................................................................................................................ 17 TEST PROCEDURE .............…

Text truncated - open the document above for the full version.

Test Setup Photos

EXHIBIT D - TEST SETUP PHOTOGRAPHS Transmitting Radiated Emissions View (Below 1 GHz) Transmitting Radiated Emissions View (Above 1 GHz)

Contact Information

Applicant

Ruifen Huang(Certification Engineer)
[email protected]+86-755-26972999Fax: +86-755-86139020

Test Firm

Bay Area Compliance Laboratory Corp. (Shenzhen)John Chan
[email protected]08675533320018Fax: 08675533320008

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
29854 MHz - 869 MHz10 W20K0GXW0.04 ppm
Confidentiality
Long Term
Grant Notes
The output power listed is rated conducted at antenna port. The antennas used for this transmitter must be vehicle-mounted and must be installed to provide the configurations and separation distances of 50 cm described in this filing. RF exposure compliance was evaluated using a 7.0 dBi vehicle-mount antenna. This transmitter must operate in push-to-talk mode with a duty factor not exceeding 50% and must be restricted to work related operations in an Occupational/Controlled RF exposure Environment. All qualified end-users of this device must have the knowledge to control their exposure conditions and/or duration to comply with Occupational/Controlled exposure limit and also have control of the exposure conditions of bystanders for complying with General Population/Uncontrolled exposure limit. A label, as described in this filing, must be displayed on the device to direct users to specific training information for meeting Occupational Exposure Requirements. This Certification is approved pursuant to the Tetra waiver FCC 11-63.
