YAMPD41XVHFDigital Mobile Radio

Preface Thank you for purchasing Hytera DMR Digital Portable Radio. As a product built to the DMR standard, it is endowed with ergonomic design, all-round digital functions and remarkable quality to refresh your experience and enable you to be responsive to emergent situations. To derive optimum performance from your product, please read this manual and the supplied Safety Information Booklet carefully before use. This manual is applicable to the following model: PD41X Digital Mobile Radio (X may represent 0, 2, 5, 6 or 8) Instructional Icons 1 The following icons are available through this manual: Alert Icons Caution: indicates situations that could cause damage to your product. Note: indicates tips that can help you make better use of your product. Function Icons : indicates functions that are available on digital channel only. : indicates functions that are available on analog channel only. Functions marked with no function icons are available on both analog and digital channels. Term Explanation Key Operation Short press: to press a key and release it quickly. Long press: to press a key and remain holding it down for a predefined period (2 seconds by default). Hold down: to press a key and remain holding it down. Private Call Private Cal is a call initiated by a single user to another user. Group Call Group Call is a call initiated by a single user to a group. All Call All Call is a call initiated by a single user to all the other users on a channel. Squelch This technology can remove excessive background noises, improving your communication quality. Copyright Information 2 Hytera is the trademark or registered trademark of Hytera Communications Co., LPD. (“Hytera”) in PRC and/or other countries or areas. Hytera retains the ownership of its trademarks and product names. All other trademarks and/or product names that may be used in this manual are properties of their respective owners. The Hytera product described in this manual may include Hytera computer programs stored in memory or other media. Laws in PRC and/or other countries or areas protect the exclusive rights of Hytera with respect to its computer programs. The purchase of this product shall not be deemed to grant, either directly or by implication, any rights to the purchaser with respect to Hytera computer programs. Any Hytera computer programs may not be copied, modified, distributed, decompiled, or reverse-engineered in any manner without the prior written consent of Hytera. The AMBE+2 TM voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding technology is licensed solely for use within this product. The user of this technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code or in any other way convert the Object Code into a human readable form. U.S. Patent Nos. #6,912,495 B2, #6,199,037 B1, #5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365, #5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772, #5,247,579, #5,226,084 and #5,195,166. Disclaimer Hytera endeavors to achieve the accuracy and completeness of this manual, but no warranty of accuracy or reliability is given. All the specifications and designs are subject to change without prior notice due to continuous technology development. No part of this manual may be copied, modified, translated, or distributed in any manner without the express written permission of Hytera. If you have any suggestions or would like to learn more details, please visit our website at: http://www.hytera.cn . RF Radiation Information 3 RF Radiation Profile Radio Frequency (RF) is a frequency of electromagnetic radiation in the range at which radio signals are transmitted. RF technology is widely used in communication, medicine, food processing and other fields. It may generate radiation during use. RF Radiation Safety In order to ensure user health, experts from relevant industries including science, engineering, medicine and health work with international organizations to develop standards for safe exposure to RF radiation. These standards consist of:  United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J;  American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992;  Institute of Electrical and Electronic Engineers (IEEE) C95. 1 – 1999;  International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998; FCC Regulations Federal Communication Commission (FCC) requires that all radio communication products should meet the requirements set forth in the above standards before they can be marketed in the U.S, and the manufacturer shall post a RF label on the product to inform users of operational instructions, so as to enhance their occupational health against exposure to RF energy. Operational Instructions and Training Guidelines To ensure optimal performance and compliance with the occupational/controlled environment RF energy exposure limits in the above standards and guidelines, users should transmit no more than 50% of the time and always adhere to the following procedures: RF energy will be generated only when the radio is transmitting. If you are not using a body-worn accessory and are not using the radio in the intended use position in front of the face, then ensure the antenna and the radio are kept at least 2.5 cm (one inch) from the body when transmitting. Keeping the radio at the proper distance is important because RF exposures decrease with increasing distance from the antenna. 4 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate…

Text truncated - open the document above for the full version.

Hytera Communications Corporation Ltd. HYT Tower, Hi-Tech Industrial Park North, Nanshan District, Shenzhen, China. 518057 Tel: +86-0755-26972999, Fax: +86-0755-86137130 2015-02-26 Attestation FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, Hytera Communications Corporation Ltd. hereby declare that our product: Digital Mobile Radio; FCC ID: YAMPD41XVHF is capable of supporting a voice channel and a minimum data rate of 4800 bits per second per 6.25 KHz of channel bandwidth. DMR interphone’s bandwidth is 12.5 KHz, and it has a double time slot, one is the speech time slot, one is the data time slot, just language sequence is satisfied with 4800 BPS / 6.25 KHz. The technical data supplied with this application, having been reviewed by me and taken by the Hytera accessory and EME Teams is hereby duly certified. Sincerely Yours, Signature: Lei Xiong General Director

Hytera Communications Corporation Ltd. Add: HYT Tower, Hi-Tech Industrial Park North, Nanshan District, Shenzhen China. 518057 Tel: +86-0755-26972999 Fax: +86-0755-86137130 FCC Authorization Date: 2015-02-12 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Hytera Communications Corporation Ltd., the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Lei Xiong General Director QA-FR-170-B

Hytera Communications Corporation Ltd. Add: HYT Tower, Hi-Tech Industrial Park North, Nanshan District, Shenzhen China. 518057 Tel: +86-0755-26972999 Fax: +86-0755-86137130 FCC Confidential Authorization 2015-2-12 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality request regarding application for certification of FCC ID: YAMPD41XVHF Pursuant to sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below:  Block Diagram--- (Long term)  Circuit Description--- (Long term)  Schematic--- (Long term)  Parts list--- (Long term)  Tune up procedure--- (Long term) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Signature: Lei Xiong General Director

Hytera Communications Corporation Ltd. HYT Tower, Hi-Tech Industrial Park North, Nanshan District, Shenzhen, China. 518057 Tel: +86-0755-26972999, Fax: +86-0755-86137130 2015-2- 12 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Extended Frequencies Justification Dear Sir/Madam, The Radio with FCC ID: YAMPD 41XVHF was designed t o operate in the frequency bands 136~174 MHz To aid equipment authorization in other countries which accept the United States FCC Grant for Certification, Hytera Communications Corporation Ltd. is requesting that the FCC lists the frequencies 136~174 MHz, under FCC Rule Part 90 on the FCC Grant. Hytera Communications Corporation Ltd. Attests that the radio will not be marketed to USA users with the frequency band which is not allowed by the rule part 90. Per the FCC’s KDB634817 guidance, as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. Frequency Range(MHz) FCC rule part 136-150.8 MHz For Federal 150.8-152.855 MHz FCC Part 90 152.855-154 MHz FCC Part 90 154 -156.2475 MHz FCC Part 90 157.1875 -157.45 MHz FCC Part 90 157.45-161.575 MHz FCC Part 90 161.775-161.9625 MHz FCC Part 90 162.0375-173.2 MHz FCC Part 90 173.2-173.4 MHz FCC Part 90 173.4-174 MHz For Federal Also, equipment programming is the responsibility of Authorized Service Personnel, the radio complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Sincerely Yours, Signature: Lei Xiong General Director

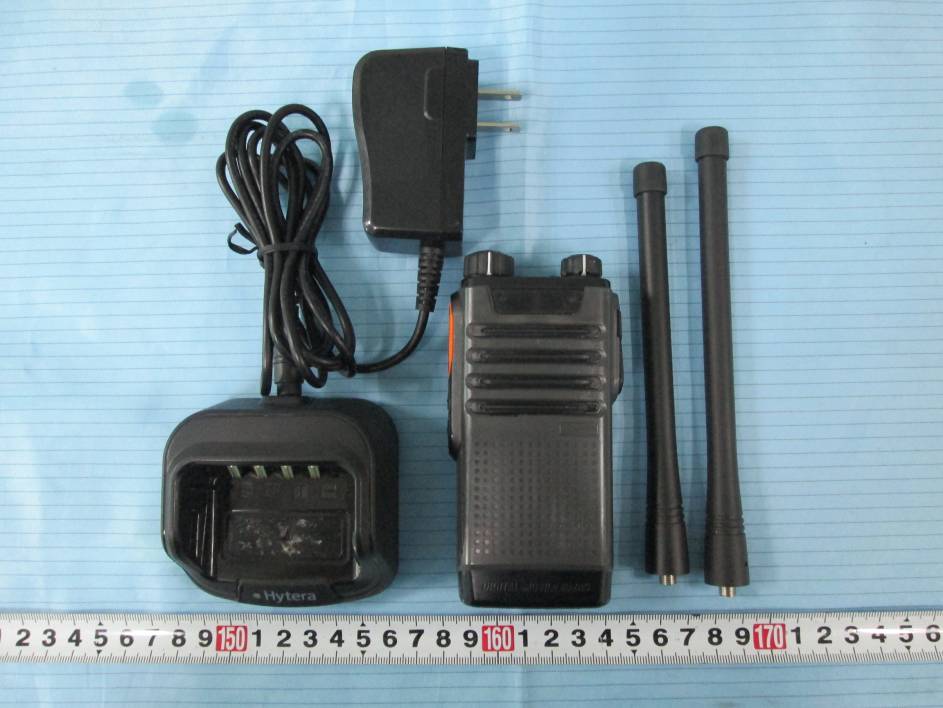

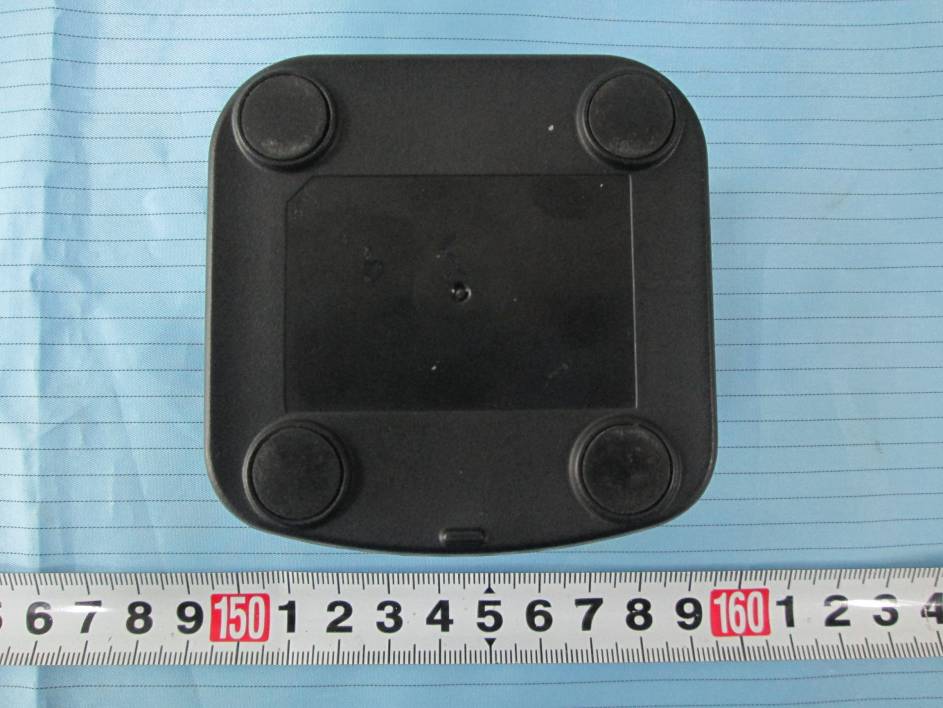

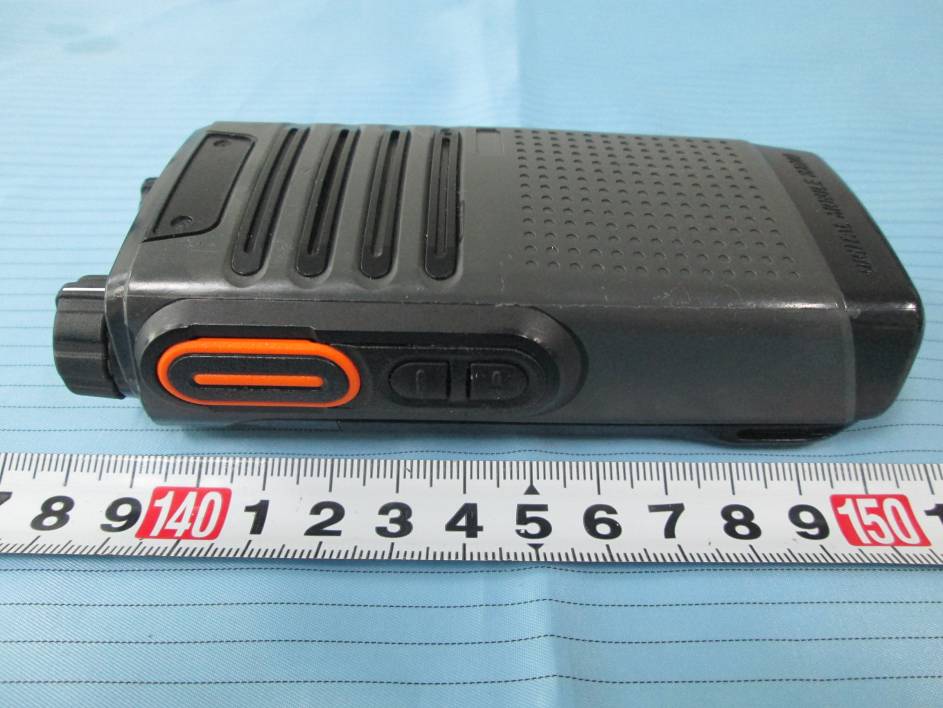

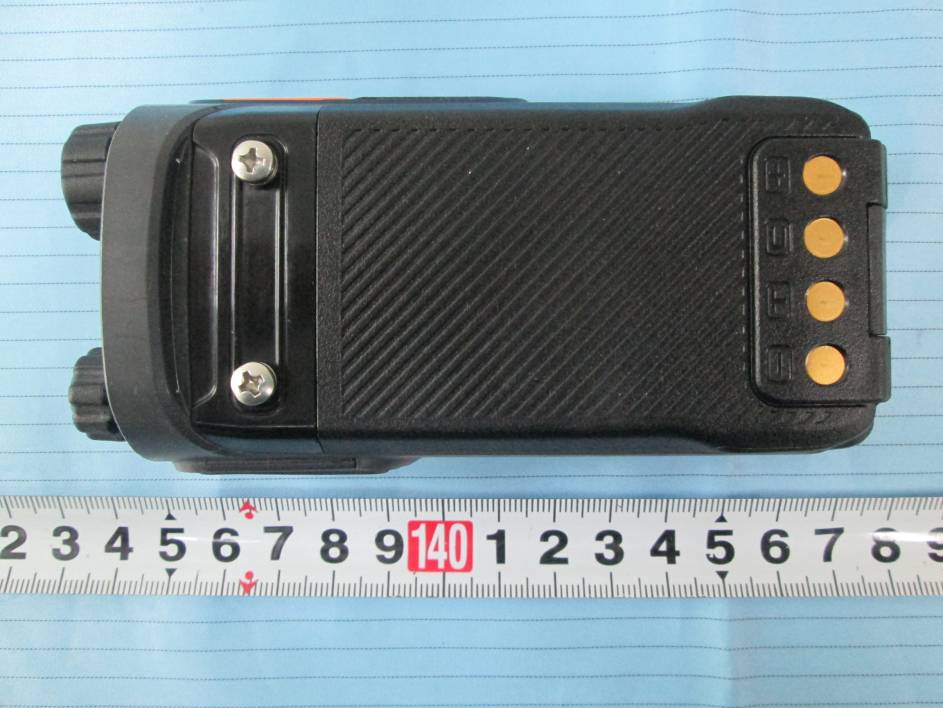

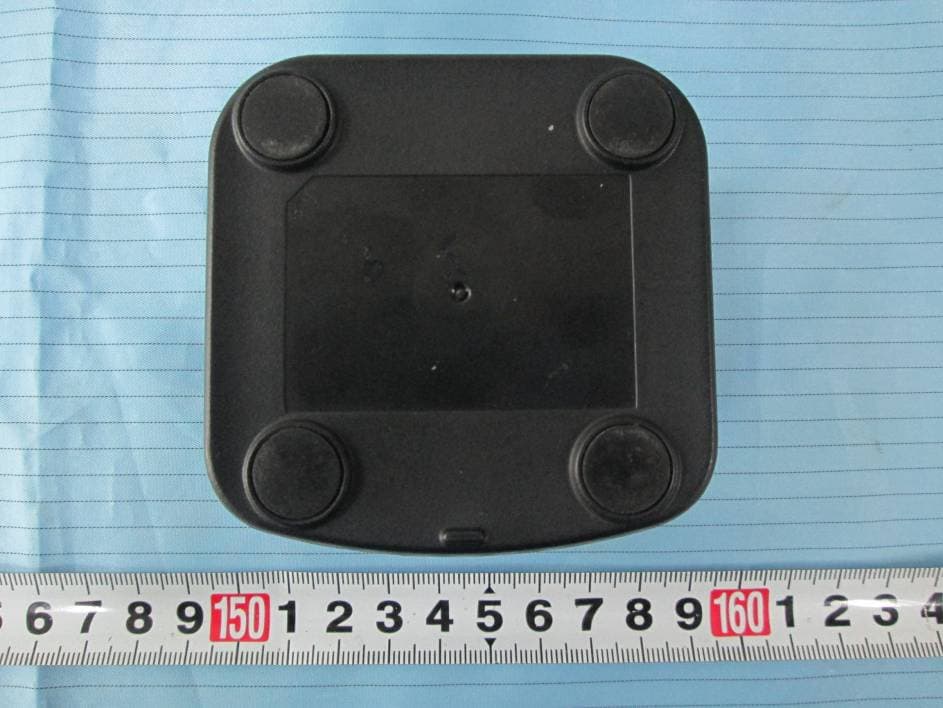

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – All View EUT – Front View EUT – Rear View EUT – Top View EUT – Top Port View EUT – Bottom View EUT – Left Side View EUT – Right Side View EUT – Right Side Port View EUT – Adapter View EUT – Adapter Label View EUT –Charger Front View EUT –Charger Rear View EUT –Charger Top View EUT –Charger Bottom View EUT –Charger Left Side View EUT –Charger Right Side View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View 1 EUT – Cover off View 2 EUT –Cover off View 3 EUT –Cover off View 4 EUT – Main Board Top View EUT – Main Board Top Shielding Off View EUT – Main Board Bottom View EUT – Main Board Bottom Shielding Off View EUT – Connect Board Top View EUT –Connect Board Bottom View EUT – Antenna 1 View 1 EUT – Antenna 1 View 2 EUT – Antenna 2 View 1 EUT – Antenna 2 View 2 EUT – Battery Top View EUT – Battery Bottom View EUT –Charger Cover off View 1 EUT –Charger Cover off View 2 EUT –Charger Main Board Top View EUT –Charger Main Board Bottom View

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. SAR EVALUATION REPORT For Hytera Communications Co., Ltd. HYT Tower, Hi-Tech Industrial Park North, Nanshan District, Shenzhen, China FCC ID: YAMPD41XVHF Report Type: Original report Product Type: Digital Mobile Radio Test Engineer: Wilson Chen Report Number: RSZ150120006-20 Report Date: 2015-02-16 Reviewed By: Bell Hu SAR En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: RSZ150120006-20 SAR Evaluation Report 2 of 62 Attestation of Test Results EUT Information Company Name Hytera Communications Co.,Ltd. EUT Description Digital Mobile Radio FCC ID YAMPD41XVHF Model Number Main Model: PD410 VHF; Adding Model: PD412 VHF, PD415 VHF , PD416 VHF, PD418 VHF Test Date 2015-02-07 Frequency (MHz) Modulation Max. SAR Level(s) Reported (1g) Limit (W/Kg) 136-174 Digital 12.5kHz Face up: 0.439 W/kg Body-Back: 0.854 W/kg 8.0 Analog 12.5kHz Face up: 0.489 W/kg (corrected by Multiplying 50%.) Body-Back: 0.803 W/kg (corrected by Multiplying 50%.) Applicable Standards ANSI / IEEE C95.1: 2005 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fileds,3 kHz to 300 GHz. ANSI / IEEE C95.3: 2002 IEEE Recommended Practice for Measurements and Computations of Radio Frequency Electromagnetic Fields With Respect to Human Exposure to SuchFields,100 kHz—300 GHz. IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques KDB procedures KDB 447498 D01 v05r02: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. KDB 865664 D01v01r03: SAR measurement 100 MHz to 6 GHz . KDB 643646D01 v01r01: SAR test Reduction Considerations for Occupational PTT Radios. KDB Inquiry: Tracking Number 316436 for SAR VHF system validation. Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate SAR For Occupational /Controlled Exposure Environment limits specified in ANSI/IEEE Standards and have been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: RSZ150120006-20 SAR Evaluation Report 3 of 62 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 EUT DESCRIPTION .................................................................................................................................................... 5 TECHNICAL SPECIFICATION ......................................................................................................................................... 5 REFERENCE, STANDARDS, AND GUILDELINES ............................................................................................... 6 SAR LIMITS ................................................................................................................................................................. 7 FACILITIES .................................................................................................................................................................. 8 DESCRIPTION OF TEST SYSTEM .......................................................................................................................... 9 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 16 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 16 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 17 LIQUID VERIFICATION ............................................................................................................................................... 17 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 19 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 20 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 24 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................ 24 CHEEK/TOUCH POSITION ........................................................................................................................................... 25 EAR/TILT POSITION ................................................................................................................................................... 25 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS .............................................................................. 26 SAR EVALUATION PROCEDURE ................................................................................................................................. 27 TEST METHODOLOGY ................................................................................................................................................. 27 CONDUCTED OUTPUT POWER MEASUREMENT ......................................…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 90 TEST REPORT For Hytera Communications Co., Ltd. HYT Tower, Hi-Tech Industrial Park North, Nanshan District, Shenzhen, China FCC ID: YAMPD41XVHF Report Type: Original Report Product Type: Digital Mobile Radio Test En gineer: Candy Li Re port Number: RSZ150120006-00A Re port Date: 2015-02-09 Reviewed B y: Jimmy Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ150120006-00A FCC PART 90 Page 2 of 34 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 MEASUREMENT UNCERTAINTY ........................................................................................................................... 8 FCC §1.1307(b) & §2.1093 - RF EXPOSURE ............................................................................................................. 9 APPLICABLE STANDARD .............................................................................................................................................. 9 FCC §2.1046 & §90.205 - RF Output Power ............................................................................................................. 10 APPLICABLE STANDARD ............................................................................................................................................ 10 TEST PROCEDURE ...................................................................................................................................................... 10 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 10 TEST DATA ................................................................................................................................................................ 10 FCC §2.1047 §90.207 - MODULATION CHARACTERISTIC .............................................................................. 12 APPLICABLE STANDARD ............................................................................................................................................ 12 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 TEST DATA ................................................................................................................................................................ 12 FCC §2.1049 & §90.209 & §90.210 – OCCUPIED BANDWIDTH & EMISSION MASK ................................... 17 APPLICABLE STANDARD ............................................................................................................................................ 17 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 17 TEST PROCEDURE ...................................................................................................................................................... 17 TEST DATA ................................................................................................................................................................ 18 FCC §2.1051 & §90.210 - SPURIOUS EMISSIONS AT ANTENNA TERMINALS ............................................ 23 APPLICABLE STANDARD ............................................................................................................................................ 23 TEST EQUIPMENT LIST AND DETAILS .................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Transmitting Radiated Emissions View (Below 1 GHz) Transmitting Radiated Emissions View (Above 1 GHz)
