YAMPD70XGU5HDigital Portable Radio

Preface Thank you for purchasing Hytera DMR Digital Portable Radio. As a product built to the DMR standard, it is endowed with ergonomic design, all-round digital functions and remarkable quality to refresh your experience and enable you to be responsive to emergent situations. To derive optimum performance from your product, please read this manual and the supplied Safety Information Booklet carefully before use. This manual is applicable to the following model: PD70X PD70XG Instructional Icons The following icons are available through this manual: Alert Icons Caution: indicates situations that could cause damage to your product. Note: indicates tips that can help you make better use of your product. Function Icons : indicates functions that are available on digital channel only. : indicates functions that are available on analog channel only. Functions marked with no function icons are available on both analog and digital channels. Term Explanation Key Operation Short press: to press a key and release it quickly. Long press: to press a key and remain holding it down for a predefined period (2 seconds by default). Hold down: to press a key and remain holding it down. Private Call Private Cal is a call initiated by a single user to another user. Group Call Group Call is a call initiated by a single user to a group. All Call All Call is a call initiated by a single user to all the other users on a channel. Squelch This technology can remove excessive background noises, improving your communication quality. 1 This radio is not intended for use by general population in an uncontrolled environment. It is only for occupational use and only applied to work-related conditions. The radio must be only used by users, who are fully aware of the hazards of the exposure and who are able to exercise control over their RF exposure to qualify for the higher exposure limits. 2 Copyright Information Hytera and HYT are trademarks or registered trademarks of Hytera Communications Co., Ltd. (“Hytera”) in PRC and/or other countries or areas. Hytera retains the ownership of its trademarks and product names. All other trademarks and/or product names that may be used in this manual are properties of their respective owners. The Hytera product described in this manual may include Hytera computer programs stored in memory or other media. Laws in PRC and/or other countries or areas protect the exclusive rights of Hytera with respect to its computer programs. The purchase of this product shall not be deemed to grant, either directly or by implication, any rights to the purchaser with respect to Hytera computer programs. Any Hytera computer programs may not be copied, modified, distributed, decompiled, or reverse-engineered in any manner without the prior written consent of Hytera. The AMBE+2 TM voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding technology is licensed solely for use within this product. The user of this technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code or in any other way convert the Object Code into a human readable form. U.S. Patent Nos. #6,912,495 B2, #6,199,037 B1, #5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365, #5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772, #5,247,579, #5,226,084 and #5,195,166. Disclaimer Hytera endeavors to achieve the accuracy and completeness of this manual, but no warranty of accuracy or reliability is given. All the specifications and designs are subject to change without prior notice due to continuous technology development. No part of this manual may be copied, modified, translated, or distributed in any manner without the express written permission of Hytera. If you have any suggestions or would like to learn more details, please visit our website at: http://www.hytera.cn. RF Energy Exposure Compliance ● Your radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE and ICNIRP exposure limits for occupational/controlled RF exposure environment at operating duty factors of up to 50% transmitting and is authorized by the FCC for occupational use only. In terms of measuring RF energy for compliance with the FCC exposure guidelines, your radio radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. ● The device complies with SAR and/or RF field strength limits of RSS-102 requirement。 Your radio complies with the following of RF energy exposure standards and guidelines ● United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J ● American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 ● Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1999 Edition ● International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998  Operational Instructions and Training Guidelines ● To ensure optimal performance and compliance with the occupational/controlled environment RF energy exposure limits in the above standards and guidelines, users should transmit no more than 50% of the time and always adhere to the following procedures; and should transmit no more than 50% of the time, although the hardware support transmission up to 100% of the time in analog mode and up to 50% in digital mode. The radio may use Chest Pack(LCBN13) as optional assessory, The chest Pack provide an extra protection to the operator under RF exposure due to special measures taken during design and manufacturing process. Chest Packis designed to allow the radio only stick to it with belt-clip.the belt-clip will provide nec…

Text truncated - open the document above for the full version.

Hytera Communications Corporation Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Hytera Communications Corporation Ltd. would like the following documents regarding this submission for FCC ID: YAMPD70XGU5H to be kept confidential. 1. Block Diagram 2. Schematic 3. Theory of Operation 4. Part List 5. Turn-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely yours, Hytera Communications Corporation Ltd. Xiong Lei/ Director of management dept Fax: +86 755 8613 7130 Tel: +86 755 2697 2999 E-mail:[email protected]

Declaration To Whom It May Concern, We, Hytera Communication Corporation Ltd., hereby declare that the hardware of our (Digital Portable Radio) Model Number PD702G U5 (FCC ID: YAMPD70XGU5H) is exactly the same as our (Digital Portable Radio) Model Number PD782G U5 (FCC ID: YAMPD78XGU5H), except for deleting the keyboard and display screen, also change the front cover of the product. Please contact me if you have any question. Sincerely yours, Hytera Communications Corporation Ltd. Xiong Lei/ Director of management dept Fax: +86 755 8613 7130 Tel: +86 755 2697 2999 E-mail:[email protected]

Hytera Communications Corporation Ltd. Frequency Attestation Letter DATE: Apr 17, 2013 FCC ID: YAMPD70XGU5H Model: PD702G U5, PD705G U5, PD706G U5, PD708G U5, HD705G U5 Dear Sir/Madam, We, Hytera Communications Corporation Ltd. acknowledge that this device can only use the allowed frequency bands as follows: 806MHz-824MHz 851MHz-869MHz 896MHz-901MHz 935MHz-940MHz Sincerely yours, Hytera Communications Corporation Ltd. Xiong Lei/ Director of management dept Fax: +86 755 8613 7130 Tel: +86 755 2697 2999 E-mail:[email protected]

Justification Letter DATE: Apr 17, 2013 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Colombia, Maryland 21046 FCC ID: YAMPD70XGU5H Model: PD702G U5, PD705G U5, PD706G U5, PD708G U5, HD705G U5 Dear Sir/Madam, We , Hytera Communications Corporation Ltd. acknowledge that this device will not be marketed to USA users with the frequency band which is not allowed by rule part 90.and it is a violation of FCC rules if this device is operated on unauthorised frequencies inside the U.S.A. We , Hytera Communications Corporation Ltd. acknowledge this equipment meets the requirements of FCC Rules, Parts 90.203 (e) and (g) as applicable. Programming of this product's transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personnel. The operator cannot program transmit frequencies using the equipment's external operation. Sincerely yours, Hytera Communications Corporation Ltd. Xiong Lei/ Director of management dept Fax: +86 755 8613 7130 Tel: +86 755 2697 2999 E-mail:[email protected]

Product Similarity Declaration To Whom It May Concern, We, Hytera Communication Corporation Ltd., hereby declare that our (Digital Portable Radio) Model Number: PD705G U5, PD706G U5, PD708G U5 and HD705G U5 are electrically identical with the Model PD702G U5. PD705G U5, PD706G U5, PD708G U5, HD705G U5 are named differently due to marketing purposes Please contact me if you have any question. Sincerely yours, Hytera Communications Corporation Ltd. Xiong Lei/ Director of management dept Fax: +86 755 8613 7130 Tel: +86 755 2697 2999 E-mail:[email protected] .

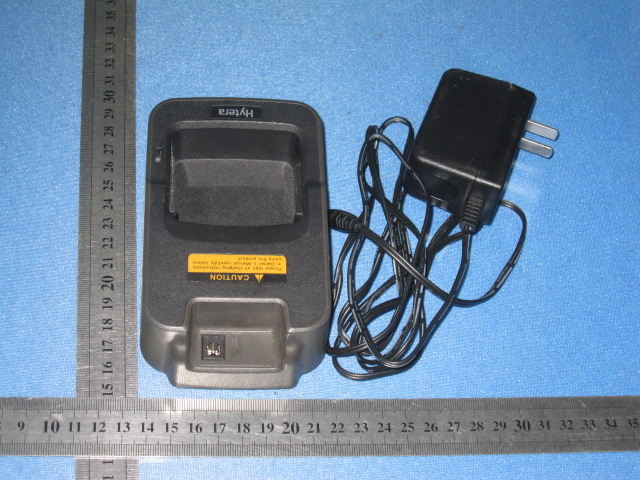

External photos of the EUT

Label FCC RF Warning Label

Internal photos of the EUT

TEST REPORT OET 65C and RSS 102 Report Reference No. ..................... : FCC ID. ............................................. : IC. ..................................................... : TRE13030161 R/C: 51819 YAMPD70XGU5H 8913A-PD702GU5H Compiled by ( position+printed name+signature) .. : File administrators Tim Zhang Supervised by ( position+printed name+signature) .. : Test Engineer Eric Zhang Approved by ( position+printed name+signature) .. : Manager Wenliang Li Date of issue ..................................... : Apr 26, 2013 Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd Address............................................. : Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name ............................ : Hytera Communications Corporation Ltd. Address............................................. : HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Test specification: Standard ........................................... : RSS 102 OET 65C TRF Originator .................................. : Shenzhen Huatongwei International Inspection CO., Ltd Master TRF ....................................... : Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Digital Portable Radio Trade Mark ....................................... : Manufacturer .................................... : Hytera Communications Corporation Ltd. Model/Type reference ....................... : PD702G U5/ PD705G U5/ PD706G U5/ PD708G U5/ HD705G U5 Listed Models .................................. : / Ratings.............................................. : DC 7.4 V Modulation ....................................... : FM&4FSK Channel Separation ........................... 12.5KHz&25KHz Operation Frequency Range ............. 806-825MHz/851-870MHz/896-902MHz/935-941MHz Result ................................................ : Positive Report No.: TRE13030161 Page 2 of 86 Issued:2013-04-26 T E S T R E P O R T Test Report No. : TRE13030161 Apr 26, 2013 ______________________________________________________________________________________________ Date of issue Equipment under Test : Digital Portable Radio Model /Type : PD702G U5/ PD705G U5/ PD706G U5/ PD708G U5/ HD705G U5 Listed Models : / Applicant : Hytera Communications Corporation Ltd. Address : HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Manufacturer : Hytera Communications Corporation Ltd. Address : HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE13030161 Page 3 of 86 Issued:2013-04-26 Contents 1. TEST STANDARDS 4 2. SUMMARY 5 2.1. General Remarks 5 2.2. Product Description 5 2.3. Equipment under Test 5 2.4. Short description of the Equipment under Test (EUT) 6 2.5. TEST Configuration 6 2.6. EUT operation mode 6 2.7. EUT configuration 6 2.8. Note 7 3. TEST ENVIRONMENT 8 3.1. Address of the test laboratory 8 3.2. Test Facility 8 3.3. Environmental conditions 8 3.4. SAR Limits 8 3.5. Equipments Used during the Test 9 4. SAR MEASUREMENTS SYSTEM CONFIGURATION 10 4.1. SAR Measurement Set-up 10 4.2. DASY5 E-field Probe System 11 4.3. Phantoms 12 4.4. Device Holder 12 4.5. Scanning Procedure 13 4.6. Data Storage and Evaluation 14 4.7. Tissue Dielectric Parameters for Head and Body Phantoms 15 4.8. Tissue equivalent liquid properties 16 4.9. System Check 16 4.10. System Check Results 17 5. TEST CONDITIONS AND RESULTS 18 5.1. Conducted Power Results 18 5.2. SAR Measurement Results 18 5.3. Measurement Uncertainty 22 5.4. System Check Results 24 5.5. SAR Test Graph Results 26 6. CALIBRATION CERTIFICATE 49 6.1. Probe Calibration Ceriticate 49 6.2. D835V2 Dipole Calibration Ceriticate 60 6.3. DAE4 Calibration Ceriticate 68 7. TEST SETUP PHOTOS 73 8. EUT PHOTOS 77 Report No.: TRE13030161 Page 4 of 86 Issued:2013-04-26 1. TEST STANDARDS The tests were performed according to following standards: IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 KHz to 300 GHz. IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438 June 19, 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions. KDB 447498 D01 Mobile Portable RF Exposure v04: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies RSS-102 2010: Radio Frequency (RF) Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) Report No.: TRE13030161 Page 5 of 86 Issued:2013-04-26 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Apr 10, 2013 Testing commenced on : Apr 10, 2013 Testing concluded on : Apr 26, 2013 2.2. Product Description The Hytera Communications Corporation Ltd.’s Model: PD702G U5/ PD705G U5/ PD706G U5/ PD708G U5/ HD705G U5 or the “EUT” as referred …

Text truncated - open the document above for the full version.

Report No.: TRE13030161 Page 61 of 86 Issued:2013-04-26 Report No.: TRE13030161 Page 62 of 86 Issued:2013-04-26 Report No.: TRE13030161 Page 63 of 86 Issued:2013-04-26 Report No.: TRE13030161 Page 64 of 86 Issued:2013-04-26 Report No.: TRE13030161 Page 65 of 86 Issued:2013-04-26 Report No.: TRE13030161 Page 66 of 86 Issued:2013-04-26 Report No.: TRE13030161 Page 67 of 86 Issued:2013-04-26 Report No.: TRE13030161 Page 68 of 86 Issued:2013-04-26 6.3. DAE4 Calibration Ceriticate Report No.: TRE13030161 Page 69 of 86 Issued:2013-04-26 Report No.: TRE13030161 Page 70 of 86 Issued:2013-04-26 Report No.: TRE13030161 Page 71 of 86 Issued:2013-04-26 Report No.: TRE13030161 Page 72 of 86 Issued:2013-04-26 Report No.: TRE13030161 Page 73 of 86 Issued:2013-04-26 7. Test Setup Photos Report No.: TRE13030161 Page 74 of 86 Issued:2013-04-26 Face-held with Thicker Battery, the front of the EUT towards phantom Face-held with Thinner Battery, the front of the EUT towards phantom 2.5CM 2.5CM Report No.: TRE13030161 Page 75 of 86 Issued:2013-04-26 Body-worn with Thinner Battery,Belt, the front of the EUT towards ground Body-worn with Thicker Battery,Belt, the front of the EUT towards ground Report No.: TRE13030161 Page 76 of 86 Issued:2013-04-26 Body-worn with Thinner Battery,Pocket, the front of the EUT towards ground Report No.: TRE13030161 Page 77 of 86 Issued:2013-04-26 8. EUT Photos Battery Thicker:BL2503 Report No.: TRE13030161 Page 78 of 86 Issued:2013-04-26 Battery Thinner:BL2006 Belt:BC19 Report No.: TRE13030161 Page 79 of 86 Issued:2013-04-26 Pocket:LCY003 Report No.: TRE13030161 Page 80 of 86 Issued:2013-04-26 Earphone 1: ESS07 Earphone 2: ESS08 Report No.: TRE13030161 Page 81 of 86 Issued:2013-04-26 Earphone 3: EH-02 Earphone 4: EH-01 Report No.: TRE13030161 Page 82 of 86 Issued:2013-04-26 Earphone 5: ES-02 Earphone 6: ES-01 Report No.: TRE13030161 Page 83 of 86 Issued:2013-04-26 Accessory 1: SM18N2 Audio Accessory 2: ACN-01 Report No.: TRE13030161 Page 84 of 86 Issued:2013-04-26 Audio Accessory 3: EAN16 Audio Accessory 4: EAN18 Report No.: TRE13030161 Page 85 of 86 Issued:2013-04-26 Audio Accessory 5: ESN10 Audio Accessory 6: EHN12 Report No.: TRE13030161 Page 86 of 86 Issued:2013-04-26 Audio Accessory 7:EWN09 LCBN13 .....................End of Report.........................

FCC PART 90 & RSS-119 TEST REPORT FCC Part 90 and RSS-119 Report Reference No. ..................... : FCC ID. ............................................. : IC. ..................................................... : TRE13030163 R/C:95605 YAMPD70XGU5H 8913A-PD702GU5H Compiled by ( position+printed name+signature) .. : File administrators Tim Zhang Supervised by ( position+printed name+signature) .. : Test Engineer Eric Zhang Approved by ( position+printed name+signature) .. : Manager Wenliang Li Date of issue ..................................... : Apr 24, 2013 Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd Address............................................. : Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name ............................ : Hytera Communications Corporation Ltd. Address............................................. : HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Test specification: Standard ........................................... : FCC Part 90/FCC Part 2/ FCC Part 15B RSS-119/RSS-Gen TRF Originator .................................. : Shenzhen Huatongwei International Inspection CO., Ltd Master TRF ....................................... : Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Digital Portable Radio Trade Mark ....................................... : Manufacturer .................................... : Hytera Communications Corporation Ltd. Model/Type reference ....................... : PD702G U5/ PD705G U5/ PD706G U5/ PD708G U5/ HD705G U5 Listed Models .................................. : / Ratings.............................................. : DC 7.4 V Modulation ....................................... : FM&4FSK Channel Separation ........................... 25KHz&12.5KHz Rated Power ..................................... 3 Watts(34.77dBm)/1 Watts(30.00dBm) Operation Frequency Range ............. 806-825MHz/851-870MHz/896-902MHz/935-941MHz Result ................................................ : Positive Report No.: TRE13030163 Page 2 of 227 Issued:2013-04-24 FCC ID: YAMPD70XGU5H IC: 8913A-PD702GU5H T E S T R E P O R T Test Report No. : TRE13030163 Apr 24, 2013 ______________________________________________________________________________________________ Date of issue Equipment under Test : Digital Portable Radio Model /Type : PD702G U5/ PD705G U5/ PD706G U5/ PD708G U5/ HD705G U5 Listed Models : / Applicant : Hytera Communications Corporation Ltd. Address : HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Manufacturer : Hytera Communications Corporation Ltd. Address : HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE13030163 Page 3 of 227 Issued:2013-04-24 FCC ID: YAMPD70XGU5H IC: 8913A-PD702GU5H Contents 1. TEST STANDARDS 4 2. SUMMARY 5 2.1. General Remarks 5 2.2. Product Description 5 2.3. Equipment under Test 5 2.4. Short description of the Equipment under Test (EUT) 6 2.5. EUT Configuration 6 2.6. EUT operation mode 6 2.7. EUT configuration 6 2.8. Related Submittal(s) / Grant (s) 7 2.9. Modifications 7 2.10. Note 7 3. TEST ENVIRONMENT 8 3.1. Address of the test laboratory 8 3.2. Test Facility 8 3.3. Environmental conditions 9 3.4. Configuration of Tested System 9 3.5. Discription of Tested Modes 9 3.6. Statement of the measurement uncertainty 9 3.7. Test Description 10 3.8. Equipments Used during the Test 10 4. TEST CONDITIONS AND RESULTS 12 4.1. Conducted Emissions Test 12 4.2. Occupied Bandwidth and Emission Mask Test 19 4.3. Transmitter Radiated Spurious Emssion 73 4.4. Spurious Emssion on Antenna Port 85 4.5. Modulation Charcateristics 140 4.6. Frequency Stability Test 145 4.7. Maximum Transmitter Power 151 4.8. Receiver Radiated Spurious Emssion 178 4.9. Receiver Conducted Spurious Emssion 196 5. TEST SETUP PHOTOS OF THE EUT 210 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT 216 Report No.: TRE13030163 Page 4 of 227 Issued:2013-04-24 FCC ID: YAMPD70XGU5H IC: 8913A-PD702GU5H 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 90: PRIVATE LAND MOBILE RADIO SERVICES. TIA/EIA 603 D: Land Mobile FM or PM Communications Equipment Measurement and Performance Standards. 47 CFR FCC Part 15 Subpart B - Unintentional Radiators FCC Part 2: FREQUENCY ALLOCA-TIONS AND RADIO TREATY MAT-TERS; GENERAL RULES AND REG-ULATIONS RSS-119 Issue 11 June 2011: Radio Transmitters and Receivers Operating in the Land Mobile and Fixed Services in the Frequency Range 27.41-960 MHz RSS-Gen Issue 3 December 2010: General Requirements and Information for the Certification of Radio Apparatus Report No.: TRE13030163 Page 5 of 227 Issued:2013-04-24 FCC ID: YAMPD70XGU5H IC: 8913A-PD702GU5H 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Apr 01, 2013 Testing commenced on : Apr 01, 2013 Testing concluded on : Apr 24, 2013 2.2. Product Description The Hytera Communications Corporation Ltd.’s Model: PD702G U5/ PD705G U5/ PD706G U5/ PD708G U5/ HD705G U5 or the “EUT” as referred to in this report; more general information as follows, for more details, refer to the user’s manual of the EUT. Name of EUT Digital Portable Radi…

Text truncated - open the document above for the full version.

Report No.: TRE13030163 Page 141 of 227 Issued:2013-04-24 FCC ID: YAMPD70XGU5H IC: 8913A-PD702GU5H Modulation Limit for 25KHz 0 1 2 3 4 5 6 -20-15-10-505101520 Modulation Level (dB) Peak Deviation (KHz) 300Hz 1004Hz 1500Hz 2500Hz Limit 12.5 KHz Channel Separation Modulation Level(dB) Peak Freq. Deviation At 300 Hz(KHz) Peak Freq. Deviation At 1004 H(KHz) Peak Freq. Deviation At 1500 Hz(KHz) Peak Freq. Deviation At 2500 Hz(KHz) -20 0.06 0.16 0.21 0.36 -15 0.18 0.25 0.51 0.53 -10 0.18 0.44 1.25 1.02 -5 0.23 0.85 1.76 2.01 0 0.45 1.52 2.05 2.04 +5 0.48 1.55 2.28 2.05 +10 0.45 1.58 2.24 2.06 +15 0.57 2.25 2.21 2.08 +20 1.05 2.24 2.22 2.09 Modulation Limit for 12.5 KHz 0 0.5 1 1.5 2 2.5 3 -20-15-10-505101520 Modulation Level (dB) Peak Deviation (KHz) 300Hz 1004Hz 1500Hz 2500Hz Limit Report No.: TRE13030163 Page 142 of 227 Issued:2013-04-24 FCC ID: YAMPD70XGU5H IC: 8913A-PD702GU5H Modulation type: 4FSK Channel bandwidth: 12.5 kHz It is not applicable for devices which operate with the digitized voice/data modulation type. b). Audio Frequency Response: Rule Part No.: Part 2.1407(a) (b) Method of Measurement: The audio frequency response was measured in accordance with TIA/EIA Specification 603 with no exception. A curve or equivalent data showing the frequency response of the audio modulating circuit over a range of 300-3000Hz shall be submitted and Audio Post Limiter Low Pass Filter Response from 3.0 KHz to 50KHz.However, the audio frequency response should test from 100Hz to 5.0 KHz according to FCC Part 90. Modulation Type: FM The audio frequency response curve is show below.and Test Audio Level (1 KHz and 20% maximum deviation) for 25 KHz channel separation is 2.28mv and 2.28mv for 12.5 KHz channel separation. Note: 1 Not applicable to new standard. However, tests are conducted under FCC’s recommendation. 2 The Audio Frequency Response is identical for 12.5 KHz and 25 KHz channel separation For 25 KHz Frequency (KHz ) Frequency Deviation (KHz) 1KHz Reference Deviation (KHz) Audio Frequency Response (dB) 0.1 0.06 1.07 -25.02 0.2 0.07 1.07 -23.69 0.3 0.30 1.07 -11.05 0.4 0.38 1.07 -8.99 0.5 0.50 1.07 -6.61 0.6 0.63 1.07 -4.60 0.7 0.75 1.07 -3.09 0.8 0.88 1.07 -1.70 0.9 0.97 1.07 -0.85 1.0 1.07 1.07 0.00 1.2 1.27 1.07 1.49 1.4 1.54 1.07 3.16 1.6 1.76 1.07 4.32 1.8 2.00 1.07 5.43 2.0 2.25 1.07 6.46 2.2 2.45 1.07 7.20 2.4 2.73 1.07 8.14 2.6 2.79 1.07 8.32 2.7 2.98 1.07 8.90 2.8 3.09 1.07 9.21 3.0 3.32 1.07 9.84 3.5 0.06 1.07 -25.02 4.0 0.06 1.07 -25.02 4.5 0.05 1.07 -26.61 5.0 0.05 1.07 -26.61 Report No.: TRE13030163 Page 143 of 227 Issued:2013-04-24 FCC ID: YAMPD70XGU5H IC: 8913A-PD702GU5H Audio Frequency Response for 25KHz -30 -25 -20 -15 -10 -5 0 5 10 15 0.1110 KHz d B Test Daatum 6dB/Oct+1 6dB/Oct+3 For 12.5 KHz Frequency (KHz ) Frequency Deviation (KHz) 1KHz Refenerce Deviation (KHz) Audio Frequency Response (dB) 0.1 0.04 0.58 -23.23 0.2 0.03 0.58 -25.73 0.3 0.14 0.58 -12.35 0.4 0.21 0.58 -8.82 0.5 0.27 0.58 -6.64 0.6 0.37 0.58 -3.90 0.7 0.38 0.58 -3.67 0.8 0.44 0.58 -2.40 0.9 0.49 0.58 -1.46 1.0 0.58 0.58 0.00 1.2 0.67 0.58 1.25 1.4 0.84 0.58 3.22 1.6 0.90 0.58 3.82 1.8 1.02 0.58 4.90 2.0 1.09 0.58 5.48 2.2 1.24 0.58 6.60 2.4 1.33 0.58 7.21 2.6 1.41 0.58 7.72 2.7 1.64 0.58 9.03 2.8 1.62 0.58 8.92 3.0 1.47 0.58 8.08 3.5 0.04 0.58 -23.23 4.0 0.04 0.58 -23.23 4.5 0.04 0.58 -23.23 5.0 0.04 0.58 -23.23 Report No.: TRE13030163 Page 144 of 227 Issued:2013-04-24 FCC ID: YAMPD70XGU5H IC: 8913A-PD702GU5H Audio Frequency Response for 12.5KHz -30 -25 -20 -15 -10 -5 0 5 10 15 0.1110 KHz d B Test Datum 6dB/Oct+1 6dB/Oct-3 Modulation type: 4FSK Channel bandwidth: 12.5 kHz It is not applicable for devices which operate with the digitized voice/data modulation type. Report No.: TRE13030163 Page 145 of 227 Issued:2013-04-24 FCC ID: YAMPD70XGU5H IC: 8913A-PD702GU5H 4.6. Frequency Stability Test TEST APPLICABLE 1 According to FCC Part 2 Section 2.1055 (a)(1), the frequency stability shall be measured with variation of ambient temperature from -30°C to +60°C centigrade. 2 According to FCC Part 2 Section 2.1055 (a) (2), for battery powered equipment, the frequency stability shall be measured with reducing primary supply voltage to the battery operating end point, which is specified by the manufacture. 3 Vary primary supply voltage from 85 to 115 percent of the nominal value for other than hand carried battery equipment. 4 According to §90.213, the frequency stability limit is 2.5 ppm for 806-809MHz/851-854MHz/896- 901MHz/935-940MHz and 1.5ppm for 809-824MHz/854-869MHz. 5 According to Section 5.3 of RSS-119, the frequency stability limit is 1.5 ppm for 806-809MHz/851- 854MHz/896-901MHz/935-940MHz and 809-824MHz/854-869MHz of 12.5KHz channel separation while 2.5ppm for 806-824MHz/851-869MHz of 25KHz channel separation. TEST PROCEDURE The EUT was set in the climate chamber and connected to an external DC power supply. The RF output was directly connected to Spectrum Analyzer ESI 26. The coupling loss of the additional cables was recorded and taken in account for all the measurements. After temperature stabilization (approx. 20 min for each stage), the frequency for the lower, the middle and the highest frequency range was recorded. For Frequency stability Vs. Voltage the EUT was connected to a DC power supply and the voltage was adjusted in the required ranges. The result was recorded. TEST CONFIGURATION TEST LIMITS According to 90.213, Transmitters used must have minimum frequency stability as specified in the following table. Report No.: TRE13030163 Page 146 of 227 Issued:2013-04-24 FCC ID: YAMPD70XGU5H IC: 8913A-PD702GU5H According to section 5.3, Transmitters used must have minimum frequency stability as specified in the following table. Report No.: TRE13030163 Page 147 of 227 Issued:2013-04-24 FCC ID: YAMPD70XGU5H IC: 8913A-PD702GU5H TEST RESULTS Modulation Type Channel Separation Test conditions Frequency error (ppm) Voltage(V) Temp(°C) 806.5MHz817.0MHz 823.5MHz Analog/FM 25KHz 7.40 -30 1.071.04 0.94 -20 1.0…

Text truncated - open the document above for the full version.

Test setup photos of the EUT
