YAMPD78XU2Digital Portable Radio

Preface Thank you for purchasing Hytera DMR Digital Portable Radio. As a product built to the DMR standard, it is endowed with ergonomic design, all-round digital functions and remarkable quality to refresh your experience and enable you to be responsive to emergent situations. To derive optimum performance from your product, please read this manual and the supplied Safety Information Booklet carefully before use. This manual is applicable to the following model: PD78X PD78XG Instructional Icons This radio is not intended for use by general population in an uncontrolled environment. It is only for occupational use and only applied to work-related conditions. The radio must be only used by users, who are fully aware of the hazards of the exposure and who are able to exercise control over their RF exposure to qualify for the higher exposure limits. The following icons are available through this manual: Alert Icons Caution: indicates situations that could cause damage to your product. Note: indicates tips that can help you make better use of your product. Function Icons : indicates functions that are available on digital channel only. : indicates functions that are available on analog channel only. Functions marked with no function icons are available on both analog and digital channels. Term Explanation Key Operation Short press: to press a key and release it quickly. Long press: to press a key and remain holding it down for a predefined period (2 seconds by default). Hold down: to press a key and remain holding it down. Private Call Private Call is a call initiated by a single user to another user. Group Call Group Call is a call initiated by a single user to a group. All Call All Call is a call initiated by a single user to all the other users on a channel. Squelch This technology can remove excessive background noises, improving your communication quality. PTT ID 1 2 PTT ID, namely radio identity, allows a radio with display or the control center to identify the calling party. Copyright Information Hytera and HYT are trademarks or registered trademarks of Hytera Communications Co., Ltd. (“Hytera”) in PRC and/or other countries or areas. Hytera retains the ownership of its trademarks and product names. All other trademarks and/or product names that may be used in this manual are properties of their respective owners. The Hytera product described in this manual may include Hytera computer programs stored in memory or other media. Laws in PRC and/or other countries or areas protect the exclusive rights of Hytera with respect to its computer programs. The purchase of this product shall not be deemed to grant, either directly or by implication, any rights to the purchaser with respect to Hytera computer programs. Any Hytera computer programs may not be copied, modified, distributed, decompiled, or reverse-engineered in any manner without the prior written consent of Hytera. The AMBE+2 TM voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding technology is licensed solely for use within this product. The user of this technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code or in any other way convert the Object Code into a human readable form. U.S. Patent Nos. #6,912,495 B2, #6,199,037 B1, #5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365, #5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772, #5,247,579, #5,226,084 and #5,195,166. Disclaimer Hytera endeavors to achieve the accuracy and completeness of this manual, but no warranty of accuracy or reliability is given. All the specifications and designs are subject to change without prior notice due to continuous technology development. No part of this manual may be copied, modified, translated, or distributed in any manner without the express written permission of Hytera. If you have any suggestions or would like to learn more details, please visit our website at: http://www.hytera.cn. 3 RF Energy Exposure Compliance Your radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE and ICNIRP exposure limits for occupational/controlled RF exposure environment at operating duty factors of up to 50% transmitting and is authorized by the FCC for occupational use only. In terms of measuring RF energy for compliance with the FCC exposure guidelines, your radio radiates measurable RF energy only while it is transmitting (during talking in PTT mode), not when it is receiving (listening) or in standby mode. The device complies with SAR and/or RF field strength limits of RSS-102 requirement and contact information where the user can obtain Canadian information on RF exposure and compliance. Your radio complies with the following of RF energy exposure standards and guidelines ● United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J ● American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 ● Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1999 Edition ● International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998  Operational Instructions and Training Guidelines To ensure optimal performance and compliance with the occupational/controlled environment RF energy exposure limits in the above standards and guidelines, users should transmit no more than 50% of the time and always adhere to the following procedures; and should transmit no more than 50% of the time, although the hardware support transmission up to 100% of the time in analog mode and up to 50% in digital mode. Transmit and Receive To transmit (talk), push the Push-To-Talk (PTT) key; to receiv…

Text truncated - open the document above for the full version.

Hytera Communications Corporation Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Hytera Communications Corporation Ltd. would like the following documents regarding this submission for FCC ID: YAMPD78XU2 to be kept confidential. 1. Block Diagram 2. Schematic 3. Theory of Operation 4. Tune-Up Procedure 5． Part List The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely yours, Hytera Communications Corporation Ltd. Xiong Lei/ Director of management dept Fax: +86 755 8613 7130 Tel: +86 755 2697 2999 E-mail:[email protected]

Hytera Communications Corporation Ltd. Frequency Attestation Letter DATE: March 25, 2011 FCC ID: YAMPD78XU2 Model: PD782 U(2),PD785 U(2),PD786 U(2),PD788 U(2),HD785 U(2) Dear Sir/Madam, We, Hytera Communications Corporation Ltd. acknowledge that this device can only use the allowed frequency band from 450 MHz to 520 MHz for USA. Sincerely yours, Hytera Communications Corporation Ltd. Xiong Lei/ Director of management dept Fax: +86 755 8613 7130 Tel: +86 755 2697 2999 E-mail:[email protected]

Justification Letter DATE: March 25, 2011 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Colombia, Maryland 21046 FCC ID: YAMPD78XU2 Model: PD782 U(2), PD785 U(2), PD786 U(2), PD788 U(2),HD785 U(2) Dear Sir/Madam, We , Hytera Communications Corporation Ltd. acknowledge that this device will not be marketed to USA users with the frequency band which is not allowed by rule part 90.and it is a violation of FCC rules if this device is operated on unauthorised frequencies inside the U.S.A. We , Hytera Communications Corporation Ltd. acknowledge this equipment meets the requirements of FCC Rules, Parts 90.203 (e) and (g) as applicable. Programming of this product's transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personnel. The operator cannot program transmit frequencies using the equipment's external operation. Sincerely yours, Hytera Communications Corporation Ltd. Xiong Lei/ Director of management dept Fax: +86 755 8613 7130 Tel: +86 755 2697 2999 E-mail:[email protected]

Product Similarity Declaration To Whom It May Concern, We, Hytera Communication Corporation Ltd., hereby declare that our (Digital Portable Radio) Model Number: PD785 U(2), PD786 U(2), PD788 U(2) and HD785 U(2) are electrically identical with the Model PD782 U(2). PD785 U(2), PD786 U(2), PD788 U(2), HD785 U(2) are named differently due to marketing purposes Please contact me if you have any question. Sincerely yours, Hytera Communications Corporation Ltd. Xiong Lei/ Director of management dept Fax: +86 755 8613 7130 Tel: +86 755 2697 2999 E-mail:[email protected] .

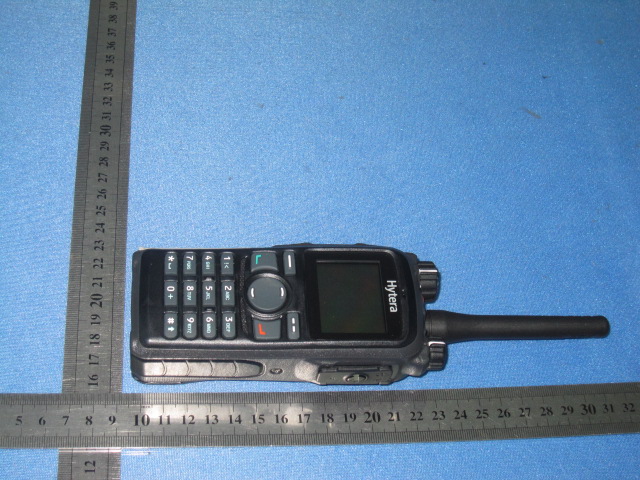

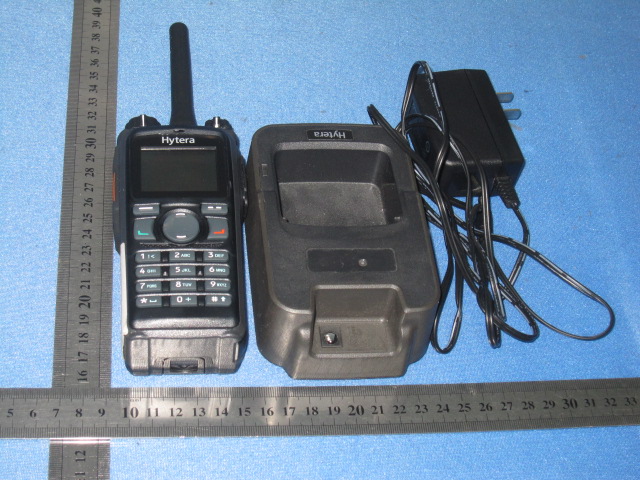

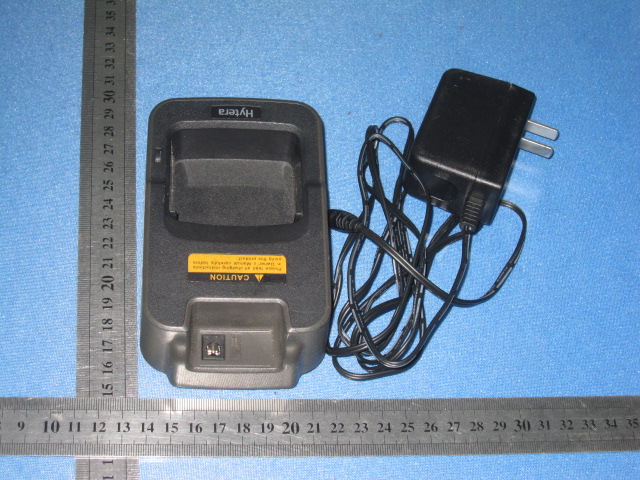

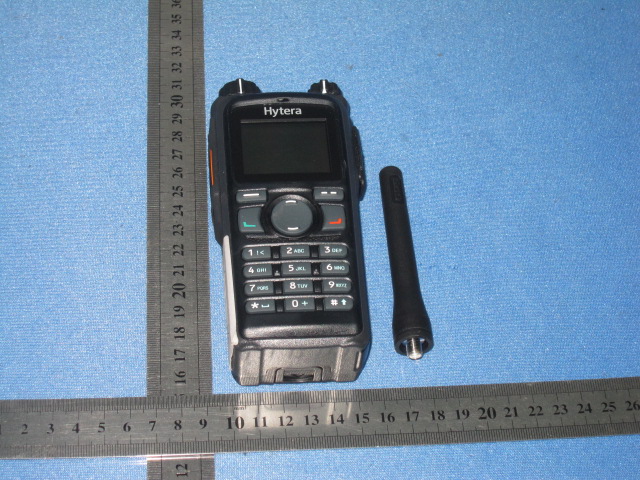

External photos of the EUT

FCC Label FCC RF Warning Label

Internal photos of the EUT

Report No.: RZA1103-0426SAR01R1 TESTING No. L2264 OET 65 TEST REPORT Product Name Digital Portable Radio Model PD782 U(2)/PD785 U(2)/ PD786 U(2)/ PD788 U(2) FCC ID YAMPD78XU2 Client Hytera Communications Corporation Ltd. TA Technology (Shanghai) Co., Ltd. GENERAL SUMMARY Product Name Digital Portable Radio Model PD782 U(2)/PD785 U(2)/ PD786 U(2)/ PD788 U(2) FCC ID YAMPD78XU2 Report No. RZA1103-0426SAR01R1 Client Hytera Communications Corporation Ltd. Manufacturer Hytera Communications Corporation Ltd. Reference Standard(s) IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 KHz to 300 GHz. IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438 June 19, 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions. Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: April 18 th , 2011 Comment The test result only responds to the measured sample. Approved by Yang Weizhong Revised by Ling Minbao Performed by Li Siyuan TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1103-0426SAR01R1 Page 3 of 67 TABLE OF CONTENT 1. General Information ..................................................................................................................... 4 1.1. Notes of the Test Report.......................................................................................................4 1.2. Testing Laboratory ................................................................................................................ 4 1.3. Applicant Information ............................................................................................................ 5 1.4. Manufacturer Information ...................................................................................................... 5 1.5. Information of EUT................................................................................................................ 6 1.6. The Maximum SAR 1g Values and Power of each tested Mode............................................. 6 1.7. Test Date .............................................................................................................................. 6 2. Operational Conditions during Test ..............................................................................................7 3. SAR Measurements System Configuration .................................................................................. 8 3.1. SAR Measurement Set-up .................................................................................................... 8 3.2. DASY4 E-field Probe System ............................................................................................... 9 3.2.1. EX3DV4 Probe Specification ......................................................................................... 9 3.2.2. E-field Probe Calibration .............................................................................................. 10 3.3. Other Test Equipment .........................................................................................................10 3.3.1. Device Holder for Transmitters .................................................................................... 10 3.3.2. Phantom...................................................................................................................... 11 3.4. Scanning Procedure ........................................................................................................... 11 3.5. Data Storage and Evaluation .............................................................................................. 13 3.5.1. Data Storage................................................................................................................ 13 3.5.2. Data Evaluation by SEMCAD ...................................................................................... 13 3.6. System Check..................................................................................................................... 16 3.7. Equivalent Tissues ..............................................................................................................17 4. Laboratory Environment............................................................................................................. 17 5. Charcteristics of the Test ............................................................................................................ 18 5.1. Applicable Limit Regulations ............................................................................................... 18 5.2. Applicable Measurement Standards................................................................................... 18 6. Conducted Output Power Measurement.................................................................................... 19 6.1. Conducted Power Results .................................................................................................. 19 7. Test Results ............................................................................................................................... 20 7.1. Dielectric Performance........................................................................................................ 20 7.2. System Check Results ......................................................................................................…

Text truncated - open the document above for the full version.

FCC PART 90 TEST REPORT FCC Part 90 Report Reference No......................: FCC ID..............................................: WE11030001 YAMPD78XU2 Compiled by ( position+printed name+signature)..: File administrators Eric Zhang Supervised by ( position+printed name+signature)..: Test Engineer Wenliang Li Approved by ( position+printed name+signature)..: Manager Jimmy Li Date of issue.....................................: Mar 26, 2011 Testing Laboratory Name..............: Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................: Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name............................: Hytera Communications Corporation Ltd. Address ............................................: HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Test specification: Standard ...........................................: FCC Part 90: PRIVATE LAND MOBILE RADIO SERVICES TRF Originator..................................: Shenzhen Huatongwei International Inspection CO., Ltd Master TRF.......................................: Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Digital Portable Radio Trade Mark .......................................: Manufacturer ....................................: Hytera Communications Corporation Ltd. Model/Type reference.......................: PD782 U(2)/ PD785 U(2)/ PD786 U(2)/ PD788 U(2)/HD785 U(2) Listed Models ..................................: / Ratings .............................................: DC 7.40 V Modulation .......................................: FM&4FSK Channel Separation........................... 12.5KHz Rated Power ..................................... 4 Watts(36.02dBm)/1 Watts(30.00dBm) Operation Frequency Range ............. From 450 MHz to 520 MHz Result................................................: Positive V1.0 Page 2 of 119 Report No.: WE11030001 FCC ID: YAMPD78XU2 T E S T R E P O R T Test Report No. : WE11030001 Mar 26, 2011 ______________________________________________________________________________________________ Date of issue Equipment under Test : Digital Portable Radio Model /Type : PD782 U(2)/ PD785 U(2)/ PD786 U(2)/ PD788 U(2) /HD785 U(2) Listed Models : / Applicant : Hytera Communications Corporation Ltd. Address : HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Manufacturer : Hytera Communications Corporation Ltd. Address : HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Test Result according to the standards on page 10: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 119 Report No.: WE11030001 FCC ID: YAMPD78XU2 Contents 1. TEST STANDARDS 4 2. SUMMARY 5 2.1. General Remarks 5 2.2. Product Description 5 2.3. Equipment under Test 5 2.4. Short description of the Equipment under Test (EUT) 6 2.5. EUT Configuration 6 2.6. EUT operation mode 6 2.7. EUT configuration 6 2.8. Related Submittal(s) / Grant (s) 7 2.9. Modifications 7 2.10. Note 7 3. TEST ENVIRONMENT 8 3.1. Address of the test laboratory 8 3.2. Test Facility 8 3.3. Environmental conditions 9 3.4. Configuration of Tested System 9 3.5. Discription of Tested Modes 9 3.6. Statement of the measurement uncertainty 9 3.7. Test Description 10 3.8. Equipments Used during the Test 10 4. TEST CONDITIONS AND RESULTS 12 4.1. Conducted Emissions Test 12 4.2. Occupied Bandwidth and Emission Mask Test 17 4.3. Transmitter Radiated Spurious Emssion 35 4.4. Spurious Emssion on Antenna Port 42 4.5. Modulation Charcateristics 64 4.6. Frequency Stability Test 67 4.7. Maximum Transmitter Power 69 4.8. Transmitter Frequency Behavior 80 4.9. Receiver Radiated Spurious Emssion 83 4.10. Receiver Conducted Spurious Emssion 93 5. TEST SETUP PHOTOS OF THE EUT 104 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT 108 V1.0 Page 4 of 119 Report No.: WE11030001 FCC ID: YAMPD78XU2 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 90: PRIVATE LAND MOBILE RADIO SERVICES. TIA/EIA 603: Land Mobile FM or PM Communications Equipment Measurement and Performance Standards. ANSI C63.4-2009 : American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. V1.0 Page 5 of 119 Report No.: WE11030001 FCC ID: YAMPD78XU2 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Mar 03, 2011 Testing commenced on : Mar 03, 2011 Testing concluded on : Mar 26, 2011 2.2. Product Description The Hytera Communications Corporation Ltd.’s Model: PD782 U(2)/ PD785 U(2)/ PD786 U(2)/ PD788 U(2)/HD785 U(2) or the “EUT” as referred to in this report; more general information as follows, for more details, refer to the user’s manual of the EUT. Name of EUT Digital Portable Radio Model Number PD782 U(2)/ PD785 U(2)/ PD786 U(2)/ PD788 U(2)/HD785 U(2) FCC ID YAMPD78XU2 Rated Output Power 4 Watts(36.02 dBm)/1 Watts(30.00 dBm) Support data rate 9.6kbps FM for Analog Voice 4FSK for Digital Voice/Digital Data 4FSK for Digital Data Analog 11K0F3E for 12.5KHz Channel Separation 7K60FXD for Digital Data only Modilation Type Digital 7K60FXW for Digital Data & Digital Voice Analog Voice 12.5KHz Digital Voice/Data 12.5KHz Channel Separation Digital Data 12.5KHz Antenna Type…

Text truncated - open the document above for the full version.

Test setup photos of the EUT
