YAMPT580HF5TETRA Digital Portable Terminal

Preface Thank you for purchasing Hytera TETRA digital trunking terminal. It has a large transflective TFT color display, and supports both TMO and DMO modes. The benefits that this terminal delivers will refresh your experience and enable you to be responsive to emergent situations. To derive optimum performance from the terminal, please read this manual and the supplied Safety Information Booklet before use. This manual is applicable to the following model: PT580H PT580H Hytera 英文说明书 00(RoHS).ind1 12010-12-8 17:26:44 Instructional Icons The following icons are available through this manual: Caution: indicates situations that could cause damage to your product. Note: indicates tips that can help you make better use of your product. Term Explanation Key Operation Short press: to press a key and release it quickly. Long press: to press a key and remain holding it down for a predefined period (1.5 seconds by default). Hold down: to press a key and remain holding it down. Individual Call Individual call is a simplex or duplex call initiated by a single user to another user, involving the calling party and the called party only. Group Call Group call is a simplex call initiated by a single user to a group of users, involving the calling party and all the group members. Telephone Call Telephone call is usually a full duplex call initiated between PT580H and a PSTN subscriber (such as telephone user or mo - bile phone user). To send or receive telephone calls, the terminal must operate in TMO mode, and must be authorized to access public network through PSTN gateway. Telephone call is a network service. For more details and availability of the service, please contact your service provider. Emergency Call Emergency call has the highest priority, and is very helpful for the user to request help when emergency occurs. Generally, it is set to group call type. Emergency call can break off any non- emergency calls in progress. DMO (Direct Mode Operation)� DMO mode allows terminals to communicate directly with each other in simplex mode, without network restriction. But functions that require network access such as telephone call will be disallowed. TMO (Trunking Mode Operation)� TMO mode allows terminals to communicate with each other via the TETRA network, in half duplex or full duplex mode. Functions that require network access are supported. To operate in TMO mode, the terminal must be granted authori- zation by your service provider, and must be within the network coverage. Air Interface Encryption An encryption method helpful for protecting message transmitted over the air. It encrypts data and signaling transmitted between the base station and terminal, to protect the message from eaves- dropping. PT580H Hytera 英文说明书 00(RoHS).ind2 22010-12-8 17:26:44 The radio is not intended for use by general population in an uncontrolled environment. It is only for occupational use and only applied to work-related conditions.The radio must be only used by users, who are fully aware of the hazards of the exposure and who are able to exercise control over their RF exposure to qualify for the higher exposure limits. Full Duplex Full duplex allows the ability to communicate in both directions simultaneously. Half Duplex Half duplex allows the ability to communicate in only one direction at a time. Two-way communication is possible, but not simultaneously. Copyright Information Hytera is the trademark or registered trademark of Hytera Communications Co., Ltd. in PRC and other countries and/or areas. Hytera retains the ownership of its trademarks and product names. All other trademarks and/or product names that may be used in this manual are properties of their respective owners. The Hytera product described in this manual may include Hytera computer programs stored in memory or other media. Laws in the PRC and/or other countries or areas preserve for Hytera exclusive rights for Hytera computer programs. The purchase of this product shall not be deemed to grant, either directly or by implication, any rights to the purchaser with respect to Hytera computer programs. Any Hytera computer programs may not be copied, modified, distributed, decompiled, or reverse-engineered in any manner without the prior written consent of Hytera. Disclaimer Hytera endeavors to achieve the accuracy and completeness of this manual, but no warranty of accuracy or reliability is given. All the specifications and designs are subject to change without prior notice due to continuous technology development. No part of this manual may be copied, modified, translated, or distributed in any manner without the express written permission of Hytera. If you have any suggestions or would like to learn more details, please visit us at: http://www.hytera.cn. RF Radiation Information RF Radiation Profile Radio Frequency (RF) is a frequency of electromagnetic radiation in the range at which radio signals are transmitted. RF technology is widely used in communication, medicine, food processing and other fields. It may generate radiation during use. RF Radiation Safety In order to ensure user health, experts from relevant industries including science, engineering, medicine and health work with international organizations to develop standards for safe exposure to RF radiation. These standards consist of: United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J; American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992; Institute of Electrical and Electronic Engineers (IEEE) C95. 1 – 1999; International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998; ● ● ● ● PT580H Hytera 英文说明书 00(RoHS).ind3 32010-12-8 17:26:44 FCC Regulations Federal Communication Commission (FCC) requires that all radio communication products should meet the requirements set forth in the above standards before they can be marketed in the U.S, and the manufacturer shall post a …

Text truncated - open the document above for the full version.

Hytera Communications Corporation Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Hytera Communications Corporation Ltd. would like the following documents regarding this submission for FCC ID: YAMPT580HF5 to be kept confidential. 1. Block Diagram 2. Schematic 3. Theory of Operation 4. Part List The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely yours, Hytera Communications Corporation Ltd. Xiong Lei/ Director of management dept Fax: +86 755 8613 7130 Tel: +86 755 2697 2999 E-mail:[email protected]

Federal Communications CommissionFCC 11-63 Beforethe Federal Communications Commission Washington, D.C. 20554 In the Matter of Amendment of Part 90 of the Commission’s Rules to Permit Terrestrial Trunked Radio (TETRA) Technology Request by the TETRA Association for Waiver of Sections 90.209, 90.210 and 2.1043 of the Commission’s Rules ) ) ) ) ) ) ) ) ) ) WT Docket No. 11-69 ET Docket No. 09-234 NOTICE OF PROPOSED RULE MAKING AND ORDER Adopted: April 18, 2011Released: April 26, 2011 Comment Date:[45 days after publication in the Federal Register] Reply Comment Date:[60 days after publication in the Federal Register] By the Commission: I.INTRODUCTION 1.In this Notice of Proposed Rule Making and Order, we propose to modify our rules to permit the certification and use of Terrestrial Trunked Radio (TETRA) equipment under Part 90 of our Rules. 1 TETRA is a spectrally efficient digital technology with the potential to provide valuable benefits to land mobile radio users. It does not, however, conform to all of our Part 90 technical rules. The TETRA Association (the Association) 2 filed a request for waiver of the Part 90 occupied bandwidth limit and emission masks, in order to permit implementation of TETRA technology in the United States. For the reasons set forth below, we grant the waiver request in part, to permit certification and use of TETRA equipment, subject to certain conditions, pending the outcome of this rulemaking proceeding. II.BACKGROUND 2.Subpart I of Part 90 of our Rules sets forth the general technical requirementsfor use of frequencies and equipment in the private land mobile radio services. Such requirements include standards for acceptability of equipment, frequency tolerance, modulation, emissions, power, and bandwidths. 3 The purpose of these technical standards is to limit wireless systems’ interference potential. 4 The Association 1 47 C.F.R. Part 90. 2 See Request for Waiver of Sections 90.209, 90.210 and 2.1043 (filed November 20, 2009) (Request). The TETRA Association is composed of 150 organizations from 37 countries, and promotes the use of TETRA technology around the world. Id.at 2. 3 See 47 C.F.R § 90.201. 4 See Biennial Regulatory Review –Amendment of Parts 1, 22, 24, 27, and 90 to Streamline and Harmonize Various Rules Affecting Wireless Radio Services, Report and Order and Notice of Proposed Rulemaking, WT Docket No. 03-264, 20 FCC Rcd 13900, 13923 n.168 (2005). Federal Communications CommissionFCC 11-63 2 asserts that, because the Part 90 technical rules were originally developed for analog technology, they are not always appropriate for evaluating more spectrally efficient digital technologies that have been developed. 5 3.TETRA is a digital, trunked radio technology that operates with Time Division Multiple Access (TDMA) in four-slot channels within a twenty-five kilohertz bandwidth. In 2009, the Association filed a request for waiver of Parts 2 and 90 of the Commission’s rules on behalf of manufacturers to allow TETRA technology to be used in the United States. The Association states that the TETRA standard, which was developed by the European Technical Standards Institute (ETSI), is used around the world, and that manufacturers are ready to produce TETRA devices for use in the United States on several frequency bands. 6 Italso states that TETRA technology provides better efficiency and security than available alternatives, 7 and offers interoperability among equipment from different manufacturers. 8 4.In order to permit implementation of TETRA technology in the United States, the Association requests waivers of the Part 90 occupied bandwidth limit and emission masks. For devices operating with twenty-five kilohertz channel spacing, Section 90.209(b)(5) of our Rules limits the authorized bandwidth to twenty kilohertz, 9 and Section 90.210 of our Rules specifies particular emission masks. 10 TETRA equipment, however, exceeds these limits, because the ETSI standard does not set occupied bandwidth limits. Instead, it sets standards for adjacent channel power and for unwanted emissions at different frequency offsets. This results in operation with a bandwidth of up to twenty-two kilohertz, 11 and excursions of up to five decibels from the Part 90 emission masks. 12 5.The Association also requests a waiver of the permissive change rules regarding equipment certification. Itnotes that certain manufacturers, in order to meet immediate demand for TETRA equipment, have obtained Commission certification of TETRA radios that comply with the Part 90 rules by using reduced power. Certain changes to approved equipment, including changes to the maximum 5 See Request at 7. 6 See id.at 2-3, 10. 7 See id.at 2-3 (“TETRA utilizes a highly efficient data transport mechanism allowing Short Data messages to be sent on the control circuit. Circuit mode data and IP packet data can be transmitted at up to 36kbits/s (gross) and 28kbits/s (net) for multi-slot operation. . . . Additionally, TETRA-based products come with built-in air interface encryption and optional end-to-end encryption features to protect the integrity of the voice/data mobile communications. Finally, TETRA allows for fast call set-up times of typically less than 300 ms which are essential for mission critical mobile communications. In sum, TETRA combines the advantages of two-way radio, mobile telephony, messaging and data in a way that is clear, fast and less expensive than other technologies.”). 8 See id.at 3. 9 See47 C.F.R. § 90.209(b)(5). 10 See47 C.F.R. § 90.210(b), (c), (g). The emission mask is the technical specification that limits the distribution of power of a radio transmitter as a function of frequency. The Development of Operational, Technical and Spectrum Requirements for Meeting Federal, State and Local Public Safety Agency Communication Requirements Through the Year 2010, First Report and Order and Third Notice of Proposed Rulemaking, WT Docket No. 96-86, 14 FCC Rcd 152, 213 n.337 (1998). The em…

Text truncated - open the document above for the full version.

Hytera Communications Corporation Ltd. Frequency Attestation Letter DATE: Apr 17, 2012 FCC ID: YAMPT580HF5 Model: PT580H F5 Dear Sir/Madam, We, Hytera Communications Corporation Ltd. acknowledge that this device can only use 817-824MHz/862-869MHz in USA and 806-824MHz/851-869MHz in Canada. Sincerely yours, Hytera Communications Corporation Ltd. Xiong Lei/ Director of management dept Fax: +86 755 8613 7130 Tel: +86 755 2697 2999 E-mail:[email protected]

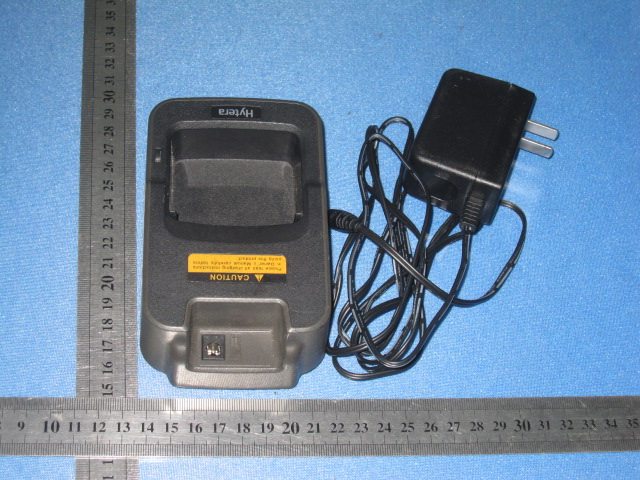

External photos of the EUT

FCC Label FCC RF Warning Label

Internal photos of the EUT

TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0269SAR01 Page 1 of 71 TESTING No. L2264 OET 65 TEST REPORT Product Name TETRA Digital Portable Terminal Model PT580H F5 FCC ID YAMPT580HF5 Client Hytera Communications Co.,Ltd. TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0269SAR01 Page 2 of 71 GENERAL SUMMARY Product Name TETRA Digital Portable Terminal Model PT580H F5 FCC ID YAMPT580HF5 Report No. RZA1202-0269SAR01 Client Hytera Communications Co.,Ltd. Manufacturer Hytera Communications Co.,Ltd. Reference Standard(s) IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 KHz to 300 GHz. IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438 June 19, 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions. KDB 643646 D01 SAR Test for PTT Radios v01: SAR Test Reduction Considerations for Occupational PTT Radios KDB 447498 D01 Mobile Portable RF Exposure v04: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: April 19 th , 2012 Comment The test result only responds to the measured sample. Approved by Director Revised by SAR Manager Performed by SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0269SAR01 Page 3 of 71 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the Test Report.......................................................................................................5 1.2. Testing Laboratory ................................................................................................................ 5 1.3. Applicant Information ............................................................................................................ 6 1.4. Manufacturer Information ...................................................................................................... 6 1.5. Information of EUT................................................................................................................ 7 1.6. The Maximum SAR 1g Values ................................................................................................ 8 1.7. Test Date .............................................................................................................................. 8 2. SAR Measurements System Configuration .................................................................................. 9 2.1. SAR Measurement Set-up .................................................................................................... 9 2.2. DASY5 E-field Probe System ............................................................................................. 10 2.2.1. EX3DV4 Probe Specification ....................................................................................... 10 2.2.2. E-field Probe Calibration .............................................................................................. 11 2.3. Other Test Equipment ......................................................................................................... 11 2.3.1. Device Holder for Transmitters .................................................................................... 11 2.3.2. Phantom...................................................................................................................... 12 2.4. Scanning Procedure........................................................................................................... 12 2.5. Data Storage and Evaluation .............................................................................................. 14 2.5.1. Data Storage................................................................................................................ 14 2.5.2. Data Evaluation by SEMCAD ...................................................................................... 14 3. Laboratory Environment............................................................................................................. 16 4. Tissue-equivalent Liquid ............................................................................................................ 17 4.1. Tissue-equivalent Liquid Ingredients................................................................................... 17 4.2. Tissue-equivalent Liquid Properties .................................................................................... 18 5. System Check ............................................................................................................................ 19 5.1. Description of System Check .............................................................................................. 19 5.2. System Check Results ........................................................................................................ 20 6. Operational Conditions during Test ............................................................................................ 21 6.1. General Description of Test Procedures............................................................................. 21 6.2. Test Configuration .............................................................…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0269SAR01 Page 53 of 71 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0269SAR01 Page 54 of 71 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0269SAR01 Page 55 of 71 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0269SAR01 Page 56 of 71 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0269SAR01 Page 57 of 71 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0269SAR01 Page 58 of 71 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0269SAR01 Page 59 of 71 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0269SAR01 Page 60 of 71 ANNEX F: DAE4 Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0269SAR01 Page 61 of 71 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0269SAR01 Page 62 of 71 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0269SAR01 Page 63 of 71 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0269SAR01 Page 64 of 71 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0269SAR01 Page 65 of 71 ANNEX G: The EUT Appearances and Test Configuration TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0269SAR01 Page 66 of 71 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0269SAR01 Page 67 of 71 Picture 3-1: EUT TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0269SAR01 Page 68 of 71 Picture 3-2: Battery TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0269SAR01 Page 69 of 71 Picture 3-3: Belt Picture 3-4: Earphone Picture 3: Constituents of the sample TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0269SAR01 Page 70 of 71 Picture 4: Face-held, the front of the EUT towards phantom, the distance from EUT Antenna to the bottom of the Phantom is 44mm 25mm 44mm TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0269SAR01 Page 71 of 71 Picture 5: Body-worn with earphone, the front of the EUT towards ground, Belt clip directed tightly to touch the bottom of the flat phantom, the distance from the EUT Antenna to the bottom of the Phantom is 23mm 23mm 23mm

FCC PART 90 TEST REPORT FCC Part 90 Report Reference No. ..................... : FCC ID. ............................................. : TRE12020119 YAMPT580HF5 Compiled by ( position+printed name+signature) .. : File administrators Eric Zhang Supervised by ( position+printed name+signature) .. : Test Engineer Wenliang Li Approved by ( position+printed name+signature) .. : Manager Wenliang Li Date of issue ..................................... : Mar 27, 2012 Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd Address............................................. : Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name ............................ : Hytera Communications Corporation Ltd. Address............................................. : HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Test specification: Standard ........................................... : FCC Part 90 / FCC Part 2 FCC Waiver for Tetra FCC 11-63 and FCC DA 11-1604 TRF Originator .................................. : Shenzhen Huatongwei International Inspection CO., Ltd Master TRF ....................................... : Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: TETRA Digital Portable Terminal Trade Mark ....................................... : Manufacturer .................................... : Hytera Communications Corporation Ltd. Model/Type reference ....................... : PT580H F5 Listed Models .................................. : / Modulation ....................................... : pi/4DQPSK Channel Separation ........................... 25KHz Rated Power .................................... : 1.8 Watts(32.55dBm) Operation Frequency ......................... 817MHz-824MHz/862MHz-869MHz Ratings.............................................. : DC 7.40 V Result ................................................ : Positive Report No.: TRE12020119 Page 2 of 68 Issued: 2012-03-27 FCC ID: YAMPT580HF5 T E S T R E P O R T Test Report No. : TRE12020119 Mar 27, 2012 ______________________________________________________________________________________________ Date of issue Equipment under Test : TETRA Digital Portable Terminal Model /Type : PT580H F5 Listed Models : / Applicant : Hytera Communications Corporation Ltd. Address : HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Manufacturer : Hytera Communications Corporation Ltd. Address : HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE12020119 Page 3 of 68 Issued: 2012-03-27 FCC ID: YAMPT580HF5 Contents 1. TEST STANDARDS 4 2. SUMMARY 5 2.1. General Remarks 5 2.2. Product Description 5 2.3. Equipment under Test 5 2.4. Short description of the Equipment under Test (EUT) 5 2.5. EUT Configuration 6 2.6. EUT operation mode 6 2.7. EUT configuration 6 2.8. Related Submittal(s) / Grant (s) 6 2.9. Modifications 6 2.10. Note 6 3. TEST ENVIRONMENT 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 8 3.4. Configuration of Tested System 8 3.5. Discription of Tested Modes 8 3.6. Statement of the measurement uncertainty 8 3.7. Test Description 9 3.8. Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS 11 4.1. Conducted Emissions Test 11 4.2. Occupied Bandwidth, Adjacent Channel Power Test 16 4.3. Transmitter Radiated Spurious Emssion 24 4.4. Spurious Emssion on Antenna Port 29 4.5. Modulation Charcateristics 35 4.6. Frequency Stability Test 36 4.7. Maximum Transmitter Power 38 4.8. Transmitter Frequency Behavior 41 4.9. Receiver Radiated Spurious Emssion 42 4.10. Receiver Conducted Spurious Emssion 52 5. TEST SETUP PHOTOS OF THE EUT 57 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT 61 Report No.: TRE12020119 Page 4 of 68 Issued: 2012-03-27 FCC ID: YAMPT580HF5 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 90: PRIVATE LAND MOBILE RADIO SERVICES. TIA/EIA 603: Land Mobile FM or PM Communications Equipment Measurement and Performance Standards. FCC Rules Part 15 Subpart B: RADIO FREQUENCY DEVICES-Unintertional Radiators FCC Part 2: FREQUENCY ALLOCA-TIONS AND RADIO TREATY MAT-TERS; GENERAL RULES AND REG-ULATIONS FCC Waiver for Tetra FCC 11-63 and FCC DA 11-1604 Report No.: TRE12020119 Page 5 of 68 Issued: 2012-03-27 FCC ID: YAMPT580HF5 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Feb 23, 2012 Testing commenced on : Feb 23, 2012 Testing concluded on : Mar 27, 2012 2.2. Product Description The Hytera Communications Corporation Ltd.’s Model: PT580H F5 or the “EUT” as referred to in this report; more general information as follows, for more details, refer to the user’s manual of the EUT. Name of EUT TETRA Digital Portable Terminal Model Number PT580H F5 FCC ID YAMPT580HF5 Rated Output Power 1.8 Watt(32.55dBm) Modilation Type pi/4DQPSK Channel Separation 25KHz Emission Designation 20K0DXW/20K0GXW Antenna Type External Frequency Range 817MHz-824MHz/862MHz-869MHz Maximum Transmitter Power DMO 2.06 W for 25 KHz Channel Separation TMO 1.94 W for 25 KHz Channel Separation 2.3. Equipment under Test Power supply system utilised Power supply voltage : ○ 120V / 60 Hz ○ 115V / 60Hz ○…

Text truncated - open the document above for the full version.

Test setup photos of the EUT
