Preface Thank you for purchasing Hytera DMR Repeater. Combination of ergonomic design, versatile digital functions and remarkable quality would refresh your experience and enable you to be responsive to emergent situations. To derive optimum performancefrom your product, please read this manual and the supplied Safety Information Booklet carefully before use. The manual is applicable to the following model: RD98X 1 Instructional Icons The following icons are available through this manual: Caution:indicates situations that could cause damage to your product. Note:indicates tips that can help you make better use of your product. *: indicates functions available in later version. Copyright Information Hytera and HYT are trademarks or registered trademarks of Hytera Communications Co., Ltd. (“Hytera”) in PRC and/or other countries or areas. Hytera retains the ownership of its trademarks and product names. All other trademarks and/or product names that may be used in this manual are properties of their respective owners. The Hytera product described in this manual may include Hytera computer programs stored in memory or other media. Laws in PRC and/or other countries or areas protect the exclusive rights of Hytera with respect to its computer programs. The purchase of this product shall not be deemed to grant, either directly or by implication, any rights to the purchaser regarding Hytera computer programs. Any Hytera computer programs may not be copied, modified, distributed, decompiled, or reverse-engineered in any manner without the prior written consent of Hytera. The AMBE+2 TM voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding technology is licensed solely for use within this product. The user of this technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code or in any other way convert the Object Code into a human 2 readable form. U.S.PatentNumbers:#6,912,495B2,#6,199,037B1,#5,870,405,#5,826,222,#5,754,974,#5,701,390, #5,715,365,#5,649,050,#5,630,011,#5,581,656,#5,517,511,#5,491,772,#5,247,579,#5,226,084and #5,195,166. Disclaimer Hytera endeavors to achieve the accuracy and completeness of this manual, but no warranty of accuracy or reliability is given. All the specifications and designs are subject to change without notice due to continuous technology development. No part of this manual may be copied, modified, translated, or distributed in any manner without the express written permission of Hytera.If you have any suggestions or would like to learn mo redetails, please visit our website at: http://www.hytera.cn. RF Energy Exposure Compliance ● Your radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE and ICNIRP exposure limits for occupational/controlled RF exposure environment at operating duty factors of up to 50% transmitting and is authorized by the FCC for occupational use only. In terms of measuring RF energy for compliance with the FCC exposure guidelines, your radio radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. ● The device complies with SAR and/or RF field strength limits of RSS-102 requirement and contact information where the user can obtain Canadian information on RF exposure and compliance. Your radio complies with the following of RF energy exposure standards and guidelines ● United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J ● American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 ● Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1999 Edition ● International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998  Operational Instructions and Training Guidelines ● To ensure optimal performance and compliance with the occupational/controlled environment RF energy exposure limits in the above standards and guidelines, users should transmit no 3 more than 50% of the time and always adhere to the following procedures: ● Gain of antenna must not exceed 6.5dBi. ● Antenna Installation: Install the mobile antenna at least 350 cm away from your body, in accordance with the requirements of the antenna manufacturer/supplier. Transmit and Receive To transmit (talk), push the Push-To-Talk (PTT) key; to receive, release the PTT key. EU Regulatory Conformance The equipment is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/EC. Note: The above information is applicable to EU countries only. FCC Licensing Information Part 15 Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced r…

Text truncated - open the document above for the full version.

Hytera Communications Corporation Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Hytera Communications Corporation Ltd. would like the following documents regarding this submission for FCC ID: YAMRD98XVHF to be kept confidential. 1. Block Diagram 2. Schematic 3. Theory of Operation The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely yours, Hytera Communications Corporation Ltd. Xiong Lei/ Director of management dept Fax: +86 755 8613 7130 Tel: +86 755 2697 2999 E-mail:[email protected]

Justification Letter DATE: September 29, 2010 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Colombia, Maryland 21046 FCC ID: YAMRD98XVHF Model: RD982 VHF, RD985 VHF, RD986 VHF, RD988 VHF Dear Sir/Madam, We , Hytera Communication Corporation Ltd. acknowledge that this device will not be marketed to USA users with the frequency band which is not allowed by rule part 90.and it is a violation of FCC rules if this device is operated on unauthorised frequencies inside the U.S.A. We , Hytera Communication Corporation Ltd. acknowledge this equipment meets the requirements of FCC Rules, Parts 90.203 (e) and (g) as applicable. Programming of this product's transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personnel. The operator cannot program transmit frequencies using the equipment's external operation. Sincerely yours, Hytera Communications Corporation Ltd. Xiong Lei/ Director of management dept Fax: +86 755 8613 7130 Tel: +86 755 2697 2999 E-mail:[email protected]

Product Similarity Declaration To Whom It May Concern, We, Hytera Communication Corporation Ltd., hereby declare that our (Digital Base Station Repeater) Model Number: RD985 VHF, RD986 VHF, and RD988 VHF are electrically identical with the Model RD982 VHF. RD985 VHF, RD986 VHF, RD988 VHF are named differently due to marketing purposes Please contact me if you have any question. Sincerely yours, Hytera Communications Corporation Ltd. Xiong Lei/ Director of management dept Fax: +86 755 8613 7130 Tel: +86 755 2697 2999 E-mail:[email protected] .

External photos of the EUT

Label Label Location RF Warning Label RF Warning Label Location

Internal photos of the EUT

Component Reference ComponentComponent Description C163101061010010100 pF C183101061010010100 pF C193101061010010100 pF C203101061010010100 pF C213101061010010100 pF C223101061010010100 pF C233101061010010100 pF C243101061010010100 pF C283101061010010100 pF C293101061010010100 pF C303101061010010100 pF C313101061010010100 pF C323101061010010100 pF C353101061010010100 pF C363101061010010100 pF C373101061010010100 pF C383101061010010100 pF C393101061010010100 pF C463101061010010100 pF C473101061010010100 pF C483101061010010100 pF C503101061010010100 pF C523101061010010100 pF C533101061010010100 pF C13101064710000470 pF C113101064710000470 pF C123101064710000470 pF C23101064710000470 pF C63101064710000470 pF C73101064710000470 pF C83101064710000470 pF C93101064710000470 pF C1531010610400100.1uF C1731010610400100.1uF C4231010610400100.1uF C4331010610400100.1uF C4431010610400100.1uF C4931010610400100.1uF C5131010610400100.1uF C1331010610500001uF C1431010610500001uF C2631010610500001uF C2731010610500001uF C25310408226006022uF R2230010600000000Ω R2930010600000000Ω R3030010600000000Ω R3130010600000000Ω R39300106330000033Ω R25300106510003051Ω R27300106510003051Ω R28300106510003051Ω R23001065610000560Ω R1530010610200101kΩ R1630010610200101kΩ R4630010610200101kΩ R4730010610200101kΩ R4830010610200101kΩ R14300106103001010kΩ R32300106103001010kΩ R33300106103001010kΩ R34300106103001010kΩ R35300106103001010kΩ R36300106103001010kΩ R37300106103001010kΩ R40300106103001010kΩ R41300106103001010kΩ R42300106103001010kΩ R43300106103001010kΩ R44300106103001010kΩ R45300106103001010kΩ R49300106103001010kΩ R50300106103001010kΩ R51300106103001010kΩ R173001061040010100K R23300106560000056Ω R24300106560000056Ω R26300106560000056Ω R1300106301001030Ω R10300106301001030Ω R11300106301001030Ω R13300106301001030Ω R3300106301001030Ω R4300106301001030Ω R5300106301001030Ω D103307110300000 DIODE,LED D113307110300000 DIODE,LED D123307110300000 DIODE,LED D93307110300000 DIODE,LED D133307110100080 DIODE,LED D143307110100080 DIODE,LED D153307110100080 DIODE,LED D163307110100080 DIODE,LED D173307110100080 DIODE,LED D183307110100080 DIODE,LED D213310240000000ESD DIODE D193310240200000ESD DIODE D203310240200000ESD DIODE D4203310240200000ESD DIODE D223310990000090ESD DIODE D233310990000090ESD DIODE D243310990000090ESD DIODE Q123503020000030 N-MOSFET Q133503020000030 N-MOSFET Q13403008000010 TRANSISTOR Q103403008000010 TRANSISTOR Q113403008000010 TRANSISTOR Q23403008000010 TRANSISTOR Q33403008000010 TRANSISTOR Q43403008000010 TRANSISTOR Q53403008000010 TRANSISTOR Q63403008000010 TRANSISTOR Q73403008000010 TRANSISTOR Q83403008000010 TRANSISTOR Q93403008000010 TRANSISTOR L13221506300000 FERRITE BEAD L23221506300000 FERRITE BEAD S14301050000000switch S24301050000000switch S34301050000000switch S44301050000000switch S54301050000000switch S64301050000000switch U13607010000400 logic ic U53805000000030EMI filte r U63805000000030EMI filter U73805000000030EMI filter U43608015000210power ic U83699037000010USB IC J25206040200010 FFC R63001061510000150Ω R93001061510000150Ω R73001062010000200Ω R83001062010000200Ω C4031010647400000.47uF C4131010647400000.47uF J15206034200010 FPC 41RD9801004D0 PCB Component Reference DesignatorComponentComponent Description R22030010500000000Ω R22430010500000000Ω R22830010500000000Ω R1083001060000000 0Ω R1213001060000000 0Ω R1243001060000000 0Ω R1343001060000000 0Ω R1413001060000000 0Ω R2213001060000000 0Ω R2253001060000000 0Ω R2303001060000000 0Ω L1143001060000000 0Ω R1463001060000000 0Ω R2273001060000000 0Ω R2373001060000000 0Ω R2393001060000000 0Ω R2613001060000000 0Ω R202300105100000010Ω R209300105100000010Ω R238300105100000010Ω R222300106100000010Ω R145300106180000018Ω R218300106220000022Ω R123300106270000027Ω R127300106470000047Ω R214300105510002051Ω R215300105510002051Ω R216300105510002051Ω R217300106680000068Ω R142300106820000082Ω R143300106820000082Ω R132300106820000082Ω R140300106820000082Ω R2043001051010000100Ω R2063001051010000100Ω R1063001061010000100Ω R1333001061010000100Ω R2423001061010000100Ω R2443001061010000100Ω R2453001061010000100Ω R2493001061010000100Ω R2503001061010000100Ω R2513001061010000100Ω R2523001061010000100Ω R2533001061010000100Ω R2543001061010000100Ω R2563001061010000100Ω R2583001061010000100Ω R2593001061010000100Ω R1123001061210000120Ω R1353001061210000120Ω R1073001061510000150Ω R1103001061510000150Ω R1363001061510000150Ω R2193001061510000150Ω R1293001062210000220Ω R1283001062210000220Ω R2013001051020000 1KΩ R2103001051020000 1KΩ R2133001051020000 1KΩ R2233001051020000 1KΩ R2413001051020000 1KΩ R24630010610200101KΩ R26630010610200101KΩ R26430010610200101KΩ R24830010615200001.5KΩ R10130010633200003.3KΩ R11430010633200003.3KΩ R11730010633200003.3KΩ R12530010633200003.3KΩ R13730010633200003.3KΩ R10430010547200004.7KΩ R20530010547200004.7KΩ R26230010647200004.7KΩ R2683001065120000 5.1KΩ R2673001065120000 5.1KΩ R2653001065120000 5.1KΩ R26330010656200005.6KΩ R13030010668200006.8KΩ R14430010668200006.8KΩ R10530010682200008.2KΩ R12630010682200008.2KΩ R13130010682200008.2KΩ R207300105103000010KΩ R226300105103000010KΩ R235300105103000010KΩ R260300106103001010KΩ R118300106153001015KΩ R120300106153001015KΩ R139300106153001015KΩ R119 3001063930010 39KΩ R229300105473001047KΩ R233300105473001047KΩ R247300106473000047KΩ R255300106473000047KΩ R138300106473000047KΩ R1153001068230010 82KΩ R1023001051040000100KΩ R1033001051040000100KΩ R1163001061040000100KΩ R2713001061040000100KΩ R2433001061540010150KΩ R2363001066840000680KΩ C11531010601000101PF C15431010601000101PF C16731010602000102PF C16931010602000102PF C30031010524900102.4PF C15931010603000103PF C13131010603000103PF C13331010604000104PF C15131010604000104PF C20631010547900404.7PF C17331010547900404.7PF C30131010547900404.7PF C1533101064790010 4.7PF C1183101060500010 5PF C1683101060500010 5PF C1353101060500010 5PF C1643101060500010 5PF C16531010606000106PF C10131010606000106PF C11431010606000106PF C12531010606000106PF C16331010606000106PF C152310106070…

Text truncated - open the document above for the full version.

FCC PART 90 TEST REPORT FCC Part 90 Report Reference No......................: FCC ID..............................................: WE10100006 YAMRD98XVHF Compiled by ( position+printed name+signature)..: File administrators Xiankun Ding Supervised by ( position+printed name+signature)..: Test Engineer Wenliang Li Approved by ( position+printed name+signature)..: Manager Jimmy Li Date of issue.....................................: Oct 30, 2010 Testing Laboratory Name..............: Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................: Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name............................: Hytera Communications Corporation Ltd. Address ............................................: HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Test specification: Standard ...........................................: FCC Part 90: PRIVATE LAND TWO-WAY RADIO SERVICES TRF Originator..................................: Shenzhen Huatongwei International Inspection CO., Ltd Master TRF.......................................: Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Digital Base Station Repeater Trade Mark .......................................: Manufacturer ....................................: Hytera Communications Corporation Ltd. Model/Type reference.......................: RD982 VHF/ RD985 VHF/ RD986 VHF/ RD988 VHF Listed Models ..................................: / Modulation ......................................... FM&4FSK Channel Separation........................... 12.5KHz&25KHz Operation Frequency......................... From 136 MHz to 174 MHz Ratings .............................................: DC 13.60 V Rated Power ....................................: 5Watt(36.99dBm)-50Watt(46.99dBm) Continuous Result................................................: Positive V1.0 Page 2 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF T E S T R E P O R T Test Report No. : WE10100006 Oct 30, 2010 ______________________________________________________________________________________________ Date of issue Equipment under Test : Digital Base Station Repeater Model /Type : RD982 VHF/ RD985 VHF/ RD986 VHF/ RD988 VHF Listed Models : / Applicant : Hytera Communications Corporation Ltd. Address : HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Manufacturer : Hytera Communications Corporation Ltd. Address : HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF Contents 1. TEST STANDARDS 4 2. SUMMARY 5 2.1. General Remarks 5 2.2. Product Description 5 2.3. Equipment under Test 5 2.4. Short description of the Equipment under Test (EUT) 6 2.5. EUT Configuration 6 2.6. EUT operation mode 6 2.7. EUT configuration 6 2.8. Related Submittal(s) / Grant (s) 6 2.9. Modifications 6 2.10. Note 7 3. TEST ENVIRONMENT 8 3.1. Address of the test laboratory 8 3.2. Test Facility 8 3.3. Environmental conditions 9 3.4. Configuration of Tested System 9 3.5. Discription of Tested Modes 9 3.6. Statement of the measurement uncertainty 9 3.7. Test Description 10 3.8. Equipments Used during the Test 10 4. TEST CONDITIONS AND RESULTS 12 4.1. Conducted Emissions Test 12 4.2. Occupied Bandwidth and Emission Mask Test 19 4.3. Transmitter Radiated Spurious Emssion 46 4.4. Spurious Emssion on Antenna Port 67 4.5. Modulation Charcateristics 105 4.6. Frequency Stability Test 110 4.7. Maximum Transmitter Power 112 4.8. Transmitter Frequency Behavior 122 4.9. Receiver Radiated Spurious Emssion 126 4.10. Receiver Conducted Spurious Emssion 134 5. TEST SETUP PHOTOS OF THE EUT 144 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT 147 V1.0 Page 4 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 90: PRIVATE LAND TWO-WAY RADIO SERVICES. TIA/EIA 603: Land Mobile FM or PM Communications Equipment Measurement and Performance Standards. ANSI C63.4-2009 : American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. V1.0 Page 5 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Sep 30, 2010 Testing commenced on : Sep 30, 2010 Testing concluded on : Oct 30, 2010 2.2. Product Description The Hytera Communications Corporation Ltd.’s Model: RD982 VHF/ RD985 VHF/ RD986 VHF/ RD988 VHF or the “EUT” as referred to in this report;more general information as follows: Name of EUT Digital Base Station Repeater Model Number RD982 VHF/ RD985 VHF/ RD986 VHF/ RD988 VHF FCC ID YAMRD98XVHF Rated Output Power 5Watt(36.99dBm)-50Watt(46.99dBm) Continuous Operation Type The repeater cannot operate on multi-channels Support data rate 9.6kbps FM for Analog Voice Modilation Type 4FSK for Digital Voice/Digital Data 16K0F3E for 25KHz Channel Separation Analog 11K0F3E for 12.5KHz Channel Separation 7K60FXD for Digital Data only Emission Designator Digital 7K60FXW for Digital Data & Digital Voice Analog Voice 12.5KHz&25KHz Channel Separation Digital Voice/…

Text truncated - open the document above for the full version.

V1.0 Page 144 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF 5. Test Setup Photos of the EUT V1.0 Page 145 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF V1.0 Page 146 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF V1.0 Page 147 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF 6. External and Internal Photos of the EUT External photos of the EUT V1.0 Page 148 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF V1.0 Page 149 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF V1.0 Page 150 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF Internal photos of the EUT V1.0 Page 151 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF V1.0 Page 152 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF V1.0 Page 153 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF V1.0 Page 154 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF V1.0 Page 155 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF V1.0 Page 156 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF V1.0 Page 157 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF V1.0 Page 158 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF V1.0 Page 159 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF V1.0 Page 160 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF V1.0 Page 161 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF V1.0 Page 162 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF V1.0 Page 163 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF V1.0 Page 164 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF V1.0 Page 165 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF V1.0 Page 166 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF V1.0 Page 167 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF V1.0 Page 168 of 168 Report No.: WE10100006 FCC ID: YAMRD98XVHF .......................End of Report.........................

MPE TEST REPORT FCC Per 47 CFR 2.1091(b) Report Reference No....................... FCC ID .............................................: WE10100007 YAMRD98XVHF Compiled by ( position+printed name+signature)..: File administrators Xiankun Ding Supervised by ( position+printed name+signature)..: Test Engineer Wenliang Li Approved by ( position+printed name+signature)..: Manager Jimmy Li Date of issue.....................................: Oct 16, 2010 Testing Laboratory Name..............: Shenzhen Huatongwei International Inspection Co., Ltd Address.............................................: Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name............................: Hytera Communications Corporation Ltd. Address.............................................: HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Test specification: Standard ...........................................: FCC Per 47 CFR 2.1091(b) OET Bulletin 65 Supplement C[June 2001] TRF Originator ..................................: Shenzhen Huatongwei International Inspection CO., Ltd Master TRF.......................................: Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Digital Base Station Repeater Trade Mark .......................................: Manufacturer ....................................: Hytera Communications Corporation Ltd. Model/Type reference.......................: RD982 VHF/ RD985 VHF/ RD986 VHF/ RD988 VHF Listed Models ..................................: / Channel Separation........................... 12.5KHz&25KHz Modulation ......................................... FM&4FSK Ratings..............................................: DC 13.60 V Frequency Range From 136 MHz to 174 MHz Rated Power ....................................: 5Watt(36.99dBm)-50Watt(46.99dBm) Continuous Result................................................: Positive V1.0 Page 2 of 8 Report No.: WE10100007 MPE T E S T R E P O R T FCC ID : YAMRD98XVHF Oct 16, 2010 ______________________________________________________________________________________________ Date of issue Equipment under Test : Digital Base Station Repeater Model /Type : RD982 VHF/ RD985 VHF/ RD986 VHF/ RD988 VHF Listed Models : / Applicant : Hytera Communications Corporation Ltd. Address : HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Manufacturer : Hytera Communications Corporation Ltd. Address : HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 8 Report No.: WE10100007 Contents 1. SUMMARY............................................................................. 4 1.1. EUT configuration 4 1.2. Product Description 4 1.3. Test frequency list 错 误！未定义书签。 2. TEST ENVIRONMENT............................................................... 6 2.1. Address of the test laboratory 6 2.2. Environmental conditions 6 2.3. Statement of the measurement uncertainty 6 3. METHOD OF MEASUREMENT .................................................... 6 3.1. Applicable Standard 6 3.2. Limit 7 3.3. MPE Calculation Method 7 4. CONCLUSION ........................................................................ 8 V1.0 Page 4 of 8 Report No.: WE10100007 1. SUMMARY 1.1. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufacturer ○ - supplied by the lab ● Power Cable Length (m) : 3 Shield : Unshield Detachable : Detachable ○ Multimeter Manufacturer : / Model No. : / 1.2. Product Description The Hytera Communications Corporation Ltd.’s Model: RD982 VHF/ RD985 VHF/ RD986 VHF/ RD988 VHF or the “EUT” as referred to in this report; more general information as follows: Name of EUT Digital Base Station Repeater Model Number RD982 VHF/ RD985 VHF/ RD986 VHF/ RD988 VHF FCC ID YAMRD98XVHF Rated Output Power 5Watt(36.99dBm)-50Watt(46.99dBm) Continuous Operation Type The repeater cannot operate on multi-channels Support data rate 9.6kbps FM for Analog Voice Modilation Type 4FSK for Digital Voice/Digital Data 16K0F3E for 25KHz Channel Separation Analog 11K0F3E for 12.5KHz Channel Separation 7K60FXD for Digital Data only Emission Designator Digital 7K60FXW for Digital Data & Digital Voice Analog Voice 12.5KHz&25KHz Channel Separation Digital Voice/Data 12.5KHz Antenna Type External Frequency Range From 400MHz to 470MHz 61.94 W for 25 KHz Channel Separation Analog 61.94 W for 12.5 KHz Channel Separation Maximum Transmitter Power Digital 61.38 W for 12.5 KHz Channel Separation Note: The product has the same digital working characters when operating in both two digitized voice/data mode (7K60FXD and 7K60FXW). So only one set of test results for digital modulation modes are provided in this test report. V1.0 Page 5 of 8 Report No.: WE10100007 1.3. Equipment under Test Power supply system utilised Power supply voltage : ○ 120V / 60 Hz ○ 115V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 13.60 V Test frequency list Modulation Type Test Channel Test Frequency Low Channel 136.125 MHz Middle Channel 155.125 MHz Analog/FM High Channel 173.975 MHz Low Channel 136.125 MHz Middle Channel 155.125 MHz Digital/4FSK High Channel 173.975 MHz 1.4. Note 1. The EUT is a V frequency band (136-174MHz) Digital Base S…

Text truncated - open the document above for the full version.

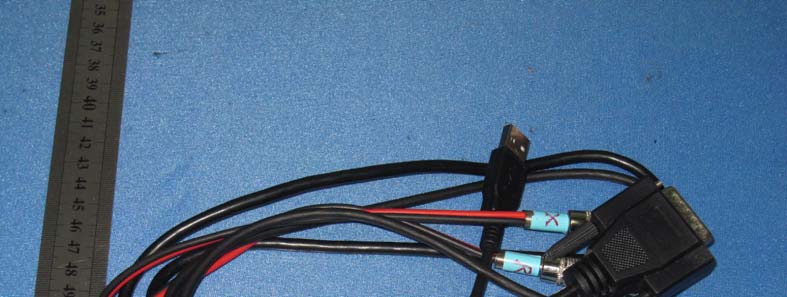

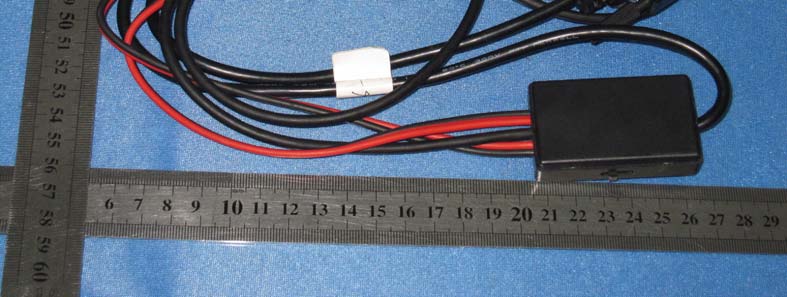

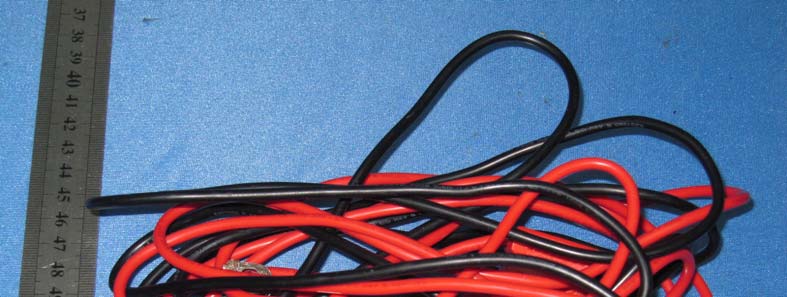

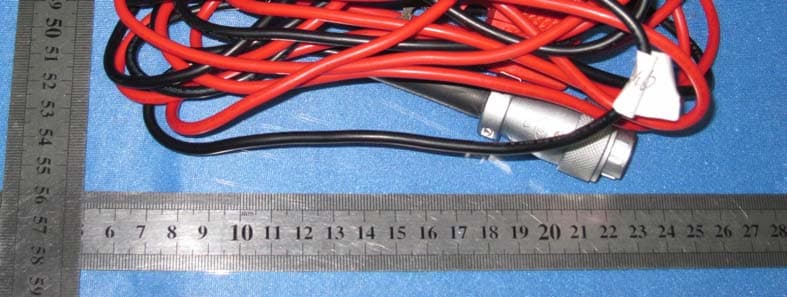

Test Setup Photos of the EUT
