YAMTC-508U1Two-way Radio

Preface Thank you for purchasing Hytera TC-508 portable radio. With simple appearance, reliable mechanics, practical functions and stable performance, it will refresh your communication experience! To derive optimum performance from your product, please read this manual and the supplied Safety Information Booklet carefully before use. TC-508 Owner’s Manual 1 Instructional Icons The following icons are available through this manual: Caution: indicates situations that could cause damage to your radio. Note: indicates tips that can help you make better use of your radio. Term Explanation Please pay your attention to the following key terms: Key Operation Short press: to press a key and release it quickly. Long press: to press and hold down a key for above 1 second. Hold down: to press a key and remain holding it down. User Mode Refers to the mode entered after you turn on the radio directly. CTCSS/CDCSS The signaling can help you prevent unwanted conversations at the same frequency. TC-508 Owner’s Manual 2 Copyright Information Hytera and HYT are trademarks or registered trademarks of Hytera Communications Co., Ltd. (“Hytera”) in PRC and/or other countries or areas. Hytera retains the ownership of its trademarks and product names. All other trademarks and/or product names that may be used in this manual are properties of their respective owners. The Hytera product described in this manual may include Hytera computer programs stored in memory or other media. Laws in PRC and/or other countries or areas protect the exclusive rights of Hytera with respect to its computer programs. The purchase of this product shall not be deemed to grant, either directly or by implication, any rights to the purchaser regarding Hytera computer programs. Any Hytera computer programs may not be copied, modified, distributed, decompiled, or reverse-engineered in any manner without the prior written consent of Hytera. Disclaimer Hytera endeavors to achieve the accuracy and completeness of this manual, but no warranty of accuracy or reliability is given. All the specifications and designs are subject to change without prior notice due to continuous technology development. No part of this manual may be copied, modified, translated, or distributed in any manner without the express written permission of Hytera. If you have any suggestions or would like to learn more details, please visit our website at: http://www.hytera.cn . RF Radiation Information RF Radiation Profile Radio Frequency (RF) is a frequency of electromagnetic radiation in the range at which radio signals are transmitted. RF technology is widely used in communication, medicine, food processing and other fields. It may generate radiation during use. RF Radiation Safety In order to ensure user health, experts from relevant industries including science, engineering, medicine and health work with international organizations to develop standards for safe exposure to RF radiation. These standards consist of: TC-508 Owner’s Manual 3 ¾ United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J; ¾ American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992; ¾ Institute of Electrical and Electronic Engineers (IEEE) C95. 1 – 1999; ¾ International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998; FCC Regulations Federal Communication Commission (FCC) requires that all radio communication products should meet the requirements set forth in the above standards before they can be marketed in the U.S, and the manufacturer shall post a RF label on the product to inform users of operational instructions, so as to enhance their occupational health against exposure to RF energy. As a conscientious company centering on users, Hytera strictly complies with the foregoing requirements from design, production and test. EU Regulatory Conformance The product is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/EC. Note: The above information is applicable to EU countries only. Operational Instructions and Training Guidelines ● To ensure optimal performance and compliance with the occupational/controlled environment RF energy exposure limits in the above standards and guidelines, users should transmit no more than 50% of the time and always adhere to the following procedures; and should transmit no more than 50% of the time, although the hardware support transmission up to 100% of the time in analog mode. ● The radio is not intended for use by general population in an uncontrolled environment. It is only for occupational use and only applied to work-related conditions.The radio must be only used by users, who are fully aware of the hazards of the exposure and who are able to exercise control over their RF exposure to qualify for the higher exposure limits. TC-508 Owner’s Manual 4 Contents Checking Items in the Package ................................................................................................................ 5 Product Overview ..................................................................................................................................... 6 Product Controls ............................................................................................................................... 6 Programmable Keys .......................................................................................................................... 7 Before Use ............................................................................................................................................... 8 Charging the Battery ......................................................................................................................... 8 Assembling the Accessories .............................................................................................................. 9 Status Indication ...........…

Text truncated - open the document above for the full version.

Hytera Communications Corporation Ltd. Frequency Attestation Letter DATE: Apr 17, 2012 FCC ID: YAMTC-508U1 Model: TC-508 U(1) Dear Sir/Madam, We, Hytera Communications Corporation Ltd. acknowledge that this device can use the frequency bands 400-406MHz and 406.1-470MHz in USA. Sincerely yours, Hytera Communications Corporation Ltd. Xiong Lei/ Director of management dept Fax: +86 755 8613 7130 Tel: +86 755 2697 2999 E-mail:[email protected]

Hytera Communications Corporation Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Hytera Communications Corporation Ltd. would like the following documents regarding this submission for FCC ID: YAMTC-508U1 to be kept confidential. 1. Block Diagram 2. Schematic 3. Theory of Operation 4. Part List 5. Tune-Up Procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely yours, Hytera Communications Corporation Ltd. Xiong Lei/ Director of management dept Fax: +86 755 8613 7130 Tel: +86 755 2697 2999 E-mail:[email protected]

Justification Letter DATE: Apr 17, 2012 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Colombia, Maryland 21046 FCC ID: YAMTC-508U1 Model: TC-508 U(1) Dear Sir/Madam, We , Hytera Communications Corporation Ltd. acknowledge that this device will not be marketed to USA users with the frequency band which is not allowed by rule part 90.and it is a violation of FCC rules if this device is operated on unauthorised frequencies inside the U.S.A. We , Hytera Communications Corporation Ltd. acknowledge this equipment meets the requirements of FCC Rules, Parts 90.203 (e) and (g) as applicable. Programming of this product's transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personnel. The operator cannot program transmit frequencies using the equipment's external operation. Sincerely yours, Hytera Communications Corporation Ltd. Xiong Lei/ Director of management dept Fax: +86 755 8613 7130 Tel: +86 755 2697 2999 E-mail:[email protected]

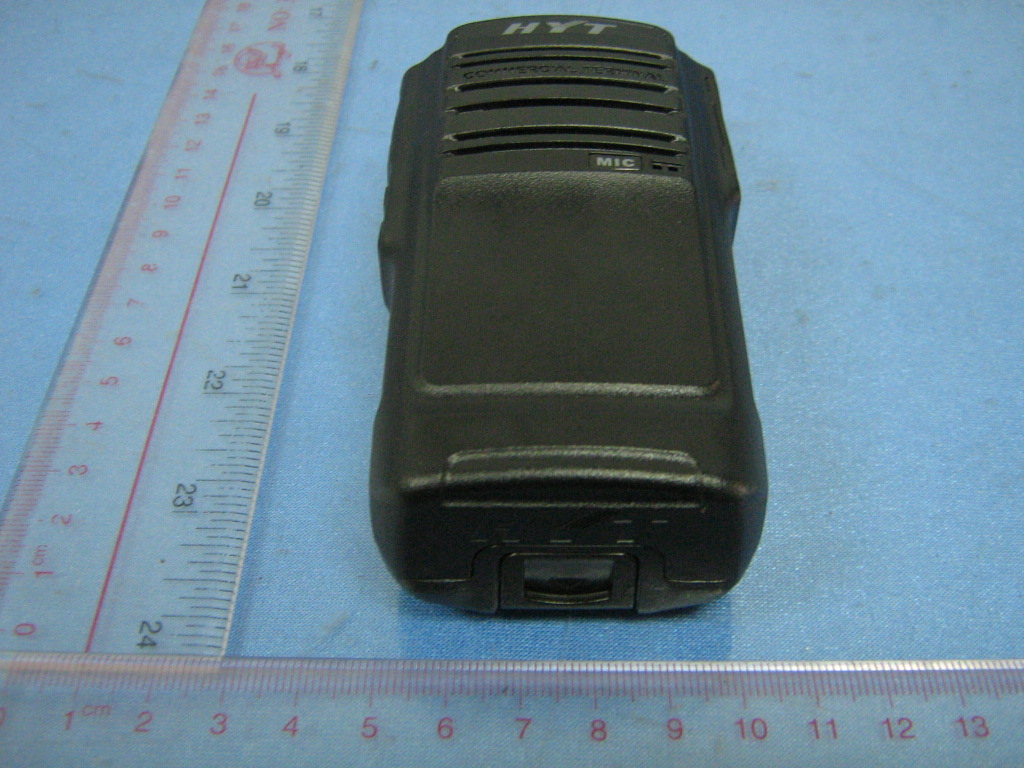

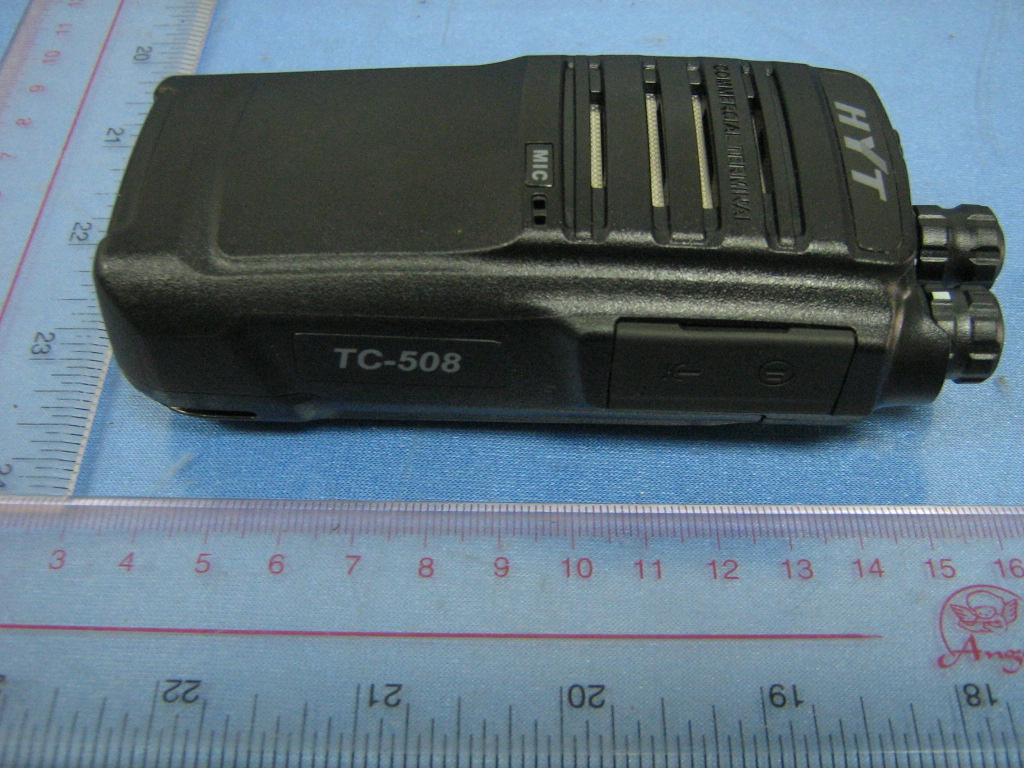

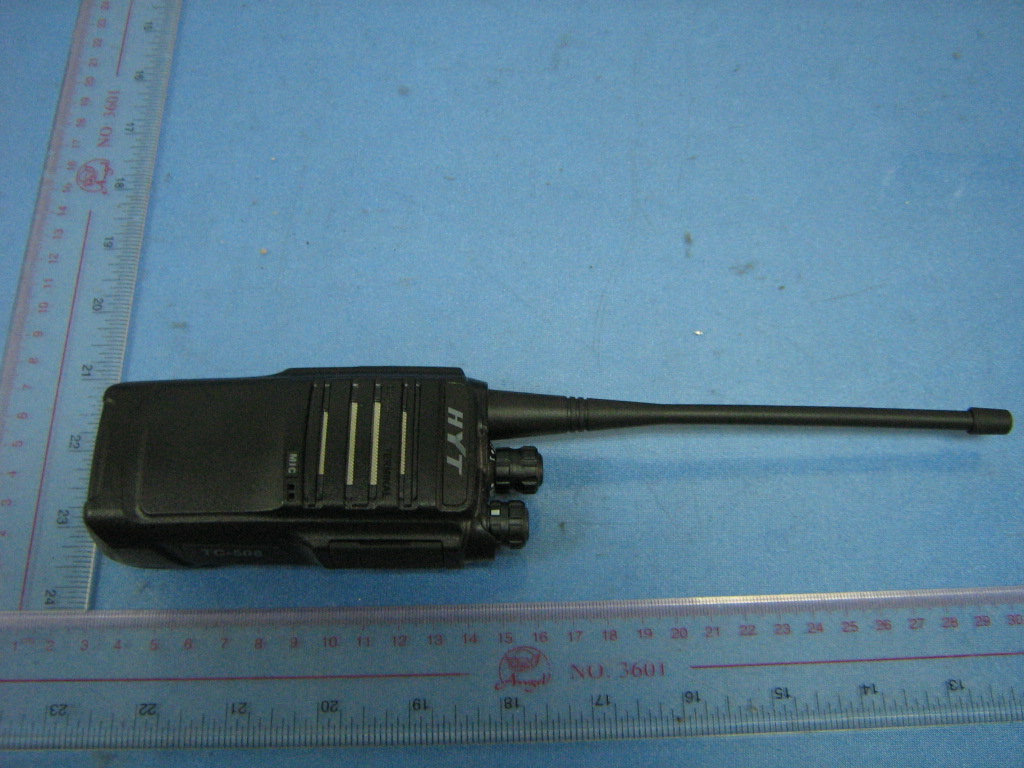

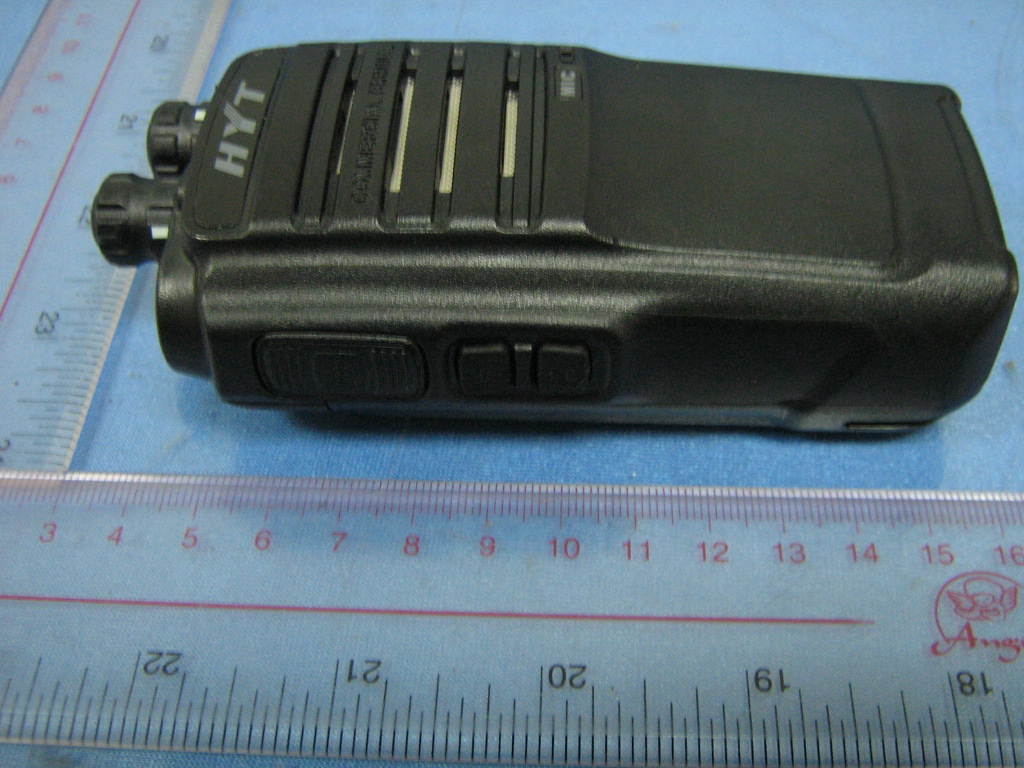

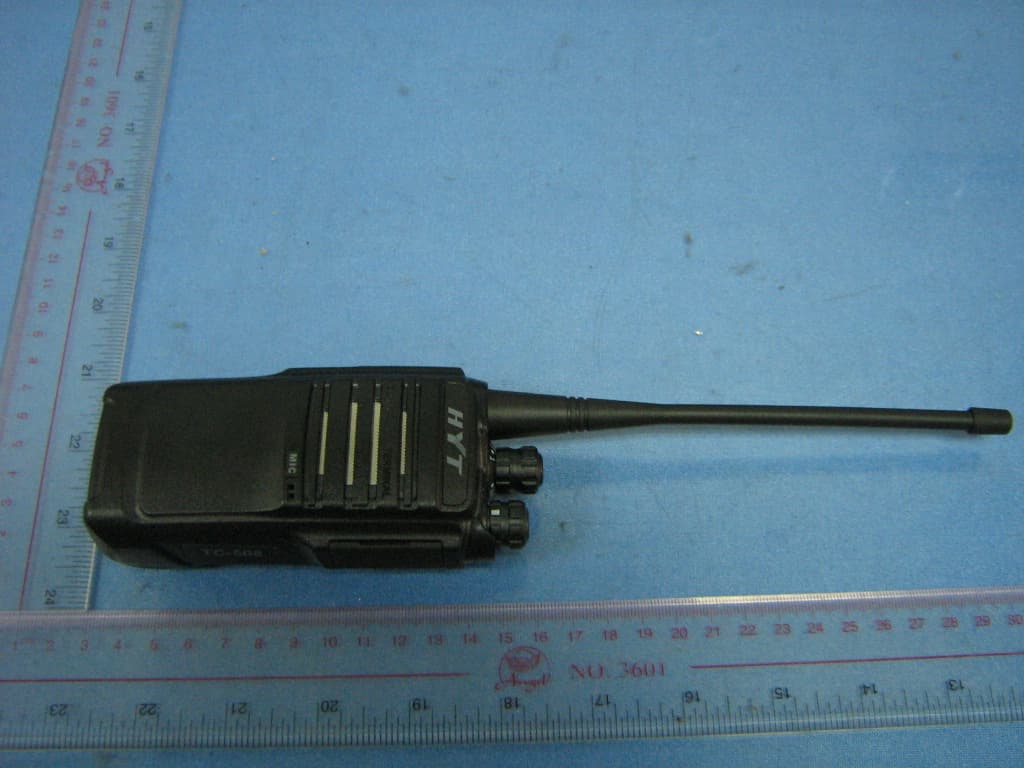

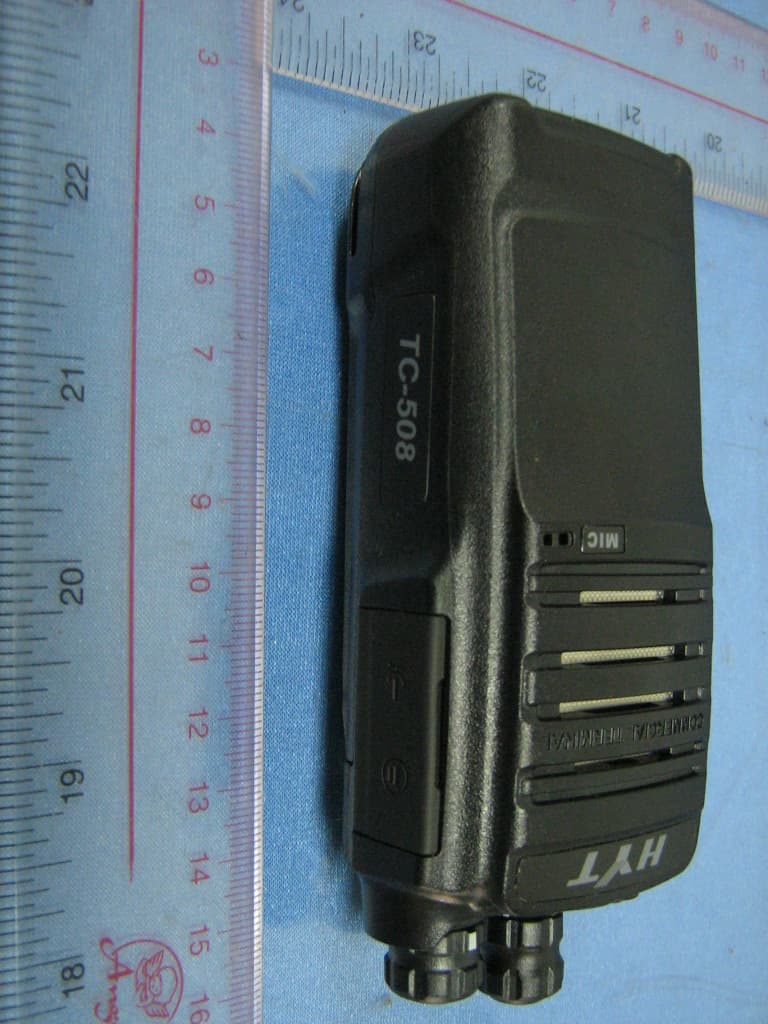

External photos of the EUT

FCC Label FCC RF Warning Label

Internal photos of the EUT

FCC PART 90 TEST REPORT FCC Part 90 Report Reference No. ..................... : FCC ID. ............................................. : TRE12020033 YAMTC-508U1 Compiled by ( position+printed name+signature) .. : File administrators Tim Zhang Supervised by ( position+printed name+signature) .. : Test Engineer Eric Zhang Approved by ( position+printed name+signature) .. : Manager Wenliang Li Date of issue ..................................... : Apr 01, 2012 Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd Address............................................. : Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name ............................ : Hytera Communications Corporation Ltd. Address............................................. : HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Test specification: Standard ........................................... : FCC Part 90: PRIVATE LAND MOBILE RADIO SERVICES TRF Originator .................................. : Shenzhen Huatongwei International Inspection CO., Ltd Master TRF ....................................... : Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Two-way Radio Trade Mark ....................................... : Manufacturer .................................... : Hytera Communications Corporation Ltd. Model/Type reference ....................... : TC-508 U(1) Listed Models .................................. : / Ratings.............................................. : DC 7.40 V Modulation ....................................... : FM Channel Separation ........................... 12.5KHz Rated Power ..................................... 4 Watts(36.02dBm)/2 Watts(33.00dBm) Operation Frequency Range ............. From 400MHz to 470MHz Result ................................................ : Positive Report No.: TRE12020033 Page 2 of 74 Issued: 2012-04-01 FCC ID: YAMTC-508U1 T E S T R E P O R T Test Report No. : TRE12020033 Apr 01, 2012 ______________________________________________________________________________________________ Date of issue Equipment under Test : Two-way Radio Model /Type : TC-508 U(1) Listed Models : / Applicant : Hytera Communications Corporation Ltd. Address : HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Manufacturer : Hytera Communications Corporation Ltd. Address : HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE12020033 Page 3 of 74 Issued: 2012-04-01 FCC ID: YAMTC-508U1 Contents 1. TEST STANDARDS 4 2. SUMMARY 5 2.1. General Remarks 5 2.2. Product Description 5 2.3. Equipment under Test 5 2.4. Short description of the Equipment under Test (EUT) 5 2.5. EUT Configuration 6 2.6. EUT operation mode 6 2.7. EUT configuration 6 2.8. Related Submittal(s) / Grant (s) 6 2.9. Modifications 6 2.10. Note 6 3. TEST ENVIRONMENT 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 8 3.4. Configuration of Tested System 8 3.5. Discription of Tested Modes 8 3.6. Statement of the measurement uncertainty 8 3.7. Test Description 9 3.8. Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS 11 4.1. Conducted Emissions Test 11 4.2. Occupied Bandwidth and Emission Mask Test 14 4.3. Transmitter Radiated Spurious Emssion 23 4.4. Spurious Emssion on Antenna Port 28 4.5. Modulation Charcateristics 40 4.6. Frequency Stability Test 43 4.7. Maximum Transmitter Power 45 4.8. Transmitter Frequency Behavior 51 4.9. Receiver Radiated Spurious Emssion 53 4.10. Receiver Conducted Spurious Emssion 59 5. TEST SETUP PHOTOS OF THE EUT 65 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT 69 Report No.: TRE12020033 Page 4 of 74 Issued: 2012-04-01 FCC ID: YAMTC-508U1 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 90: PRIVATE LAND MOBILE RADIO SERVICES. TIA/EIA 603: Land Mobile FM or PM Communications Equipment Measurement and Performance Standards. 47 CFR FCC Part 15 Subpart B - Unintentional Radiators FCC Part 2: FREQUENCY ALLOCA-TIONS AND RADIO TREATY MAT-TERS; GENERAL RULES AND REG-ULATIONS Report No.: TRE12020033 Page 5 of 74 Issued: 2012-04-01 FCC ID: YAMTC-508U1 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Feb 10, 2012 Testing commenced on : Feb 10, 2012 Testing concluded on : Apr 01, 2012 2.2. Product Description The Hytera Communications Corporation Ltd.’s Model: TC-508 U(1) or the “EUT” as referred to in this report; more general information as follows, for more details, refer to the user’s manual of the EUT. Name of EUT Two-way Radio Model Number TC-508 U(1) FCC ID YAMTC-508U1 Rated Output Power 4 Watts(36.02dBm)/2 Watts(33.00dBm) Modilation Type FM for Analog Voice Analog 11K0F3E for 12.5KHz Channel Separation Channel Separation Analog Voice 12.5KHz Antenna Type External Frequency Range From 400 MHz to 470 MHz Maximum Output Power Analog 4.80W for 12.5 KHz Channel Separation 2.3. Equipment under Test Power supply system utilised Power supply voltage : ○ 120V / 60 Hz ○ 115V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 7.40V from battery Test frequency list Modulation Type Test Channel Test Frequency Analog/FM …

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0163SAR01 Page 1 of 71 TESTING No. L2264 OET 65 TEST REPORT Product Name TWO-WAY RADIO Model TC-508 U(1) FCC ID YAMTC-508U1 Client Hytera Communications Co.,Ltd. TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0163SAR01 Page 2 of 71 GENERAL SUMMARY Product Name TWO-WAY RADIO Model TC-508 U(1) FCC ID YAMTC-508U1 Report No. RZA1202-0163SAR01 Client Hytera Communications Co.,Ltd. Manufacturer Hytera Communications Co.,Ltd. Reference Standard(s) IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 KHz to 300 GHz. IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438 June 19, 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emission 447498 D01 Mobile Portable RF Exposure v04 : Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies. KDB 643646 D01 SAR Test for PTT Radios v01r01: SAR Test Reduction Considerations for Occupational PTT Radios. Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: April 26 th , 2012 Comment The test result only responds to the measured sample. Approved by Director Revised by SAR Manager Performed by SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0163SAR01 Page 3 of 71 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the Test Report.......................................................................................................5 1.2. Testing Laboratory ................................................................................................................ 5 1.3. Applicant Information ............................................................................................................ 6 1.4. Manufacturer Information ...................................................................................................... 6 1.5. Information of EUT................................................................................................................ 7 1.6. The Maximum SAR 1g Values ................................................................................................ 8 1.7. Test Date .............................................................................................................................. 8 2. SAR Measurements System Configuration .................................................................................. 9 2.1. SAR Measurement Set-up .................................................................................................... 9 2.2. DASY5 E-field Probe System ............................................................................................. 10 2.2.1. EX3DV4 Probe Specification ....................................................................................... 10 2.2.2. E-field Probe Calibration .............................................................................................. 11 2.3. Other Test Equipment ......................................................................................................... 11 2.3.1. Device Holder for Transmitters .................................................................................... 11 2.3.2. Phantom...................................................................................................................... 12 2.4. Scanning Procedure........................................................................................................... 12 2.5. Data Storage and Evaluation .............................................................................................. 14 2.5.1. Data Storage................................................................................................................ 14 2.5.2. Data Evaluation by SEMCAD ...................................................................................... 14 3. Laboratory Environment............................................................................................................. 16 4. Tissue-equivalent Liquid ............................................................................................................ 17 4.1. Tissue-equivalent Liquid Ingredients................................................................................... 17 4.2. Dielectric Performance........................................................................................................ 18 5. System Check ............................................................................................................................ 19 5.1. Description of System Check .............................................................................................. 19 5.2. System Check Results ........................................................................................................ 20 6. Operational Conditions during Test ............................................................................................ 21 6.1. Test Positions...................................................................................................................... 21 6.1.1. Face-Held Configuration ...............................................................…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0163SAR01 Page 57 of 71 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0163SAR01 Page 58 of 71 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0163SAR01 Page 59 of 71 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0163SAR01 Page 60 of 71 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0163SAR01 Page 61 of 71 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0163SAR01 Page 62 of 71 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0163SAR01 Page 63 of 71 ANNEX F: DAE4 Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0163SAR01 Page 64 of 71 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0163SAR01 Page 65 of 71 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0163SAR01 Page 66 of 71 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0163SAR01 Page 67 of 71 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0163SAR01 Page 68 of 71 ANNEX G: The EUT Appearances and Test Configuration a: EUT TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0163SAR01 Page 69 of 71 b: Battery Picture 3: Constituents of the sample TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0163SAR01 Page 70 of 71 Picture 4: Face-held, the front of the EUT towards phantom, the distance from the EUT Antenna to the bottom of the Phantom is 35mm 25mm 35mm TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA1202-0163SAR01 Page 71 of 71 Picture 5: Body-worn, the front of the EUT towards ground, Belt clip directed tightly to touch the bottom of the flat phantom,the distance from the EUT Antenna to the bottom of the Phantom is 27mm 27mm

Test setup photos of the EUT
