YAMTC-508V2Two-way Radio

Preface Thank you for purchasing Hytera TC-508 portable radio. With simple appearance, reliable mechanics, practical functions and stable performance, it will refresh your communication experience! To derive optimum performance from your product, please read this manual and the supplied Safety Information Booklet carefully before use. TC-508 Owner’s Manual 1 Instructional Icons This radio is not intended for use by general population in an uncontrolled environment. It is only for occupational use and only applied to work-related conditions. The radio must be only used by users, who are fully aware of the hazards of the exposure and who are able to exercise control over their RF exposure to qualify for the higher exposure limits. The following icons are available through this manual: Caution: indicates situations that could cause damage to your radio. Note: indicates tips that can help you make better use of your radio. Term Explanation Please pay your attention to the following key terms: Key Operation Short press: to press a key and release it quickly. Long press: to press and hold down a key for above 1 second. Hold down: to press a key and remain holding it down. User Mode Refers to the mode entered after you turn on the radio directly. CTCSS/CDCSS The signaling can help you prevent unwanted conversations at the same frequency. TC-508 Owner’s Manual 2 Copyright Information Hytera and HYT are trademarks or registered trademarks of Hytera Communications Co., Ltd. (“Hytera”) in PRC and/or other countries or areas. Hytera retains the ownership of its trademarks and product names. All other trademarks and/or product names that may be used in this manual are properties of their respective owners. The Hytera product described in this manual may include Hytera computer programs stored in memory or other media. Laws in PRC and/or other countries or areas protect the exclusive rights of Hytera with respect to its computer programs. The purchase of this product shall not be deemed to grant, either directly or by implication, any rights to the purchaser regarding Hytera computer programs. Any Hytera computer programs may not be copied, modified, distributed, decompiled, or reverse-engineered in any manner without the prior written consent of Hytera. Disclaimer Hytera endeavors to achieve the accuracy and completeness of this manual, but no warranty of accuracy or reliability is given. All the specifications and designs are subject to change without prior notice due to continuous technology development. No part of this manual may be copied, modified, translated, or distributed in any manner without the express written permission of Hytera. If you have any suggestions or would like to learn more details, please visit our website at: http://www.hytera.cn . TC-508 Owner’s Manual 3 RF Energy Exposure Compliance ● Your radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE and ICNIRP exposure limits for occupational/controlled RF exposure environment at operating duty factors of up to 50% transmitting and is authorized by the FCC for occupational use only. In terms of measuring RF energy for compliance with the FCC exposure guidelines, your radio radiates measurable RF energy only while it is transmitting (during talking in VOX and PTT mode), not when it is receiving (listening) or in standby mode. ● The device complies with SAR and/or RF field strength limits of RSS-102 requirement and contact information where the user can obtain Canadian information on RF exposure and compliance. Your radio complies with the following of RF energy exposure standards and guidelines ● United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J ● American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 ● Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1999 Edition ● International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998  Operational Instructions and Training Guidelines To ensure optimal performance and compliance with the occupational/controlled environment RF energy exposure limits in the above standards and guidelines, users should transmit no more than 50% of the time and always adhere to the following procedures: Transmit and Receive To transmit (talk), push the Push-To-Talk (PTT) key; to receive, release the PTT key. EU Regulatory Conformance The equipment is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/EC. Note: The above information is applicable to EU countries only. TC-508 Owner’s Manual 4 FCC Licensing Information Part 15 Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Licensing Requirements A license from Federal Communications Commission is r…

Text truncated - open the document above for the full version.

Hytera Communications Corporation Ltd. FCC ID: YAMTC-508V2 DATE: November 05, 2010 To whom it may concern: We the undersigned, hereby authorize Shenzhen Huatongwei International Inspection Co., Ltd to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Shenzhen Huatongwei International Inspection Co., Ltd on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Hytera Communications Corporation Ltd. Sincerely yours, Hytera Communications Corporation Ltd. Xiong Lei/ Director of management dept Fax: +86 755 8613 7130 Tel: +86 755 2697 2999 E-mail:[email protected]

Hytera Communications Corporation Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Hytera Communications Corporation Ltd. would like the following documents regarding this submission for FCC ID: YAMTC-508V2 to be kept confidential. 1. Block Diagram 2. Schematic 3. Theory of Operation 4. Tune-Up Procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely yours, Hytera Communications Corporation Ltd. Xiong Lei/ Director of management dept Fax: +86 755 8613 7130 Tel: +86 755 2697 2999 E-mail:[email protected]

Justification Letter DATE: November 05, 2010 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Colombia, Maryland 21046 FCC ID: YAMTC-508V2 Model: TC-508 V(2) Dear Sir/Madam, We , Hytera Communications Corporation Ltd. acknowledge that this device will not be marketed to USA users with the frequency band which is not allowed by rule part 90.and it is a violation of FCC rules if this device is operated on unauthorised frequencies inside the U.S.A. We , Hytera Communications Corporation Ltd. acknowledge this equipment meets the requirements of FCC Rules, Parts 90.203 (e) and (g) as applicable. Programming of this product's transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personnel. The operator cannot program transmit frequencies using the equipment's external operation. Sincerely yours, Hytera Communications Corporation Ltd. Xiong Lei/ Director of management dept Fax: +86 755 8613 7130 Tel: +86 755 2697 2999 E-mail:[email protected]

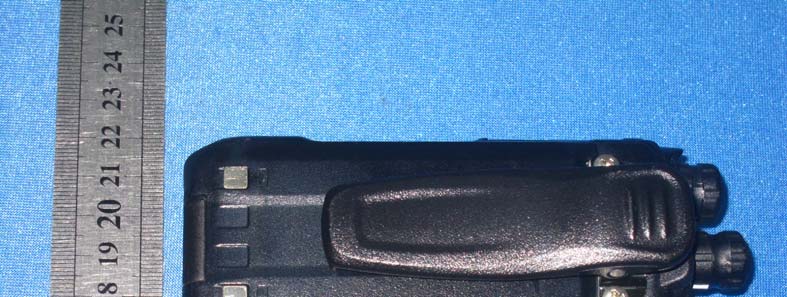

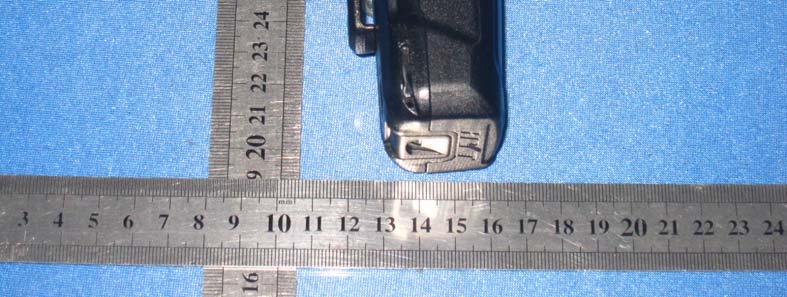

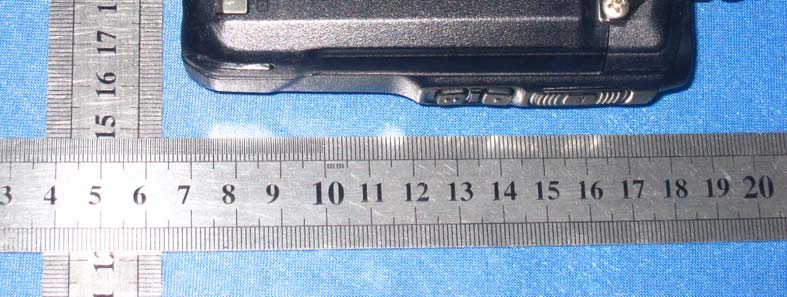

External photos of the EUT

FCC Label FCC RF Warning Label

Internal photos of the EUT

No.Part No.DescriptionQty. Ref No. Print No. 13001050000000 Chip resistor 0Ω J 1/16W (RoHS)1C129T3G 23001050000000 Chip resistor 0Ω J 1/16W (RoHS)1C410T3F 33001050000000 Chip resistor 0Ω J 1/16W (RoHS)1C536T2F 43001050000000 Chip resistor 0Ω J 1/16W (RoHS)1C603T3E 53001050000000 Chip resistor 0Ω J 1/16W (RoHS)1R103T5I 63001050000000 Chip resistor 0Ω J 1/16W (RoHS)1R128T5H 73001050000000 Chip resistor 0Ω J 1/16W (RoHS)1R207B2H 83001050000000 Chip resistor 0Ω J 1/16W (RoHS)1R222B5I 93001050000000 Chip resistor 0Ω J 1/16W (RoHS)1R441T4F 103001050000000 Chip resistor 0Ω J 1/16W (RoHS)1R442B3E 113001050000000 Chip resistor 0Ω J 1/16W (RoHS)1R511T3E 123001050000000 Chip resistor 0Ω J 1/16W (RoHS)1R533T2G 133001050000000 Chip resistor 0Ω J 1/16W (RoHS)1R606B5I 143001051000020 Chip resistor 10Ω F 1/16W (RoHS)1R105T4G 153001051000020 Chip resistor 10Ω F 1/16W (RoHS)1R108T4I 163001051000020 Chip resistor 10Ω F 1/16W (RoHS)1R111T5I 173001051000020 Chip resistor 10Ω F 1/16W (RoHS)1R114T3G 183001051000020 Chip resistor 10Ω F 1/16W (RoHS)1R315B1A 193001051000020 Chip resistor 10Ω F 1/16W (RoHS)1R408T5F 203001051000020 Chip resistor 10Ω F 1/16W (RoHS)1R516T1F 213001051000020 Chip resistor 10Ω F 1/16W (RoHS)1R530T2J 223001051000020 Chip resistor 10Ω F 1/16W (RoHS)1R531T3I 233001051000020 Chip resistor 10Ω F 1/16W (RoHS)1R534T3J 243001051010040 Chip resistor 100Ω F 1/16W (RoHS)1R101T4I 253001051010040 Chip resistor 100Ω F 1/16W (RoHS)1R131T4G 263001051010040 Chip resistor 100Ω F 1/16W (RoHS)1R429T3F 273001051010040 Chip resistor 100Ω F 1/16W (RoHS)1R604B4I 283001051010040 Chip resistor 100Ω F 1/16W (RoHS)1R605B4A 293001051010040 Chip resistor 100Ω F 1/16W (RoHS)1R614B1C 303001051010040 Chip resistor 100Ω F 1/16W (RoHS)1R623B2I 313001051020000 Chip resistor 1KΩ F 1/16W (RoHS)1R109T5H 323001051020000 Chip resistor 1KΩ F 1/16W (RoHS)1R121T4I 333001051020000 Chip resistor 1KΩ F 1/16W (RoHS)1R124T4F 343001051020000 Chip resistor 1KΩ F 1/16W (RoHS)1R211T1D 353001051020000 Chip resistor 1KΩ F 1/16W (RoHS)1R214B1H 363001051020000 Chip resistor 1KΩ F 1/16W (RoHS)1R310B2D 373001051020000 Chip resistor 1KΩ F 1/16W (RoHS)1R313B3D 383001051020000 Chip resistor 1KΩ F 1/16W (RoHS)1R319B1I 393001051020000 Chip resistor 1KΩ F 1/16W (RoHS)1R322B2E 403001051020000 Chip resistor 1KΩ F 1/16W (RoHS)1R327B1I 413001051020000 Chip resistor 1KΩ F 1/16W (RoHS)1R609T2D 423001051020000 Chip resistor 1KΩ F 1/16W (RoHS)1R621B2B 433001051020000 Chip resistor 1KΩ F 1/16W (RoHS)1R626T2E 443001051020000 Chip resistor 1KΩ F 1/16W (RoHS)1R644T2I 453001051020000 Chip resistor 1KΩ F 1/16W (RoHS)1R683T1D 463001051020000 Chip resistor 1KΩ F 1/16W (RoHS)1R684T5F 473001051020000 Chip resistor 1KΩ F 1/16W (RoHS)1R690B4J 483001051020000 Chip resistor 1KΩ F 1/16W (RoHS)1R691B4J 493001051020000 Chip resistor 1KΩ F 1/16W (RoHS)1R692B3J 503001051020000 Chip resistor 1KΩ F 1/16W (RoHS)1R693B3J 513001051030010 Chip resistor 10KΩ F 1/16W (RoHS)1R107T4H 523001051030010 Chip resistor 10KΩ F 1/16W (RoHS)1R219B2F 533001051030010 Chip resistor 10KΩ F 1/16W (RoHS)1R314B1I 543001051030010 Chip resistor 10KΩ F 1/16W (RoHS)1R413T3F 553001051030010 Chip resistor 10KΩ F 1/16W (RoHS)1R428B4E 563001051030010 Chip resistor 10KΩ F 1/16W (RoHS)1R430T3G 573001051030010 Chip resistor 10KΩ F 1/16W (RoHS)1R433T3F 583001051030010 Chip resistor 10KΩ F 1/16W (RoHS)1R554T3I 593001051030010 Chip resistor 10KΩ F 1/16W (RoHS)1R616B2I 603001051030010 Chip resistor 10KΩ F 1/16W (RoHS)1R617B2I 613001051030010 Chip resistor 10KΩ F 1/16W (RoHS)1R627B1G 623001051030010 Chip resistor 10KΩ F 1/16W (RoHS)1R634B1G 633001051030010 Chip resistor 10KΩ F 1/16W (RoHS)1R650B2H 643001051030010 Chip resistor 10KΩ F 1/16W (RoHS)1R654B1G 653001051040000 Chip resistor 100KΩ F 1/16W (RoHS)1R106T4G 663001051040000 Chip resistor 100KΩ F 1/16W (RoHS)1R113T5G 673001051040000 Chip resistor 100KΩ F 1/16W (RoHS)1R120T4I 683001051040000 Chip resistor 100KΩ F 1/16W (RoHS)1R205B2H 693001051040000 Chip resistor 100KΩ F 1/16W (RoHS)1R513T3E 703001051040000 Chip resistor 100KΩ F 1/16W (RoHS)1R521T2E 713001051040000 Chip resistor 100KΩ F 1/16W (RoHS)1R522T3E 723001051040000 Chip resistor 100KΩ F 1/16W (RoHS)1R526T2F 733001051040000 Chip resistor 100KΩ F 1/16W (RoHS)1R603B5I 743001051050000 Chip resistor 1MΩ F 1/16W (RoHS)1R218B2F 753001051050000 Chip resistor 1MΩ F 1/16W (RoHS)1R405B4E 763001051050000 Chip resistor 1MΩ F 1/16W (RoHS)1R435B3E 773001051050000 Chip resistor 1MΩ F 1/16W (RoHS)1R501T2H 783001051050000 Chip resistor 1MΩ F 1/16W (RoHS)1R648B1G 793001051230010 Chip resistor 12KΩ F 1/16W (RoHS)1R512T3E 803001051230010 Chip resistor 12KΩ F 1/16W (RoHS)1R544T3J 813001051240010 Chip resistor 120KΩ F 1/16W (RoHS)1R632B5H 823001051520000 Chip resistor 1.5KΩ J 1/16W (RoHS)1R440T4F 833001051530010 Chip resistor 15KΩ F 1/16W (RoHS)1R543T4J 843001051540000 Chip resistor 150KΩ F 1/16W (RoHS)1R125T5J 853001051540000 Chip resistor 150KΩ F 1/16W (RoHS)1R129T3G 863001051540000 Chip resistor 150KΩ F 1/16W (RoHS)1R545T3J 873001051540000 Chip resistor 150KΩ F 1/16W (RoHS)1R558T3I 883001051540000 Chip resistor 150KΩ F 1/16W (RoHS)1R651B1F 893001052210010 Chip resistor 220Ω F 1/16W (RoHS)1R201B1F 903001052210010 Chip resistor 220Ω F 1/16W (RoHS)1R519T3E 913001052210010 Chip resistor 220Ω F 1/16W (RoHS)1R537T2G 923001052220010 Chip resistor 2.2KΩ F 1/16W (RoHS)1R202B1F 933001052220010 Chip resistor 2.2KΩ F 1/16W (RoHS)1R216B1G 943001052220010 Chip resistor 2.2KΩ F 1/16W (RoHS)1R414T4E 953001052220010 Chip resistor 2.2KΩ F 1/16W (RoHS)1R507T2H 963001052220010 Chip resistor 2.2KΩ F 1/16W (RoHS)1R510T3J 973001052230010 Chip resistor 22KΩ J 1/16W (RoHS)1R215B1G 983001052240010 Chip resistor 220KΩ F 1/16W (RoHS)1R562T2I 993001052240010 Chip resistor 220KΩ F 1/16W (RoHS)1R602B5I 1003001052240010 Chip resistor 220KΩ F 1/16W (RoHS)1R649B1H 1013001052710000 Chip resistor 270Ω F 1/16W (RoHS)1R445T3G 1023001052720010 Chip resistor 2.7KΩ F 1/16W (RoHS)1R206B4I 1033001052720010 Chip resistor 2.7KΩ F 1/16W (RoHS)1R502T3I 1043001052720010 Chip…

Text truncated - open the document above for the full version.

FCC PART 90 TEST REPORT FCC Part 90 Report Reference No......................: FCC ID..............................................: WE10110003 YAMTC-508V2 Compiled by ( position+printed name+signature)..: File administrators Eric Zhang Supervised by ( position+printed name+signature)..: Test Engineer Wenliang Li Approved by ( position+printed name+signature)..: Manager Jimmy Li Date of issue.....................................: Nov 15, 2010 Testing Laboratory Name..............: Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................: Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name............................: Hytera Communications Corporation Ltd. Address ............................................: HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Test specification: Standard ...........................................: FCC Part 90: PRIVATE LAND MOBILE RADIO SERVICES TRF Originator..................................: Shenzhen Huatongwei International Inspection CO., Ltd Master TRF.......................................: Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Two-way Radio Trade Mark .......................................: Model/Type reference.......................: TC-508 V(2) Listed Models ..................................: / Manufacturer Hytera Communications Corporation Ltd. Ratings .............................................: DC 7.40V Modulation .......................................: FM Channel Separation........................... 12.5KHz&25KHz Rated Power ..................................... 5Watts(36.99 dBm)/2Watts(33.01 dBm) Operation Frequency Range ............. From 146 MHz to 174 MHz Result................................................: Positive V1.0 Page 2 of 97 Report No.: WE10110003 FCC ID: YAMTC-508V2 T E S T R E P O R T Test Report No. : WE10110003 Nov 15, 2010 ______________________________________________________________________________________________ Date of issue Equipment under Test : Two-way Radio Model /Type : TC-508 V(2) Listed Models : / Applicant : Hytera Communications Corporation Ltd. Address : HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Manufacturer : Hytera Communications Corporation Ltd. Address : HYT Tower,Hi-Tech Industrial Park North,Nanshan District,Shenzhen China.518057 Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 97 Report No.: WE10110003 FCC ID: YAMTC-508V2 Contents 1. TEST STANDARDS 4 2. SUMMARY 5 2.1. General Remarks 5 2.2. Product Description 5 2.3. Equipment under Test 5 2.4. Short description of the Equipment under Test (EUT) 5 2.5. EUT Configuration 6 2.6. EUT operation mode 6 2.7. EUT configuration 6 2.8. Related Submittal(s) / Grant (s) 6 2.9. Modifications 6 2.10. Note 6 3. TEST ENVIRONMENT 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 8 3.4. Configuration of Tested System 8 3.5. Discription of Tested Modes 8 3.6. Statement of the measurement uncertainty 8 3.7. Test Description 9 3.8. Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS 11 4.1. Conducted Emissions Test 11 4.2. Occupied Bandwidth and Emission Mask Test 16 4.3. Transmitter Radiated Spurious Emssion 27 4.4. Spurious Emssion on Antenna Port 42 4.5. Modulation Charcateristics 56 4.6. Frequency Stability Test 61 4.7. Maximum Transmitter Power 63 4.8. Transmitter Frequency Behavior 70 4.9. Receiver Radiated Spurious Emssion 73 4.10. Receiver Conducted Spurious Emssion 79 5. TEST SETUP PHOTOS OF THE EUT 86 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT 89 V1.0 Page 4 of 97 Report No.: WE10110003 FCC ID: YAMTC-508V2 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 90: PRIVATE LAND MOBILE RADIO SERVICES. TIA/EIA 603: Land Mobile FM or PM Communications Equipment Measurement and Performance Standards. ANSI C63.4-2009 : American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. V1.0 Page 5 of 97 Report No.: WE10110003 FCC ID: YAMTC-508V2 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Nov 05, 2010 Testing commenced on : Nov 05, 2010 Testing concluded on : Nov 15, 2010 2.2. Product Description The Hytera Communications Corporation Ltd.’s Model: TC-508 V(2) or the “EUT” as referred to in this report; more general information as follows: Name of EUT Two-way Radio Model Number TC-508 V(2) FCC ID YAMTC-508V2 Rated Output Power 5Watts(36.99dBm)/2Watts(33.01dBm) Modilation Type FM for Analog Voice 16K0F3E for 25KHz Channel Separation Emission Designator Analog 11K0F3E for 12.5KHz Channel Separation Channel Separation Analog Voice 12.5KHz&25KHz Antenna Type External Frequency Range From 146 MHz to 174 MHz 5.40 W for 25 KHz Channel Separation Maximum Transmitter Power Analog 5.40 W for 12.5 KHz Channel Separation 2.3. Equipment under Test Power supply system utilised Power supply voltage : ○ 120V / 60 Hz ○ 115V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 7.40V from battery Test frequency list Modulation Type Test Channel Test Frequency Low Channel 146.1250 MHz Middle Channel 160.1250 MHz An…

Text truncated - open the document above for the full version.

Test setup photos of the EUT
