YAMX1PU2Digital Portable Radio

Preface Thanks for your favor in our product. To derive optimum performance from the product, please read this manual and the supplied Safety Information Booklet carefully before use. This manual is applicable to the following model: X1p U(2) 1 Instructional Icons The following icons are available through this manual: Alert Icons Caution: indicates situations that could cause damage to your product. Note: indicates tips that can help you make better use of your product. Function Icons : indicates functions that are available on digital channel only. : indicates functions that are available on analog channel only. Functions marked with no function icons are available on both analog and digital channels. Term Explanation Key Operation Short press: to press a key and release it quickly. Long press: to press a key and remain holding it down for a predefined period (2 seconds by default). Hold down: to press a key and remain holding it down. Private Call Private Call is a call initiated by a single user to another user. Group Call Group Call is a call initiated by a single user to a group. All Call All Call is a call initiated by a single user to all the other users on a channel. Squelch This technology can remove excessive background noises, improving your communication quality. 2 Copyright Information Hytera is the trademark or registered trademark of Hytera Communications Co., Ltd. (the Company) in PRC and/or other countries or areas. The Company retains the ownership of its trademarks and product names. All other trademarks and/or product names that may be used in this manual are properties of their respective owners. The product described in this manual may include the Company’s computer programs stored in memory or other media. Laws in PRC and/or other countries or areas protect the exclusive rights of the Company with respect to its computer programs. The purchase of this product shall not be deemed to grant, either directly or by implication, any rights to the purchaser regarding the Company’s computer programs. Any of the Company’s computer programs may not be copied, modified, distributed, decompiled, or reverse-engineered in any manner without the prior written consent of the Company. The AMBE+2 TM voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding technology is licensed solely for use within this product. The user of this technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code or in any other way convert the Object Code into a human readable form. U.S. Patent Nos. #6,912,495 B2, #6,199,037 B1, #5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365, #5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772, #5,247,579, #5,226,084 and #5,195,166. 3 Disclaimer The Company endeavors to achieve the accuracy and completeness of this manual, but no warranty of accuracy or reliability is given. All the specifications and designs are subject to change without notice due to continuous technology development. No part of this manual may be copied, modified, translated, or distributed in any manner without the express written permission of us. If you have any suggestions or would like to learn more details, please visit our website at: http://www.hytera.com . 4 RF Radiation Information The radio is not intended for use by general population in an uncontrolled environment. It is only for occupational use and only applied to work-related conditions. The radio must be only used by users, who are fully aware of the hazards of the exposure and who are able to exercise control over their RF exposure to qualify for the higher exposure limits. RF Radiation Profile Radio Frequency (RF) is a frequency of electromagnetic radiation in the range at which radio signals are transmitted. RF technology is widely used in communication, medicine, food processing and other fields. It may generate radiation during use. RF Radiation Safety In order to ensure user health, experts from relevant industries including science, engineering, medicine and health work with international organizations to develop standards for safe exposure to RF radiation. These standards consist of:  United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J;  American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992;  Institute of Electrical and Electronic Engineers (IEEE) C95. 1 – 1999;  International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998; FCC Regulations Federal Communication Commission (FCC) requires that all radio communication products should meet the requirements set forth in the above standards before they can be marketed in the U.S, and the manufacturer shall post a RF label on the product to inform users of operational instructions, so as to enhance their occupational health against exposure to RF energy. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular 5 installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct. The interference by one or more of the following measures: ● Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. ● Connect the…

Text truncated - open the document above for the full version.

Hytera Communications Corporation Ltd. Add: HYT Tower, Hi-Tech Industrial Park North, Nanshan District, Shenzhen China. 518057 Tel: +86-0755-26972999 Fax: +86-755-86137130 FCC Authorization 07/26/2013 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Hytera Communications Corporation Ltd., the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Lei Xiong General Director

Hytera Communications Corporation Ltd. Add: HYT Tower, Hi-Tech Industrial Park North, Nanshan District, Shenzhen China. 518057 Tel: +86-0755-26972999 Fax: +86-755-86137130 FCC Confidential Authorization 07/26/2012 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: YAM X1PU2 Purs uant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below:  Block Diagram--- (Long term)  Circuit Description--- (Long term)  Detailed Circuit Schematics of EUT--- (Long term)  Parts list--- (Long term)  Tune up procedure--- (Long term) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Signature: Lei Xiong General Director

Hytera Communications Corporation Ltd. HYT Tower, Hi-Tech Industrial Park North, Nanshan District, Shenzhen, China. 518057 Tel: +86-0755-26972999, Fax: +86-755-86137130 Date:2013-7-26 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Extended Frequencies Justification Dear Sir/Madam, The Radio with FCC ID: YAMX1PU2 was designed to operate in the frequency bands 450MHz-520MHz. To aid equipment authorization in other countries which accept the United States FCC Grant for Certification, Hytera Communications Corporation Ltd. is requesting that the FCC lists the frequencies 450MHz-520MHz. under FCC Rule Parts 22,74,80 and 90 on the FCC Grant. Hytera Communications Corporation Ltd. Attests that the radio will not be marketed to USA users with the frequency band which is not allowed by the rule part 22,74,80 and 90. Per the FCC’s KDB634817 guidance, as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. Also, equipment programming is the responsibility of Authorized Service Personnel, the radio complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Sincerely Yours, Signature: Lei Xiong General Director

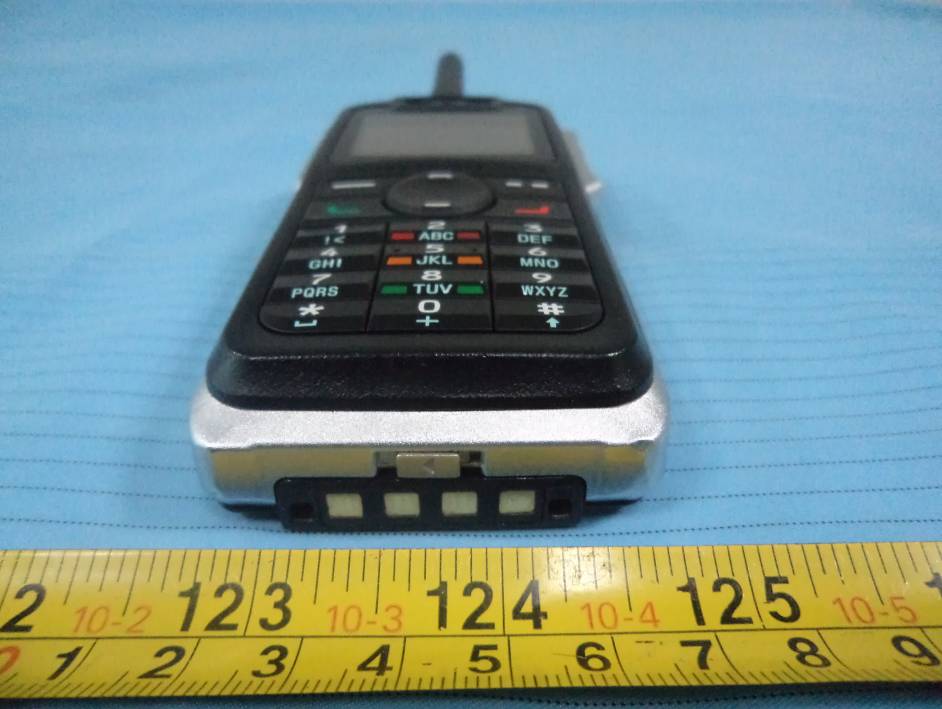

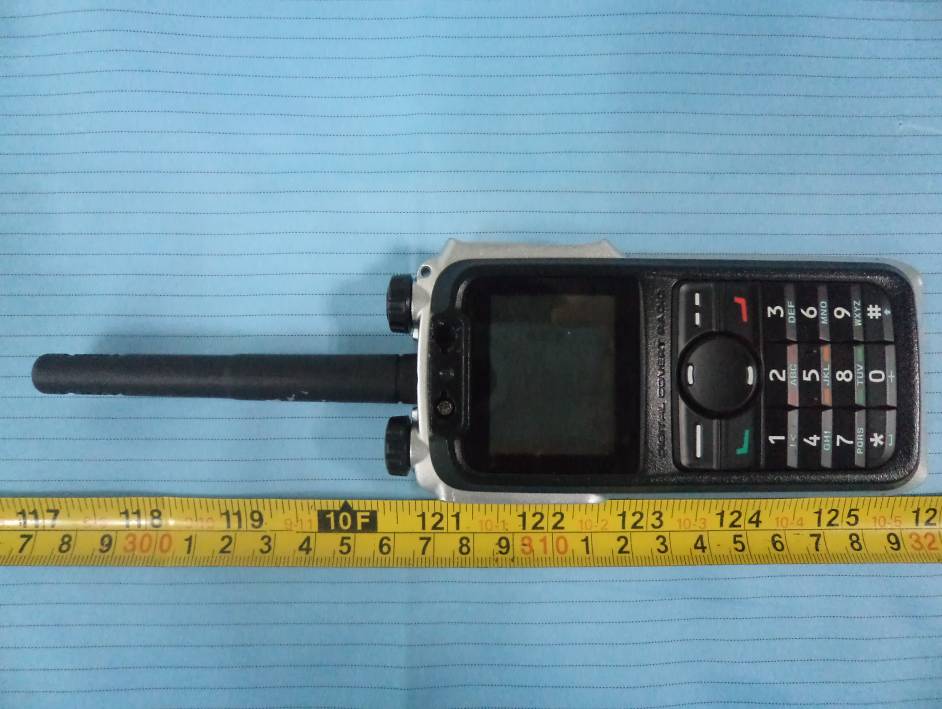

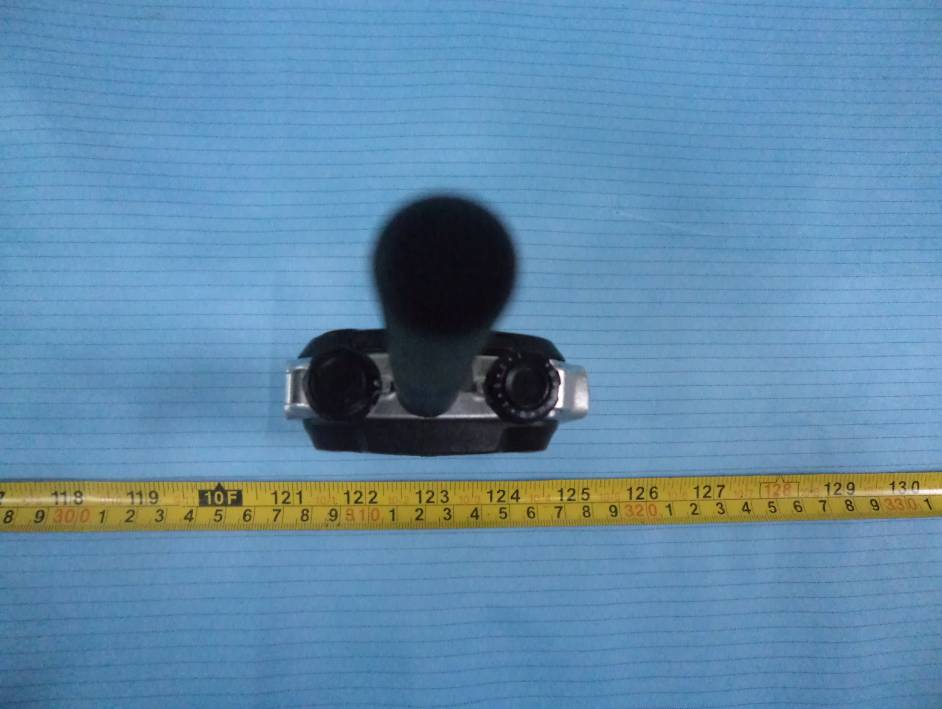

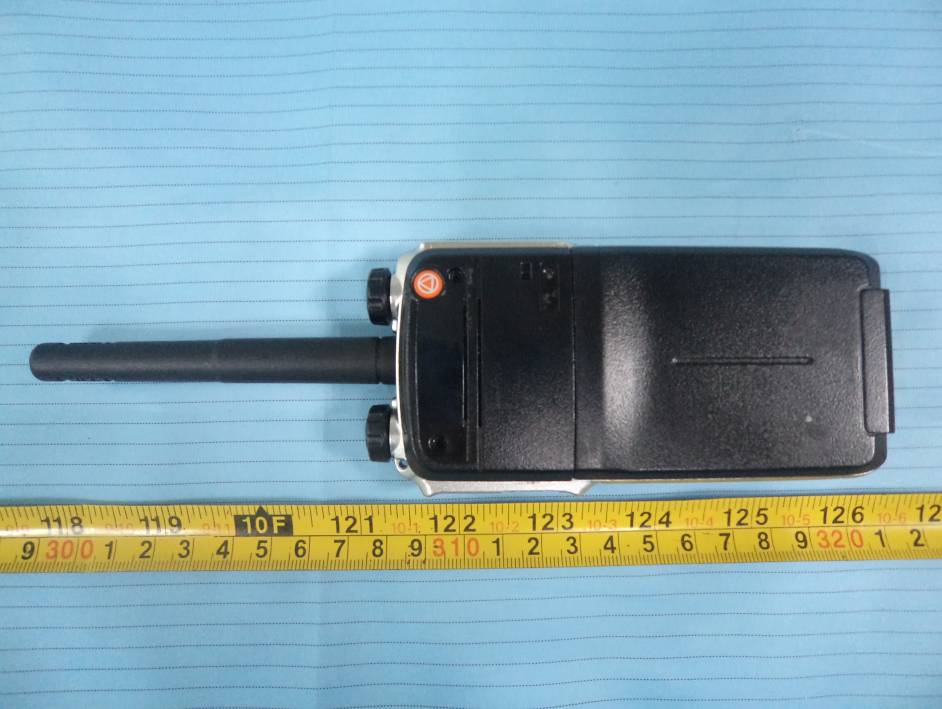

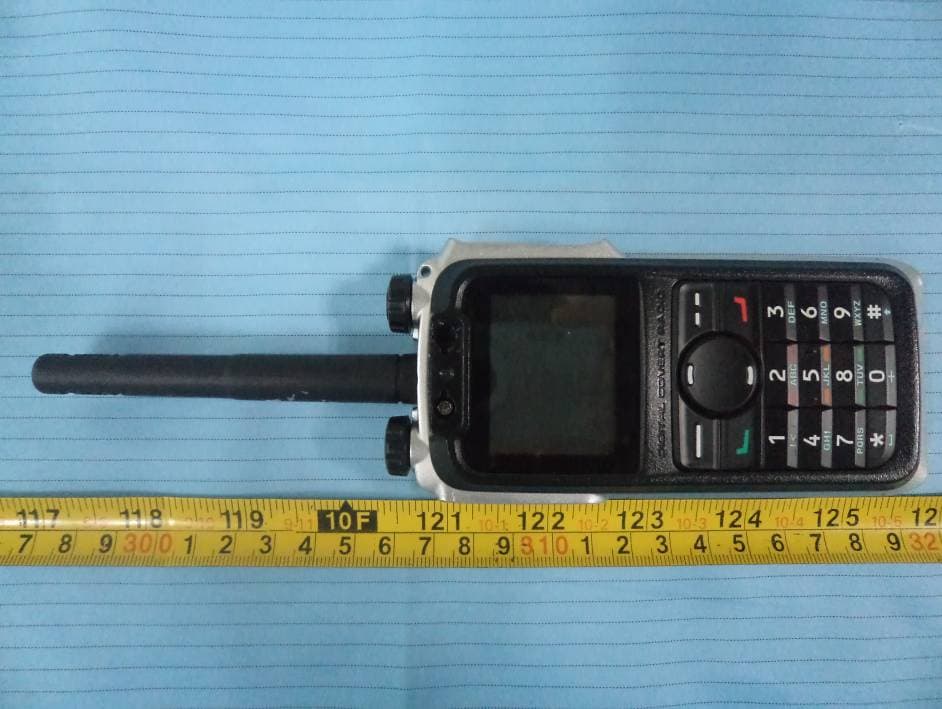

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left View EUT – Right View EUT – Antenna View 1 EUT – Antenna View 2

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Battery off View EUT – Cover off View Bluetooth Antenna EUT – Main Board Top View EUT – Main Board Top Shielding off View EUT – Main Board Bottom View EUT – Main Board Bottom Shielding off View EUT – LCD Front View EUT – LCD Rear View EUT – Battery View

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. SAR EVALUATION REPORT For Hytera Communications Co., Ltd. HYT Tower, Hi-Tech Industrial Park North, Nanshan District, Shenzhen China FCC ID: YAMX1PU2 Report Type: Original Report Product Type: Digital Portable Radio Test Engineer: Sandy Wang Report Number: RSZ130508003-20A Report Date: 2013-08-05 Reviewed By: Alvin Huang RF Leader Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: RSZ130508003-20A SAR Evaluation Report 2 of 81 Attestation of Test Results Company Name Hytera Communications Co., Ltd. EUT Description Digital Portable Radio FCC ID YAMX1PU2 Model Number X1p U(2) EUT Information Test Date 2013-07-10 to 2013-07-12 Mode Frequency (MHz) Max. SAR Level(s) Reported Limit (W/Kg) Digital 450-520 12.5k Face up: 1.376 W/kg Body-Back: 1.404 W/kg Analog 450-520 12.5k Face up: 1.362 W/kg (50% duty cycle) Body-Back: 1.341 W/kg (50% duty cycle) Simultaneous PTT+BT Face up: 1.387 W/kg (50% duty cycle) Body-Back: 1.457 W/kg (50% duty cycle) 8 ANSI / IEEE C95.1 : 2005 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fileds,3 kHz to 300 GHz. ANSI / IEEE C95.3 : 2002 IEEE Recommended Practice for Measurements and Computations of Radio Frequency Electromagnetic Fields With Respect to Human Exposure to SuchFields,100 kHz—300 GHz. OET BULLETIN 65 SUPPLEMENT C Evaluating Compliance with FCC Guidelines for Human Exposure To Radiofrequency Electromagnetic Fields Applicable Standards IEEE1528:2003 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in ANSI/IEEE Standards and has been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C, IEEE 1528-2003 and KDB643646. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: RSZ130508003-20A SAR Evaluation Report 3 of 81 TABLE OF CONTENTS DOCUMENT REVISION HISTORY .........................................................................................................................5 EUT DESCRIPTION ....................................................................................................................................................6 TECHNICAL SPECIFICATION.........................................................................................................................................6 REFERENCE, STANDARDS, AND GUILDELINES ...............................................................................................7 SAR LIMITS.................................................................................................................................................................8 FACILITIES ..................................................................................................................................................................9 DESCRIPTION OF TEST SYSTEM ........................................................................................................................10 EQUIPMENT LIST AND CALIBRATION .............................................................................................................17 EQUIPMENTS LIST & CALIBRATION INFORMATION....................................................................................................17 SAR MEASUREMENT SYSTEM VERIFICATION ..............................................................................................18 LIQUID VERIFICATION...............................................................................................................................................18 SYSTEM ACCURACY VERIFICATION...........................................................................................................................20 SAR SYSTEM VALIDATION DATA .....................................................................................................................21 EUT TEST STRATEGY AND METHODOLOGY .................................................................................................25 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................25 CHEEK/TOUCH POSITION...........................................................................................................................................26 EAR/TILT POSITION...................................................................................................................................................26 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS..............................................................................27 SAR EVALUATION PROCEDURE.................................................................................................................................28 CONDUCTED OUTPUT POWER MEASUREMENT ...........................................................................................29 PROVISION APPLICABLE............................................................................................................................................29 TEST PROCEDURE......................................................................................................................................................29 MAXIMUM O…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 22, 74, 80 and 90 TEST REPORT For Hytera Communications Corporation Ltd. HYT Tower, Hi-Tech Industrial Park North, Nanshan District, Shenzhen, China FCC ID: YAMX1PU2 Report Type: Original Report Product Type: Digital Portable Radio Test Engineer: Rocky Kang Report Number: RSZ130508003-00B Report Date: 2013-08-05 Reviewed By: Alvin Huang RF Leader Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ130508003-00B FCC PART 22, 74, 80 and 90 Page 2 of 40 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS...............................................................................................................................7 FCC §1.1307(b) & §2.1093 - RF EXPOSURE.............................................................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 FCC §2.1046 & § 22.727 & §74.461 & § 80.215 & §90.205 - RF Output Power ......................................................9 APPLICABLE STANDARD..............................................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST DATA..................................................................................................................................................................9 FCC §2.1047 & §74.463 & §80.213 & §90.207 - MODULATION CHARACTERISTIC .....................................17 APPLICABLE STANDARD............................................................................................................................................17 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................17 TEST PROCEDURE......................................................................................................................................................17 TEST DATA................................................................................................................................................................17 FCC §2.1049 & §22.357 & § 22.731 & §74.462 & § 80.205 & § 80.207 & §90.209 & §90.210 – OCCUPIED BANDWIDTH & EMISSION MASK........................................................................................................................23 APPLICABLE STANDARD............................................................................................................................................23 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................23 TEST PROCEDURE......................................................................................................................................................24 TEST DATA................................................................................................................................................................24 FCC §2.1051 & §22.861 & §74.461 & § 80.211 & §90.210 - SPURIOUS EMISSIONS AT ANTENNA TERMINALS ...............................................................................................................................................................29 APPLICABLE STANDARD............................................................................................................................................29 TEST EQUIPMENT LIST AND DETAILS...................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Transmitting Radiated Emissions (Below 1 GHz) Transmitting Radiated Emissions (Above 1 GHz) Extreme Condition View
