YBR-FT100PipeBurst Pro

20100419_PipeBurst Pro Installation Instructions and User Manual 1 | Page General Introduction & Key Features Quick Setup Guide Installation: Precautions General Tools Needed Pipe Burst Pro - Getting Started 1 2 3 4 5 Sync/OffLine FRV/Test Water On‐Off LMM/SLA CSI/Rset ( ) ( ) (◄) (►) 1. VIP: Valve Interface Panel_ VP100 Installation Guide Quick Setup Detailed Setup Instructions (include how to connect to your alarm system, etc) LED Signals & Alerts Trouble Shooting A. Use cases will document the operation of the Valve Interface Panel (VIP) module in: 1. LAM: “Leak Active Mode” (Normal Operation with TickerValve) 2. LMM: “Leak Monitor Mode” (PB256 Notifier system w/o TickerValve) 3. Sync Mode The VIP is normally in Leak Active Mode and uses the five LEDs above their respective keys to display information about the state of the system and current settings of options. B. Leak Active Mode – Active Mode will be entered when a VIP is first powered up and is considered the Normal Mode of operation for the VIP. 1. The following will be displayed on the five LEDs in the Leak Active Mode: 1. GREEN = System OK – Sync Progress - Active Mode – All On-Line – or: Blink RED = Lost Sync – or: Blink GREEN = None Sync’d: The LED above the #1 20100419_PipeBurst Pro Installation Instructions and User Manual 2 | Page (▲) button is used to indicate the sync state. This LED is used during the sync process to indicate sync progress (defined later in this document) and also in the Leak Monitor Mode to indicate all devices are on-line (green) or that a previously sync’d FloodBug (FB) or FloTrax (FT) has gone off-line (blinking red). If no devices are sync’d with the VIP then this LED will blink green. 2. GREEN = Freeze Relief Valve (FRV) Closed. RED Blink = FRV Open. UNLIT = No FRV present in system. HOLD 7 Seconds to cycle FRV simultaneously with (TV). The second LED above the (▼) button) is used to indicate the state of the FRV (if one is installed). A red blinking LED indicates the FRV is Open and a green LED indicates the FRV is Closed (its normal operating position). An unlit LED indicates an FRV is not present in the system (determined by the cycling of the main TickerValve (TV) and FRV). The (▼) button is used to initiate an immediate test cycle of both valves (by holding down the button for more than 7 seconds). 3. GREEN = TV Open. RED = TV Closed. Green/Red Blink = No TV detected, are using Leak Monitor Mode. The center LED displays the state of the main TV (TickerValve) (green for ON, and blinking red for OFF). This large center button gives the ability to toggle the ON-OFF TV state. If no TV is detected (tested only when valve is cycled) this LED will blink red and green (as when used in Leak Monitor Mode only without a TV connected). 4. GREEN = LAM selected. Green Blink = LMM selected; Hold 7 seconds (no TV in system). Red Blink = Check SLA battery. Green/Red = No AC power. The fourth LED above the (◄) button) is used to indicate whether LAM (Leak Active Mode, normal) or LMM (Leak Monitor Mode, auxiliary) has been selected and will also display an indication of a weak or missing SLA back-up battery. 1. Under normal operation this LED will be continuously green, unless an SLA alarm condition exists. 2. When LMM has been selected by holding the (◄) button for a period of more than 7 seconds (meaning that a main TV (TickerValve is not connected to the VIP), then this LED will be blinking green. If an SLA alarm condition exists it will blink red. 3. If AC power is present and the SLA battery is weak and needs to be replaced, (or is not even present), this LED will blink red regardless of the LEAK MODE setting. 4. When AC power is lost this LED will blink red and green regardless of the LEAK MODE setting. 5. GREEN = CSI OK. Red Blink = Fault. Press 7 seconds to clear fault or to do master reset/clear system. The rightmost LED indicates the CSI (Critical System Indication) state and the (►) button gives the ability to perform a master reset of the VIP. A master reset will be performed after this button is held down for at least 7 seconds. The master reset clears (turns green) all faults including the CSI. (1) ENTER SYNC MODE: Press 2 seconds. Press 7 seconds to CLEAR ALL SYNC’D DEVICES: (Note: cannot be undone!). SYNC MODE – The VIP Sync Mode can be initiated using a remote FloTrax (FT), to perform either a FT sync or a FloodBug (FB) sync, or from the VIP by pressing the (▲) button for more than 2 seconds; but not more than 7 seconds for a FB sync. 20100419_PipeBurst Pro Installation Instructions and User Manual 3 | Page (4) IN SYNC MODE: Red Blink until sync request is received. Red/Green + Chirp = sync confirmed. Repeat for each device. 5 minute timeout. Once the VIP is in sync mode the (◄) LED will blink red until it receives a Sync Request Message. Once the VIP receives a Sync Request Message it will send a Sync Pending Message to the device’s (FB or FT) serial number it received during the Sync Request Message. The VIP will then begin to blink this LED red and green and also audibly “chirp” before a Sync Complete Message is sent. The VIP will then return to its previous monitor mode (default is LAM). A. If no Sync Request Message is received within 5 minutes of initiating the sync, the sync process will be aborted. Then the sync LED (◄) will blink red for 10 seconds and the VIP will return to previous monitor mode. B. The (▲) button is also used to clear all sync information from the VIP, FT, and FB. This clear sync function is accessed by pressing the sync button (▲) for more than 7 seconds. Print for VIP Faceplate – Quick Reference Guide 1. ▲ GREEN = System OK – Sync Progress - Active Mode – All On-Line – or: Blink RED = Lost Sync – or: Blink GREEN = None Sync’d. ENTER SYNC MODE: Press 2 seconds. Press 7 seconds to CLEAR ALL SYNC’D DEVICES: (Note: cannot be undone!). 2. ▼ GREEN = Freeze Relief Valve (FRV) Closed. RED Blink = FRV Open. UNLIT = No FRV present in system. HOLD 7 Seconds to cycle FRV si…

Text truncated - open the document above for the full version.

Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521-5376 Phone: 402.472.5880 Fax: 402.472.5881 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521-5376 Phone: 402.472.5880 Fax: 402.472.5881 04/07/09 - 3 Request for Confidentiality Date: 17 June 2010 Subject: Confidentiality Request for FCC ID: YBR-FB100, YBR-FT100, YBR-VP100 IC ID: 8924A-FB100, 8924A-FT100, 8924A-VP100 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 3 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ Greenfield Direct, LLC has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180 ) 4 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ATCB in the event information regarding the product or the product is made available to the public. ATCB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: __________________________ Nic Johnson, Test Engineer (signing on behalf of Greenfield Direct as an agent) (Signature/Title (Print name) 3 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 4 - Please refer to http://atcb.com/publicdocs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details.

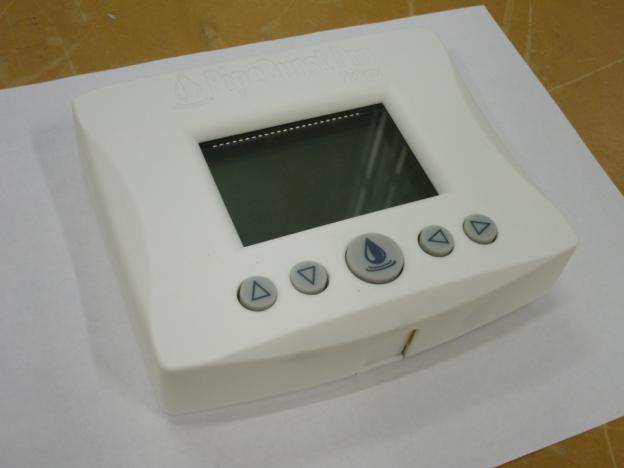

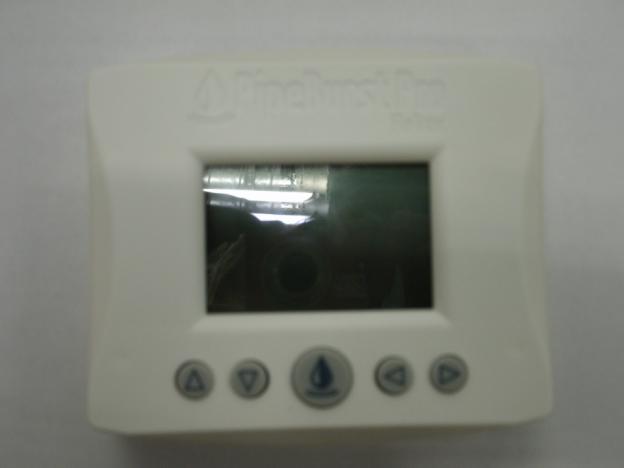

NCEE Labs FCC ID: YBR‐FT100 External Photos: FloTrax IC ID: 8924A‐FT100 NCEE Labs FCC ID: YBR‐FT100 External Photos: FloTrax IC ID: 8924A‐FT100

NCEE Labs FCC ID: YBR‐FT100 External Photos: FloTrax IC ID: 8924A‐FT100 NCEE Labs FCC ID: YBR‐FT100 External Photos: FloTrax IC ID: 8924A‐FT100 NCEE Labs FCC ID: YBR‐FT100 External Photos: FloTrax IC ID: 8924A‐FT100 NCEE Labs FCC ID: YBR‐FT100 External Photos: FloTrax IC ID: 8924A‐FT100

Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521-5376 Phone: 402.472.5880 Fax: 402.472.5881 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521-5376 Phone: 402.472.5880 Fax: 402.472.5881 The Nebraska Center for Excellence in Electronics (NCEE) authorizes the above named company to reproduce this report provided it is reproduced in its entirety for use by the company’s employees only. Any use that a third party makes of this report, or any reliance on or decisions made based on it, are the responsibility of such third parties. NCEE accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. NCEE is a FCC and Industry Canada registered lab. FCC #100875, IC #4294 Test Report Company: Greenfield Direct, LLC 14015 238 th St. Greenwood, NE 68003 Contact: Scott Miner Product: FloTrax FCC ID: YBR-FT100 IC ID: 8924A-FT100 Test Report No: R031510-01-02 APPROVED BY: Nic Johnson _________________________ Test Engineer DATE: 14 June 2010 Total Pages: 27 NCEE Labs R031510-01-02 FCC ID:YBR-FT100 IC ID:8924A-FT100 Page 2 of 27 1.0 Summary of test results 1.1 Test Results 1.2 Test Methods 1.2.1 Radiated Emissions 1.3 Reason for amendment 2.0 Description 2.1 Equipment under test 2.2 Laboratory description 2.3 Description of test modes 2.4 Applied standards 2.5 Configuration of system under test 3.0 Test equipment used 4.0 Detailed Results 4.1 15.207 Conducted Emissions 4.2 15.209, 15.231 Radiated emissions 4.3 15.231 Bandwidth Appendix A – Test photos Appendix B – Table of figures NCEE Labs R031510-01-02 FCC ID:YBR-FT100 IC ID:8924A-FT100 Page 3 of 27 1.0 Summary of test results 1.1 Test Results The EUT has been tested according to the following specifications: APPLIED STANDARDS: 47 CFR Part 15 & RSS-210 Standard Section Test Type and Limit Result Remark 15.207 RSS-Gen Conducted AC Mains Emissions Pass Meets the requirement of the limit. 15.209, 15.231 RSS-Gen Radiated Emissions Peak Output Field Strength Limit: 80.83dBμV/m Pass Meets the requirement of the limit. 15.231 RSS-210 Issue 7 Bandwidth Pass Meets the requirement of the limit. NCEE Labs R031510-01-02 FCC ID:YBR-FT100 IC ID:8924A-FT100 Page 4 of 27 2.0 Description 2.1 Equipment under test The FloTrax is designed to provide a user friendly way to control various settings within the system which can be operated from a location physical removed from the valves and the VIP. The FloTrax has a custom LCD screen and five momentary buttons which are used to provide the user interface to the system. The FloTrax also has an onboard piezo sounder to provide an audible alarm and also to provide audio feedback for keypad button presses. The FloTrax communicates with the VIP using an onboard TI CC1101 radio transceiver. The FloTrax can be powered via battery or from an external 5 VDC 1A wall cube power supply. The power is switched between battery and the external supply using the FET battery switch. This enables the internal batteries in the FloTrax to be used as a backup of the external supply. The EUT is supplied with a 5VDC Tech Power Int. power supply, M/N TSA9-050120WU. EUT Received Date: 4/21/2010 EUT Tested Date: 4/21/2010 MODEL FloTrax POWER SUPPLY 2 AA Batteries/5VDC power supply MODULATION TYPE FSK FREQUENCY RANGE 433.92MHz NUMBER OF CHANNELS 1 MAXIMUM OUTPUT POWER 78.04dBμV/m at 3m (peak) ANTENNA TYPE Internal dipole I/O PORTS None ASSOCIATED DEVICES FloodBug, V.I.P. Digital NOTE: 1. For more detailed features description, please refer to the manufacturer's specifications or User's Manual. 2.2 Laboratory description All testing was performed at the NCEE Lincoln facility, which is a FCC and IC registered lab. This site has been fully described in previously submitted reports. Laboratory environmental conditions varied slightly throughout the tests: Relative humidity of 45 ± 4% Temperature of 20 ± 3° Celsius NCEE Labs R031510-01-02 FCC ID:YBR-FT100 IC ID:8924A-FT100 Page 5 of 27 2.3 Description of test modes 2.4 Applied standards The EUT is a low-power transmitter device operating on one frequency at 433.92MHz. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: FCC Part 15.207, 15.209 and 15.231 using ANSI/IEEE C63.4: 2003 Industry Canada, RSS 210, Issue 7, Category I Equipment All test items have been performed and recorded as per the above standards. 2.5 Configuration of system under test The EUT was set to transmit a continuous carrier signal at the lowest possible frequency, highest possible frequency, and on in the middle of the operating range. The EUT also included a fourth mode of operation, in which it ran in its normal operating condition, waiting to receive data. It was not possible to complete testing while transmitting data because of the short duration of transmission for each data packet. Average measurements therefore required measurement of the continuous carrier with an averaging factor applied as seen in 2.6 below. Duty cycle information was provided by the manufacturer. The EUT is supplied with a 5VDC Tech Power Int. power supply, M/N TSA9-050120WU. 2.6 Duty Cycle Calculation The FloTrax is designed to have a very low transmitter duty cycle. The only regular (sent every six hours) transmission the FloTrax makes is two short (85 millisecond) transmissions of the same packet to test system integrity. This packet contains the ID (serial number) of the FloTrax. The following is a screen shot which shows this transmission. NCEE Labs R031510-01-02 FCC ID:YBR-FT100 IC ID:8924A-FT100 Page 6 of 27 Figure 1 - RF Transmission Time This transmission is acknowledged by the VIP assembly with a group of three identical short transmissions. The FloTrax also sends the VIP changes to setup information. These transmissions are initiated by to keypad input by the consumer. The only time a transm…
