YCK-DR500GW-HDDriving Recorder

Name Vehicle Video Recorder Manufacturer Pittasoft Co., Ltd. / Korea Address BYC HIGH CITY A- 7th floor, 371-17, Gasan-Dong, Geumcheon-Gu, Seoul, 153-803, Korea Sales Headquater Tel: +82-2-6947-4670(#3) l Fax: +82-2-6947-4699 e-mail [email protected] Vehicle Video Recorder Manual DR500GW-HD3 Table of Contents Introduction to the Manual Getting Started How to Install the BlackVue Video Recording Simple Video Playback How to use the BlackVue Software Firmware Upgrade Product Specifications & Standards 4 5 Cautions for Safety 8 Checks for GPS 8 Checks for the microSD Cards 9 Product Features 11 Package Components 12 Names of Each Part 13 How to Attach & Detach the Mounting Bracket 14 Checking Installation Position 14 How to Insert & Remove the microSD Card 15 Installation 17 Normal Recording 17 Parking Mode Recording 18 Event Recording 19 How to Playback using a microSD Card 22 How to Playback using the BlackVue Application 24 Installation & Execution 26 Screen Description 27 Video Playback 33 Configuration 38 40 Product Specifications 41 LED Indicators 41 microSD Card Standard 4 Introduction to the Manual Thank you for purchasing a BlackVue by Pittasoft Co., Ltd. This instruction manual contains information on how to operate your BlackVue. Before using the product, make sure to read through this manual so as to use the product in the correct way. To enhance the performance of the product, the contents of this instruction manual may be changed without prior notice. Warranty & Support  This product records and saves videos of vehicle accidents, but it is not guaranteed to record all accidents. Accidents with light impact that is not enough to activate the impact detection sensor may not be recorded.  In accordance with Personal Information Security Law & related legislation, Pittasoft Co., Ltd. will not be held responsible for any problem due to illegal use of this product.  The recorded video produced by this product constitutes the secondary data that may help to determine the circumstances of an accident. Pittasoft Co., Ltd. will not be held responsible for any loss or damage caused by any accident. Copyright & Trademark  This instruction manual is protected by Copyright Law, and all rights to it are protected by law.  It is prohibited to reproduce, copy, modify, or translate this instruction manual without permission.  BlackVue is the registered trademark of Pittasoft Co., Ltd. Pittasoft Co., Ltd. reserves the rights regarding all works related to the Black- Vue brand such as product design, trademarks, and product-promotional videos. It is prohibited to reproduce, copy, modify, or use related works without permission. Any violation may be penalized in accordance with the relevant regulations. DR500GW-HD 5 Getting Started Cautions for Safety The purpose of these cautions is to maintain user safety and avoid damage to property. Please make sure to read through this manual so as to use the product in the correct way. DANGER Death or property damage can be caused for users if the following directions are not followed:  Do not disassemble, repair, or modify the product yourself. It can cause fire, electric shock, or malfunction. For internal inspection and repair, call the sales headquater.  If any foreign matter gets inside the product, detach the power cord straightaway. Call the sales headquater for repair.  Do not operate the product while driving. It can cause an accident. Stop or park your car in a safe place to operate it.  Do not install the product where it can interfere with the driver's vision. It can cause an accident.  Do not use a damaged or modified power cord. Use the cords provided by the manufacturer. Otherwise it can cause explosion, fire, or malfunction.  Do not operate the product with wet hands. It can cause electric shock.  Do not install it in an environment with high humidity, or combustible gases or liquids. It can cause explosion & fire. 6 WARNING Death or serious injury can be caused for users if the following directions are not followed:  Do not leave the product where infants, children, or pets can reach it. They might swallow small components, or their saliva could get into it and cause an explosion due to a short circuit.  While cleaning the inside of the car, do not spray water or wax directly onto the product. It can cause fire, electric shock, or malfunction.  If smoke or an unsual smell is emitted from the power cord, detach it immediately. Call the sales headquater or the dealer.  Keep the terminal of the power cord clean. A dirty terminal can cause excessive heat and fire.  Use the correct input voltage. Otherwise it can cause explosion, fire, or malfunction.  Connect the power cord firmly so that it cannot easily be disconnected. Othersise it can cause fire.  Do not cover the product with any material. It can cause external deformation of the product or fire. Use the product and peripherals where ventilation is ensured. DR500GW-HD 7 CAUTION Injury or property damage can be caused for users if the following directions are not followed:  Do not spray cleaning products directly onto the outside of the prod- uct. It can cause discoloration, cracks, or malfunction.  Do not press the RESET button with a sharp object such as an awl. It can cause damage or malfunction.  If the product is used outside the optimal temperature range (0°C ~ 60°C), performance can decline or malfunction can be caused.  Make sure that the product is installed properly. The product can fall as a result of vibration, and may cause physical injury.  While entering or exiting a tunnel, during daytime in the face of bright sunlight, or at night with no light, the quality of recorded video can deteriorate.  If the product is damaged or the power supply is cut due to an accident, video may not be recorded.  Excessively tinted windshield glass can distort the recorded video or cause it to be indistinct.  Prolonged use of the product can increase the interior tem…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 January 08, 2013 To: SIEMIC, INC. 775 Montague Expressway, Milpitas , CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Pittasoft Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Driving Recorder / DR500GW-HD (FCC ID: YCK-DR500GW-HD) We affirm that between SIEMIC and Pittasoft Co., Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Doyun Kim / Team Manager Pittasoft Co., Ltd. BYC HIGH CITY A-7th floor, 371-17 Gasan-Dong, Geumcheon-Gu, Seoul, 153-803, Korea

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 January 08, 2013 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YCK-DR500GW-HD We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Circuit Diagram - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Doyun Kim / Team Manager Pittasoft Co., Ltd. BYC HIGH CITY A-7th floor, 371-17 Gasan-Dong, Geumcheon-Gu, Seoul, 153-803, Korea

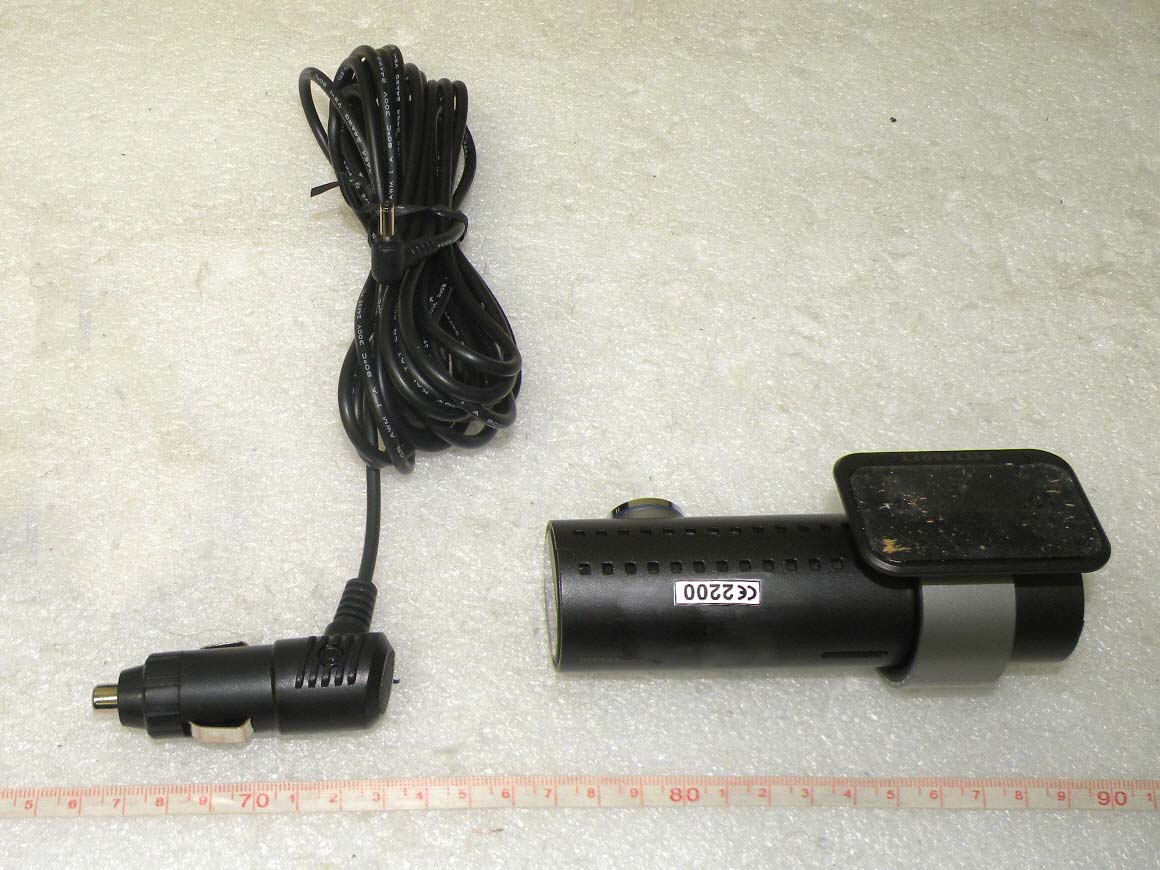

Appendix C. External Photographs Report no. ETLE121217.1473, Page C1 of C5 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD View of total construct Appendix C. External Photographs Report no. ETLE121217.1473, Page C2 of C5 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Front view of EUT Rear view of EUT Appendix C. External Photographs Report no. ETLE121217.1473, Page C3 of C5 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Top view of EUT Bottom view of EUT Appendix C. External Photographs Report no. ETLE121217.1473, Page C4 of C5 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Side view of EUT Appendix C. External Photographs Report no. ETLE121217.1473, Page C5 of C5 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD View of port

Appendix A. FCC ID Label and Location Report no. ETLE121217.1473, Page A1 of A1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. The warning statement and Information to the User are described in the user manual. Pittasoft Co., Ltd. Driving Recorder FCC ID : YCK-DR500GW-HD Model No. : DR500GW-HD POWER : DC 12 V – DC 24 V from Automotive Battery Serial No. : Proto type Manufacturer: Pittasoft Co., Ltd. Made in Korea Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE121217.1473, Page D1 of D20 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Inside view of EUT Appendix D. Internal Photographs Report no. ETLE121217.1473, Page D2 of D20 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Top side view of main board Appendix D. Internal Photographs Report no. ETLE121217.1473, Page D3 of D20 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Top side view of main board (case open) Appendix D. Internal Photographs Report no. ETLE121217.1473, Page D4 of D20 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Bottom side view of main board RF Module Appendix D. Internal Photographs Report no. ETLE121217.1473, Page D5 of D20 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Bottom side view of main board (case open) Appendix D. Internal Photographs Report no. ETLE121217.1473, Page D6 of D20 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Top side view of power board Appendix D. Internal Photographs Report no. ETLE121217.1473, Page D7 of D20 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Top side view of power board (case open) Appendix D. Internal Photographs Report no. ETLE121217.1473, Page D8 of D20 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Bottom side view of power board Appendix D. Internal Photographs Report no. ETLE121217.1473, Page D9 of D20 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Top side view of RF Module Internal Antenna Appendix D. Internal Photographs Report no. ETLE121217.1473, Page D10 of D20 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Top side view of RF Module (case open) Appendix D. Internal Photographs Report no. ETLE121217.1473, Page D11 of D20 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Bottom side view of RF Module Appendix D. Internal Photographs Report no. ETLE121217.1473, Page D12 of D20 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Bottom side view of RF Module (case open) Appendix D. Internal Photographs Report no. ETLE121217.1473, Page D13 of D20 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Top side view of GPS Module Appendix D. Internal Photographs Report no. ETLE121217.1473, Page D14 of D20 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Bottom side view of GPS Module Appendix D. Internal Photographs Report no. ETLE121217.1473, Page D15 of D20 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Bottom side view of GPS Module (case open) Appendix D. Internal Photographs Report no. ETLE121217.1473, Page D16 of D20 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Top side view of image sensor board Appendix D. Internal Photographs Report no. ETLE121217.1473, Page D17 of D20 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Bottom side view of image sensor board Appendix D. Internal Photographs Report no. ETLE121217.1473, Page D18 of D20 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Top side view of motion detection sensor board Appendix D. Internal Photographs Report no. ETLE121217.1473, Page D19 of D20 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Bottom side view of motion detection sensor board Appendix D. Internal Photographs Report no. ETLE121217.1473, Page D20 of D20 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Inside view of cigar jack

Appendix I. Radio Frequency Exposure Report no. ETLE121217.1473, Page I1 of I2 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. Limit Limits for general population/Uncontrolled exposure Frequency Range [MHz] Electric Field Strength (E) [V/m] Magnetic Field Strength (H) [A/m] Power Density (S) [mW/cm 2 ] Averaging Time |E| 2 , |H| 2 or S [minutes] 0.3 - 1.34 1.34 - 30 30 - 300 300 - 1 500 1 500 - 100 000 614 824/f 27.5 -- -- 1.63 2.19/f 0.073 -- -- (100) (180/f 2 ) 0.2 f/1 500 1.0 30 30 30 30 30 f = frequency in MHz *Plane-wave equivalent power density MPE Prediction Predication of MPE limit at a given distance. Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Appendix I. Radio Frequency Exposure Report no. ETLE121217.1473, Page I2 of I2 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD - 802.11b mode Maximum peak output power at antenna input : 9.94 dBm (9.863 mW) Prediction distance : 20 cm Predication frequency : 2 472 MHz Antenna gain(Max) : 3.88 dBi (2.44 numeric) Power density at predication frequency at 20 cm : 0.00479435 mW/cm 2 MPE Limit for : 1 mW/cm 2 - 802.11g mode Maximum peak output power at antenna input : 7.25 dBm (5.308 mW) Prediction distance : 20 cm Predication frequency : 2 472 MHz Antenna gain(Max) : 3.88 dBi (2.44 numeric) Power density at predication frequency at 20 cm : 0.00258066 mW/cm 2 MPE Limit for : 1 mW/cm 2 - 802.11n(HT20) mode Maximum peak output power at antenna input : 7.38 dBm (5.470 mW) Prediction distance : 20 cm Predication frequency : 2 472 MHz Antenna gain(Max) : 3.88 dBi (2.44 numeric) Power density at predication frequency at 20 cm : 0.00265907 mW/cm 2 MPE Limit for : 1 mW/cm 2 - 802.11n(HT40) mode Maximum peak output power at antenna input : 6.89 dBm (4.887 mW) Prediction distance : 20 cm Predication frequency : 2 422 MHz Antenna gain(Max) : 3.88 dBi (2.44 numeric) Power density at predication frequency at 20 cm : 0.00237536 mW/cm 2 MPE Limit for : 1 mW/cm 2 Test Result The power density level at 20 cm is 0.00479435 mW/cm 2 , 0.00258066 mW/cm 2 , 0.00265907 mW/cm 2 and 0.00237536 mW/cm 2 which is below the uncontrolled exposure limit of 1 mW/cm 2 at 2 412 MHz to 2 472 MHz.

Report no. ETLE121217.1473, Page 2 of 72 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: YCK-DR500GW-HD Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 6 dB Bandwidth 5.3 Maximum Peak Output Power 5.4 Bandwidth of Frequency Band Edges 5.5 Power Spectral Density 5.6 Spurious Emissions 5.7 Radio Frequency Exposure 6. Sample Calculation 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Circuit Diagram Appendix G. User Manual Appendix H. Operational Description Appendix I. Antenna Requirement Appendix J. Radio Frequency Exposure Report no. ETLE121217.1473, Page 3 of 72 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: YCK-DR500GW-HD FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission (EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information  EUT Type : Driving Recorder  Model Number : DR500GW-HD  S/N : Proto type  Modulation Technique : DSSS (CCK), OFDM (QAM)  Frequency Channel : 802.11b/g/n(HT20) : 2 412 MHz to 2 472 MHz and Channel Spacing 5 MHz (13 Ch) 802.11n(HT40): 2 422 MHz to 2 462 MHz and Channel Spacing 5 MHz (9 Ch)  Air Data Rate : 11 Mbps (802.11b), 54 Mbps (802.11g), 150 Mbps (802.11n)  Antenna Type : Internal Antenna (Integral)  Antenna Gain : 3.88 dBi max  RF Power : 9.863 mW  FCC Rule Part(s) : FCC Part 15 Subpart C  Test Procedure : ANSI C63.4-2003  FCC Classification : DTS (Part 15 Digital Transmission System)  Place of Tests : ETL Inc. Testing Lab. Radiated Emission test; #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea Conducted Emission test; ETL Inc. Testing Lab. 371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Applicant Name : Pittasoft Co., Ltd. Address : BYC HIGH CITY A-7th floor, 371-17 Gasan-Dong, Geumcheon-Gu, Seoul, 153-803, Korea Attention : Doyun Kim / Team Manager Report no. ETLE121217.1473, Page 4 of 72 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: YCK-DR500GW-HD 1. INTRODUCTION The measurement test for radiated and conducted emission test was conducted at the ETL Inc. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission (FCC Designation Number : KR0022). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions from the Pittasoft Co., Ltd. Model: DR500GW-HD Report no. ETLE121217.1473, Page 5 of 72 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: YCK-DR500GW-HD 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the Driving Recorder (model: DR500GW-HD). 2.2 General Specification Item Specification Color Pearl Black Size 118.5 mm (Length) x 36.0 mm (Diameter) Weight 114 g Memory Micro SD Card (16 GB/32 GB) Recording Mode Normal Recording, Event Recording (Impact Detection) and Parking Mode Recording (Motion + Impact Detection) * For parking mode recording, a battery discharge prevention device is required. Camera CMOS Sensor (Approx. 2 M Pixel) Viewing Angle Opposite Angle 156°, Horizontal 123°, Vertical 90° Resolution / Frame Full HD (1 920 x 1 080) @ 30 fps, Full HD (1 920 x 1 080) @ 15 fps, HD (1 280 x 720) @ 30 fps, HD (1 280 x 720) @ 15 fps, D1 (720 x 480) @ 30 fps * Resolution / Frame can be changed Compression Mode Video H.264 / Audio AAC-LC * Baseline and High profile can be selected Wi-Fi Built-in (802.11b/g/n (2.4 GHz – 2.483 5 GHz), Max 150 Mbps, OFDM/CCK/16-QAM/64-QAM) GPS Built-in Microphone Built-in Speaker Built-in * Voice Directions LED Indicators Recording LED, GPS LED, Wi-Fi LED, Security LED Sensor 3-Axis Acceleration Sensor Report no. ETLE121217.1473, Page 6 of 72 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: YCK-DR500GW-HD Item Specification Wi-Fi on/off Button * Self-format Function: Press it for 10 seconds to format the Micro SD Card Button Voice on/off Button * The proximity sensor is built-in so that voice recording can be turned on/off by approaching it with a hand * Touch the button or it recognizes when a hand approaches to within about 2 cm Battery Built-in Super Capacitor Input Power DC 12 V – DC 24 V Current Consumption About 300 mA * Varies depending on Wi-Fi usage Operation Temperature (25 ± 45) °C Software BlackVue Viewer Program (Windows XP or later & Mac Leopard OS (10.5) or later) Application BlackVue (Android 2.3 or later & iOS 5.0 or later) Report no. ETLE121217.1473, Page 7 of 72 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: YCK-DR500GW-HD 3. DESCRIPTION OF TESTS The tests documented in this report were performed in accordance with ANSI …

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLE121217.1473, Page B1 of B3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Radiated Emission Test Setup (Below 30 MHz) Appendix B. Test Setup Photographs Report no. ETLE121217.1473, Page B2 of B3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Radiated Emission Test Setup (Below 1 GHz) Appendix B. Test Setup Photographs Report no. ETLE121217.1473, Page B3 of B3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR500GW-HD Radiated Emission Test Setup (Above 1 GHz)
