YCK-DR970XLTEPCAR DASHCAM

Quick Start Guide DR970X-2CH LTE Plus www.blackvue.com Detailed Manual ENGLISH For manuals, customer support and FAQs go to www.blackvue.com BLACKVUE DR970X-2CH LTE Plus DR970X-2CH LTE Plus3 Important safety information For user safety and to avoid property damage, read through this manual and follow these safety instructions to use the product correctly. y Do not disassemble, repair, or modify the product yourself. Doing so may cause fire, electric shock, or malfunction. For internal inspection and repair, contact the service center. y Do not adjust the product while driving. Doing so may cause an accident. Stop or park your car in a safe place before installing and setting up the product. y Do not operate the product with wet hands. Doing so may cause electric shock. y If any foreign matter gets inside the product, detach the power cord immediately. Contact the service center for repair. y Do not cover the product with any material. Doing so may cause external deformation of the product or fire. Use the product and peripherals in a well-ventilated location. y If the product is used outside the optimal temperature range, performance can decline or malfunctions may occur. y When entering or exiting a tunnel, when directly facing into bright sunlight, or when recording at night without lighting the quality of recorded video may deteriorate. y If the product is damaged or the power supply is cut due to an accident, video may not be recorded. y Do not remove the microSD card while the microSD card is saving or reading data. The data can be damaged or malfunctions may occur. 4BLACKVUE FCC Compliance Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protections against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to ty to correct the interference by one or more of the following measures. y Reorient or relocate the receiving antenna. y Increase the separation between the equipment and receiver. y Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. y Consult the dealer or an experienced radio, TV technician for help. y Only shielded interface cable should be used. Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the user’s authority to operate such equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation of this device. FCC ID: YCK-DR970XLTEP DR970X-2CH LTE Plus5 CAUTION Any changed or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. There is a risk of explosion if the battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. CE WARNING y Changes and modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. y It is desirable that it be installed and operated with at least 20cm or more between the radiator and a person’s body (excluding extremities: hand, wrists, feet, and ankles). Disposal of your BlackVue dashcam 1. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. Contact local authorities to learn about disposal and recycling options available in your area. 2. The correct disposal of your BlackVue dashcam will help prevent potential negative consequences for the environment and human health. 3. For more detailed information about disposal of your BlackVue dashcam, please contact your city office, waste disposal service or the shop where you purchased the product. 6BLACKVUE IC Compliance This Class [B] digital apparatus complies with Canadian ICES-003. This radio transmitter has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. - IC Warning This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicable aux appreils radio exempts de license. L’exploitation est autoriséee aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l ’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, méme si le brouillage est susceptible d’encompromettre le fonctionnement. DR970X-2CH LTE Plus7 In the box Check the box for each of the following items before installing the BlackVue dashcam. Front camera Rear camera connection cable Rear camera Cigarette lighter power cable Hardwiring power cable Quick start guide Double-sided tape for the Mou…

Text truncated - open the document above for the full version.

Attestation Statement Letter I Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: __________________ Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC Application for FCC ID: _______________________________ ________________________ certifies that the equipment for which authorization is sought is not “covered” equipment prohibited for receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Applicant’s Signature: Applicant’s Name:

Attestation Statement Letter II Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: __________________ Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC Application for FCC ID: _______________________________ _________________________ certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Applicant’s Signature: Applicant’s Name:

FCC Attestation Statement US Agent For Service Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: __________________ Ref: Attestation Statements Part 2.911(d)(7) Filing FCC Application for FCC ID: _______________________________ ________________________________ certifies that, as of the date of the filing of the application, ________________________________ is our designated U.S. agent for service of process for the above reference FCC ID: ___________________. ________________________________ agrees to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceedings involving the equipment. _______________________________ accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for above referenced FCC ID. Designated U.S. Agent Information: Name: Address: Contact Person: Telephone: Email: FRN : Sincerely, Applicant’s Signature: Agent’s Signature: Applicant’s Name: Agent’s Name:

Date: 04/17/2018 VCB_F-01: Operating Procedures Form – FCC Authorization v02 Page 1 of 1 Pittasoft Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: 2024-01-26 SUBJECT: FCC Application for (FCC ID: YCK-DR970XLTEP) To Whom It May Concern: We, the undersigned, hereby authorize Mr. Todd Kwak/General Manager of BV CPS ADT Korea Inc. and hereafter referred to as BV CPS ADT Korea to act on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Mr. Todd Kwak/ General Manager of BV CPS ADT Korea Inc. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, (Must be signed by the person that is listed on the FCC Website) Client’s signature: Client’s name & title: MINHO SHIN / Principal Research Engineer Contact information / address: A 4th floor, ABN Tower, 331, Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, Republic of Korea

Date: 04/17/2018 VCB_F-01: Operating Procedures Form – FCC Confidentiality v03 Page 1 of 1 Pittasoft Co., Ltd. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YCK-DR970XLTEP Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Type of Confidentiality Requested Exhibit Type ☐Short Term ☒Permanent Block Diagrams ☒Short Term External Photos ☒Short Term ☐Permanent* Internal Photos ☐Short Term ☒Permanent Operation Description ☐Short Term ☒Permanent Parts List/BOM ☐Short Term ☒Permanent Schematics ☒Short Term Test Setup Photos ☒Short Term ☐Permanent* User manual ☐Short Term ☒Permanent Software Security *Requires further justification before permanent confidentiality will be allowed. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below for an initial period of 90 (ie- “45”, “90” or “180”) days. Sincerely, Client’s signature: Client’s name & title: MINHO SHIN / Principal Research Engineer Contact information / address: A 4th floor, ABN Tower, 331, Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, Republic of Korea

____________________ Pittasoft Co., Ltd. Date: 2024-01-30 Subject: Family model declaration letter Product: CAR DASHCAM FCC ID: YCK-DR970XLTEP IC: 23402-DR970XLTEP Model : DR970X LTE Plus FCC & IC Family Model: DR970X-1CH LTE Plus, DR970X-2CH LTE Plus, DR970X-2CH IR LTE Plus, DR970X-2CH DMS LTE Plus, DR970X-2CH Truck LTE Plus The basic model and electrical circuit structure function are the same, and the marketing model name is different. Client’s signature: Client’s name & title: MINHO SHIN / Principal Research Engineer Contact information / address: A 4th floor, ABN Tower, 331, Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, Republic of Korea

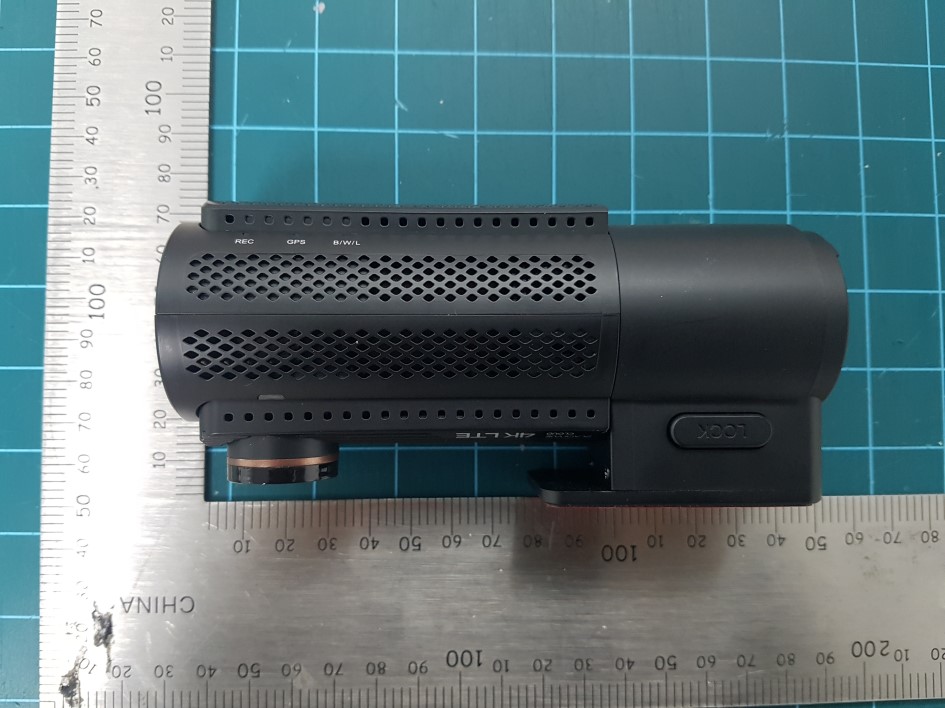

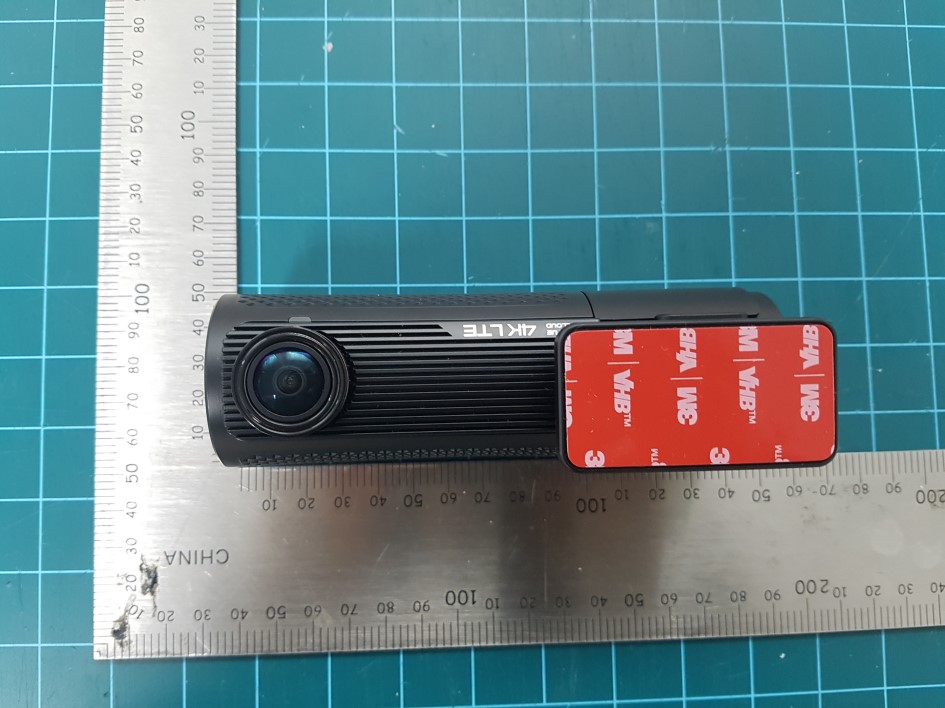

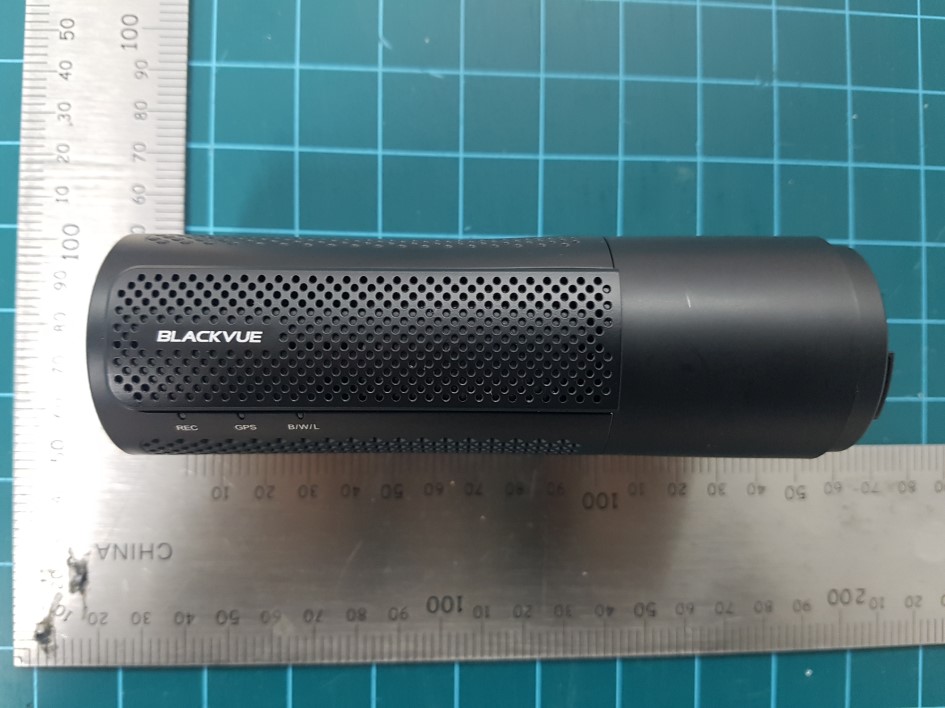

Page: 1 of 3 Photograph of EUT(External) Page: 2 of 3 Page: 3 of 3

Label Information 1. Label Location Label Position D970X-1CH LTE Plus_Product_NA Model: DR970X-1CH LTE Plus 1.2023.11.28 FCC ID:YCK-DR970XLTEP HVIN: DR970X-1CH LTE Plus IC: 23402-DR970XLTEP D970X-2CH DMS LTE Plus_Product_NA Model: DR970X-2CH DMS LTE Plus 1.2023.11.28 FCC ID:YCK-DR970XLTEP HVIN: DR970X-2CH DMS LTE Plus IC: 23402-DR970XLTEP D970X-2CH IR LTE Plus_Product_NA Model: DR970X-2CH IR LTE Plus 1.2023.11.28 FCC ID:YCK-DR970XLTEP HVIN: DR970X-2CH IR LTE Plus IC: 23402-DR970XLTEP D970X-2CH Truck LTE Plus_Product_NA Model: DR970X-2CH Truck LTE Plus 1.2023.11.28 FCC ID:YCK-DR970XLTEP HVIN: DR970X-2CH Truck LTE Plus IC: 23402-DR970XLTEP

▪ S = - Note EIRP= Equivalent Isotropic Radiated Power(mW) Operation Mode Evaluation Frequency (MHz) MAX Output Power (dBm) Antenna Gain (dBi) MAX. EIRP (dBm) MAX. EIRP (mW) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm2) Result 2.4G WIFI 2412 ~ 2462 16.803.4620.26106.17200.0211PASS 5G WIFI NII 1 5180 ~ 5240 5.063.438.497.06200.0011PASS 5G WIFI NII 3 5745 ~ 5825 3.001.744.742.98200.0011PASS 2.4G BT 2402 ~ 2480 7.323.4610.7811.97200.0021PASS 2.4G LE 2402 ~ 2480 7.283.4610.7411.86200.0021PASS Result : 0.021 + 0.002 = 0.024 < 1 0.2 FCC Part 2 section 2.1091 (ii) Limits for General Population/Uncontrolled Exposure Averaging time (minutes) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm2) 0.3-1.34 1.34-30 30-300 300-1,500 1,500-100,000 614 824/f 27.5 <30 <30 <30 <30 <30 1.63 2.19/f 0.073 *(100) *(180/f 2 ) CPD = Calculation power density / LPD = Limit of power density The formula of calculated the MPE is CPD1 / LPD 1 + CPD2 / LPD 2 + ...... < 1 The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. f/1500 1 2.4G/5G WIFI + BT FCC ID:YCK-DR970XLTEP Maximum Permissible Exposure Calculation maximum calculations of above situations are less than the “1” limit. Conclusion R= Distance to the center of the radiation of the antenna(Over 20cm) EIRP / ( 4 R 2 π ) f = frequency in MHz. * = Plane-wave equivalent power density. S= Maximum power density(mW/cm 2 ) Conclusion of Simultaneous Transmitter

Report No.: FCCCBNW-WAY-P23110164-2 Page: 2 of 63 Report Format Version: BV-FRFTF-01-004 RELEASE CONTROL RECORD REPORT NO. REASON FOR CHANGE DATE ISSUED FCCCBNW-WAY-P23110164-2 Original release 2024.01.26 Report No.: FCCCBNW-WAY-P23110164-2 Page: 3 of 63 Report Format Version: BV-FRFTF-01-004 Table of Contents RELEASE CONTROL RECORD .......................................................................................................................................2 1 SUMMARY OF TEST RESULTS ..................................................................................................................................4 1.1 DECISION RULES FOR STATEMENT OF CONFORMITY ........................................................................................................................ 5 1.2 MEASUREMENT UNCERTAINTY ................................................................................................................................................................. 5 2 GENERAL INFORMATION...........................................................................................................................................6 2.1 GENERAL DESCRIPTION OF EUT......................................................................................................................................................... 6 2.2 TESTED SAMPLE AND TESTED COMPANION DEVICE INFORMATION ........................................................................................... 6 2.3 DESCRIPTION OF TEST MODE ............................................................................................................................................................ 7 2.4 INSTRUMENT CALIBRATION....................................................................................................................................................... 7 2.5 EUT CONFIGURATION .................................................................................................................................................................... 7 2.6 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................................................................................................... 7 2.7 TEST EQUIPMENT ..................................................................................................................................................................................... 8 3 TEST RESULTS ............................................................................................................................................................9 3.1 ANTENNA REQUIREMENT ....................................................................................................................................................................... 9 3.2 20 DB BANDWIDTH ............................................................................................................................................................................. 10 3.3 MAXIMUM PEAK OUTPUT POWER ................................................................................................................................................... 15 3.4 CARRIER FREQUENCY SEPARATION .............................................................................................................................................. 21 3.5 NUMBER OF HOPPING CHANNELS .................................................................................................................................................. 24 3.6 TIME OF OCCUPANCY (DWELL TIME) ............................................................................................................................................. 27 3.7 SPURIOUS EMISSION, BAND EDGE AND RESTRICTED BANDS ................................................................................................. 30 3.8 AC CONDUCTED EMISSIONS (150 KHZ TO 30 MHZ) ................................................................................................................ 62 APPENDIX – INFORMATION OF THE TESTING LABORATORIES .......................................................................... 63 Report No.: FCCCBNW-WAY-P23110164-2 Page: 4 of 63 Report Format Version: BV-FRFTF-01-004 1 Summary of Test Results The EUT has been tested according to the following specifications Applied Standard : FCC Part 15, Subpart C 15.247 FCC Part Section(s) Test Description Limit Test Condition Test Result Reference 15.247(a) Carrier Frequency Separation >= 25 kHz or >= Two thirds of the 20 dB BW, whichever is greater. Conduted PASS Section 3.4 15.247(a) Number of Hopping Frequencies >= 15 hops PASS Section 3.5 15.247(a) 20 dB Bandwidth N/A PASS Section 3.2 15.247(a) Dwell Time =< 0.4 seconds PASS Section 3.6 15.247(b) Transmitter Output Power =< 1 Watt , if CHs >= 75 Others =< 0.125 W PASS Section 3.3 15.247(d) Conducted spurious emissions ≥ 20 dBc In any 100 kHz bandwidth PASS Section 3.7 15.205 15.209 General Field Strength Limits (Restricted Bands and Radiated Emission Limits) Emissions in Restricted bands must meet the radiated limits detailed in 15.209 Radiated PASS Section 3.7 15.207 AC Conducted Emissions (150 kHz – 30 MHz) < FCC 15.207 limits AC Line Conduted NA Note3) Section 3.8 15.203 Antenna Requirement FCC 15.203 - PASS Section 3.1 NOTES 1) The general test methods used to test on this devices are ANSI C63.10. 2) Determining compliance based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. 3) This Devices which only employ battery power for operation. Report No.: FCCCBNW-WAY-P23110164-2 Page: 5 of 63 Report Format Version: BV-FRFTF-01-004 1.1 Decision Rules for Statement of Conformity QUA-52 Decision Rule(QA Document) was applied. Step 1) : Reference Check, Daily Check, Peripheral device Check Step 2) : Re-test Procedure (Repeat the test maximum 3 times, Different Test Engineer) 1) If the original test results are subject to retesting and the judgemen…
