YCK-DR970XPCAR DASHCAM

ENGLISH/ 中文 Quick Start Guide DR970X-1CH Plus DR970X-2CH Plus *1CH Plus Model *2CH Plus Model Detailed Manual www.blackvue.com For manuals, customer support and FAQs go to www.blackvue.com 如需获得说明书、客户支持和常见问题解答，请访问 www.blackvue.com/cn DR970X-1CH Plus, 2CH Plus BLACKVUE DR970X-1CH Plus l DR970X-2CH Plus3 Important safety information For user safety and to avoid property damage, read through this manual and follow these safety instructions to use the product correctly. y Do not disassemble, repair, or modify the product yourself. Doing so may cause fire, electric shock, or malfunction. For internal inspection and repair, contact the service center. y Do not adjust the product while driving. Doing so may cause an accident. Stop or park your car in a safe place before installing and setting up the product. y Do not operate the product with wet hands. Doing so may cause electric shock. y If any foreign matter gets inside the product, detach the power cord immediately. Contact the service center for repair. y Do not cover the product with any material. Doing so may cause external deformation of the product or fire. Use the product and peripherals in a well-ventilated location. y If the product is used outside the optimal temperature range, performance can decline or malfunctions may occur. y When entering or exiting a tunnel, when directly facing into bright sunlight, or when recording at night without lighting the quality of recorded video may deteriorate. y If the product is damaged or the power supply is cut due to an accident, video may not be recorded. y Do not remove the microSD card while the microSD card is saving or reading data. The data can be damaged or malfunctions may occur. 4BLACKVUE FCC Compliance Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protections against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to ty to correct the interference by one or more of the following measures. y Reorient or relocate the receiving antenna. y Increase the separation between the equipment and receiver. y Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. y Consult the dealer or an experienced radio, TV technician for help. y Only shielded interface cable should be used. Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the user’s authority to operate such equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation of this device. FCC ID: YCK-DR970XP DR970X-1CH Plus l DR970X-2CH Plus5 CAUTION Any changed or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device should be installed and operated with minimum 20cm between the radiator and your body. There is a risk of explosion if the battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. CE WARNING y Changes and modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. y It is desirable that it be installed and operated with at least 20cm or more between the radiator and a person’s body (excluding extremities: hand, wrists, feet, and ankles). Disposal of your BlackVue dashcam 1. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. Contact local authorities to learn about disposal and recycling options available in your area. 2. The correct disposal of your BlackVue dashcam will help prevent potential negative consequences for the environment and human health. 3. For more detailed information about disposal of your BlackVue dashcam, please contact your city office, waste disposal service or the shop where you purchased the product. 6BLACKVUE IC Compliance This Class [B] digital apparatus complies with Canadian ICES-003. This radio transmitter has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. - IC Warning This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This equipment should be installed and operated with minimum 20cm between the radiator and your body. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage …

Text truncated - open the document above for the full version.

DR970X-1CH Plus l DR970X-2CH Plus31 Using BlackVue Web Viewer To experience the camera features in the Web Viewer, you must create an account and your dashcam must be connected to the Cloud. For this setup, it is recommended to download the BlackVue app and follow the instructions including optional steps in Using BlackVue App prior to accessing the Web Viewer. Go to www.blackvuecloud.com to access BlackVue Web Viewer. Select Start Web Viewer. Enter the login information if you have an account, otherwise press Sign up and follow the guidelines in the Web Viewer. To play video files after login, select your camera in the camera list and press Playback. If you have not already added your camera, press Add camera and follow the guidelines in the Web Viewer. Select the video you want to play from the video list. Note yFor more information about BlackVue Web Viewer features, refer to the manual from https://cloudmanual.blackvue.com. ENGLISH 32BLACKVUE Using BlackVue Viewer Playing video files and changing settings Remove the microSD card from the dashcam. Open side coverTo remove Insert the card into the microSD card reader and connect it to a computer. Download BlackVue Viewer program from www.blackvue.com > Support > Downloads and install it on your computer. Run BlackVue Viewer. To play, select a video and click on the play button or double click the selected video. To change settings, click on the button to open the BlackVue settings panel. Settings that can be changed include Wi-Fi SSID & password, image quality, sensitivity settings, voice recording on/off, speed unit (km/h, MPH), LEDs on/off, voice guidance volume, Cloud settings etc. DR970X-1CH Plus l DR970X-2CH Plus33 Windows/macOS Viewer Note y For more information about BlackVue Viewer, go to https://cloudmanual.blackvue.com. y The playback of 4K UHD resolution depends on your computer's hardware and software. Older computers may not support 4K UHD. If you encounter issues please check your computer's video playback capabilities. y All images shown are for illustration purpose only. Actual program may differ from images shown. ENGLISH 34BLACKVUE Tips for optimal performance For stable operation of the dashcam, it is recommended to format the microSD card once a month. Format using BlackVue dashcam: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card. Format using BlackVue App (Android/iOS): Go to BlackVue App > > Format microSD card and format the microSD card. Format using BlackVue Viewer (Windows): Download BlackVue Windows Viewer from www.blackvue.com > Support > Downloads and install it on your computer. Insert the microSD card into the microSD card reader and connect the reader to your computer. Launch the copy of BlackVue Viewer that is installed on your computer. Click the Format button, select the card drive and click OK. Format using BlackVue Viewer (macOS): Download BlackVue Mac Viewer from www.blackvue.com > Support > Downloads and install it on your computer. Insert the microSD card into the microSD card reader and connect the reader to your computer. Launch the copy of BlackVue Viewer that is installed on your computer. Click the Format button and select the microSD card from the list of drives in the left frame. After selecting your microSD card select the Erase tab in the main window. Select “MS-DOS (FAT)” from the Volume Format drop-down menu and click Erase. Only use official BlackVue microSD cards. Other cards may have compatibility issues. Regularly upgrade the firmware for performance improvements and updated features. Firmware updates will be made available for download at www.blackvue.com > Support > Downloads. Customer Support For customer support, manuals and firmware updates please visit www.blackvue.com You can also email a Customer Support expert at [email protected] DR970X-1CH Plus l DR970X-2CH Plus35 Product specifications (DR970X-1CH Plus, 2CH Plus): Model NameDR970X-1CH Plus I DR970X-2CH Plus Color/Size/Weight Front: Black / 118.6mm(L) x 47.4mm(W) x 36mm(H) / 108g Rear: Black / 67.3mm(L) x 28mm(W) x 25mm(H) / 25g MemorymicroSD Card (64 GB / 128 GB / 256 GB) Recording Modes Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected). * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode. Camera Front: STARVIS 2 CMOS Sensor (Approx. 8.4 M Pixel) Rear: STARVIS TM CMOS Sensor (Approx. 2.1 M Pixel) Viewing Angle Front: Diagonal 146°, Horizonal 125°, Vertical 68° Rear: Diagonal 131°, Horizonal 107°, Vertical 55° Resolution/ Frame Rate Front: 4K (3840 x 2160) @ 30 fps Rear: Full HD (1920 x 1080) @ 30 fps * Frame rate may vary during Wi-Fi streaming. Video Codec H.265 (HEVC) / H.264 (AVC) Image Quality (Mbps) Front: Extreme(60), Highest(25), High(12), Normal(8) Rear: Extreme(10), Highest(10), High(8), Normal(6) *60Mbps bitrates only support in H.265(HEVC). Video Compression Mode MP4 Wi-FiBuilt-in (802.11 a.b.g.n.ac) GPSBuilt-in (Dual Band : GPS, GLONASS) ENGLISH 36BLACKVUE BluetoothBuilt-in (V2.1+EDR/4.2) MicrophoneBuilt-in Speaker (Voice Guidance) Built-in LED Indicators Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED Rear: Rear Security LED Button Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card. Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings. Sensor3-Axis Acceleration Sensor Backup BatteryBuilt-in Super Capacitor Input Power DC 12V-24V (3 pole DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) Power Consumption y DR970X-1CH Plus Normal Mode (GPS On/1CH): A…

Text truncated - open the document above for the full version.

Attestation Statement Letter I Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: __________________ Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC Application for FCC ID: _______________________________ ________________________ certifies that the equipment for which authorization is sought is not “covered” equipment prohibited for receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Applicant’s Signature: Applicant’s Name:

Attestation Statement Letter II Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: __________________ Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC Application for FCC ID: _______________________________ _________________________ certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Applicant’s Signature: Applicant’s Name:

FCC Attestation Statement US Agent For Service Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: __________________ Ref: Attestation Statements Part 2.911(d)(7) Filing FCC Application for FCC ID: _______________________________ ________________________________ certifies that, as of the date of the filing of the application, ________________________________ is our designated U.S. agent for service of process for the above reference FCC ID: ___________________. ________________________________ agrees to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceedings involving the equipment. _______________________________ accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for above referenced FCC ID. Designated U.S. Agent Information: Name: Address: Contact Person: Telephone: Email: FRN : Sincerely, Applicant’s Signature: Agent’s Signature: Applicant’s Name: Agent’s Name:

____________________ Pittasoft Co., Ltd. Date: 2024-01-31 Subject: Family model declaration letter Product: CAR DASHCAM FCC ID: YCK-DR970XP IC: 23402-DR970XP Model : DR970X Plus FCC & IC Family Model: DR970X-1CH Plus, DR970X-2CH Plus, DR970X-2CH IR Plus, DR970X-2CH Truck Plus, DR970X-2CH DMS Plus The basic model and electrical circuit structure function are the same, and the marketing model name is different. Client’s signature: Client’s name & title: MINHO SHIN / Principal Research Engineer Contact information / address: A 4th floor, ABN Tower, 331, Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, Republic of Korea

Date: 04/17/2018 VCB_F-01: Operating Procedures Form – FCC Authorization v02 Page 1 of 1 Pittasoft Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: 2024-01-26 SUBJECT: FCC Application for (FCC ID: YCK-DR970XP) To Whom It May Concern: We, the undersigned, hereby authorize Mr. Todd Kwak/General Manager of BV CPS ADT Korea Inc. and hereafter referred to as BV CPS ADT Korea to act on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Mr. Todd Kwak/ General Manager of BV CPS ADT Korea Inc. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, (Must be signed by the person that is listed on the FCC Website) Client’s signature: Client’s name & title: MINHO SHIN / Principal Research Engineer Contact information / address: A 4th floor, ABN Tower, 331, Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, Republic of Korea

Date: 04/17/2018 VCB_F-01: Operating Procedures Form – FCC Confidentiality v03 Page 1 of 1 Pittasoft Co., Ltd. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YCK-DR970XP Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Type of Confidentiality Requested Exhibit Type ☐Short Term ☒Permanent Block Diagrams ☒Short Term External Photos ☒Short Term ☐Permanent* Internal Photos ☐Short Term ☒Permanent Operation Description ☐Short Term ☒Permanent Parts List/BOM ☐Short Term ☒Permanent Schematics ☒Short Term Test Setup Photos ☒Short Term ☐Permanent* User manual ☐Short Term ☒Permanent Software Security *Requires further justification before permanent confidentiality will be allowed. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below for an initial period of 90 (ie- “45”, “90” or “180”) days. Sincerely, Client’s signature: Client’s name & title: MINHO SHIN / Principal Research Engineer Contact information / address: A 4th floor, ABN Tower, 331, Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, Republic of Korea

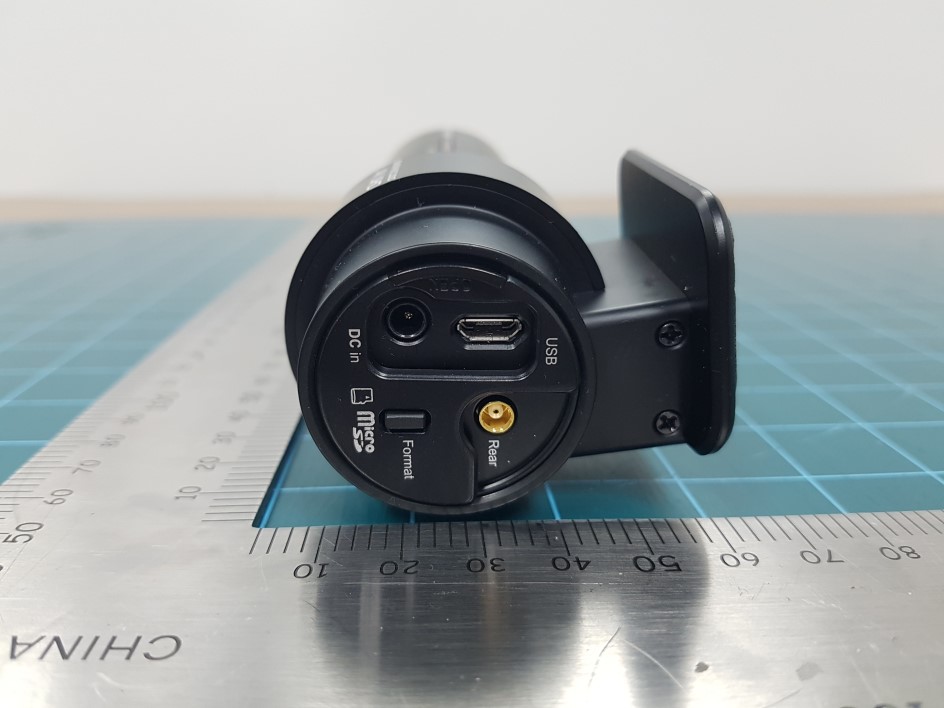

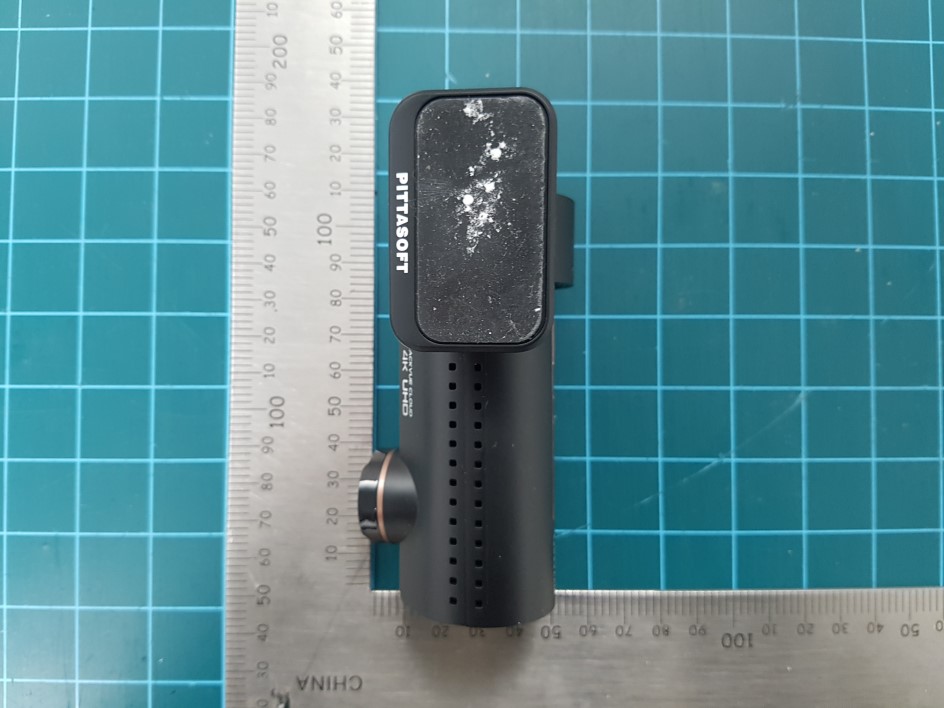

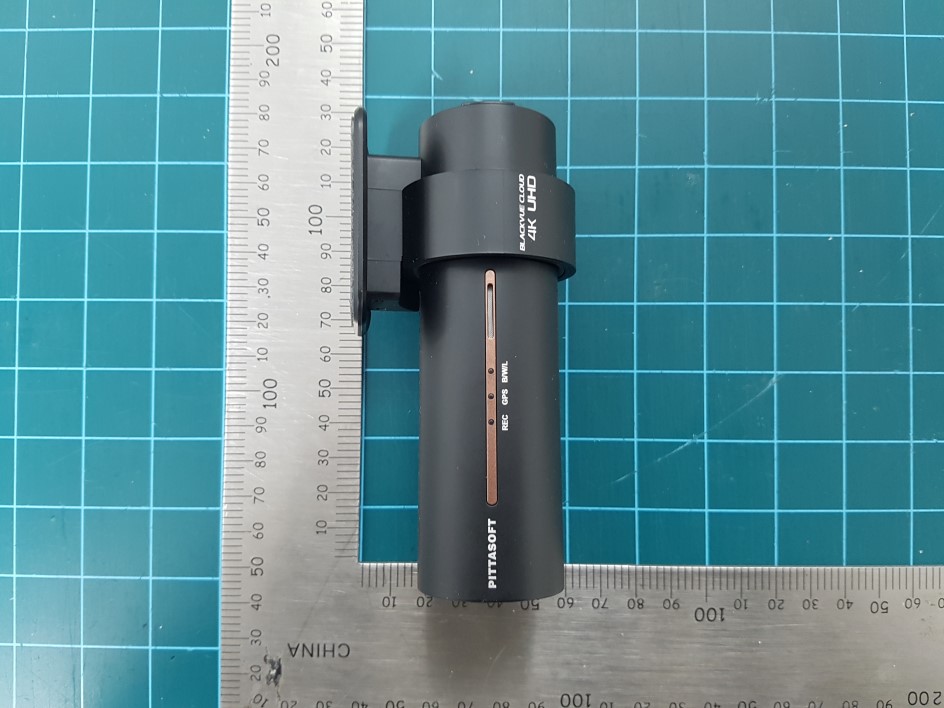

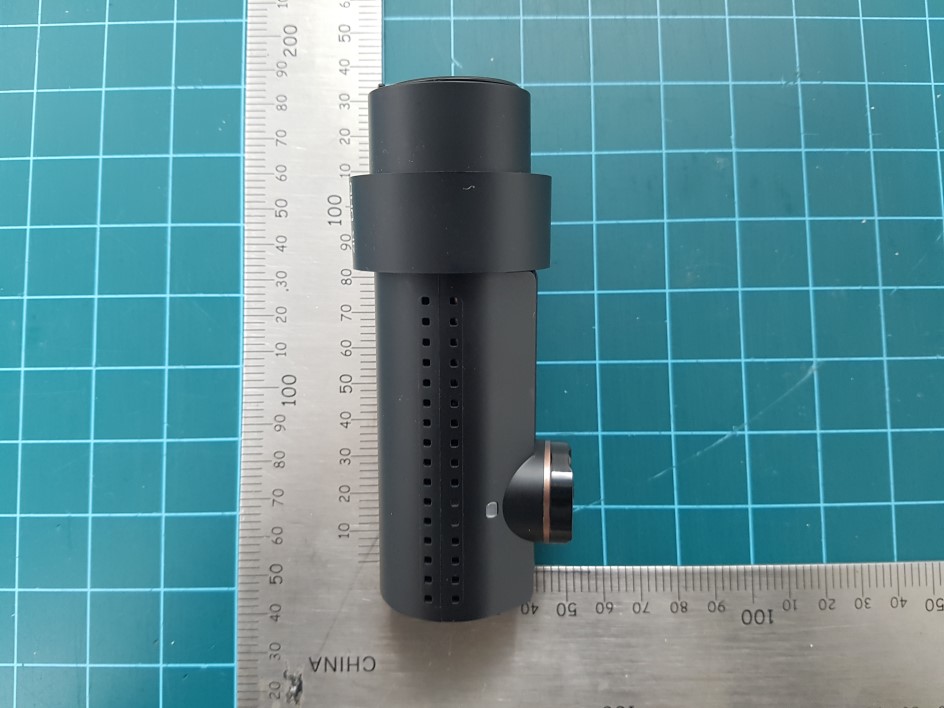

Page: 1 of 3 Photograph of EUT(External) Page: 2 of 3 Page: 3 of 3

Label Information 1. Label Location Label Position 1. 2023.12.21 Product S/N Label_DR970X-2CH DMS Plus Model : DR970X-2CH DMS Plus FCC ID : YCK-DR970XP R-R-PTA-DR970XP HVIN : DR970X-2CH DMS Plus IC : 23402-DR970XP 1. 2023.12.21 Product S/N Label_DR970X-2CH Truck Plus Model : DR970X-2CH Truck Plus FCC ID : YCK-DR970XP R-R-PTA-DR970XP HVIN : DR970X-2CH Truck Plus IC : 23402-DR970XP

Page: 1 of 10 Photograph of EUT(Internal) Page: 2 of 10 Page: 3 of 10 Page: 4 of 10 Page: 5 of 10 Page: 6 of 10 Page: 7 of 10 Page: 8 of 10 Page: 9 of 10 Page: 10 of 10 Chip Antenna

▪ S = - Note EIRP= Equivalent Isotropic Radiated Power(mW) Operation Mode Evaluation Frequency (MHz) MAX Output Power (dBm) Antenna Gain (dBi) MAX. EIRP (dBm) MAX. EIRP (mW) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm2) Result 2.4G WIFI 2412 ~ 2462 16.73-1.7914.9431.19200.0061PASS 5G WIFI NII 1 5180 ~ 5240 4.340.705.043.19200.0011PASS 5G WIFI NII 3 5745 ~ 5825 2.26-0.861.401.38200.0001PASS 2.4G BT 2402 ~ 2480 7.33-1.795.543.58200.0011PASS 2.4G LE 2402 ~ 2480 7.72-1.795.933.92200.0011PASS Result : 0.006 + 0.001 = 0.007 < 1 FCC ID:YCK-DR970XP Maximum Permissible Exposure Calculation maximum calculations of above situations are less than the “1” limit. Conclusion R= Distance to the center of the radiation of the antenna(Over 20cm) EIRP / ( 4 R 2 π ) f = frequency in MHz. * = Plane-wave equivalent power density. S= Maximum power density(mW/cm 2 ) Conclusion of Simultaneous Transmitter CPD = Calculation power density / LPD = Limit of power density The formula of calculated the MPE is CPD1 / LPD 1 + CPD2 / LPD 2 + ...... < 1 The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. f/1500 1 2.4G/5G WIFI + BT <30 <30 <30 <30 <30 1.63 2.19/f 0.073 *(100) *(180/f 2 ) 1.34-30 30-300 300-1,500 1,500-100,000 614 824/f 27.50.2 FCC Part 2 section 2.1091 (ii) Limits for General Population/Uncontrolled Exposure Averaging time (minutes) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm2) 0.3-1.34

1.Passivemeasurement 1-1.Antennamatchingvalue Antennamatchingcircuit 1-2. MeasuredS-parameter ReturnLoss&VSWR 0. 5 pF Input 100pF 2. 7 nH Setcondition SHDA10312442B 2-1.Antennagain 2-1. Radiation pattern Frequency[MHz]Efficiency[%]Averagegain[dBi]Peakgain[dBi] 2400 22.29-6.52-1.79 2442 21.09-6.76-2.53 2485 25.00-6.02-1.35 5150 30.65-5.140.47 5500 41.72-3.800.38 5850 28.72-5.42-0.86 XY planeZX planeYZ plane XY planeZX planeYZ plane Antenna y z θ x φ ModelAntenna TEST Wi-Fi(802.11b)Wi-Fi(802.11a) Channel CH 1CH 6CH 11CH 149CH 157CH 165 DR970X Plus #1 23.08.17 측정data SHDA10312442B TRP-14.01--15.93- TIS-79.47--69.31- ModelAntenna TEST Wi-Fi(802.11b)Wi-Fi(802.11a) Channel CH 1CH 6CH 11CH 149CH 157CH 165 DR970X Plus #15 23.08.17 측정data SHDA10312442B TRP-13.04---- TIS-81.15---- ModelAntenna TEST Wi-Fi(802.11b)Wi-Fi(802.11a) Channel CH 1CH 6CH 11CH 149CH 157CH 165 DR970X Plus #1 23.09.11 측정data SHDA10312442B TRP----13.39- TIS----68.74- ModelAntenna TEST Wi-Fi(802.11b)Wi-Fi(802.11a) Channel CH 1CH 6CH 11CH 149CH 157CH 165 DR970X Plus #2 23.09.11 측정data SHDA10312442B TRP----13.87- TIS----67.39- ModelAntenna TEST Wi-Fi(802.11b)Wi-Fi(802.11a) Channel CH 1CH 6CH 11CH 149CH 157CH 165 DR970X Plus #6 SCAP 23.09.11 측정data SHDA10312442B TRP----14.14- TIS----57.40- ModelAntenna TEST Wi-Fi(802.11b)Wi-Fi(802.11a) Channel CH 1CH 6CH 11CH 149CH 157CH 165 DR970X Plus #15 23.09.11 측정data SHDA10312442B TRP----15.53- TIS----58.17- ModelAntenna TEST Wi-Fi(802.11b)Wi-Fi(802.11a) Channel CH 1CH 6CH 11CH 149CH 157CH 165 DR970X Plus #1 23.09.13 측정data SHDA10312442B TRP----13.80- TIS----69.63- DR970X Plus #15 OS08A10_FCAN-DEL 23.09.13 측정data SHDA10312442B TRP----16.15- TIS----67.24- ModelAntenna TEST Wi-Fi(802.11b)Wi-Fi(802.11a) Channel CH 1CH 6CH 11CH 149CH 157CH 165 DR970X Plus #15 FCAM-PCB-CUT 23.09.13 측정data SHDA10312442B TRP----16.75- TIS----68.90-
