YCK-DR550GW-2CHDriving Recorder

Name | Car Dashcam Manufacturer | PittaSoft Co., Ltd. / Korea Address | BYC HIGH CITY A- 7th floor, 371-17, Gasan-Dong, Geumcheon-Gu, Seoul, 153-803, Korea Sales Headquater Tel: +82-2-6947-4670(#3) | Fax: +82-2-6947-4699 e-mail: [email protected] www.blackvue.com BLACKVUE Wi-Fi 2CH For your safe driving BLACKVUE Wi-Fi 2CH DR550GW-2CH DR550GW-2CH 3 Table of Contents Introduction to the Manual 4 Getting started 5 Cautions for Safety 8 Checks for GPS 8 Checks for the microSD Cards 9 Product Features 11 Package Components 12 Names of Each Part 14 How to Attach & Detach the Mounting Bracket of the Front Camera 14 How to Attach & Detach the Mounting Bracket of the Rear Camera How to Install the BlackVue 15 Checking Installation Position 16 How to Insert & Remove the microSD Card 17 Installation Video Recording 19 Normal Recording 19 Parking Mode Recording 20 Event Recording Simple Video Playback 21 Normal Recording 24 How to Playback using the BlackVue App How to use the BlackVue Viewer 26 Installation & Execution 28 Screen Description 30 Video Playback 36 Configuration Firmware Upgrade 42 Product Specifications & Standards 44 Product Specifications 46 LED Indicators 46 microSD Card Standard 4 BLACKVUE Wi-Fi 2CH Introduction to the ManualThank you for purchasing a BlackVue by PittaSoft Co., Ltd.This instruction manual contains information on how to operate your BlackVue.Before using the product, make sure to read through this manual so as to use the product in the correct way.To enhance the performance of the product, the contents of this instruction manual may be changed without prior notice. Warranty & Support  This product records and saves videos of vehicle accidents, but it is not guaranteed to record all accidents. Accidents with light impact that is not enough to activate the impact detection sensor may not be recorded.  In accordance with Personal Information Security Law & related legislation, PittaSoft Co., Ltd. will not be held responsible for any problem due to illegal use of this product.  The recorded video produced by this product constitutes the secondary data that may help to determine the circumstances of an accident. PittaSoft Co., Ltd. will not be held responsible for any loss or damage caused by any accident. Copyright & Trademark  This instruction manual is protected by Copyright Law, and all rights to it are protected by law.  It is prohibited to reproduce, copy, modify, or translate this instruction manual without permission.  BlackVue is the registered trademark of PittaSoft Co., Ltd. PittaSoft Co., Ltd. reserves the rights regarding all works related to the BlackVue brand such as product design, trademarks, and product-promotional videos. It is prohibited to reproduce, copy, modify, or use related works without permission. Any violation may be penalized in accordance with the relevant regulations. DR550GW-2CH 5 Getting started Cautions for Safety The purpose of these cautions is to maintain user safety and avoid damage to property.Please make sure to read through this manual so as to use the product in the correct way. DANGER Death or property damage can be caused for users if the following directions are not followed:  Do not disassemble, repair, or modify the product yourself.It can cause fire, electric shock, or malfunction. For internal inspection and repair, call your customer service center.  If any foreign matter gets inside the product, detach the power cord straightaway.Call the customer service center for repair.  Do not operate the product while driving.It can cause an accident. Stop or park your car in a safe place to operate it.  Do not install the product where it can interfere with the driver's vision.It can cause an accident.  Do not use a damaged or modified power cord. Use the cords provided by the manufacturer.Otherwise it can cause explosion, fire, or malfunction.  Do not operate the product with wet hands.It can cause electric shock.  Do not install it in an environment with high humidity, or combustible gases or liquids.It can cause explosion & fire. 6 BLACKVUE Wi-Fi 2CH WARNING Death or serious injury can be caused for users if the following directions are not followed:  Do not leave the product where infants, children, or pets can reach it.They might swallow small components, or their saliva c ould get into it and cause an explosion due to a short circuit.  While cleaning the inside of the car, do not spray water or wax directly onto the product.It can cause fire, electric shock, or malfunction.  If smoke or an unusual smell is emitted from the power cord, detach it immediately.Call the customer service center or the dealer.  Keep the terminal of the power cord clean.A dirty terminal can cause excessive heat and fire.  Use the correct input voltage.Otherwise it can cause explosion, fire, or malfunction.  Connect the power cord firmly so that it cannot easily be disconnected.Otherwise it can cause fire.  Do not cover the product with any material.It can cause external deformation of the product or fire. Use the product and peripherals where ventilation is ensured. DR550GW-2CH 7 CAUTION Injury or property damage can be caused for users if the following directions are not followed:  Do not spray cleaning products directly onto the outside of the product.It can cause discoloration, cracks, or malfunction.  If the product is used outside the optimal temperature range (0°C ~ 60°C), performance can decline or malfunction can be caused.  Make sure that the product is installed properly. The product can fall as a result of vibration, and may cause physical injury.  While entering or exiting a tunnel, during daytime in the face of bright sunlight, or at night with no light, the quality of recorded video can deteriorate.  If the product is damaged or the power supply is cut due to an accident, video may not be recorded.  Excessively tinted windshield glass can distort the recorded video or cause it to be indistinct.  Prolonged…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 July 26, 2013 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Pittasoft Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Driving Recorder / DR550GW-2CH (FCC ID: YCK-DR550GW-2CH) We affirm that between SIEMIC and Pittasoft Co., Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Doyun Kim / Team Manager Pittasoft Co., Ltd. BYC HIGH CITY A-7th floor, 371-17 Gasan-Dong, Geumcheon-Gu, Seoul, 153-803, Korea

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 July 26, 2013 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YCK-DR550GW-2CH We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Circuit Diagram - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Doyun Kim / Team Manager Pittasoft Co., Ltd. BYC HIGH CITY A-7th floor, 371-17 Gasan-Dong, Geumcheon-Gu, Seoul, 153-803, Korea

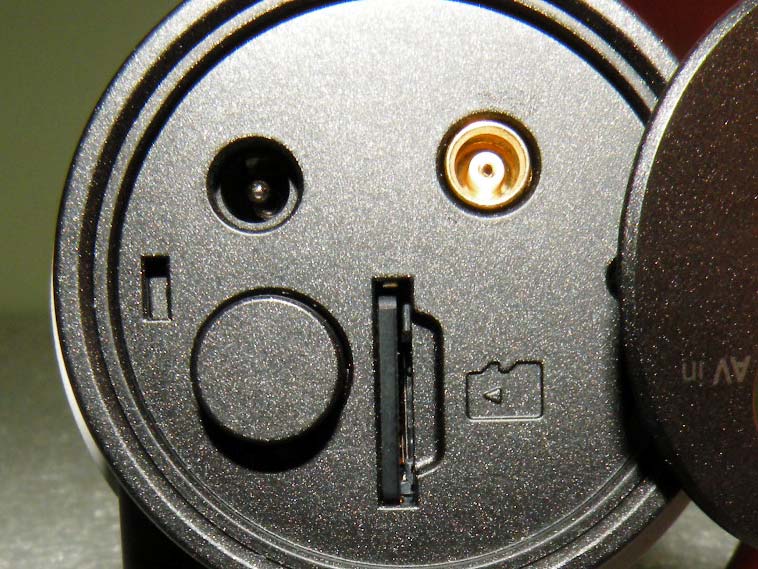

Appendix C. External Photographs Report no. ETLE130624.0675, Page C1 of C11 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH View of total construct Appendix C. External Photographs Report no. ETLE130624.0675, Page C2 of C11 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Front Camera - Front view of EUT Front Camera - Rear view of EUT Appendix C. External Photographs Report no. ETLE130624.0675, Page C3 of C11 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Front Camera - Top view of EUT Front Camera - Bottom view of EUT Appendix C. External Photographs Report no. ETLE130624.0675, Page C4 of C11 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Front Camera - Side view of EUT Appendix C. External Photographs Report no. ETLE130624.0675, Page C5 of C11 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Front Camera - View of button, port and Micro SD Card slot Appendix C. External Photographs Report no. ETLE130624.0675, Page C6 of C11 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Rear Camera - Front view of EUT Rear Camera - Rear view of EUT Appendix C. External Photographs Report no. ETLE130624.0675, Page C7 of C11 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Rear Camera - Top view of EUT Rear Camera - Bottom view of EUT Appendix C. External Photographs Report no. ETLE130624.0675, Page C8 of C11 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Rear Camera - Side view of EUT Appendix C. External Photographs Report no. ETLE130624.0675, Page C9 of C11 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH View of Micro SD Card Appendix C. External Photographs Report no. ETLE130624.0675, Page C10 of C11 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH View of Video cable Appendix C. External Photographs Report no. ETLE130624.0675, Page C11 of C11 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH View of cigar jack cable

Appendix A. FCC ID Label and Location Report no. ETLE130624.0675, Page A1 of A1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. The warning statement and Information to the User are described in the user manual. Pittasoft Co., Ltd. Driving Recorder FCC ID : YCK-DR550GW-2CH Model No. : DR550GW-2CH POWER : DC 12 V – DC 24 V from Automotive Battery Serial No. : Proto type Manufacturer: Pittasoft Co., Ltd. Made in Korea Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE130624.0675, Page D1 of D26 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Front Camera - Inside view of EUT Appendix D. Internal Photographs Report no. ETLE130624.0675, Page D2 of D26 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Front Camera - Inside view of EUT Appendix D. Internal Photographs Report no. ETLE130624.0675, Page D3 of D26 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Front Camera - Top side view of main board Appendix D. Internal Photographs Report no. ETLE130624.0675, Page D4 of D26 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Front Camera - Top side view of main board (case open) Appendix D. Internal Photographs Report no. ETLE130624.0675, Page D5 of D26 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Front Camera - Bottom side view of main board RF Module Appendix D. Internal Photographs Report no. ETLE130624.0675, Page D6 of D26 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Front Camera - Bottom side view of main board (case open) Appendix D. Internal Photographs Report no. ETLE130624.0675, Page D7 of D26 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Front Camera - Top side view of power board Appendix D. Internal Photographs Report no. ETLE130624.0675, Page D8 of D26 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Front Camera - Top side view of power board (case open) Appendix D. Internal Photographs Report no. ETLE130624.0675, Page D9 of D26 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Front Camera - Bottom side view of power board Appendix D. Internal Photographs Report no. ETLE130624.0675, Page D10 of D26 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Front Camera - Top side view of RF Module Appendix D. Internal Photographs Report no. ETLE130624.0675, Page D11 of D26 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Front Camera - Top side view of RF Module (case open) Internal Antenna Appendix D. Internal Photographs Report no. ETLE130624.0675, Page D12 of D26 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Front Camera - Bottom side view of RF Module Appendix D. Internal Photographs Report no. ETLE130624.0675, Page D13 of D26 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Front Camera - Bottom side view of RF Module (case open) Appendix D. Internal Photographs Report no. ETLE130624.0675, Page D14 of D26 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Front Camera - Top side view of GPS Module Appendix D. Internal Photographs Report no. ETLE130624.0675, Page D15 of D26 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Front Camera - Bottom side view of GPS Module Appendix D. Internal Photographs Report no. ETLE130624.0675, Page D16 of D26 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Front Camera - Bottom side view of GPS Module (case open) Appendix D. Internal Photographs Report no. ETLE130624.0675, Page D17 of D26 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Front Camera - Top side view of image sensor board Appendix D. Internal Photographs Report no. ETLE130624.0675, Page D18 of D26 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Front Camera - Bottom side view of image sensor board Appendix D. Internal Photographs Report no. ETLE130624.0675, Page D19 of D26 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Front Camera - Top side view of motion sensor board Appendix D. Internal Photographs Report no. ETLE130624.0675, Page D20 of D26 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Front Camera - Bottom side view of motion sensor board Appendix D. Internal Photographs Report no. ETLE130624.0675, Page D21 of D26 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Rear Camera - Inside view of EUT Appendix D. Internal Photographs Report no. ETLE130624.0675, Page D22 of D26 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Rea…

Text truncated - open the document above for the full version.

Appendix I. Radio Frequency Exposure Report no. ETLE130624.0675, Page I1 of I2 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. Limit Limits for general population/Uncontrolled exposure Frequency Range [MHz] Electric Field Strength (E) [V/m] Magnetic Field Strength (H) [A/m] Power Density (S) [mW/cm 2 ] Averaging Time |E| 2 , |H| 2 or S [minutes] 0.3 - 1.34 1.34 - 30 30 - 300 300 - 1 500 1 500 - 100 000 614 824/f 27.5 -- -- 1.63 2.19/f 0.073 -- -- (100) (180/f 2 ) 0.2 f/1 500 1.0 30 30 30 30 30 f = frequency in MHz *Plane-wave equivalent power density MPE Prediction Predication of MPE limit at a given distance. Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Appendix I. Radio Frequency Exposure Report no. ETLE130624.0675, Page I2 of I2 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH - 802.11b mode Maximum peak output power at antenna input : 0.35 dBm (1.084 mW) Prediction distance : 20 cm Predication frequency : 2 472 MHz Antenna gain(Max) : 3.10 dBi (2.04 numeric) Power density at predication frequency at 20 cm : 0.000440 mW/cm 2 MPE Limit for : 1 mW/cm 2 - 802.11g mode Maximum peak output power at antenna input : -2.93 dBm (0.509 mW) Prediction distance : 20 cm Predication frequency : 2 472 MHz Antenna gain(Max) : 3.10 dBi (2.04 numeric) Power density at predication frequency at 20 cm : 0.000206 mW/cm 2 MPE Limit for : 1 mW/cm 2 - 802.11n(HT20) mode Maximum peak output power at antenna input : -3.32 dBm (0.466 mW) Prediction distance : 20 cm Predication frequency : 2 472 MHz Antenna gain(Max) : 3.10 dBi (2.04 numeric) Power density at predication frequency at 20 cm : 0.000189 mW/cm 2 MPE Limit for : 1 mW/cm 2 - 802.11n(HT40) mode Maximum peak output power at antenna input : -3.32 dBm (0.466 mW) Prediction distance : 20 cm Predication frequency : 2 422 MHz Antenna gain(Max) : 3.10 dBi (2.04 numeric) Power density at predication frequency at 20 cm : 0.000189 mW/cm 2 MPE Limit for : 1 mW/cm 2 Test Result The power density level at 20 cm is 0.000440 mW/cm 2 , 0.000206 mW/cm 2 , 0.000189 mW/cm 2 and 0.000189 mW/cm 2 which is below the uncontrolled exposure limit of 1 mW/cm 2 at 2 412 MHz to 2 472 MHz.

Report no. ETLE130624.0675, Page 2 of 70 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: YCK-DR550GW-2CH Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 6 dB Bandwidth 5.3 Maximum Peak Output Power 5.4 Bandwidth of Frequency Band Edges 5.5 Power Spectral Density 5.6 Spurious Emissions 5.7 Radio Frequency Exposure 6. Sample Calculation 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Circuit Diagram Appendix G. User Manual Appendix H. Operational Description Appendix I. Antenna Requirement Appendix J. Radio Frequency Exposure Report no. ETLE130624.0675, Page 3 of 70 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: YCK-DR550GW-2CH FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission (EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information  EUT Type : Driving Recorder  Model Number : DR550GW-2CH  S/N : Proto type  Modulation Technique : DSSS (CCK), OFDM (QAM)  Frequency Channel : 802.11b/g/n(HT20) : 2 412 MHz to 2 472 MHz and Channel Spacing 5 MHz (13 Ch) 802.11n(HT40): 2 422 MHz to 2 462 MHz and Channel Spacing 5 MHz (9 Ch)  Air Data Rate : 11 Mbps (802.11b), 54 Mbps (802.11g), 150 Mbps (802.11n)  Antenna Type : Internal Antenna (Integral)  Antenna Gain : 3.10 dBi max  RF Power : 1.084 mW  FCC Rule Part(s) : FCC Part 15 Subpart C  Test Procedure : ANSI C63.4-2003  FCC Classification : DTS (Part 15 Digital Transmission System)  Place of Tests : ETL Inc. Testing Lab. Radiated Emission test; #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea Conducted Emission test; ETL Inc. Testing Lab. 371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Applicant Name : Pittasoft Co., Ltd. Address : BYC HIGH CITY A-7th floor, 371-17 Gasan-Dong, Geumcheon-Gu, Seoul, 153-803, Korea Attention : Doyun Kim / Team Manager Report no. ETLE130624.0675, Page 4 of 70 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: YCK-DR550GW-2CH 1. INTRODUCTION The measurement test for radiated and conducted emission test was conducted at the ETL Inc. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission (FCC Designation Number : KR0022). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions from the Pittasoft Co., Ltd. Model: DR550GW-2CH Report no. ETLE130624.0675, Page 5 of 70 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: YCK-DR550GW-2CH 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the Driving Recorder (model: DR550GW-2CH). 2.2 General Specification Item Specification Front: Pearl Black Color Rear: Pearl Black Front: 118.5 mm (Length) x 36.0 mm (Diameter) Size Rear: 67.4 mm (Length) x 27.6 mm (Diameter) Front: 120 g Weight Rear: 30 g Memory Micro SD Card (16 GB/32 GB) Recording Mode Normal Recording, Event Recording (Impact Detection) and Parking Mode Recording (Motion + Impact Detection) * For parking mode recording, a battery discharge prevention device is required. Front: CMOS Sensor (Approx. 2.4 M Pixel) Camera Rear: CMOS Sensor (Approx. 1 M Pixel) Front: Opposite Angle 139°, Horizontal 116°, Vertical 61° Viewing Angle Rear: Opposite Angle 139°, Horizontal 116°, Vertical 61° Front: Full HD (1 920 x 1 080) @ 30 fps, Full HD (1 920 x 1 080) @ 15 fps, HD (1 280 x 720) @ 30 fps, HD (1 280 x 720) @ 15 fps, D1 (720 x 480) @ 30 fps * Resolution / Frame can be changed Resolution / Frame Rear: HD (1 280 x 720) @ 30 fps, HD (1 280 x 720) @ 15 fps, HD (1 280 x 720) @ 30 fps, HD (1 280 x 720) @ 15 fps, HD (1 280 x 720) @ 30 fps * Resolution / Frame can be changed Compression Mode Video MP4 Wi-Fi Built-in (802.11b/g/n (2.4 GHz – 2.483 5 GHz), Max 150 Mbps, OFDM/CCK/16-QAM/64-QAM) GPS Built-in Microphone Built-in Report no. ETLE130624.0675, Page 6 of 70 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: YCK-DR550GW-2CH Item Specification Speaker Built-in * Voice Directions Front: Recording LED, GPS LED, Wi-Fi LED, Front Security LED LED Indicators Rear: Rear Security LED Sensor 3-Axis Acceleration Sensor Wi-Fi on/off Button * Self-format Function: Press it for 10 seconds to format the Micro SD Card Button Voice on/off Button * The proximity sensor is built-in so that voice recording can be turned on/off by approaching it with a hand * Touch the button or it recognizes when a hand approaches to within about 2 cm Backup Battery Built-in Super Capacitor Input Power DC 12 V – DC 24 V Current Consumption Approx. 4.8 W * Varies depending on Wi-Fi usage Operation Temperature (25 ± 45) °C Software BlackVue Viewer Program * Windows XP or later (Up to Windows 8), M…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLE130624.0675, Page B1 of B3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Radiated Emission Test Setup (Below 30 MHz) Appendix B. Test Setup Photographs Report no. ETLE130624.0675, Page B2 of B3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Radiated Emission Test Setup (Below 1 GHz) Appendix B. Test Setup Photographs Report no. ETLE130624.0675, Page B3 of B3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR550GW-2CH Radiated Emission Test Setup (Above 1 GHz)
