YCK-DR750LW-2CHCar Dashcam

BLACKVUE LCD BLACKVUE LCD I 3 Table of Contents Introduction to the Manual 4 Getting Started Cautions for Safety 5 Checks for the External GPS 8 Checks for the microSD Card 8 Management During Summer Season 9 Product Features 9 Package Components 10 Name of Each Part 11 Attach & Detach the Mounting Holder of the Front View Camera 13 Attach & Detach the Mounting Holder of the Rear View Camera 13 Install the BlackVue Checking Installation Position 14 Insert & Remove the microSD Card 15 Installation 16 Video Recording Normal Recording 18 Parking Recording 18 Event Recording 19 Emergency Recording 19 Simple Video Playback Playback in BlackVue 20 Playback Using a microSD Card 21 Playback Using the BlackVue App 23 Using the BlackVue Switch to Live View 25 Settings 25 Using the BlackVue Screen Description 31 Viewer Video Playback 33 Settings 39 Firmware Upgrade 44 Product Specifications Product Specifications 45 & Standards LED Indicators 47 Recording Time 48 4 Introduction to the Manual Thank you for purchasing this product manufactured by Pittasoft Co., Ltd.This document contains information on how to operate this product. Before using the product, make sure to read through this doc ument so as to use the product properly. In order to enhance the performance of the product, the contents of this document may be changed without prior notice. Copyright & Trademark  This document is protected by the Copyright Act, and legal protection is guaranteed to all rights.  It is prohibited to reproduce, copy, modify, or translate this document without permission.  BlackVue is a registered trademark of Pittasoft Co., Ltd. Pittasoft Co., Ltd. reserves the rights regarding all works related to the BlackVue brand such as product design, trademarks, and product-promotional images. It is prohibited to reproduce, copy, or use related works without the permission of Pittasoft Co., Ltd. Any violation may be penalized in accordance with the relevant regulations. Warranty & Support  This product records and saves videos on vehicle accidents; however, it is not guaranteed to record all accidents. Accidents with a light impact that is not enough to activate the impact detection sensor may not be recorded.  In accordance with Personal Information Security Law & related acts, Pittasoft Co., Ltd. is not accountable for any issues or problems due to the illegal use of this product.  A video recorded by this product constitutes the secondary data that may help to determine the circumstances of an accident. Pittasoft Co., Ltd. is not accountable for any loss or damage caused by an accident. BLACKVUE LCD I 5 Getting Started Cautions for Safety The purpose of these cautions is to maintain user safety and to avoid damage to property. Please make sure to read through this document so as to use the product properly. Danger Death or property damage can be caused for users if the following directions are not followed:  Do not use a damaged or altered power cord. Use the cords provided by the manufacturer.Otherwise, it can cause an explosion, fire, or malfunction.  Do not operate this product with wet hands.It can cause an electric shock.  Do not install it in a place with high humidity, or combustible gases or liquids.It can cause an explosion and fire.  Do not disassemble, repair, or alter the product yourself.It can cause fire, an electric shock, or malfunction. For internal inspection and repair, call your customer service center.  If any foreign matter gets inside the product, detach the power cord right away.Call the customer service center for repair.  Do not operate the product while driving.It can cause an accident. Stop or park your car in a safe place to operate it.  Do not install the product where it can interfere with the driver's vision.It can cause an accident. 6 Warning Death or serious injury can be caused for users if the following directions are not followed:  Use the correct input voltage.Otherwise, it can cause an explosion, fire, or malfunction.  Connect the power cord firmly so that it cannot easily be disconnected.Otherwise, it can cause fire.  Do not cover the product with cloth or blanket.It can cause the external deformation of the product or fire. Use the product and peripherals in a place where ventilation is ensured.  Do not leave the product where infants, children, or pets can reach it.They might swallow small components, or their saliva could get into it and cause an explosion due to a short circuit.  While cleaning the inside of the car, do not spray water or wax directly onto the product.It can cause fire, an electric shock, or malfunction.  If smoke or an unsual smell is emitted from the power cord, detach it immediately.Call the customer service center or the reseller.  Keep the terminal of the power cord clean.A dirty terminal can cause excessive heat and fire. BLACKVUE LCD I 7 Caution Injury or property damage can be caused for users if the following directions are not followed:  Since microSD cards are consumables, replace them with new ones after prolonged use. If a microSD card is used for a long period of time, a video may not be properly recorded. Thus, check regularly if recording is being properly done. If not, replace the card with a new one.  Clean the lens on a regular basis.If the lens is not clean, it may affect recording.  While data are being saved into the microSD card or the card is reading data, do not detach the card. The data may be damaged or malfunction caused.  It is recommended to install this product at the installation spot. The installation spot can be checked from the website of BlackVue (www.blackvue.com).  When this product does not need to be used for a long period of time, it is recommended to detach the power cord.  Do not press the LCD screen with a sharp or pointed object.  Do not press the LCD screen too firmly.  Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 August 27, 2014 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Pittasoft Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Car Dashcam / DR750LW-2CH (FCC ID: YCK-DR750LW-2CH) We affirm that between SIEMIC and Pittasoft Co., Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Kyungtae Ko / Senior Engineer Pittasoft Co., Ltd. BYC HIGH CITY A-7th floor, 371-17 Gasan-Dong, Geumcheon-Gu, Seoul, 153-803, Korea

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 August 27, 2014 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YCK-DR750LW-2CH We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Circuit Diagram - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Kyungtae Ko / Senior Engineer Pittasoft Co., Ltd. BYC HIGH CITY A-7th floor, 371-17 Gasan-Dong, Geumcheon-Gu, Seoul, 153-803, Korea

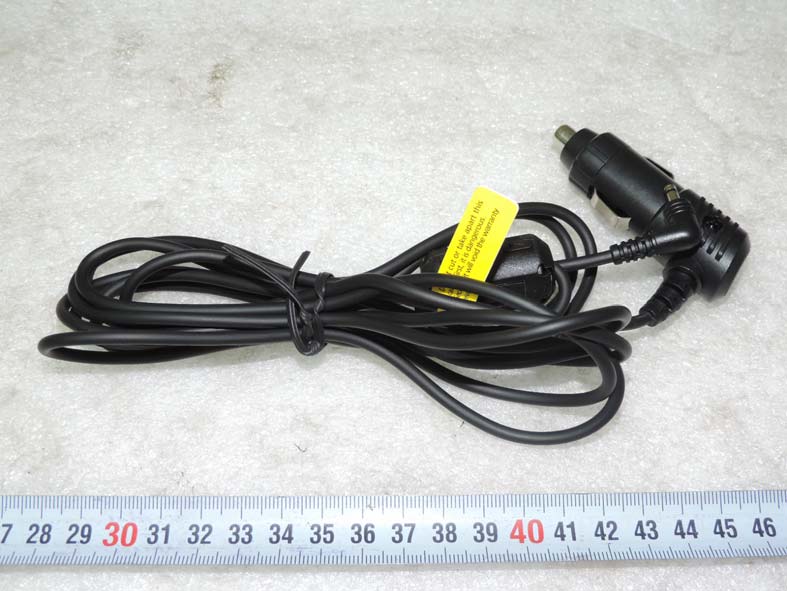

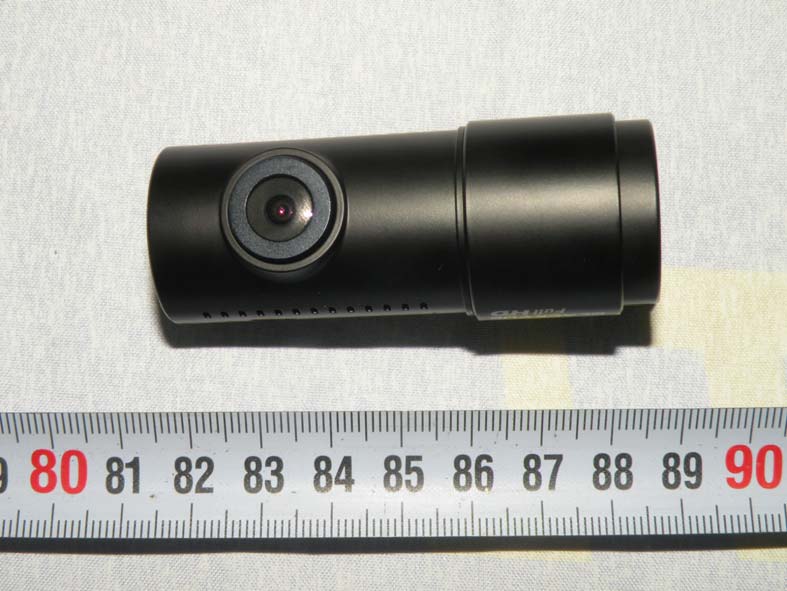

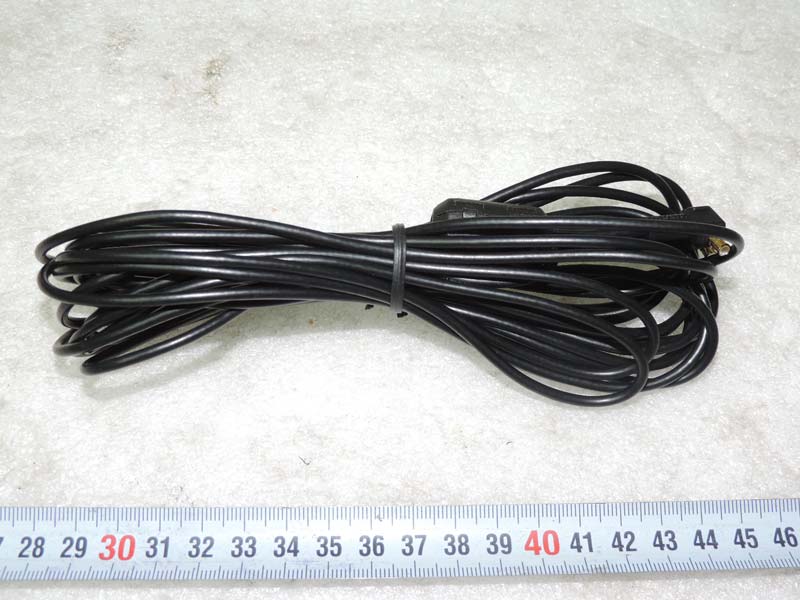

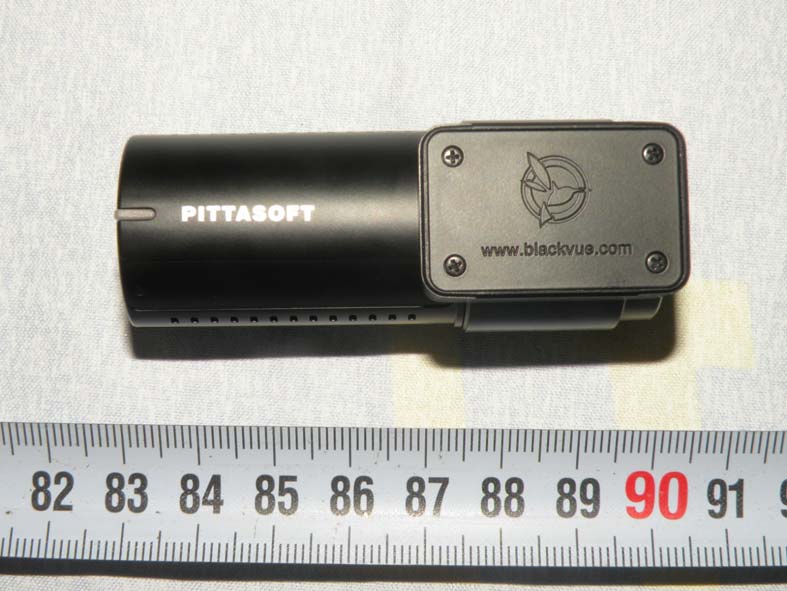

Appendix C. External Photographs Report no. ETLE140714.1032, Page C1 of C11 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH View of total construct Appendix C. External Photographs Report no. ETLE140714.1032, Page C2 of C11 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH Front Camera - Front view of EUT Front Camera - Rear view of EUT Appendix C. External Photographs Report no. ETLE140714.1032, Page C3 of C11 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH Front Camera - Top view of EUT Front Camera - Bottom view of EUT Appendix C. External Photographs Report no. ETLE140714.1032, Page C4 of C11 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH Front Camera - Side view of EUT Appendix C. External Photographs Report no. ETLE140714.1032, Page C5 of C11 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH Front Camera - View of button, port and Micro SD Card slot Appendix C. External Photographs Report no. ETLE140714.1032, Page C6 of C11 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH Rear Camera - Front view of EUT Rear Camera - Rear view of EUT Appendix C. External Photographs Report no. ETLE140714.1032, Page C7 of C11 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH Rear Camera - Top view of EUT Rear Camera - Bottom view of EUT Appendix C. External Photographs Report no. ETLE140714.1032, Page C8 of C11 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH Rear Camera - Side view of EUT Appendix C. External Photographs Report no. ETLE140714.1032, Page C9 of C11 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH View of Micro SD Card Appendix C. External Photographs Report no. ETLE140714.1032, Page C10 of C11 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH View of GPS Appendix C. External Photographs Report no. ETLE140714.1032, Page C11 of C11 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH View of cigar jack cable View of AV cable

Appendix A. FCC ID Label and Location Report no. ETLE140714.1032, Page A1 of A1 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. The warning statement and Information to the User are described in the user manual. Pittasoft Co., Ltd. Car Dashcam FCC ID : YCK-DR750LW-2CH Model No. : DR750LW-2CH Serial No. : Proto type Manufacturer: Pittasoft Co., Ltd. Made in Korea Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE140714.1032, Page D1 of D12 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH Front Camera - Inside view of EUT Appendix D. Internal Photographs Report no. ETLE140714.1032, Page D2 of D12 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH Front Camera - Inside view of EUT Appendix D. Internal Photographs Report no. ETLE140714.1032, Page D3 of D12 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH Front Camera - Top side view of main board Appendix D. Internal Photographs Report no. ETLE140714.1032, Page D4 of D12 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH Front Camera - Bottom side view of main board Appendix D. Internal Photographs Report no. ETLE140714.1032, Page D5 of D12 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH Front Camera - Top side view of power board Appendix D. Internal Photographs Report no. ETLE140714.1032, Page D6 of D12 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH Front Camera - Bottom side view of power board Appendix D. Internal Photographs Report no. ETLE140714.1032, Page D7 of D12 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH Front Camera - Top side view of RF Module Appendix D. Internal Photographs Report no. ETLE140714.1032, Page D8 of D12 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH Front Camera - Bottom side view of RF Module Appendix D. Internal Photographs Report no. ETLE140714.1032, Page D9 of D12 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH Front Camera - View of display panel Appendix D. Internal Photographs Report no. ETLE140714.1032, Page D10 of D12 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH Rear Camera - Inside view of EUT Appendix D. Internal Photographs Report no. ETLE140714.1032, Page D11 of D12 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH Rear Camera - Top side view of main board Appendix D. Internal Photographs Report no. ETLE140714.1032, Page D12 of D12 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH Rear Camera - Bottom side view of main board

Appendix J. Radio Frequency Exposure Report no. ETLE140714.1032, Page J1 of J2 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. Limit Limits for general population/Uncontrolled exposure Frequency Range [MHz] Electric Field Strength (E) [V/m] Magnetic Field Strength (H) [A/m] Power Density (S) [mW/cm 2 ] Averaging Time |E| 2 , |H| 2 or S [minutes] 0.3 - 1.34 1.34 - 30 30 - 300 300 - 1 500 1 500 - 100 000 614 824/f 27.5 -- -- 1.63 2.19/f 0.073 -- -- (100) (180/f 2 ) 0.2 f/1 500 1.0 30 30 30 30 30 f = frequency in MHz *Plane-wave equivalent power density MPE Prediction Predication of MPE limit at a given distance. Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Appendix J. Radio Frequency Exposure Report no. ETLE140714.1032, Page J2 of J2 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH - 802.11b mode Maximum peak output power at antenna input : 12.10 dBm (16.22 mW) Prediction distance : 20 cm Predication frequency : 2 412 MHz Antenna gain(Max) : 3.50 dBi (2.24 numeric) Power density at predication frequency at 20 cm : 0.007 22 mW/cm 2 MPE Limit for : 1 mW/cm 2 - 802.11g mode Maximum peak output power at antenna input : 5.65 dBm (3.67 mW) Prediction distance : 20 cm Predication frequency : 2 442 MHz Antenna gain(Max) : 3.50 dBi (2.24 numeric) Power density at predication frequency at 20 cm : 0.001 64 mW/cm 2 MPE Limit for : 1 mW/cm 2 - 802.11n(HT20) mode Maximum peak output power at antenna input : 2.70 dBm (1.86 mW) Prediction distance : 20 cm Predication frequency : 2 472 MHz Antenna gain(Max) : 3.50 dBi (2.24 numeric) Power density at predication frequency at 20 cm : 0.000 83 mW/cm 2 MPE Limit for : 1 mW/cm 2 - 802.11n(HT40) mode Maximum peak output power at antenna input : 3.54 dBm (2.26 mW) Prediction distance : 20 cm Predication frequency : 2 442 MHz Antenna gain(Max) : 3.50 dBi (2.24 numeric) Power density at predication frequency at 20 cm : 0.001 01 mW/cm 2 MPE Limit for : 1 mW/cm 2 Test Result The power density level at 20 cm is 0.007 22 mW/cm 2 , 0.001 64 mW/cm 2 , 0.000 83 mW/cm 2 and 0.001 01 mW/cm 2 which is below the uncontrolled exposure limit of 1 mW/cm 2 at 2 412 MHz to 2 472 MHz.

Report no. ETLE140714.1032, Page 2 of 70 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: YCK-DR750LW-2CH Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 6 dB Bandwidth 5.3 Maximum Peak Output Power 5.4 Bandwidth of Frequency Band Edges 5.5 Power Spectral Density 5.6 Spurious Emissions 5.7 Radio Frequency Exposure 6. Sample Calculation 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Circuit Diagram Appendix G. User Manual Appendix H. Operational Description Appendix I. Antenna Requirement Appendix J. Radio Frequency Exposure Report no. ETLE140714.1032, Page 3 of 70 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: YCK-DR750LW-2CH FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission (EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information  EUT Type : Car Dashcam  Model Number : DR750LW-2CH  S/N : Proto type  Modulation Technique : DSSS (CCK), OFDM (QAM)  Frequency Channel : 802.11b/g/n(HT20) : 2 412 MHz to 2 472 MHz and Channel Spacing 5 MHz (13 Ch) 802.11n(HT40): 2 422 MHz to 2 462 MHz and Channel Spacing 5 MHz (9 Ch)  Air Data Rate : 11 Mbps (802.11b), 54 Mbps (802.11g), 150 Mbps (802.11n)  Antenna Type : Internal Antenna (Integral)  Antenna Gain : 3.50 dBi max  RF Power : 16.22 mW : Temperature: (26.2 ± 3.8) °C : Humidity: (60 ± 13) % R.H.  Environmental of Tests : Atmospheric Pressure: (100.5 ± 0.4) kPa  FCC Rule Part(s) : FCC Part 15 Subpart C  Test Procedure : ANSI C63.4-2009  FCC Classification : DTS (Part 15 Digital Transmission System)  Place of Tests : ETL Inc. Testing Lab. (FCC Designation Number : KR0022) Radiated Emission test 1; 97-4, Gureomae-gil, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea Radiated Emission test 2 and Conducted Emission test; 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Applicant Name : Pittasoft Co., Ltd. Address : BYC HIGH CITY A-7th floor, 371-17 Gasan-Dong, Geumcheon-Gu, Seoul, 153-803, Korea Attention : Kyungtae Ko / Senior Engineer Report no. ETLE140714.1032, Page 4 of 70 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: YCK-DR750LW-2CH 1. INTRODUCTION The measurement test for radiated and conducted emission test was conducted at the ETL Inc. The site is constructed in conformance with the requirements of the ANSI C63.4-2009 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with FCC Rules according to the ANSI C63.4-2009 and registered to the Federal Communications Commission (FCC Designation Number : KR0022). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2009) was used in determining radiated and conducted emissions from the Pittasoft Co., Ltd. Model: DR750LW-2CH Report no. ETLE140714.1032, Page 5 of 70 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: YCK-DR750LW-2CH 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the Car Dashcam (model: DR750LW-2CH). The model DR750LW-2CH is basic model that was tested. 2.2 General Specification Item Specification Front: Black Color Rear: Black Front: 107.2 mm (Width) x 67.5 mm (Height) x 20.5 mm (Thickness) Size Rear: 67.4 mm (Width) x 27.6 mm (Height) Front: 136 g Weight Rear: 30 g Memory Micro SD Card (16 GB/32 GB/64 GB) Recording Mode Emergency Recording, Normal Recording, Event Recording (Impact Detection),and Parking Mode Recording (Motion + Impact Detection) * For parking mode recording, a battery discharge prevention device is required. Front: CMOS Sensor 2 million pixel Camera Rear: CMOS Sensor 2 million pixel Front: Diagonal 146°, Horizontal 115°, Vertical 85° Viewing Angle Rear: Diagonal 129°, Horizontal 108°, Vertical 57° Front Rear Full HD (1 920 x 1 080) @ 30 fps Full HD (1 920 x 1 080) @ 30 fps Full HD (1 920 x 1 080) @ 30 fps HD (1 280 x 720) @ 30 fps HD (1 280 x 720) @ 30 fps HD (1 280 x 720) @ 30 fps Resolution / Frame * The resolution/frame can be changed. LCD 4 Inch WVGA (800 x 480) Touch Screen * Front/rear PIP enabled Video Compression Type MP4 Report no. ETLE140714.1032, Page 6 of 70 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: YCK-DR750LW-2CH Item Specification Wi-Fi Internal (802.11b/g/n (2.4 GHz – 2.483 5 GHz)) GPS External Microphone Built-in Speaker Built-in * Voice Announcement Front: Front Security LED, Wi-Fi LED, GPS LED, Recording Status (REC) LED LED Indicators Rear: Rear Security LED Sensor 3-Axis Acceleration Sensor Button Power Button * Pressing Short: Starts and stops voice recording * Pressing Long: Turns on or off the power. Backup Battery Built-in Super Capacitor Input Power DC 12 V – DC 24 V Power Consumption Approx. 10 W (Avg. 6.6 W) * Depending on the usage condition, it is subject to change. Cut-off Voltage: 11.8 V/12.0 V/22.8 V/23.2 V can be selected. Continuous Power Voltage Cut-off Timer: 12 hours/…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLE140714.1032, Page B1 of B3 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH Radiated Emission Test Setup (Below 30 MHz) Appendix B. Test Setup Photographs Report no. ETLE140714.1032, Page B2 of B3 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH Radiated Emission Test Setup (Below 1 GHz) Appendix B. Test Setup Photographs Report no. ETLE140714.1032, Page B3 of B3 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-DR750LW-2CH Radiated Emission Test Setup (Above 1 GHz)
