YCK-SERIES2CAR DASHCAM

FCC Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Part 15.105 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Part 15.21 Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RF exposure This device should be installed and operated with minimum 20 cm between the radiator and your body.

Request for Confidentiality Date: January 11, 2023 Subject: Confidentiality Request for: FCC ID: YCK-SERIES2 Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term  Permanent Block Diagrams  Short Term External Photos  Short Term ☐ Permanent Internal Photos ☐ Short Term  Permanent Operation Description/Theory of Operation ☐ Short Term  Permanent Parts List & Placement/BOM ☐ Short Term ☐ Permanent Tune-Up Procedure ☐ Short Term  Permanent Schematics  Short Term Test Setup Photos  Short Term ☐ Permanent User’s Manual Pittasoft Co.,Ltd. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 90 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Principal Research Engineer (Minho Shin ) (Signature/ Director 3 ) (Print name)

PITTASOFT CO.,LTD. Authority to Act as Agent Date: January 11, 2023 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To Whom It May Concern: I, the undersigned, hereby authorize Mr. Todd Kwak/General Manager of BV CPS ADT Korea Inc. and hereafter referred to as BV CPS ADT Korea to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. Todd Kwak/ General Manager of BV CPS ADT Korea Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing BV CPS ADT Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; PITTASOFT CO.,LTD. g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. Thank you, By: _Minho Shin (Signature 1 ) (Print name) Title: Principal Research Engineer On behalf of: Pittasoft Co.,Ltd. (Company Name) Telephone: +82-31-8039-7789 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

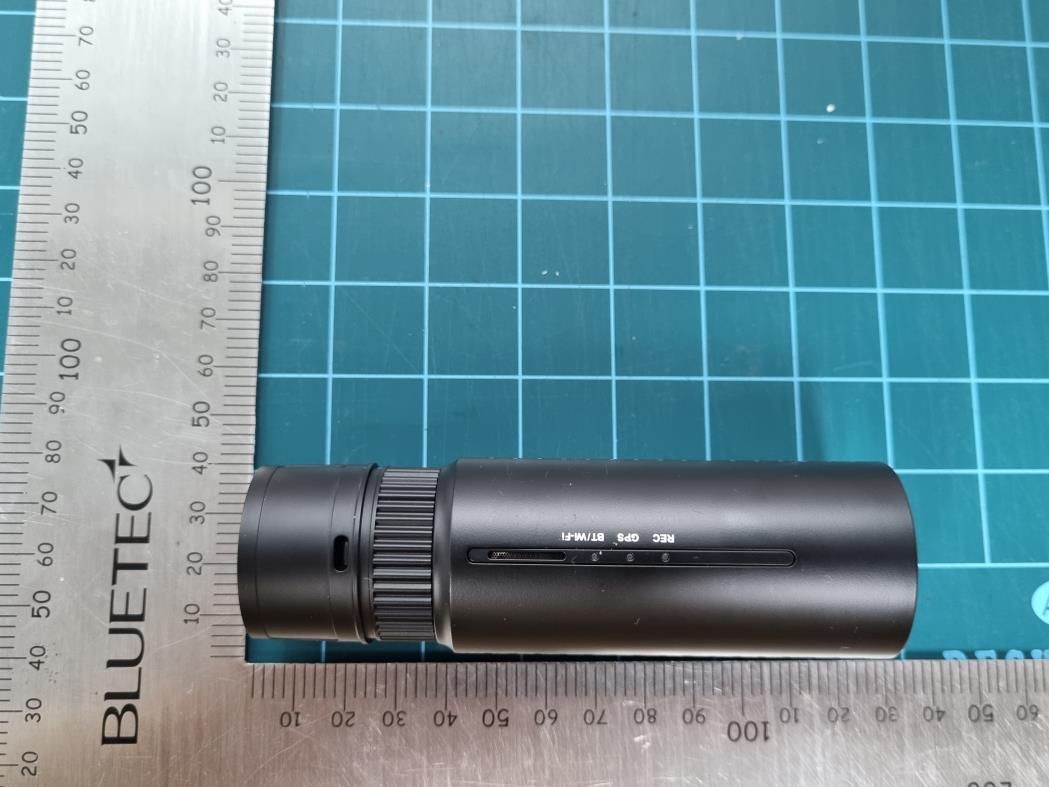

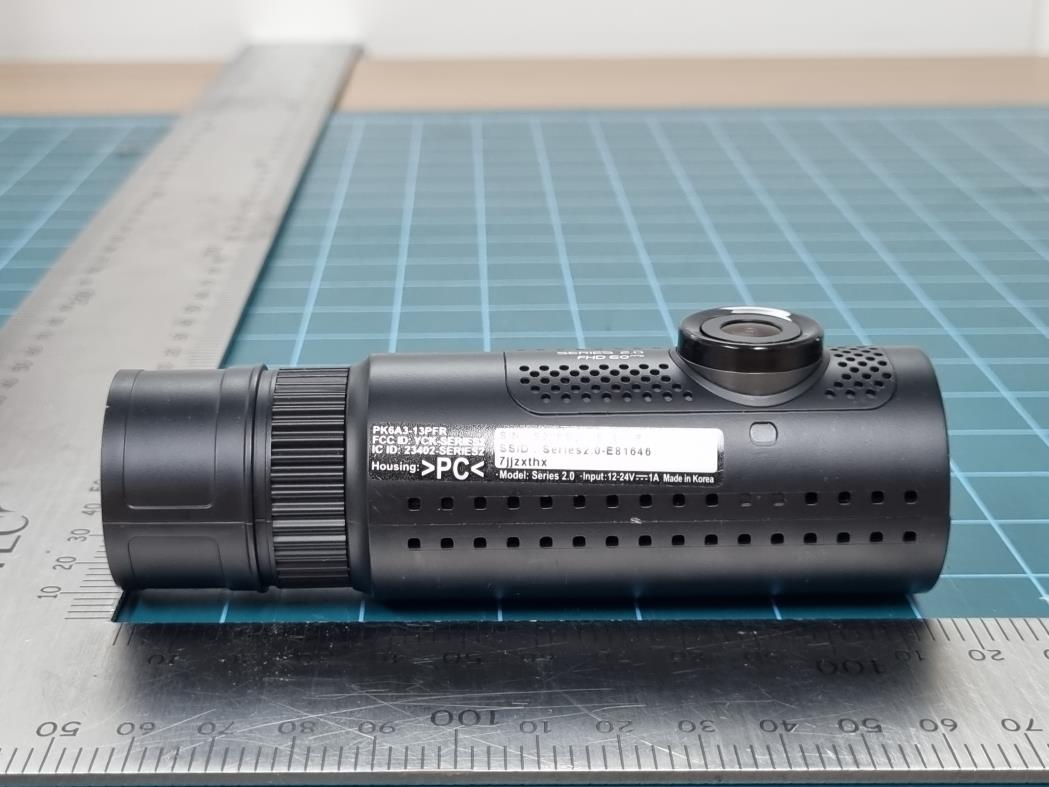

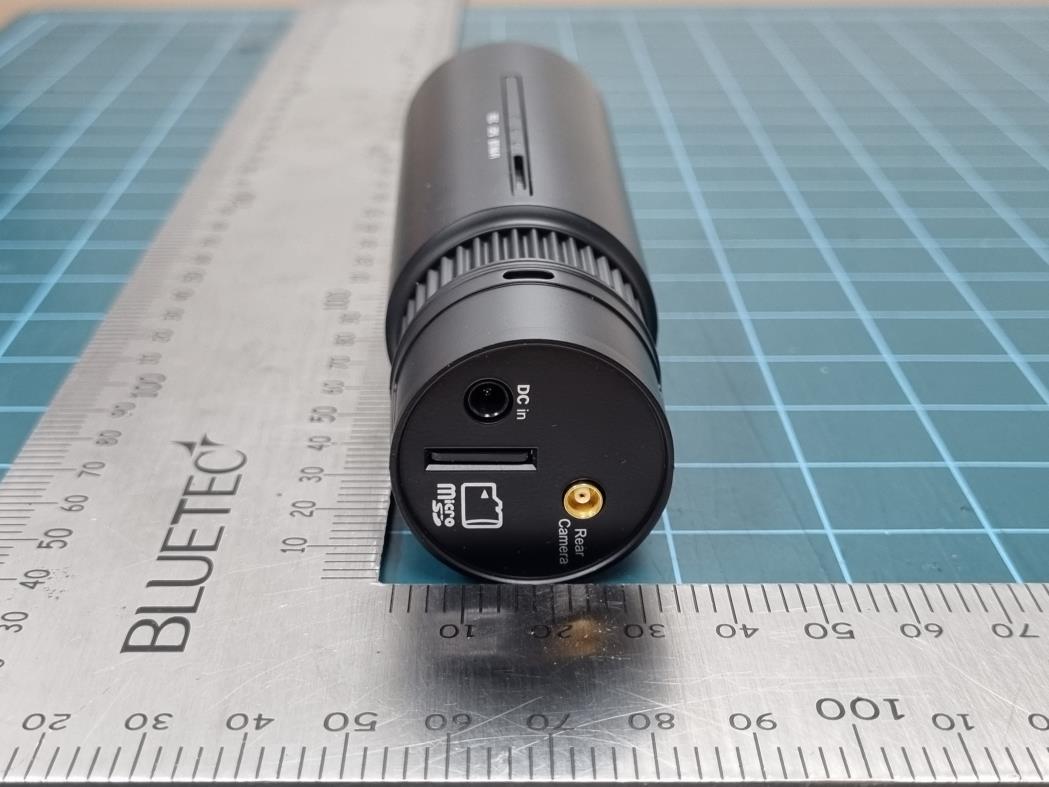

Page: 1 of 3 Photograph of EUT(External) Front Rear Page: 2 of 3 Left Right Page: 3 of 3 Top Bottom <End>

IDENTIFICATION LABEL: PROPOSED FCC ID LABEL The FCC ID shall be permanently affixed in the side of the equipment

Page: 1 of 7 Photograph of EUT(Internal) <Internal Photo> <RF Module & Antenna> Page: 2 of 7 <PCB 1 - Front> < PCB 1 - Rear> Page: 3 of 7 <Main PCB - Front> < Main PCB - Front - remove can> Page: 4 of 7 <Main PCB - Rear> < Main PCB - Rear - remove can> Page: 5 of 7 <PCB 3 - Front> <PCB 3 - Rear> Page: 6 of 7 <Camera - Front> <Camera - Rear> Page: 7 of 7 <GPS- Front & Antenna> <GPS – Rear & Module> <END>

▪ S = - Note EIRP= Equivalent Isotropic Radiated Power(mW) Operation Mode Evaluation Frequency (MHz) MAX Output Power (dBm) Antenna Gain (dBi) MAX. EIRP (dBm) MAX. EIRP (mW) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm2) Result 2.4G WIFI 2412~2462 25.151.8827.03504.66200.1001Pass 2.4G BT 2402~2480 13.151.8815.0331.84200.0061Pass 2.4G LE 2402~2480 13.931.8815.8138.11200.0081Pass Result : 0.008 + 0.100 = 0.108 < 1 Maximum Permissible Exposure Calculation maximum calculations of above situations are less than the “1” limit. Conclusion R= Distance to the center of the radiation of the antenna(Over 20cm) EIRP / ( 4 R 2 π ) f = frequency in MHz. * = Plane-wave equivalent power density. S= Maximum power density(mW/cm 2 ) Conclusion of Simultaneous Transmitter CPD = Calculation power density / LPD = Limit of power density The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. f/1500 1 <30 <30 <30 <30 <30 1.63 2.19/f 0.073 *(100) *(180/f 2 ) 0.2 0.3-1.34 1.34-30 30-300 300-1,500 1,500-100,000 614 824/f 27.5 The formula of calculated the MPE is CPD1 / LPD 1 + CPD2 / LPD 2 + ...... < 1 WIFI + BT FCC Part 2 section 2.1091 (ii) Limits for General Population/Uncontrolled Exposure Averaging time (minutes) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm2)

Report No.: FCCCBNW-WAY-P22120056-2R2 Page: 2 of 41 Report Format Version: BV-FRFTF-01-002 RELEASE CONTROL RECORD REPORT NO. REASON FOR CHANGE DATE ISSUED FCCCBNW-WAY-P22120056-2 Original release 2023.01.11 FCCCBNW-WAY-P22120056-2R1 correction of errors 2023.01.19 FCCCBNW-WAY-P22120056-2R2 correction of errors 2023.01.25 Report No.: FCCCBNW-WAY-P22120056-2R2 Page: 3 of 41 Report Format Version: BV-FRFTF-01-002 Table of Contents RELEASE CONTROL RECORD ...........................................................................................................................................2 1 SUMMARY OF TEST RESULTS ....................................................................................................................................5 1.1 DECISION RULES FOR STATEMENT OF CONFORMITY ............................................................................................................................... 6 1.2 MEASUREMENT UNCERTAINTY ..................................................................................................................................................................... 6 2 GENERAL INFORMATION ...........................................................................................................................................7 2.1 GENERAL DESCRIPTION OF EUT.............................................................................................................................................................. 7 2.2 DESCRIPTION OF TEST MODE .................................................................................................................................................................. 8 2.3 INSTRUMENT CALIBRATION ............................................................................................................................................................ 8 2.4 EUT CONFIGURATION ........................................................................................................................................................................ 8 2.6 GENERAL DESCRIPTION OF APPLIED STANDARDS ................................................................................................................................ 8 2.7 TEST EQUIPMENT........................................................................................................................................................................................ 9 3 TEST RESULTS ............................................................................................................................................................ 10 3.1 ANTENNA REQUIREMENT ....................................................................................................................................................................... 10 3.2 6 DB BANDWIDTH .................................................................................................................................................................................. 11 3.2.1 Regulation .................................................................................................................................................................................... 11 3.2.2 Test Procedure ........................................................................................................................................................................... 11 3.2.3 Test Setup .................................................................................................................................................................................... 11 3.2.4 Test Result .................................................................................................................................................................................... 12 3.3 MAXIMUM PEAK OUTPUT POWER ....................................................................................................................................................... 14 3.3.1 Regulation .................................................................................................................................................................................... 14 3.3.2 Test Procedure ........................................................................................................................................................................... 14 3.3.3 Test Setup .................................................................................................................................................................................... 16 3.3.4 Test Result .................................................................................................................................................................................... 17 3.4 POWER SPECTRAL DENSITY ................................................................................................................................................................... 19 3.4.1 Regulation .................................................................................................................................................................................... 19 3.4.2 Test Procedure ........................................................................................................................................................................... 19 3.4.3 Test Setup .................................................................................................................................................................................... 19 3.4.4 Test Result .................................................................................................................................................................................... 20 3.5 SPURIOUS EMISSION, BAND EDGE AND RESTRICTED BANDS .......................................................................................................... 22 3.5.1 Regulation ................................…

Text truncated - open the document above for the full version.

Report No.: FCCCBNW-WAY-P22120056-1R2 Page: 2 of 64 Report Format Version: BV-FRFTF-01-002 RELEASE CONTROL RECORD REPORT NO. REASON FOR CHANGE DATE ISSUED FCCCBNW-WAY-P22120056-1 Original release 2023.01.11 FCCCBNW-WAY-P22120056-1R1 correction of errors 2023.01.19 FCCCBNW-WAY-P22120056-1R2 correction of errors 2023.01.25 Report No.: FCCCBNW-WAY-P22120056-1R2 Page: 3 of 64 Report Format Version: BV-FRFTF-01-002 Table of Contents RELEASE CONTROL RECORD ...........................................................................................................................................2 1 SUMMARY OF TEST RESULTS ....................................................................................................................................5 1.1 DECISION RULES FOR STATEMENT OF CONFORMITY ............................................................................................................................... 6 1.2 MEASUREMENT UNCERTAINTY ..................................................................................................................................................................... 6 2 GENERAL INFORMATION ...........................................................................................................................................7 2.1 GENERAL DESCRIPTION OF EUT.............................................................................................................................................................. 7 2.2 DESCRIPTION OF TEST MODE .................................................................................................................................................................. 8 2.3 INSTRUMENT CALIBRATION ............................................................................................................................................................ 8 2.4 EUT CONFIGURATION ........................................................................................................................................................................ 8 2.6 GENERAL DESCRIPTION OF APPLIED STANDARDS ................................................................................................................................ 8 2.7 TEST EQUIPMENT........................................................................................................................................................................................ 9 3 TEST RESULTS ............................................................................................................................................................ 10 3.1 ANTENNA REQUIREMENT ....................................................................................................................................................................... 10 3.2 6 DB BANDWIDTH .................................................................................................................................................................................. 11 3.2.1 Regulation .................................................................................................................................................................................... 11 3.2.2 Test Procedure ........................................................................................................................................................................... 11 3.2.3 Test Setup .................................................................................................................................................................................... 11 3.2.4 Test Result .................................................................................................................................................................................... 12 3.3 MAXIMUM PEAK OUTPUT POWER ....................................................................................................................................................... 17 3.3.1 Regulation .................................................................................................................................................................................... 17 3.3.2 Test Procedure ........................................................................................................................................................................... 17 3.3.3 Test Setup .................................................................................................................................................................................... 19 3.3.4 Test Result .................................................................................................................................................................................... 20 3.4 POWER SPECTRAL DENSITY ................................................................................................................................................................... 21 3.4.1 Regulation .................................................................................................................................................................................... 21 3.4.2 Test Procedure ........................................................................................................................................................................... 21 3.4.3 Test Setup .................................................................................................................................................................................... 21 3.4.4 Test Result .................................................................................................................................................................................... 22 3.5 SPURIOUS EMISSION, BAND EDGE AND RESTRICTED BANDS .......................................................................................................... 27 3.5.1 Regulation ................................…

Text truncated - open the document above for the full version.

Report No.: FCCCBNW-WAY-P22120056-1R2 Page: 35 of 64 Report Format Version: BV-FRFTF-01-002 3.5.4 Test Result of Radiated Spurious Emission Remarks 1. Quasi Peak(dBμV/m) = Quasi Peak Reading Value(dBμ V/m) + Correction Factor(dB) 2. Total Factor(dB) = T.F (dB) = Antenna Factor(dB/m) + Cable Factor(dB) – Pre-Amplifier Factor(dB) 3. Margin(dB) = (Quasi Peak) Result (dBμV/m) – (Quasi Peak) Limit (dBμ V/m) 4. Measurement Distance = 3 m 5. The intent is to test at 100 % duty cycle. 6. DCCF = Duty Cycle Correction Factor. 7. No other spurious and harmonic emissions were found greater than listed emissions on above table 3.5.4.1 Radiated Emissions (Below 1 GHz) Worst case - RSE(Below 1 GHz)_2.4GHz WLAN_802.11n(HT20) Tested Frequency [MHz] Frequency [MHz] Reading Value [dBuV] Pol [H/V] EUT Axis Detector Mode T.F [dB] Result [dBuV/m] Limit [dBuV/m] Margin [dB] 2462 48.53 55.94 V X Peak -18.10 37.84 40.00 2.16 48.53 53.11 V X Quasi Peak -18.10 35.01 40.00 4.99 76.08 44.29 V X Peak -25.30 18.99 40.00 21.01 183.36 58.53 H X Peak -22.10 36.43 43.52 7.09 240.10 48.24 V X Peak -19.20 29.04 46.02 16.98 398.02 44.17 V X Peak -15.20 28.97 46.02 17.05 715.69 41.66 H X Peak -9.90 31.76 46.02 14.26 Level in dB 킮 /m Report No.: FCCCBNW-WAY-P22120056-1R2 Page: 36 of 64 Report Format Version: BV-FRFTF-01-002 3.5.4.2 Radiated Emissions (Above 1 GHz) TM 1 (802.11b) _ 12 V Tested Frequency [MHz] Frequency [MHz] Reading Value [dBuV] Pol [H/V] EUT Axis Detector Mode DCCF [dB] T.F [dB] Result [dBuV/m] Limit [dBuV/m] Margin [dB] 2412 2 388.89 48.45 H X Peak 0.00 3.05 51.50 74.00 22.50 2 389.32 36.59 H X Average 0.00 3.05 39.64 54.00 14.36 4 824.05 48.80 V X Peak 0.00 4.73 53.53 74.00 20.47 4 823.99 44.00 V X Average 0.00 4.73 48.73 54.00 5.27 7 234.76 42.23 H X Peak 0.00 7.86 50.09 74.00 23.91 7 235.00 31.76 H X Average 0.00 7.86 39.62 54.00 14.38 2437 4 874.14 47.94 V X Peak 0.00 5.08 53.02 74.00 20.98 4 873.96 43.43 V X Average 0.00 5.08 48.51 54.00 5.49 7 309.72 41.83 H X Peak 0.00 7.91 49.74 74.00 24.26 7 309.97 31.92 H X Average 0.00 7.91 39.83 54.00 14.17 2462 2 483.73 56.57 H X Peak 0.00 3.43 60.00 74.00 14.00 2 484.00 44.49 H X Average 0.00 3.43 47.92 54.00 6.08 4 923.74 48.38 V X Peak 0.00 5.29 53.67 74.00 20.33 4 923.98 43.91 V X Average 0.00 5.29 49.20 54.00 4.80 7 387.66 42.27 H X Peak 0.00 8.03 50.30 74.00 23.70 7 387.20 32.50 H X Average 0.00 8.03 40.53 54.00 13.47 TM 1 (802.11b) _ 24 V Tested Frequency [MHz] Frequency [MHz] Reading Value [dBuV] Pol [H/V] EUT Axis Detector Mode DCCF [dB] T.F [dB] Result [dBuV/m] Limit [dBuV/m] Margin [dB] 2412 2 389.61 47.82 H X Peak 0.00 3.05 50.87 74.00 23.13 2 389.73 36.72 H X Average 0.00 3.05 39.77 54.00 14.23 4 823.94 48.52 V X Peak 0.00 4.73 53.25 74.00 20.75 4 823.96 43.93 V X Average 0.00 4.73 48.66 54.00 5.34 7 234.84 42.15 H X Peak 0.00 7.86 50.01 74.00 23.99 7 235.00 31.65 H X Average 0.00 7.86 39.51 54.00 14.49 2437 4 874.02 48.02 V X Peak 0.00 5.08 53.10 74.00 20.90 4 873.99 43.38 V X Average 0.00 5.08 48.46 54.00 5.54 7 312.36 42.58 H X Peak 0.00 7.91 50.49 74.00 23.51 7 311.98 32.23 H X Average 0.00 7.91 40.14 54.00 13.86 2462 2 484.15 56.74 H X Peak 0.00 3.43 60.17 74.00 13.83 2 483.91 44.33 H X Average 0.00 3.43 47.76 54.00 6.24 4 923.99 48.45 V X Peak 0.00 5.29 53.74 74.00 20.26 4 923.93 43.75 V X Average 0.00 5.29 49.04 54.00 4.96 7 384.10 43.18 H X Peak 0.00 8.02 51.20 74.00 22.80 7 384.92 32.46 H X Average 0.00 8.03 40.49 54.00 13.51 Report No.: FCCCBNW-WAY-P22120056-1R2 Page: 37 of 64 Report Format Version: BV-FRFTF-01-002 802.11b 12 V 24 V Bandedge_2 412 MHz Bandedge_2 412 MHz Bandedge_2 462 MHz Bandedge_2 462 MHz Spurious _ Worst case Spurious _ Worst case Report No.: FCCCBNW-WAY-P22120056-1R2 Page: 38 of 64 Report Format Version: BV-FRFTF-01-002 TM 2 (802.11g) _ 12 V Tested Frequency [MHz] Frequency [MHz] Reading Value [dBuV] Pol [H/V] EUT Axis Detector Mode DCCF [dB] T.F [dB/M] Result [dBuV/m] Limit [dBuV/m] Margin [dB] 2412 2 389.84 62.25 H X Peak 0.00 3.05 65.30 74.00 8.70 2 389.85 46.60 H X Average 0.00 3.05 49.65 54.00 4.35 4 824.56 50.98 V X Peak 0.00 4.74 55.72 74.00 18.28 4 824.10 40.90 V X Average 0.00 4.73 45.63 54.00 8.37 7 232.80 49.51 H X Peak 0.00 7.86 57.37 74.00 16.63 7 233.52 35.97 H X Average 0.00 7.86 43.83 54.00 10.17 2437 4 875.06 50.88 V X Peak 0.00 5.09 55.97 74.00 18.03 4 873.84 39.62 V X Average 0.00 5.08 44.70 54.00 9.30 7 308.40 49.78 H X Peak 0.00 7.91 57.69 74.00 16.31 7 310.44 36.87 H X Average 0.00 7.91 44.78 54.00 9.22 2462 2 483.90 58.96 H X Peak 0.00 3.43 62.39 74.00 11.61 2 483.93 45.40 H X Average 0.00 3.43 48.83 54.00 5.17 4 924.70 51.26 V X Peak 0.00 5.29 56.55 74.00 17.45 4 923.96 39.85 V X Average 0.00 5.29 45.14 54.00 8.86 7 382.98 50.54 H X Peak 0.00 8.02 58.56 74.00 15.44 7 384.04 37.22 H X Average 0.00 8.02 45.24 54.00 8.76 TM 2 (802.11g) _ 24 V Tested Frequency [MHz] Frequency [MHz] Reading Value [dBuV] Pol [H/V] EUT Axis Detector Mode DCCF [dB] T.F [dB/M] Result [dBuV/m] Limit [dBuV/m] Margin [dB] 2412 2 389.80 61.49 H X Peak 0.00 3.05 64.54 74.00 9.46 2 389.94 46.58 H X Average 0.00 3.05 49.63 54.00 4.37 4 824.44 51.54 V X Peak 0.00 4.74 56.28 74.00 17.72 4 824.00 40.77 V X Average 0.00 4.73 45.50 54.00 8.50 7 232.56 49.04 H X Peak 0.00 7.86 56.90 74.00 17.10 7 233.46 35.87 H X Average 0.00 7.86 43.73 54.00 10.27 2437 4 874.82 50.94 V X Peak 0.00 5.09 56.03 74.00 17.97 4 874.04 39.63 V X Average 0.00 5.08 44.71 54.00 9.29 7 307.48 50.26 H X Peak 0.00 7.91 58.17 74.00 15.83 7 310.16 36.73 H X Average 0.00 7.91 44.64 54.00 9.36 2462 2 483.67 59.38 H X Peak 0.00 3.43 62.81 74.00 11.19 2 483.52 45.53 H X Average 0.00 3.43 48.96 54.00 5.04 4 925.00 51.28 V X Peak 0.00 5.29 56.57 74.00 17.43 4 923.80 39.77 V X Average 0.00 5.29 45.06 54.00 8.94 7 382.72 50.48 H X Peak 0.00 8.02 58.50 74.00 15.50 7 383.46 37.08 H X Average 0.00 8.02 45.10 54.00 8.90 Report No.: FCCCBNW-WAY-P22120056-1R2 Page: 39 of 64 Report Format Version: BV-FRFTF-01-002 802.11g 12 V 24 V Bandedge_2 412 MHz Bandedge_2 412 MHz Bandedge_2 …

Text truncated - open the document above for the full version.

Report No.: FCCCBNW-WAY-P22120056-1R2 Page: 52 of 64 Report Format Version: BV-FRFTF-01-002 [DC 24 V Spurious Emission] 802.11b 2 412 MHz _ Ref 2 412 MHz _ Band edge 2 412 MHz _ Spurious 2 412 MHz _ Spurious Report No.: FCCCBNW-WAY-P22120056-1R2 Page: 53 of 64 Report Format Version: BV-FRFTF-01-002 802.11b 2 437 MHz _ Ref - - 2 437 MHz _ Spurious 2 437 MHz _ Spurious 2 462 MHz _ Ref 2 462 MHz _ Band edge 2 462 MHz _ Spurious 2 462 MHz _ Spurious Report No.: FCCCBNW-WAY-P22120056-1R2 Page: 54 of 64 Report Format Version: BV-FRFTF-01-002 802.11g 2 412 MHz _ Ref 2 412 MHz _ Band edge 2 412 MHz _ Spurious 2 412 MHz _ Spurious 2 437 MHz _ Ref - - 2 437 MHz _ Spurious 2 437 MHz _ Spurious 802.11g Report No.: FCCCBNW-WAY-P22120056-1R2 Page: 55 of 64 Report Format Version: BV-FRFTF-01-002 2 462 MHz _ Ref 2 462 MHz _ Band edge 2 462 MHz _ Spurious 2 462 MHz _ Spurious Report No.: FCCCBNW-WAY-P22120056-1R2 Page: 56 of 64 Report Format Version: BV-FRFTF-01-002 802.11n(HT20) 2 412 MHz _ Ref 2 412 MHz _ Band edge 2 412 MHz _ Spurious 2 412 MHz _ Spurious 2 437 MHz _ Ref - - 2 437 MHz _ Spurious 2 437 MHz _ Spurious 802.11n(HT20) Report No.: FCCCBNW-WAY-P22120056-1R2 Page: 57 of 64 Report Format Version: BV-FRFTF-01-002 2 462 MHz _ Ref 2 462 MHz _ Band edge 2 462 MHz _ Spurious 2 462 MHz _ Spurious Report No.: FCCCBNW-WAY-P22120056-1R2 Page: 58 of 64 Report Format Version: BV-FRFTF-01-002 802.11n(HT40) 2 422 MHz _ Ref 2 422 MHz _ Band edge 2 422 MHz _ Spurious 2 422 MHz _ Spurious 2 437 MHz _ Ref - - 2 437 MHz _ Spurious 2 437 MHz _ Spurious 802.11n(HT40) Report No.: FCCCBNW-WAY-P22120056-1R2 Page: 59 of 64 Report Format Version: BV-FRFTF-01-002 2 452 MHz _ Ref 2 452 MHz _ Band edge 2 452 MHz _ Spurious 2 452 MHz _ Spurious Report No.: FCCCBNW-WAY-P22120056-1R2 Page: 60 of 64 Report Format Version: BV-FRFTF-01-002 3.6 AC Conducted Emissions (150 kHz to 30 MHz) 3.6.1 Regulation §15.207(a) : Except as shown in paragraphs (b) and (c) of this section, for an intentional radiator that is designed to be connected to the public utility (AC) power line, the radio frequency voltage that is conducted back onto the AC power line on any frequency or frequencies, within the band 150 kHz to 30 MHz, shall not exceed the limits in the following table, as measured using a 50 μH/50 ohms line impedance stabilization network (LISN). Compliance with the provisions of this paragraph shall be based on the measurement of the radio frequency voltage between each power line and ground at the power terminal. The lower limit applies at the boundary between the frequency ranges. * Decreases with the logarithm of the frequency. 3.6.2 Test Procedure a) The EUT was placed 0.4 meters from the conducting wall of the shielded room with EUT being connected to the power mains through a line impedance stabilization network (LISN). Other support units were connected to the power mains through another LISN. The two LISNs provide 50 ohm / 50 μH of coupling impedance for the measuring instrument. b) Both lines…
