YCK-SC300BLACKVUE SPORT

Name Ι BLACKVUE SPORT Manufacturer Ι Pittasoft Co.,Ltd. / South Korea Address Ι (Gasan-dong, BYC HIGHCITY), A-7th floor, 131, Gasan digital 1-ro, Geumcheon-gu, Seoul, 153-718, Republic of Korea E-mail Ι [email protected] Service Center Ι +82.2.6947.4670(ext.3) www.blackvuesport.com BLACKVUE SPORT SC300 ENGLISH BLACKVUE SPORT I SC300 3 ENGLISH Introduction to the Manual 4 Safety Precautions 5 Getting Started Checking the Components 8 Understanding the Part Name and Function 10 Inserting/Removing the Memory Card 12 Inserting/Removing the Battery 13 Charging the Battery 14 Assembling the LCD (not supplied) 15 Installing Camera Camera Installation 17 Installing the Camera inside a Waterproof Housing 18 Connecting Power Cable 19 Shooting Turning on the Power 23 Automatic Video Recording 23 Using the BLACKVUE 24 SPORT APP Screen View 26 Changing the Setting Option 27 Playing Movies/Photos 30 Moving files 30 Managing the internal memory 31 Firmware Upgrade 32 Product Specifications 33 > Contents > Introduction to the Manual Thank you for purchasing BLACKVUE SPORT of PittaSoft Co., Ltd. This instruction manual contains information on how to operate your BLACKVUE SPORT. Before using the product, make sure to read through this manual so as to use the product in the correct way. To enhance the performance of the product, the contents of this instruction manual may be changed without prior notice. Warranty and Support y In accordance with Personal Information Security Law & related legislation, Pitta Soft Co., Ltd. will not be held responsible for any problem due to illegal use of this product. Copyright and Trademark y This instruction manual is protected by Copyright Law, and all rights to it are protected by law. y It is prohibited to reproduce, copy, modify, or translate this instruction manual without permission. y BlackVue is the registered trademark of Pitta Soft Co., Ltd. PittaSoft Co., Ltd. reserves the rights regarding all works related to the BlackVue brand such as product design, trademarks, and product- promotional videos. It is prohibited to reproduce, copy, modify, or use related works without permission. Any violation may be penalized in accordance with the relevant regulations. BLACKVUE SPORT I SC300 5 ENGLISH > Safety Precautions The purpose of these cautions is to maintain user safety and avoid damage to property. Please make sure to read through this manual so as to use the product in the correct way. y Do not install it in an environment with high humidity, or combustible gases or liquids. It can cause explosion & fire. y Do not insert flammable materials into the camera or store these materials near the camera. This may cause a fire or electric shock. y Do not expose the camera to direct sunlight or high temperatures for an extended period of time. Prolonged exposure to sunlight or extreme temperatures can cause permanent damage to your camera’s internal components. DANGER Death or property damage can be caused for users if the following directions are not followed: y Do not disassemble, repair, or modify the product yourself. It can cause fire, electric shock, or malfunction. For internal inspection and repair, call your customer service center. y If any foreign matter gets inside the product, detach the power cord straightaway. Call the customer service center for repair. y Do not use a damaged or altered USB cable. Use the USB cable provided by the manufacturer. Otherwise it can cause explosion, fire, or malfunction. y Do not operate the product with wet hands. It can cause electric shock. y Do not leave the product where infants, children, or pets can reach it. They might swallow small components, or their saliva could get into it and cause an explosion due to a short circuit. y If smoke or an unusual smell is emitted from the USB cable, detach it immediately. Call the customer service center or the dealer. y Use only authentic, manufacturer-recommended, Lithium-ion replacement batteries or supplied battery charger. Otherwise, Pitta Soft Co., Ltd. will not be held responsible for any problem. y Do not cover the product with any material. It can cause external deformation of the product or fire. Use the product and peripherals where ventilation is ensured. y If the camera is not used for a long period of time, remove the battery from the camera. Fluid may leak out of the battery, damaging the camera significantly. y Do not apply excessive force to the exterior of the camera. Doing so may result in product failure. WARNING Death or serious injury can be caused for users if the following directions are not followed: BLACKVUE SPORT I SC300 7 ENGLISH y Do not spray cleaning products directly onto the outside of the product. It can cause discoloration, cracks, or malfunction. y Make sure that the product is installed properly. The product can fall as a result of vibration, and may cause physical injury. y MicroSD cards are a consumable so replace them after prolonged use. They may not record video correctly after a long time in use, so check their recording capability periodically and replace it as necessary. y Clean the lens regularly. Foreign material attached to the lens can affect the recording quality. y Do not remove the microSD card while it is saving or reading data. The data may be damaged or malfunction caused. y When you connect the cable or insert the battery or memory card to the camera, be careful not to apply impact to the camera or connect the cable or insert the battery or memory card in a wrong direction. The insertion hole or accessory may be damaged. The camera or cable may be damaged, and if the battery and memory card are not inserted correctly, the connection terminal or accessory of the camera may be damaged. y Do not use batteries for unintended purposes. This may cause a fire or electric shock. y Use Waterproof housing when the product is used at low temperature. Due to the characteristics of Li-ion Polymer Battery, battery performance may decrease whe…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 July 22, 2014 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Pittasoft Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): BLACKVUE SPORT / SC300 (FCC ID: YCK-SC300) We affirm that between SIEMIC and Pittasoft Co., Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Kyungtae Ko / Senior Engineer Pittasoft Co., Ltd. BYC HIGH CITY A-7th floor, 371-17 Gasan-Dong, Geumcheon-Gu, Seoul, 153-803, Korea

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 July 22, 2014 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YCK-SC300 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Circuit Diagram - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Kyungtae Ko / Senior Engineer Pittasoft Co., Ltd. BYC HIGH CITY A-7th floor, 371-17 Gasan-Dong, Geumcheon-Gu, Seoul, 153-803, Korea

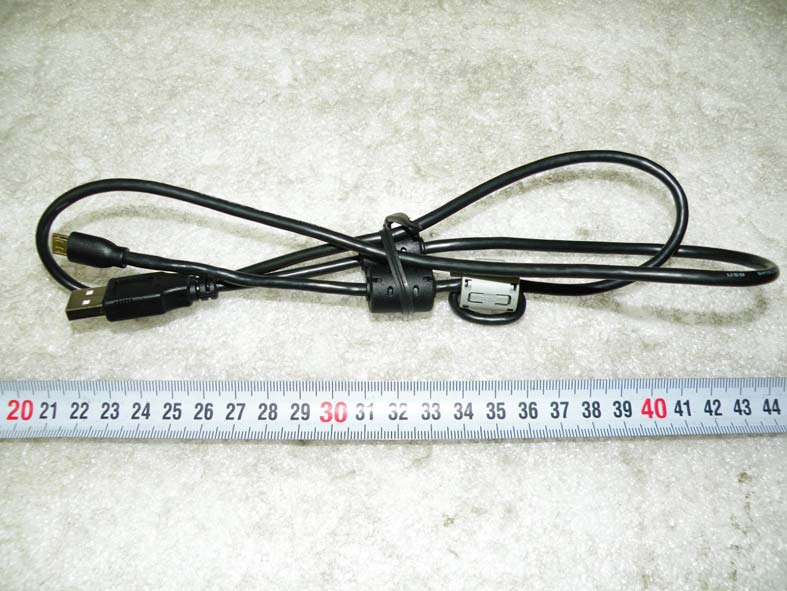

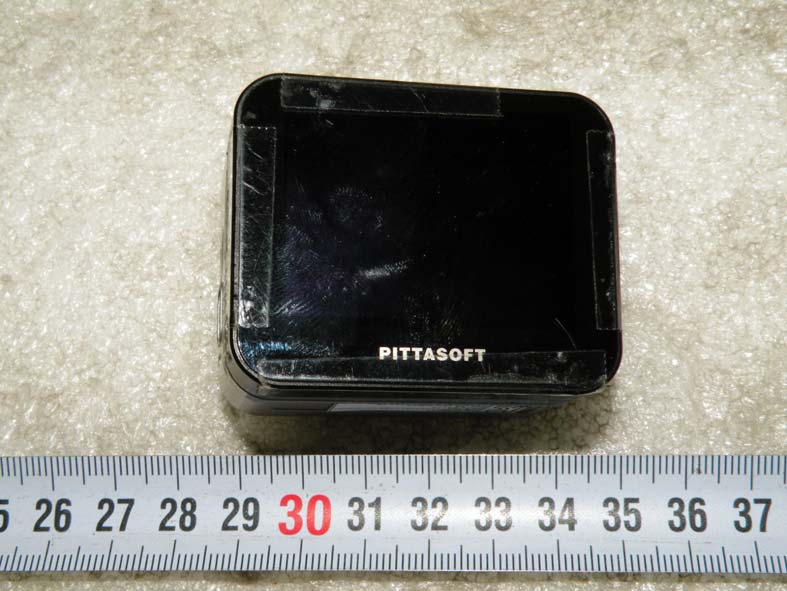

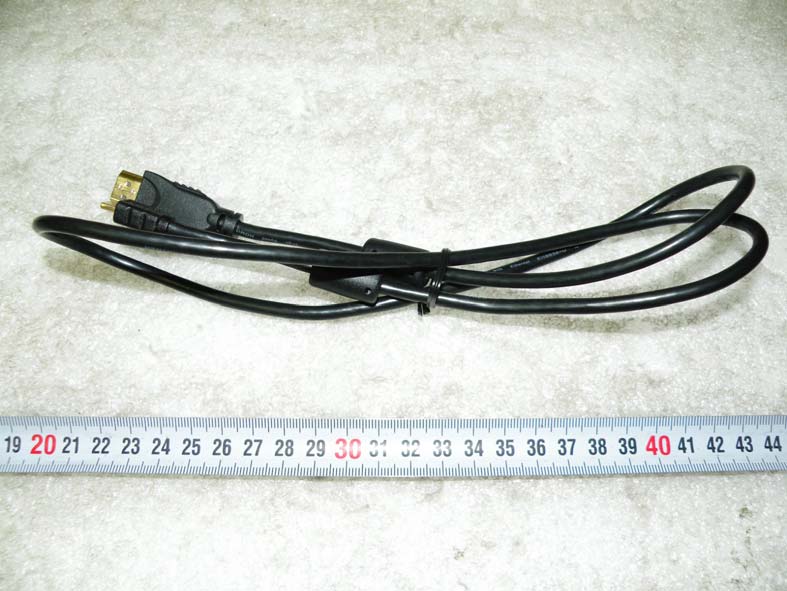

Appendix C. External Photographs Report no. ETLE140117.0102, Page C1 of C11 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 View of total construct Appendix C. External Photographs Report no. ETLE140117.0102, Page C2 of C11 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 Front view of EUT Rear view of EUT Appendix C. External Photographs Report no. ETLE140117.0102, Page C3 of C11 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 Top view of EUT Bottom view of EUT Appendix C. External Photographs Report no. ETLE140117.0102, Page C4 of C11 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 Side view of EUT Appendix C. External Photographs Report no. ETLE140117.0102, Page C5 of C11 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 Rear view of EUT (without LCD PART) Appendix C. External Photographs Report no. ETLE140117.0102, Page C6 of C11 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 Rear view of EUT (without battery cover) Rear view of EUT (without battery) Appendix C. External Photographs Report no. ETLE140117.0102, Page C7 of C11 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 Front view of EUT - LCD PART Rear view of EUT - LCD PART Appendix C. External Photographs Report no. ETLE140117.0102, Page C8 of C11 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 View of port and Micro SD Card slot Appendix C. External Photographs Report no. ETLE140117.0102, Page C9 of C11 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 View of Micro SD Card Appendix C. External Photographs Report no. ETLE140117.0102, Page C10 of C11 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 View of Rechargeable Li-Polymer battery Appendix C. External Photographs Report no. ETLE140117.0102, Page C11 of C11 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 View of HDMI cable View of USB cable

Appendix A. FCC ID Label and Location Report no. ETLE140117.0102, Page A1 of A1 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. The warning statement and Information to the User are described in the user manual. Pittasoft Co., Ltd. BLACKVUE SPORT FCC ID : YCK-SC300 Model No. : SC300 Serial No. : Proto type Manufacturer: Pittasoft Co., Ltd. Made in Korea Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE140117.0102, Page D1 of D10 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 Inside view of EUT Appendix D. Internal Photographs Report no. ETLE140117.0102, Page D2 of D10 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 Top side view of main board Appendix D. Internal Photographs Report no. ETLE140117.0102, Page D3 of D10 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 Bottom side view of main board Appendix D. Internal Photographs Report no. ETLE140117.0102, Page D4 of D10 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 Top side view of sub board Appendix D. Internal Photographs Report no. ETLE140117.0102, Page D5 of D10 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 Bottom side view of sub board Appendix D. Internal Photographs Report no. ETLE140117.0102, Page D6 of D10 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 Top side view of Chip Antenna Appendix D. Internal Photographs Report no. ETLE140117.0102, Page D7 of D10 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 Inside view of EUT - LCD PART Appendix D. Internal Photographs Report no. ETLE140117.0102, Page D8 of D10 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 Top side view of main board - LCD PART Appendix D. Internal Photographs Report no. ETLE140117.0102, Page D9 of D10 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 Bottom side view of main board - LCD PART Appendix D. Internal Photographs Report no. ETLE140117.0102, Page D10 of D10 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 View of LCD panel - LCD PART

Appendix J. Radio Frequency Exposure Report no. ETLE140117.0102, Page J1 of J1 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 Standard Applicable: According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Portable device with its physical nature to be used nearby, the distance between radiating structure and human is less than 20 cm. As per KDB 447498 D01, The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Measurement Result: This is a portable device and the Max peak output power is (9.120 mW) lower than the threshold given and derived as above, where = 9.120 (mW) / 5 (mm) * √2.412 (GHz) = 2.833 < 3.000 As the result of calculation result indicates, the RF exposure generating from given transmitter (transmitter employed digital modulation) can be excluded from SAR measurement, and is deemed compliant with RF exposure as per FCC.

Report no. ETLE140117.0102, Page 2 of 75 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: YCK-SC300 Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 6 dB Bandwidth 5.3 Maximum Peak Output Power 5.4 Bandwidth of Frequency Band Edges 5.5 Power Spectral Density 5.6 Spurious Emissions 5.7 Conducted Emissions Test 5.8 Radio Frequency Exposure 6. Sample Calculation 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Circuit Diagram Appendix G. User Manual Appendix H. Operational Description Appendix I. Antenna Requirement Appendix J. Radio Frequency Exposure Report no. ETLE140117.0102, Page 3 of 75 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: YCK-SC300 FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission (EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information  EUT Type : BLACKVUE SPORT  Model Number : SC300  S/N : Proto type  Modulation Technique : DSSS (CCK), OFDM (QAM)  Frequency Channel : 802.11b/g/n(HT20) : 2 412 MHz to 2 472 MHz and Channel Spacing 5 MHz (13 Ch) 802.11n(HT40): 2 422 MHz to 2 462 MHz and Channel Spacing 5 MHz (9 Ch)  Air Data Rate : 11 Mbps (802.11b), 54 Mbps (802.11g), 150 Mbps (802.11n)  Antenna Type : Internal Antenna (Integral)  Antenna Gain : -2.80 dBi max  RF Power : 9.120 mW : Temperature: (17.5 ± 5.0) °C : Humidity: (54 ± 11) % R.H.  Environmental of Tests : Atmospheric Pressure: (101.3 ± 0.3) kPa  FCC Rule Part(s) : FCC Part 15 Subpart C  Test Procedure : ANSI C63.4-2009  FCC Classification : DTS (Part 15 Digital Transmission System)  Place of Tests : ETL Inc. Testing Lab. (FCC Designation Number : KR0022) Radiated Emission test 1; 97-4, Gureomae-gil, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea Radiated Emission test 2 and Conducted Emission test; 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Applicant Name : Pittasoft Co., Ltd. Address : BYC HIGH CITY A-7th floor, 371-17 Gasan-Dong, Geumcheon-Gu, Seoul, 153-803, Korea Attention : Kyungtae Ko / Senior Engineer Report no. ETLE140117.0102, Page 4 of 75 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: YCK-SC300 1. INTRODUCTION The measurement test for radiated and conducted emission test was conducted at the ETL Inc. The site is constructed in conformance with the requirements of the ANSI C63.4-2009 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with FCC Rules according to the ANSI C63.4-2009 and registered to the Federal Communications Commission (FCC Designation Number : KR0022). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2009) was used in determining radiated and conducted emissions from the Pittasoft Co., Ltd. Model: SC300 Report no. ETLE140117.0102, Page 5 of 75 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: YCK-SC300 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the BLACKVUE SPORT (model: SC300). The model SC300 is basic model that was tested. 2.2 General Specification Item Specification Pixel 3.5 Mega Pixel Angle of View Opposite Angel 138° Weight 77 g (LCD: 22 g) Size 55.0 mm (W) 36.7 mm (L) x 44.2 mm (H) Camera Sensor 3.5 M CMOS Sensor Storage Micro SD Card (Up to 32 GB, Class 10 or higher micro SD cards are recommended) Input/Output USB 2.0 / USB 2.0, HDMI Button Power/Mode, Wi-Fi, Shutter/Choice H/W Interface LCD 2.0 Inch, 240p Type Rechargeable 3.7 V, 1 050 mAh Li-Polymer Pack Battery Battery Charging Micro USB Format MP4 Resolution/FPS 1 080p, 30 fps 720 p, 60 fps/30 fps Video Time-laps Recording 1, 5, 30, 60, 300, 600 second intervals Format JPEG Photo Resolution 3.5 M (2 304 x 1 536, 3:2) 3.0 M (2 048 x 1 536, 4:3) 3.0 M (2 304 x 1 286, 16:9) High Speed Shooting Resolution/FPS 480p, 120 fps 13 Channel 802.11b/g/n(20) 9 Channel 802.11n(40) Wi-Fi PCM DSSS (CCK), OFDM (QAM) Report no. ETLE140117.0102, Page 6 of 75 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: YCK-SC300 Item Specification MIC Built-in, Mono Audio Format 128 kHz, AAC Software Application BLACKVUE SPORT APP (Android 2.3 or later, iOS 5.0 or later) Degree IP68 Depth Rate 10 m/32 ft Frontcase (basic) - Option Frontcase (extended) Backdoor (for LCD) - Option Waterproof Housing Backdoor (slim) Waterproof power cable External power supply Operation Temperature (22.5 ± 22.5) °C High Internal Frequency REF Clock  26 MHz Report no. ETLE140117.0102, Page 7 of 75 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: YCK-SC300 3. DESCRIPTION OF TESTS The tests documented in this report were performed in accordance with ANSI C63.4-2009 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.247. 3.1 Radiated Emission Measurement Radiated …

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLE140117.0102, Page B1 of B4 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 Radiated Emission Test Setup (Below 30 MHz) Appendix B. Test Setup Photographs Report no. ETLE140117.0102, Page B2 of B4 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 Radiated Emission Test Setup (Below 1 GHz) Appendix B. Test Setup Photographs Report no. ETLE140117.0102, Page B3 of B4 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 Radiated Emission Test Setup (Above 1 GHz) Appendix B. Test Setup Photographs Report no. ETLE140117.0102, Page B4 of B4 Head Office: 114, Gasan digital 2-ro, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: YCK-SC300 Conducted Emission Test Setup
