Network IP Camera Pitta 310 user manual FCC notice to users and product statements This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions; (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum 20 cm between the radiator and your body. This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter unless authorized to do so by the FCC. Before Using This User Manual................................2 Pitta 310 Overview ...................................................3 Checking the Pitta 310 Package Content.................4 Checking the main body of the Pitta 310..................5 Installing the Pitta 310 ..............................................6 Connecting Pitta 310 ................................................7 Installing the Software ..............................................9 Pitta IP Utility guide................................................. 11 changing IP address ...............................................12 Pitta WebView Log-in .............................................14 Pitta WebView Live View Page...............................15 Pitta WebView-Setup Menu....................................17 DDNS & Router Port Forwarding............................26 Troubleshooting ......................................................27 6SHFL¿FDWLRQ...........................................................28 Dimension...............................................................30 2 PITTASOFT Thanks for purchasing our Pitta 310 IP Network Camera. This is a user manual for H.264 IP Network Camera and the product mentioned here designates the H.264 IP Network Camera. Please go through the manual before installation and use of the camera. This manual along with the software and hardware explained here is protected by copyright law . xRead through all printed documentation and ensure that your system is compatible for your product. xPittasoft will continue to add new functions and enhancements and apply new WHFKQRORJLHVWRWKLVSURGXFW$Q\LQIRUPDWLRQDQGVSHFL¿FDWLRQVFRQWDLQHGLQWKLVPDQXDO can be changed without prior notice to users. x7KHVFUHHQVKRWVDQG¿JXUHVSUHVHQWHGLQWKLVPDQXDOPD\GLIIHUIURPWKHDFWXDO appearances of the product. ❚ IconNameMeaning ] Caution Indicates that the accompanying function may not operate or be disabled. ✎ Note Indicates a tip or supplementary description to help you operate the accompanying function. 3 PITTASOFT The Pitta 310 series are high-tech IP Network Cameras that use H.264 codec technology to achieve high compression rates and clear picture quality by allowing for high frame rates to be transmitted through the network. By using the network, remote connection, monitoring, and control are possible from any location for simple use. The Pitta 310 series IP Network Camera guarantees performance and safety while offering various solutions through internet integration. ❚ High quality H.264 video +HQDEOHVH[FHOOHQWLPDJHTXDOLW\DWVLJQL¿FDQWO\UHGXFHGQHWZRUNEDQGZLGWKDQG storage. Support WDR (Wide Dynamic Range) Built-in progressive CMOS image sensor and support better image in backlight environment than normal sensor. (Pitta 310R/310WR supports only) Motion Detection Intelligent Motion Detection analyzes for any motion in the scene. The reliable functionality is built into the camera and client software. Using the client software, user can set up motion detection to trigger video recording and e-mail alerts. Particular area in the scene could be included or excluded for the motion detection. Auto correction of lens distortion Pitta 310 series client software automatically correct distorted images and can deliver near perfect images. Compact size & ultra-light weight Pitta 310 series are compact design and require minimum space for the installation and UHGXFHGZHLJKWDOORZVÀH[LEOHPRXQWLQJ Supports WiFi Wireless LAN(WiFi) provides easy installation without wired network. (Pitta 310W/310WR supports only) Supports Audio Built-in microphone provides recording the surrounding sounds. 4 PITTASOFT Check the product and the accompanied accessories contained in the product package. xIf there is any problem with the accessories, contact your local product distributor. xThe accompanied accessories can be changed without prior notice. Pitta 310 Stand AC adaptorAntenna (Pitta 310W/310WR) User manualInstallation CD (Pitta View, IP Utility) z›ˆ•‹GšŠ™ŒžGO]lhP shuGjˆ‰“…

Text truncated - open the document above for the full version.

Product Type : Network IP Camera Model : Pitta 310 Applicant : Pittasoft Co., Ltd. FCC Designation Number : KR0022 Test Report No. : ETLE100405.03 Issue Date : April 27, 2010 FCC Rule Part(s) : Part 15 Subpart B Classification : Class B Personal computers and peripherals The device bearing the trade name and model specified above has been shown to comply with the applicable technical standard as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003. I attest to the accuracy of data and all measurement reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them . Yo Han, Park Chief Engineer of EMC Team Declaration of Conformity ETL Inc.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 April 27, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Pittasoft Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Network IP Camera / Pitta 310 (FCC ID: YCKPITTA310) We affirm that between SIEMIC and Pittasoft Co., Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Hyocheol Kim / Senior Engineer Pittasoft Co., Ltd. #1113, Newticastle, 429-1, Gasan-Dong, Geumcheon-Gu, Seoul, 153-779, Korea

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 April 27, 2010 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YCKPITTA310 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Circuit Diagram - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Hyocheol Kim / Senior Engineer Pittasoft Co., Ltd. #1113, Newticastle, 429-1, Gasan-Dong, Geumcheon-Gu, Seoul, 153-779, Korea

May 04, 2010 The antenna is connecting with SMA Female type RF connector. So the antenna form is reverse type. Male type Female Sincerely, Hyocheol Kim / Senior Engineer PRODUCT : Network IP Camera MODEL : Pitta 310 FCC ID : YCKPITTA310 APPLICANT : Pittasoft Co., Ltd.

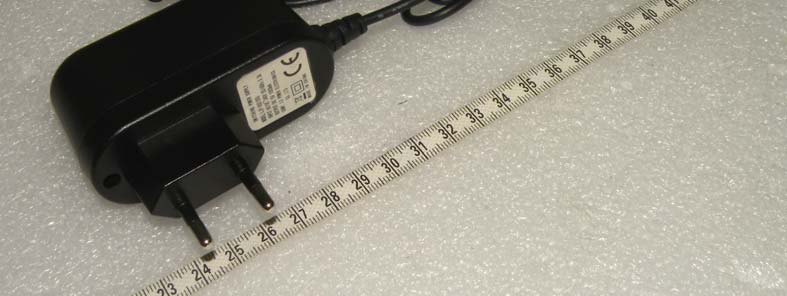

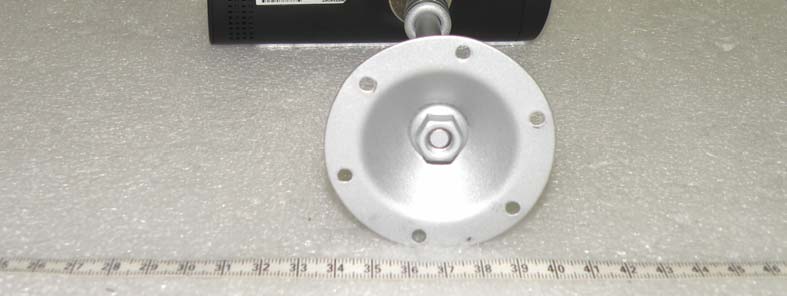

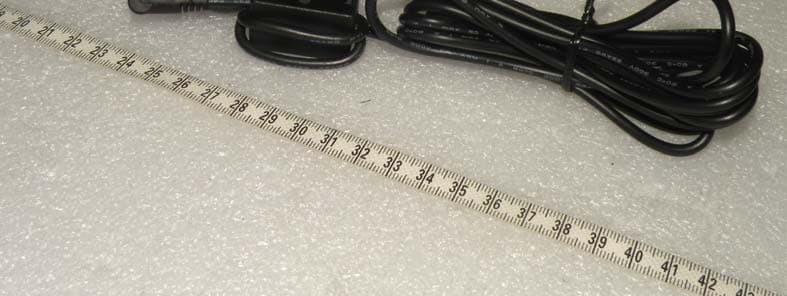

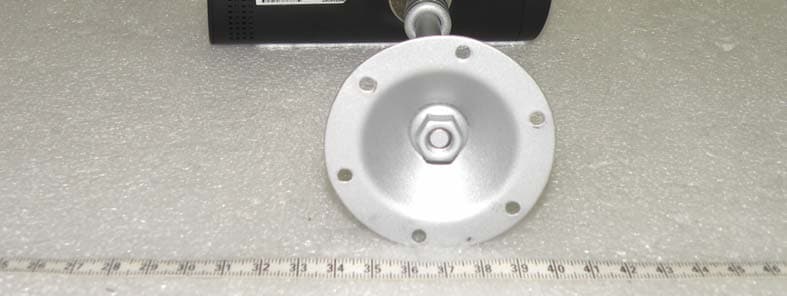

Appendix C. External Photographs Report no. ETLE100405.02, Page C1 of C4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel: 82-2-858-0786 Fax: 82-2-858-0788 ETLQP-21-F22-0 FCC ID:YCKPITTA310 View of front View of rear Appendix C. External Photographs Report no. ETLE100405.02, Page C2 of C4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel: 82-2-858-0786 Fax: 82-2-858-0788 ETLQP-21-F22-0 FCC ID:YCKPITTA310 View of Top View of Bottom Appendix C. External Photographs Report no. ETLE100405.02, Page C3 of C4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel: 82-2-858-0786 Fax: 82-2-858-0788 ETLQP-21-F22-0 FCC ID:YCKPITTA310 View of Side Appendix C. External Photographs Report no. ETLE100405.02, Page C4 of C4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel: 82-2-858-0786 Fax: 82-2-858-0788 ETLQP-21-F22-0 FCC ID:YCKPITTA310 View of Adapter

Appendix A. FCC ID Label and Location Report no. ETLE100405.02, Page A1 of A1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel: 82-2-858-0786 Fax: 82-2-858-0788 ETLQP-21-F22-0 FCC ID:YCKPITTA310 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. The warning statement and Information to the user are described in the user’s manual. Pittasoft Co., Ltd. Network IP Camera FCC ID : YCKPITTA310 Model No. : Pitta 310 Serial No. : 00254220000E This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufacturer: Pittasoft Co., Ltd. Made in Korea Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE100405.02, Page D1 of D8 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel: 82-2-858-0786 Fax: 82-2-858-0788 ETLQP-21-F22-0 FCC ID:YCKPITTA310 View of inside Appendix D. Internal Photographs Report no. ETLE100405.02, Page D2 of D8 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel: 82-2-858-0786 Fax: 82-2-858-0788 ETLQP-21-F22-0 FCC ID:YCKPITTA310 Top side view of main board Appendix D. Internal Photographs Report no. ETLE100405.02, Page D3 of D8 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel: 82-2-858-0786 Fax: 82-2-858-0788 ETLQP-21-F22-0 FCC ID:YCKPITTA310 Bottom side view of main board Appendix D. Internal Photographs Report no. ETLE100405.02, Page D4 of D8 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel: 82-2-858-0786 Fax: 82-2-858-0788 ETLQP-21-F22-0 FCC ID:YCKPITTA310 View of 802.11b/g Part Wi-Fi Module Appendix D. Internal Photographs Report no. ETLE100405.02, Page D5 of D8 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel: 82-2-858-0786 Fax: 82-2-858-0788 ETLQP-21-F22-0 FCC ID:YCKPITTA310 Top side view of Sub board Appendix D. Internal Photographs Report no. ETLE100405.02, Page D6 of D8 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel: 82-2-858-0786 Fax: 82-2-858-0788 ETLQP-21-F22-0 FCC ID:YCKPITTA310 Bottom side view of Sub board Appendix D. Internal Photographs Report no. ETLE100405.02, Page D7 of D8 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel: 82-2-858-0786 Fax: 82-2-858-0788 ETLQP-21-F22-0 FCC ID:YCKPITTA310 Top side view of Camera Sensor board Appendix D. Internal Photographs Report no. ETLE100405.02, Page D8 of D8 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel: 82-2-858-0786 Fax: 82-2-858-0788 ETLQP-21-F22-0 FCC ID:YCKPITTA310 Bottom side view of Camera Sensor board

FCC TEST REPORT FCC ID : YCKPITTA310 Report no. ETLE100405.02.1, Page 1 of 2 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel: 82-2-858-0786 Fax: 82-2-858-0788 ETLQP-21-F22-0 Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. Limit Limits for general population/Uncontrolled exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 1.34-30 30-300 300-1500 1500-100 000 614 824/f 27.5 -- -- 1.63 2.19/f 0.073 -- -- (100) (180/f 2 ) 0.2 f/1500 1.0 30 30 30 30 30 f = frequency in MHz *Plane-wave equivalent power density MPE Prediction Predication of MPE limit at a given distance. Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) 802.11b Maximum peak output power at antenna input : 9.76 dBm (9.462 mW) Prediction distance : 20 cm Predication frequency : 2 412 MHz Antenna gain(Max) : 2.50 dBi (1.78 numeric) Power density at predication frequency at 20 cm : 0.00334757 mW/cm 2 MPE Limit for : 1 mW/cm 2 802.11g Maximum peak output power at antenna input : 11.18 dBm (13.122 mW) Prediction distance : 20 cm Predication frequency : 2 442 MHz Antenna gain(Max) : 2.50 dBi (1.78 numeric) Power density at predication frequency at 20 cm : 0.000464227 mW/cm 2 MPE Limit for : 1 mW/cm 2 FCC TEST REPORT FCC ID : YCKPITTA310 Report no. ETLE100405.02.1, Page 2 of 2 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel: 82-2-858-0786 Fax: 82-2-858-0788 ETLQP-21-F22-0 Test Result The power density level at 20 cm is 0.00334757 mW/cm 2 and 0.000464227 mW/cm 2 , which is below the uncontrolled exposure limit of 1 mW/cm 2 at 2 412 MHz to 2 472 MHz

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL Inc. www.etl.re.kr Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement The Network IP Camera, Model Pitta 310 has been tested in accordance with the measurement procedures specified in ANSI C63.4-2003 at the ETL Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart C section 15.247 I attest to the accuracy of data. All measurement herein was performed by me or was made under my supervision and is correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Hyung Seok, Lee / Chief Engineer ETL Inc. #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel: 82-2-858-0786 Fax: 82-2-858-0788 PRODUCT : Network IP Camera MODEL/Serial No. : Pitta 310 / 00254220000E MULTIPLE MODEL : - FCC ID : YCKPITTA310 APPLICANT : Pittasoft Co., Ltd. #1113, Newticastle, 429-1, Gasan-Dong, Geumcheon-Gu, Seoul, 153-779, Korea Attn. : Hyocheol Kim / Senior Engineer MANUFACTURER : Pittasoft Co., Ltd. #1113, Newticastle, 429-1, Gasan-Dong, Geumcheon-Gu, Seoul, 153-779, Korea FCC CLASSIFICATION : DTS: Part 15 Digital Transmission System TYPE OF MODULATION : DSSS(CCK), OFDM(QAM) FREQUENCY CHANNEL : 2 412 MHz to 2 472 MHz and Channel Spacing 5 MHz (13 Channels) AIR DATE RATE : 11 Mbps(802.11b mode), 54 Mbps(802.11g mode) ANTENNA TYPE : Dipole Antenna ANTENNA GAIN : 2.45 dBi max RULE PART(S) : FCC Part 15 Subpart B and Subpart C FCC PROCEDURE : ANSI C63.4-2003 TEST REPORT No. : ETLE100405.02 DATES OF TEST : April 06, 2010 to April 09, 2010 REPORT ISSUE DATE : April 27, 2010 TEST LABORATORY : ETL Inc. (FCC Designation Number : KR0022) Report no. ETLE090405.02, Page 2 of 38 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: YCKPITTA310 Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 6 dB Bandwidth 5.3 Maximum Peak Output Power 5.4 Band Edges Measurement 5.5 Peak Power Spectral density 5.6 Spurious Emissions 5.7 Conducted Emissions Test 6. Sample Calculation 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Circuit Diagram Appendix G. User Manual Appendix H. Operational Description Appendix I. Antenna Requirement Report no. ETLE090405.02, Page 3 of 38 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: YCKPITTA310 FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information z EUT Type : Network IP Camera z Model Number : Pitta 310 z S/N : 00254220000E z Freq. Range : 2 412 MHz - 2 472 MHz z Number of Channels : 13 z Modulation Technique : DSSS(CCK), OFDM(QAM) z Frequency Channel : 2 412 MHz to 2 472 MHz and Channel Spacing 5 MHz (13 Channels) z Air Data Rate : 11 Mbps(802.11b mode), 54 Mbps(802.11g mode) z Antenna Type : Dipole Antenna z ANTENNA GAIN : 2.50 dBi max z FCC Rule Part(s) : FCC Part 15 Subpart B and C z Test Procedure : ANSI C63.4-2003 z FCC Classification : DTS: Part 15 Digital Transmission System z Place of Tests : ETL Inc. Testing Lab. Radiated Emission test; #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea Conducted Emission test; ETL Inc. Testing Lab. 371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Applicant Name : Pittasoft Co., Ltd. Address : #1113, Newticastle, 429-1, Gasan-Dong, Geumcheon-Gu, Seoul, 153-779, Korea Attention : H yocheol Kim / Senior Engineer Report no. ETLE090405.02, Page 4 of 38 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: YCKPITTA310 1. INTRODUCTION The measurement test for radiated and conducted emission test was conducted at the ETL Inc. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission (FCC Designation Number : KR0022). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions from the Pittasoft Co., Ltd., Model: Pitta 310 Report no. ETLE090405.02, Page 5 of 38 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: YCKPITTA310 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the Network IP Camera (model: Pitta 310). 2.2 General Specification Item Specification Lens type Fixed Effective Pixels 1.3 Mega Focal length F = 4.4 mm, 800 mm ~ infinity F-number F2.0 Field of…
