YCMDZUSB01Contactless card reader

DZ-ZB-DMB02 Evaluation Board User’s Manual Introduction The DiZiC DZ-ZB-USB Dongle allows you to quickly add wireless networking capabilities to your Laptop or PC. Plug the Dongle to a USB port and get instant access to Zigbee or 802.15.4 proprietary networks management. This tool let you easily configure diagnostic and monitor local networks. Additionally application code can be developed, tested and updated any time through the pre- installed boot loader. USB Dongle Key Features • 2.4 GHz CSS transceiver • 32-bit ARM® Cortex-M3 processor • 128 kB flash, 8kB RAM memory • AES128 encryption accelerator • Two configurable LEDs Upgradable Software • Re-programming through USB RF Performances • Rx sensitivity (- 100 dBm) • Tx output power level (+8 dBm) Target Applications • Smart Energy • Building automation and control (HVAC) • Home automation and control • Security and monitoring • AMR/AMI • Medical • General ZigBee wireless sensor networking • Wireless hand-held terminals • Industry telemetry /automatic data collection • Temperature and humidity control systems March 2011 Doc ID:DZ UM-USB01 preview rev0.1 2 © 2011 DiZiC Co. Ltd. Subject to change without notice. Table of Content Notice: ........................................................................................................................................ 3 FCC Warning: ............................................................................................................................ 3 IC Warning: ................................................................................................................................ 3 1. Getting Started .................................................................................................................. 4 1.1. Connecting the Board .................................................................................................. 4 1.2. Application GUI based testing .................................................................................... 5 1.2.1. Evaluation board control interface ........................................................................... 5 1.2.2. Module basic setups ................................................................................................. 6 1.2.3. Module transmitter and receiver tests ...................................................................... 6 1.3. Windows Terminal based testing ................................................................................ 7 1.3.1. Transmitter Test ....................................................................................................... 7 1.3.2. Receiver Test ........................................................................................................... 8 APPENDIX ................................................................................................................................ 9 A. Software Configuration .................................................................................................... 9 A.1. Installing FTDI USB Device Driver ............................................................................ 9 A.2. About Tera Term ......................................................................................................... 9 A.2.1. Configuring Tera Term ............................................................................................ 9 A.3. Binary file re-programming ......................................................................................... 9 Copyrights ................................................................................................................................ 10 Document Information ............................................................................................................. 10 Revision History ....................................................................................................................... 10 About DiZiC ............................................................................................................................. 10 Table of Figures Fig. 1 Typical test and development setup ................................................................................. 4 Fig. 2 Main dialog box evaluation board selection .................................................................... 5 Fig. 3 Module RF selection control panel .................................................................................. 5 Fig. 4 RF setup control panel options for a standard module .................................................... 6 Fig. 5 RF setup control panel options for a +20dBm module .................................................... 6 Fig. 6 Transmitter and receiver control panel section ................................................................ 6 Fig. 7 Tera Term successful connection to the evaluation board ............................................... 7 March 2011 Doc ID:DZ UM-USB01 preview rev0.1 3 © 2011 DiZiC Co. Ltd. Subject to change without notice. Notice: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit differen…

Text truncated - open the document above for the full version.

November 13 th , 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 and Chief, Certification and Engineering Bureau Industry Canada 1241 Clyde Avenue Ottawa, Ontario Canada K2C 1Y3 To whom it may concern: I, the undersigned, hereby authorize Central Research Technology Co. and hereafter referred to as CRC Lab to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Central Research Technology Co. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CRC Lab as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Ling Jung Chen DiZiC Co., Ltd. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 DiZiC Co., Ltd. November 16 th ,2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, DiZiC Co., Ltd., hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): 2.4GHz USB RF dongle Model Number: DZUSB01 FCC ID: YCMDZUSB01 We affirm that between SIEMIC and DiZiC Co., Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Ling Jung Chen

Copyright 2010    STMicroelectronics DiZiC Co., Ltd. REQUEST FOR CONFIDENTIALITY I N ACCORDANCE WITH FCC RULE 0.459 November 16 th ,2011 Address RE: Certification Application FCC ID: YCMDZUSB01 To Whom It May Concern: Please be advised that the following information is to be held confidential on behalf of DiZiC Co., Ltd. • Block diagram • Parts list • Schematics The application contains technical information which DiZiC Co., Ltd. deems to be trade secrets and propriety. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Yours faithfully DiZiC Co., Ltd. Ling Jung Chen

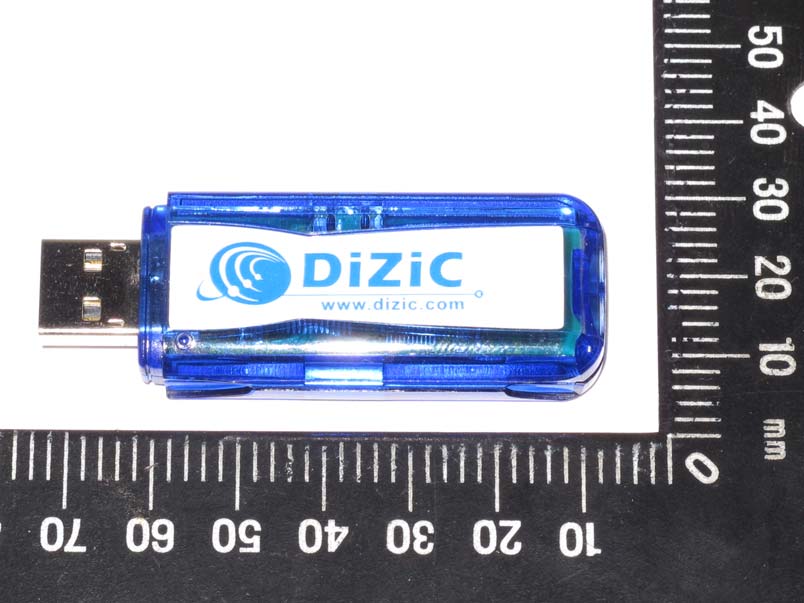

FCC Test Report Report No.: RF-D230-1111-016 CENTRAL RESEARCH TECHNOLOGY CO. Page : A2-1 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Attachment 2 External Photographs of EUT FCC Test Report Report No.: RF-D230-1111-016 CENTRAL RESEARCH TECHNOLOGY CO. Page : A2-1 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546

Label: Label Location: Label Location:

FCC Test Report Report No.: RF-D230-1111-016 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 0 Attachment 3 Internal Photographs of EUT FCC Test Report Report No.: RF-D230-1111-016 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 1

FCC Test Report Report No.: RF- D230-1111-016 CENTRAL RESEARCH TECHNOLOGY CO. Page : A4- No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 1 RF Exposure Evaluation FCC Test Report Report No.: RF- D230-1111-016 CENTRAL RESEARCH TECHNOLOGY CO. Page : A4- No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 2 RF Exposure Evaluation No SAR required if power is lower than the flowing threshold 60/f mW. Frequency (MHz) Polarization Peak output power Threshold Power (mW) dBm mW 2405.47 Vertical 1.31 1.35 24.95 2405.32 Horizontal -0.07 0.98 24.95 2440.40 Vertical 0.59 1.15 24.56 2440.30 Horizontal -2.47 0.57 24.59 2480.40 Vertical -8.26 0.15 24.19 2479.40 Horizontal -8.71 0.13 24.19 Conclusion: No SAR is required.

FCC Test Report Report No.:RF- D230-1111-016 CENTRAL RESEARCH TECHNOLOGY CO. Page : 1/72 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 FCC Test Report for 2.4GHz USB RF dongle Model Number : DZUSB01 FCC ID : YCMDZUSB01 Report Number : RF-D230-1111-016 Date of Receipt : November 16, 2011 Date of Report : December 8, 2011 Prepared for DiZiC Co., Ltd. 3Fl., No 4-2 Jin Xi Street, Zhong Shan District, 104 Taipei, TAIWAN Prepared by Central Research Technology Co. EMC Test Laboratory No.11, Lane41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. NVLAP LAB CODE 200575-0 This report shall not be reproduced, except in full, without the written approval of Central Research Technology Co.. It may be duplicated completely in its entirely for legal use with the permission of the applicant. It should not be used to claim product endorsement by NVLAP, NIST or any U.S. government agency. The test result in the report applies only to the sample tested. FCC Test Report Report No.:RF- D230-1111-016 CENTRAL RESEARCH TECHNOLOGY CO. Page : 2/72 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Verification of Compliance Equipment under Test : 2.4GHz USB RF dongle Model No. : DZUSB01 FCC ID : YCMDZUSB01 Manufacturer : DiZiC Co., Ltd. Applicant : DiZiC Co., Ltd. Address : 3Fl., No 4-2 Jin Xi Street, Zhong Shan District, 104 Taipei, TAIWAN Applicable Standards : 47 CFR part 15, Subpart C Date of Testing : November 16 ~ November 22, 2011 Deviation : N/A Condition of Test Sample : Engineering Sample We, Central Research Technology Co., hereby certify that one sample of the designated product was tested in our facility during the period mentioned above. The test records, data evaluation and Equipment Under Test (EUT) configurations shown in the present report are true and accurate representation of the measurements of the sample’s RF characteristics under the conditions herein specified. The test results show that the EUT as described in the present report is in compliance with the requirements set forth in the standards mentioned above and apply to the tested sample identified in the present report only. The test report shall not be reproduced, except in its entirety, without the written approval of Central Research Technology Co. FCC Test Report Report No.:RF- D230-1111-016 CENTRAL RESEARCH TECHNOLOGY CO. Page : 3/72 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Contents 1 General Description .............................................................................................. 5 1.1 General Description of EUT .................................................................................. 5 1.2 Applied standards ................................................................................................. 6 1.3 The Support Units ................................................................................................. 8 1.4 Layout of Setup ..................................................................................................... 8 1.5 Test Capability ....................................................................................................... 9 1.6 Measurement Uncertainty .................................................................................. 11 2 Maximum Peak Output Power ............................................................................ 12 2.1 Applied standard ................................................................................................. 12 2.2 Test Instruments ................................................................................................. 12 2.3 Measurement Procedure .................................................................................... 13 2.4 Test configuration ............................................................................................... 13 2.5 Test Data .............................................................................................................. 14 3 Band Edge ........................................................................................................... 18 3.1 Applied standard ................................................................................................. 18 3.2 Test Instruments ................................................................................................. 18 3.3 Measurement Procedure .................................................................................... 18 3.4 Test configuration ............................................................................................... 18 3.5 Test Data .............................................................................................................. 19 4 6dB Bandwidth .................................................................................................... 27 4.1 Applied standard ................................................................................................. 27 4.2 Test Instruments ................................................................................................. 27 4.3 Measurement Procedure .................................................................................... 28 4.4 Test configuration ............................................................................................... 28 4.5 Test Data .............................................................................................................. 29 5 Power Spectral Density ...................................................................................... 31 5.1 Applied standard ................................................................................................. 31 5.2 Test Instruments ................................................................................................. 31 5.3 Measurement Pr…

Text truncated - open the document above for the full version.

FCC Test Report Report No.: RF- D230-1111-016 CENTRAL RESEARCH TECHNOLOGY CO. Page : A1-1 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Attachment 1 Photographs of the Test Configurations FCC Test Report Report No.: RF- D230-1111-016 CENTRAL RESEARCH TECHNOLOGY CO. Page : A1-1 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Radiated Emission Measurement FCC Test Report Report No.: RF- D230-1111-016 CENTRAL RESEARCH TECHNOLOGY CO. Page : A1-2 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Conducted Emission Measurement
