DZ-ZB-SP IEEE 802.15.4/ZigBee RF Module Quickly add wireless communication with these high performances modules The DiZiC DZ-ZB-SP 802.15.4 Module allows you to quickly add wireless networking capabilities to your products. These ZigBee-compliant modules are ready- to-use, simple to operate, and available in a wide range of configurations. They are ideal for industrial sensors, consumer remote controls, home appliances, and more. Compact Form Factor – With 30 mm by 19 mm, this module can be shielded for enhanced EMI protection. DZ-ZB-SP Module with Shield Complete System-on-Module • 2.4 GHz CSS transceiver • 32-bit ARM® Cortex-M3 processor • 128 kB flash, 8kB RAM memory • AES128 encryption accelerator • Flexible ADC, UART serial communication, and general purpose timers • Highly configurable GPIO with Schmitt trigger inputs Industry-leading ARM Cortex-M3 processor • Leading 32-bit processing performance • Highly efficient Thumb-2 instruction set • Operation at 6, 12 or 24 MHz • Flexible Nested Vectored Interrupt Controller Innovative network and processor debug • Serial Wire Debug interface • Standard ARM debug capabilities: Flash Patch &Breakpoint; Data Watch-point & Trace RF Performances • Rx sensitivity (- 100 dBm) • Tx output power level (+8 dBm) Low power consumption, advanced management • RX Current (w/ CPU): 27 mA • TX Current (w/ CPU, +3dBm) 31 mA • Low deep sleep current, less than 400nA • Low-frequency internal RC oscillator for low- power sleep timing • High-frequency internal RC oscillator for fast (100 usec) processor start-up from sleep Target Applications • Smart Energy • Building automation and control (HVAC) • Home automation and control • Security and monitoring • AMR/AMI • Medical • General ZigBee wireless sensor networking • Wireless hand-held terminals • Industry telemetry /automatic data collection • Temperature and humidity control systems October 2012 Doc ID:DZ DS-ZBSP MOD rev1.0 2 © 2012 DiZiC Co. Ltd. Subject to change without notice. Table of Content 1. Product Approvals....................................................................................................................................... 4 1.1. FCC Approvals ...................................................................................................................................... 4 1.2. IC (Industry Canada) Approvals............................................................................................................ 4 1.3. European Certification (ETSI)............................................................................................................... 5 2. Configuration .............................................................................................................................................. 6 2.1. Power Level Option [S] ......................................................................................................................... 6 2.2. RF Output Options: Codes [P], [I] or [E] .............................................................................................. 6 2.3. Protocol Stack Options: Codes [F], [X] or [Z] ...................................................................................... 6 2.4. EMI Protection Options: Codes [M] or [].............................................................................................. 6 3. Block Diagram ............................................................................................................................................ 7 4. Absolute Maximum Rating ......................................................................................................................... 8 4.1. Voltage Characteristics .......................................................................................................................... 8 4.2. Current Characteristics .......................................................................................................................... 8 4.3. Thermal Characteristics ......................................................................................................................... 8 5. Components ................................................................................................................................................ 9 5.1. STM32W108 –System-on-Chip Transceiver ........................................................................................ 9 5.1.1. IEEE802.15.4 Compliant Transceiver............................................................................................... 9 5.1.2. Operation Modes ............................................................................................................................... 9 5.1.3. Flash and RAM Memory................................................................................................................. 10 5.1.4. Integrated MAC Functions.............................................................................................................. 10 5.1.5. Power Management......................................................................................................................... 10 5.1.6. Peripherals....................................................................................................................................... 10 5.1.7. Interfaces ......................................................................................................................................... 10 5.2. Protocol Stacks .................................................................................................................................... 11 6. Electrical Characteristics........................................................................................................................... 12 6.1. Parameter conditions ........................................................................................................................... 12 6.1.1. Minimum and Maximum Values ..............................…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] (2012.12.5) To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ____ DiZiC Co., Ltd. _____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Product description, model name) We affirm that between SIEMIC and ____ DiZiC Co., Ltd. ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title Ling Jung CHEN/ Managing Director Contact information / address 3F, No 4-2 Jin Xi Street Taipei 104, Taiwan

DiZiC Co., Ltd. November 26th, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 and Chief, Certification and Engineering Bureau Industry Canada 1241 Clyde Avenue Ottawa, Ontario Canada K2C 1Y3 Subject: Request for Confidentiality FCC ID: YCM-DZZBSP IC: 9022A-DZZBSP Confidentiality Request Pursuant to 0.457 and 0.459 of the Commission’s Rules/ IC regulation, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that the disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Ling Jung CHEN Managing Director DiZiC Co., Ltd.

SCS-F26 Modular Approval Letter Page 2 of 3 Rev 7.0 (Date) 2012.12.5 (Product name) FCC ID : YCMDZZBSP , is seeking FCC Authorization as a Single Modular transmitter / Single Limited Modular Approval (Please check one). The EUT meets the requirements for Single Modular approval / Single Limited Modular Approval (please check one) as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below : Questions are: * Please provide a detailed explanation if the answer is “No.” 1. “The modular transmitter must have its own RF shielding.” Yes / No 2. “The modular transmitter must have buffered modulation/data inputs.” Yes / No 3. “The modular transmitter must have its own power supply regulation.” Yes / No 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).” Yes / No 5. “The modular transmitter must be tested in a stand-alone configuration.” Yes / No 6. “The modular transmitter must be labeled with its own FCC ID number.” Yes / No 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instruction along with the module to explain any such requirements.” Yes / No 8. “The modular transmitter must comply with any applicable RF exposure requirements.” Yes / No Note: (1) LMA may be granted when one or more of the requirements in the table above cannot be demonstrated. LMA will also be issued in those instances where applicants can demonstrate that they will retain control over the final installation of the device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must state that the module is only approved for use when installed in devices produced by a specific manufacturer. When LMA is sought, the application for equipment certification must specifically state how control of the end product into which the module will be installed, and will be maintained, such that full compliance of the end product is always ensured. (2) Please provide Clear and specific instructions describing the conditions, limitations and procedures for third-parties to use and/or integrate the module into a host device. (3) For non-Software Defined Radio transmitter modules where software is used to ensure compliance of the device, technical description of how such control is implemented to ensure prevention of third party modification must be provided (see KDB 594280). Note 1: Compliance of a module in its final configuration is the responsibility of the applicant. A host device will not be considered certified if the instructions regarding antenna configuration provided in the original description, of one or more separately certified modules it contains, were not followed. Example: A separately certified low-power transceiver module using Bluetooth technology which is housed in a desktop computer, laptop or peripheral does not require the overall system to be recertified, if the desktop computer, laptop or peripheral, as a stand-alone unit, complies with all applicable technical standards. Client’s signature Client’s name / title Ling Jung CHEN Managing Director Contact information / address DiZiC Co., Ltd. 3F, No 4-2 Jin Xi Street Taipei 104, Taiwan

November 27 th , 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 and Chief, Certification and Engineering Bureau Industry Canada 1241 Clyde Avenue Ottawa, Ontario Canada K2C 1Y3 To whom it may concern: I, the undersigned, hereby authorize Central Research Technology Co. and hereafter referred to as CRC Lab to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Central Research Technology Co. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CRC Lab as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Ling Jung CHEN Managing Director DiZiC Co., Ltd. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

FCC Test Report Report No.: RF-D230-1210-474 CENTRAL RESEARCH TECHNOLOGY CO. Page : A2-1 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Attachment 2 External Photographs of EUT FCC Test Report Report No.: RF-D230-1210-474 CENTRAL RESEARCH TECHNOLOGY CO. Page : A2-1 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546

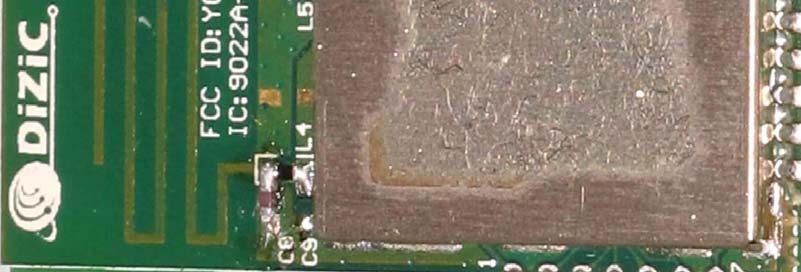

Copyright 2012 DiZiC Co., Ltd. DiZiC Co., Ltd. FCC/IC Labelling Requirements and Information November 26 th ,2012 FCC ID: YCMDZZBSP IC :9022A-DZZBSP The FCC/ID identifier marking is situated on the top side of the module. The marking is printed on the silkscreen mask. Fig1. DZ-ZB-SP regulatory information M/N :DZ-ZB-SP Copyright 2012 DiZiC Co., Ltd. An additional label will be provided for systems using the module where the original label not will be visible when the module is installed. Instructions on how to attach the additional label in compliance with the modular approval guidelines developed by the FCC will be provided. The instructions will call attention to place the additional label on an exterior surface of the device such that it will be visible upon inspection. The additional label will have at least the information as shown in the figure below This device contains FCC ID: YCMDZZBSP IC :9022A-DZZBSP Model: DZ-ZB-SP Thank you for your attention to these matters. Yours faithfully DiZiC Co., Ltd. Ling Jung CHEN

FCC Test Report Report No.: RF-D230-1210-474 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 0 Attachment 3 Internal Photographs of EUT FCC Test Report Report No.: RF-D230-1210-474 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 1

FCC Test Report Report No.: RF- D230-1210-474 CENTRAL RESEARCH TECHNOLOGY CO. Page : A4- No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 1 RF Exposure Evaluation FCC Test Report Report No.: RF- D230-1210-474 CENTRAL RESEARCH TECHNOLOGY CO. Page : A4- No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 2 RF Exposure Evaluation No SAR required if power is lower than the flowing threshold 60/f mW. Peak output power Frequency (MHz) dBm mW Threshold Power (mW) 2405 7.05 5.01 24.95 2440 7.03 5.01 24.59 2480 -2.56 0.55 24.19 Conclusion: No SAR is required.

FCC Test Report Report No.:RF-D230-1210-474 CENTRAL RESEARCH TECHNOLOGY CO. Page : 1/63 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 FCC Test Report for 2.4GHz RF Modular Model Number : DZ-ZB-SP FCC ID : YCMDZZBSP Report Number : RF-D230-1210-474 Date of Receipt : November 23, 2012 Date of Report : December 11, 2012 Prepared for DiZiC Co., Ltd. 3Fl., No 4-2 Jin Xi Street, Zhong Shan District, 104 Taipei, TAIWAN Prepared by Central Research Technology Co. EMC Test Laboratory No.11, Lane41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. NVLAP LAB CODE 200575-0 This report shall not be reproduced, except in full, without the written approval of Central Research Technology Co.. It may be duplicated completely in its entirely for legal use with the permission of the applicant. It should not be used to claim product endorsement by NVLAP, NIST or any U.S. government agency. The test result in the report applies only to the sample tested. FCC Test Report Report No.:RF-D230-1210-474 CENTRAL RESEARCH TECHNOLOGY CO. Page : 2/63 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Verification of Compliance Equipment under Test : 2.4GHz RF Modular Model No. : DZ-ZB-SP FCC ID : YCMDZZBSP Manufacturer : DiZiC Co., Ltd. Applicant : DiZiC Co., Ltd. Address : 3Fl., No 4-2 Jin Xi Street, Zhong Shan District, 104 Taipei, TAIWAN Applicable Standards : 47 CFR part 15, Subpart C Date of Testing : November 26 ~ December 5, 2012 Deviation : N/A Condition of Test Sample : Mass Production We, Central Research Technology Co., hereby certify that one sample of the designated product was tested in our facility during the period mentioned above. The test records, data evaluation and Equipment Under Test (EUT) configurations shown in the present report are true and accurate representation of the measurements of the sample’s RF characteristics under the conditions herein specified. The test results show that the EUT as described in the present report is in compliance with the requirements set forth in the standards mentioned above and apply to the tested sample identified in the present report only. The test report shall not be reproduced, except in its entirety, without the written approval of Central Research Technology Co. FCC Test Report Report No.:RF-D230-1210-474 CENTRAL RESEARCH TECHNOLOGY CO. Page : 3/63 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Contents 1 General Description ..............................................................................................5 1.1 General Description of EUT..................................................................................5 1.2 Applied standards.................................................................................................6 1.3 The Support Units.................................................................................................8 1.4 Layout of Setup.....................................................................................................8 1.5 Test Capability.......................................................................................................9 1.6 Measurement Uncertainty.................................................................................. 11 2 Maximum Peak Output Power ............................................................................12 2.1 Applied standard.................................................................................................12 2.2 Test Instruments.................................................................................................12 2.3 Measurement Procedure....................................................................................13 2.4 Test configuration...............................................................................................13 2.5 Test Data..............................................................................................................14 3 Band Edge ...........................................................................................................16 3.1 Applied standard.................................................................................................16 3.2 Test Instruments.................................................................................................17 3.3 Measurement Procedure....................................................................................18 3.4 Test configuration...............................................................................................18 3.5 Test Data..............................................................................................................19 4 6dB Bandwidth ....................................................................................................26 4.1 Applied standard.................................................................................................26 4.2 Test Instruments.................................................................................................26 4.3 Measurement Procedure....................................................................................27 4.4 Test configuration...............................................................................................27 4.5 Test Data..............................................................................................................28 5 Peak Power Spectral Density .............................................................................30 5.1 Applied standard.................................................................................................30 5.2 Test Instruments.................................................................................................30 5.3 Measurement Procedure...........................................................…
