YCNA606Lenovo Mobile Phone

Read this guide carefully before using your smartphone. Quick Start Guide v1.0 Lenovo A606 Type: CMOS Pixels: 8 megapixels (back) + 2 megapixels (front) Processor: MTK MT6582m , Quad Core, 1.3 GHz Size: 5 inches Screen: 2-touch Resolution: 480 × 854 pixels LCD type: IPS Model: Lenovo A606 System: Android Bluetooth 4.0; WLAN 802.11 b/g/n; WCDMA, GSM; GPS Battery: 2000 mAh Height: 141.5 mm (5.6 inches) Width: 73.2 mm (2.9 inches) Depth: 9.2 mm (0.36 inch) Weight: 152 g (0.3 lb) Model and system Depending on the measuring method, the dimensions and weight might vary slightly. Display Battery Processor Dimensions and weight Camera Wireless Communication Technical specifications Light/Proximity sensor Back key Micro USB connector Rear-facing camera Menu key Display 1 4 7 10 2 5 8 3 6 9 Front-facing camera Receiver Headset connector On/Off button 11 Volume buttons 12 Home key 765 1 9 8 23 12 10 11 13 4 13 Speaker First glance You must insert the USIM card provided by your carrier to use cellular services. Set up your smartphone as shown. Step 1. Open the back cover. Step 2. Insert the USIM card and the memory card. Step 3. Install the battery. a. Align the battery connectors on the battery with the pins in the battery compartment. b. Push the battery down into place. Step 4. Install the back cover. Always turn off your smartphone first before you insert or remove a USIM card. Insert or remove a USIM card with your smartphone on may damage your USIM card or smartphone permanently. Preparing your smartphone Turning on or turning off your smartphone Turn on: Press and hold the On/Off button until the Lenovo logo appears. Tur n of f : Press and hold the On/Off button for a few seconds, then tap Power off Res tart: Press and hold the On/Off button for about 10 seconds Your smartphone has a rechargeable battery. For more information about battery safety, see the “Rechargeable battery notice” in the Important Product Information Guide shipped with your smartphone. Low battery powerFully chargedCharging 2 1 Charge the battery as shown. Method 1. Method 2. Connect your smartphone to a power outlet using the cable and USB power adapter that come with your smartphone. Connect your smartphone to a computer using the cable that comes with your smartphone. Charging the battery Radio and Telecommunications Terminal Equipment Directive This product is in compliance with the essential requirements and other relevant provisions of the Radio and Telecommuni- cations Terminal Equipment Directive, 1999/5/EC. European Union conformity XXXXXXXXXX Printed in China First Edition (July 2014) © Copyright Lenovo 2014 Learning more Legal notices Lenovo and the Lenovo logo are trademarks of Lenovo in the United States, other countries, or both. Other company, product, or service names may be trademarks or service marks of others. To learn more information about your Lenovo smartphone and obtain the latest smartphone manuals, go to: http://support.lenovo.com/. Getting support For support on network service and billing, contact your wireless network operator. For instructions on how to use your device, go to: http://support.lenovo.com/. Content Read first-Regulatory information ...................................................................... 1 Important safety and handling information ......................................................... 2 Service and Support information ..................................................................... 10 Warranty information ...................................................................................... 12 Environmental, recycling, and disposal information ......................................... 17 Restriction of Hazardous Substances Directive (RoHS)................................... 19 Specific Absorption Rate information............................................................... 20 Read first-Regulatory information 1 Read first-Regulatory information Be sure to read the Regulatory Notice for your country or region before using the wireless devices contained in your Lenovo Mobile Phone. To obtain a PDF version of the Regulatory Notice, refer to the “Downloading publications” section below. Downloading publications Electronic versions of your publications are available from the http://support.lenovo.com. To download the publications for your Lenovo Mobile Phone, go to: http://support.lenovo.com and follow the instructions on the screen. Advertensia para Mexico La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada. Important safety and handling information 2 Important safety and handling information Important safety information CAUTION To avoid personal injury, property damage, or accidental damage to the product, read all of the information in this section before using the product. Handling  Handle Lenovo Phone with care Do not drop, bend, or puncture Lenovo Phone; do not insert foreign objects into or place heavy objects on Lenovo Phone. Sensitive components inside might become damaged.  Prevent Lenovo Phone and adapter from getting wet Do not immerse Lenovo Phone in water or leave Lenovo Phone in a location where it can get saturated with water or other liquids. Repairing Do not disassemble or modify Lenovo Phone. Lenovo Phone is a sealed unit. There are no end-user serviceable parts inside. All internal repairs must be done by a Lenovo-authorized repair facility or a Lenovo-authorized technician. Attempting to open or modify Lenovo Phone will void the warranty. Lenovo Phone screen is made of glass. The glass might break if Lenovo Phone is dropped on a hard surface, is the subject of a high impact, or is crushed by a heavy object. If the glass chips or cracks, do not touch the broken glass or attempt to remove it from Lenovo Phone. Stop u…

Text truncated - open the document above for the full version.

No.999,Qishan North 2nd Road,Information&Optoelect, Torch Hi-tech Industry Development Zone, Xiamen, China Date: August 13, 2014 Federal Communications Commission 7345 Oakland Mills Road Columbia MD21046 Subject: Request for Confidentiality FCC ID: YCNA606 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Parts List  Tune-up Procedure  Operational Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days after the Grant Date of Equipment Authorizations.  External Photos  Internal Photos  Test Setup Photos  Users Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, Li Wei / Manager Lenovo Mobile Communication Technology Ltd. Fax: 0592-2169999-6651 No.999,Qishan North 2nd Road,Information&Optoelect, Torch Hi-tech Industry Development Zone, Xiamen, China Tel: 0592-2166651 E-mail: [email protected]

No.999,Qishan North 2nd Road,Information&Optoelect, Torch Hi-tech Industry Development Zone, Xiamen, China Date: August 13, 2014 Federal Communications Commission Authorization and Evaluation Division 7345 Oakland Mills Road Columbia MD 21046 SUBJECT: FCC Application for FCC ID: YCNA606 To Whom It May Concern, We, Lenovo Mobile Communication Technology Ltd., hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, Li Wei / Manager Lenovo Mobile Communication Technology Ltd. Fax: 0592-2169999-6651 Tel: 0592-2166651 No.999,Qishan North 2nd Road,Information&Optoelect, Torch Hi-tech Industry Development Zone, Xiamen, China E-mail: [email protected]

No.999,Qishan North 2nd Road,Information&Optoelect, Torch Hi-tech Industry Development Zone, Xiamen, China Date: August 13, 2014 Statement We, Lenovo Mobile Communication Technology Ltd., state that there is no other space for putting the label on our device, FCC ID: YCNA606, except for the space of the battery compartment of this device. The label will be put under the battery compartment and it is visible to the users as they purchase the product and install the battery. If you have any question regarding the declaration, please don’t hesitate to contact us. Thank you! Sincerely yours, _________________________ Li Wei / Manager Lenovo Mobile Communication Technology Ltd. Fax: 0592-2169999-6651 Tel: 0592-2166651 E-mail: [email protected]

No.999,Qishan North 2nd Road,Information&Optoelect, Torch Hi-tech Industry Development Zone, Xiamen, China Date: August 13, 2014 Power of Attorney To whom it may concern, Please be notified that I, Shouyu Qiu, have designated Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan and Li Wei in Lenovo Mobile Communication Technology Ltd. as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan and Li Wei in Lenovo Mobile Communication Technology Ltd. on the matters relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. As defined in 47 CFR Ch. 1.2002 (b), we further certify that neither the applicant nor any party to this application is subject to a denial to Federal benefits, including FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: YCNA606 If you have any acknowledgement and response, please send it to Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan directly. Should you have any question or comment regarding this matter, please have my best attention. Sincerely yours, Shouyu Qiu / Manager Lenovo Mobile Communication Technology Ltd. Fax: 0592-2169999-6651 Tel: 0592-2166651 E-mail: [email protected]

No.999,Qishan North 2nd Road,Information&Optoelect, Torch Hi-tech Industry Development Zone, Xiamen, China Date: August 13, 2014 Declaration To whom it may concern, Lenovo A606 is a WLAN/Bluetooth combination antenna with FCC ID: YCNA606. This WLAN/Bluetooth co-existence mechanism is to ensure that the WLAN and Bluetooth transmitters would not simultaneously operate. Therefore, WLAN and Bluetooth antenna in Lenovo A606 should not be considered to be able to transmit simultaneously. Though the users can use WLAN and Bluetooth simultaneously, but the real situation is that WLAN and Bluetooth are used by time sharing and no overlap transmission. Should you have any question, please have my best attention. Sincerely yours, _______________ Li Wei / Manager Lenovo Mobile Communication Technology Ltd. Fax: 0592-2169999-6651 Tel: 0592-2166651 No.999,Qishan North 2nd Road,Information&Optoelect, Torch Hi-tech Industry Development Zone, Xiamen, China E-mail: [email protected]

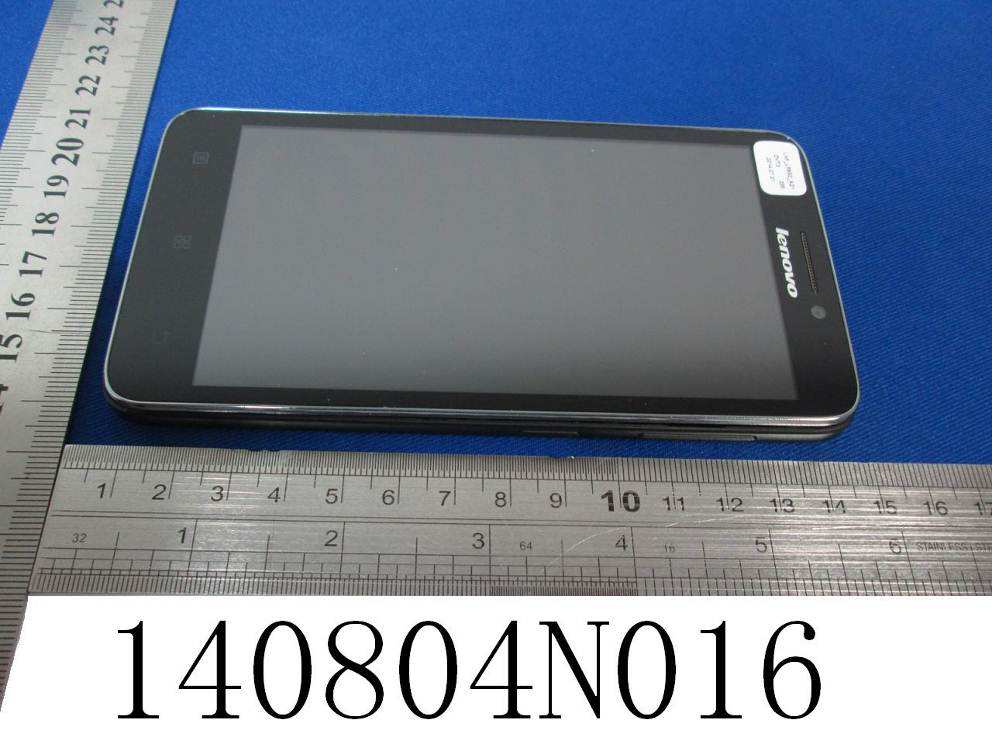

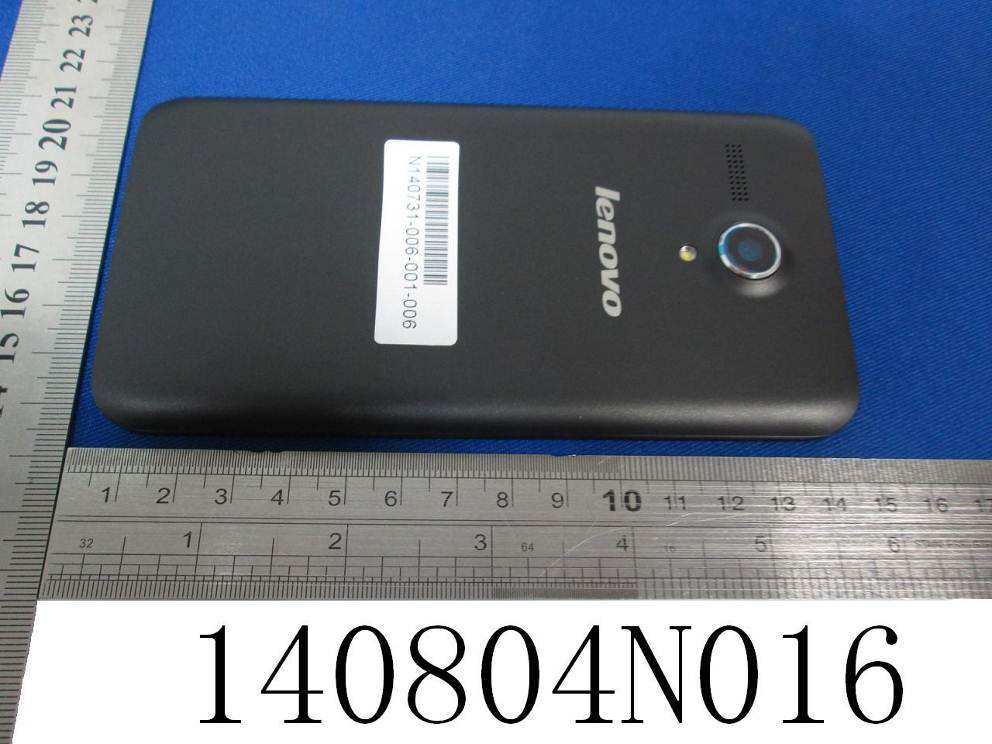

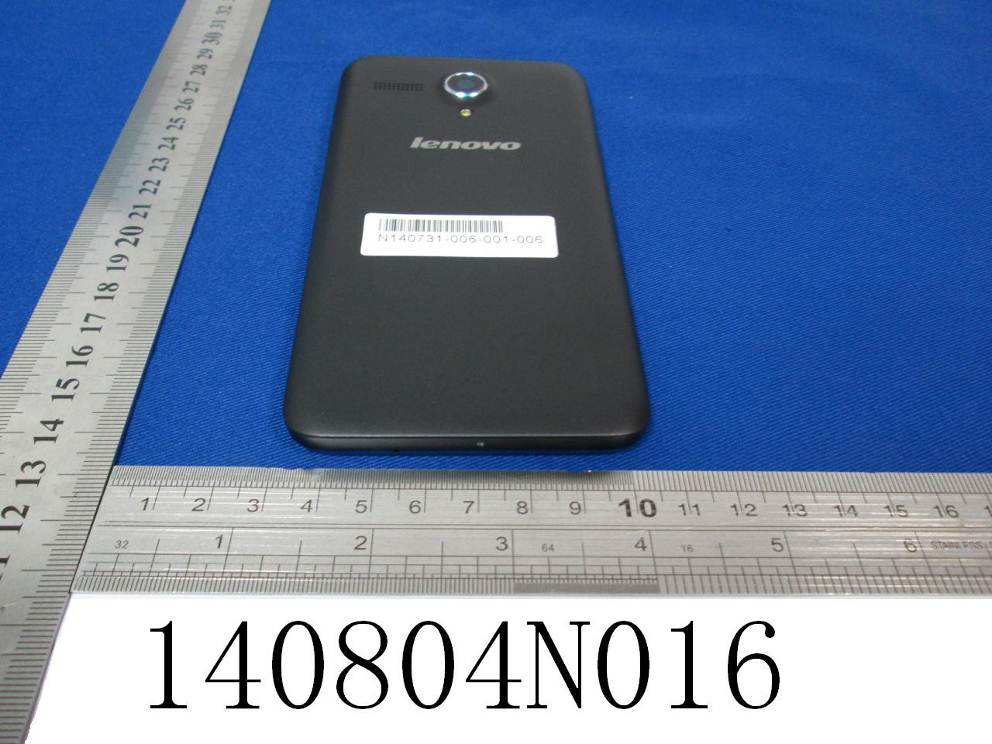

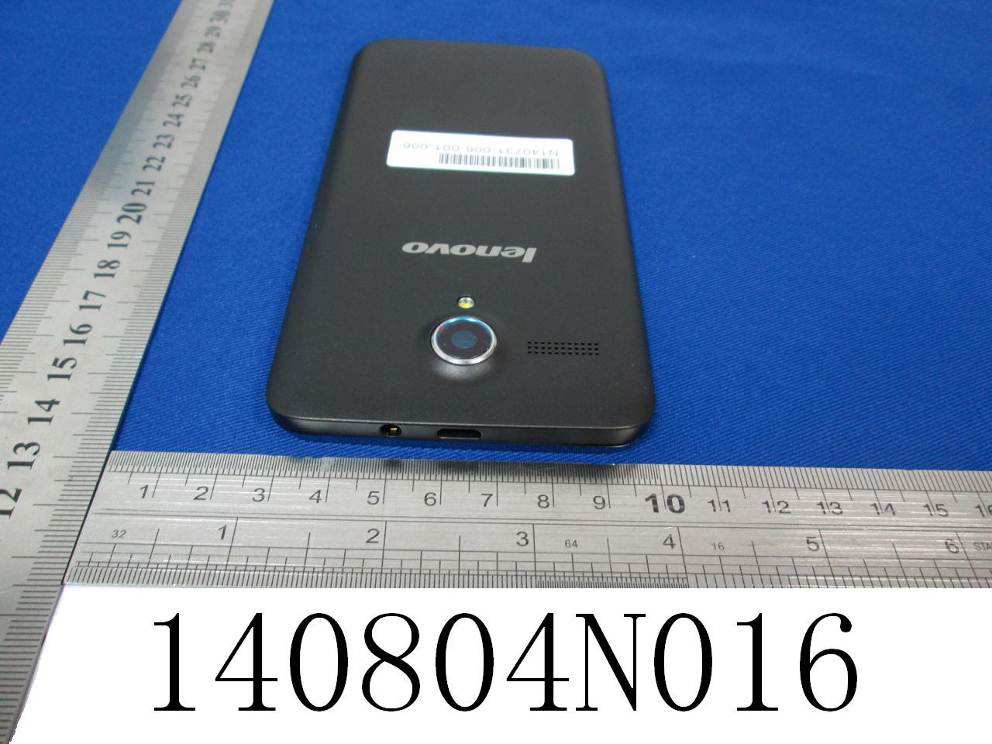

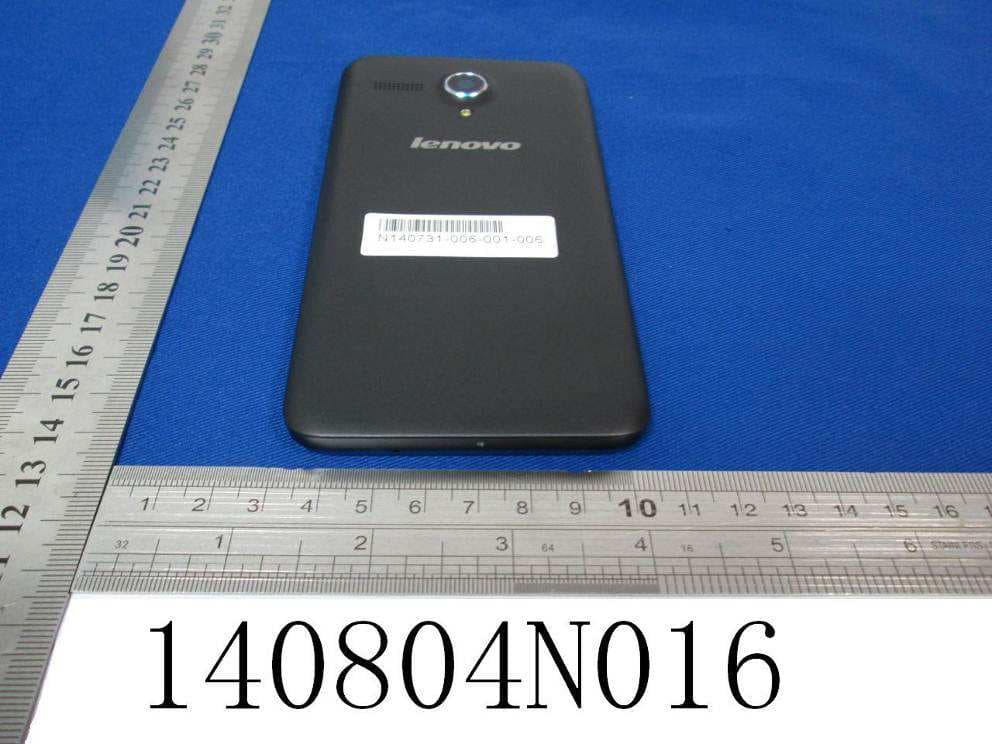

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 4 Report Version 1 Reference No.: 140804N016 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 4 Report Version 1 Reference No.: 140804N016 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 4 Report Version 1 Reference No.: 140804N016 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 4 of 4 Report Version 1 Reference No.: 140804N016

Modelo: Lenovo A606 MID: 60600031 Teléfono móvil Lenovo Fabricado por Lenovo PC HK Limited Hecho en China FCC IDYCNA606 LXF_L5930_A21 Black(K=100) PANTONE Cool Gray 4C Modelo: Lenovo A606 MID: 60600031 Teléfono móvil Lenovo Fabricado por Lenovo PC HK Limited Hecho en China FCC IDYCNA606 Modelo: Lenovo A606 MID: 60600031 Teléfono móvil Lenovo Fabricado por Lenovo PC HK Limited Hecho en China FCC IDYCNA606

FCC ID:YCNA606 Battery Compartment Label Location Under the Battery

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 6 Report Version 1 Reference No.: 140804N016 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 6 Report Version 1 Reference No.: 140804N016 WWAM Main Antenna WWAN RX Diversity Antenna Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 6 Report Version 1 Reference No.: 140804N016 WIFI Antenna GPS Antenna Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 4 of 6 Report Version 1 Reference No.: 140804N016 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 5 of 6 Report Version 1 Reference No.: 140804N016 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 6 of 6 Report Version 1 Reference No.: 140804N016

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 54 Report Version 1 Test Report No.: RF140804N016-2 TEST REPORT Applicant Lenovo Mobile Communication Technology Ltd. Address No.999, Qishan North 2nd Road, Information & Optoelectronics Park, Torch Hi-tech Industry Development Zone, Xiamen, P.R.China Manufacturer or Supplier Lenovo PC HK Limited Address 23/F, Lincoln House, Taikoo Place 979 King's Road, Quarry Bay, Hong Kong Product Lenovo Mobile Phone Brand Name lenovo Model Lenovo A606 Additional Model & Model Difference N/A Date of tests Aug. 04, 2014~ Aug. 21, 2014 the tests have been carried out according to the requirements of the following standards: FCC Part 15, Subpart C, Section 15.247 CONCLUSION: The submitted sample was found to COMPLY with the test requirement Tested by Yuqiang Yin Project Engineer / EMC Department Approved by Glyn He Supervisor / EMC Department Date: Aug. 22, 2014 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 54 Report Version 1 Test Report No.: RF140804N016-2 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................................ 5 1 SUMMARY OF TEST RESULTS ...................................................................................................... 6 2 MEASUREMENT UNCERTAINTY .................................................................................................. 6 3 GENERAL INFORMATION.............................................................................................................. 7 3.1 GENERAL DESCRIPTION OF EUT ........................................................................................... 7 3.2 DESCRIPTION OF TEST MODES ............................................................................................. 7 3.2.1. CONFIGURATION OF SYSTEM UNDER TEST ............................................................... 9 3.2.2. TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .................................... 9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................................... 11 3.4 DESCRIPTION OF SUPPORT UNITS ..................................................................................... 11 4 TEST TYPES AND RESULTS ....................................................................................................... 12 4.1. CONDUCTED EMISSION MEASUREMENT ........................................................................... 12 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................................... 12 4.1.2 TEST INSTRUMENTS ..................................................................................................... 12 4.1.3 TEST PROCEDURES ..................................................................................................... 13 4.1.4 DEVIATION FROM TEST STANDARD ........................................................................... 13 4.1.5 TEST SETUP ................................................................................................................... 14 4.1.6 EUT OPERATING CONDITIONS .................................................................................... 14 4.1.7 TEST RESULTS............................................................................................................... 15 4.2. RADIATED EMISSION AND BANDEDGE MEASUREMENT .................................................. 17 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ...................... 17 4.2.2 TEST INSTRUMENTS .................................................................................................... 18 4.2.3 TEST PROCEDURES ..................................................................................................... 19 4.2.4 DEVIATION FROM TEST STANDARD ........................................................................... 19 4.2.5 TEST SETUP .................................................................................................................. 20 4.2.6 EUT OPERATING CONDITIONS ................................................................................... 20 4.2.7 TEST RESULTS .............................................................................................................. 21 4.3. NUMBER OF HOPPING FREQUENCY USED ...........................…

Text truncated - open the document above for the full version.

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 2 Report Version 1 Reference No.: 140804N016 SET-UP FOR CONDUCTED EMISSION TEST Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 2 Report Version 1 Reference No.: 140804N016 SET-UP FOR RADIATED EMISSION TEST Frequency Range< 30MHz ~1GHz > Frequency Range< Above 1GHz >

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Sep. 01, 2014 Report No. : SA140804C19 Appendix D. Photographs of EUT and Setup FCC SAR Test Report Report Format Version 5.0.0 Report No. : SA140804C19 <Photographs of EUT> FCC SAR Test Report Report Format Version 5.0.0 Report No. : SA140804C19 <Antenna Location> The separation distance for antenna to edge: Antenna To Top Side (mm) To Bottom Side (mm) To Left Side (mm) To Right Side (mm) WWAN 127 0 7 24 WLAN / BT 8 113 64 0 EUT Top Side EUT Bottom Side EUT Left Side EUT Right Side WWAN Antenna WLAN / BT Antenna <EUT Rear View> FCC SAR Test Report Report Format Version 5.0.0 Report No. : SA140804C19 <Photographs of SAR Setup> Right Cheek Right Tilted Left Cheek Left Tilted Front Face of EUT with 1.0 cm Gap Rear Face of EUT with 1.0 cm Gap FCC SAR Test Report Report Format Version 5.0.0 Report No. : SA140804C19 Left Side of EUT with 1.0 cm Gap Right Side of EUT with 1.0 cm Gap Top Side of EUT with 1.0 cm Gap Bottom Side of EUT with 1.0 cm Gap Rear Face of EUT with 1.0 cm Gap (with Earphone)
