YCNS820Mobile Phone GSM/WCDMA

User Manual Model: Lenovo S820 Read this manual carefully before operating the handset Lenovo Mobile Phone English English English English English English English English English English English English English English English English English 2 Contents Technical Parameters ............................................................................... 4 Initial Setup Procedure .............................................................................. 5 Removing and mounting battery cover ............................................... 5 Charging the phone ........................................................................... 6 Inserting the SIM card ........................................................................ 7 Inserting the memory card ................................................................. 7 Port Assignment and Button Layout .......................................................... 8 Applications Overview ............................................................................... 9 Gravity sensor ......................................................................................... 10 Precautions and Tips for S820 Safety and Maintenance ......................... 11 When using mobile phone, please abide by the following. ............... 11 Be aware of heat generated by your mobile phone .......................... 13 Protect your data and software ........................................................ 13 When using the battery, please abide by the following. .................... 13 When using the battery charger, please abide by the following. ....... 15 When using headphones (which you may need to purchase separately), please abide by the following. ....................................... 16 Prevent hearing damage .................................................................. 16 Important Notices – Medical Device ........................................................ 18 Cardiac Pacemaker ......................................................................... 18 Hearing Aid and Cochlear Implant ................................................... 18 Plastic bag notice ............................................................................. 18 Polyvinyl Chloride (PVC) cable and cord notice ............................... 19 Electronic emission notices ..................................................................... 21 Federal Communications Commission (FCC) Declaration of Conformity ....................................................................................... 21 FCC Caution .................................................................................... 22 3 EurAsia Compliance Mark ................................................................ 22 Specific Absorption Rate information ............................................... 22 Recycling and environmental information ................................................ 25 General recycling statement ............................................................ 25 Important WEEE information ............................................................ 25 China recycling information for Waste Electrical and Electronic Equipment (WEEE) .......................................................................... 25 Recycling information for India ......................................................... 25 Restriction of Hazardous Substances Directive (RoHS) .......................... 26 China RoHS ..................................................................................... 26 Turkish RoHS .................................................................................. 27 Ukraine RoHS .................................................................................. 27 India RoHS ...................................................................................... 27 4 Technical Parameters Product Mobile Phone GSM/WCDMA Model Lenovo S820 System Android 4.2.1 Size Approximately 139.5 mm × 69.7 mm × 8.95mm Weight Approximately 143g (including battery) Standby Time Max 120 hours* Battery Capacity 2000 mAh NOTES:*May vary depending on local signal strength. 5 Initial Setup Procedure Removing and mounting battery cover To remove the cover, perform the following procedure as shown in the figure. 1. Find the recess in the lower-left corner. 2. Hold the top of your mobile phone. 6 3. Lift up from the recess. 4. Open the cover. To mount the battery cover, gently fit and press it onto phone body until it completely clicks into place. Charging the phone 7 Inserting the SIM card Inserting the memory card 8 Port Assignment and Button Layout KEY Description 1 HOME KEY Can return to the idle interface. 2 MENU KEY Can enter the commonly used, the characteristic and more menus. 3 BACK KEY Can return to the superior menu. 4 VOLUME KEY According to the volume switch increase or decrease volume. 5 POWER ON/OFF Short click this button to lock screen function, long press the key to power on/off the phone. 9 Applications Overview Icon Name Note Browser Browses websites. The web browser in this unit can access the Internet via the WIFI network for business and personal use. Email Receives/Sends and views mails by linking directly to your mailbox. Gallery Browses and edits images. In an image full-screen page it supports slideshow functions and such operations as, Share, Set as, and Details. Contacts Allows you to add or delete contacts and edit or delete particulars of a contact. Calendar Creates new events, toggles the day view, the week view and the month view, and enables the event reminder function. 10 Gravity sensor Auto rotate screen according to the rotation of the device. To unlock the screen direction: Menu > Settings > Display > Auto-rotate screen. After launching one application, you can rotate the screen to your preferred direction. 11 Precautions and Tips for S820 Safety and Maintenance When using mobile phone, please abide by the following.  Read the user manual thorou…

Text truncated - open the document above for the full version.

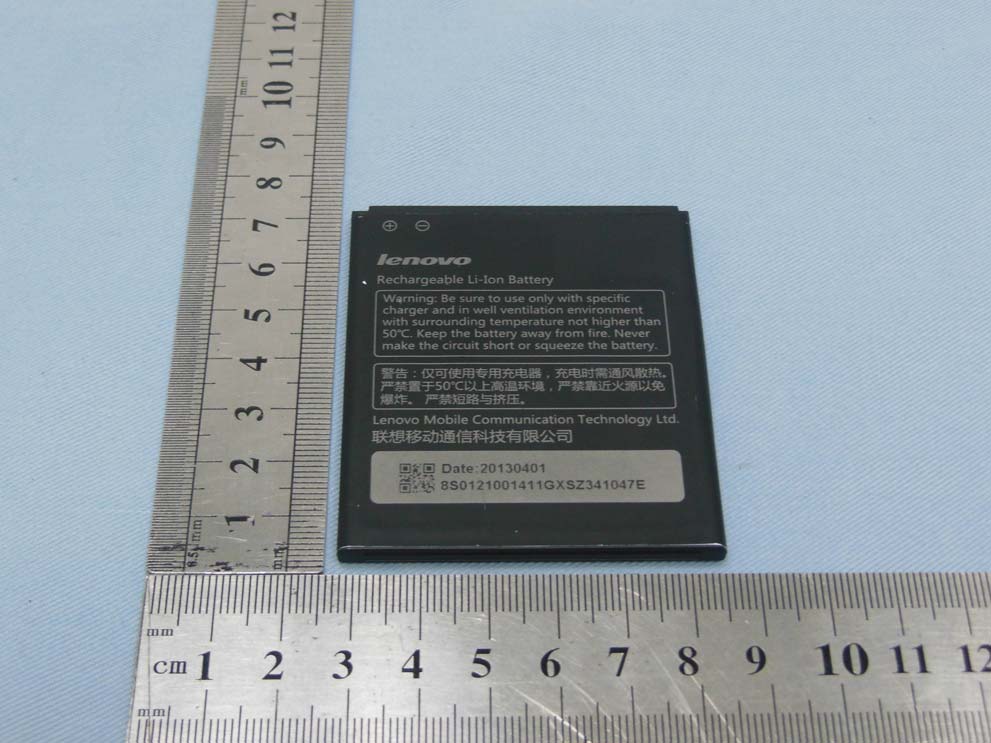

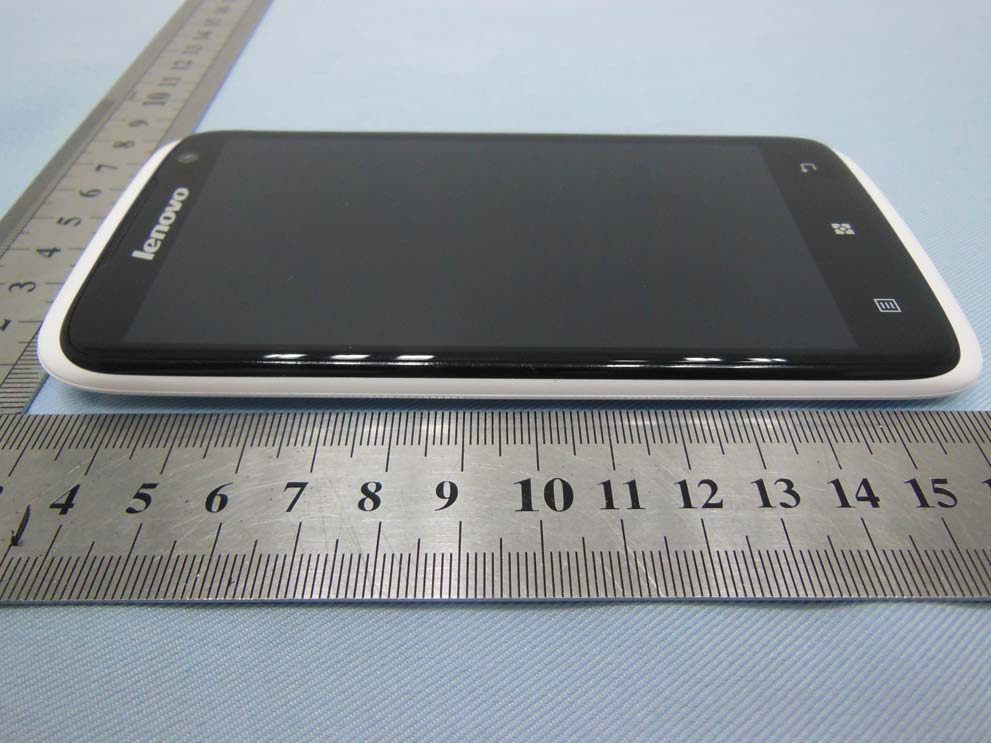

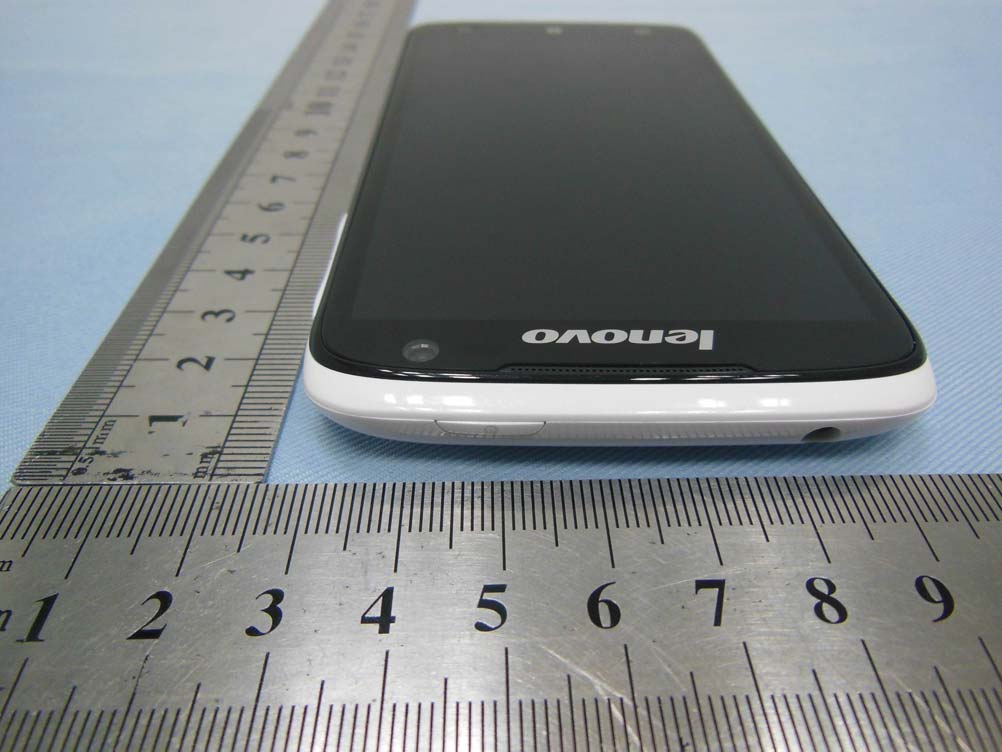

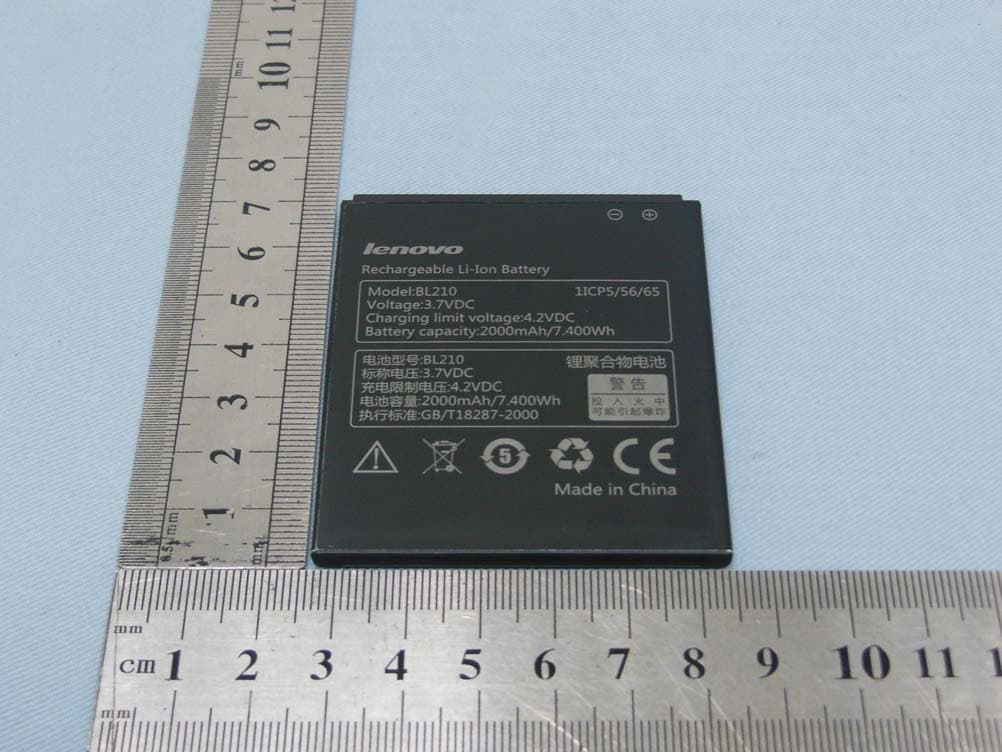

Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 1. External Photograph of EUT Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 List of Accessory: Specification of Accessory AC Adapter Brand Name lenovo Model Name C-P34 Battery Brand Name lenovo Model Name BL210 USB Cable 1 Signal Line Type 1.0m, non-shielded cable, without core USB Cable 2 Signal Line Type 1.0m, non-shielded cable, without core Earphone Signal Line Type 1.0m, non-shielded cable Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 AC Adapter Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 Battery Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820

Trade name：lenovo Model No：Lenovo S820 FCC ID：YCNS820 S820

Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 3. Internal Photograph of EUT Bluetooth & WLAN & GPS Antenna WWAN Antenna Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP342509 Brand Name: lenovo; Model Name: Lenovo S820 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 28 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 14, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YCNS820 Bluetooth & WLAN Antenna <Tx / Rx> GPS Antenna <Rx>

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 57 TEL : 86-755-8637-9589 Report Issued Date : Jun. 14, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : YCNS820 FCC SAR Test Report Report No. : FA342509 FCC SAR Test Report APPLICANT : Lenovo Mobile Communication Technology Ltd. EQUIPMENT : Mobile Phone GSM/WCDMA BRAND NAME : lenovo MODEL NAME : Lenovo S820 MARKETING NAME MID : : Mobile Phone GSM/WCDMA 82000011 FCC ID : YCNS820 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was completely tested on Jun. 07, 2013. We, SPORTON INTERNATIONAL (SHENZHEN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (SHENZHEN) INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL (SHENZHEN) INC. No. 101, Complex Building C, Guanlong Village, Xili Town, Nanshan District, Shenzhen, Guangdong, P.R.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 57 TEL : 86-755-8637-9589 Report Issued Date : Jun. 14, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : YCNS820 FCC SAR Test Report Report No. : FA342509 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................6 2.1 Testing Laboratory ...................................................................................................................................................6 2.2 Applicant .................................................................................................................................................................6 2.3 Manufacturer ...........................................................................................................................................................6 2.4 Application Details ...................................................................................................................................................6 3. General Information .......................................................................................................................................................7 3.1 Description of Equipment Under Test (EUT) ...........................................................................................................7 3.2 Maximum RF output power among production units ...............................................................................................8 3.3 Applied Standard ...................................................................................................................................................10 3.4 Device Category and SAR Limits ..........................................................................................................................10 3.5 Test Conditions ......................................................................................................................................................10 4. Specific Absorption Rate (SAR) ..................................................................................................................................11 4.1 Introduction ........................................................................................................................................................... 11 4.2 SAR Definition ....................................................................................................................................................... 11 5. SAR Measurement System ..........................................................................................................................................12 5.1 E-Field Probe ........................................................................................................................................................13 5.2 Data Acquisition Electronics (DAE) .......................................................................................................................13 5.3 Robot ....................................................................................................................................................................14 5.4 Measurement Server .............................................................................................................................................14 5.5 Phantom ................................................................................................................................................................15 5.6 Device Holder .......................................................................................................................................................15 5.7 Data Storage and Evaluation ................................................................................................................................16 5.8 Test Equipment List ...............................................................................................................................................18 6. Tissue Simulating Liquids ...........................................................................................................................................19 7. System Verification Procedures .................................................................................................................................20 7.1 Purpose of System Performance check .........................................................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : B1 of B1 TEL : 86-755-8637-9589 Report Issued Date : Jun. 14, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : YCNS820 FCC SAR Test Report Report No. : FA342509 Appendix B. Plots of SAR Measurement The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 06.06.2013 45 GSM850_GSM Voice_Right Cheek_Ch251 DUT: 342509 Communication System: Generic GSM; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_130606 Medium parameters used: f = 849 MHz; σ = 0.913 mho/m; ε r = 40.428; ρ = 1000 kg/m 3 Ambient Temperature： 23.2 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.56, 9.56, 9.56); Calibrated: 26.11.2012; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 22.11.2012 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch251/Area Scan (61x111x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.344 W/kg Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.688 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 0.373 mW/g SAR(1 g) = 0.301 mW/g; SAR(10 g) = 0.231 mW/g Maximum value of SAR (measured) = 0.343 W/kg 0 dB = 0.343 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 06.06.2013 46 GSM850_GSM Voice_Right Tilted_Ch251 DUT: 342509 Communication System: Generic GSM; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_130606 Medium parameters used: f = 849 MHz; σ = 0.913 mho/m; ε r = 40.428; ρ = 1000 kg/m 3 Ambient Temperature： 23.2 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.56, 9.56, 9.56); Calibrated: 26.11.2012; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 22.11.2012 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch251/Area Scan (61x111x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.198 W/kg Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.285 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 0.216 mW/g SAR(1 g) = 0.173 mW/g; SAR(10 g) = 0.133 mW/g Maximum value of SAR (measured) = 0.199 W/kg 0 dB = 0.199 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 06.06.2013 47 GSM850_GSM Voice_Left Cheek_Ch251 DUT: 342509 Communication System: Generic GSM; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_130606 Medium parameters used: f = 849 MHz; σ = 0.913 mho/m; ε r = 40.428; ρ = 1000 kg/m 3 Ambient Temperature： 23.2 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.56, 9.56, 9.56); Calibrated: 26.11.2012; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 22.11.2012 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch251/Area Scan (61x111x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.322 W/kg Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.904 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.344 mW/g SAR(1 g) = 0.281 mW/g; SAR(10 g) = 0.218 mW/g Maximum value of SAR (measured) = 0.316 W/kg 0 dB = 0.316 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 06.06.2013 48 GSM850_GSM Voice_Left Tilted_Ch251 DUT: 342509 Communication System: Generic GSM; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_130606 Medium parameters used: f = 849 MHz; σ = 0.913 mho/m; ε r = 40.428; ρ = 1000 kg/m 3 Ambient Temperature： 23.2 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.56, 9.56, 9.56); Calibrated: 26.11.2012; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 22.11.2012 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch251/Area Scan (61x111x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.210 W/kg Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.272 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 0.232 mW/g SAR(1 g) = 0.188 mW/g; SAR(10 g) = 0.145 mW/g Maximum value of SAR (measured) = 0.214 W/kg 0 dB = 0.214 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 06.06.2013 49 GSM1900_GSM Voice_Right Cheek_Ch810 DUT: 342509 Communication System: Generic GSM; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_1900_130606 Medium parameters used: f = 1910 MHz; σ = 1.416 mho/m; ε r = 39.605; ρ = 1000 kg/m 3 Ambient Temperature： 23.5 °C; Liquid Temperature：21.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(7.84, 7.84, 7.84); Calibrated: 26.11.2012; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 22.11.2012 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch810/Area Scan (61x111x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.218 W/kg Ch810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.297 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 0.246 mW/g SAR(1 g) = 0.173 mW/g; SAR(10 g) = 0.115 mW/g Maximum value of SAR (measured) = 0.205 W/kg 0 dB = 0.205 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 06.06.2013 50 GSM1900_GSM Voice_Right Tilted_Ch810 DUT: 342509 Communication System: Generic GSM; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_1900_130606 Medium parameters used: f = 1910 MHz; σ = 1.416 mho/m; ε r = 39.605; …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : C1 of C1 TEL : 86-755-8637-9589 Report Issued Date : Jun. 14, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : YCNS820 FCC SAR Test Report Report No. : FA342509 Appendix C. DASY Calibration Certificate The DASY calibration certificates are shown as follows. SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 FAX : 86-755-8637-9595 FCC Test Report D835V2, serial No. 4d091 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D835V2 – serial no. 4d091 ʳ 835 Head 835 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 11.18.2011 -25.734 ʳ 50.867 ʳ -5.1504ʳ -22.318 ʳ47.082 ʳ -6.8594ʳ 11.17.2012 -25.917 0.7149.7731.09-5.13290.02 -22.4660.6648.683 1.60 -6.35980.50 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 FAX : 86-755-8637-9595 FCC Test Report <Dipole Verification Data> - D835V2, serial no. 4d091 835MHz - Head 835MHz – Body SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 FAX : 86-755-8637-9595 FCC Test Report D1900V2, serial no. 5d118 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D1900V2 – serial no. 5d118 1900 Head 1900 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 11.21.2011 -22.535 53.449 6.9277 -22.401 47.82 7.1133 11.17.2012 -22.603 0.3053.491 -0.047.10090.17-22.45 0.2246.14 -1.68 6.7234-0.39 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 FAX : 86-755-8637-9595 FCC Test Report <Dipole Verification Data>- D1900V2, serial no. 5d118 1900MHz – Head 1900MHz - Body SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report D2450V2, serial no. 736 Extended Dipole Calibrationsġ Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D2450V2 – serial no. 736 ġ 2450 Head 2450 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) I…
