YDBM9BS1DECT VOIP PHONE

ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL www.snom.com www.snom.com © 2010 snom technology AG v1.09 Quick Start Guide snom technology AG Charlottenstr. 68-71 10117 Berlin, Deutschland Tel. +49 30 39 83 3-0 Fax +49 30 39 83 31 11 [email protected], [email protected] snom technology, Inc. 18 Commerce Way, Suite 6000 Woburn, MA 01801, USA Tel. (781) 569-2044 Fax (781) 569-2045 [email protected] snom France SARL 6 Parc des fontenelles 78870 Bailly, France Tel. +33 1 80 87 62 87 Fax +33 1 80 87 62 88 [email protected], [email protected] snom technology SRL Via A. Lusardi 10 20122 Milano, Italia Tel +39 02 00611212 Fax +39 02 93661864 [email protected], [email protected] Your specialist retailer - Ihr Fachhändler - Votre distributeur - Su distribuidor - Il tuo rivenditore: 3 english ....................................................................................5 Safety Information & Warranty USA .....................23 Safety Information & Warranty Australia .....................37 Safety Information & Warranty New Zealand ............41 deutsch ....................................................................................45 français ....................................................................................65 italiano ....................................................................................85 español ....................................................................................105 appendix · anhang · annexe · apendice · anexo GNU General Public Licence ............................................................124 4 snom m9 Quick Start Guide E N G L I S H 5 snom m9 Quick Start Guide E N G L I S H This is the Quick Start Guide to the installation, setup, and operation of the base station and the phone. For further information please refer to the manual at http://wiki.snom.com. deliVerY content Combo KitHandset Kit 1.Base station1 x- 2.Base station power adapter (5 V, DC plug inner Ø 2.1 mm, outer Ø 5.5 mm) 1 x- 3.Network cable1 x- 4.Handset2 x1 x 5.3.7 V Lithium-Ion rechargeable battery pack 2 x1 x 6.Handset charger2 x1 x 7.Handset charger power adapter (5.9 V, DC plug inner Ø 1.35 mm, outer Ø 3.5 mm) 2 x1 x 8.Belt clip2 x1 x You will also need: Data received from your service provider or administrator: 1. Account (usually the phone number) (required) 2. Registrar (required) 3. Password, authentication name, outbound proxy (may be required, mailbox account (if available) 4. If DHCP is not available for automatic initialization, you will also need the IP address, the IP gateway and the DNS server. Press > (Settings menu) > Network > enter PIN > select IP Gateway and DNS Server, respectively, with OK. 6 snom m9 Quick Start Guide E N G L I S H copYright, tradeMarKs, gpl, legal disclaiMers © 2010 snom technology Aktiengesellschaft All Rights Reserved. snom, the names of snom products, and snom logos are trademarks owned by snom technology AG. All other product names and names of enterprises are the property of their respective owners. snom technology AG reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact. Texts, images, and illustrations and their arrangement in this document are subject to the protection of copyrights and other legal rights worldwide. Their use, reproduction, and transmittal to third parties without express written permission may result in legal proceedings in the criminal courts as well as civil courts. When this document is made available on snom’s web page, snom technology AG gives its permission to download and print copies of its content for the intended purpose of using it as a manual. No parts of this document may be altered, modified or used for commercial purposes without the express written consent of snom technology AG. Although due care has been taken in the compilation and presentation of the information in this document, the data upon which it is based may have changed in the meantime. snom therefore disclaims all warranties and liability for the accurateness, completeness, and currentness of the information published, except in the case of intention or gross negligence on the part of snom or where liability arises due to binding legal provisions. Our firmware includes some source code that may be used and modified by anyone and everyone under the GNU Public License (GPL) (see Appendix on page 124), provided they, in turn, make it available to everyone else with the same licensing agreement. Please go to http://www.snom. com/en/support/download/gpl-quellcode/ for the original GPL license and the source code of components licensed under GPL and used in snom products. 7 snom m9 Quick Start Guide E N G L I S H Standards Conformance This phone is CE and FCC-certified and meets European and US health, safety, and environmental standards. Unauthorized opening, changing, or modifying the phone will cause the warranty to lapse and may also result in the lapse of the CE and FCC certifications. In case of malfunction contact authorized service personnel, your seller, or snom. The snom m9 Base FCC ID is YDBM9BS1, and Handset FCC ID is YDBM9HS1 8 snom m9 Quick Start Guide E N G L I S H safetY precautions Please read these precautions and the instructions on how to set up and use the base and the phone thoroughly before using the devices. Save this Quick Start Guide and do not give the device to third parties without it. See also separate general safety information and country-specific safety and warranty information for the USA, Australia, and New Zealand. Power supplies/adapters, rechargeable battery • Use only the power converters (AC/DC adapters) delivered with the base station and the phone or those power supplies expressly recommended by snom. Other power power supplies may damage or even destroy the device(s). Elementech Power Adapters, Model No. Base stationHandset charger Europe without UK AU1050507eAU1050607e UK AU1050505bAU1050605b USA & Canada AU105…

Text truncated - open the document above for the full version.

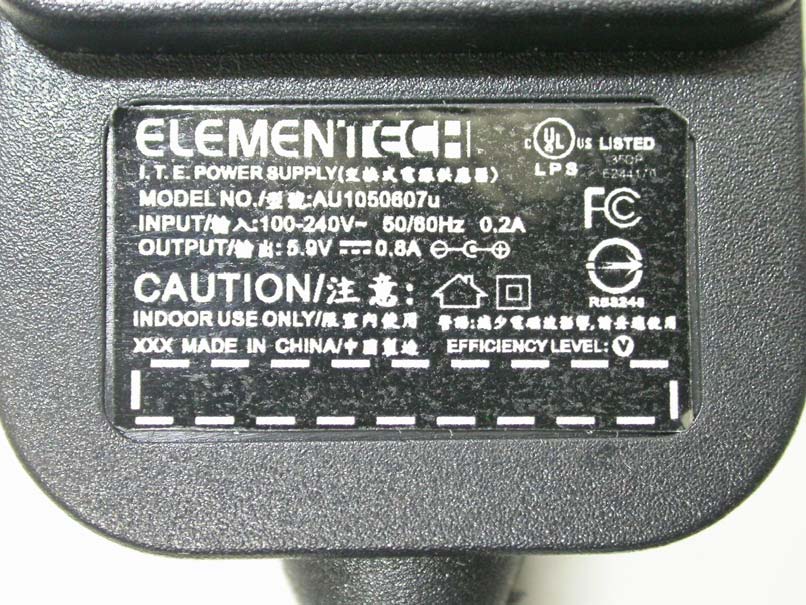

FCC ID: YDBM9BS1 ETC Report No.: 10-10-MAS-276-03 Page A1 of A3 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT FCC ID: YDBM9BS1 ETC Report No.: 10-10-MAS-276-03 Page A2 of A3 3. Outside view 1 of Adapter 4. Outside view 2 of Adapter FCC ID: YDBM9BS1 ETC Report No.: 10-10-MAS-276-03 Page A3 of A3 5. Outside view 3 of Adapter

FCC ID Label_Location

FCC ID: YDBM9BS1 ETC Report No.: 10-10-MAS-276-03 Page B1 of B3 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT FCC ID: YDBM9BS1 ETC Report No.: 10-10-MAS-276-03 Page B2 of B3 3. Antenna 4. Module FCC ID: YDBM9BS1 ETC Report No.: 10-10-MAS-276-03 Page B3 of B3 5. Front view of PCB 6. Rear view of PCB

FCC ID: YDBM9BS1 Sheet 28 of 87 Sheets ETC Report No.: 10-10-MAS-276-03 Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 6.11 Safety exposure levels 6.11.1 Standard Applicable: FCC 15.319(i) UPCS devices are subject to the radio frequency radiation exposure requirements specified in FCC parts 1.1307 (b), 2.1091 and 2.1093, as appropriate. All equipment shall be considered to operate in a “general population / uncontrolled environment. For portable devices tests according to IEEE 1528 are requested, if applicable. 6.11.2 Measurement procedure Consideration of radio frequency radiation exposure for EUT is done as SAR test according IEEE1528 (for PP) MPE calculation as below (for FP, Repeater) SAR test results: not applicable MPE calculation: The EUT is considered as a mobile device according to OET Bulletin 65, Edition -97-01. Therefore distance to human body of min. 20 cm is determined. The limit of Power density for General Population / Umcontrolled Exposure is 1.0 mW/cm². Formula: S = EIRP / 4πR² Calculation: EIRP Radiated Power (dBm) 19.24 EIRP Radiated Power (mW) 83.95 R Distance (cm) 20 S Power Density (mW/cm²)0.0167 6.11.3 Results：Complies

FCC ID: YDBM9BS1 Sheet 1 of 87 Sheets ETC Report No.: 10-10-MAS-276-03 Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC Part 15, subpart D Report No.: 10-010-MAS-276-03 Client: snom technology AG Product: DECT VOIP Phone Model: Snom M9 FCC ID: YDBM9BS1 Manufacturer/supplier: GBM Group Date test item received: 2010/10/21 Date test campaign completed: 2010/10/26 Date of issue: 2010/12/03 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 87 pages Total number of pages of photos: External photos 3 pages Internal photos 3 pages Setup photos 1 pages Test Engineer Checked By Approved By John Li Joe Hsieh Winpo Tsai FCC ID: YDBM9BS1 Sheet 2 of 87 Sheets ETC Report No.: 10-10-MAS-276-03 Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 Table of Contents Page 1 GENARAL INFORMATION......................................................................................................... 4 1.1 Testing Laboratory..................................................................................................................... 4 1.2 Client Information....................................................................................................................... 4 1.3 Manufacturer...............................................................................................................................4 2 TEST INFORMATION................................................................................................................... 5 2.1 Description of Tested Device(s)............................................................................................... 5 2.2 Test Environment....................................................................................................................... 5 3 TEST REPORT SUMMARY......................................................................................................... 6 3.1 Test Summary............................................................................................................................ 6 3.2 Other Comments........................................................................................................................ 7 4 TEST SETUP.................................................................................................................................. 8 4.1 Frequency and Timing Measurements................................................................................... 8 4.2 Conducted Emission Tests....................................................................................................... 8 4.3 Radiated Emission Tests.......................................................................................................... 9 4.4 Power line Conducted Tests.................................................................................................... 9 4.5 Monitoring Tests....................................................................................................................... 10 5 TEST EQUIPMENT LIST............................................................................................................ 11 6 TEST RESULT............................................................................................................................. 12 6.1 Coordination with fixed microwave........................................................................................ 12 6.2 Cross Reference...................................................................................................................... 13 6.3 Labeling Requirements........................................................................................................... 14 6.4 Power line Conducted Emissions.......................................................................................... 15 6.5 Antenna Requirement............................................................................................................. 18 6.6 Digital Modulation Techniques............................................................................................... 18 6.7 Peak Transmit Power.............................................................................................................. 19 6.8 Power Spectral Density........................................................................................................... 23 6.9 Antenna Gain............................................................................................................................ 27 6.10 Automatic discontinuation of transmission......................................................................... 27 6.11 Safety exposure levels.......................................................................................................... 28 6.12 Emission Bandwidth B.......................................................................................................... 29 6.13 Monitoring time....................................................................................................................... 33 6.14 Monitoring threshold.............................................................................................................. 34 6.15 Maximum transmit period..................................................................................................... 35 FCC ID: YDBM9BS1 Sheet 3 of 87 Sheets ETC Report No.: 10-10-MAS-276-03 Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 6.16 System Acknowledgement................................................................................................... 37 6.17 Least Interfered…

Text truncated - open the document above for the full version.

ELECTRONICS TESTING CENTER, TAIWAN Report Number : 10-10-MAS-276-01 Page A6 of A22 Rev. No 1.0 Operation Mode: FP

FCC ID: YDBM9BS1 ETC Report No.: 10-10-MAS-276-03 Page 1 of 1 Photos of Conduction Measuring Setup
