YDM-CA1902GPS enabled cycling computer

Bryton www.brytonsport.com A01 Rider 750 Quick Start Guide Download User Manual Download Bryton Active App A. POWER/LOCK ( ): • Press to turn the device ON/lock the screen. •Long Press to turn the device OFF. B. LAP ( ): When recording, press to mark the lap. C. RECORD ( ): • In Cycling mode, press to start recording. •When recording, press to pause recording and enter the Menu. D. PAGE ( ): In Cycling mode, press to switch meter screen pages. Reboot Rider Press ( / / / ) at the same time to reboot the device. EN A B C D Key Functions Getting Started Please charge your device for at least 4 hours. 1. Press to turn on the device. 2. Select the display language. 3. Select the units of measurement. 4. The device will automatically search for satellite signals. Swipe down for Quick Settings to view the GPS status. 5.After GPS signal is fixed *,( ) just ride on and enjoy your workout in free cycling mode. 6. To record, press to start recording. *Check and update your device firmware version via Bryton Active. *To acquire GPS, allow the device access to an open sky, outdoor environment. 4. Katherine’s iPhone 1. 2. Deutsch English Español Français Italiano LANGUAGE 3. k m k m h m % Katherine’s iPhone PC At least 4 Hours Note: For Video Instructions, please go to www.brytonsport.com> (Menu) > Support > Tutorial. For User Manual, please go to www.brytonsport.com> (Menu) > Support > Download > Manual > User Manuals. Data Sync Sync Data to / from Bryton Active App With the access to the internet, your Rider computer can upload recorded tracks, and check for available firmware updates by selecting Data Sync. It is required to add your device to your Bryton Active account before syncing data for the first time. To add. 1. Scan the QR code printed on the cover page of the Quick Start Guide with your smartphone to download Bryton Active App. 2. Sign up / log in to your Bryton Active App account. 3. In the App, go to “Settings”> “Device Manager” > “+”. 4. Select your device and tap “Yes” to add your device to your Bryton Active account. 5. Your device is now successfully paired with the Bryton Active App. Icon Description EN Weak Signal (fixed)/ Strong Signal (fixed) Power Status Voice Search History Cadence Sensor Active Speed Sensor Active Dual Sensor Active Electronic Shifting Active Recording Stopped Zoom in/Zoom out Locate Current Position Search POI Add a PIN Default View GPS Off/No Signal(not fixed) Di2 Active Route Data Sync Settings Grid Settings Backlight Notification On Power Meter Active Favorite Profile Result Settings Heart Rate Sensor Active Recording Paused Radar Active Smart Bike Trainer Active Barometer Equipped with barometer ItemDescription Display Physical Size 83.9 X 53.7 X 18.2 mm Weight71g Operating Temperature -10°C ~ 60°C Batt ery Charging Temperature 0°C ~ 40°C Batt eryLi polymer rechargeable batt ery Batt ery Life32 hours with open sky GNSS Integrated high-sensitivity GNSS receiver with embedded an tenna ANT+™ www.thisisant.com/directory for compatible products. Water ResistantWater resistant to a depth of 1 meter for up to 30 minutes. BLE Smart Bluetooth smart wireless technology with embedded antenna; 2.4GHz band 0dBm 2.3” FSTN positive transective dot-matrix LCD Rider 750 Specications Install Rider 750 12 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 0 .5 centimeters between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 0.5 cm f rom all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Step 1, Turn on the device and you should see the home screen. Step 2, select Settings. Step 3, select About. You will find this in the About page. 電子標籤顯示路徑 access Setting access About About

May 07, 2020

1 天 線 Pcb ANTENNA SPECIFICATION 产 品 型 号 Rider 15 Part Number 用户名称版本号V1.1 发送日期拟 制 发 送 人审 核 页 数 批 准 2 电气性能Electrical Characteristics *本天线在应用PCB上通过设计匹配电路，将天线工作频率调整到2.45GHz中心工作频率。 No. Item （项目）Specifications （特性） 5.1 Working Central Frequency 中心工作频率2450 MHz 5.2 Band Width 通带宽度 ±75 MHz ( 2375～2525MHz ) 5.3 Gain 增益0 dBi 5.4 V.S.W.R (in BW) 驻波比 ≤2.0 5.5 Polarization 极化方式 Linear 线性 5.6 Azimuth Beam width 方位角 Omni-directional 全向 5.7 Impedance 阻抗 50 Ω 3 特性曲线Characteristic curve BW≥150MHz 4 方向图Radiation Pattern SPEC NO. SP03AE24425-0020 ISSUED DATE 2012.01.18 PUBLISHED BY VERSION 06 PRODUCT NAME DCAK0012 PAGE 1/17 2010.01.15 B400-010.04 本文件為太盟光電科技股份有限公司之管制文件，未經核准不得複製影印。 SPECIFICATION SPEC NO. ： SP03AE24425-0020 PART NO. ： 03A40D5M00J0210 PRODUCT NAME ： DCAK0012 Dielectric Chip Antenna (3.05x1.6x0.55 mm) DESCRIPTION ： ROHS Compliant Product REVISION STATUS VERSION DATE PAGE REVISION DESCRIPTION PREPARED CHECKED APPROVED 01 2010.11.15 Whole New Issued 徐嫚君 黃信嘉 徐偉泓 02 2011.03.16 Whole Modify P3 Antenna Dimension 徐嫚君 黃信嘉 黃信嘉 03 2011.03.23 Whole Modify P3 Antenna Dimension 徐嫚君 黃信嘉 黃信嘉 04 2011.05.27 Whole Modify P4 Position 1 Matching Circuit 徐嫚君 吳佳宗 黃信嘉 05 2011.05.30 Whole Modify P3 Antenna Dimension 徐嫚君 吳佳宗 黃信嘉 06 2012.01.18 Whole Modify P17 Delivery mode 徐嫚君 曾建華 黃信嘉 Prepared By Checked By Approved By 徐嫚君 曾建華 黃信嘉 SPEC NO. SP03AE24425-0020 ISSUED DATE 2012.01.18 PUBLISHED BY VERSION 06 PRODUCT NAME DCAK0012 PAGE 2/17 本文件為太盟光電科技股份有限公司之管制文件，未經核准不得複製影印。 CIROCOMM TECHNOLOGY . PART NUMBER : 03A40D5M00J0210 1 SCOPE This specification covers the dielectric chip antenna for BT 2 Name of the product This product is named “Dielectric Chip Antenna”. 3. Electrical characteristics 3-1 Electrical characteristics of antenna The antenna has the electrical characteristics given in Table 1 under the cirocomm standard installation conditions shown in the figure of Evaluation Board. Table 1 No Parameter Specification 1 Working Frequency 2442 MHz 2 Dimension 3.05×1.6×0.55 mm 3 Return Loss ﹤-10dB 4 VSWR 2.0max 5 Peak Gain 1.0 dBi (typ) 6 Polarization Linear 7 Azimuth Omni-directional 8 Impedance 50 Ω 9 Operating Temperature -40~105°C ．Data is measured on Cirocomm STD PCB. SPEC NO. SP03AE24425-0020 ISSUED DATE 2012.01.18 PUBLISHED BY VERSION 06 PRODUCT NAME DCAK0012 PAGE 3/17 本文件為太盟光電科技股份有限公司之管制文件，未經核准不得複製影印。 4. Antenna ＆ Demo Board Dimension 4-1 Antenna Dimension ：Metalized Area Solder Dam Color：Black DCAK 4-2 Demo Board Dimension Position 1 Position 2 Position 3 SPEC NO. SP03AE24425-0020 ISSUED DATE 2012.01.18 PUBLISHED BY VERSION 06 PRODUCT NAME DCAK0012 PAGE 4/17 本文件為太盟光電科技股份有限公司之管制文件，未經核准不得複製影印。 5. Antenna Measurement on Demo Board 5-1 Position 1 Matching Circuit DCAK 5-1-1 S11 Response curve ( Work Frequency ) Item Frequency Return Loss Bandwidth Value 2442 MHz -33.78dB 151.25 MHz DCAK SPEC NO. SP03AE24425-0020 ISSUED DATE 2012.01.18 PUBLISHED BY VERSION 06 PRODUCT NAME DCAK0012 PAGE 5/17 本文件為太盟光電科技股份有限公司之管制文件，未經核准不得複製影印。 5-1-2 Electrical performance XY-Plane 2442MHz XZ-Plane 2442MHz YZ-Plane 2442MHz 2442MHz Peak Gain XZ-Plane -0.50 YZ-Plane 1.96 XY-Plane 0.65 (Unit：dBi) SPEC NO. SP03AE24425-0020 ISSUED DATE 2012.01.18 PUBLISHED BY VERSION 06 PRODUCT NAME DCAK0012 PAGE 6/17 本文件為太盟光電科技股份有限公司之管制文件，未經核准不得複製影印。 Efficiency Average Gain Peak Gain Item EfficiencyAverage Peak Gain Value 75.64% -1.21dBi 2.00dBi SPEC NO. SP03AE24425-0020 ISSUED DATE 2012.01.18 PUBLISHED BY VERSION 06 PRODUCT NAME DCAK0012 PAGE 7/17 本文件為太盟光電科技股份有限公司之管制文件，未經核准不得複製影印。 5-2 Position 2 Matching Circuit DCAK 5-2-1 S11 Response curve ( Work Frequency ) Item Frequency Return Loss Bandwidth Value 2442 MHz -28.82 dB 85.25 MHz SPEC NO. SP03AE24425-0020 ISSUED DATE 2012.01.18 PUBLISHED BY VERSION 06 PRODUCT NAME DCAK0012 PAGE 8/17 本文件為太盟光電科技股份有限公司之管制文件，未經核准不得複製影印。 5-2-2 Electrical performance XZ-Plane 2442MHz YZ-Plane 2442MHz XY-Plane 2442MHz 2442MHz Peak Gain XZ-Plane 1.60 YZ-Plane 1.14 XY-Plane 1.46 (Unit ： dBi) SPEC NO. SP03AE24425-0020 ISSUED DATE 2012.01.18 PUBLISHED BY VERSION 06 PRODUCT NAME DCAK0012 PAGE 9/17 本文件為太盟光電科技股份有限公司之管制文件，未經核准不得複製影印。 Efficiency Average Gain Peak Gain Item EfficiencyAverage Peak Gain Value 72.08% -1.42dBi 1.91dBi SPEC NO. SP03AE24425-0020 ISSUED DATE 2012.01.18 PUBLISHED BY VERSION 06 PRODUCT NAME DCAK0012 PAGE 10/17 本文件為太盟光電科技股份有限公司之管制文件，未經核准不得複製影印。 5-3 Position 3 Matching Circuit DCAK 5-3-1 S11 Response curve ( Work Frequency ) Item Frequency Return Loss Bandwidth Value 2442 MHz -22.04 dB 52.06 MHz SPEC NO. SP03AE24425-0020 ISSUED DATE 2012.01.18 PUBLISHED BY VERSION 06 PRODUCT NAME DCAK0012 PAGE 11/17 本文件為太盟光電科技股份有限公司之管制文件，未經核准不得複製影印。 5-3-2 Electrical performance XZ-Plane 2442MHz YZ-Plane 2442MHz XY-Plane 2442MHz 2450MHz Peak Gain XZ-Plane -5.73 YZ-Plane 0.08 XY-Plane 0.8 (Unit ： dBi) SPEC NO. SP03AE24425-0020 ISSUED DATE 2012.01.18 PUBLISHED BY VERSION 06 PRODUCT NAME DCAK0012 PAGE 12/17 本文件為太盟光電科技股份有限公司之管制文件，未經核准不得複製影印。 Efficiency Average Gain Peak Gain Item EfficiencyAverage Peak Gain Value 55.24% -2.57dBi 1.12dBi SPEC NO. SP03AE24425-0020 ISSUED DATE 2012.01.18 PUBLISHED BY VERSION 06 PRODUCT NAME DCAK0012 PAGE 13/17 本文件為太盟光電科技股份有限公司之管制文件，未經核准不得複製影印。 6. Customer’s Requirement Layout Dimension 6-1 Layout 1 Dimension Module 6-1-1 Single and Pad Layout Dimension Module 6-2 Layout 2 Dimension Module Matching Circuit. Matching Circuit. SPEC NO. SP03AE24425-0020 ISSUED DATE 2012.01.18 PUBLISHED BY VERSION 06 PRODUCT NAME DCAK0012 PAGE 14/17 本文件為太盟光電科技股份有限公司之管制文件，未經核准不得複製影印。 6-2-1 Single and Pad Layout Dimension Module 6-3 Layout 3 Dimension Module 6-3-1 Single and Pad Layout Dimension Module Matching Circuit. SPEC NO. SP03AE24425-0020 ISSUED DATE 2012.01.18 PUBLISHED BY VERSION 06 PRODUCT NAME DCAK0012 PAGE 15/17 本文件為太盟光電科技股份有限公司之管制文件，未經核准不得複製影印。 7. Environmental conditions 7-1 Operating conditions The antenna has the electrical characteristics given in Tables 1 in the temperature range of -40 °C to +85 °C and under the environmental conditions of +40 °C and 0-95% relative humidity. 7-2 Storage temperature range The storage te…

Text truncated - open the document above for the full version.

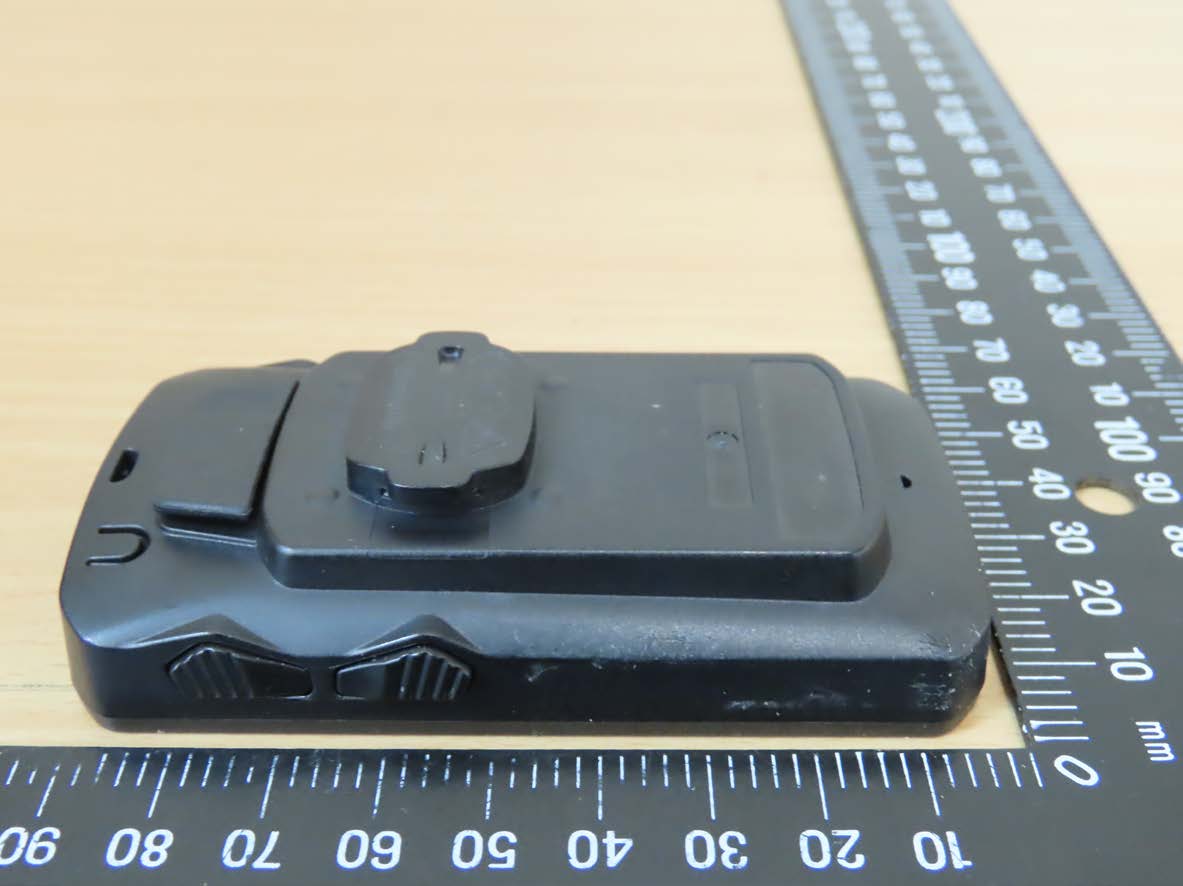

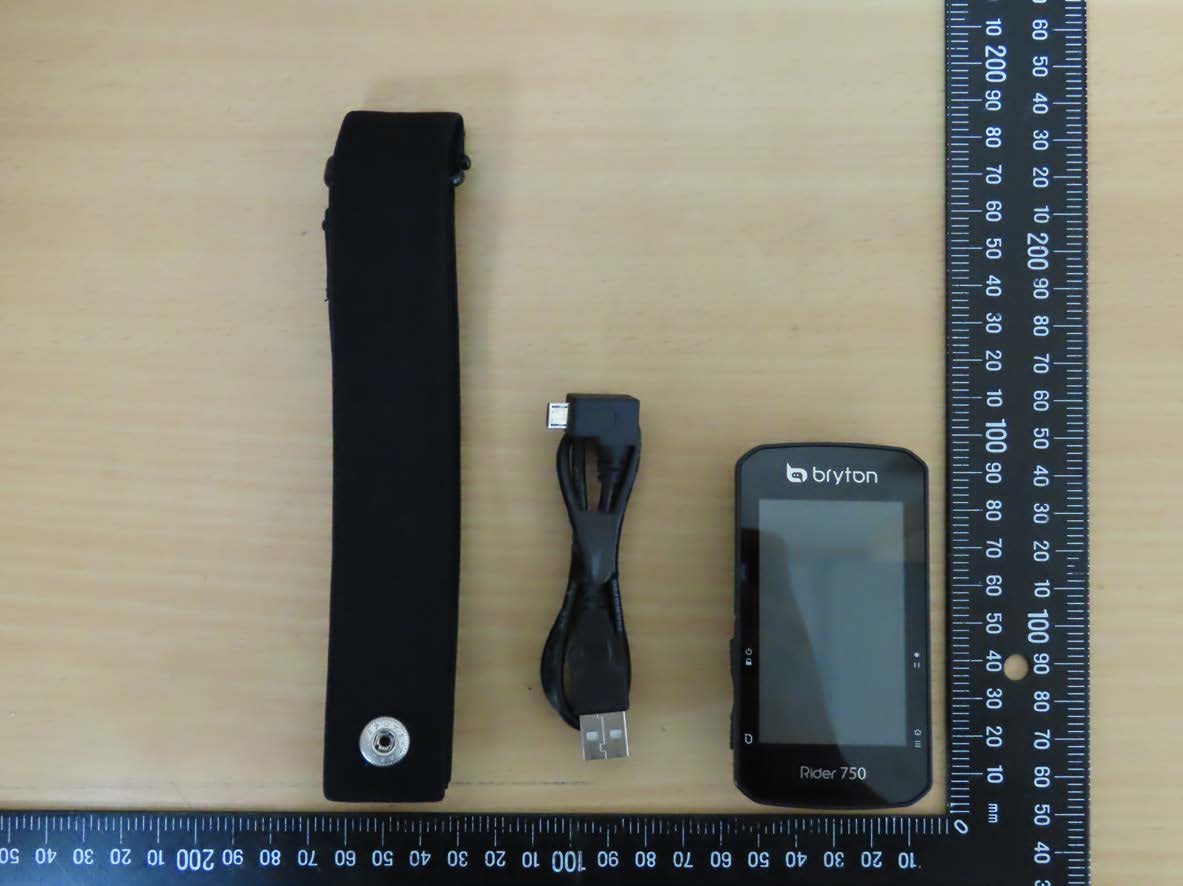

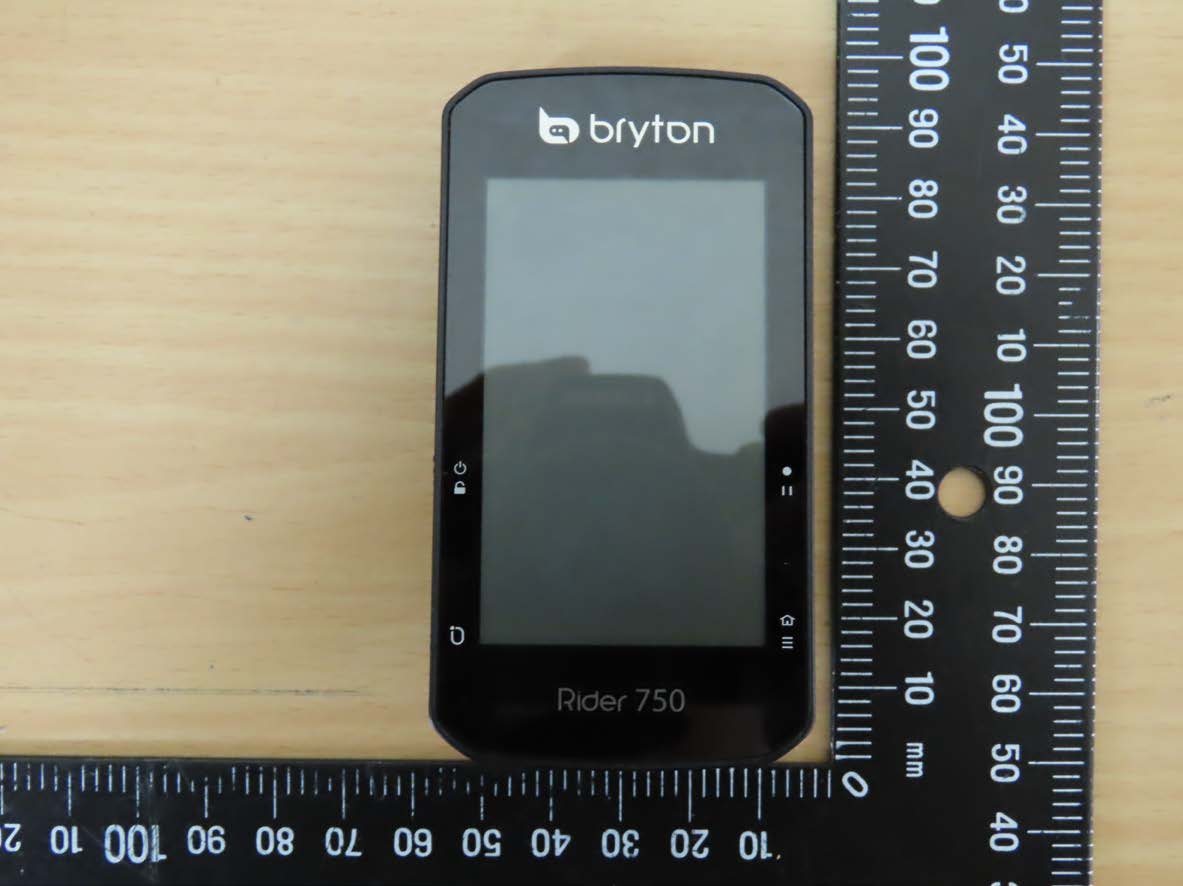

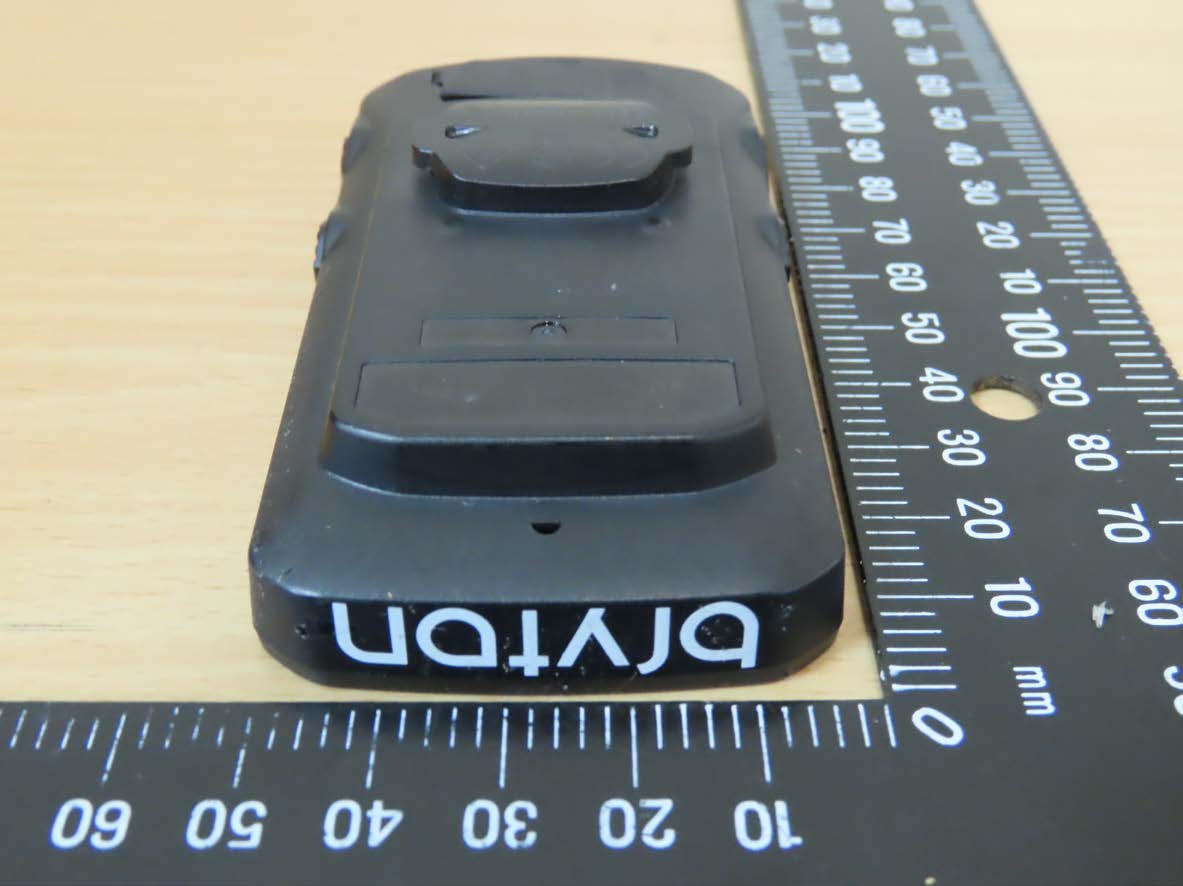

Registration number: W6M22003-19764-FCC FCC ID: YDM-CA1902 External Photos Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 24 Registration number: W6M22003-19764-FCC FCC ID: YDM-CA1902 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 24 Registration number: W6M22003-19764-FCC FCC ID: YDM-CA1902 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 24 Registration number: W6M22003-19764-FCC FCC ID: YDM-CA1902 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 24 Registration number: W6M22003-19764-FCC FCC ID: YDM-CA1902 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 24 Registration number: W6M22003-19764-FCC FCC ID: YDM-CA1902 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 24 Registration number: W6M22003-19764-FCC FCC ID: YDM-CA1902 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 24 Registration number: W6M22003-19764-FCC FCC ID: YDM-CA1902 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 24

Step 1, Turn on the device and you should see the home screen. Step 2, select Settings. Step 3, select About. You will find this in the About page. access Setting access About About

Registration number: W6M22003-19764-FCC FCC ID: YDM-CA1902 Internal Photos Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 24 Registration number: W6M22003-19764-FCC FCC ID: YDM-CA1902 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 11 of 24 Registration number: W6M22003-19764-FCC FCC ID: YDM-CA1902 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 12 of 24 Registration number: W6M22003-19764-FCC FCC ID: YDM-CA1902 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 13 of 24 Registration number: W6M22003-19764-FCC FCC ID: YDM-CA1902 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 14 of 24 Registration number: W6M22003-19764-FCC FCC ID: YDM-CA1902 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 15 of 24 Registration number: W6M22003-19764-FCC FCC ID: YDM-CA1902 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 16 of 24 Registration number: W6M22003-19764-FCC FCC ID: YDM-CA1902 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 17 of 24

Registration number: W6M22003-19 764-C-1 FCC ID: YDM-CA1902 Worldwide Testing Services(Taiwan) Co., Ltd. Page 20 of 46 3.2 E quivalent isotropic radiated power (EIRP) FCC Rule: 15.247(b)(3) EIRP = max. conducted output power + antenna gain WLAN EIRP = 8.12 dBm+ ( 1 .12 dBi [antenna gain claimed by manufacturer]) = 9.24 dBm = 8.39 mW BLE EIRP = 3.19 dBm+ ( 0 dBi [antenna gain claimed by manufactur er]) = 3.19 dBm = 2.08 mW 3.3 Exemption Limits for Routine Evaluation according to FCC KDB Publication RESULT: Test standard : FCC KDB Publication 447498 D01 General RF Exposure Guidance v06 According to 447498 D01 General RF Exposure Guidance v06: SAR evaluation, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 3.3.1 Exemption Limits for Routine Evaluation – SAR Evaluation SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance defined in Table . Table: SAR evaluation — Exemption limits for routine evaluation based on frequency and separation distance WLAN MHz 5 10 15 20 25 mm 2412 10.07 19.21 29.28 38.41 48.41 SAR Test Exclusion Threshold (mW) MHz 30 35 40 45 50 mm 2412 57.55 67.62 77.69 86.83 96.90 SAR Test Exclusion Threshold (mW) Output power level shall be the higher of the maximum conducted or equivalent isotropically radiated power (e.i.r.p.) source-based, time-averaged output power. Established separation distance is 5 mm. Operating frequency band : 2412-2462 MHz Max. output power level at 5 mm separation distance at 2412 MHz according to table is: 10.07 mW The product is exempt from SAR Evaluation/Testing becau se the output power of 8.39 mW is below the exemption limit of 10.07 mW. Registration number: W6M22003-19764-C-1 FCC ID: YDM-CA1902 Worldwide Testing Services(Taiwan) Co., Ltd. Page 21 of 46 BLE MHz 5 10 15 20 25 mm 2480 9.95 18.92 28.87 37.84 47.79 SAR Test Exclusion Threshold (mW) MHz 30 35 40 45 50 mm 2480 56.74 66.69 76.63 85.61 95.56 SAR Test Exclusion Threshold (mW) Output power level shall be the higher of the maximum conducted or equivalent isotropically radiated power (e.i.r.p.) source-based, time-averaged output power. Established separation distance is 5 mm. Operating frequency band : 2402-2480 MHz Max. output power level at 5 mm separation distance at 2480 MHz according to table is: 9.95 mW The product is exempt from SAR Evaluation/Testing because the output power of 2.08 mW is below the exemption limit of 9.95 mW.

o f Applicant: Bryton Inc. Address: 3F-1., No.79-1, Zhouzi St., Neihu Dist., Taipei City 114, Taiwan Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: TW1477, TW0020, TW1072 I ndustry Canada filed test laboratory Reg. No. 20037 A2LA Accredited No.: 2732.01 Report No.: W6M22003-19764-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] 47 CFR PART 15 SUBPART C TEST REPORT for GPS enabled cycling computer Model No.: Rider 750 FCC ID: YDM-CA1902 Registration number: W6M22003-19764-C-1 FCC ID: YDM-CA1902 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 46 TABLE OF CONTENTS 1 GENERAL INFORMATION .......................................................................................................... 2 1.1 N OTES .......................................................................................................................................... 2 1.2 TESTING LABORATORY ................................................................................................................ 3 1.2.1 Location .............................................................................................................................. 3 1.2.2 Details of accreditation status ............................................................................................ 3 1.3 DETAILS OF APPROVAL HOLDER ................................................................................................... 3 1.4 APPLICATION DETAILS ................................................................................................................. 4 1.5 GENERAL INFORMATION OF TEST ITEM ........................................................................................ 4 1.6 TEST STANDARDS ......................................................................................................................... 5 2 TECHNICAL TEST ......................................................................................................................... 6 2.1 S UMMARY OF TEST RESULTS ........................................................................................................ 6 2.2 TEST ENVIRONMENT .................................................................................................................... 6 2.3 TEST EQUIPMENT LIST ................................................................................................................. 7 2.4 G ENERAL TEST PROCEDURE ...................................................................................................... 10 3 TEST RESULTS (ENCLOSURE) ................................................................................................ 12 3.1 PEAK OUTPUT POWER (TRANSMITTER) ...................................................................................... 13 3.2 EQUIVALENT ISOTROPIC RADIATED POWER (EIRP) .................................................................... 20 3.3 EXEMPTION LIMITS FOR ROUTINE EVALUATION ACCORDING TO FCC KDB PUBLICATION ....... 20 3.4 T RANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS .................................................... 22 3.5 S PURIOUS EMISSIONS (TX) ......................................................................................................... 23 3.6 R ADIATED EMISSION ON THE BAND EDGE .................................................................................. 25 3.7 M INIMUM 6 DB BANDWIDTH ..................................................................................................... 30 3.8 P EAK POWER SPECTRAL DENSITY ............................................................................................. 37 3.9 RADIATED EMISSION FROM DIGITAL PART ................................................................................ 44 3.10 P OWER LINE CONDUCTED EMISSION ......................................................................................... 45 A PPENDIX ................................................................................................................................................ 1 Registration number: W6M22003-19764-C-1 FCC ID: YDM-CA1902 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. Tester: May 07, 2020 Spencer Yang Date WTS-Lab. Name Signature Technical responsibility for area of testing: May 07, 2020 Kevin Wang Date WTS Name Signature Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 46 Registration number: W6M22003-19764-C-1 FCC ID: YDM-CA1902 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Lishui, Shuang …

Text truncated - open the document above for the full version.

Registration number: W6M22003-19764-FCC FCC ID: YDM-CA1902 Set Up Photo of Radiated Emission EMI Charge Below 1GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 18 of 24 Registration number: W6M22003-19764-FCC FCC ID: YDM-CA1902 Above 1GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 19 of 24 Registration number: W6M22003-19764-FCC FCC ID: YDM-CA1902 Battery Below 1GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 20 of 24 Registration number: W6M22003-19764-FCC FCC ID: YDM-CA1902 Above 1GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 21 of 24 Registration number: W6M22003-19764-FCC FCC ID: YDM-CA1902 RF Below 1GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 22 of 24 Registration number: W6M22003-19764-FCC FCC ID: YDM-CA1902 Above 1GHz Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 23 of 24 Registration number: W6M22003-19764-FCC FCC ID: YDM-CA1902 Set Up Photo of Conducted Emission Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 24 of 24
