YDM-DE2505Bryton Smart Heart rate sensor

Bryton Smart Cadence/Speed Sensor 踏頻感測器/速度感測器 Speed Sensor 速度感測器 Cadence Sensor 踏頻感測器 + + + 1.4.5.2.3. Strap 皮帶 / 带子 Electrodes 電極 / 接触感应区 Bryton Smart HR Monitor 心率感測器/心率带 THIS PRODUCT CONTAINS BUTTON/COIN CELL BATTERIES Pairing Bryton Smart Sensors with your ANT+ / BLE Devices After installing Bryton Smart Sensors, rotate the crank and wheel a few times to wake the sensors up. The sensors can only be paired when they are awake; if left inactive, they will go back to sleep to save power. Note: 1. The pairing steps differ with each Bryton device. Please refer to individual user manuals. 2. Please keep away from other ANT+ or BLE sensors while pairing. Connecting to your ANT+/ BLE Devices After pairing, Bryton devices will automatically connect to Bryton Smart Sensors whenever the sensors are active. Remove battery tab before use The Sensor contains a user-replaceable CR2032 battery. Use a correctly sized screwdriver to prevent screw stripping. 與ANT+或者藍芽裝置配對您的智慧感測器 安裝完成之後，請轉動曲柄和車輪來喚醒感測器。 感測器只能在醒著的時候配對，否則它會進入沉睡模式 來省電。 備註: 1. Bryton各裝置的配對步驟不盡相同，更多詳細內容 請 參考該機種使用手冊。 2. 配對時，請遠離其它的藍芽感測器。 重新連接ANT+或者藍芽裝置 配對過後的智慧感測器，能夠在被喚醒後自動連接上已 配對過的Bryton裝置。 使用前請移除電池絕緣貼紙 智慧感測器內含可由使用者自行更換的CR2032電池。 請使用正確尺寸的螺絲起子開啟電池蓋，避免螺絲滑牙。 配对外设 1. 安装完成后转动曲柄或轮组几次唤醒外设配件。 2. 百锐腾设备端,进入菜单的设置-其他外设,选择相应 外设进行重新绑定即可。 使用前旋开后盖取出电池绝缘膜 旋开后记得旋转闭紧避免进水(纽扣电池CR2032)。 请使用合适尺寸的螺丝刀打开电池盖，避免螺丝滑丝。 Remove battery tab before use The HR Monitor contains a user-replaceable CR2032 battery. Accuracy may be degraded by poor sensor contact, electrical interference, and receiver distance from transmitter. Compatible with: Whole range of Bryton GPS bike computers, training apps or devices displayed by using Bluetooth® Low Energy technology & ANT+® connectivity. For iOS and Android compatibility: Please make sure your smartphone allows Third Party App access to the Bluetooth 4.0 (Smart) Radio. 使用前請移除電池絕緣貼紙 心率感測器內含可由使用者自行更換的 CR2032 電池。 感測器接觸不良、電氣干擾及接收器和傳送器距離過遠 可能會降低準確度。 iOS和Android系統使用者:請確認您的智慧型手機支 援第三方應用程式取得智慧藍芽4.0連結。 使用前旋开后盖取出电池绝缘膜 心率带可使用硬币旋开后盖，更换CR2032纽扣电池。 配件的蓝牙传输,仅适配支持蓝牙4.0的手机与第三方 手机应用绑定使用。 正面 0.1 Nm Max 1.0 kgf.cm PH0 Always detach the sensor and hand wash the strap after each use to extend the lifespan of your heart rate monitor. Do Not Bleach Do Not Iron Do Not Dry Clean Do Not Tumble Dry 建議每次使用後，將感測器從心率帶上拆下來，心率帶 手洗陰乾，以延長使用壽命。 不可漂白 不可熨燙 不可乾洗 不可擰乾 不可用機器烘乾 不使用务必分开发射器与带子，避免持续耗电或锈蚀。 带子手洗阴干 不可漂白 不可熨烫 不可干洗 不可机洗 THIS PRODUCT CONTAINS BUTTON/COIN CELL BATTERIES *The content of this manual is subject to change without prior notice. IMPORTANT: Please Read This Notice before Using This Product Bryton products and accessories are not medical devices and its readings are for reference only. Bryton is not responsibile for the consequences of any erroneous readings. Always consult your physician before beginning any training program or using a heart rate monitor. Please do not operate the product during any activities, because lack of proper attention may cause injury, death or material damage. When using or installing this product, please comply with all applicable local laws and regulation. We and our manufactuers and licensors shall not assume any responsibility for damages arising from using this product during activities, misuse, improper installation, act of God,any violation of trafc or safety regulations, or software or map data product therein. This product is not guaranteed to be free of errors or deciencies, and is not guaranteed to be applicable for any dened purpose. Federal Communication Commission Interference Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 0.5 centimeters between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 0.5 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Industry Canada Compliance IC Regulations: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any inte…

Text truncated - open the document above for the full version.

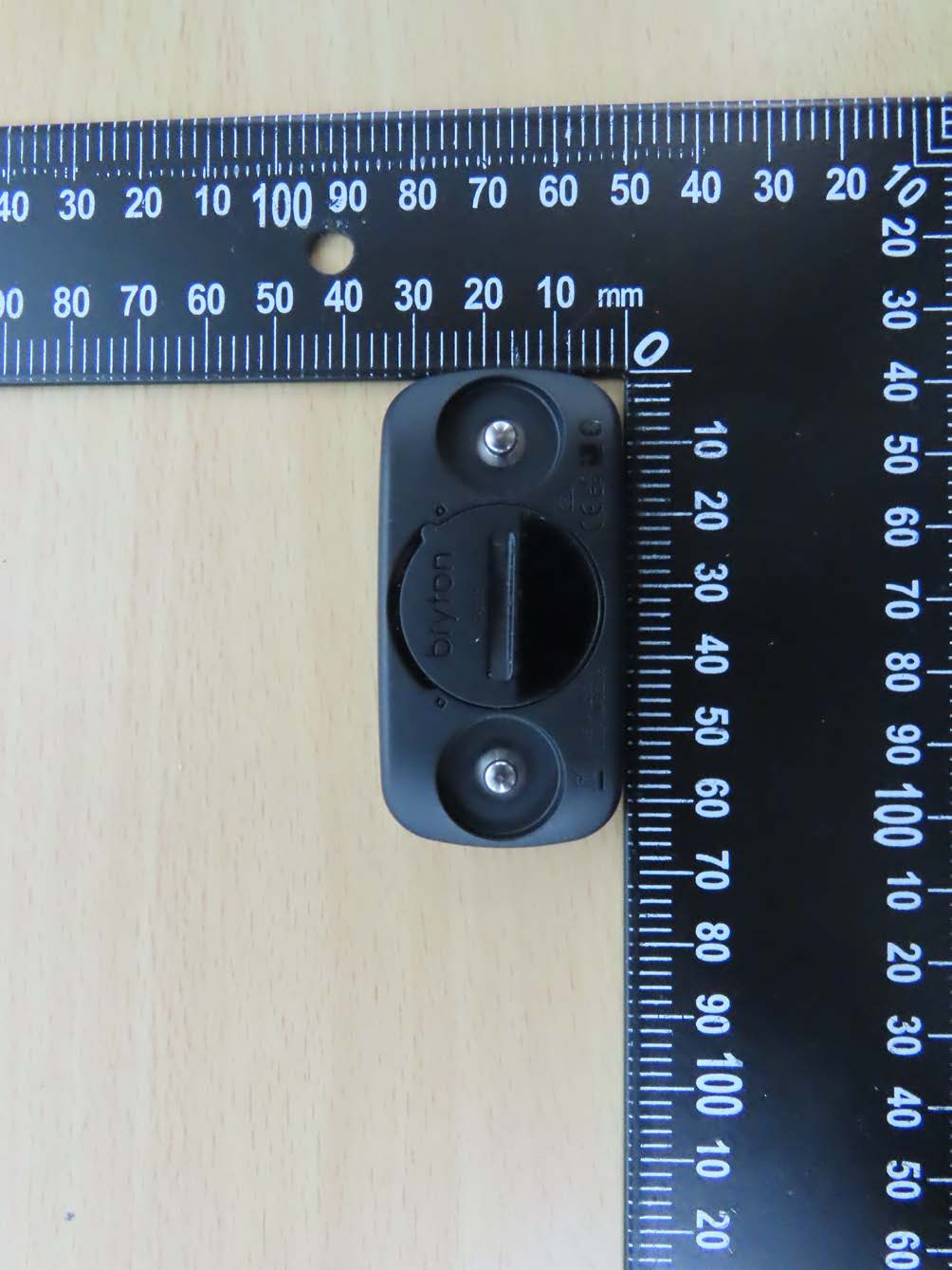

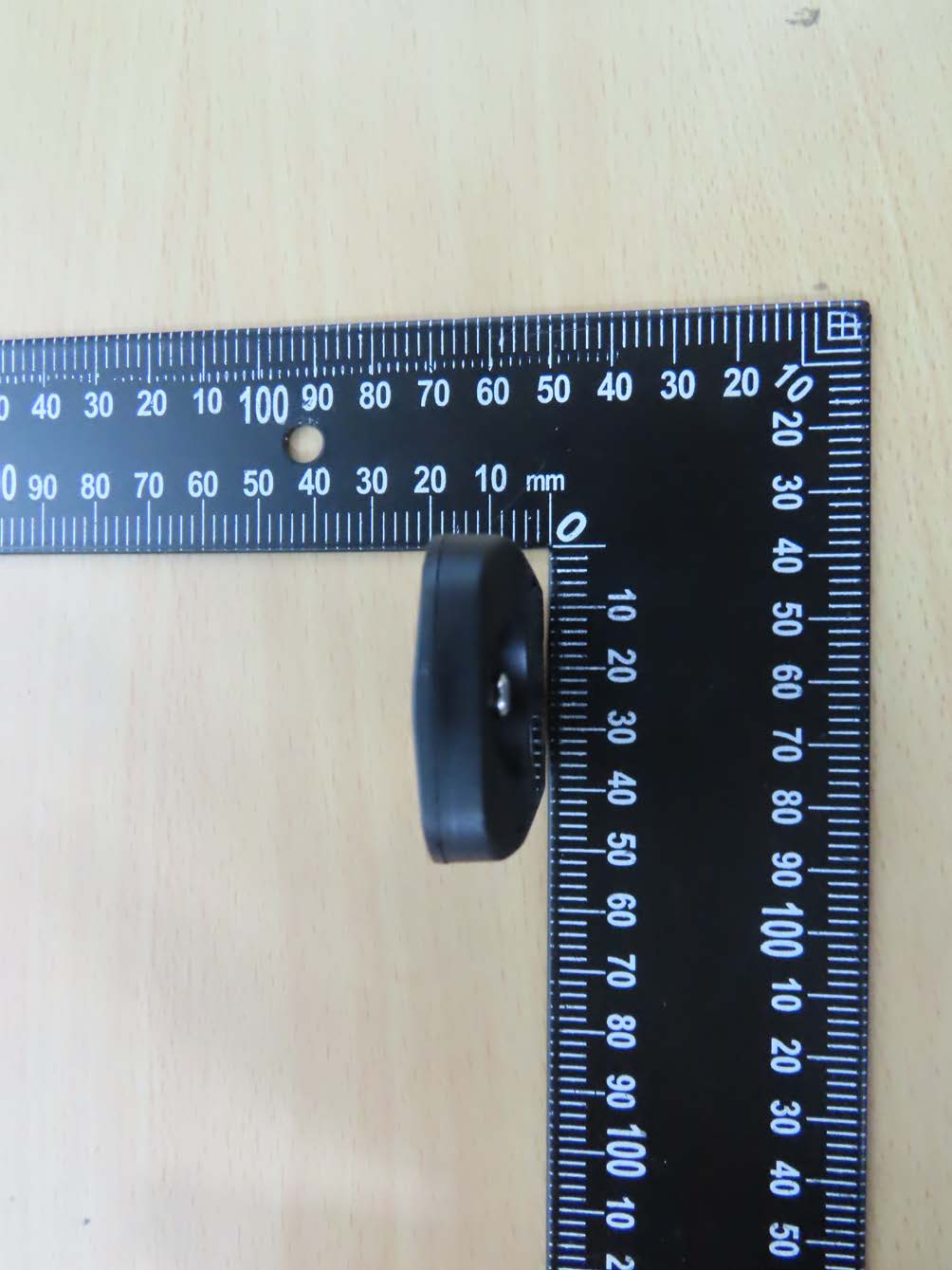

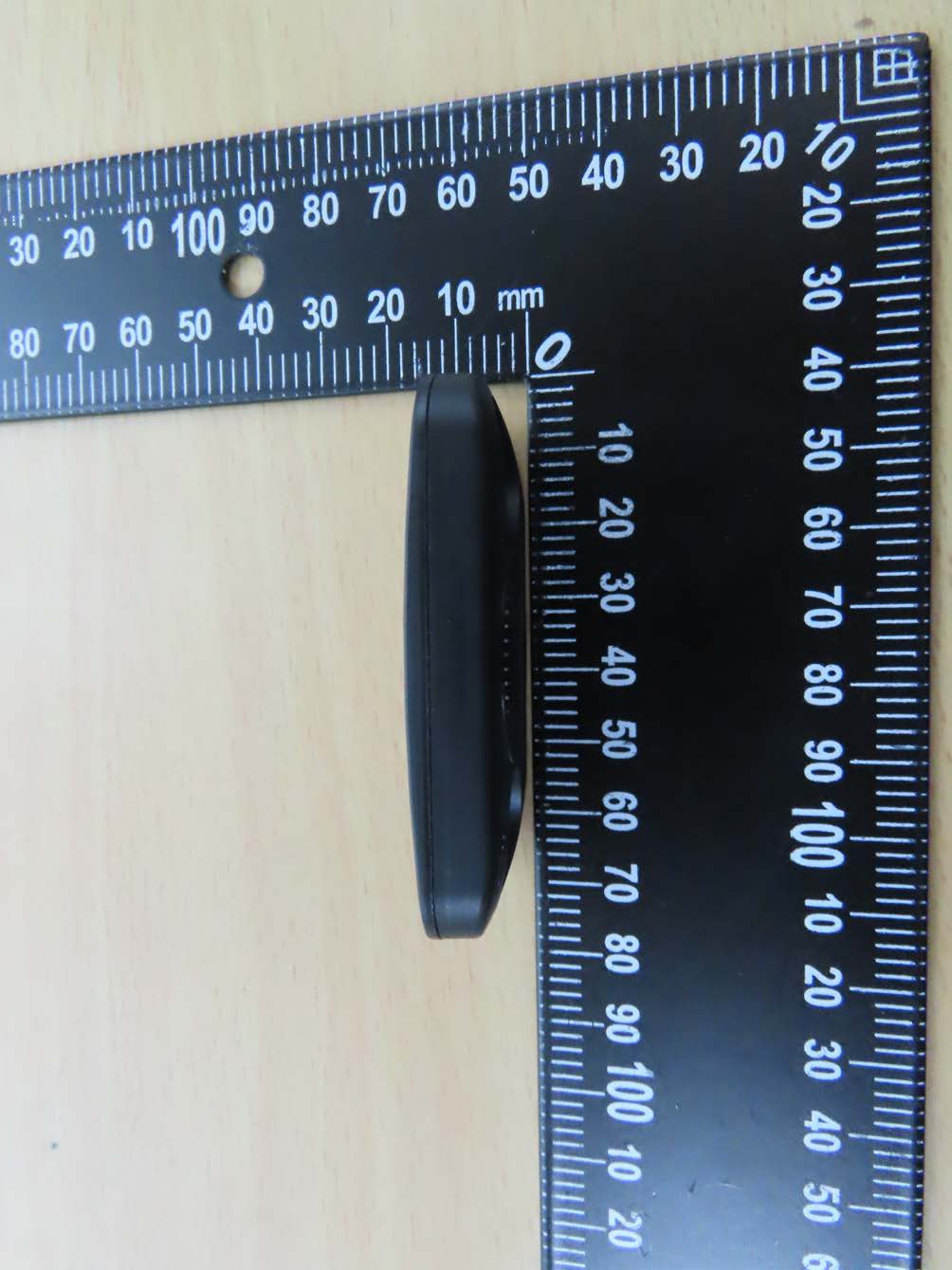

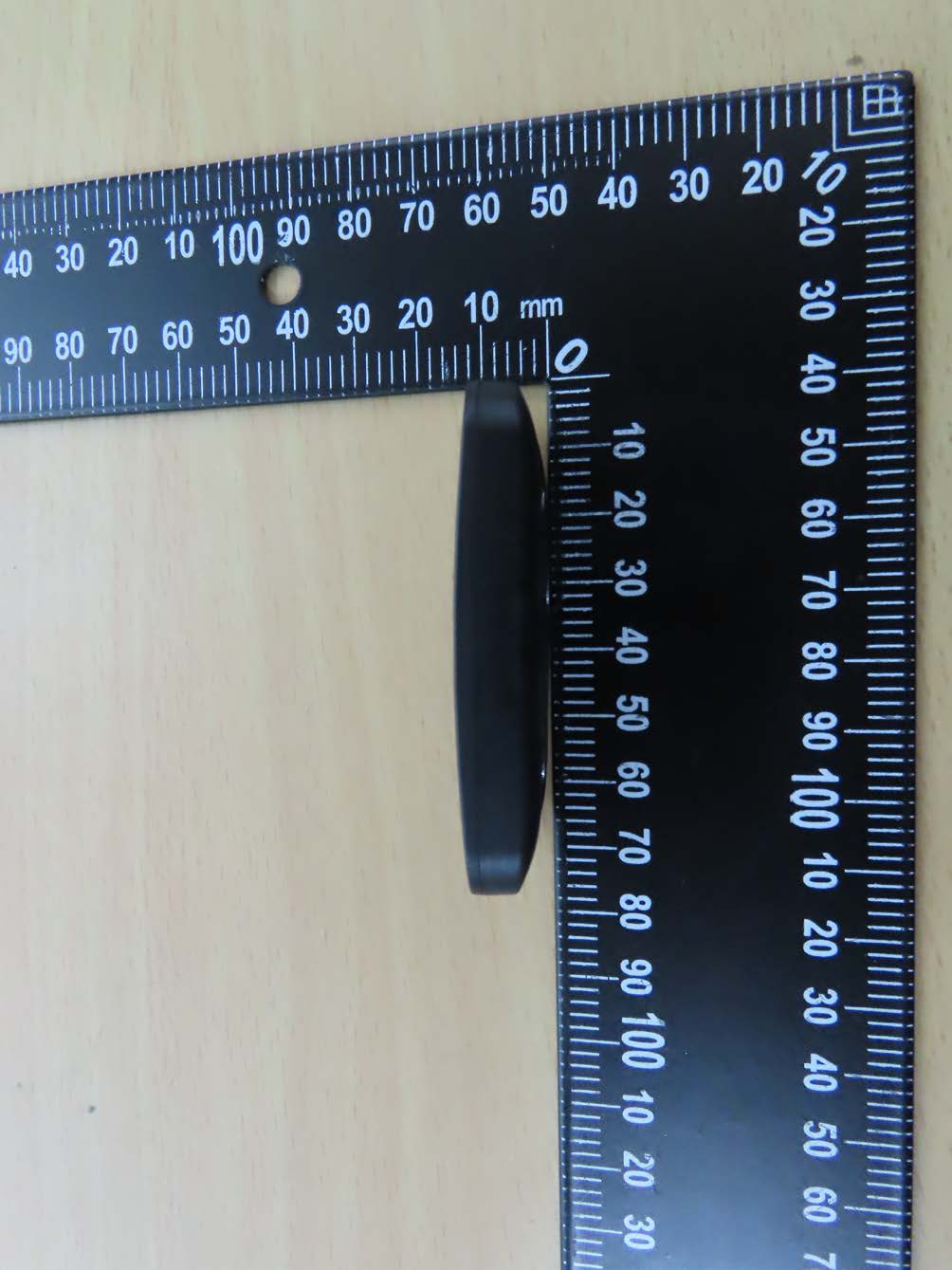

Registration number: W6M22510-24776-FCC FCC ID: YDM-DE2505 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 17 External Photos Registration number: W6M22510-24776-FCC FCC ID: YDM-DE2505 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 17 Registration number: W6M22510-24776-FCC FCC ID: YDM-DE2505 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 17 Registration number: W6M22510-24776-FCC FCC ID: YDM-DE2505 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 17 Registration number: W6M22510-24776-FCC FCC ID: YDM-DE2505 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 17 Registration number: W6M22510-24776-FCC FCC ID: YDM-DE2505 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 17 Registration number: W6M22510-24776-FCC FCC ID: YDM-DE2505 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 17 Registration number: W6M22510-24776-FCC FCC ID: YDM-DE2505 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 17

Registration number: W6M22510-24776-FCC FCC ID: YDM-DE2505 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 17 Internal Photos Registration number: W6M22510-24776-FCC FCC ID: YDM-DE2505 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 11 of 17 Registration number: W6M22510-24776-FCC FCC ID: YDM-DE2505 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 12 of 17 Registration number: W6M22510-24776-FCC FCC ID: YDM-DE2505 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 13 of 17 Registration number: W6M22510-24776-FCC FCC ID: YDM-DE2505 Worldwide Testing Services(Taiwan) Co., Ltd.Appendix page 14 of 17 PC B Antenna/Gain: 0 dBi (BLE & ANT+)

of Applicant: Bryton Inc. Address: 3F-1., No.79-1, Zhouzi St., Neihu Dist., Taipei City 114, Taiwan Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: TW1072, TW1140, TW1146, TW1477, TW0037 Industry Canada filed test laboratory Reg. No.: 20037, 31634 Report No.: W6M22510-24776-EE 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC RF Exposure Exemption report for Bryton Smart Heart rate sensor Model No.: DE2505 FCC ID: YDM-DE2505 Registration number: W6M22312-23129-EE FCC ID: 2ALHR012 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 9 TABLE OF CONTENTS 1 GENERAL INFORMATION .......................................................................................................... 2 1.1 N OTES .......................................................................................................................................... 2 1.2 T ESTING LABORATORY ................................................................................................................ 3 1.3 APPLICATION DETAILS ................................................................................................................. 3 1.4 GENERAL INFORMATION OF TEST ITEM ........................................................................................ 4 1.5 T EST STANDARDS ......................................................................................................................... 6 2 TEST CONFIGURATION .............................................................................................................. 7 2.1 TEST ENVIRONMENT .................................................................................................................... 7 2.2 MEASUREMENT UNCERTAINTY .................................................................................................... 7 2.3 T EST EQUIPMENT LIST ................................................................................................................. 7 3 EQUIVALENT ISOTROPIC RADIATED POWER (EIRP)....................................................... 8 3.1 EXEMPTION LIMITS FOR ROUTINE EVALUATION ACCORDING TO FCC KDB PUBLICATION ......... 8 Registration number: W6M22312-23129-EE FCC ID: 2ALHR012 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 9 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. Laboratory disclaimer- 1. The test results of this test report relate exclusively to the item tested as specified in 1.5. 2. The test report may only be reproduced or published in full. 3. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. 4. Antenna gain is provided by applicant and laboratory issue relevant data and results. Tester: December 22, 2025 Ken Kang Date WTS-Lab. Name Signature Technical responsibility for area of testing: December 22, 2025 Kevin Wang Date WTS Name Signature Registration number: W6M22312-23129-EE FCC ID: 2ALHR012 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 9 1.2 Testing laboratory 1.2.1 Location 10m OATS No.5-1, Lishui, Shuang Sing Village, Wanli Dist., New Taipei City 207, Taiwan (R.O.C.) 3 meter semi-anechoic chamber No. 99, Sec. 1, Balian Rd., Xizhi Dist., New Taipei City 221032, Taiwan (R.O.C.) Worldwide Testing Services (Taiwan) Co., Ltd. 6F., No. 58, Ln. 188, Ruiguang Rd., Neihu Dist., Taipei City 114 , Taiwan (R.O.C.) Tel: 886-2- 6606-8877 1.2.2 Details of accreditation status Accredited testing laboratory FCC filed test laboratory Reg. No.: TW1072, TW1140, TW1146, TW1477, TW0037 Industry Canada filed test laboratory Reg. No.: 20037, 31634 Test location, where different from Worldwide Testing Services (Taiwan) Co., Ltd. : Name: ./. Accredited no.: ./. Street: ./. Town: ./. Country: ./. 1.3 Application details Approval holder Name: Bryton Inc. Street: 3F-1., No.79-1, Zhouzi St., Neihu Dist., Town: Taipei City 114, Country: Taiwan Manufacturer: (if applicable) 1 Name: Pan-international Precision Electronic Co.,Ltd Street: Xinlian Indl. Area , Hu-men , Dongguan , Town: Guangdong , Country: China Registration number: W6M22312-23129-EE FCC ID: 2ALHR012 Worldwide Testing Services(Taiwan) Co., Ltd. Page 4 of 9 2 Name: Pan-International Electronics Sdn. Bhd. Street: Plot 4, Seberang Jaya Industrial Estate Bandar Seberang Jaya Town: 13700 Prai Penang, Country: Malaysia Date of receipt of test item: October 23, 2025 Date of test: from October 24, 2025 to November 27, 2025 1.4 General information of Test item Type of test item: Bryton Smart Heart rate sensor Model no.: DE2505 Multi-listing model no.: ./. Brand name: Bryton Power supply: Battery 3Vd.c. (CR2032) Type of antenna: PCB antenna Antenna gain: 0 dBi Technical data Mode Channel Conducted Power (dBm) BLE Ch 0 : 2402 MHz -7.11 Ch 19 : 2440 MHz -7.42 Ch 39 : 2480 MHz -7.16 ANT+ 2457 MHz -5.79 Operation modes: Duplex Modulation type: GFSK Sample no.: #08 Classification: Fixed Device Mobile Device (Human Body distance ＞ 20cm) Portable Device (Human Body distance ＜ 20cm) Registration number: W6M22312-23129-EE FCC ID: 2ALHR012 Worldwide Testing Services(Taiwan) Co., Ltd. Page 5 of 9 1.5 Duty cycle and factor The …

Text truncated - open the document above for the full version.

1 天 線 PCB ANTENNA SPECIFICATION 产 品 型 号 Part Nu mber DE2505 Brand Name: Bryton 用户名称版本号V1.1 发送日期拟 制 发 送 人审 核 页 数 批 准 BLE/ANT+ 2 电气性能Electrical Characteristics * 本天线在应用PCB上通过设计匹配电路，将天线工作频率调整到2.45GHz中心工作频率。 No. Item （项目）Specifications （特性） 5.1 Working Central Frequency 中心工作频率2450 MHz 5.2 Band Width 通带宽度 ±75 MHz ( 2375～2525MHz ) 5.3 Gain 增益0 dBi 5.4 V.S.W.R (in BW) 驻波比 ≤2.0 5.5 Polarization 极化方式 Linear 线性 5.6 Azimuth Beam width 方位角 Omni-directional 全向 5.7 Impedance 阻抗 50 Ω 3 特性曲线Characteristic curve BW≥150MHz 4 方向图Radiation Pattern

of Applicant: Bryton Inc. Address: 3F-1., No.79-1, Zhouzi St., Neihu Dist., Taipei City 114, Taiwan Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: TW1072, TW1140, TW1146, TW1477, TW0037 Industry Canada filed test laboratory Reg. No.: 20037, 31634 Report No.: W6M22510-24776-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] 47 CFR PART 15 SUBPART C TEST REPORT for Bryton Smart Heart rate sensor Model No.: DE2505 FCC ID: YDM-DE2505 Registration number: W6M22510-24776-C-1 FCC ID: YDM-DE2505 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 23 TABLE OF CONTENTS 1 GENERAL INFORMATION ......................................................................................................................................... 2 1.1 NOTES ...................................................................................................................................................................... 2 1.2 TESTING LABORATORY ............................................................................................................................................. 3 1.3 APPLICATION DETAILS .............................................................................................................................................. 3 1.4 GENERAL INFORMATION OF TEST ITEM ..................................................................................................................... 4 1.5 DUTY CYCLE AND FACTOR ........................................................................................................................................ 4 1.6 TEST STANDARDS ..................................................................................................................................................... 5 2 TEST CONFIGURATION ............................................................................................................................................. 6 2.1 TEST ENVIRONMENT ................................................................................................................................................. 6 2.2 MEASUREMENT UNCERTAINTY ................................................................................................................................. 6 2.3 TEST EQUIPMENT LIST .............................................................................................................................................. 7 3 TEST RESULTS (ENCLOSURE) ................................................................................................................................. 8 3.1 PEAK OUTPUT POWER (TRANSMITTER) ..................................................................................................................... 9 3.2 SPURIOUS EMISSIONS RADIATED – TRANSMITTER OPERATING ............................................................................... 12 3.3 EMISSIONS IN NONRESTRICTED FREQUENCY BANDS ................................................................................................ 14 3.4 MINIMUM 6 DB BANDWIDTH .................................................................................................................................. 16 3.5 PEAK POWER SPECTRAL DENSITY .......................................................................................................................... 19 3.6 POWER LINE CONDUCTED EMISSION ...................................................................................................................... 22 Appendix: Diagrams Registration number: W6M22510-24776-C-1 FCC ID: YDM-DE2505 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 23 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. Laboratory disclaimer- 1. The test results of this test report relate exclusively to the item tested as specified in 1.5. 2. The test report may only be reproduced or published in full. 3. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. 4. Antenna gain is provided by applicant and laboratory issue relevant data and results. Tester: November 28, 2025 Ken Kang Date WTS-Lab. Name Signature Technical responsibility for area of testing: November 28, 2025 Kevin Wang Date WTS Name Signature Registration number: W6M22510-24776-C-1 FCC ID: YDM-DE2505 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 23 1.2 Testing laboratory 1.2.1 Location 10m OATS No.5-1, Lishui, Shuang Sing Village, Wanli Dist., New Taipei City 207, Taiwan (R.O.C.) 3 meter semi-anechoic chamber No. 99, Sec. 1, Balian Rd., Xizhi Dist., New Taipei City 221032, Taiwan (R.O.C.) Worldwide Testing Services (Taiwan) Co., Ltd. 6F., No. 58, Ln. 188, Ruiguang Rd., Neihu Dist., Taipei City 114 , Taiwan (R.O.C.) Tel: 886-2- 6606-8877 1.2.2 Details of accreditation status Accredited testing laboratory FCC filed test laboratory Reg. No.: TW1072, TW1140, TW1146, TW1477, TW0037 Industry Canada filed test laboratory Reg. No.: 20037, 31634 Test location, where different from Worldwide Testing Services (Taiwan) Co., Ltd. : Name: ./. Accredited no.: ./. Street: ./. Town: ./. Country: ./. 1.3 Application deta…

Text truncated - open the document above for the full version.

Operator: Temperature:26.4 °C File :3Data :#8Date: 2025/11/6 Radiated Emission Measurement Address:No.99,Sec.1,Balian Rd.,Xizhi Dist.,New Taipei City Jeff Tel:+886-2-2646-1508 Fax:+886-2-2646-1533 Humidity:49.5 % Time: 上午 11:34:39 Condition : EUT : M/N: Note : RX 2402MHz FCC_part 15 RE-Class B_Above 1GHz_PK W6M22510-24776 Test Mode : Polarization: Vertical Distance: 3m 3 Vd.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site : 966A Chamber Comment *:Maximum data x:Over limit !:over margin Operator: Temperature:26.4 °C File :3Data :#1Date: 2025/11/6 Radiated Emission Measurement Address:No.99,Sec.1,Balian Rd.,Xizhi Dist.,New Taipei City Jeff Tel:+886-2-2646-1508 Fax:+886-2-2646-1533 Humidity:49.5 % Time: 上午 11:35:59 Condition : EUT : M/N: Note : RX 2440MHz FCC_part 15 RE-Class B_Above 1GHz_PK W6M22510-24776 Test Mode : Polarization: Horizontal Distance: 3m 3 Vd.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site : 966A Chamber Comment 2218.00030.5734.2074.00-43.43peak-3.6315046 *3807.00035.7234.0874.00-38.28peak1.64150133 *:Maximum data x:Over limit !:over margin Operator: Temperature:26.4 °C File :3Data :#5Date: 2025/11/6 Radiated Emission Measurement Address:No.99,Sec.1,Balian Rd.,Xizhi Dist.,New Taipei City Jeff Tel:+886-2-2646-1508 Fax:+886-2-2646-1533 Humidity:49.5 % Time: 上午 11:36:41 Condition : EUT : M/N: Note : RX 2440MHz FCC_part 15 RE-Class B_Above 1GHz_PK W6M22510-24776 Test Mode : Polarization: Vertical Distance: 3m 3 Vd.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site : 966A Chamber Comment 2295.00030.5233.8774.00-43.48peak-3.3515094 *3940.00036.1133.9674.00-37.89peak2.15150217 *:Maximum data x:Over limit !:over margin Operator: Temperature:26.4 °C File :3Data :#2Date: 2025/11/6 Radiated Emission Measurement Address:No.99,Sec.1,Balian Rd.,Xizhi Dist.,New Taipei City Jeff Tel:+886-2-2646-1508 Fax:+886-2-2646-1533 Humidity:49.5 % Time: 上午 11:36:08 Condition : EUT : M/N: Note : RX 2440MHz FCC_part 15 RE-Class B_Above 1GHz_PK W6M22510-24776 Test Mode : Polarization: Horizontal Distance: 3m 3 Vd.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site : 966A Chamber Comment *:Maximum data x:Over limit !:over margin Operator: Temperature:26.4 °C File :3Data :#6Date: 2025/11/6 Radiated Emission Measurement Address:No.99,Sec.1,Balian Rd.,Xizhi Dist.,New Taipei City Jeff Tel:+886-2-2646-1508 Fax:+886-2-2646-1533 Humidity:49.5 % Time: 上午 11:36:50 Condition : EUT : M/N: Note : RX 2440MHz FCC_part 15 RE-Class B_Above 1GHz_PK W6M22510-24776 Test Mode : Polarization: Vertical Distance: 3m 3 Vd.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site : 966A Chamber Comment *:Maximum data x:Over limit !:over margin Operator: Temperature:26.4 °C File :3Data :#3Date: 2025/11/6 Radiated Emission Measurement Address:No.99,Sec.1,Balian Rd.,Xizhi Dist.,New Taipei City Jeff Tel:+886-2-2646-1508 Fax:+886-2-2646-1533 Humidity:49.5 % Time: 上午 11:36:20 Condition : EUT : M/N: Note : RX 2440MHz FCC_part 15 RE-Class B_Above 1GHz_PK W6M22510-24776 Test Mode : Polarization: Horizontal Distance: 3m 3 Vd.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site : 966A Chamber Comment *:Maximum data x:Over limit !:over margin Operator: Temperature:26.4 °C File :3Data :#7Date: 2025/11/6 Radiated Emission Measurement Address:No.99,Sec.1,Balian Rd.,Xizhi Dist.,New Taipei City Jeff Tel:+886-2-2646-1508 Fax:+886-2-2646-1533 Humidity:49.5 % Time: 上午 11:37:01 Condition : EUT : M/N: Note : RX 2440MHz FCC_part 15 RE-Class B_Above 1GHz_PK W6M22510-24776 Test Mode : Polarization: Vertical Distance: 3m 3 Vd.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site : 966A Chamber Comment *:Maximum data x:Over limit !:over margin Operator: Temperature:26.4 °C File :3Data :#4Date: 2025/11/6 Radiated Emission Measurement Address:No.99,Sec.1,Balian Rd.,Xizhi Dist.,New Taipei City Jeff Tel:+886-2-2646-1508 Fax:+886-2-2646-1533 Humidity:49.5 % Time: 上午 11:36:31 Condition : EUT : M/N: Note : RX 2440MHz FCC_part 15 RE-Class B_Above 1GHz_PK W6M22510-24776 Test Mode : Polarization: Horizontal Distance: 3m 3 Vd.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site : 966A Chamber Comment *:Maximum data x:Over limit !:over margin Operator: Temperature:26.4 °C File :3Data :#8Date: 2025/11/6 Radiated Emission Measurement Address:No.99,Sec.1,Balian Rd.,Xizhi Dist.,New Taipei City Jeff Tel:+886-2-2646-1508 Fax:+886-2-2646-1533 Humidity:49.5 % Time: 上午 11:37:12 Condition : EUT : M/N: Note : RX 2440MHz FCC_part 15 RE-Class B_Above 1GHz_PK W6M22510-24776 Test Mode : Polarization: Vertical Distance: 3m 3 Vd.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Ant.Pos (cm) Tab.Pos (deg.) Detector Site : 966A Chamber Comment *:Maximum data x:Over limit !:over margin Operator: Temperature:26.4 °C File :3Data :#1Date: 2025/11/6 Radiated Emission Measurement Address:No.99,Sec.1,Balian Rd.,Xizhi Dist.,New Taipei City Jeff Tel:+886-2-2646-1508 Fax:+886-2-2646-1533 Humidity:49.5 % Time: 上午 11:38:09 Condition : EUT : M/N: Note : RX 2480MHz FCC_part 15 RE-Class B_Above 1GHz_PK W6M22510-24776 Test Mode : Polarization: Horizontal Distance: 3m 3 Vd.c. Power : Mk. Frequency (MHz) Reading (dBuV) Corr. factor (dB/m) Result (dBuV/m) Limit (dBuV/m) M…

Text truncated - open the document above for the full version.

Registration number: W6M22510-24776-FCC FCC ID: YDM-DE2505 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 15 of 17 Set Up Photo of Radiated Emission Below 1GHz Registration number: W6M22510-24776-FCC FCC ID: YDM-DE2505 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 16 of 17 Above 1GHz Registration number: W6M22510-24776-FCC FCC ID: YDM-DE2505 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 17 of 17
