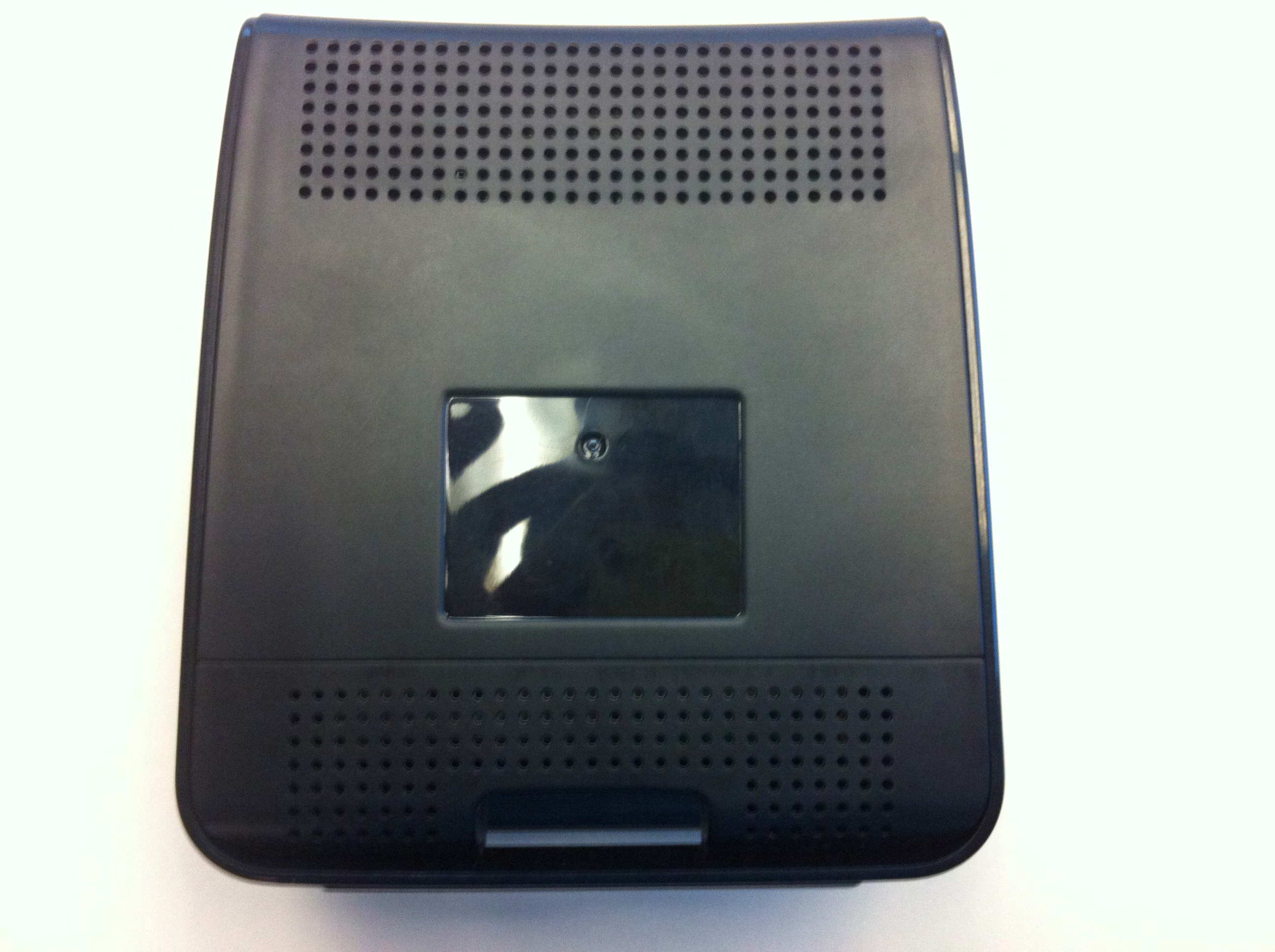

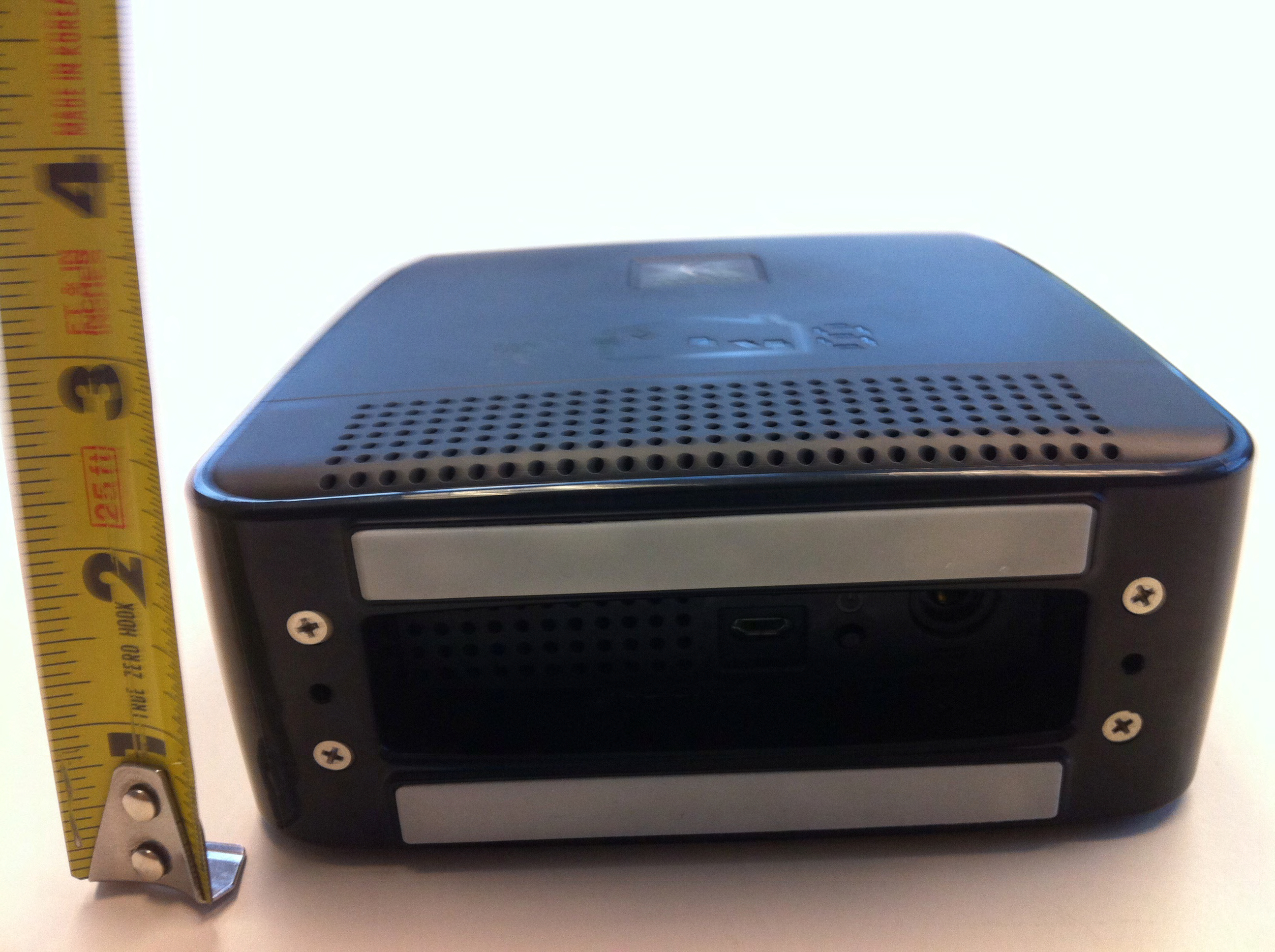

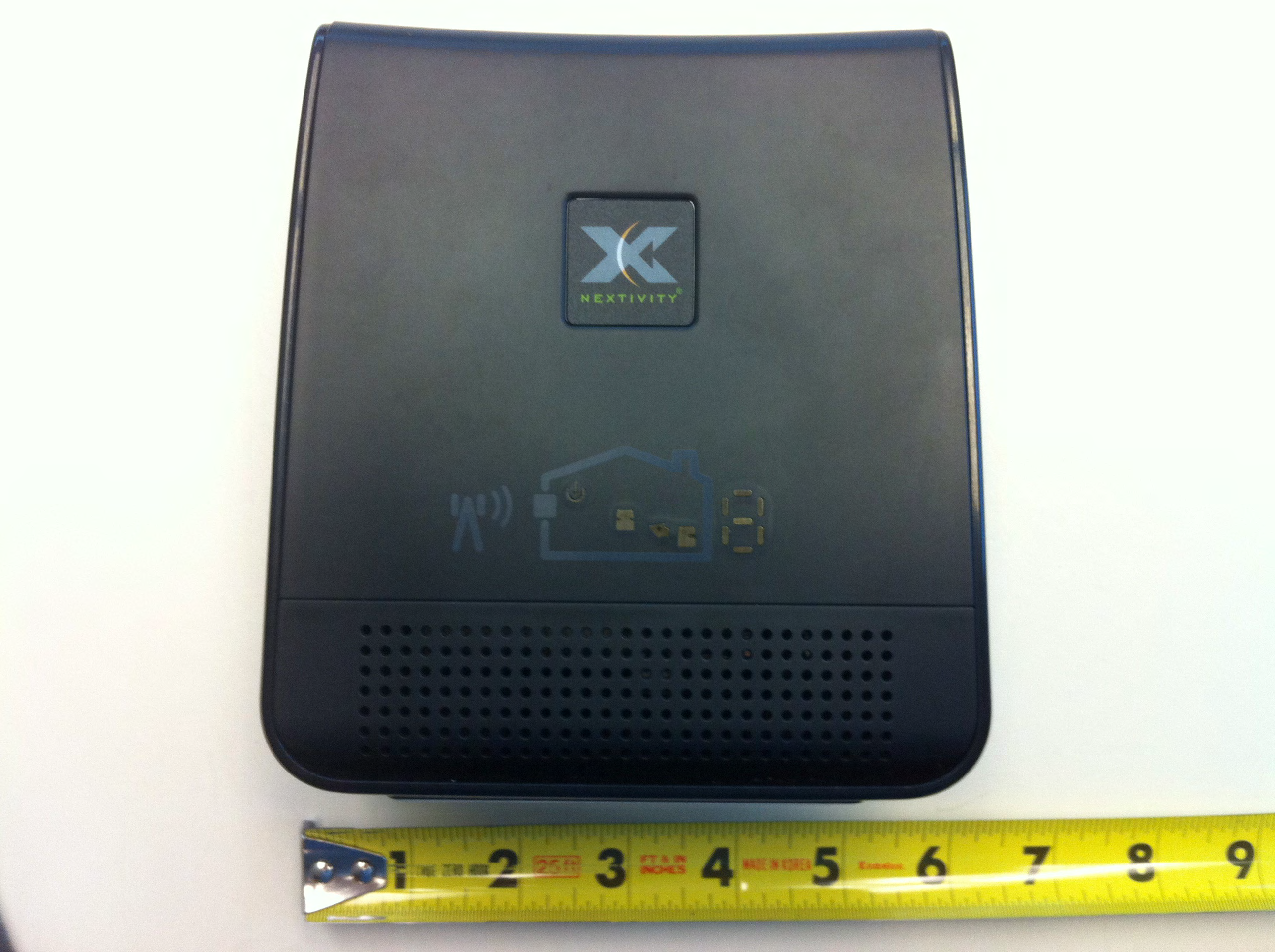

YETCELFI-RS224CUCel-Fi Residential System

Before You Begin. IMPORTANT: Your Cel-Fi Signal Booster is electronic equipment. Both units must be kept indoors and in a dry, cool, well ventilated area. To use this product, you need: • A T-Mobile 3G or 4G compatible mobile phone • An area inside your home that receives at least one bar of 3G or 4G coverage • Power outlets Easy to install, Cel-Fi is a true plug-and-play system that doesn’t require the instal- lation of antennas or cables. All you need is one place in your home that gets at least one bar of 3G or 4G coverage. Just a little bit of 3G/4G signal strength and the revolutionary new Cel- Fi system will bring you blazing fast downloads, smooth video and surfing, and improved voice coverage throughout your home. Step 1 Find the spot with the best 3G/4G coverage: The first step in setting up your Cel-Fi system is to find the spot in your home or office that has the highest 3G/4G signal level by using your phone (3G/4G icon must be displayed). This is typically by a window, and if you are in a multi-story building, upstairs windows are usually better than downstairs windows. Step 2 Plug in the Window Unit: Take the Window Unit and one power supply out of the box (both power supplies are identical, so you can use either one). Plug the Window Unit into an easily accessible outlet. Check to make sure that you can see at least 1 “Bar” on the display in the center of the device. If you do not see at least 1 bar, try a different location. In this package you will find: • Window Unit • Coverage Unit • Two Power Adapters WINDOW UNIT WINDOW UNIT COVERAGE UNIT T-mobile® Signal Booster RS2 Dual Band If you need additional information on features and services, visit us at www.t-mobile.com or, using an alternate phone, call us at 1-800-937-8997 Need Help? This Cel-Fi Signal Booster is a T-Mobile-owned device. You will be charged up to $500 if you fail to return the device after termination of your service with T-Mobile, move to a dwelling that has a shared wall (townhouse, duplex, apartment or condo), or return it in a damaged condition. IMPORTANT INFORMATION ON LIMITATION OF 9-1-1 LOCATION SERVICES If you are in range of this Signal Booster and are using your wireless phone to call 9-1-1, 9-1-1 location services may not be reliable, and emergency personnel may not be able to accurately locate you. If you need to call 9-1-1, use a landline phone if one is available. If you need to use your wireless phone, be prepared to give emer- gency personnel the physical address or other description of your current location. Not for resale. Coverage, including T-Mobile’s 4G HSPA+ network, is not available everywhere. Cel-Fi is a trademark of Nextivity, Inc. T-Mobile and the magenta color are registered trademarks of Deutsche Telekom AG. ©2011 T-Mobile USA, Inc. Step 4 Place the Coverage Unit: Move to a location in your home where you need to have improved coverage. Plug the Coverage Unit into an easily accessible outlet. Wait until the numeric display stops cycling. This could take several minutes. At this point you should see a green icon indicat- ing that the unit is working properly. It is possible to place the Coverage Unit so far away that it cannot communicate with the Window Unit. If this happens, a red icon will illuminate indicating that you need to move the Coverage Unit closer to the Window Unit. CEL - FIRS 2 Trouble Shooting TOO CLOSE A zero on the numeric display indicates that the Coverage Unit needs to be moved farther away from the Window Unit. GOOD This green icon indicates that the Coverage Unit is functioning normally. TOO FAR This red icon indicates that the Coverage Unit needs to be moved closer to the Window Unit. Step 3 Optimize the Window Unit Placement: The number of bars you can see on the Window Unit make a significant difference in the operation of the Cel-Fi system. Try moving the Window Unit to a couple of different spots to see if you can get a better signal; the more bars the better. Step 5 Optimize The Coverage Unit Placement: The farther away you place the Coverage Unit from the Window Unit the better the coverage in your home, so put the Coverage Unit as far away from the Window Unit as possible. The number shown on the side of the display gives you an indication as to the quality of the placement. Test two or three locations and for best results; try and get an 8 or 9 on the display. WINDOW UNIT COVERAGE UNIT WINDOW UNIT COVERAGE UNIT Indicator Issue Try This Indicator Issue Try This Indicator Issue Try This Small Performance Improvement Issue Try This No lights on Window Unit display. Status indicator is flashing green for more than a minute. Status indicator is on solid red. No segment lit on signal display and status indicator on solid green. Center three bars on signal display are flashing. No lights on Coverage Unit display. 7 segment display is cycling for more than a minute. 7 segment display shows a value of 0. Red “Too Far” Indicator. Red Status Indicator. E1 E3 E4 E8 Low Coverage Unit number or Window Unit input signal. There is no power. The Window Unit is attempting to select a channel between the units. Hardware Error. Not receiving 3G signal. Network operator data is missing. There is no power. The Coverage Unit is taking longer than normal to make a link. The Coverage Unit is “Too Close” to the Window Unit. The Coverage Unit is “Too Far” from the Window Unit Hardware Error. No 3G signal on Window Unit. Coverage Unit is overheating. Window Unit is overheating. Input signal too strong. Window Unit and Coverage Unit are too close together or Window Unit signal level is low. 1. Is the unit plugged in? 2. Is there power at the outlet? 3. Try exchanging the power supplies with the Coverage Unit to see if the power supply is defective. 1. Wait for the status indicator to stop flashing, this could take several minutes. 1. Try resetting the Window Unit by unplugging it and then plugging it back in. 2. If problem persists return system for service/replacement. 1. …

Text truncated - open the document above for the full version.

Cel-Fi ™ with IntelliBoost ™ Nextivity Incorporated Headquarters: 12230 World Trade Drive Suite 250 San Diego, CA 92128, USA http://www.nextivityinc.com Bureau in Europe: Whitehill Way Swindon, UK SN5 6QR Cel-Fi ™ with IntelliBoost ™ Nextivity Incorporated Headquarters: 12230 World Trade Drive Suite 250 San Diego, CA 92128, USA http://www.nextivityinc.com Bureau in Europe: Whitehill Way Swindon, UK SN5 6QR STOP!!! Do not call your carrier until you have read the Quick Start Guide. If you need more help, try visiting http://www.celfihelp.com Safety Precautions  Install Cel-Fi indoors. It should not be used outdoors.  These products are designed to be used with a direct plug-in power supply unit meeting SELV and “Limited Power Source” (NEC/CEC Class 2) requirements rated 12 Vdc, 1.66 A. When installing the equipment, all the requirements of the manufacturer and the referenced standards must be met.  There are no user serviceable parts inside. CAUTION: Changes or modifications to this product not expressly approved by Nextivity may void your right to operate the equipment. Declaration of Conformity We, Nextivity, Incorporated, 12230 World Trade Drive Suite 250, San Diego, CA 92128, USA declare under our sole responsibility that the product(s): Product Description: Cel-Fi Residential (CELFI-RS2) Models: CELFI-RS218WU and CELFI-RS218CU, CELFI-RS225WU and CELFI-RS225CU, CELFI- RS224WU and CELFI-RS224CU to which this declaration relate(s) is(are) in conformance with the provisions of Directive 1999/5/EC governing Radio Equipment and Telecommunications Terminal Equipment and the Mutual Recognition of their Conformity using the following standards: SAFETY (art 3.1.a): EN 60950:2006 /A11:2009 /A1:2010 EMC: (art 3.1.b): EN 301 489-1 v1.8.1, EN 301 489-23 v1.4.1, EN 301 489-17 v2.1.1, EN 62311:2008 RADIO SPECTRUM (art 3.2): EN 301 908-1 v4.2.1, EN 301 908-11 v4.2.1, EN 301 893 v1.5.1 ___________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________________________________________________________________ (Place/Date of issue) (name and signature or equivalent marking of authorized person) STOP!!! Do not call your carrier until you have read the Quick Start Guide. If you need more help, try visiting http://www.celfihelp.com Safety Precautions  Install Cel-Fi indoors. It should not be used outdoors.  These products are designed to be used with a direct plug-in power supply unit meeting SELV and “Limited Power Source” (NEC/CEC Class 2) requirements rated 12 Vdc, 1.66 A. When installing the equipment, all the requirements of the manufacturer and the referenced standards must be met.  There are no user serviceable parts inside. CAUTION: Changes or modifications to this product not expressly approved by Nextivity may void your right to operate the equipment. Declaration of Conformity We, Nextivity, Incorporated, 12230 World Trade Drive Suite 250, San Diego, CA 92128, USA declare under our sole responsibility that the product(s): Product Description: Cel-Fi Residential (CELFI-RS2) Models: CELFI-RS218WU and CELFI-RS218CU, CELFI-RS225WU and CELFI-RS225CU, CELFI- RS224WU and CELFI-RS224CU to which this declaration relate(s) is(are) in conformance with the provisions of Directive 1999/5/EC governing Radio Equipment and Telecommunications Terminal Equipment and the Mutual Recognition of their Conformity using the following standards: SAFETY (art 3.1.a): EN 60950:2006 /A11:2009 /A1:2010 EMC: (art 3.1.b): EN 301 489-1 v1.8.1, EN 301 489-23 v1.4.1, EN 301 489-17 v2.1.1, EN 62311:2008 RADIO SPECTRUM (art 3.2): EN 301 908-1 v4.2.1, EN 301 908-11 v4.2.1, EN 301 893 v1.5.1 ___________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________________________________________________________________ (Place/Date of issue) (name and signature or equivalent marking of authorized person) Limited Warranty; Warranties This Cel-Fi (Product) is distributed by your mobile carrier, and depending on their terms and conditions of sale, you may or may not have additional rights under a warranty program for Cel-Fi. This does not affect your statutory rights. All Products must be stored, carried, processed, installed or otherwise handled or dealt with by End User and its agents in accordance with Nextivity’s published instructions, and in accordance with normal safety procedures for the handling of Products, and Nextivity shall not be liable for any loss, damage, injury or expense arising out of the Products or their condition if this is not done. Nextivity shall not be liable to replace any Products rejected only on the grounds of immaterial imperfections or variations in the manufacturing process. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES WITH RESPECT TO THE PRODUCTS AND ANY DOCUMENTATION OR OTHER MATERIALS PROVIDED BY NEXTIVITY, EITHER EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE, AND NONINFRINGEMENT, ALL OF WHICH ARE HEREBY DISCLAIMED. WITHOUT LIMITING THE FOREGOING, NEXTIVITY. DOES NOT WARRANT THAT THE HARDWARE WILL WORK PROPERLY IN ALL ENVIRONMENTS AND APPLICATIONS, NO PERSON IS AUTHORIZED TO REPRESENT, PROMISE OR ASSUME ANY OBLIGATION OR LIABILITY CONTRARY OR IN ADDITION TO THIS WARRANTY. Limitation of Liability In no event shall Nextivity, nor its directors, employees, agents, suppliers or End Users, be liable under contract, tort, strict liability, negligence or any other legal or equitable theory with respect to the Products or any other subject matter of this Agreement (i) for any lost profits, cost of procurement of substitute goods or services, or special, indirect, incidental, punitive, or consequential damages of any ki…

Text truncated - open the document above for the full version.

December 18, 2012 DFS Expedite Request Applicant: Nextivity Inc. FCC ID: YETCELFI‐RS224CU Previously Granted: YETCELFI‐RS225CU New device: YETCELFI‐RS224CU Technology: OFDM+WCDMA hybrid, Receive antenna diversity Unchanged Bandwidths: 30MHz Proprietary waveform Unchanged Antenna: Integral 5.5dBi Unchanged Differences in DFS functioning, circuitry, software: Unchanged Differences between products: Original device used Cellular bands 2 and 5. New device used Cellular bands 2 and 4. Filter components were changed for the different cellular band. Original testing performed by Elliott Laboratories LLC New device tested by Elliott Laboratories LLC Sincerely, NTS Silicon Valley

EMC Test Data Client: Contact: Standard: Test Specific Details General Test Configuration Yes Device complies with Power Density requirements at 20 ti Test Engineer: David Bare Calculation uses the free space transmission formula: S = (PG)/(4 πd 2 ) Where: S is power density (W/m 2 ), P is output power (W), G is antenna gain relative to isotropic, d is separation distance from the transmitting antenna (m). Summary of Results Maximum Permissible Exposure Objective: The objective of this test session is to perform final qualification testing of the EUT with respect to the specification listed above. Date of Test: 12/18/2012 Michiel Lotter FCC parts 15, 24 and 27Class: N/A Nextivity, Inc.Job Number: J89693 Model: CELFI-RS224CU T-Log Number: T89733 Account Manager: Christine Krebill Yes 20cm separation: T89733 Nextivity CelFi-RS224CU.xlsMPE CalcPage 1 of 2 EMC Test Data Client: Contact: Standard: Michiel Lotter FCC parts 15, 24 and 27Class: N/A Nextivity, Inc.Job Number: J89693 Model: CELFI-RS224CU T-Log Number: T89733 Account Manager: Christine Krebill Use: General Used for Multi ple Transmitters Peak AveragedBmWWdBm 2110-2155 WCDMA13.30.013.30.021510.02113.30 5470-5725OFDM16.75.522.20.166710.16622.20 20.18722.73 Power Density (S) @ 20cm (mW/cm^2)0.037 MPE Limit @ 20cm (mW/cm^2) 1.0 Distance at which S > MPE Limit 3.9cm Totals: CU unit (a transmitted "channel" for both WCDMA and OFDM consists of the 3 WCDMA sub channels or the 6 OFDM subchannels respectively All sub channels were present during power measurements ) CU unit (a transmitted "channel" for both WCDMA and OFDM consists of the 3 WCDMA sub channels or the 6 OFDM subchannels respectivel y. All sub channels were present during power measurements.) BandMode Output PowerAntenna gain (Max) EIRPChannels Available Channels Used Total EIRP PeakAveragedBmWWdBm 1930-1990 WCDMA13.10.013.10.020510.02013.10 5470-5725OFDM16.75.522.20.166710.16622.20 20.18622.70 Power Density (S) @ 20cm (mW/cm^2)0.037 MPE Limit @ 20cm (mW/cm^2) 1.0 Distance at which S > MPE Limit 3.9cm Total Power Density (S) @ 20cm (mW/cm^2) 0.074 Totals: subchannels respectively. All sub channels were present during power measurements.) BandMode Output PowerAntenna gain (Max) EIRPChannels Available Channels Used Total EIRP T89733 Nextivity CelFi-RS224CU.xlsMPE CalcPage 2 of 2

File: R90358 Page 1 EMC Test Report Application for Grant of Equipment Authorization Industry Canada RSS-Gen Issue 3 / RSS 210 Issue 8 FCC Part 15, Subpart E Model: CELFI-RS224CU FCC ID: YETCELFI-RS224CU IC CERTIFICATION #: 9298A-CRS224CU APPLICANT: Nextivity, Inc. 12230 World Trade Drive Suite 250 San Diego, CA 92128 TEST SITE(S): NTS Silicon Valley 41039 Boyce Road. Fremont, CA. 94538-2435 IC SITE REGISTRATION #: 2845B-3; 2845B-4, 2845B-5, 2845B-7 REPORT DATE: December 20, 2012 FINAL TEST DATES: November 19 and 20, 2012 TOTAL NUMBER OF PAGES: 49 PROGRAM MGR / QUALITY ASSURANCE DELEGATE / TECHNICAL REVIEWER: FINAL REPORT PREPARER: ______________________________ ______________________________ David W. Bare David Guidotti Chief Engineer Senior Technical Writer NTS Silicon Valley is accredited by the A2LA, certificate number 0214.26, to perform the test(s) listed in this report, except where noted otherwise. This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full NTS Silicon Valley -- EMC Department Test Report Report Date: December 20, 2012 File: R90358 Page 2 REVISION HISTORY Rev# Date Comments Modified By - First release NTS Silicon Valley -- EMC Department Test Report Report Date: December 20, 2012 File: R90358 Page 3 TABLE OF CONTENTS REVISION HISTORY ................................................................................................................................................ 2 TABLE OF CONTENTS ............................................................................................................................................ 3 SCOPE .......................................................................................................................................................................... 4 OBJECTIVE ................................................................................................................................................................ 5 STATEMENT OF COMPLIANCE ........................................................................................................................... 5 DEVIATIONS FROM THE STANDARDS .............................................................................................................. 5 TEST RESULTS SUMMARY ................................................................................................................................... 6 UNII / LELAN DEVICES ........................................................................................................................................ 6 GENERAL REQUIREMENTS APPLICABLE TO ALL BANDS .......................................................................... 7 MEASUREMENT UNCERTAINTIES .................................................................................................................... 8 EQUIPMENT UNDER TEST (EUT) DETAILS ...................................................................................................... 9 GENERAL ................................................................................................................................................................ 9 OTHER EUT DETAILS ........................................................................................................................................... 9 ENCLOSURE ........................................................................................................................................................... 9 MODIFICATIONS ................................................................................................................................................... 9 SUPPORT EQUIPMENT ......................................................................................................................................... 9 EUT INTERFACE PORTS .................................................................................................................................... 10 EUT OPERATION ................................................................................................................................................. 10 TEST SITE ................................................................................................................................................................. 11 GENERAL INFORMATION ................................................................................................................................. 11 CONDUCTED EMISSIONS CONSIDERATIONS .............................................................................................. 11 RADIATED EMISSIONS CONSIDERATIONS .................................................................................................. 11 MEASUREMENT INSTRUMENTATION ............................................................................................................ 12 RECEIVER SYSTEM ............................................................................................................................................ 12 INSTRUMENT CONTROL COMPUTER ............................................................................................................ 12 LINE IMPEDANCE STABILIZATION NETWORK (LISN) ............................................................................... 12 FILTERS/ATTENUATORS ...........…

Text truncated - open the document above for the full version.

File: R90361 Rev. 1 Page 1 of 225 TEST REPORT Covering the DYNAMIC FREQUENCY SELECTION (DFS) REQUIREMENTS OF FCC Part 15 Subpart E (UNII), RSS-210 Annex 9 Nextivity, Inc. Model(s): CELFi-RS224WU and CELFi-RS224CU COMPANY: Nextivity, Inc. 12230 World Trade Drive Suite 250 San Diego, CA, 92128 TEST SITE: NTS Silicon Valley 41039 Boyce Road Fremont, CA 94538 REPORT DATE: December 20, 2012 FINAL TEST DATE: November 19, 20, 2012 TEST ENGINEER: Wayne Fisher PROGRAM MGR / QUALITY ASSURANCE DELEGATE / TECHNICAL REVIEWER: FINAL REPORT PREPARER: ______________________________ ______________________________ David Bare Wayne Fisher Chief Engineer Engineering Team Lead NTS Silicon Valley is accredited by the A2LA, certificate number 0214.26, to perform the test(s) listed in this report, except where noted otherwise. This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full NTS Silicon Valley -- EMC Department Test Report Report Date: December 20, 2012 File: R90361 Rev. 1 Page 2 of 225 REVISION HISTORY Rev # Date Comments Modified By 1.0 Initial Release - NTS Silicon Valley -- EMC Department Test Report Report Date: December 20, 2012 File: R90361 Rev. 1 Page 3 of 225 TABLE OF CONTENTS REVISION HISTORY ................................................................................................................................................ 2 TABLE OF CONTENTS ............................................................................................................................................ 3 LIST OF TABLES ....................................................................................................................................................... 3 LIST OF FIGURES ..................................................................................................................................................... 6 SCOPE .......................................................................................................................................................................... 8 OBJECTIVE ................................................................................................................................................................ 8 STATEMENT OF COMPLIANCE ........................................................................................................................... 8 DEVIATIONS FROM THE STANDARD ................................................................................................................ 8 TEST RESULTS .......................................................................................................................................................... 9 TEST RESULTS SUMMARY – FCC PART 15, MASTER DEVICE ..................................................................... 9 MEASUREMENT UNCERTAINTIES .................................................................................................................. 13 EQUIPMENT UNDER TEST (EUT) DETAILS .................................................................................................... 14 GENERAL .............................................................................................................................................................. 14 ENCLOSURE ......................................................................................................................................................... 15 MODIFICATIONS ................................................................................................................................................. 15 SUPPORT EQUIPMENT ....................................................................................................................................... 15 EUT INTERFACE PORTS .................................................................................................................................... 16 EUT OPERATION ................................................................................................................................................. 16 RADAR WAVEFORMS ........................................................................................................................................... 17 DFS TEST METHODS ............................................................................................................................................. 18 RADIATED TEST METHOD ............................................................................................................................... 18 DFS MEASUREMENT INSTRUMENTATION .................................................................................................... 20 RADAR GENERATION SYSTEM ....................................................................................................................... 20 CHANNEL MONITORING SYSTEM .................................................................................................................. 21 DFS MEASUREMENT METHODS ....................................................................................................................... 22 DFS RADAR DETECTION BANDWIDTH ........................................................................................................ 22 DFS – CHANNEL CLOSING TRANSMISSION TIME AND CHANNEL M…
