YETD24NU

Nextivity Incorporated

T-Mobile Provider Specific Consumer Signal Booster

Click to zoom

Application Details

Equipment Class: B2P - Part 20 Provider-Specific Consumer Booster (CMRS)
Date of Grant: Jul 10, 2014
Application Purpose: Original Equipment
Date of Application: May 16, 2014
Equipment Note: T-Mobile Provider Specific Consumer Signal Booster
Frequency Range: 1710.00000000 - 1755.00000000
Company: Nextivity Incorporated
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

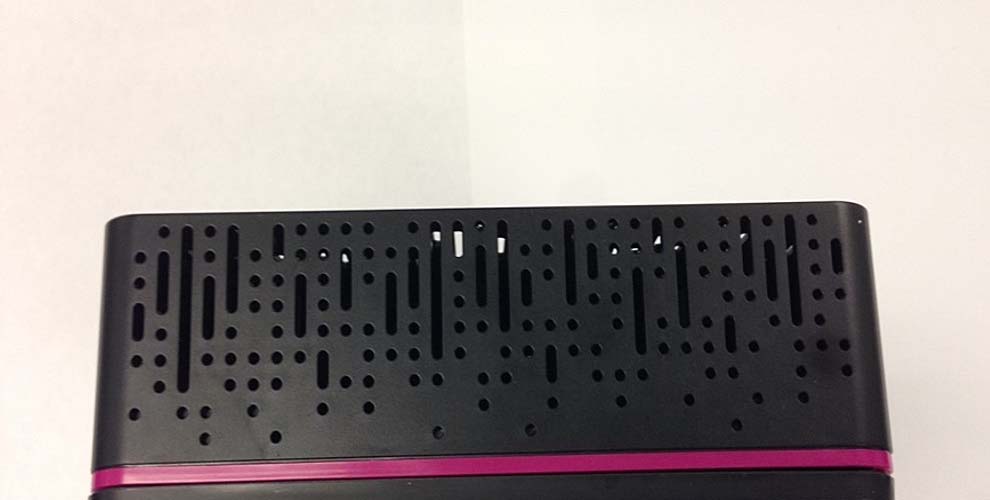

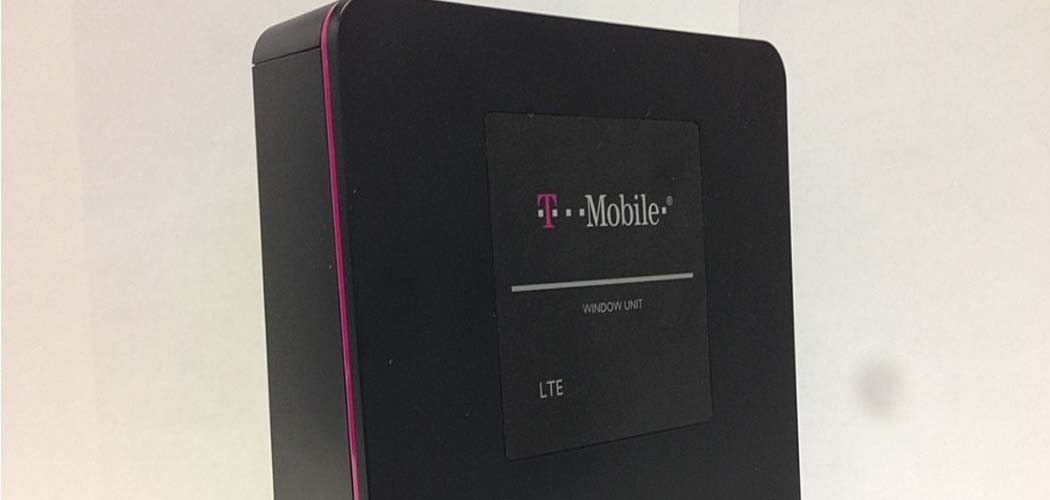

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Contact Information

Applicant

Michiel Lotter(Vice President, Engineering)

[email protected]858-485-9442Fax: 885-485-9445

Technical Contact

Nextivity IncorporatedMichiel Lotter

[email protected](858) 485-9422

12230 Wolrd Trade Drive · San Diego · United States

Non-Technical Contact

CKC Certification Services, LLCRandal Clark

[email protected]209-966-5240

Test Firm

CKC Laboratories, Inc.Steve Behm

[email protected]714-993-6112Fax: 866-799-9776

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
4	27	1.71 GHz - 1.75 GHz	107.00 mW	W7D	0.0043 %

Confidentiality

Long Term

Grant Notes

Power listed is conducted at the antenna terminals. This device is part of a booster system operated with FCC ID: YETD24CU. This booster system device shall be operated with frequency selection by network identification and interference avoidance for wireless subsystems as described in this filing for compliance with 20.21(e)(9) and 20.21(e)(7). The antennas used with this signal booster must be installed to provide a separation distance of at least 20 cm from all persons. Users and installers must be provided with the antenna kitting and installation instructions and operating conditions for satisfying RF exposure compliance. This Provider-Specific Fixed Consumer Signal Booster system is approved for operating with the coverage/downlink antenna installed at a fixed location inside a building, and with the installation height of the window-unit/uplink antenna limited to 10 meters above ground for compliance with 47 CFR 27.50. This Consumer Signal Booster is authorized only for operation by and marketing to members of the general public for their personal use in accordance with the requirements of 47 CFR 20.21(a) and 20.21(g).
