YG3MA25MP1MODUL MINI PCI WLAN MA25MP1

Phoenix Contact GmbH & Co. KG Flachsmarktstrasse 8, 32825 Blomberg, Germany 9158515/MA25MP1 Mini PCI User’s Manual 1. Product Overview The 9158515/MA25MP1 series PCI adapter cards contain an Atheros AR9106 chip for IEEE 802.11a/b/g/n Wireless LAN applications. The mini PCI adapter cards support key security features like Wi-Fi Protected Access (WPA), WPA2, WEP and 802.1x. Typical application of the card is integration into other wireless products such as AP/ Router which is used distance 20cm away human body. 2. Packaging Contents The mini PCI card package contains the following item(s): 1 x Wireless Mini PCI Adapter 3. Installation guide  Shut down the power of the platform  Align the PCI adapter with the Mini PCI socket on the platform  Adjust and push down the PCI adapter gently until the metal locking levers on the Mini PCI socket is latched. (Please take note that the PCI adapter can only fit in one direction due to the keyed notch. Wrong orientation will cause improper installation and may damage the Mini PCI socket)  Connect the antenna(s) on the mini PCI module  Reboot on the platform  Install drivers if necessary 4. Frequency 802.11b/g/n: 2412 ~ 2472 MHz 802.11an: 5150 ~ 5350MHz, 5470 ~ 5850MHz Connector: Reverse SMA PLUG Antenna Type and Gain: a. RAD‐ISM‐2459‐ANT‐FOOD‐6‐0:  Omni‐directional Antenna  6 dBi for 2.4GHz/ 8 dBi for 5GHz (with metal surface); 3 dBi for 2.4GHz/ 5 dBi for 5GHz (with metal sur face)  Operating Frequency : 2400-2483.5 MHz, 5150-5350 MHz, 5470-5850 MHz b. RAD‐ISM‐2400‐ANT‐OMNI‐6‐0:  Omni Antenna  6 dBi for 2.4GHz  Operating Frequency : 2400-2483.5 MHz c. RAD‐ISM‐2400‐ANT‐PAN‐8‐0:  Directional Antenna  8 dBi for 2.4GHz  Operating Frequency : 2400-2483.5 MHz Phoenix Contact GmbH & Co. KG Flachsmarktstrasse 8, 32825 Blomberg, Germany d. RAD‐ISM‐5000‐ANT‐PAR‐18‐N:  Parabolic Antenna  17.7 ~ 18.1 dBi for 5GHz  Operating Frequency : 5250-5350 MHz, 5470-5850MHz 5. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. To comply with FCC part 15 rules in the United States, the system must be professionally installed to ensure compliance with the Part 15 certification. It is the responsibility of the operator and professional installer to ensure that only certified systems are deployed in the United States. The use of the system in any other combination (such as co-located antennas transmitting the same information) is expressly forbidden. 6. FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Phoenix Contact GmbH & Co. KG Flachsmarktstrasse 8, 32825 Blomberg, Germany This device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in indoor environment only. 7. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. 8. Important Notes The OEM integrator must follow the specific operational requirements for the module installed. Any condition can not met, the FCC ID can’t use in the final product. In these circumstances, OEM integrator should be responsible for re -evaluating the end product (including the transmitter) and obtaining a separation FCC authorization. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for a population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. Although the authorized antenna is a standard connector, there are authentication protocols and prevention error mechanism software in this module. Only the Authorized antenna by module could work together with module. 9. Label for end product must include “Contains FCC ID: YG3MA25MP1” or “A RF transmitter inside, FCC ID: YG3MA25MP1” 10. IC Statement This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B conforme á la norme NMB-003 du Canada. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) thi…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter: Rev 2.0 51 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter: Rev 2.0 52 Sporton International Inc. No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Tel: 886-3-656-9065 Fax: 886-3-656-9085 Current Date: 2011/11/22 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, __Sporton International Inc.__hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Brand name of the specified radio equipment: Phoenix Contact Model type of the specified radio equipment: 9158515/MA25MP1 FCC ID: YG3MA25MP1 Product name: MODUL MINI PCI WLAN MA25MP1 We affirm that between SIEMIC and __Sporton International Inc.__, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature: Name / Title: Leo Huang / Manager Tel: 886-3-656-9065 Ext: 666 Email: [email protected]

Page No. : 19 Limited Module Approval Request Letter Subject: Limited Module Approval Date: 2011/9/14 FCC ID: YG3MA25MP1 Dear Reviewer, We, Sporton International Inc., are authorized by Phoenix Contact GmbH & Co. KG to have their state-of-the-art MODUL MINI PCI WLAN MA25MP1 approved under limited module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip chip AR9160. 3. The requirement of power supply regulation: The part number of the power regulator is RT8020. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

Phoenix Contact GmbH & Co. KG Flachsmarktstrasse 8, 32825 Blomberg, Germany Tel: +49‐5281‐946‐1545 Fax: +49‐5281‐946‐1214 Jan. 11, 2012 From: Phoenix Contact GmbH & Co. KG To: FCC RE: Supersede Request Letter Applicant: Phoenix Contact GmbH & Co. KG FCC ID: YG3MA25MP1 Request for supersede of FCC user manual. Per customer’s request, FCC user manual have wrong frequency range of antenna, therefore, we are asking to kindly replace the FCC user manual document. Thank you, Name / Title: Leo Huang / Manager Tel: 886-3-6569065 E-mail: [email protected]

SPORTON International Inc. PAGE NUMBER : A1 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 21, 2011 FAX : 886-2-2696-2255 Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 21, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 21, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 21, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 21, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 21, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 21, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 21, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 21, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 21, 2011 FAX : 886-2-2696-2255

9158515/MA25MP1 Mini PCI Label 33 mm 20 mm

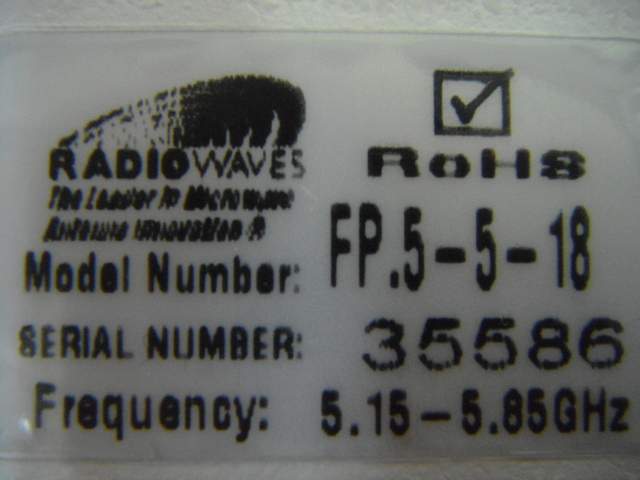

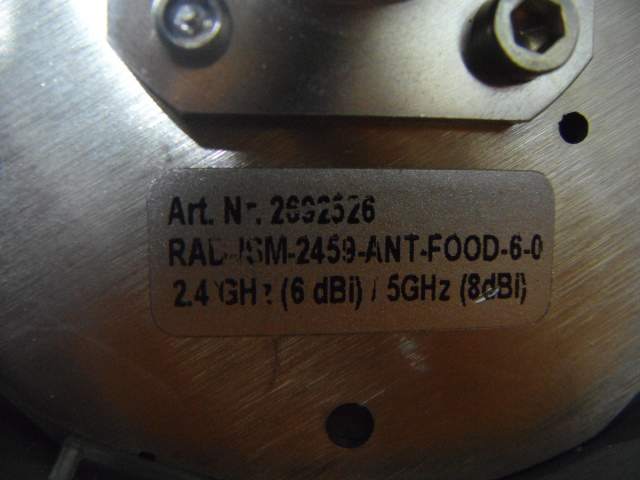

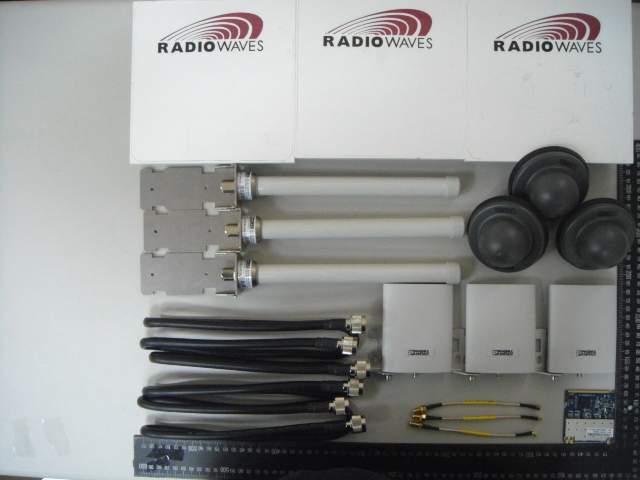

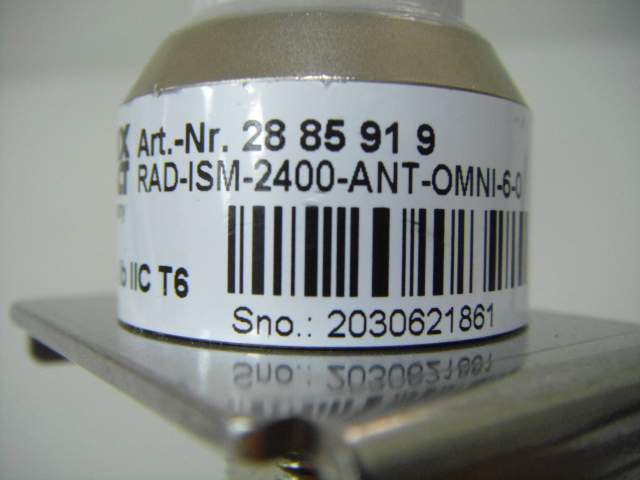

SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 21, 2011 FAX : 886-2-2696-2255 Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 21, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 21, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 21, 2011 FAX : 886-2-2696-2255

Report No.: FR172732 FCC ID: YG3MA25MP1 Page No. : B1 of B4 Appendix B. Maximum Permissible Exposure Report No.: FR172732 FCC ID: YG3MA25MP1 Page No. : B2 of B4 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR172732 FCC ID: YG3MA25MP1 Page No. : B3 of B4 1.3. Calculated Result and Limit For 5GHz UNII Band: (15.407) For Ant. 3: Antenna Type : Omni- directional Max Conducted Power for IEEE 802.11a Connector 1 + Connector 3 : 20.98 dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 9.01 7.9621 20.9796 125.3033 0.198583 1 Complies For Ant. 4: Antenna Type : Parabolic Max Conducted Power for IEEE 802.1111n MCS8 20MHz Connector 1 + Connector 3 : 13.88 dBm Antenna Gai (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 16.10 40.7380 13.8839 24.4562 0.198308 1 Complies For 5GHz ISM Band: (15.247) For Ant. 3: Antenna Type : Omni- directional Max Conducted Power for IEEE 802.11n MCS8 20MHz Connector 1 + Connector 3 : 26.86 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 6.00 3.9811 26.8646 485.8022 0.384955 1 Complies For Ant. 4: Antenna Type : Parabolic Max Conducted Power for IEEE 802.11a Connector 1 + Connector 3 : 7.89 dBm Directional Antenna Gai (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 19.11 81.4761 7.8903 6.1521 0.099771 1 Complies For 2.4GHz Band: For Ant. 1: Antenna Type : Omni- directional Max Conducted Power for IEEE 802.11b/g Connector 1 + Connector 3 : 24.21 dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 8.01 6.3246 24.2103 263.6485 0.331899 1 Complies Report No.: FR172732 FCC ID: YG3MA25MP1 Page No. : B4 of B4 For Ant. 2: Antenna Type : Panel Max Conducted Power for IEEE 802.11b/g Connector 1 + Connector 3 : 23.34 dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 10.51 11.2468 23.3405 215.7985 0.483091 1 Complies For Ant. 3: Antenna Type : Omni- directional Max Conducted Power for IEEE 802.11b/g Connector 1 + Connector 3 : 22.31 dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 8.01 6.3246 22.3070 170.1002 0.214134 1 Complies CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.483091 / 1 + 0.384955 / 1 = 0.868046, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Phoenix Contact GmbH & Co. KG Applicant Address Flachsmarktstraße 8 32825 Blomberg / Germany FCC ID YG3MA25MP1 Manufacturer’s company JJPlus Corp. Manufacturer Address 11F., No.788, Zhongzheng Rd., Zhonghe Dist., New Taipei City 235, Taiwan Product Name MODUL MINI PCI WLAN MA25MP1 Brand Name Phoenix Contact Model Name 9158515/MA25MP1 Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5350MHz / 5470 ~ 5725MHz Received Date Jul. 27, 2011 Final Test Date Nov. 03, 2011 Submission Type Original Equipment Operating Mode Client (without radar detection function) Statement Test result included is for the IEEE 802.11n and IEEE 802.11a (5150 ~ 5350MHz / 5470 ~ 5725MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009 and 47 CFR FCC Part 15 Subpart E. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR172732AA Report Format Version: 01 Page No. : i of ii FCC ID: YG3MA25MP1 Issued Date : Nov. 21, 2011 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................6 3.3. Table for Filed Antenna.......................................................................................................................................................................6 3.4. Table for Carrier Frequencies .............................................................................................................................................................7 3.5. Table for Test Modes ...........................................................................................................................................................................8 3.6. Table for Testing Locations................................................................................................................................................................11 3.7. Table for Supporting Units .................................................................................................................................................................12 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................12 3.9. Test Configurations ...........................................................................................................................................................................14 4. TEST RESULT ................................................................................................................................................... 17 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................17 4.2. 99% Occupied Bandwidth Measurement ........................................................................................................................................21 4.3. Maximum Conducted Output Power Measurement .........................................................................................................................48 4.4. Power Spectral Density Measurement ..............................................................................................................................................54 4.5. Peak Excursion Measurement ...........................................................................................................................................................74 4.6. Radiated Emissions Measurement ....................................................................................................................................................87 4.7. Band Edge Emissions Measurement ...............................................................................................................................................135 4.8. Frequency Stability Measurement ..................................................................................................................................................152 4.9. Antenna Requirements ...................................................................................................................................................................155 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................. 156 6. TEST LOCATION............................................................................................................................................ 158 7. TAF CERTIFICATE OF ACCREDITATION .......................................…

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC Dynamic Frequency Selection Test Report Applicant’s company Phoenix Contact GmbH & Co. KG Applicant Address Flachsmarktstraße 8 32825 Blomberg / Germany FCC ID YG3MA25MP1 Manufacturer’s company JJPlus Corp. Manufacturer Address 11F., No.788, Zhongzheng Rd., Zhonghe Dist., New Taipei City 235, Taiwan Product Name MODUL MINI PCI WLAN MA25MP1 Brand Name Phoenix Contact Model Name 9158515/MA25MP1 Test Standard(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5250~5350 / 5470~5725 MHz Received Date Jul. 27, 2011 Final Test Date Aug. 17, 2011 Submission Type Original Equipment Operating Mode Client (without radar detection function) Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in FCC OET Order 06-96A (2006) and 47 CFR FCC Part 15 Subpart E § 15.407. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FZ172732 Report Format Version: 01 Page No. : i of ii FCC ID: YG3MA25MP1 Issued Date : Nov. 21, 2011 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Standard Requirement .......................................................................................................................................................................3 3.2. Product Specification Table................................................................................................................................................................3 3.3. Accessories .........................................................................................................................................................................................5 3.4. Table for DFS Band Carrier Frequencies .............................................................................................................................................5 3.5. Antenna Information on DFS Band......................................................................................................................................................6 4. DFS DETECTION THRESHOLDS AND RADAR TEST WAVEFORMS ............................................................................. 7 4.1. Interference Threshold values, Master or Client incorporating In-Service Monitoring.........................................................................7 4.2. DFS Response requirement values......................................................................................................................................................8 4.3. Radar Test Waveforms Minimum Step.................................................................................................................................................8 4.4. Short Pulse Radar Test Waveforms ......................................................................................................................................................9 4.5. Long Pulse Radar Test Waveform......................................................................................................................................................10 4.6. Frequency Hopping Radar Test Waveform.......................................................................................................................................13 4.7. Radiated Calibration Setup ..............................................................................................................................................................15 4.8. Radar Waveform Calibration Procedure ..........................................................................................................................................16 4.9. Calibration Deviation........................................................................................................................................................................16 4.10. Radar Waveform Calibration Result .................................................................................................................................................17 5. TEST SETUP AND TEST RESULT............................................................................................................................ 18 5.1. Test setup ..........................................................................................................................................................................................18 5.2. In-Service Monitoring for Channel Move Time, Channel Closing Transmission Time and Non-Occupancy Period Measurement...24 6. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 34 7. TEST LOCATION.............................................................................................................................................. 35 8. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 36 Report No.: FZ172732 Report Format Version: 01 Page No. : ii of ii FCC ID: YG3MA25MP1 Issued Date : Nov. 21, 2011 History of This Test Report REPOR…

Text truncated - open the document above for the full version.

Report No.: FR172732 FCC ID: YG3MA25MP1 Page No. : 1 of 9 Appendix A. Test Photos Report No.: FR172732 FCC ID: YG3MA25MP1 Page No. : 2 of 9 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR172732 FCC ID: YG3MA25MP1 Page No. : 3 of 9 SIDE VIEW Report No.: FR172732 FCC ID: YG3MA25MP1 Page No. : 4 of 9 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR172732 FCC ID: YG3MA25MP1 Page No. : 5 of 9 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR172732 FCC ID: YG3MA25MP1 Page No. : 6 of 9 Test Configuration: Above 1GHz <For Antenna 1: Only 2.4GHz Band> FRONT VIEW REAR VIEW Report No.: FR172732 FCC ID: YG3MA25MP1 Page No. : 7 of 9 <For Antenna 2: Only 2.4GHz Band> FRONT VIEW REAR VIEW Report No.: FR172732 FCC ID: YG3MA25MP1 Page No. : 8 of 9 <For Antenna 3: 2.4GHz / 5GHz Band> FRONT VIEW REAR VIEW Report No.: FR172732 FCC ID: YG3MA25MP1 Page No. : 9 of 9 <For Antenna 4: Only 5GHz Band> FRONT VIEW REAR VIEW
