YG3PD2AETHREnergy and Data Coupler Remote

1 Description NearFi coupler for contactless power and data transmission NEARFI... © Phoenix Contact Data sheet The NearFi coupler transmits power and real-time Ether- net data contactlessly over an air gap in the centimeter range. For contactless transmission, you will need at least two devices: a base and one or more remote couplers. The base coupler transmits the energy inductively to the remote coupler. Ethernet transmission is bidirectional between the base and the remote. In maintenance-intensive applications, such as tool changes on robots, this enables wear-prone connections to be replaced easily and minimizes downtime costs. The base and remote couplers are both available in three versions: –Power and data transmission (NEARFI PD...) –Only power transmission (NEARFI P...) –Only data transmission (NEARFI D...) Features –Contactless - and therefore no wear and no mainte- nance –Protocol-independent, latency-free Ethernet real- time communication with 100 Mbps (full duplex) –High power in a compact housing –All-round visible diagnostics with light ring on the housing –High degree of mounting freedom with flexible prox- imity options –Plug and Play - as easy as a plug –Degree of protection IP65 –Protocol-transparent transmission of all standard Ethernet protocols Observe this note Make sure you always use the latest documentation. It can be downloaded at: phoenixcontact.com/product/1234224 This document is valid for the products listed in the “Ordering data” chapter. 109708_en_04 2024-07-25 NEARFI... 109708_en_04Phoenix Contact2 / 39 2 Table of contents 1Description.................................................................................................................................1 2Table of contents.......................................................................................................................2 3Ordering data.............................................................................................................................3 4Technical data............................................................................................................................7 5Safety regulations and installation notes...............................................................................13 6Functional principle................................................................................................................19 7Transport and unpacking........................................................................................................20 8Product description.................................................................................................................20 9Installation..............................................................................................................................26 10Connecting the cables.............................................................................................................31 11Maintenance and disposal......................................................................................................33 12Troubleshooting......................................................................................................................34 13Derating...................................................................................................................................37 NEARFI... 109708_en_04Phoenix Contact3 / 39 DescriptionTypeItem no.Pcs./Pkt. NearFi, base coupler for contactless power and real- time Ethernet transmission in the centimeter range, 24 V DC, 2 A, 100 Mbps, full duplex, M12 connection technology, IP65 type of protection. A remote coupler is required for operation. NEARFI PD 2A ETH B12342241 NearFi, remote coupler for contactless power and real- time Ethernet transmission in the centimeter range, 24 V DC, 2 A, 100 Mbps, full duplex, M12 connection technology, IP65 type of protection. A base coupler is re- quired for operation. NEARFI PD 2A ETH R12342251 NearFi, base coupler for contactless power transmission in the centimeter range, 24 V DC, 2 A, M12 connection technology, IP65 type of protection. A remote coupler is required for operation. NEARFI P 2A B12342261 NearFi, remote coupler for contactless power transmis- sion in the centimeter range, 24 V DC, 2 A, M12 connec- tion technology, IP65 type of protection. A base coupler is required for operation. NEARFI P 2A R12342291 NearFi, base coupler for contactless real-time Ethernet transmission in the centimeter range, 100 Mbps, full du- plex, M12 connection technology, IP65 type of protec- tion. A remote coupler is required for operation. NEARFI D ETH B12342321 NearFi, remote coupler for contactless real-time Ether- net transmission in the centimeter range, 100 Mbps, full duplex, M12 connection technology, IP65 type of pro- tection. A base coupler is required for operation. NEARFI D ETH R12342341 3 Ordering data AccessoriesTypeItem no.Pcs./Pkt. Sensor/actuator cable, 5-position, PUR, black-gray RAL 7021, free cable end, on Socket straight M12 SPEEDCON, coding: A, cable length: 2 m SAC-5P- 2,0-186/FS SCO15183681 Sensor/actuator cable, 5-position, PUR, black-gray RAL 7021, free cable end, on Socket straight M12 SPEEDCON, coding: A, cable length: 5 m SAC-5P- 5,0-186/FS SCO15183711 Sensor/actuator cable, 5-position, PUR, black-gray RAL 7021, free cable end, on Socket straight M12 SPEEDCON, coding: A, cable length: 10 m SAC-5P-10,0-186/FS SCO15183841 Sensor/actuator cable, 5-position, PUR, black-gray RAL 7021, free cable end, on Socket straight M12 SPEEDCON, coding: A, cable length: 15 m SAC-5P-15,0-186/FS SCO15183971 Sensor/actuator cable, 5-position, PUR, black-gray RAL 7021, Plug straight M12 SPEEDCON, coding: A, on Socket straight M12 SPEEDCON, coding: A, cable length: 1 m SAC-5P-MS/ 1,0-186/FS SCO15184231 NEARFI... 109708_en_04Phoenix Contact4 / 39 Sensor/actuator cable, 5-position, PUR, black-gray RAL 7021, Plug straight M12 SPEEDCON, coding: A, on Socket straight M12 SPEEDCON, coding: A, …

Text truncated - open the document above for the full version.

Phoenix Contact GmbH & Co. KG Flachsmarktstraße 8, 32825 Blomberg, Germany Fax +49-(0)5235-341200, Phone +49-(0)5235-300 phoenixcontact.com DE Einbauanweisung für die Elektrofachkraft EN Installation notes for electrically skilled persons FR Instructions d'installation pour l'électricien qualifié 2022-10-11 © Phoenix Contact 2022 Induktive Koppler 1 Sicherheitshinweise •Die Installation, Bedienung und Wartung ist von elektrotechnisch qualifiziertem Fachpersonal durchzufüh- ren. Befolgen Sie die beschriebenen Installationsanweisungen. •Halten Sie die für das Errichten und Betreiben geltenden Bestimmungen und Sicherheitsvorschriften (auch nationale Sicherheitsvorschriften) sowie die allgemein anerkannten Regeln der Technik ein. •Beachten Sie die Sicherheitsinformationen, Bedingungen und Einsatzgrenzen in der Produktdokumentati- on. Halten Sie diese ein. •Die Montage und elektrische Installation muss dem Stand der Technik entsprechen. •Öffnen oder Verändern des Geräts, über die Konfiguration der DIP-Schalter hinaus, ist nicht zulässig. Reparieren Sie das Gerät nicht selbst, sondern ersetzen Sie es durch ein gleichwertiges Gerät. Reparatu- ren darf nur der Hersteller vornehmen. Der Hersteller haftet nicht für Schäden aus Zuwiderhandlung. Installation •Das Gerät ist ausschließlich für den Betrieb mit Sicherheitskleinspannung (SELV/PELV) einer "Elektrischen Energiequelle" der Klasse ES1 nach EN/IEC 62368-1 und VDE 0868-1 ausgelegt. Das Gerät darf nur an Geräte angeschlossen werden, die die Bedingungen der Klasse ES1 nach EN/IEC 62368-1 erfüllen. •Dimensionieren und sichern Sie die primär- und sekundärseitige Verdrahtung ausreichend. •Beachten Sie die Spannungsverluste auf der Leitung. Die Geräte können bei Unterspannung nicht mehr funktionieren. •Die Anschlussparameter wie z. B. die erforderlichen Abisolierlängen für die Verdrahtung entnehmen Sie den Installationshinweisen zum jeweiligen feldseitigen Rundsteckverbinder. •Die Parallelschaltung von mehreren Remote-Kopplern ist nicht zulässig. Einsatzort •Das Druckgussgehäuse und die geräteseitigen Rundsteckverbinder erfüllen die Schutzart IP65. •Verschließen Sie ungenutzte Anschlussbuchsen mit Schutzkappen, um die Schutzart IP65 sicherzustellen. •Legen Sie den Einsatzort so aus, dass die Verlustwärme abgeleitet werden kann. Montieren Sie das Druck- gussgehäuse an eine Metallplatte, Kühlkörper oder ähnliches wärmeleitendes Material. •Durch Induktionseffekte an den Energiespulen kann sich das Gerät erhitzen. Halten Sie einen Mindest- abstand zu metallischen Gegenständen von 5 mm ein. In einem Abstand von 300 mm werden die Grenzwerte für die elektrische und magnetische Feldstärke erfüllt. Basierend auf der EU-Ratsempfehlung 1999/519/EG gilt dieser Abstand nach EN 62311 als Basisgrenzwert oder Referenzwert für die Sicherheit von Personen in elektromagnetischen Feldern. Für Personen mit aktiven Körperhilfsmitteln (wie z. B. Herzschrittmacher) gelten unter Umständen weitere (betriebliche) Grenzwerte. 2 Kurzbeschreibung () Die NEARFI-PD-Koppler übertragen kontaktlos Energie (24 V DC, 2 A) und Echtzeit-Ethernet-Daten (100 MBit/s) über einen Luftspalt im Zentimeterbereich. Der Base-Koppler überträgt die Energie zum Remote-Koppler. Die Ethernet-Übertragung erfolgt bidirektional zwischen Base und Remote. 2.1 ETH LINK 2.2 LED-Ring Befolgen Sie diese Anweisungen für einen sicheren und ordnungsgemäßen Gebrauch. Bewahren Sie die Anweisungen zum späteren Nachschlagen auf. Weitere Informationen finden Sie im zugehörigen Datenblatt unter phoenixcontact.net/products. VORSICHT: Heiße Oberfläche Das Gehäuse der Geräte kann heiß werden. Nach dem Abschalten der Versorgungsspannung kann das Gerät weiterhin heiß sein. – Stellen Sie ausreichenden Berührschutz sicher. – Verhindern Sie unbeabsichtigtes Berühren durch mechanische Absperrung oder durch gut sichtbare Warnhinweise. – Wählen Sie den Einsatzort so, dass keine metallischen Gegenstände in den Luftspalt zwischen Base und Remote gelangen können. WARNUNG: Elektromagnetische Felder Bei Montage und Betrieb entstehen um das Gerät herum elektromagnetische Felder. – Halten Sie mindestens 300 mm Abstand von den Geräten. 1Druckgussgehäuse 2LED-Ring 3ETH LINK 4Gehäuseoberteil (Energiespule und Antennen mittig zentriert hinter dem Logo) 5Befestigungsmöglichkeit mit Innengewinde (2x M6, Tiefe = 7 mm) 6Gehäuseunterseite: DIP-Schalter, QR-Code, weitere Befestigungsmöglichkeiten mit Innengewinde (4x M6, Tiefe = 7 mm) 7Befestigungsflansch mit Montagelöchern (Ø = 5,5 mm) 8M12-Rundsteckverbinder für Eingangsspannung (Base-Koppler) oder Ausgangsspannung (Remote- Koppler) 9Funktionserdanschluss mit Innengewinde (1x M4, Tiefe = 5 mm) 10M12-Rundsteckverbinder für Ethernet ETH LINKStatusBeschreibung GelbEinEthernet-Link vorhanden BlinktEthernet-Daten werden übertragen AusKein Ethernet-Link LED-RingStatusBaseRemote GrünEinBase und Remote gekoppelt, Übertragung aktiv BlinktGerät betriebsbereit, keine Übertra- gung, Luftspalt/Versatz zu groß - Remote-Spannungsausgang Über- last/Kurzschluss AusBase nicht betriebsbereit oder aus- geschaltet über Steuereingang (DI PWR_CTRL) Remote nicht gekoppelt RotEinKritischer Fehler, interne Temperatur zu hoch, externe Versorgungsspan- nung gravierend außerhalb des Nennbereichs - Coupleur inductif 1 Consignes de sécurité •L’installation, l’utilisation et la maintenance doivent être confiées à un personnel spécialisé dûment qualifié en électrotechnique. Respecter les instructions d'installation. •Lors de la mise en place et de l'utilisation, respectez les dispositions et les consignes de sécurité en vigueur (normes de sécurité nationales comprises) ainsi que les règles relatives à la technique généralement recon- nues. •Observez les informations relatives à la sécurité, les conditions et limites d'utilisation comprises dans la documentation du produit. Respectez-les. •Le montage et l'installation électrique doivent correspondre à l'état de la technique. •L’ouverture et la modification de l’appareil réalisé…

Text truncated - open the document above for the full version.

CON FIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 March 30,2023 TO WHOM IT MAY CONCERN Pursuant to Paragraphs $0.457 and 0.459 of the Commission's Rules (47 C.F.R.) and Section S552(b) (4) of the Freedom of lnformation Act, we requests confidentiality for the following products: FCC ID YGSPD2AETHR Model name NEARFI PD 2A ETH R For the product stated above, we request that the following information þe held confidential The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. Exhibits Long-Term Confidentialitv Short-Term Confidentialitv Short-Term Confidentialitv Davs External Photos nLJ lnternal Photos L_lft Block Diaqram X n Schematics XLI Test Setup Photos flf] User's Manual f] n Parts List X U Tune Up nLI Ope rational Descriptions X lf you have any questions, please feel free to contact me at the address shown below /¿ ivT l' Sincerely (Signed) Name / Title Company: Address: Phone: Fax: E-Mail: PHOENIX CONTACT Grnbrr e¡t üo. i'tu' Flachsrnarktstr. I D-32825 Blomberg Dinger Florian Phoenix Contact GmbH & Co. KG Flachsmarktstraße8 D-32825B1omberg +49 5235 343748 +49 5235341"41.0 fdinger@ phoenixcontact.com ¿/¿

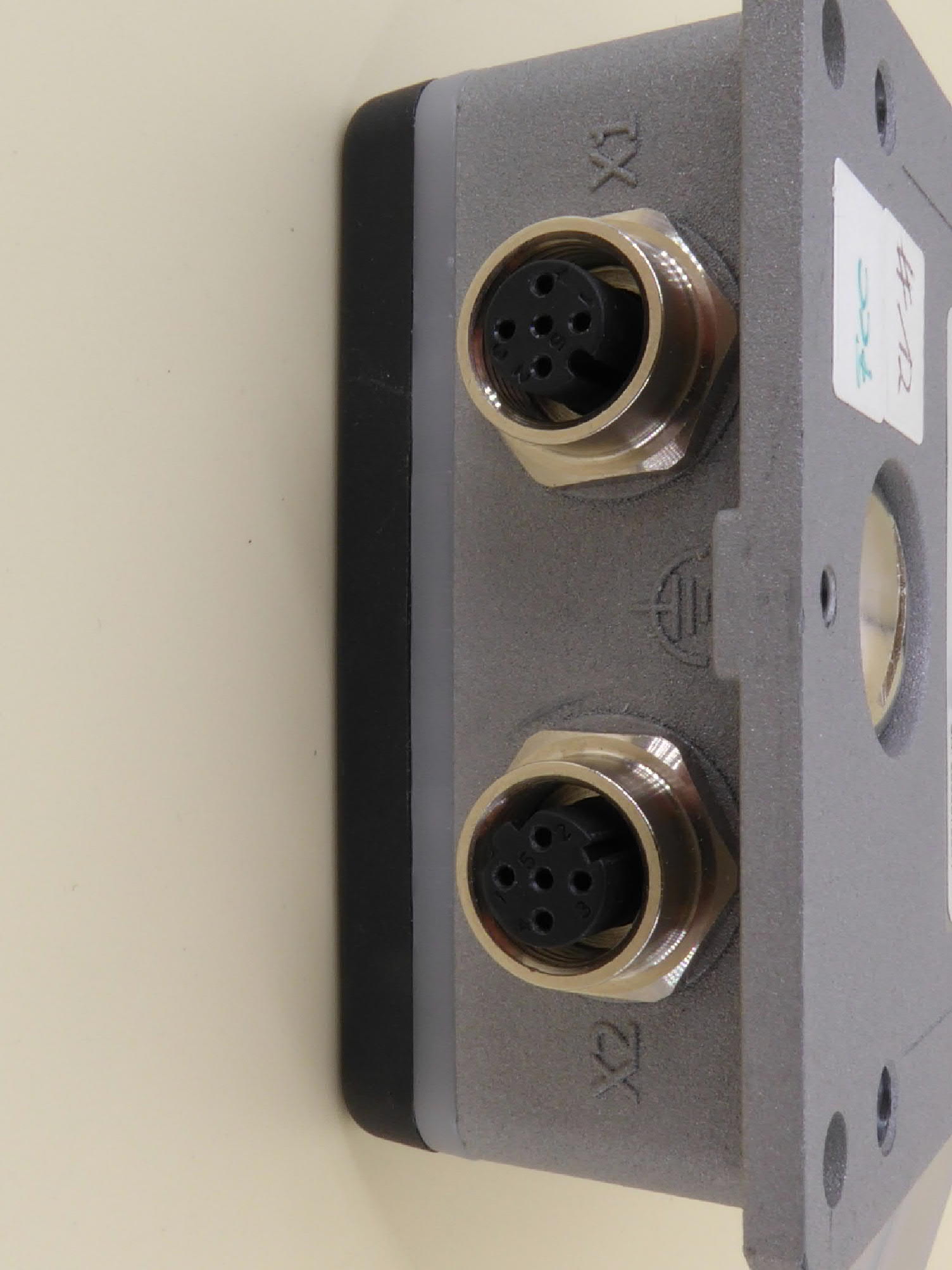

External EUT photos Examiner:Thomas KÜHNRevision:00 Date of issue: 14.12.2022Order Number: 22-110996page 1 of 4 NEARFI PD 2A ETH R, 3-D-view 1 External EUT photos Examiner:Thomas KÜHNRevision:00 Date of issue: 14.12.2022Order Number: 22-110996page 2 of 4 NEARFI PD 2A ETH R, 3-D-view 2 External EUT photos Examiner:Thomas KÜHNRevision:00 Date of issue: 14.12.2022Order Number: 22-110996page 3 of 4 NEARFI PD 2A ETH R, connector view External EUT photos Examiner:Thomas KÜHNRevision:00 Date of issue: 14.12.2022Order Number: 22-110996page 4 of 4 NEARFI PD 2A ETH R, type plate view

12

PHOENIX CONTACT GmbH & Co. KG • Flachsmarktstraße 8 • 32825 Blomberg • Germany1/4 Phone: +49-(0) 5235-3-00 • Fax: +49-(0) 5235-3-4 12 00 • www.phoenixcontact.com 1Internal photos transmitter parts NEARFI P_2A_R 1.1Part for Power transfer feedback 10MHz Energy top RF section of 10 MHz transmitter. PHOENIX CONTACT GmbH & Co. KG • Flachsmarktstraße 8 • 32825 Blomberg • Germany2/4 Phone: +49-(0) 5235-3-00 • Fax: +49-(0) 5235-3-4 12 00 • www.phoenixcontact.com PCB Base bottom RF section of 10 MHz transmitter. PHOENIX CONTACT GmbH & Co. KG • Flachsmarktstraße 8 • 32825 Blomberg • Germany3/4 Phone: +49-(0) 5235-3-00 • Fax: +49-(0) 5235-3-4 12 00 • www.phoenixcontact.com Lid with potting Antenna of 10 MHz transmitter. PHOENIX CONTACT GmbH & Co. KG • Flachsmarktstraße 8 • 32825 Blomberg • Germany4/4 Phone: +49-(0) 5235-3-00 • Fax: +49-(0) 5235-3-4 12 00 • www.phoenixcontact.com 1.2Part for Data transfer Radio Module 60GHz ADMV9621 Antenne Array TX chip

Internal EUT photos Examiner:Thomas KÜHNRevision:00 Date of issue: 14.12.2022Order Number: 22-110996page 1 of 13 NEARFI PD 2A ETH R, internal view 1, housing opened Internal EUT photos Examiner:Thomas KÜHNRevision:00 Date of issue: 14.12.2022Order Number: 22-110996page 2 of 13 NEARFI PD 2A ETH R, internal view 2, shielding removed Internal EUT photos Examiner:Thomas KÜHNRevision:00 Date of issue: 14.12.2022Order Number: 22-110996page 3 of 13 NEARFI PD 2A ETH R, internal view 3, RF-PCB removed Internal EUT photos Examiner:Thomas KÜHNRevision:00 Date of issue: 14.12.2022Order Number: 22-110996page 4 of 13 NEARFI PD 2A ETH R, internal view 4, data PCB removed Internal EUT photos Examiner:Thomas KÜHNRevision:00 Date of issue: 14.12.2022Order Number: 22-110996page 5 of 13 NEARFI PD 2A ETH R, internal view 5, energy PCB removed Internal EUT photos Examiner:Thomas KÜHNRevision:00 Date of issue: 14.12.2022Order Number: 22-110996page 6 of 13 NEARFI PD 2A ETH R,RF-PCB, top view Internal EUT photos Examiner:Thomas KÜHNRevision:00 Date of issue: 14.12.2022Order Number: 22-110996page 7 of 13 NEARFI PD 2A ETH R,RF-PCB, bottom view Internal EUT photos Examiner:Thomas KÜHNRevision:00 Date of issue: 14.12.2022Order Number: 22-110996page 8 of 13 NEARFI PD 2A ETH R,data PCB, top view Internal EUT photos Examiner:Thomas KÜHNRevision:00 Date of issue: 14.12.2022Order Number: 22-110996page 9 of 13 NEARFI PD 2A ETH R,data PCB, bottom view Internal EUT photos Examiner:Thomas KÜHNRevision:00 Date of issue: 14.12.2022Order Number: 22-110996page 10 of 13 NEARFI PD 2A ETH R, energy PCB, top view Internal EUT photos Examiner:Thomas KÜHNRevision:00 Date of issue: 14.12.2022Order Number: 22-110996page 11 of 13 NEARFI PD 2A ETH R, energy PCB, bottom view Internal EUT photos Examiner:Thomas KÜHNRevision:00 Date of issue: 14.12.2022Order Number: 22-110996page 12 of 13 NEARFI PD 2A ETH R,interface PCB, top view Internal EUT photos Examiner:Thomas KÜHNRevision:00 Date of issue: 14.12.2022Order Number: 22-110996page 13 of 13 NEARFI PD 2A ETH R,interface PCB, bottom view

Königswinkel 10 32825 Blomberg, Germany Phone: +49 (0) 52 35 / 95 00-0 Fax: +49 (0) 52 35 / 95 00-10 [email protected] www.phoenix-testlab.de Test Report Report Number: F220996E3 Equipment under Test (EUT): NEARFI PD 2A ETH R Applicant: PHOENIX CONTACT Electronics GmbH Manufacturer: PHOENIX CONTACT GmbH & Co.KG Examiner: Thomas KÜHN Report Number: F220996E3 Date of Issue: 15.08.2024 Order Number: 22-110996 Page 2 of 20 References [1] CFR 47 Rule part 1 Practice and Procedure [2] CFR 47 Rule part 2 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations [3] KDB 447498 D04 Interim General RF Exposure Guidance v01 Test Result The requirements of the tests performed as shown in the results (clause 3) were fulfilled by the equipment under test. The complete test results are presented in the following. “Passed” indicates that the equipment under test conforms with the relevant limits of the testing standard without taking any measurement uncertainty into account. However, the measurement uncertainty is calculated and shown in this test report. T h i s t e s t r e p o r t i s o n l y v a l i d i n i t s o r i g i n a l f o r m. Any reproduction of its contents in extracts without written permission of the accredited test laboratory PHOENIX TESTLAB GmbH is prohibited. The test results herein refer only to the tested sample. PHOENIX TESTLAB GmbH is not responsible for any generalisations or conclusions drawn from these test results concerning further samples. Any modification of the tested samples is prohibited and leads to the invalidity of this test report. Each page necessarily contains the PHOENIX TESTLAB Logo and the TEST REPORT NUMBER. Tested and written by: Signature Reviewed and approved by: Signature Examiner: Thomas KÜHN Report Number: F220996E3 Date of Issue: 15.08.2024 Order Number: 22-110996 Page 3 of 20 Contents: Page Identification ................................................................................................................................. 4 1.1 Applicant ................................................................................................................................................... 4 1.2 Manufacturer ............................................................................................................................................ 4 1.3 Test Laboratory ........................................................................................................................................ 4 1.4 EUT (Equipment under Test) ................................................................................................................... 5 1.5 Technical data of equipment .................................................................................................................... 5 1.6 Dates ........................................................................................................................................................ 6 Evaluation method ........................................................................................................................ 7 2.1 RF exposure test exemptions for single sources ..................................................................................... 7 2.1.1 General Exemption CFR 47 §1.1307(b)(3)(i)(A) ............................................................................. 7 2.1.2 SAR Based Exemption CFR 47 §1.1307(b)(3)(i)(B) ........................................................................ 7 2.1.3 MPE Based Exemption CFR 47 §1.1307(b)(3)(i)(C) ....................................................................... 7 2.1.4 Stand alone MPE evaluation limits .................................................................................................. 8 2.2 RF exposure test exemptions for simultaneous transmission sources .................................................... 9 2.2.1 1 mW Test Exemption for simultaneous transmission sources ....................................................... 9 2.2.2 Simultaneous transmission SAR based and MPE based test exemptions ..................................... 9 2.2.3 Test exemption based on the SAR to Peak Location Separation Ratio ........................................ 10 Results of evaluation ................................................................................................................... 11 3.1 Used evaluation methods ....................................................................................................................... 11 3.2 Evaluation Distance ................................................................................................................................ 11 3.3 Measurement of E field strength from the source without client ............................................................ 12 3.4 Measurement of H field strength from the source without client ............................................................ 13 3.5 Measurement of E field strength from the source with client at minimum distance ............................... 14 3.6 Measurement of H field strength from source with client at minimum distance ..................................... 15 3.7 Measurement of E field strength from source with client at maximum distance .................................... 16 3.8 Measurement of H field strength from the source with client at maximum distance .............................. 17 Conclusion .................................................................................................................................. 18 Test Equipment used for Tests ................................................................................................... 20 Measurement uncertainties ......................................................................................................... 20 Report History ..........................................................................................................................…

Text truncated - open the document above for the full version.

PHOENIX CONTACT GmbH & Co. KG • Flachsmarktstraße 8 • 32825 Blomberg • Germany1/4 Phone: +49-(0) 5235-3-00 • Fax: +49-(0) 5235-3-4 12 00 • www.phoenixcontact.com 1Information on internal antennas NEARFI PD 2A ETH R 1.1Part for Power transfer 1.1.110MHz Feedback channel Lid with potting Antenna of 10 MHz PHOENIX CONTACT GmbH & Co. KG • Flachsmarktstraße 8 • 32825 Blomberg • Germany2/4 Phone: +49-(0) 5235-3-00 • Fax: +49-(0) 5235-3-4 12 00 • www.phoenixcontact.com Lid without potting PCB 10MHz Antenna Antenna 10 MHz PHOENIX CONTACT GmbH & Co. KG • Flachsmarktstraße 8 • 32825 Blomberg • Germany3/4 Phone: +49-(0) 5235-3-00 • Fax: +49-(0) 5235-3-4 12 00 • www.phoenixcontact.com 1.2Part for Data transfer Radio Module 60GHz ADMV9621 Antenne Array PHOENIX CONTACT GmbH & Co. KG • Flachsmarktstraße 8 • 32825 Blomberg • Germany4/4 Phone: +49-(0) 5235-3-00 • Fax: +49-(0) 5235-3-4 12 00 • www.phoenixcontact.com

Königswinkel 10 32825 Blomberg, Germany Phone: +49 (0) 52 35 / 95 00-0 Fax: +49 (0) 52 35 / 95 00-10 [email protected] www.phoenix-testlab.de Test Report Report Number: F220996E2 Equipment under Test (EUT): NEARFI PD 2A ETH R Applicant: PHOENIX CONTACT Electronics GmbH Manufacturer: PHOENIX CONTACT GmbH & Co.KG Examiner: Wolfgang KASALOWSKY Report Number: F220996E2 Date of Issue: 15.08.2024 Order Number: 22-110996 Page 2 of 21 References [1] ANSI C63.10: 2013 American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices [2] FCC CFR 47 Part 15 Radio Frequency Devices [3] RSS-210 Issue 11, June 2024, Licence-Exempt Radio Apparatus: Category I Equipment [4] RSS-Gen Issue 5, February 2021 Amendment 2, General Requirements for Compliance of Radio Apparatus Test Result The requirements of the tests performed as shown in the overview (clause 4) were fulfilled by the equipment under test. The complete test results are presented in the following. “Passed” indicates that the equipment under test conforms with the relevant limits of the testing standard without taking any measurement uncertainty into account as stated in clause 1.4 of ANSI C63.10 (2020). However, the measurement uncertainty is calculated and shown in this test report. T h i s t e s t r e p o r t i s o n l y v a l i d i n i t s o r i g i n a l f o r m. Any reproduction of its contents in extracts without written permission of the accredited test laboratory PHOENIX TESTLAB GmbH is prohibited. The test results herein refer only to the tested sample. PHOENIX TESTLAB GmbH is not responsible for any generalisations or conclusions drawn from these test results concerning further samples. Any modification of the tested samples is prohibited and leads to the invalidity of this test report. Each page necessarily contains the PHOENIX TESTLAB Logo and the TEST REPORT NUMBER. Tested and written by: Signature Reviewed and approved by: Signature Examiner: Wolfgang KASALOWSKY Report Number: F220996E2 Date of Issue: 15.08.2024 Order Number: 22-110996 Page 3 of 21 Contents: Page Identification ................................................................................................................................. 4 1.1 Applicant .................................................................................................................................................... 4 1.2 Manufacturer ............................................................................................................................................. 4 1.3 Test Laboratory ......................................................................................................................................... 4 1.4 EUT (Equipment under Test) .................................................................................................................... 5 1.5 Technical Data of Equipment .................................................................................................................... 6 1.6 Dates ......................................................................................................................................................... 6 Operational States ........................................................................................................................ 7 Additional Information ................................................................................................................... 7 Overview ....................................................................................................................................... 8 Results.......................................................................................................................................... 9 5.1 Test setups ................................................................................................................................................ 9 5.1.1 Radiated: Test fixture ....................................................................................................................... 9 5.1.2 Radiated: 9 kHz to 30 MHz ............................................................................................................... 9 5.1.2.1 Preliminary measurement 9 kHz to 30 MHz ............................................................................ 9 5.1.2.2 Final measurement 9 kHz to 30 MHz .................................................................................... 11 5.1.3 Radiated: 30 MHz to 1 GHz ............................................................................................................ 12 5.1.3.1 Preliminary and final measurement 30 MHz to 1 GHz .......................................................... 12 5.2 99 % bandwidth ....................................................................................................................................... 14 5.2.1 Test setup (99 % bandwidth) .......................................................................................................... 14 5.2.2 Test method (99 % bandwidth) ....................................................................................................... 14 5.2.3 Test results (99 % bandwidth) ........................................................................................................ 14 5.3 Radiated emissions ................................................................................................................................. 15 5.3.1 Test setup (Maximum unwanted emissions) .................................................................................. 15 5.3.2 Test method (Maximum unwanted emissions) ............................................................................... 15 5.3.3 Test results (Maximum unwanted emissions) ................................................................................ 15 5.3.3.1 Test results preliminary measurement 9 kHz to 30 MHz ..............…
