YG7-WPL2N00WIFI N MODULE

1 Wireless LAN Device Series Wifi N module WPL-2N00 User’s Manual Version. 1 (2010.8.26) 2 Notice FCC Warning Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions： (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures： Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC RF Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with 3 any other antenna or transmitter. Shielded interface cables must be used in order to comply with emission limits. CE Statement ZINWELL, hereby declares that this device is in compliance with the essential requirement and other relevant provisions of the R&TTE Directive 1999/5/EC. This device will be sold in the following EEA countries：Austria, Italy, Belgium, Liechtenstein, Denmark, Luxembourg, Finland, Netherlands, France, Norway, Germany, Portugal, Greece, Spain, Iceland, Sweden, Ireland, United Kingdom, Cyprus, Czech Republic, Estonia, Hungary, Latvia, Lithuania, Malta, Slovakia, Poland, Slovenia, Bulgaria, Romania. 4 Preface This guide is for the experienced user who installs and manages the Zinwell WiFi N MODULE product hereafter referred to as the “device”. To use this guide, you should have experience working with the TCP/IP configuration and be familiar with the concepts and terminology of wireless local area networks. 5 TABLE OF CONTENTS NOTICE ............................................................................................................................................................... 2 PREFACE ............................................................................................................................................................ 4 CH 1. WIFI N MODULE INSTALLATION ........................................................................................................... 7 CONNECTORS................................................................................................................................................. 7 CH 2. FIRST TIME CONFIGURATION ............................................................................................................... 9 BEFORE START TO CONFIGURE........................................................................................................................ 9 KNOWING THE NETWORK APPLICATION............................................................................................................. 9 CH 3. DETAIL CONFIGURATION..................................................................................................................... 11 SETUP WIZARD...............................................................................................................................................11 OPERATION MODE......................................................................................................................................... 12 TCP/IP SETTINGS......................................................................................................................................... 13 Configuring LAN Interface ...................................................................................13 WIRELESS SETTINGS..................................................................................................................................... 14 AP mode..............................................................................................................14 Basic....................................................................................................................14 Advanced ............................................................................................................17 Security ...............................................................................................................19 WPS ....................................................................................................................22 Site Survey......................................................................................................…

Text truncated - open the document above for the full version.

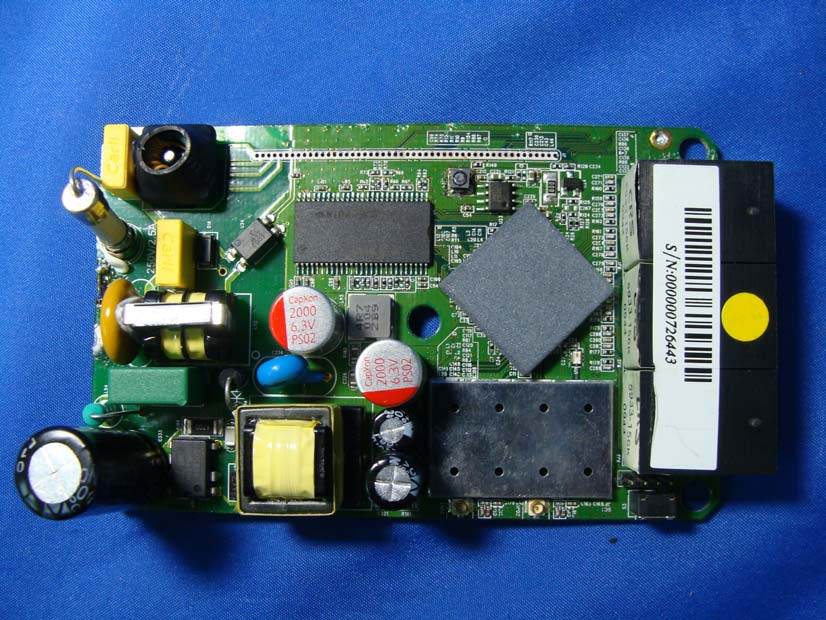

Report No.: 107241R-RFUSP42V01 Page : 1 of 6 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

ZINWELL CORPORATION FCC ID.: YG7-WPL2N00 7F 512,Yuan Shan Road,Chung Ho City,Taipei Hsien 235, Taiwan.Tel : 886-2-22251929 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

ZINWELL CORPORATION FCC ID.: YG7-WPL2N00 7F 512,Yuan Shan Road,Chung Ho City,Taipei Hsien 235, Taiwan.Tel : 886-2-22251929 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 107241R-RFUSP42V01 Page : 2 of 6 (3) EUT Photo (4) EUT Photo Report No.: 107241R-RFUSP42V01 Page : 3 of 6 (5) EUT Photo (6) EUT Photo Report No.: 107241R-RFUSP42V01 Page : 4 of 6 (7) EUT Photo (8) EUT Photo Report No.: 107241R-RFUSP42V01 Page : 5 of 6 (9) EUT Photo (10) EUT Photo Report No.: 107241R-RFUSP42V01 Page : 6 of 6 (11) EUT Photo (12) EUT Photo

Report No. 107241R-RFUSP42V01 Page : 7 of 96 1.2. Operational Description The EUT is a Wifi N module with 11 channels. This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps and the device of RF carrier is DBPSK, DQPSK and CCK (IEEE 802.11b). The device provided of eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11g). The device provided of eight kinds of transmitting speed 14.4,28.8,43.4,57.8,86.6,115.6,130 and 144.4Mbps in 802.11n(20M-BW) mode and 30,60,90,120,180,240,270 and 300 Mbps(40M-BW) the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11n), The IEEE 802.11n is Multiple In, Multiple Out” (MIMO) technology and two antennas to support 2(Transmit) * 2(Receive) MIMO technology. This Wifi N module, compliant with IEEE 802.11b and IEEE 802.11g/n, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) radio transmission, the Wifi N module Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11g/n network.

Report No. 107241R-RFUSP42V01 Page: 1 of 4 Version: 1.0 RF Exposure Evaluation declaration Product Name : Wifi N module Model No. : WPL-2N00 FCC ID : YG7-WPL2N00 Applicant : ZINWELL CORPORATION Address : 7F 512,Yuan Shan Road,Chung Ho City,Taipei Hsien 235, Taiwan Date of Receipt : July. 15, 2010 Date of Declaration : Aug. 04, 2010 Report No. : 107241R-RFUSP42V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 107241R-RFUSP42V01 Page: 2 of 4 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 107241R-RFUSP42V01 Page: 3 of 4 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : Wifi N module Test Item : RF Exposure Evaluation Test Site : No.3 OATS Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi in logarithm scale. 802.11b Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 83.5603 0.026347 6 2437.00 80.7235 0.025453 11 2462.00 82.7942 0.026105 802.11g Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 116.9499 0.036875 6 2437.00 155.5966 0.049060 11 2462.00 129.7179 0.040901 802.11n-20MHz Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 305.4921 0.096323 6 2437.00 226.9865 0.071570 11 2462.00 185.3532 0.058443 Report No. 107241R-RFUSP42V01 Page: 4 of 4 Version: 1.0 802.11n-40MHz Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2422.00 246.6039 0.077755 4 2437.00 226.9865 0.071570 7 2452.00 198.6095 0.062623 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement.

Report No. 107241R-RFUSP42V01 Page : 1 of 96 Test Report Product Name Wifi N module Model No WPL-2N00 FCC ID. YG7-WPL2N00 Applicant ZINWELL CORPORATION Address 7F 512,Yuan Shan Road,Chung Ho City,Taipei Hsien 235, Taiwan Date of Receipt July 15, 2010 Issue Date Aug. 04, 2010 Report No. 107241R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 107241R-RFUSP42V01 Page : 2 of 96 Test Report Certification Issue Date: Aug. 04, 2010 Report No.: 107241R-RFUSP42V01 Product Name Wifi N module Applicant ZINWELL CORPORATION Address 7F 512,Yuan Shan Road,Chung Ho City,Taipei Hsien 235, Taiwan Manufacturer ZINWELL CORPORATION Model No. WPL-2N00 EUT Rated Voltage AC 100V-240V~, 50-60Hz, 0.13A, 8.0W EUT Testing Voltage AC 120V/60Hz Trade Name Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2009 ANSI C63.4: 2003 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Genie Chang ) Tested By : (Engineer / Eason Hung ) Approved By : ( Manager / Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 107241R-RFUSP42V01 Page : 3 of 96 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................9 1.5. EUT Exercise Software .................................................................................................................9 1.6. Test Facility .................................................................................................................................10 2. Conducted Emission.................................................................................................................. 11 2.1. Test Equipment............................................................................................................................11 2.2. Test Setup ....................................................................................................................................11 2.3. Limits ..........................................................................................................................................12 2.4. Test Procedure .............................................................................................................................12 2.5. Uncertainty ..................................................................................................................................12 2.6. Test Result of Conducted Emission.............................................................................................13 3. Peak Power Output ...................................................................................................................15 3.1. Test Equipment............................................................................................................................15 3.2. Test Setup ....................................................................................................................................15 3.3. Limits ..........................................................................................................................................15 3.4. Test Procedure .............................................................................................................................15 3.5. Uncertainty ..................................................................................................................................15 3.6. Test Result of Peak Power Output...............................................................................................16 4. Radiated Emission .....................................................................................................................20 4.1. Test Equipment............................................................................................................................20 4.2. Test Setup ....................................................................................................................................21 4.3. Limits ..........................................................................................................................................22 4.4. Test Procedure .............................................................................................................................23 4.5. Uncertainty ..................................................................................................................................23 4.6. Test Result of Radiated Emission................................................................................................24 5. RF antenna conducted test........................................................................................................40 5.1. Test Equipment............................................................................................................................40 5.2. Test Setup ............................…

Text truncated - open the document above for the full version.

Report No. 107241R-RFUSP42V01 Page: 66 of 98 Peak Detector of conducted Band Edge Delta Average Detector of conducted Band Edge Delta Report No. 107241R-RFUSP42V01 Page: 67 of 98 Product : Wifi N module Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n 180Mbps 40M-BW) Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2452 31.868 66.04 97.907 Peak Horizontal 2452 31.868 58.22 90.087 Average Vertical 2452 30.433 66.92 97.352 Peak Vertical 2452 30.433 58.97 89.402 Average Note: 1:Spectrum Analyzer setting: Peak detector: RBW=1MHz, VBW=1MHz Average detector: RBW=1MHz, VBW=10Hz Band Edge Test Data Antenna Pole Test Frequency (MHz) Fundamental (dBuV/m) Δ (dB) Band Edge Field Strength (dBuV/m) Detector Horizontal 2484.5 97.907 38.521 59.386 Peak Horizontal 2485.8 90.087 46.183 43.904 Average Vertical 2484.5 97.352 38.521 58.831 Peak Vertical 2485.8 89.402 46.183 43.219 Average Note: The Band Edge Field Strength was calculated using the Fundamental and Conducted Band Edge measurements per the Marker-Delta Method with the following formula: Band Edge field Strength = F - Δ F = Fundamental field Strength (Peak or Average) Δ = Conducted Band Edge Delta (Peak or Average) Report No. 107241R-RFUSP42V01 Page: 68 of 98 Peak Detector of conducted Band Edge Delta Average Detector of conducted Band Edge Delta Report No. 107241R-RFUSP42V01 Page: 69 of 98 7. Occupied Bandwidth 7.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2010 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2010 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2010 X 8-WAY Power Divider JFW 50PD-647 / 526770 0916 Apr., 2010 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 3. The power combiner is used for measure 11n mode. 7.2. Test Setup 7.3. Limits The minimum bandwidth shall be at least 500 kHz. 7.4. Test Procedure The EUT was setup according to ANSI C63.4, 2003; tested according to DTS test procedure of Mar. 2005 KDB558074 for compliance to FCC 47CFR 15.247 requirements. Set RBW = 100 kHz, Span greater than RBW. 7.5. Uncertainty ± 150Hz 8-WAY Power Divider EUT Spectrum Analyzer RF Cable Report No. 107241R-RFUSP42V01 Page: 70 of 98 7.6. Test Result of Occupied Bandwidth Product : Wifi N module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 11Mbps) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412.00 11300 >500 Pass Figure Channel 1: Report No. 107241R-RFUSP42V01 Page: 71 of 98 Product : Wifi N module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 11Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437.00 10500 >500 Pass Figure Channel 6: Report No. 107241R-RFUSP42V01 Page: 72 of 98 Product : Wifi N module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 11Mbps) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462.00 10450 >500 Pass Figure Channel 11: Report No. 107241R-RFUSP42V01 Page: 73 of 98 Product : Wifi N module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 48Mbps) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412.00 16450 >500 Pass Figure Channel 1: Report No. 107241R-RFUSP42V01 Page: 74 of 98 Product : Wifi N module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 48Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437.00 16450 >500 Pass Figure Channel 6: Report No. 107241R-RFUSP42V01 Page: 75 of 98 Product : Wifi N module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 48Mbps) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462.00 16500 >500 Pass Figure Channel 11: Report No. 107241R-RFUSP42V01 Page: 76 of 98 Product : Wifi N module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n 144.4Mbps 20M-BW) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412.00 17600 >500 Pass Figure Channel 1: Report No. 107241R-RFUSP42V01 Page: 77 of 98 Product : Wifi N module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n 144.4Mbps 20M-BW) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437.00 17200 >500 Pass Figure Channel 6: Report No. 107241R-RFUSP42V01 Page: 78 of 98 Product : Wifi N module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n 144.4Mbps 20M-BW) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462.00 17350 >500 Pass Figure Channel 11: Report No. 107241R-RFUSP42V01 Page: 79 of 98 Product : Wifi N module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n 180Mbps 40M-BW) (2422MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2422.00 35850 >500 Pass Figure Channel 1: Report No. 107241R-RFUSP42V01 Page: 80 of 98 Product : Wifi N module Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n 180Mbps 40M-BW) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 4 2437.00 35250 >500 Pass Figure Channel 4: Report No. 107241R-RFUSP42V01 Page: 81 of 98 Product : Wifi N module Te…

Text truncated - open the document above for the full version.

Report No.: 107241R-RFUSP42V01 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 107241R-RFUSP42V01 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 107241R-RFUSP42V01 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
