YG7ZIN2100TPC to TV Transmission Kit

Safety Instructions This product has been engineered and manufactured to assure your personal safety. However, improper use can result in potential electric shock or fire hazards. In order not to defeat the safe-guards incorporated in this instrument and its accessories, please adhere to the following instructions when installing, operating and servicing. Power Source Warning  A marking label attached on the rear side of the adapter (supplied) indicates the correct power source for this equipment. Operate this product only from an electrical outlet with the voltage and frequency indicated on the product label. Incorrect power source may result in a risk of electric shock or fire. If you are uncertain of the type of power supplied to your home, consult your local power company or appliance dealer.  Only use the power cord and adapter provided by the manufacturer. Internal component may be damaged if you use a different adapter to power this product. To avoid electric shock and fire hazard, match the plug and outlet connections carefully, then fully insert. If the plug fails to fit the outlet, please contact an electrician to update your power outlets.  Do not overload electrical outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. And to prevent power cord damage, arrange all power cords so that people cannot walk on the cords. Do not place objects on the cords.  Place this product in a location that is close enough to an electrical outlet and where the power cord is easily accessible to be disconnected from the wall outlet. Usage Warning  To reduce the risk of electric shock, do not remove the cover or attempt to disassemble this product. There are no user-serviceable parts inside. Please refer all servicing to qualified service personnel.  Protect this product from foreign objects. Never push object of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.  Do not expose this product to liquids, rain or moisture.  This product has ventilation openings that protect it from overheating. Never block or cover these openings. And do not place this product near heat sources such as radiators, heat registers, stoves or other products producing heat.  Before cleaning or wiping this product, make sure your power cord is already unplugged from the electrical outlet. Only use damp cloth to clean this product, and never use a liquid cleaner or an aerosol cleaner.  During a thunderstorm, or when this product is unused for long periods of time, unplug power cord from the wall outlet. This will prevent damage to the product due to lightning and power-line surges. Service Warning  Refer all servicing to qualified service personnel. For damage that requires service, please unplug your power cord from the AC outlet first, and contact your dealer or servicing personnel to obtain service for the following conditions.  If there is damage to the adapter, power cord or plug.  If liquid enters this product.  If you drop this product, a heavy object falls on this product, or damage occurs to the cover of this product.  If you expose this product to rain or water.  If this product does not operate normally by following the operating instructions.  If this product exhibits a distinct change in performance. Caution Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. For ZIN-2100R FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. RF exposure warning · This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Canada, Industry Canada (IC) Notices This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Radio Frequency (RF) Exposure Information The radi…

Text truncated - open the document above for the full version.

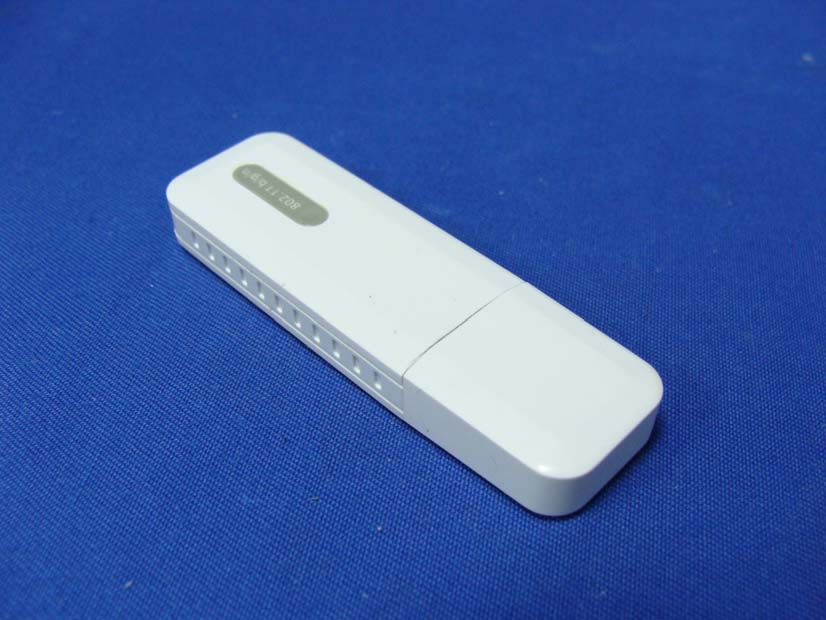

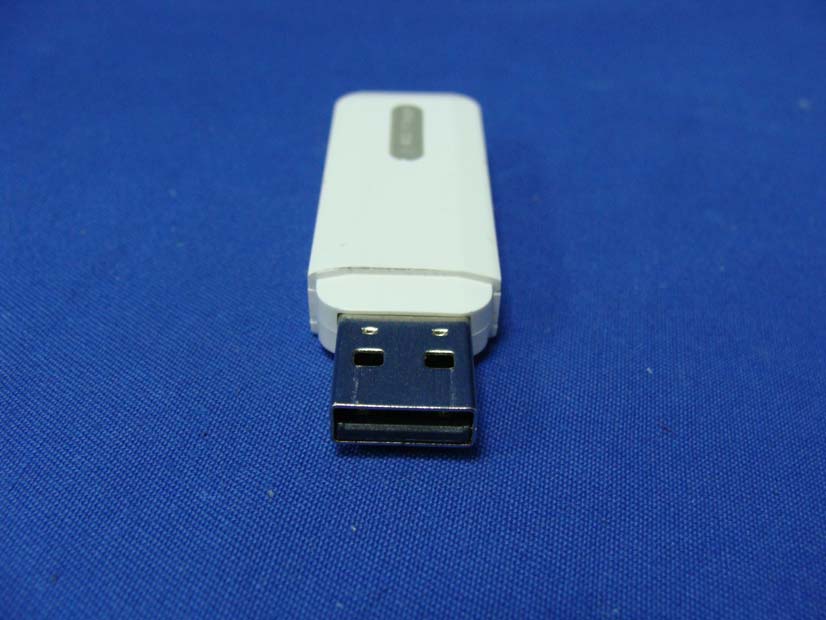

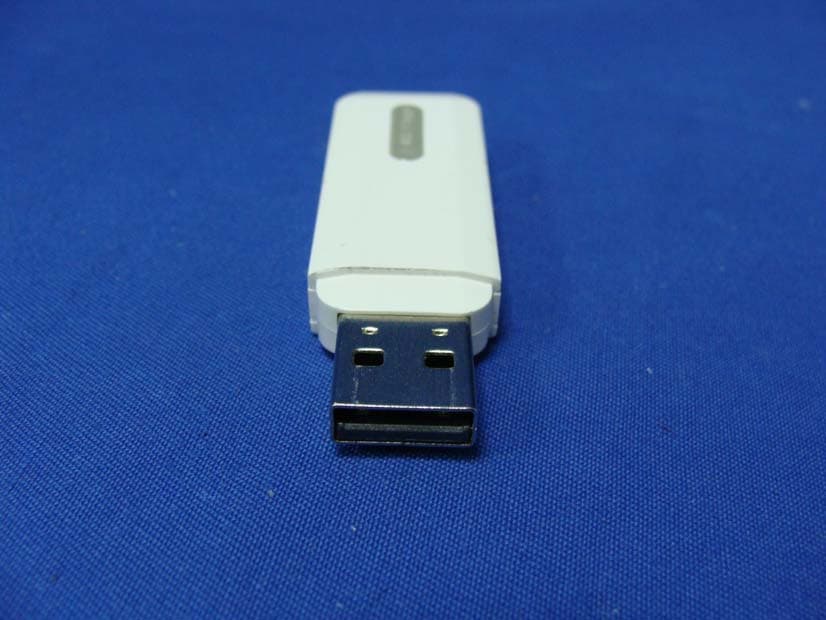

Report No.: 117086R-RFUSP28V01 Page : 1 of 2 ٛٛ Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 117086R-RFUSP28V01 Page : 2 of 2 ٛٛ (3) EUT Photo

ZINWELL Corporation FCC ID.: YG7ZIN2100T 7F 512, Yuan Shan Road, Zhonghe Dist, New Taipei City 235, Taiwan.Tel : 886-2-22251929 FCC ID Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.

Report No.: 117086R-RFUSP28V01 Page : 1 of 3 ٛٛ (1) EUT Photo (2) EUT Photo Report No.: 117086R-RFUSP28V01 Page : 2 of 3 ٛٛ (3) EUT Photo (4) EUT Photo Report No.: 117086R-RFUSP28V01 Page : 3 of 3 ٛٛ (5) EUT Photo (6) EUT Photo

Report No. 117086R-RFUSP28V01 Page : 7 of 109 ٛٛ 1.2. Operational Description The EUT is a PC to TV Transmitter, This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps and the device of RF carrier is DBPSK, DQPSK and CCK (IEEE 802.11b). The device provided of eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11g). The device provided of eight kinds of transmitting speed 7.2,14.4,21.7,28.9,43.3,57.8,65 and 72.2Mbps in 802.11n(20M-BW) mode and 15,30,45,60,90,120,135 and 150Mbps(40M-BW) the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11n), The IEEE 802.11n is Single In, Single Out” (SISO) technology and one antennas to support 1(Transmit) * 1(Receive) SISO technology. This PC to TV Transmitter, compliant with IEEE 802.11b and IEEE 802.11g/n, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) radio transmission, the PC to TV Transmitter Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11g/n network. Mode 1: Transmit (802.11b 1Mbps) Mode 2: Transmit (802.11g 6Mbps) Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) Test Mode: Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW)

Report No：117086R-HPUSP09V01 Page: 1 of 24 SAR Test Report Product Name ：PC to TV Transmitter Model No. ：ZIN-2100T, BV-2100T Applicant ：ZINWELL Corporation Address ：7F 512, Yuan Shan Road, Zhonghe Dist, New Taipei City 235, Taiwan Date of Receipt ：2011/07/01 Issued Date ：2011/07/15 Report No. ：117086R-HPUSP09V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：117086R-HPUSP09V01 Page: 2 of 24 Test Report Certification Issued Date: 2011/07/15 Report No.:117086R-HPUSP09V01 Product Name ： PC to TV Transmitter Applicant ： ZINWELL Corporation Address ： 7F 512, Yuan Shan Road, Zhonghe Dist, New Taipei City 235, Taiwan Manufacturer ： ZINWELL Corporation Model No. ： ZIN-2100T, BV-2100T Trade Name ： ZINWELL, BritE- ViEw FCC ID ： YG7ZIN2100T Applicable Standard ： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Measurement procedures ： KDB 447498 , KDB 248227 Test Result ： Max. SAR Measurement (1g) 0.624 W/kg Application Type ： Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. DoCumented By ： (Adm. Assistant / April Chen ) Tested By ： (Engineer / Wen Lee) Approved By ： (Manager / Vincent Lin) Report No：117086R-HPUSP09V01 Page: 3 of 24 TABLE OF CONTENTS Description Page 1. General Information.......................................................................................5 1.1 EUT Description ............................................................................................................5 1.2 Antenna List ................................................................................................................... 5 1.3 Test Environment ...........................................................................................................6 2. SAR Measurement System..........................................................................7 2.1 DASY5 System Description .......................................................................................... 7 2.1.1 Applications ................................................................................................................ 8 2.1.2 Area Scans................................................................................................................... 8 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 8 2.1.4 Uncertainty of Inter-/Extrapolation and Averaging .................................................... 8 2.2 DASY5 E-Field Probe ................................................................................................... 9 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ............................................... 10 2.4 DATA Acquisition Electronics (DAE) and Measurement Server ............................... 10 2.5 Robot ............................................................................................................................ 11 2.6 Light Beam Unit........................................................................................................... 11 2.7 Device Holder ..............................................................................................................12 2.8 SAM Twin Phantom .................................................................................................... 12 3. Tissue Simulating Liquid...........................................................................13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 14 4. SAR Measurement Procedure..................................................................15 4.1 SAR System Validation................................................................................................ 15 4.1.1 Validation Dipoles..................................................................................................... 15 4.1.2 Validation Result ....................................................................................................... 15 4.2 SAR Measurement Procedure ...................................................................................... 16 5. SAR Exposure Limits..................................................................................17 6. Test Equipment List.....................................................................................18 7. Measurement Uncertainty..........................................................................21 8. Average Conducted Power Measurement............................................22 9. Test Results....................................................................................................23 9.1 SAR Test Results Summary ......................................................................................... 23 Report No：117086R-HPUSP09V01 Page: 4 of 24 Appendix ............................................................................................................................ 24 Appendix A. SAR System Validation Data Appendix B. SAR measurement Data Appendix C. Test Setup Photographs & EUT Photographs Appendix D. Probe Calibration Data Appendix E. Dipole Calibration Data Report No：117086R-HPUSP09V01 Page: 5 of 24 1. General Information 1.1 EUT Description Product Name PC to TV Transmitter Trade Name ZINWELL, BritE- ViEw Model No. ZIN-2100T, BV-2100T FCC ID YG7ZIN2100T TX Frequency 2412MHz ~ 2462MHz Antenna Type Printed on PCB Number of…

Text truncated - open the document above for the full version.

Report No. 117086R-RFUSP28V01 Page : 1 of 109 ٛٛ Test Report Product Name PC to TV Transmitter Model No ZIN-2100T, BV-2100T FCC ID. YG7ZIN2100T Applicant ZINWELL Corporation Address 7F 512, Yuan Shan Road, Zhonghe Dist, New Taipei City 235, Taiwan Date of Receipt Jul. 01, 2011 Issue Date Sep. 08, 2011 Report No. 117086R-RFUSP28V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 117086R-RFUSP28V01 Page : 2 of 109 ٛٛ Test Report Certification Issue Date: Sep. 08, 2011 Report No.: 117086R-RFUSP28V01 Product Name PC to TV Transmitter Applicant ZINWELL Corporation Address 7F 512, Yuan Shan Road, Zhonghe Dist, New Taipei City 235, Taiwan Manufacturer ZINWELL Corporation Model No. ZIN-2100T, BV-2100T FCC ID. YG7ZIN2100T EUT Rated Voltage DC 5V / 0.5A EUT Test Voltage AC 120V/60Hz Trade Name , Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2010 ANSI C63.4: 2009 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Adm. Specialist / Joanne Lin ) Tested By : ( Assistant Engineer / Jack Hsu ) Approved By : ( Manager / Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 117086R-RFUSP28V01 Page : 3 of 109 ٛٛ TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................9 1.6. Test Facility .................................................................................................................................10 2. Conducted Emission.................................................................................................................. 11 2.1. Test Equipment............................................................................................................................11 2.2. Test Setup ....................................................................................................................................11 2.3. Limits ..........................................................................................................................................12 2.4. Test Procedure .............................................................................................................................12 2.5. Uncertainty ..................................................................................................................................12 2.6. Test Result of Conducted Emission.............................................................................................13 3. Peak Power Output ...................................................................................................................15 3.1. Test Equipment............................................................................................................................15 3.2. Test Setup ....................................................................................................................................15 3.3. Limits ..........................................................................................................................................15 3.4. Test Procedure .............................................................................................................................15 3.5. Uncertainty ..................................................................................................................................15 3.6. Test Result of Peak Power Output...............................................................................................16 4. Radiated Emission .....................................................................................................................20 4.1. Test Equipment............................................................................................................................20 4.2. Test Setup ....................................................................................................................................21 4.3. Limits ..........................................................................................................................................22 4.4. Test Procedure .............................................................................................................................23 4.5. Uncertainty ..................................................................................................................................23 4.6. Test Result of Radiated Emission................................................................................................24 5. RF antenna conducted test........................................................................................................40 5.1. Test Equipment....................................................................................................................…

Text truncated - open the document above for the full version.

Report No. 117086R-RFUSP28V01 Page: 57 of 109 ٛٛ Product : PC to TV Transmitter [u17] Test Item : RF Antenna Conducted Spurious Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) Channel 01 (2422MHz) Report No. 117086R-RFUSP28V01 Page: 58 of 109 ٛٛ Report No. 117086R-RFUSP28V01 Page: 59 of 109 ٛٛ Channel 04 (2437MHz) Report No. 117086R-RFUSP28V01 Page: 60 of 109 ٛٛ Channel 07 (2452MHz) Report No. 117086R-RFUSP28V01 Page: 61 of 109 ٛٛ Report No. 117086R-RFUSP28V01 Page: 62 of 109 ٛٛ 6. Band Edge 6.1. Test Equipment RF Conducted Measurement The following test equipments are used during the band edge tests: Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2011 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2011 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2011 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. RF Radiated Measurement: The following test equipments are used during the band edge tests: Test Site Equipment Manufacturer Model No./Serial No. Last Cal. Bilog Antenna Schaffner Chase CBL6112B/2673 Sep., 2011 X Horn Antenna Schwarzbeck BBHA9120D/D305 Sep., 2011 Horn Antenna Schwarzbeck BBHA9170/208 Jul., 2011 X Pre-Amplifier Agilent 8447D/2944A09549 Sep., 2011 X Spectrum Analyzer Agilent E4407B / US39440758 May, 2011 Test Receiver R & S ESCS 30/ 825442/018 Sep., 2011 X Coaxial Cable QuieTek QTK-CABLE/ CAB5 Feb., 2011 X Controller QuieTek QTK-CONTROLLER/ CTRL3 N/A Site # 3 X Coaxial Switch Anritsu MP59B/6200265729 N/A Note: 1. All instruments are calibrated every one year. 2. The test instruments marked by “X” are used to measure the final test results. Report No. 117086R-RFUSP28V01 Page: 63 of 109 ٛٛ 6.2. Test Setup RF Conducted Measurement RF Radiated Measurement: 6.3. Limits Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 20dB below the level of the fundamental or to the general radiated emission limits in paragraph 15.209, whichever is the lesser attenuation. EUT FRP Dome The height of broad band or Dipole Antenna was scanned from 1M to 4M. The distance between antenna and turn table was 3M regards to the standard ado pted. 3m 80cm To Receiver Pre- Amplifier SMA EUT Spectrum Analyzer RF Cable Report No. 117086R-RFUSP28V01 Page: 64 of 109 ٛٛ 6.4. Test Procedure The EUT was setup according to ANSI C63.4, 2009 and tested according to DTS test procedure of Mar. 2005 KDB558074 for compliance to FCC 47CFR 15.247 requirements. The EUT is placed on a turn table which is 0.8 meter above ground. The turn table is rotated 360 degrees to determine the position of the maximum emission level. The EUT was positioned such that the distance from antenna to the EUT was 3 meters. The antenna is scanned from 1 meter to 4 meters to find out the maximum emission level. This is repeated for both horizontal and vertical polarization of the antenna. In order to find the maximum emission, all of the interface cables were manipulated according to ANSI C63.4:2009 on radiated measurement. 6.5. Uncertainty ± 3.9 dB above 1GHz ± 3.8 dB below 1GHz Report No. 117086R-RFUSP28V01 Page: 65 of 109 ٛٛ 6.6. Test Result of Band Edge Product : PC to TV Transmitter Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2412 31.639 58.92 90.558 Peak Horizontal 2412 31.639 54.9 86.538 Average Vertical 2412 30.95 68.71 99.659 Peak Vertical 2412 30.95 64.56 95.509 Average Note: 1:Spectrum Analyzer setting: Peak detector: RBW=1MHz, VBW=1MHz Average detector: RBW=1MHz, VBW=10Hz Band Edge Test Data Antenna Pole Test Frequency (MHz) Fundamental (dBuV/m) Δ (dB) Band Edge Field Strength (dBuV/m) Limit (dBuV/m) Detector Horizontal 2390 90.558 47.992 42.566 74.000 Peak Horizontal 2356.6 86.538 57.499 29.039 54.000 Average Vertical 2390 99.659 47.992 51.667 74.000 Peak Vertical 2356.6 95.509 57.499 38.01 54.000 Average Note: The Band Edge Field Strength was calculated using the Fundamental and Conducted Band Edge measurements per the Marker-Delta Method with the following formula: Band Edge field Strength = F - Δ F = Fundamental field Strength (Peak or Average) Δ = Conducted Band Edge Delta (Peak or Average) Report No. 117086R-RFUSP28V01 Page: 66 of 109 ٛٛ Peak Detector of conducted Band Edge Delta Average Detector of conducted Band Edge Delta Report No. 117086R-RFUSP28V01 Page: 67 of 109 ٛٛ Product : PC to TV Transmitter Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2462 32.019 56.63 88.649 Peak Horizontal 2462 32.019 53 85.019 Average Vertical 2462 31.29 66.6 97.89 Peak Vertical 2462 31.29 62.86 94.15 Average Note: 1:Spectrum Analyzer setting: Peak detector: RBW=1MHz, VBW=1MHz Average detector: RBW=1MHz, VBW=10Hz Band Edge Test Data Antenna Pole Test Frequency (MHz) Fundamental (dBuV/m) Δ (dB) Band Edge Field Strength (dBuV/m) Limit (dBuV/m) Detector Horizontal 2483.5 88.649 46.529 42.12 74.000 Peak Horizontal 2483.5 85.019 54.749 30.27 54.000 Average Vertical 2483.5 97.89 46.529 51.361 74.000 Peak Vertical 2483.5 94.15 54.749 39.401 54.000 Average Note: The Band Edge Field Strength was calculated using the Fundamental and Conducted Band Edge measurements per the Marker-Delta Method with the following formula: Band Edge field Strength = F - Δ F = Fundamental field Strength (Peak or Average) Δ = Conducted Band Edge Delta (Peak or Average) Report No. 117086R-RFUSP28V01 Page: 68 of 109 ٛٛ Peak Detector of conducted Band Edge Delta Average…

Text truncated - open the document above for the full version.

Report No. 117086R-RFUSP28V01 Page: 81 of 109 ٛٛ 7. Occupied Bandwidth 7.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2011 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2011 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2011 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 7.2. Test Setup 7.3. Limits The minimum bandwidth shall be at least 500 kHz. 7.4. Test Procedure The EUT was setup according to ANSI C63.4, 2009; tested according to DTS test procedure of Mar. 2005 KDB558074 for compliance to FCC 47CFR 15.247 requirements. Set RBW = 100 kHz, Span greater than RBW. 7.5. Uncertainty ± 150Hz SMA EUT Spectrum Analyzer RF Cable Report No. 117086R-RFUSP28V01 Page: 82 of 109 ٛٛ 7.6. Test Result of Occupied Bandwidth Product : PC to TV Transmitter Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412 11400 >500 Pass Figure Channel 1: Report No. 117086R-RFUSP28V01 Page: 83 of 109 ٛٛ Product : PC to TV Transmitter Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437 11410 >500 Pass Figure Channel 6: Report No. 117086R-RFUSP28V01 Page: 84 of 109 ٛٛ Product : PC to TV Transmitter Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462 11390 >500 Pass Figure Channel 11: Report No. 117086R-RFUSP28V01 Page: 85 of 109 ٛٛ Product : PC to TV Transmitter Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412 16500 >500 Pass Figure Channel 1: Report No. 117086R-RFUSP28V01 Page: 86 of 109 ٛٛ Product : PC to TV Transmitter Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437 16500 >500 Pass Figure Channel 6: Report No. 117086R-RFUSP28V01 Page: 87 of 109 ٛٛ Product : PC to TV Transmitter Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462 16500 >500 Pass Figure Channel 11: Report No. 117086R-RFUSP28V01 Page: 88 of 109 ٛٛ Product : PC to TV Transmitter Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412 17690 >500 Pass Figure Channel 1: Report No. 117086R-RFUSP28V01 Page: 89 of 109 ٛٛ Product : PC to TV Transmitter Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437 17690 >500 Pass Figure Channel 6: Report No. 117086R-RFUSP28V01 Page: 90 of 109 ٛٛ Product : PC to TV Transmitter Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462 17690 >500 Pass Figure Channel …

Text truncated - open the document above for the full version.
