YG7ZRF31100Full HD Video Wireless Transmitter

ZINWELL HD Wireless Video Transmission Product Full HD Video Wireless Module Version: 0.1 Zinwell Corporation 7 th , No. 512, Yuan Shan Road, Chung Ho City, 235, Taipei County, Taiwan TEL:+886 2 22251929 FAX:+886 2 22269654 http://www.zinwell.com.tw CONFIDENTIAL Page 1 of 14 Date: 2010-09-14 B002-08B Zinwell Corporation Full HD Video Wireless Module User Manual Transmitter : ZRF-31100 Receiver : ZRF-32100 Version 0.1 ZINWELL HD Wireless Video Transmission Product Full HD Video Wireless Module Version: 0.1 Zinwell Corporation 7 th , No. 512, Yuan Shan Road, Chung Ho City, 235, Taipei County, Taiwan TEL:+886 2 22251929 FAX:+886 2 22269654 http://www.zinwell.com.tw CONFIDENTIAL Page 2 of 14 Date: 2010-09-14 B002-08B Revision History Reversion Date Author Descriptions 0.1 2010-09-14 Paul Chang Initial Release. Preliminary Document. ZINWELL HD Wireless Video Transmission Product Full HD Video Wireless Module Version: 0.1 Zinwell Corporation 7 th , No. 512, Yuan Shan Road, Chung Ho City, 235, Taipei County, Taiwan TEL:+886 2 22251929 FAX:+886 2 22269654 http://www.zinwell.com.tw CONFIDENTIAL Page 3 of 14 Date: 2010-09-14 B002-08B CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Outdoor operations in the 5150~5250MHz, 5600~5650MHz band is prohibited. This device has no Ad-hoc capability for 5250~5350MHz and 5470~5725MHz. Outdoor operations in the 5470~5725MHz band is prohibited. This device could not be used in the 5600~5650MHz. The Device not operation in 5600~5650MHz. Industry Canada regulatory information Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The user is cautioned that this device should be used only as specified within this manual to meet RF exposure requirements. Use of this device in a manner inconsistent with this manual could lead to excessive RF exposure conditions. The following statement must be included with all versions of this document supplied to an OEM or integrator, but should not be distributed to the end user. --This device is intended for OEM integrators only. --Please See the full Grant of Equipment document for other restrictions. --This device must be operated and used with a locally approved access point. ZINWELL HD Wireless Video Transmission Product Full HD Video Wireless Module Version: 0.1 Zinwell Corporation 7 th , No. 512, Yuan Shan Road, Chung Ho City, 235, Taipei County, Taiwan TEL:+886 2 22251929 FAX:+886 2 22269654 http://www.zinwell.com.tw CONFIDENTIAL Page 4 of 14 Date: 2010-09-14 B002-08B The following regulatory and Safety notices must be published in documentation supplied to the end user of the product or system incorporating an adapter in compliance with local regulations, Host system must be labeled with “Contains FCC ID: XXX-XXXXX”, FCC ID displayed on label. ZINWELL HD Wireless Video Transmission Product Full HD Video Wireless Module Version: 0.1 Zinwell Corporation 7 th , No. 512, Yuan Shan Road, Chung Ho City, 235, Taipei County, Taiwan TEL:+886 2 22251929 FAX:+886 2 22269654 http://www.zinwell.com.tw CONFIDENTIAL Page 5 of 14 Date: 2010-09-14 B002-08B 1 Product Features  WHDI  Digital video: 24/ 30-bit RGB or YCrCb  Digital audio: I2S and SPDIF  Two-Wire serial bus slave interface  One interrupt line  Supports any uncompressed video resolutions, including:  HD: 720p, 1080i, 1080p, 576p, 480p  PC: VGA (640x480), SVGA (800x600), XGA (1024x768)  Audio:  Up to 3Mbps audio stream:  I2S: Two PCM channels (sampled up to 48 KHz x 24 bit)  SPDIF: Including AC-3, DTS  Strong 256-bit AES encryption  User-defined two-way channel with minimum 10 Kbps for data and control  Less than 1mSec latency between source and sink  Small mechanical footprint:  PCB integrated antennas  RF characteristics:  MIMO technology, using 5GHz unlicensed band, 18MHz bandwidth.  Coexists with 802.11a/n and 5.8GHz cordless devices.  Support for Automatic Transmission Power Control (ATPC).  No line of sight needed between transmitter and receiver. It has a range of over 20 meters (LOS), suitable for almost any room.  14mW typical transmission power per transmitting channel.  Maximum 20mW transmission power per transmitting channel.  Uplink antenna diversity  Power requirements:  3.3V (±5%), ~5.3W ZINWELL HD Wireless Video Transmission Product Full HD Video Wireless Module Version: 0.1 Zinwell Corporation 7 th , No. 512, Yuan Shan Road, Chung Ho City, 235, Taipei County, Taiwan TEL:+886 2 22251929 FAX:+886 2 22269654 http://www.zinwell.com.tw CONFIDENTIAL Page 6 of 14 Date: 2010-09-14 B002-08B 2 Hardware Specifications 2.1 Dimension  TX ZINWELL HD Wireless Video Transmission Product Full HD Video Wireless Module Version: 0.1 Zinwell Corporation 7 th , No. 512, Yuan Shan Road, Chung Ho City, 235, Taipei County, Taiwan TEL:+886 2 22251929 FAX:+886 2 22269654 http://www.zinwell.com.tw CONFIDENTIAL Page 7 of 14 Date: 2010-09-14 B002-08B  RX ZINWELL HD Wireless Video Transmission Product Full HD Video Wireless Module Version: 0.1 Zinwell Corporation 7 th , No. 512, Yuan Shan Road, Chung Ho City, 235, Taipei County, Taiwan TEL:+886 2 22251929 FAX:+886 2 22269654 http://www.zinwell.com.tw CONFIDENTIAL Page 8 of 14 Date: 2010-09-14 B002-08B 2.2 Pin definitions of connector  TX : ZINWELL HD Wireless Video Transmission Product Full…

Text truncated - open the document above for the full version.

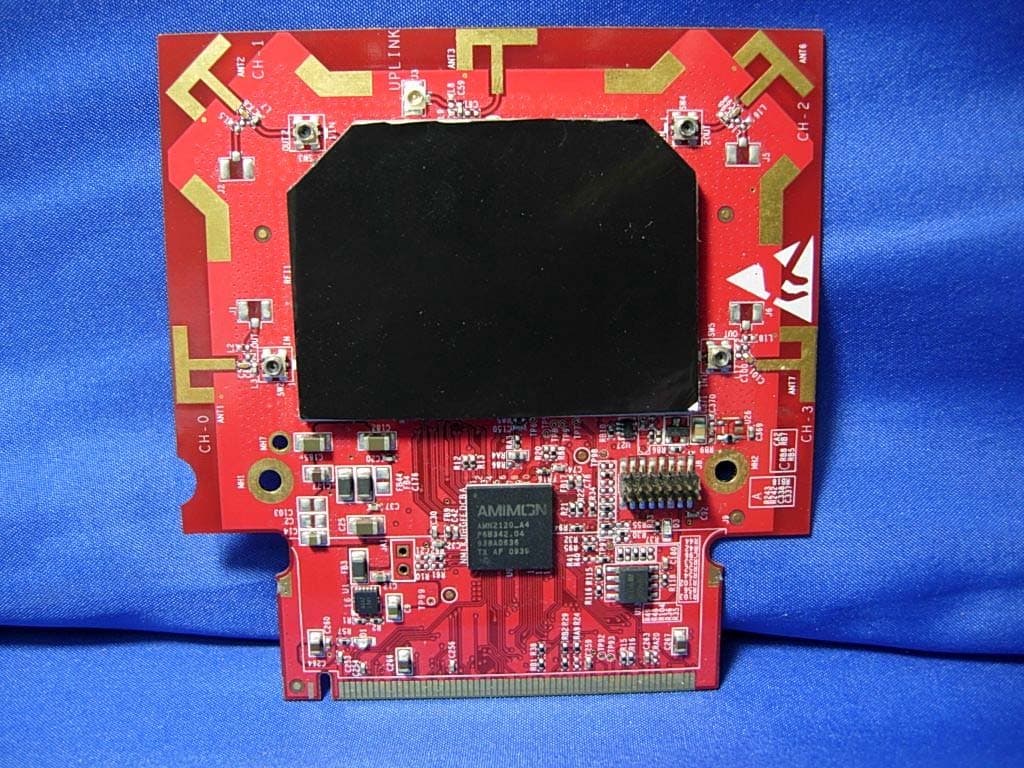

Report No.: 105197R-RFUSP46V01 Page : 1 of 5 ٛٛ Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Transmit Transmit Transmit Transmit Receive

ZINWELL CORPORATION FCC ID.: YG7ZRF31100 7F 512,Yuan Shan Road,Chung Ho City,Taipei Hsien 235, Taiwan.Tel : 886-2-22251929 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

ZINWELL CORPORATION FCC ID.: YG7ZRF31100 7F 512,Yuan Shan Road,Chung Ho City,Taipei Hsien 235, Taiwan.Tel : 886-2-22251929 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 105197R-RFUSP46V01 Page : 2 of 6 ٛٛ (3) EUT Photo (4) EUT Photo Report No.: 105197R-RFUSP46V01 Page : 3 of 6 ٛٛ (5) EUT Photo (6) EUT Photo Report No.: 105197R-RFUSP46V01 Page : 4 of 6 ٛٛ (7) EUT Photo (8) EUT Photo Report No.: 105197R-RFUSP46V01 Page : 5 of 6 ٛٛ (9) EUT Photo (10) EUT Photo (Host and EUT) Report No.: 105197R-RFUSP46V01 Page : 6 of 6 ٛٛ (11) EUT Photo (Host) (12) EUT Photo (Host)

Report No. 105197R-RFUSP42V01 Page : 7 of 51 1.2. Operational Description The EUT is a Full HD Video Wireless Transmitter Module with a built-in 5GHz transceiver, together with Full HD Video Wireless Receiver Module. It has a SIMO design of five channel and one slow rate output wireless channel, which generates an upstream channel for data content transmissions. The data modulation is OFDM, using five antennas to support 4(Transmit) * 1(Receive) technology. The device only provided one transmitting speed 31.5Mbps in 20MHz bandwidth mode and 63Mbps in 40MHz bandwidth mode. Presents the ultimate solution for converting any High Definition (HD) system, including Full HD, into a wireless one. These add-on modules enable wireless A/V applications that fit easily into the living room and eliminate traditional A/V wiring. The perfect HD video and audio quality and the high robustness are unmatched by any other wireless technology and present a true alternative to cable. The WHDI system transmits uncompressed video and audio streams wirelessly and thus simplifies and eliminates system issues, such as: lip-sync, large buffers and other burdens like retransmissions or error propagation. The device can transmit audio and video signal to associate equipment, device will receive signal form associate equipment when associate equipment request change operation frequency. The AMN2120 WHDITM baseband transmitter chip is the heart of the ZRF31100 WHDI transmitter module. The AMN2120 interfaces the A/V source through the WHDI connector. The AMN2120 includes an internal microcontroller for controlling the physical level. The AMN2120 is based on MIMO technology transmitting through up to four output channels. Four digital-to-analog converters and one analog-to-digital converter are embedded within the chip. The AMN2120 internal PLL accepts an input clock frequency of 40MHz. The input frequency is multiplied and then used as an internal system clock. The AMN2120 also generates a 10 MHz reference clock, derived from 40 MHz for general use. The AMN3110 is a fully-integrated direct conversion MIMO transmitter specifically designed for WHDI applications using OFDM modulation in single-band 4.9 GHz to 5.9 GHz. The device consists of: ‧ Four Complete Downlink Direct Conversion Transmitters. ‧ One Uplink Receiver. ‧ Integrated Synthesizer. ‧ Internal DC Servo Loops. ‧ RSSI. ‧ IQ Detector. ‧ RF and Baseband Control Interface. ‧ Power Management Unit. ‧ 3-Wire SPI Interface. Report No. 105197R-RFUSP42V01 Page : 8 of 51 To complete the RF front-end solution, the AMN3110 uses external PA, RF switches, RF Band Pass Filters (BPF), RF BALUNs and a few passive components. The device antenna are use five FIFA(4TX, 1RX) and printed on PCB, for receiver function there are support one external antenna which can instead of printed antenna. This device is slave equipment.

Report No. 105197R-RFUSP42V01 Page: 1 of 4 Version: 1.0 RF Exposure Evaluation declaration Product Name : Full HD Video Wireless Transmitter Module Model No. : ZRF-31100 FCC ID : YG7ZRF31100 Applicant : ZINWELL CORPORATION Address : 7F 512,Yuan Shan Road,Chung Ho City,Taipei Hsien 235, Taiwan Date of Receipt : May. 10, 2010 Date of Declaration : Aug. 24, 2010 Report No. : 105197R-RFUSP42V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 105197R-RFUSP42V01 Page: 2 of 4 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 105197R-RFUSP42V01 Page: 3 of 4 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : Full HD Video Wireless Transmitter Module Test Item : RF Exposure Evaluation Test Site : No.3 OATS 802.11n-20MHz Output Power Into Antenna & RF Exposure Evaluation Distance (3.83dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 5745.00 578.0960 0.277799 3 5785.00 398.1072 0.191307 5 5825.00 377.5722 0.181439 802.11n-40MHz Output Power Into Antenna & RF Exposure Evaluation Distance (3.83dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 5755.00 397.1915 0.190867 2 5795.00 445.6562 0.214156 802.11n-20MHz Output Power Into Antenna & RF Exposure Evaluation Distance (3.42dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 5180.00 40.9261 0.017895 2 5200.00 36.0579 0.015766 4 5240.00 40.9261 0.017895 Report No. 105197R-RFUSP42V01 Page: 4 of 4 Version: 1.0 802.11n-40MHz Output Power Into Antenna & RF Exposure Evaluation Distance (3.42dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 5190.00 36.0579 0.015766 2 5230.00 36.8129 0.016096 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement.

Report No. 105197R-RFUSP42V01 Page : 1 of 51 Test Report Product Name Full HD Video Wireless Transmitter Module Model No ZRF-31100 FCC ID. YG7ZRF31100 Applicant ZINWELL CORPORATION Address 7F 512, Yuan Shan Road, Chung Ho City, 235, Taipei Hsien, Taiwan Date of Receipt May. 10, 2010 Issue Date Aug. 24, 2010 Report No. 105197R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 105197R-RFUSP42V01 Page : 2 of 51 Test Report Certification Issue Date: Aug. 24, 2010 Report No.: 105197R-RFUSP42V01 Product Name Full HD Video Wireless Transmitter Module Applicant ZINWELL CORPORATION Address 7F 512, Yuan Shan Road, Chung Ho City, 235, Taipei Hsien, Taiwan Manufacturer ZINWELL CORPORATION Model No. ZRF-31100 EUT Rated Voltage AC 100-240V, 50-60Hz EUT Test Voltage AC 120V/60Hz Trade Name Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2009 ANSI C63.4: 2003 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Genie Chang ) Tested By : ( Engineer / Joe Guo ) Approved By : ( Manager / Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 105197R-RFUSP42V01 Page : 3 of 51 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................9 1.4. Configuration of Tested System ....................................................................................................9 1.5. EUT Exercise Software .................................................................................................................9 1.6. Test Facility .................................................................................................................................10 2. Conducted Emission.................................................................................................................. 11 2.1. Test Equipment............................................................................................................................11 2.2. Test Setup ....................................................................................................................................11 2.3. Limits ..........................................................................................................................................12 2.4. Test Procedure .............................................................................................................................12 2.5. Uncertainty ..................................................................................................................................12 2.6. Test Result of Conducted Emission.............................................................................................13 3. Peak Power Output ...................................................................................................................15 3.1. Test Equipment............................................................................................................................15 3.2. Test Setup ....................................................................................................................................15 3.3. Limits ..........................................................................................................................................15 3.4. Test Procedure .............................................................................................................................15 3.5. Uncertainty ..................................................................................................................................15 3.6. Test Result of Peak Power Output...............................................................................................16 4. Radiated Emission .....................................................................................................................18 4.1. Test Equipment............................................................................................................................18 4.2. Test Setup ....................................................................................................................................19 4.3. Limits ..........................................................................................................................................20 4.4. Test Procedure .............................................................................................................................21 4.5. Uncertainty ..................................................................................................................................21 4.6. Test Result of Radiated Emission................................................................................................22 5. RF antenna conducted test........................................................................................................29 5.1. Test Equipment............................................................................................................................2…

Text truncated - open the document above for the full version.

Report No.: 105197R-RFUSP42V01 Page : 1 of 4 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 105197R-RFUSP42V01 Page : 2 of 4 Front View of Radiated Test Back View of Radiated Test Report No.: 105197R-RFUSP42V01 Page : 3 of 4 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn) Report No.: 105197R-RFUSP42V01 Page : 4 of 4 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
