YG7ZRF32100Full HD Video Wireless Receiver Module

ZINWELL HD Wireless Video Transmission Product Full HD Video Wireless Module Version: 0.1 Zinwell Corporation 7 th , No. 512, Yuan Shan Road, Chung Ho City, 235, Taipei County, Taiwan TEL:+886 2 22251929 FAX:+886 2 22269654 http://www.zinwell.com.tw CONFIDENTIAL Page 1 of 14 Date: 2010-09-14 B002-08B Zinwell Corporation Full HD Video Wireless Module User Manual Transmitter : ZRF-31100 Receiver : ZRF-32100 Version 0.1 ZINWELL HD Wireless Video Transmission Product Full HD Video Wireless Module Version: 0.1 Zinwell Corporation 7 th , No. 512, Yuan Shan Road, Chung Ho City, 235, Taipei County, Taiwan TEL:+886 2 22251929 FAX:+886 2 22269654 http://www.zinwell.com.tw CONFIDENTIAL Page 2 of 14 Date: 2010-09-14 B002-08B Revision History Reversion Date Author Descriptions 0.1 2010-09-14 Paul Chang Initial Release. Preliminary Document. ZINWELL HD Wireless Video Transmission Product Full HD Video Wireless Module Version: 0.1 Zinwell Corporation 7 th , No. 512, Yuan Shan Road, Chung Ho City, 235, Taipei County, Taiwan TEL:+886 2 22251929 FAX:+886 2 22269654 http://www.zinwell.com.tw CONFIDENTIAL Page 3 of 14 Date: 2010-09-14 B002-08B CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Outdoor operations in the 5150~5250MHz, 5600~5650MHz band is prohibited. This device has no Ad-hoc capability for 5250~5350MHz and 5470~5725MHz. Outdoor operations in the 5470~5725MHz band is prohibited. This device could not be used in the 5600~5650MHz. The Device not operation in 5600~5650MHz. Industry Canada regulatory information Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The user is cautioned that this device should be used only as specified within this manual to meet RF exposure requirements. Use of this device in a manner inconsistent with this manual could lead to excessive RF exposure conditions. The following statement must be included with all versions of this document supplied to an OEM or integrator, but should not be distributed to the end user. --This device is intended for OEM integrators only. --Please See the full Grant of Equipment document for other restrictions. --This device must be operated and used with a locally approved access point. ZINWELL HD Wireless Video Transmission Product Full HD Video Wireless Module Version: 0.1 Zinwell Corporation 7 th , No. 512, Yuan Shan Road, Chung Ho City, 235, Taipei County, Taiwan TEL:+886 2 22251929 FAX:+886 2 22269654 http://www.zinwell.com.tw CONFIDENTIAL Page 4 of 14 Date: 2010-09-14 B002-08B The following regulatory and Safety notices must be published in documentation supplied to the end user of the product or system incorporating an adapter in compliance with local regulations, Host system must be labeled with “Contains FCC ID: XXX-XXXXX”, FCC ID displayed on label. ZINWELL HD Wireless Video Transmission Product Full HD Video Wireless Module Version: 0.1 Zinwell Corporation 7 th , No. 512, Yuan Shan Road, Chung Ho City, 235, Taipei County, Taiwan TEL:+886 2 22251929 FAX:+886 2 22269654 http://www.zinwell.com.tw CONFIDENTIAL Page 5 of 14 Date: 2010-09-14 B002-08B 1 Product Features  WHDI  Digital video: 24/ 30-bit RGB or YCrCb  Digital audio: I2S and SPDIF  Two-Wire serial bus slave interface  One interrupt line  Supports any uncompressed video resolutions, including:  HD: 720p, 1080i, 1080p, 576p, 480p  PC: VGA (640x480), SVGA (800x600), XGA (1024x768)  Audio:  Up to 3Mbps audio stream:  I2S: Two PCM channels (sampled up to 48 KHz x 24 bit)  SPDIF: Including AC-3, DTS  Strong 256-bit AES encryption  User-defined two-way channel with minimum 10 Kbps for data and control  Less than 1mSec latency between source and sink  Small mechanical footprint:  PCB integrated antennas  RF characteristics:  MIMO technology, using 5GHz unlicensed band, 18MHz bandwidth.  Coexists with 802.11a/n and 5.8GHz cordless devices.  Support for Automatic Transmission Power Control (ATPC).  No line of sight needed between transmitter and receiver. It has a range of over 20 meters (LOS), suitable for almost any room.  14mW typical transmission power per transmitting channel.  Maximum 20mW transmission power per transmitting channel.  Uplink antenna diversity  Power requirements:  3.3V (±5%), ~5.3W ZINWELL HD Wireless Video Transmission Product Full HD Video Wireless Module Version: 0.1 Zinwell Corporation 7 th , No. 512, Yuan Shan Road, Chung Ho City, 235, Taipei County, Taiwan TEL:+886 2 22251929 FAX:+886 2 22269654 http://www.zinwell.com.tw CONFIDENTIAL Page 6 of 14 Date: 2010-09-14 B002-08B 2 Hardware Specifications 2.1 Dimension  TX ZINWELL HD Wireless Video Transmission Product Full HD Video Wireless Module Version: 0.1 Zinwell Corporation 7 th , No. 512, Yuan Shan Road, Chung Ho City, 235, Taipei County, Taiwan TEL:+886 2 22251929 FAX:+886 2 22269654 http://www.zinwell.com.tw CONFIDENTIAL Page 7 of 14 Date: 2010-09-14 B002-08B  RX ZINWELL HD Wireless Video Transmission Product Full HD Video Wireless Module Version: 0.1 Zinwell Corporation 7 th , No. 512, Yuan Shan Road, Chung Ho City, 235, Taipei County, Taiwan TEL:+886 2 22251929 FAX:+886 2 22269654 http://www.zinwell.com.tw CONFIDENTIAL Page 8 of 14 Date: 2010-09-14 B002-08B 2.2 Pin definitions of connector  TX : ZINWELL HD Wireless Video Transmission Product Full…

Text truncated - open the document above for the full version.

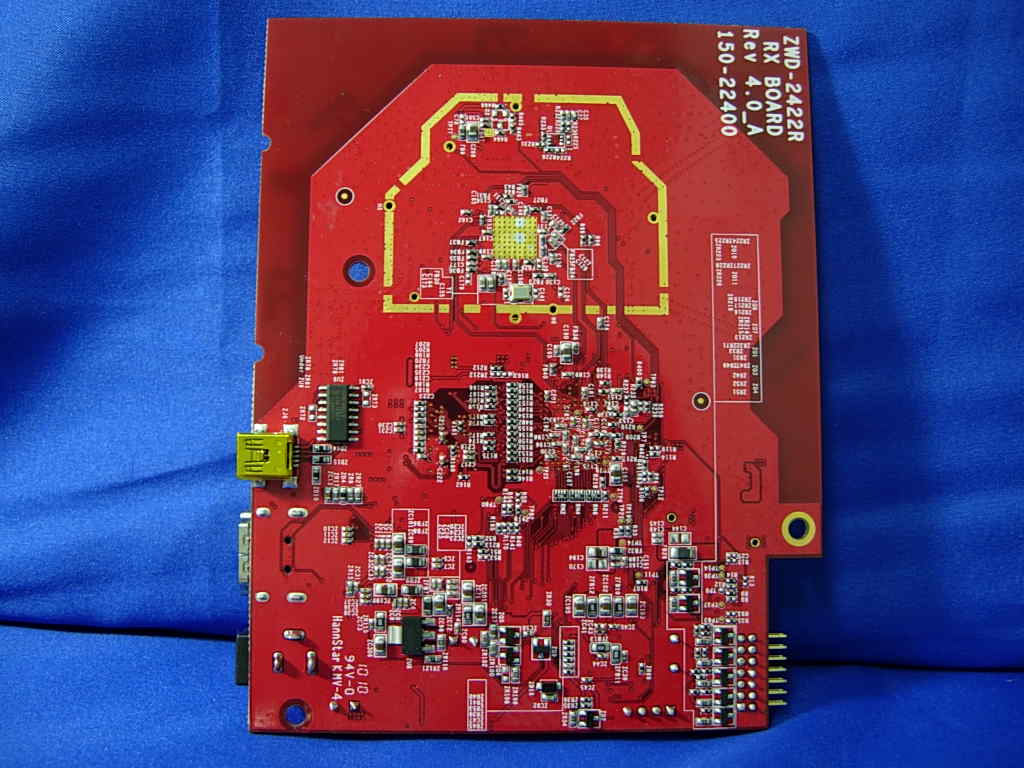

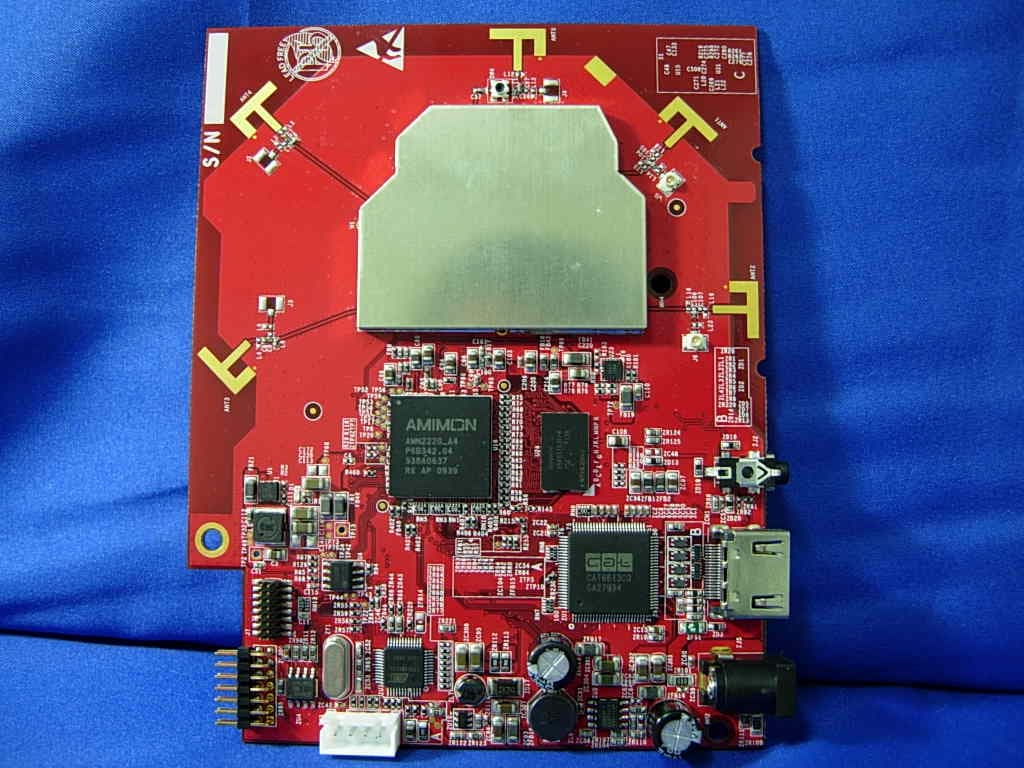

Report No.: 105198R-RFUSP46V01 Page : 1 of 8 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Transmit / Receive Receive Receive Receive Receive Connect the External Antenna Connect the External Antenna

ZINWELL CORPORATION FCC ID.: YG7ZRF32100 7F 512,Yuan Shan Road,Chung Ho City,Taipei Hsien 235, Taiwan.Tel : 886-2-22251929 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

ZINWELL CORPORATION FCC ID.: YG7ZRF32100 7F 512,Yuan Shan Road,Chung Ho City,Taipei Hsien 235, Taiwan.Tel : 886-2-22251929 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 105198R-RFUSP46V01 Page : 2 of 8 (3) EUT Photo (4) EUT Photo Report No.: 105198R-RFUSP46V01 Page : 3 of 8 (5) EUT Photo (6) EUT Photo Report No.: 105198R-RFUSP46V01 Page : 4 of 8 (7) EUT Photo (External Antenna) (8) EUT Photo (External Antenna) Report No.: 105198R-RFUSP46V01 Page : 5 of 8 (9) EUT Photo (External Antenna) (10) EUT Photo (External Antenna) Report No.: 105198R-RFUSP46V01 Page : 6 of 8 (11) EUT Photo (External Antenna) (12) EUT Photo (External Antenna) Report No.: 105198R-RFUSP46V01 Page : 7 of 8 (13) EUT Photo (14) EUT Photo Report No.: 105198R-RFUSP46V01 Page : 8 of 8 (15) EUT Photo (16) EUT Photo

Report No. 105198R-RFUSP46V01 Page: 7 of 66 1.2. Operational Description The EUT is a Full HD Video Wireless Receiver Module with a built-in 5GHz transceiver, together with Full HD Video Wireless Transmitter Module. It has a MISO design of five channel and one slow rate output wireless channel, which generates an upstream channel for data content transmissions. The data modulation is OFDM, using five antennas to support 1(Transmit) * 5(Receive) technology. The device only provided one transmitting speed 30kbps in 20MHz bandwidth mode and 60kbps in 40MHz bandwidth mode. Presents the ultimate solution for converting any High Definition (HD) system, including Full HD, into a wireless one. These add-on modules enable wireless A/V applications that fit easily into the living room and eliminate traditional A/V wiring. The perfect HD video and audio quality and the high robustness are unmatched by any other wireless technology and present a true alternative to cable. The WHDI system transmits uncompressed video and audio streams wirelessly and thus simplifies and eliminates system issues, such as: lip-sync, large buffers and other burdens like retransmissions or error propagation. The device can receive audio and video signal from associate equipment, device will transmit signal to request associate equipment change transmission frequency. The IC AMN2220 WHDI baseband receiver chip is the heart of the ZRF32100 WHDI Receiver module. The AMN2220 interfaces the A/V sink through the WHDI connector and is controlled by the internal MAC uC. The AMN2220 is based on MIMO technology receiving up to five input channels. Five analog-to-digital converters and one digital-to-analog converter are embedded within the chip. The AMN2220 internal PLL accepts an input clock frequency of 40MHz. The input frequency is multiplied and then used as an internal system clock. The IC AMN3210 is a fully-integrated Zero-IF MIMO receiver specifically designed for WHDI applications using OFDM modulation for single-band 4.9 GHz to 5.9 GHz. The device consists of: ‧ Five Complete Downlink Zero-IF Receivers. ‧ One Uplink Direct Conversion Transmitter. ‧ Integrated Synthesizer/VCO. ‧ Internal DC Servo Loops. ‧ RSSI, RF and Baseband Control Interface. ‧ Power Management Unit. ‧ 3-Wire SPI Interface. To complete the RF front-end solution, the AMN3210 uses external PA, RF Band Pass Filters (BPF), RF BALUNs and a few passive components. The device antenna are use five FIFA and printed on PCB; for receiver function there are support two external antenna which can instead of printed antenna. This device is Master equipment.

Report No. 105198R-RFUSP42V01 Page: 1 of 4 Version: 1.0 RF Exposure Evaluation declaration Product Name : Full HD Video Wireless Receiver Module Model No. : ZRF-32100 FCC ID : YG7ZRF32100 Applicant : ZINWELL CORPORATION Address : 7F 512,Yuan Shan Road,Chung Ho City,Taipei Hsien 235, Taiwan Date of Receipt : May. 10, 2010 Date of Declaration : Jun. 01, 2010 Report No. : 105198R-RFUSP42V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 105198R-RFUSP42V01 Page: 2 of 4 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 105198R-RFUSP42V01 Page: 3 of 4 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : Full HD Video Wireless Receiver Module Test Item : RF Exposure Evaluation Test Site : No.3 OATS Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3.83dBi(for Subpart C) and 3.42dBi(for Subpart E) in logarithm scale. 802.11n-20MHz Output Power Into Antenna & RF Exposure Evaluation Distance (3.83dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 5745.00 90.7821 0.043625 3 5785.00 88.7156 0.042631 5 5825.00 87.2971 0.041950 802.11n-40MHz Output Power Into Antenna & RF Exposure Evaluation Distance (3.83dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 5755.00 79.7995 0.038347 02 5795.00 79.6159 0.038259 802.11n-20MHz Output Power Into Antenna & RF Exposure Evaluation Distance (3.42dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 5180.00 19.1426 0.008370 2 5200.00 19.3197 0.008448 4 5240.00 19.3642 0.008467 Report No. 105198R-RFUSP42V01 Page: 4 of 4 Version: 1.0 802.11n-40MHz Output Power Into Antenna & RF Exposure Evaluation Distance (3.42dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 5190.00 19.4536 0.008506 02 5230.00 19.1426 0.008370 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement.

Report No. 105198R-RFUSP46V01 Page: 1 of 66 Test Report Product Name Full HD Video Wireless Receiver Module Model No ZRF-32100 FCC ID YG7ZRF32100 Applicant ZINWELL CORPORATION Address 7F 512, Yuan Shan Road, Chung Ho City, 235, Taipei Hsien, Taiwan Date of Receipt May. 10, 2010 Issued Date Jun. 01, 2010 Report No. 105198R-RFUSP46V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 105198R-RFUSP46V01 Page: 2 of 66 Test Report Certification Issued Date: Jun. 01, 2010 Report No.: 105198R-RFUSP46V01 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name Full HD Video Wireless Receiver Module Applicant ZINWELL CORPORATION Address 7F 512, Yuan Shan Road, Chung Ho City, 235, Taipei Hsien, Taiwan Manufacturer ZINWELL CORPORATION Model No. ZRF-32100 FCC ID. YG7ZRF32100 EUT Rated Voltage AC 100-240V, 50-60Hz EUT Test Voltage AC 120V/60Hz Trade Name Applicable Standard FCC CFR Title 47 Part 15 Subpart E: 2009 ANSI C63.4: 2003 Test Result Complied Documented By : ( Senior Adm. Specialist / Leven Huang ) Tested By : ( Engineer / Joe Guo ) Approved By : ( Manager / Vincent Lin) Report No. 105198R-RFUSP46V01 Page: 3 of 66 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Datails....................................................................................................................8 1.4. Configuration of tested System .....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................10 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Transmit Power ................................................................................................................14 3.1. Test Equipment............................................................................................................................14 3.2. Test Setup ....................................................................................................................................14 3.3. Limits ..........................................................................................................................................15 3.4. Test Procedur ...............................................................................................................................15 3.5. Uncertainty ..................................................................................................................................15 3.6. Test Result of Peak Transmit Power............................................................................................16 4. Peak Power Spectral Density....................................................................................................23 4.1. Test Equipment............................................................................................................................23 4.2. Test Setup ....................................................................................................................................23 4.3. Limits ..........................................................................................................................................23 4.4. Test Procedure .............................................................................................................................24 4.5. Uncertainty ..................................................................................................................................24 4.6. Test Result of Peak Power Spectral Density ...............................................................................25 5. Peak Excursion ..........................................................................................................................29 5.1. Test Equipment............................................................................................................................29 5.2. Test Setup .............................…

Text truncated - open the document above for the full version.

Report No.: 105198R-RFUSP42V01 Page : 1 of 4 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 105198R-RFUSP42V01 Page : 2 of 4 Front View of Radiated Test Back View of Radiated Test Report No.: 105198R-RFUSP42V01 Page : 3 of 4 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn) Report No.: 105198R-RFUSP42V01 Page : 4 of 4 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
