YG7ZRF32200Wireless HD Net Connect Receiver, Wireless HD AV Connect Receiver

Register your product and get support at www.philips.com/welcome SWW1810 EN User manual 3 ES Manual del usuario 21 FR Mode d’emploi 41 UYYAAWOA'0KPFF UYYAAWOA'0KPFF 3 Contents 1 Important 4 Safety 4 2 Your Wireless HD AV Connect 6 What is in the box 6 3 Overview 7 The transmitter 7 The receiver 7 The remote control 8 4 Installation 9 Connect the transmitter to your HD devices 9 Connect the receiver to the HDTV set 9 Connect the IR blaster and IR sensor extender cables 10 Install remote control batteries 10 5 Activate your Wireless HD AV Connect and set up the link 11 Turn on the power of your HDTV 11 Activate the wireless link 12 6 Mount your receiver 13 Mount your receiver on the wall 13 Mount your receiver on the back of the HDTV 14 7 Technical data 15 Supported resolution 15     15 8 Notice 16 Notice for USA 16 Notice for Canada 16 Recycling 17 Disposal of your old product and batteries 17 One Year Limited Warranty 17 9 Frequently asked question 18 EN English UYYAAWOA'0KPFF 4 e Do not use this apparatus near water. f Clean only with dry cloth. g Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. h Do not install near any heat sources such as radiators, heat registers, stoves, or              produce heat. i Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided           an electrician for replacement of the obsolete outlet. j Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. k          by the manufacturer.. l Use only with the cart, stand, tripod,          manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. m Unplug this apparatus during lightning storms or when unused for long periods of time. 1 Important Safety This ‘bolt of lightning’ indicates uninsulated material within your unit may cause an electrical shock. The ‘exclamation mark’ calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems. Warning                apparatus should not be exposed to rain or moisture  !    "   #     $    be placed on this apparatus. Caution  To prevent electric shock, fully insert the plug. (For regions with polarized plugs: To prevent electric shock,  "    "  % Important Safety Instructions a Read these instructions. b Keep these instructions. c Heed all warnings. d Follow all instructions. EN UYYAAWOA'0KPFF 5 n &    $    #   $    % ' $    #   "  the apparatus has been damaged in any way, such as power-supply cord or plug    #        objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. o Battery usage CAUTION – To prevent battery leakage which may result in bodily injury, property damage, or damage to the unit:  Do not mix batteries (old and new or      %%  Remove batteries when the unit is not used for a long time. p Apparatus shall not be exposed to dripping or splashing. q Do not place any sources of danger on the    %%  #    !       % Warning  Use only the provided power adapter. EN English UYYAAWOA'0KPFF 6 HDMI cable IR blaster extender cable Power adapter for the transmitter and receiver x 2 IR sensor extender cable Anchors x 2Screws x 2 Quick Installation Guide Adhesive tape x 2Quick start guide User manual 2 Your Wireless HD AV Connect Congratulations on your purchase and welcome to Philips!             offers, register your product at www.philips. com/welcome. What is in the box Note  Make sure you have all these items in the box. Contact your dealer for any missing or damaged items. Transmitter Receiver Remote control EN UYYAAWOA'0KPFF 7 The receiver Top view 1Source LEDs Indicators for HDMI1 and HDMI2 2Power button with the LED indicator Press to turn the receiver on/off. 3Source button Press to select the source input. Rear view 1DC IN jack Connect the power adapter of the receiver. 2HDMI OUT adapter Connect the HDTV with an HDMI cable. 3IR IN jack Plug in the IR sensor extender cable. 3 Overview The transmitter Front view 1Source LEDs It displays the current source input. 2SOURCE button Press to switch the source input of the transmitter. 3Power button with the LED indicator Press to turn the transmitter on/off Rear view POWER 1DC IN jack Connect the power adapter of the transmitter. 2 & 3HDMI IN adapters Connect the HD audio/ video device with the HDMI cables. 4IR OUT blaster extender jack Plug in the IR blaster extender cable. EN English UYYAAWOA'0KPFF 8 The remote control 1POWER button Press to turn the transmitter and receiver on/off. 2INFO button Displays on the HDTV the connection status of the receiver. 3IR button Press to switch the IR     #       #      source device. 4SOURCE button Press to switch the audio/video source inputs connected to the transmitter. The Wireless HD AV Connect gives you a total wireless solution to place your HDTV set or projector anywhere you want. The transmitter can transmit an uncompressed video content over 65 feet without latency. The receiver can r…

Text truncated - open the document above for the full version.

Register your product and get support at www.philips.com/welcome EN User manual 3 ES Manual del usuario 21 FR Mode d’emploi 39 SWW1890 UYYAAWOA'0KPFF UYYAAWOA'0KPFF 3 Contents 1 Important 4 Safety 4 2 Your Philips Wireless HD Net Connect 6 What is in the box 6 3 Overview 7 The transmitter 7 The receiver 7 4 Installation 9 Connect the transmitter to your computer 9 Connect the receiver to the HDTV set 9 5 Activate your Philips Wireless HD Net Connect and set up the link 10 Turn on the power of your HDTV 10 Activate the wireless link 10 6 Mount your receiver 12 Mount your receiver on the wall 12 Mount your receiver on the back of the HDTV 13 7 Technical data 14 Supported resolution 14     14 8 Notice 15 Notice for USA 15 Notice for Canada 15 Recycling 16 One Year Limited Warranty 16 9 Frequently asked questions 17 EN English UYYAAWOA'0KPFF 4 Important Safety Instructions a Read these instructions. b Keep these instructions. c Heed all warnings. d Follow all instructions. e Do not use this apparatus near water. f Clean only with dry cloth. g Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. h Do not install near any heat sources such as radiators, heat registers, stoves, or              produce heat. i Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided           an electrician for replacement of the obsolete outlet. j Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. k          by the manufacturer.. l Unplug this apparatus during lightning storms or when unused for long periods of time. m              personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug 1 Important Safety This ‘bolt of lightning’ indicates uninsulated material within your unit may cause an electrical shock. The ‘exclamation mark’ calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems. Warning  !     "       "  apparatus should not be exposed to rain or moisture  #$    %            be placed on this apparatus. Caution  To prevent electric shock, fully insert the plug. (For regions with polarized plugs: To prevent electric shock,  %  #  %  & EN UYYAAWOA'0KPFF 5 is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. n Apparatus shall not be exposed to dripping or splashing. o Do not place any sources of danger on the    &&      #$       & EN English UYYAAWOA'0KPFF 6 USB cable for the power supply of the     '   )   Power adapter for the receiver Anchors x 2 Screws x 2 Adhesive tape x 2 Quick Installation Guide Quick start guide User manual 2 Your Philips Wireless HD Net Connect Congratulations on your purchase and welcome to Philips! !  #        Philips offers, register your product at www.philips.com/welcome. What is in the box Note  Make sure you have all these items in the box. Contact your dealer for any missing or damaged items. Transmitter Receiver +8;< # =   EN UYYAAWOA'0KPFF 7 The receiver Top view 1 LED indicatorDisplays the status of the receiver. 2 Power button with LED indicator Press to turn the receiver on/off or to standby mode. 3INFO buttonDisplays on the HDTV the connection status of the receiver. Rear view 1DC IN connector Connect the power adapter of the receiver. 2HDMI OUT connector Connect to the HDTV with an HDMI cable 3 Overview The transmitter Front view POWER 1 LED indicator Displays the connection status of the transmitter. 2 USB power jack Connect the transmitter to the computer with the USB cable. Top view 1INFO button Displays on the HDTV the connection status of the transmitter. 2 HDMI IN connector Plug into the HDMI port of the computer. EN English UYYAAWOA'0KPFF 8 The Philips Wireless HD Net Connect gives you a total wireless solution to enjoy the content from your computer on your HDTV. The transmitter can transmit an uncompressed video content up to 20 feet (without obstruction between the transmitter      %   & !      receive signals for viewing on your HDTV. All you need to do is to:  Connect the transmitter to your computer.  Connect the receiver to your HDTV set. EN UYYAAWOA'0KPFF 9 3 Connect the other end of the USB cable to your the USB port of your computer. Note  For some computers, the HDMI and USB ports are located in different sides of the computer. »The power LED indicator of the     ?   #     into solid blue when the connection is established. Connect the receiver to the HDTV set HDMI HDMI 1 Connect the receiver with the supplied HDMI cable:  Connect one end of the HDMI cable to HDMI OUT connector of the receiver.  Connect the other end of the HDMI cable to the HDMI in connector of your HDTV. 2 Connect the power adapter to the receiver with the supplied power adapter :  Connect one end of the power adapter to the DC IN connector of the receiver.  Connect the other end of the power adapter to a power socket. 4 Installation Connect the transmitter to your computer a b c C…

Text truncated - open the document above for the full version.

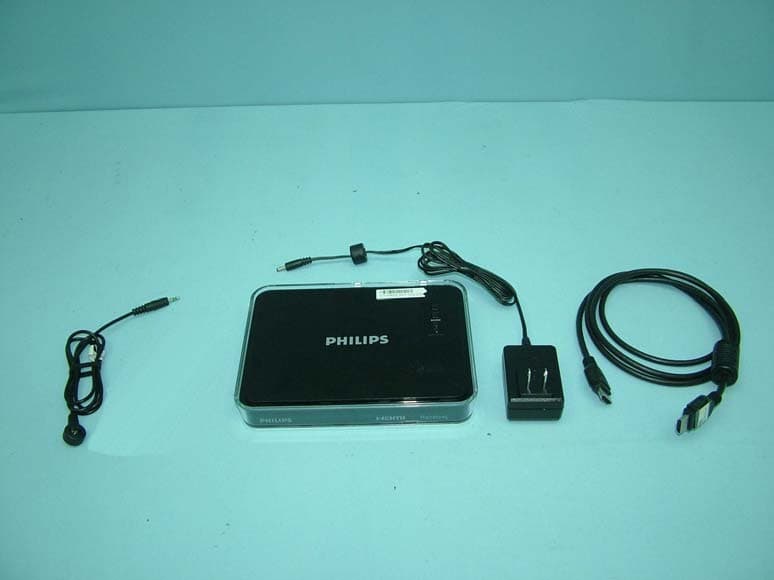

Page 1 CONSTRUCTION PHOTOS OF EUT PHILIPS SAMPLE: SWW1890R /27 Page 2 Page 3 Page 4 PHILIPS SAMPLE: SWW1810R /27 Page 5 Page 6 Page 7 Page 8 ZINWELL SAMPLE: WHD100R Page 9 Page 10 Page 11 ZINWELL SAMPLE: WHD200R Page 12 Page 13 Page 14

Wireless HD AV Connect Receiver Model: SWW1810R /27 Input: DC 5V2A,10W FCC ID:YG7ZRF32200 CAN IC:9078A-ZRF32200 Made in Taiwan For applicable power supplies, see user instructions. Philips Consumer Lifestyle P. O. Box 10313 Stamford, CT 06904, U.S.A 51.0 42.0 ' This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numerique de la class B est conforme a la norme NMB-003 du Canada. ' E217567 54JJ AUDIO/VIDEO APPARATUS Wireless HD Net Connect Receiver Model: SWW1890R /27 Input: DC 5V2A,10W FCC ID:YG7ZRF32200 CAN IC:9078A-ZRF32200 Made in Taiwan For applicable power supplies, see user instructions. Philips Consumer Lifestyle P. O. Box 10313 Stamford, CT 06904, U.S.A 51.0 42.0 E217567 54JJ AUDIO/VIDEO APPARATUS ' This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numerique de la class B est conforme a la norme NMB-003 du Canada. '

Page 1 CONSTRUCTION PHOTOS OF EUT PHILIPS SAMPLE: SWW1890R /27 Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 PHILIPS SAMPLE: SWW1810R /27 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 ZINWELL SAMPLE: WHD100R Page 15 Page 16 Page 17 Page 18 Page 19 ZINWELL SAMPLE: WHD200R Page 20 Page 21 Page 22 Page 23

FCC ID: YG7ZRF32200 Report No.: RF110607C27 Operational Description This device is a wireless HD AV connect receiver, which operates in 5GHz band; the maximum data rate could be up to 100Kbps transmission & 1Gbps reception, which OFDM technique. The transmitter of the EUT is powered by the 5Vdc from adapter. The antennas are Printed & chip antennas without antenna connector. The other instruction, please have a look at the users manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA110607C27 Report Format Version 4.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA110607C27 MODEL NO.: SWW1890R /27, SWW1810R /27, WHD100R, WHD200R FCC ID: YG7ZRF32200 APPLICANT: Zinwell Corporation ADDRESS: 7F., No.512, Yuanshan Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 6 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product, certification, approval, or endorsement by any government agency. The test results in the report only apply to the tested sample. Report No.: SA110607C27 Report Format Version 4.0.0 2 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................. 3 1. CERTIFICATION .......................................................................................................... 4 2. RF EXPOSURE............................................................................................................ 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE)...................................... 5 2.2 MPE CALCULATION FORMULA ................................................................................. 5 2.3 CLASSIFICATION ........................................................................................................ 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER............................... 6 Report No.: SA110607C27 Report Format Version 4.0.0 3 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED Original release NA Jul. 07, 2011 Report No.: SA110607C27 Report Format Version 4.0.0 4 1. CERTIFICATION PRODUCT: Wireless HD Net Connect Receiver, Wireless HD AV Connect Receiver MODEL: SWW1890R /27, SWW1810R /27, WHD100R, WHD200R BRAND: PHILIPS, ZINWELL APPLICANT: Zinwell Corporation TESTED: May 27 ~ Jun. 23, 2011 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (model: SWW1890R /27, SWW1810R /27, WHD100R, WHD200R) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Jul. 07, 2011 Joanna Wang / Senior Specialist APPROVED BY : , DATE :Jul. 07, 2011 Gary Chang / Assistant Manager Report No.: SA110607C27 Report Format Version 4.0.0 5 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA110607C27 Report Format Version 4.0.0 6 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 5180-5240 16.1 6.2 20 0.034 1 5745-5805 28.2 6.2 20 0.548 1

Report No.: RF110607C27 1 Report Format Version 4.0.0 FCC TEST REPORT (15.247) REPORT NO.: RF110607C27 MODEL NO.: SWW1890R /27, SWW1810R /27 (refer to item 3.1 for more details) FCC ID: YG7ZRF32200 RECEIVED: Jun. 02, 2011 TESTED: Jun. 16 ~ Jun. 27, 2011 ISSUED: Jul. 07, 2011 APPLICANT: Zinwell Corporation ADDRESS: 7F., No.512, Yuanshan Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 55 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Report No.: RF110607C27 2 Report Format Version 4.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD...............................................................................................4 1. CERTIFICATION............................................................................................................5 2. SUMMARY OF TEST RESULTS ...................................................................................6 2.1 MEASUREMENT UNCERTAINTY.................................................................................6 3. GENERAL INFORMATION ............................................................................................7 3.1 GENERAL DESCRIPTION OF EUT ..............................................................................7 3.2 DESCRIPTION OF TEST MODES ................................................................................9 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST .........................................................10 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .............................. 11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................13 3.4 DESCRIPTION OF SUPPORT UNITS ........................................................................13 4. TEST TYPES AND RESULTS .....................................................................................14 4.1 RADIATED EMISSION MEASUREMENT ...................................................................14 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................................14 4.1.2 TEST INSTRUMENTS.................................................................................................15 4.1.3 TEST PROCEDURES .................................................................................................16 4.1.4 DEVIATION FROM TEST STANDARD........................................................................16 4.1.5 TEST SETUP...............................................................................................................17 4.1.6 EUT OPERATING CONDITIONS ................................................................................17 4.1.7 TEST RESULTS ..........................................................................................................18 4.2 CONDUCTED EMISSION MEASUREMENT ..............................................................26 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................................26 4.2.2 T EST INSTRUMENTS................................................................................................26 4.2.3 TEST PROCEDURES .................................................................................................27 4.2.4 DEVIATION FROM TEST STANDARD........................................................................27 4.2.5 TEST SETUP...............................................................................................................28 4.2.6 EUT OPERATING CONDITIONS ................................................................................28 4.2.7 TEST RESULTS ..........................................................................................................29 4.3 6DB BANDWIDTH MEASUREMENT ..........................................................................35 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT .......................................................35 4.3.2 TEST INSTRUMENTS.................................................................................................35 4.3.3 TEST PROCEDURE....................................................................................................35 4.3.4 DEVIATION FROM TEST STANDARD........................................................................36 4.3.5 TEST SETUP...............................................................................................................36 4.3.6 EUT OPERATING CONDITIONS ................................................................................36 4.3.7 TEST RESULTS ..........................................................................................................37 4.4 MAXIMUM OUTPUT POWER .....................................................................................39 Report No.: RF110607C27 3 Report Format Version 4.0.0 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT......................................39 4.4.2 INSTRUMENTS ...........................................................................................................39 4.4.3 TEST PROCEDURE....................................................................................................39 4.4.4 DEVIATION FROM TEST STANDARD........................................................................39 4.4.5 TEST SETUP...............................................................................................................40 4.4.6 EUT…

Text truncated - open the document above for the full version.

Report No.: RF110607C27-1 1 Report Format Version 4.0.0 FCC TEST REPORT (15.407) REPORT NO.: RF110607C27-1 MODEL NO.: SWW1890R /27, SWW1810R /27 (refer to item 3.1 for more details) FCC ID: YG7ZRF32200 RECEIVED: Jun. 02, 2011 TESTED: Jun. 02 ~ Jun. 28, 2011 ISSUED: Jul. 07, 2011 APPLICANT: Zinwell Corporation ADDRESS: 7F., No.512, Yuanshan Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 64 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Report No.: RF110607C27-1 2 Report Format Version 4.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD.............................................................................................. 4 1. CERTIFICATION........................................................................................................... 5 2. SUMMARY OF TEST RESULTS .................................................................................. 6 2.1 MEASUREMENT UNCERTAINTY................................................................................ 6 3. GENERAL INFORMATION ........................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................. 7 3.2 DESCRIPTION OF TEST MODES ............................................................................... 9 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ........................................................ 10 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................. 11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 13 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................... 13 4. TEST TYPES AND RESULTS .................................................................................... 14 4.1 RADIATED EMISSION MEASUREMENT .................................................................. 14 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................ 14 4.1.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS .............. 14 4.1.3 TEST INSTRUMENTS................................................................................................ 15 4.1.4 TEST PROCEDURES ................................................................................................ 16 4.1.5 DEVIATION FROM TEST STANDARD....................................................................... 16 4.1.6 TEST SETUP.............................................................................................................. 17 4.1.7 EUT OPERATING CONDITION.................................................................................. 17 4.1.8 TEST RESULTS ......................................................................................................... 18 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................. 26 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 26 4.2.2 TEST INSTRUMENTS................................................................................................ 26 4.2.3 TEST PROCEDURES ................................................................................................ 27 4.2.4 DEVIATION FROM TEST STANDARD....................................................................... 27 4.2.5 TEST SETUP.............................................................................................................. 28 4.2.6 EUT OPERATING CONDITIONS ............................................................................... 28 4.2.7 TEST RESULTS ......................................................................................................... 29 4.3 MAXIMUM CONDUCTED OUTPUT POWER MEASUREMENT ............................... 35 4.3.1 LIMITS OF MAXIMUM CONDUCTED OUTPUT POWER MEASUREMENT............. 35 4.3.2 TEST INS…

Text truncated - open the document above for the full version.
