Bluetooth headset R6230 User’s Guide 1. Introduction The blue tooth headset allows your freedom to make and receive calls while on the move or in the office. You can connect the headset to a compatible phone that supports Bluetooth wireless technology Read this user guide carefully before using the headset, Read the user guide for your phone, which provides important safety and maintenance information, Keep the headset and It’s accessories out of reach of small children. Bluetooth wireless technology Bluetooth wireless technology allows you to connect compatible communication devices without cables, A blue tooth connection does not require the phone and the headset be in line of sight, but both devices should be within 10 meters(30feet)of each others. Connections can be subject to interference from obstructions, such as walls, or other electronic devices. The headset is compliant with the Bluetooth specification3.0+EDR supporting the following profiles: Headset Profile1.1 and Hands-free profile1.5 check with the manufacturers of other devices to determine the compatibility with this device There may be restrictions on using Bluetooth technology in same locations Check with your local authorities or service provider. 1. Get started Overview The headset contains the following parts (1) Ear loop (2) Bluetooth headset Before you start using the headset, you must charge the battery and connect the headset with a compatible phone. Note: parts of the headset are magnetic, metallic material may be attracted to the headset. Do not place credit cards or other magnetic storage media near the headset, because information stored on them maybe erased Chargers and Batteries Check the specification of any charger before using it with this device Warning: use only approved chargers with this particular enhancement. The use of any other types may invalidate any approval or warranty and maybe dangerous For availability of approved enhancement, please check with your dealer, when you disconnect the power cord of any enhancement grasp and pull the plug, not the cord Battery Charging This device has an internal non-removable, rechargeable battery Do not attempt to remove the battery from the device as you may imagine . 1. Connect the charger to the headset 2. Connect the charger to a USB port of PC. The red indicating light will be on during charging, disconnect the charger if charging does not start. Plug it in again, and retry. Charging the battery fully may take 2 hours 3. when the battery is fully charged, the red indicator turns off and the blue indicating light turns on. Disconnect the charger from the wall outlet and the headset The fully charged battery takes 4 hours for talking-time and 7.5 hours stand by time. However, the talking and stand by time may vary with different mobile phones, products that use Bluetooth connection, usage settings, styles and environments On/ Off Switching To switch On, press and hold the power key for 2sec or until you see the blue indicator or hear a beep ready for use. To switch Off, press and hold the power key, until you see the red indicator or hear a beep. Connecting the headset to a compatible phone, 1. activate the Bluetooth feature on your phone and have it ready to search for Bluetooth devices, see user guider of your phone for instructions 2. press the power button of the headset for about 5 seconds until you see blue-red light blinking 3. Search the Bluetooth device on your mobile phone 4. from the list of device, select our Bluetooth headset model 5. enter the password or code 0000 to connect the headset. In some phones you may need to make the connection separately after connecting, see the user guide of your phone for instructions 6. if the connection is successful the headset will beep and appear in the phone menu, where you can view the currently connected Bluetooth devices Disconnect the headset from the phone To disconnect the headset from your phone (for example to connect the phone to another Bluetooth device) Do one of the following Switch off the headset Disconnect the headset in the Bluetooth menu of your phone Move the headset more than 10 meters (30feet) Away from the phone You do not need to delete the connection with the headset to disconnect it Reconnect the headset to your phone To connect the headset to your phone, switch on the headset make the connection in the Bluetooth menu of your phone or press and hold the answer/end key You can set your phone to connect with the headset automatically when the headset is switched on, By changing your connected device settings in the Bluetooth menu. Trouble shooting If you can not connect the headset to your phone, do as follows. Ensure that the headset is charged, switched on, and paired with and connected to your phone Ensure that the Bluetooth feature is activated on your phone check that the headset is within 10 meters (30feet) of your phone and that there are no obstructions between the headset and the phone, such as walls or other electronic devices This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. I…

Text truncated - open the document above for the full version.

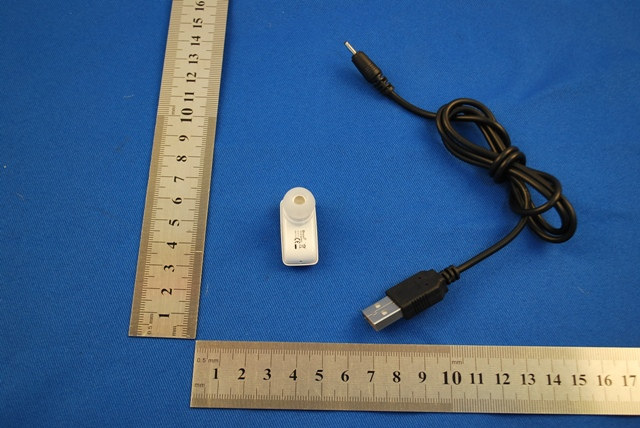

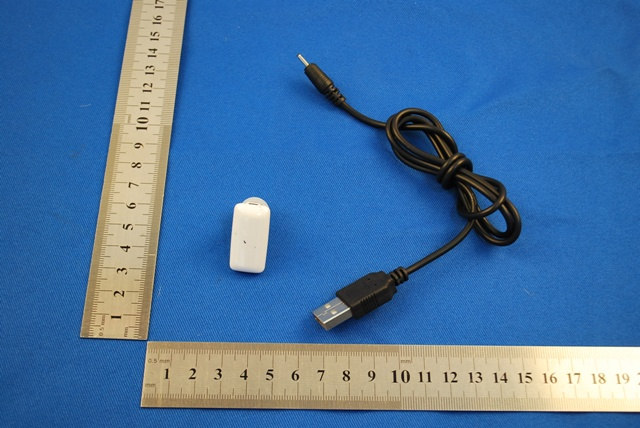

1 Photographs - EUT Constructional Details Test model No.: R6230

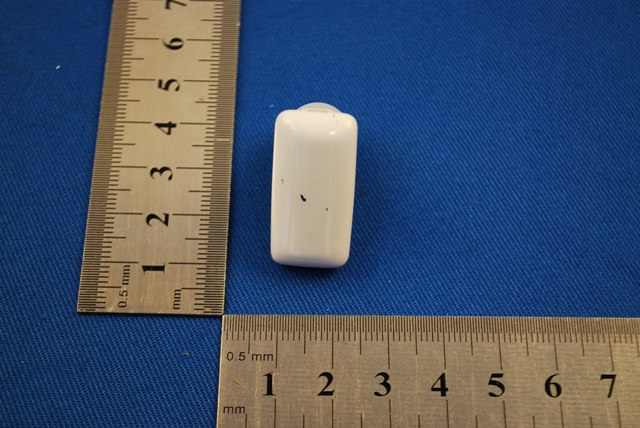

1 Photographs - EUT Constructional Details Test model No.: R6230

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 Workshop, M-10, Middle Section, Science & Technology Park, Nanshan District, Shenzhen, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM120700393802 Page: 1 of 5 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover Page Cover PageCover Page Cover Page SAR Evaluation Report Application No.: SZEM1207003938RF Applicant: Shenzhen Roman Technology CO., LTD Manufacturer: Shenzhen Roman Technology CO., LTD Factory Shenzhen Roman Technology CO., LTD Product Name: Bluetooth headset Model No.(EUT): R6230 Add Model No.: R6800, N95, R208, R95, R505C, R810, R811, R812, R813, R814, R815, R816, R817, R818, R819, R820, R821, R822, R823, R824, R825, R826, R827, R828, R829, SBT5588K Standard: 47 CFR Part 1.1307(2011) 47 CFR Part 2.1093 (2011) KDB447498D01 FCC ID: YGK16XX Date of Receipt: 2012-07-17 Date of Test: 2012-07-20 to 2012-07-26 Date of Issue: 2012-09-02 Test Result: PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM120700393802 Page: 2 of 5 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Contents 1 COVER PAGE COVER PAGECOVER PAGE COVER PAGE...................................................................................................................................................................1 2 CONTENTS..................................................................................................................................................................2 3 GENERAL INFORMATION........................................................................................................................................3 3.1 CLIENT INFORMATION...........................................................................................................................................3 3.2 GENERAL DESCRIPTION OF EUT.........................................................................................................................3 3.3 TEST LOCATION....................................................................................................................................................3 3.4 TEST FACILITY......................................................................................................................................................4 3.5 DEVIATION FROM STANDARDS.............................................................................................................................4 3.6 ABNORMALITIES FROM STANDARD CONDITIONS.................................................................................................4 3.7 OTHER INFORMATIO…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM120700393801 Page: 1 of 71 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page FCC REPORT Application No: SZEM1207003938RF Applicant: Shenzhen Roman Technology CO., LTD Manufacturer: Shenzhen Roman Technology CO., LTD Factory: Shenzhen Roman Technology CO., LTD Product Name: Bluetooth headset Model No.(EUT): R6230 Add Model No.: R6800, N95, R208, R95, R505C, R810, R811, R812, R813, R814, R815, R816, R817, R818, R819, R820, R821, R822, R823, R824, R825, R826, R827, R828, R829, SBT5588K FCC ID: YGK16XX Standards: 47 CFR Part 15, Subpart C (2011) Date of Receipt: 2012-07-17 Date of Test: 2012-07-20 to 2012-07-26 Date of Issue: 2012-09-02 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM120700393801 Page: 2 of 71 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Test Summary Test Item Test Requirement Test method Result Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203/15.247 (c) ANSI C63.10 (2009) PASS AC Power Line Conducted Emission 47 CFR Part 15, Subpart C Section 15.207 ANSI C63.10 (2009) PASS Conducted Peak Output Power 47 CFR Part 15, Subpart C Section 15.247 (b)(1) ANSI C63.10 (2009) PASS 20dB Occupied Bandwidth 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Carrier Frequencies Separation 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Hopping Channel Number 47 CFR Part 15, Subpart C Section 15.247 (b) ANSI C63.10 (2009) PASS Dwell Time 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Pseudorandom Frequency Hopping Sequence 47 CFR Part 15, Subpart C Section 15.247(b)(4)&TCB Exclusion List (7 July 2002) ANSI C63.10 (2009) PASS Band-edge for RF Conducted Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2009) PASS RF Conducted Spurious Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2009) PASS Radiated Spurious emissions 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 (2009) PASS Band Edge (Radiated Emission) 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 (2009) PASS Remark: Model No.: R6230, R6800, N95, R208, R95, R505C, R810, R811, R812, R813, R814, R815, R816, R817 R818, R819, R820, R821, R822, R823, R824, R825, R826, R827, R828, R829, SBT5588K Only the Model R6230 was tested, since the electrical circuit design, layout, components used and internal iring were identic…

Text truncated - open the document above for the full version.

1 Photographs - EUT Test Setup (Test Model No.: R6230) 1.1 Conducted Emission 1.2 Radiated Emission
