YGKBC5Bluetooth headset

ROMAN S301 Bluetooth Wireless Stereo Earphone User’s Manual Overview Multifunction Button 1.Volume up/Next Song 2.Volume down/Previous Song 3.Charger port Basic Operation Turn the headset on or off Press and hold the multifunction button for 2 seconds, and the blue indicator light blinking. The Bluetooth headset will connect the phone automatically if you paired the phone successfully before. If you first time to pair, please refer to the section of how to pair. How to pair the headset with a compatible phone ● Switch on your phone and the headset. ● Press the multifunction button for 5 seconds until blue and red LED light flashes alternating. ● Activate the Bluetooth feature on the phone, and set the phone to search for Bluetooth devices. See the user guide of your phone for instructions. ● Select the ROMAN S301 headset from the list of found devices ● Enter the pass code 0000 to pair and connect the headset to your phone. And the blue Indicator light flashes fast. It indicates that they are paired successfully. And now you can dial the call and enjoy the music freely. Charging the battery When the ROMAN S301 red indicator light flashes, showing low power, then connect the charger to the 2.0 mm headset jack to charge the battery. The charging time is about 3 hours. When the battery is fully charged, the red indicator light turns off, then there is no need to pair the phone and the headset again when opening the phone, they will connect automatically(the phone and ROMAN S301 have connected before). Notice: Must used our charger and earphone(将删掉) Other functions ●After connect the phone, press multifunction button twice quickly, you will hear the “DU” sound, then you can re-dial the last call. ● When on the incoming call status, just press multifunction button, you can receive the call. Press it again; you can also hang up the call. ● When on the incoming call status, press volume down key or volume up key for 1 seconds, the headset beeps, then release it, you can reject the call. ● When listening the music, just press multifunction button, the music can be paused, repeat pressing multifunction button, the music can continue playing. Press Volume up/down can adjust the volume. LED Indication Headset status LED Indication Switch on The purple indicator turns on and keeps on for 3 seconds Paring state The red and blue indicator flashes alternatively In idle state after paired The blue indicator flashes 1 time every 5 seconds Incoming call The purple indicator flashes During call The blue indicator flashes once every 8 seconds Switch off The red indicator flashes 3 times Low battery The red Led flashes Charging The red indicator keeps on Charging finished The blue indicator on SPECIFICATION Bluetooth Wireless Stereo Earphone CSR chipset Bluetooth Version：V2.1+EDR Support：headset、hands-free、A2DP、AVRCP、 CVC Rechargeable 60mAh Li-Polymer Battery Talking & Music Time: 3H Standby Time：120H Frequency：2.4G Range：10M Operating Temperature: 0 °C～60°C Storage Temperature: -20 °C～60°C Battery information Your device is powered by a rechargeable battery. The full performance of a new battery is achieved only after two or three complete charge and discharge cycles. The battery can be charged and discharged hundreds of times, but it will eventually wear out. Unplug the charger from the electrical plug and the device when not in use. Do not leave a fully charged battery connected to a charger, since overcharging may shorten its lifetime. If left unused, a fully charged battery will lose its charge over time. Leaving the device in hot or cold places, such as in a closed car in summer or winter conditions, will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15 and 25 (59°C °C°F and 77°F). A device with a hot or cold battery may not work temporarily, even when the battery is fully charged. Battery performance is particularly limited in temperatures well below freezing. Do not dispose of batteries in a fire as they may explode. Batteries may also explode if damaged. Dispose of batteries according to local regulations. Please recycle when possible. Do not dispose as household waste. Care and maintenance · Keep all accessories and enhancements out of the reach of small children. · Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that will corrode electronic circuits. If your device does get wet, allow it to dry completely. · Do not use or store the device in dusty, dirty areas. Its moving parts and electronic components can be damaged. · Do not store the device in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics. · Do not store the device in cold areas. When the device returns to its normal temperature, moisture can form inside the device and damage electronic circuit boards. · Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and fine mechanics. · Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device. · Do not paint the device. Paint can clog the moving parts and prevent proper operation. All of the above suggestions apply equally to your device, battery, charger, or any enhancement. If any device is not working properly, take it to the nearest authorized service facility. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable pro…

Text truncated - open the document above for the full version.

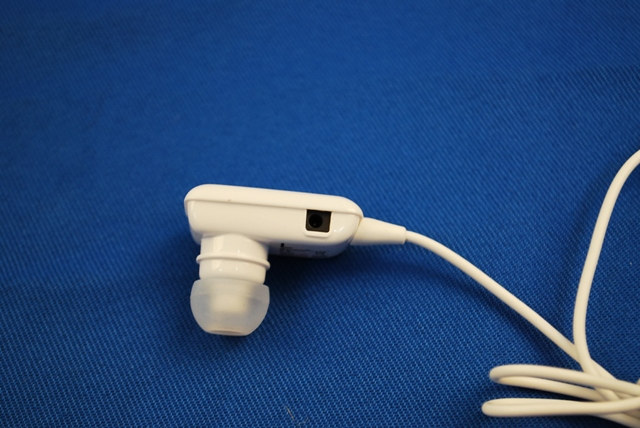

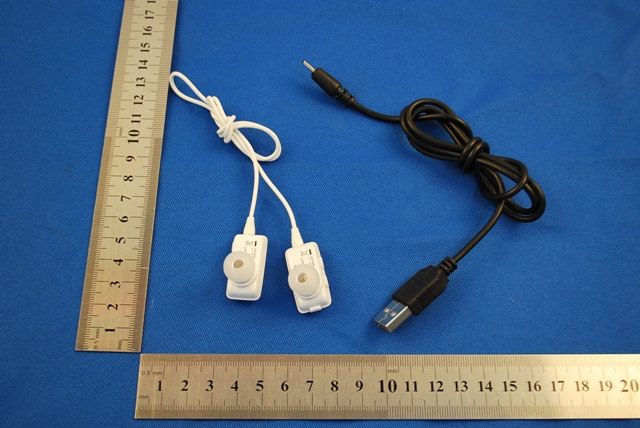

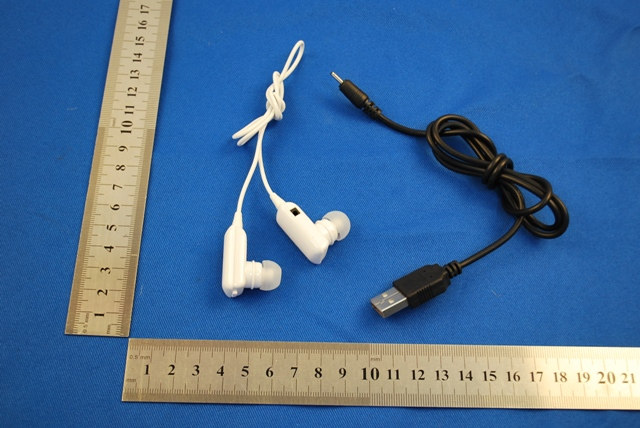

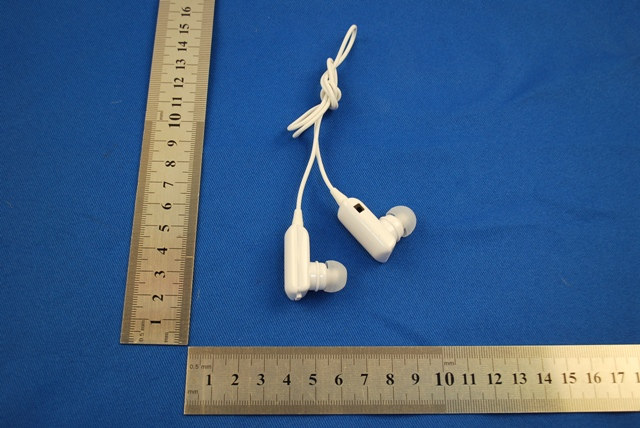

1 Photographs - EUT Constructional Details Test Model No.: S301

1 Photographs - EUT Constructional Details Test Model No.: S301

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 Workshop, M-10, Middle Section, Science & Technology Park, Nanshan District, Shenzhen, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM120700394002 Page: 1 of 5 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover Page Cover PageCover Page Cover Page SAR Evaluation Report Application No.: SZEM1207003940RF Applicant: Shenzhen Roman Technology CO., LTD Manufacturer: Shenzhen Roman Technology CO., LTD Factory Shenzhen Roman Technology CO., LTD Product Name: Bluetooth headset Model No.(EUT): S301 Add Model No.: S506, S530, S360, S351, S300, X5, X6, X9, S200, X10， J1, S801, S802, S803, S804, S805, S806, S807, S808, S809, S850, S851, S852, S853, S854, S855, S856,S857, S858, S859 Standard: 47 CFR Part 1.1307(2011) 47 CFR Part 2.1093 (2011) KDB447498D01 FCC ID: YGKBC5 Date of Receipt: 2012-07-17 Date of Test: 2012-07-20 to 2012-07-26 Date of Issue: 2012-09-02 Test Result: PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM120700394002 Page: 2 of 5 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Contents 1 COVER PAGE COVER PAGECOVER PAGE COVER PAGE...................................................................................................................................................................1 2 CONTENTS..................................................................................................................................................................2 3 GENERAL INFORMATION........................................................................................................................................3 3.1 CLIENT INFORMATION...........................................................................................................................................3 3.2 GENERAL DESCRIPTION OF EUT.........................................................................................................................3 3.3 TEST LOCATION....................................................................................................................................................3 3.4 TEST FACILITY......................................................................................................................................................4 3.5 DEVIATION FROM STANDARDS.............................................................................................................................4 3.6 ABNORMALITIES FROM STANDARD CONDITIONS.................................................................................................4 3.7 OTHER INF…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM120700394001 Page: 1 of 71 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page FCC REPORT Application No: SZEM1207003940RF Applicant: Shenzhen Roman Technology CO., LTD Manufacturer: Shenzhen Roman Technology CO., LTD Factory: Shenzhen Roman Technology CO., LTD Product Name: Bluetooth headset Model No.(EUT): S301 Add Model No.: S506, S530, S360, S351, S300, X5, X6, X9, S200, X10, J1, S801, S802, S803, S804, S805, S806, S807, S808, S809, S850, S851, S852, S853, S854, S855, S856 S857, S858, S859 FCC ID: YGKBC5 Standards: 47 CFR Part 15, Subpart C (2011) Date of Receipt: 2012-07-17 Date of Test: 2012-07-20 to 2012-07-26 Date of Issue: 2012-09-02 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM120700394001 Page: 2 of 71 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Test Summary Test Item Test Requirement Test method Result Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203/15.247 (c) ANSI C63.10 (2009) PASS AC Power Line Conducted Emission 47 CFR Part 15, Subpart C Section 15.207 ANSI C63.10 (2009) PASS Conducted Peak Output Power 47 CFR Part 15, Subpart C Section 15.247 (b)(1) ANSI C63.10 (2009) PASS 20dB Occupied Bandwidth 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Carrier Frequencies Separation 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Hopping Channel Number 47 CFR Part 15, Subpart C Section 15.247 (b) ANSI C63.10 (2009) PASS Dwell Time 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Pseudorandom Frequency Hopping Sequence 47 CFR Part 15, Subpart C Section 15.247(b)(4)&TCB Exclusion List (7 July 2002) ANSI C63.10 (2009) PASS Band-edge for RF Conducted Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2009) PASS RF Conducted Spurious Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2009) PASS Radiated Spurious emissions 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 (2009) PASS Band Edge (Radiated Emission) 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 (2009) PASS Remark: Model No.: S301, S506, S530, S360, S351, S300, X5, X6, X9, S200, X10, J1, S801, S802, S803, S804, S805, S806, S807, S808, S809, S850, S851, S852, S853, S854, S855, S856 S857, S858, S859 Only the Model S301 was tested, since the electrical circuit design, layout, components used and internal w…

Text truncated - open the document above for the full version.

1 Photographs - EUT Test Setup (Test Model No.: S301) 1.1 Conducted Emission 1.2 Radiated Emission
