YGN-APKEY016R/C Transmitter

American Technology Components Inc.

Click to zoom

Application Details

Equipment Class: DSC - Part 15 Security/Remote Control Transmitter
Date of Grant: Jul 05, 2010
Application Purpose: Original Equipment
Date of Application: Jul 05, 2010
Equipment Note: R/C Transmitter
Frequency Range: 303.50000000 - 303.50000000
Company: American Technology Components Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

AP‐KEY‐016 USER MANUAL Features and operations: The AP‐KEY‐016 is powered by a +12V DC 23A battery. There are two channel outputs controlled by AP‐KEY‐016. The LED of AP‐KEY‐016 will start flashing when a button is pressed. Press down buttons will activate relative outputs. The relative outputs will keep activated until you release buttons. Double‐key (key1 + key2) operation is allowed in this device. FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation.

External Photos

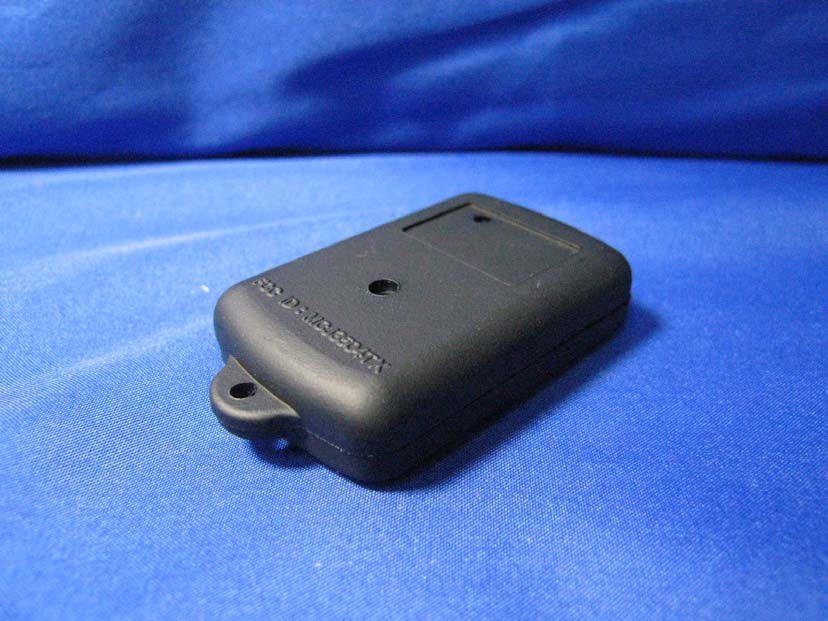

Report No.: 105358R-RFUSP41V01 Page : 1 of 4 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

ID Label/Location Info

American Technology Components Inc. FCC ID.: YGN-APKEY016 2905 Lavanture Place, Elkhart IN. 46514 USA Tel : (574) 262-1258 FCC ID Label The FCC ID will be placed on the equipment as shown in the photograph below.

ID Label/Location Info

Internal Photos

Report No.: 105358R-RFUSP41V01 Page : 2 of 4 (3) EUT Photo (4) EUT Photo Report No.: 105358R-RFUSP41V01 Page : 3 of 4 (5) EUT Photo (6) EUT Photo Report No.: 105358R-RFUSP41V01 Page : 4 of 4 (7) EUT Photo (8) EUT Photo

Test Report

Report No：105358R-RFUSP41V01 Page: 1 of 26 Test Report Product Name Transmitter Model No. AP-KEY-016 FCC ID. YGN-APKEY016 Applicant American Technology Components Inc. Address 2905 Lavanture Place, Elkhart IN. 46514 USA Date of Receipt May 24, 2010 Issued Date June 24, 2010 Report No. 105358R-RUSP41V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No：105358R-RFUSP41V01 Page: 2 of 26 Test Report Certification Issued Date : June 24, 2010 Report No. : 105358R-RFUSP41V01 Product Name Transmitter Applicant American Technology Components Inc. Address 2905 Lavanture Place, Elkhart IN. 46514 USA Manufacturer Serenity Technology Co., Ltd. Model No. AP-KEY-016 FCC ID. YGN-APKEY016 EUT Rated Voltage DC 12V(Power by Battery) EUT Test Voltage DC 12V(Power by Battery) Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2009 ANSI C63.4: 2003 Test Result Complied Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Genie Chang) Tested By : ( Engineer / Molin Huang) Approved By : ( Manager / Vincent Lin) Report No：105358R-RFUSP41V01 Page: 3 of 26 TABLE OF CONTENTS Description Page 1. General Information ...................................................................................................................4 1.1. EUT Description............................................................................................................................4 1.2. Operation Description ...................................................................................................................5 1.3. Tested System Details....................................................................................................................6 1.4. Configuration of tested System .....................................................................................................6 1.5. EUT Exercise Software .................................................................................................................6 1.6. Test Facility ...................................................................................................................................7 2. Conducted Emission...............................................................................................................8 2.1. Test Equipment...........................................................................................................................8 2.2. Test Setup....................................................................................................................................8 2.3. Limits.............................................................................................................................................9 2.4. Test Procedure............................................................................................................................9 2.5. Test Specification........................................................................................................................9 2.6. Uncertainty...................................................................................................................................9 2.7. Test Result.................................................................................................................................10 3. Radiated Emission ..................................................................................................................... 11 3.1. Test Equipment............................................................................................................................11 3.2. Test Setup ....................................................................................................................................12 3.3. Limits ..........................................................................................................................................13 3.4. Test Procedure .............................................................................................................................14 3.5. Test Specification ........................................................................................................................14 3.6. Uncertainty ..................................................................................................................................14 3.7. Test Result ...................................................................................................................................15 4. Transmit time.............................................................................................................................22 4.1. Test Equipment............................................................................................................................22 4.2. Test Setup ....................................................................................................................................22 4.3. Limits ..........................................................................................................................................22 4.4. Test Specification ........................................................................................................................22 4.5. Uncertainty ..................................................................................................................................22 4.6. Test Result ...................................................................................................................................23 5. Occupied Bandwidth…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No.: 105358R-RFUSP41V01 Page : 1 of 2 Attachment 1: EUT Test Setup Photographs Front View of Radiated Test Back View of Radiated Test Report No.: 105358R-RFUSP41V01 Page : 2 of 2 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
