YGN-RF2BTN001Remote Controller

Manual 一．Electrical System Parameters 1、 Wo r k v o l t a g e：DC6V 2、 Quiescent current：≦5UA 3、 Working current：≦21MA 4、 Transmitting power：≦100MW 5、 Working frequency：433MHZ 6、 Modulation mode：ASK 7、 Encode type：learning code Learning Instructions: 1) Push & hold receiver button for 3 seconds (light starts flashing faster),release button. 2) Press "on/off" button on transmitter (light starts on/constant) & then release (light goes back to the faster speed). 3) Option:learn 2nd or 3rd transmitter at this time. 4) Push & release receiver button to turn off learn mode (light will stay on/constant). Note: T his equipment has been tested and found to comply with the limits Class B digital device. Pursuant to part 15 of the FCC rules. This limits are designed to a provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, The user is encouraged to try to correct the interference by one or more the following measures: -Reorient or relocate the receiving antenna -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected -Consult the dealer on an experienced radio/TV technician for help NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSE BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT.

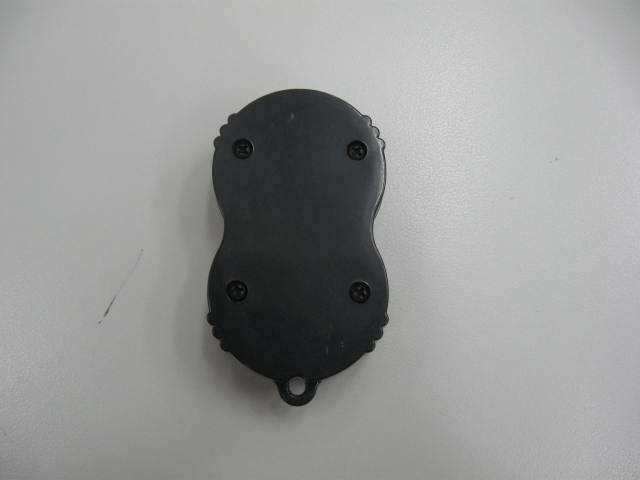

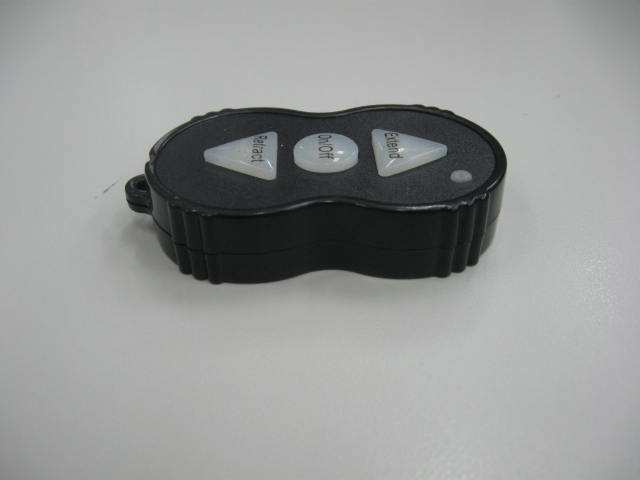

External Photo Front View of the product Rear View of the product Side View of the product Side View of the product

Q2480 Transmitter Overlay < Back > * Actual Size VG 11.11.11 2 Batteries: CR2032 FCC ID: XXX-XXXXXXXXX Freq: 433MHz This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation. Learning Instructions go to www.atcomp.com 2 Batteries: CR2032 FCC ID: XXX-XXXXXXXXX Freq: 433MHz This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation. Learning Instructions go to www.atcomp.com

Internal Photo Front View of the product (Internal) Rear View of the product (Internal) Inner Circuit Front View Inner Circuit Rear View Battery Compartment

TESTREPORTNo:(5211)313-0692 BUREAU VERITAS To: TESTREPORT To: AMEmCANTECHNOLOGY COMPONENTS.INC. FolderNo.: 2905LaVanturePlaceElkhart,IN46514 Attn: GregNeff Address: Address: Fax: E-mail: Attn: Fax: E-mail: BVCX11N0094ETHS-B Factoryname: WENZHOUBAOXIANGELECTRICCO.,LTO. No.59NanxijiangRoadEconomicAndDevelopmentZoneWenzhouZhejiangChinaLocation: Product: 2 BUTTONGenesisRFSYSTEM MODEL:GSJr. SampleNo:HK111107/019 Testdate:November15,2011 TestRequested:FCCPart15- 2010 TestMethod: ANSIC63.4- 2009 FCC10:YGN-RF2BTN001 Theresultsgivenin thisreportarerelatedtothetestedspecimenofthedescribedelectricalapparatus. CONCLUSION:ThesubmittedsamplewasfoundtoCOMPLYwithrequirementofFCCPart15SubpartC. AuthorizedSignature: BUREAUVERITASHONGKONGLlMITED- KowloonBayOffice 1/FPacificTradeCentre, 2 KaiHingRoad,KowloonBay, Kowloon,HONGKONG Tel+85223310888 Fax:+85223310889 www.cps.bureauveritas.com Thisreportisintendedforyourexclusiveuse.Anycopyingorreplicationofthisreporttoorforanyotherpersonorentity,oruse ofournameortrademark,ispermittedonlywithourpriorwrittenpermissionOurreportislimitedtothetestsamplesidentified hereinTheresultssetforthinthisreportarenotnecessarilyindicativeorrepresentativeofthestatisticalqualityorcharacteristicsof thelotfromwhicha testsamplewastakenoranysimilaroridenticalproductunlessspecificallyandexpresslynotedOurreport includesallofthetestsrequestedbyyouandtheresultsthereofYoushallhavethirtydaysfromreceiptofthisreporttorequest additionaltestingofthesamplesortonotifyusofanyerrorsoromissionsrelatingtoourreport,provided,however,suchnotice shallbeinwritingandshallspecificallyaddresstheissueyouwishtoraise.Afailuretoraisesuchissuewithintheprescribedtime shallconstituteyourunqualifiedacceptanceofthecompletenessofthisreport,thetestsconductedandthecorrectnessofthereport contents Page1 of20 TEST REPORT No: (5211)313-0692 BUREAU VERITAS HONG KONG LIMITED – Kowloon Bay Office 1/F Pacific Trade Centre, 2 Kai Hing Road, Kowloon Bay, Kowloon,HONG KONG Tel: +852 2331 0888 Fax: +852 2331 0889 www.cps.bureauveritas.com This report is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. Our report is limited to the test samples identified herein. The results set forth in this report are not necessarily indicative or representative of the statistical quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof. You shall have thirty days from receipt of this report to request additional testing of the samples or to notify us of any errors or omissions relating to our report, provided, however, such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Page 2 of 20 Test Laboratory & Test Instruments List Radiated and Conducted emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 2009. An Open Area Test Site and Full Anechoic Chamber (FCC Listed Site, Registration No. 642151) are set up for investigation and located at : BUREAU VERITAS HONG KONG LIMITED, EMC CENTRE No. 2106-2107, 21/F., Westin Centre, 26 Hung To Road, Kwun Tong, Kowloon, Hong Kong Test Instrument List Radiated Emission EQUIPMENT MANUFACTURER MODEL NO. SERIAL NO. CALIBRATION DUE EMI TEST RECEIVER R&S ESCI 100379 13-DEC-2011 BILOG ANTENNA SCHAFFNER CBL6112D 25229 16-SEP-2012 OPEN AREA TEST SITE BVCPS N/A N/A 07-JUL-2012 SPECTRUM ANALYZER ADVANTEST R3127 111000909 24-JAN-2012 HORN ANTENNA SCHWARZBECK BBHA9120D 9120D-692 16-SEP-2012 PREAMPLIFER SCHWARZBECK BBV9718 9718-152 16-SEP-2012 ANECHOIC CHAMBER ALBATROSS M-CDC 80374004499B 25-OCT-2012 COAXIAL CABLE HUBER+SUHNER RG214 N/A 06-OCT-2012 Remarks:- N/A : Not Applicable or Not Available The measurement instrumentation uncertainty would be taking into consideration on each of the test result TEST REPORT No: (5211)313-0692 BUREAU VERITAS HONG KONG LIMITED – Kowloon Bay Office 1/F Pacific Trade Centre, 2 Kai Hing Road, Kowloon Bay, Kowloon,HONG KONG Tel: +852 2331 0888 Fax: +852 2331 0889 www.cps.bureauveritas.com This report is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. Our report is limited to the test samples identified herein. The results set forth in this report are not necessarily indicative or representative of the statistical quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof. You shall have thirty days from receipt of this report to request additional testing of the samples or to notify us of any errors or omissions relating to our report, provided, however, such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Page 3 of 20 Equipment Under Test [EUT] Description of Sample: Model Name: 2 BUTTON Genesis RF SYSTEM Model Number: GS Jr. Rating: 6Vd.c. (“CR2032” size battery x 2) Description of EUT Operation: The Equipment Under Test (EUT) is a AMERICAN TECHNOLOGY COMPONENTS. INC. RF transmitter. It is a 3 buttons transmitter and operating at 433MHz. The EUT transmit while buttons is being pressed. Modulation by IC, and type is ASK modulation. The transmitter has di…
