YGU-TS03RCHeated Insoles With Rechargeable Batteries

CONTENTS: INHALT: CONTENU: • 2 Heated Insoles 2 beheizbare Sohlen 2 semelles chauffantes • 1 Remote Control unit 1 Fernbedienung 1 Remote Control unit • 1 Adapter 1 Adapter 1 chargeur • 1 Storage & Travel pouch 1 Trage & Reisetasche 1 housse de rangement et de transport • 1 Instruction booklet 1 Gebrauchsanweisung 1 notice d’utilisation Technical Specifications: • 900 mAh Li-Ion Polymer Battery • Heating time up to 6 hours • Soletemperature :38°C - 44°C Technische Hinweise: • 900 mAh Li-Ionen Batterie • Betriebsdauer bis zu 6 Stunden • Temperatur von 38°C - 44°C DONNÉES TECHNIQUES: • Batterie polymère 900 mAh Li-Ion • Durée de chauffage jusqu’à 6 heures • Température de la semelle entre 38°C et 44°C • Protective non-conducting layer • Schutzeinlage • couche de protection en matériau non conducteur • Insulating fabric lining • Isoliermaterial • revêtement isolant • Protective cover • Schutzkappe • volet de protection • Tab • Lasche • languette PATENTED Patent Number: DE 103 52 050 A1 International patents pending! German Technology Made in China Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RoHS C o m p l i a n t 2002/95/EC THERMO SOLES Instructions THERMO SOLES Gebrauchsanweisung THERMO SOLES Mode d’emploi ® • 3-D Polyurethane footbed • 3-D Polyurethan Fußbett • chausson polyuréthane anatomique • Fabric Lining • Obermaterial • revêtement en tissus • Remote Control • Thermostat • Thermostat • Thermostat • Li-Ion Polymer Battery • Li-Ion Polymer Batterie • batterie Lithium Ion polymère • LED Lamp • LED Lampe • LED • On/Off Switch • Ein/ Aus Schalter • interrupteur marche/arrêt • Receiver • PCB Board • PCB Board • circuit imprimé sur film flexible • Heating element • Heizelement • élément chauffant • Control chip • Kontroll- Chip • circuit électronique de contrôle • Adaptor socket • Adapter Anschluss • prise de connexion au chargeur NoNo LADEN: 1) Beide Sohlen müssen gleichzeitig geladen werden. 2) Öffnen Sie die Schutzabdeckung über der Schalt- / Ladeeinheit. 3) Schieben Sie den ON/OFF Schalter nach links in die OFF Position. 4) Stecken Sie das Ladegerät in eine geeignete Steckdose, das grüne Licht am Ladegerät leuchtet auf. 5) Stecken Sie jetzt die beiden am Ladegerät befindlichen Stecker in die dafür vorgesehenen Ladebuchsen der Sohlen. Das Ladegerät leuchtet rot, die Sohlen werden geladen. 6) Sobald die Sohlen geladen sind, wechselt das Licht am Ladegerät auf grün. 7) Entfernen Sie nun die Kabel von den Sohlen, sowie das Ladegerät aus der Steckdose. 8) Ihre Sohlen sind jetzt einsatzbereit. Unpack the THERMOSOLES Foot Warmers, remote unit and adapter. THERMOSOLES Foot Warmers must be fully charged for 8 hours before first use! The ON/OFF switch, located on the back of the soles, is protected by a soft plastic cap. Open the cap and set the On/Off switch to the left OFF position. CHARGING: (Both soles always must be charged at the same time!) 1) Set the On/Off switch to the left OFF position. 2) Plug in the charger into a wall outlet. The green light of the charger will now turn on. 3) Plug in the charger cables to both of the soles sockets. The red light on the charger will now turn on, indicating that the soles are charging. 4) After charging is complete, the green light on the charger will turn on. 5) Unplug the charger and remove the charger cables from the soles. Your THERMOSOLES Foot Warmers are now ready to be used. ACTIVATE THE SOLES: 1) Turn the On/Off switch to the right ON position for soles to receive signal from remote unit. 2) Remove the protective tab on the remote unit (before its first use!). 3) Press the button on the remote unit and release. The left light (red) on the remote unit will flash several times to indicate that the soles are now on a Standby setting. 4) Press the button and release again to move through the required temperature settings (Standby 5°C – Medium 38°C – High 44°C). The cycle of the setting is Standby – Medium – High – Standby, etc.! 5) The LED lights on the remote unit will flash several times after being activated: Standby – left light in red. Medium – middle light in green. High – right light in green. 6) The red LED lights on the back of the soles will blink continuously as follows: Standby – One blink. Medium (38°C) – Two blinks. High (44°C) – Three blinks. OPERATING INSTRUCTIONS CONSEILS D’UTILISATION TURN OFF THE SOLES: Turn the On/Off switch to the left OFF position. BATTERIES: • The high-quality 900 mAh Li-Ion Polymer batteries (no memory effect!) can be re-charged approximately 500 times! • The batteries will reach their maximum power after having been drained and re-charged several times! • For best performance it is recommended to occasionally drain the batteries of both soles completely before recharging! • Do not fully charge the batteries if the soles will not be used for an extended period of time. Charge the batteries for 20 minutes only and then again for 20 minutes after 3 months of storage. Charge completely before using the soles again! • If the battery of the Remote Unit is running low, the Low Battery Alert will start flashing in sequence from Standby – Medium – High, etc.! In this case, please contact your nearest THERMOSOLES dealer or replace with 1 piece of CR2032 button cell battery. GENERAL COMMENTS FOR EASY USAGE OF THE SOLES: • If needed, remove any existing in-soles from your shoes or boots in order to guarantee a perfect fit of your soles. • The tabs at the end of the soles will help you to easily remove the soles from your shoes or boots after use. • The maximum heating time, depending on the outside temperatures and quality of your shoes or boots, is approximately 6 hours. (On Medium setting!) CARE INSTRUCTIONS: • Turn OFF the soles when not in use. • Store the soles and adapter in a clean and dry place. • Only use the enclosed original adapter to charge the soles. • Only charge the soles when th…

Text truncated - open the document above for the full version.

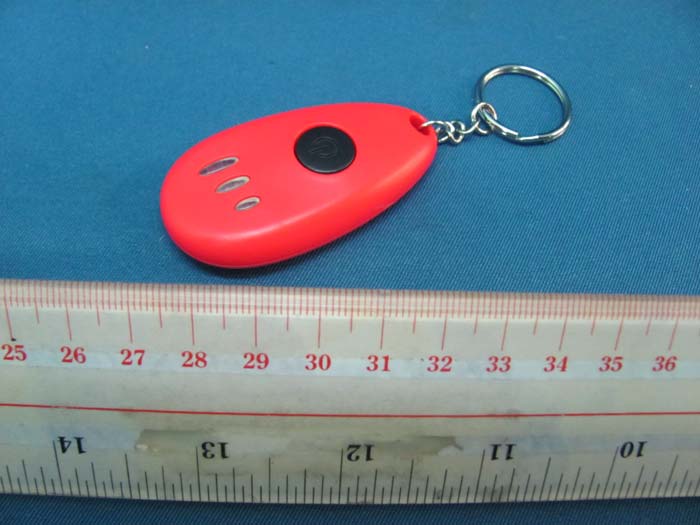

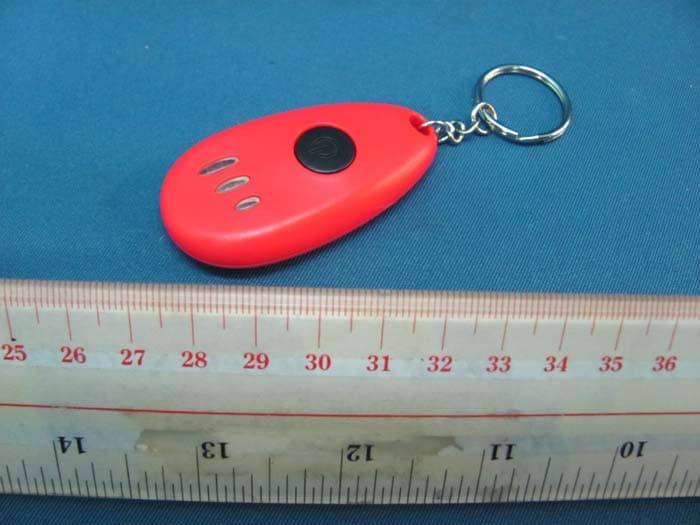

INTERTEK TESTING SERVICE Report No.: HK10120775-1 FCC ID: YGU-TS03RC Equipment Photographs Model : TS03RC (External)

INTERTEK TESTING SERVICE Report No.: HK10120775-1 FCC ID: YGU-TS03RC Equipment Photographs Model : TS03RC (Internal) INTERTEK TESTING SERVICE Report No.: HK10120775-1 FCC ID: YGU-TS03RC Equipment Photographs Model : TS03RC (Internal) INTERTEK TESTING SERVICE Report No.: HK10120775-1 FCC ID: YGU-TS03RC Equipment Photographs Model : TS03RC (Internal)

FCC ID: YGU-TS03RC Technical Description : The brief circuit description is listed as follows : - Q1, XT1 and associated circuit act as 433.92MHz Oscillator. - IC1 acts as Encoder and MCU. - XT2 acts as external clock Oscillator. - Q3 acts as signal control switch. - L1, C4-C6 acts as RF filter circuit - Sone acts as control button. Antenna Used : An internal integral antenna has been used.

Sone R81K BT1 CR2032LED1 Red LED2 Green LED3 Green R61K R71K C8 15p C9 15p XT2 8MHz C10 10n C7 1u P52 1 P53 2 TCC 3 /RESET 4 VSS 5 /INT/P60 6 P61 7 P62 8 P63 9 P64 10 P65 11 P66 12 P67 13 VDD 14 OSCO 15 OSCI 16 P50 17 P51 18 IC1 EM78P156NAS(SOP18) Q1 2SC3356 R1 68k C6 3p C4 2p C5 8.2p C3 20p C2 10n ANT R2 22 C1 47u L1 4T XT1 HDR433MHz L2 6.8uH Q3 8050 R4300K R310K R5100K CL 2p

INTERTEK TESTING SERVICES Report No.: HK10120775-1 Sample No.: 1/1 Code: FCC15C_d / Effective Date: 26 Jan 2010 ( of ) Bandwidth Plot – Pursuant to FCC Part 15 Section 15. _231___ Requirement

Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK10120775-1 Reinbacher International Limited Application For Certification (Original Grant) (FCC ID: YGU-TS03RC) Transmitter Prepared and Checked by: Approved by: Signed On File Kenneth Wong /cl Engineer Chan Chi Hung, Terry Assistant Supervisor Date: January 05, 2011 INTERTEK TESTING SERVICES Report No.: HK10120775-1 FCC ID: YGU-TS03RC i GENERAL INFORMATION Reinbacher International Limited BRAND NAME: THERMO SOLES, MODEL: TS03RC FCC ID: YGU-TS03RC Grantee: Reinbacher International Limited Grantee Address: Room 1603 Citicorp Centre, 18 Whitfield Road, North Point, Hong Kong Contact Person: Albert Au Tel: 2895 2401 Fax: 2571 9216 e-mail: [email protected] Manufacturer: Dongguan Jing Cheng Electronic Co. Ltd. Manufacturer Address: Chung Hang, Shek Pai District, Dongguan, Guangdong Province, China (Postal Code: 523332) Brand Name: THERMO SOLES Model: TS03RC Type of EUT: Transmitter Description of EUT: Heated Insoles With Rechargeable Batteries Serial Number: N/A FCC ID: YGU-TS03RC Date of Sample Submitted: December 21, 2010 Date of Test: January 04, 2011 Report No.: HK10120775-1 Report Date: January 05, 2011 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK10120775-1 FCC ID: YGU-TS03RC ii SUMMARY OF TEST RESULT Reinbacher International Limited BRAND NAME: THERMO SOLES, MODEL: TS03RC FCC ID: YGU-TS03RC TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength 15.227 / RSS-310 3.8 N/A Transmitter Field Strength 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 Pass Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Emissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK10120775-1 FCC ID: YGU-TS03RC iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Equipment Modification................................................................................. 2 2.5 Measurement Uncertainty ............................................................................. 2 2.6 Support Equipment List and Description........................................................ 2 3.0 Emission Results ........................................................................................... 3 3.1 Field Strength Calculation ............................................................................. 3 3.2 Radiated Emission Configuration Photograph ............................................... 4 3.3 Radiated Emission Data ............................................................................... 4 4.0 Equipment Photographs ................................................................................ 6 5.0 Product Labelling........................................................................................... 6 6.0 Technical Specifications ................................................................................ 6 7.0 Instruction Manual ......................................................................................... 6 8.0 Miscellaneous Information............................................................................ 6 8.1 Measured Bandwidth / RF Output Signal....................................................... 6 8.1 Stabilization Waveform......................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.: HK10120775-1 Sample No.: 1/1 Code: FCC15C_d / Effective Date: 26 Jan 2010 ( of ) Average Factor – Pursuant to FCC Part 15 Section 15. _231___ Requirement INTERTEK TESTING SERVICES Report No.: HK10120775-1 Sample No.: 1/1 Code: FCC15C_d / Effective Date: 26 Jan 2010 ( of ) Average Factor – Pursuant to FCC Part 15 Section 15. _231___ Requirement INTERTEK TESTING SERVICES Report No.: HK10120775-1 Sample No.: 1/1 Code: FCC15C_d / Effective Date: 26 Jan 2010 ( of ) Timing – Pursuant to FCC Part 15 Section 15. _231___ Requirement

INTERTEK TESTING SERVICE Report No: HK10120775-1 FCC ID: YGU-TS03RC Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : TS03RC Radiated Emission Model: TS03RC Job: HK10120775-1 A5 B… INTERTEK TESTING SERVICE Report No: HK10120775-1 FCC ID: YGU-TS03RC Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : TS03RC Radiated Emission Model: TS03RC Job: HK10120775-1 A… B5
